máquinas talladoras de engranaje usadas para la venta (209)

max. wheel diameter:210 mmtotal power requirement:60 kWweight of the machine ca.:8 tdimensions of the machine ca.:2,85 x 2,60 x 1,80 mgrinding slide feed:700 mmgrinding slide feeds:1-15.000 m/minmax. workpiece weight:150 kgcentre height:260 mmgrinding wheel diameter:240 mm

rotor dia:30-500 mmhobbing length:500-1000 mmtotal power requirement:80 kWweight of the machine ca.:15 tdimensions of the machine ca.:3,6 x 2,5 x 3,0 mmax. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

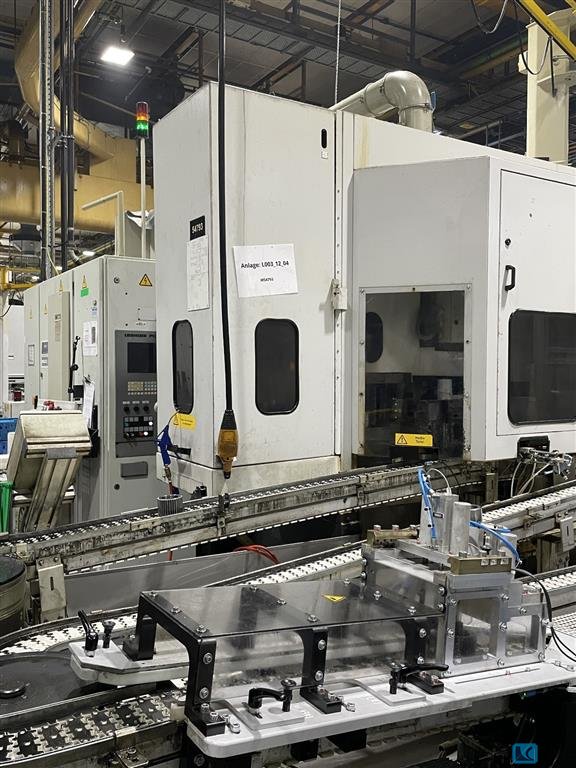

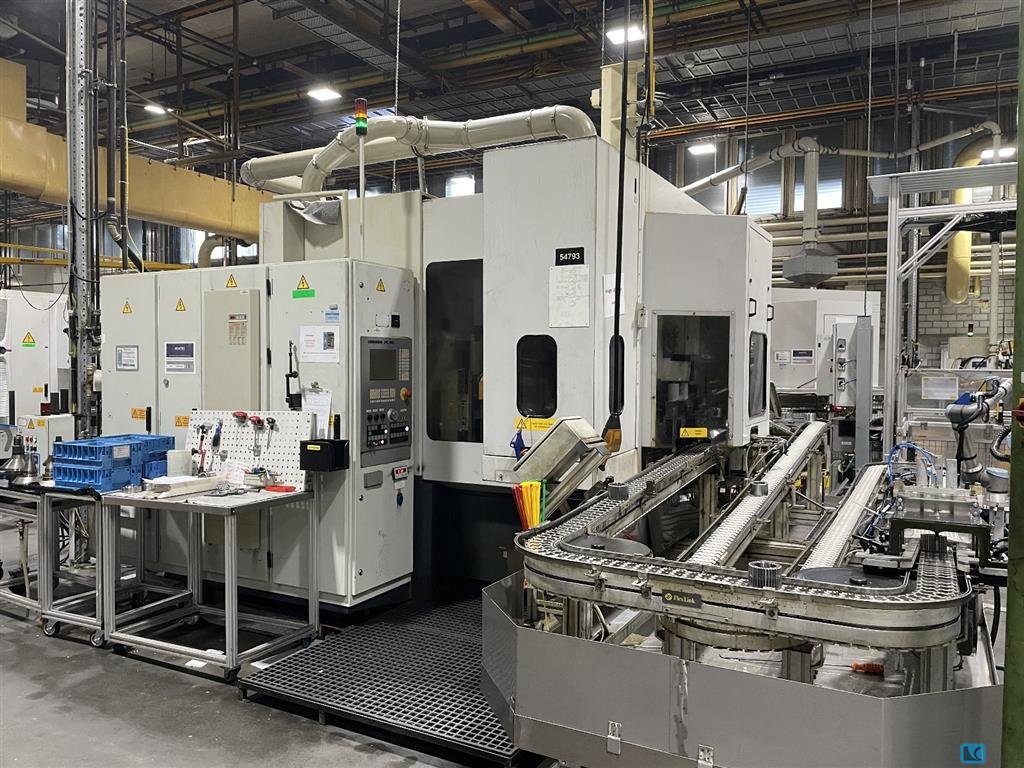

max. wheel diameter:180 mmmax. module:7 hob turning speeds:200-2000 U/minmin. number of teeth:4 excluding conveyor belt

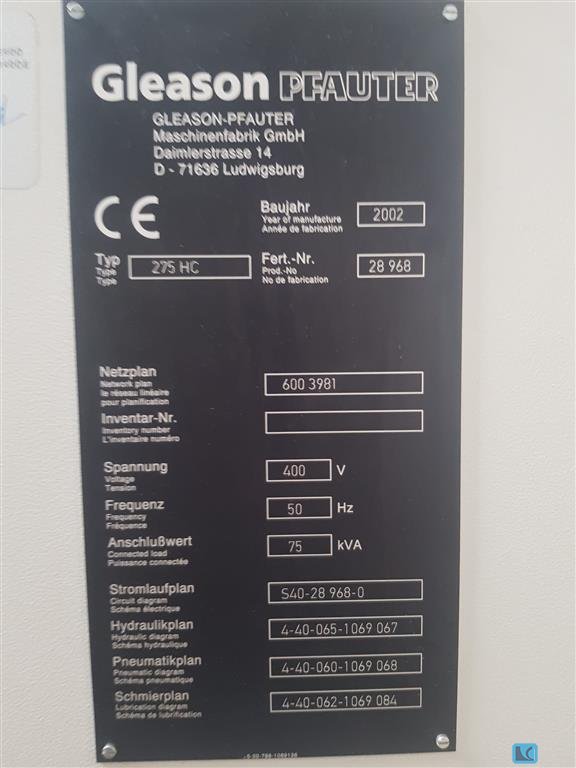

max. wheel diameter:275 mmgear width: mmmax. module: weight of the machine ca.:9,4 tdimensions of the machine ca.:3,7 x 3 x 2,82 mmin. number of teeth:5 max. number of teeth:2000 range of tooth size:20 mmmax. gear width (internal machining):58 mmX-axis:325 mmy-axis:350 mmZ-axis:475 mmBevel gear milling machine Gleason Pfauter including Promot Automation

max. module:7 weight of the machine ca.:5 tworm grinding diameter:280-350 mmwidth of grinding worm:84-104 mmmin. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mmmax. workpiece weight:60 kgwithout filter

max. wheel diameter:780 mmgear width:130 mmmax. module:10 weight of the machine ca.:8,5 tno. of strokes:30 Hub/minHier fully functional machine, Little usedThere are some Tools and Change gearsLiebherr WSC501 CNC gear shaping machine, used, ready for useManufacturer: LiebherrType: WSC 501Mach.- No.: 4407/05Year of manufacture: 1985Details:Max. gear shaping module: 8mm(30°gears possible up to module 10°)Max. gear width: 130mmDiameter of the machine table: 500mmMaximum wheel diameter: 780mmShut height ? table: 650mmStroke rate min. 30DH/minContinuously adjustable max. 1500 DH/min.Operating voltage: 380VFrequency: 50HzControl voltage: 110VConnected load: 36 kVARated current: 55AWeight: 8500kgDimensions: approx. 4,85 x 3,655 x 3,78(width x depth x height in m)The machine has seen only very limited use in our company. It remains fully operational and can be demonstrated in function upon a ...

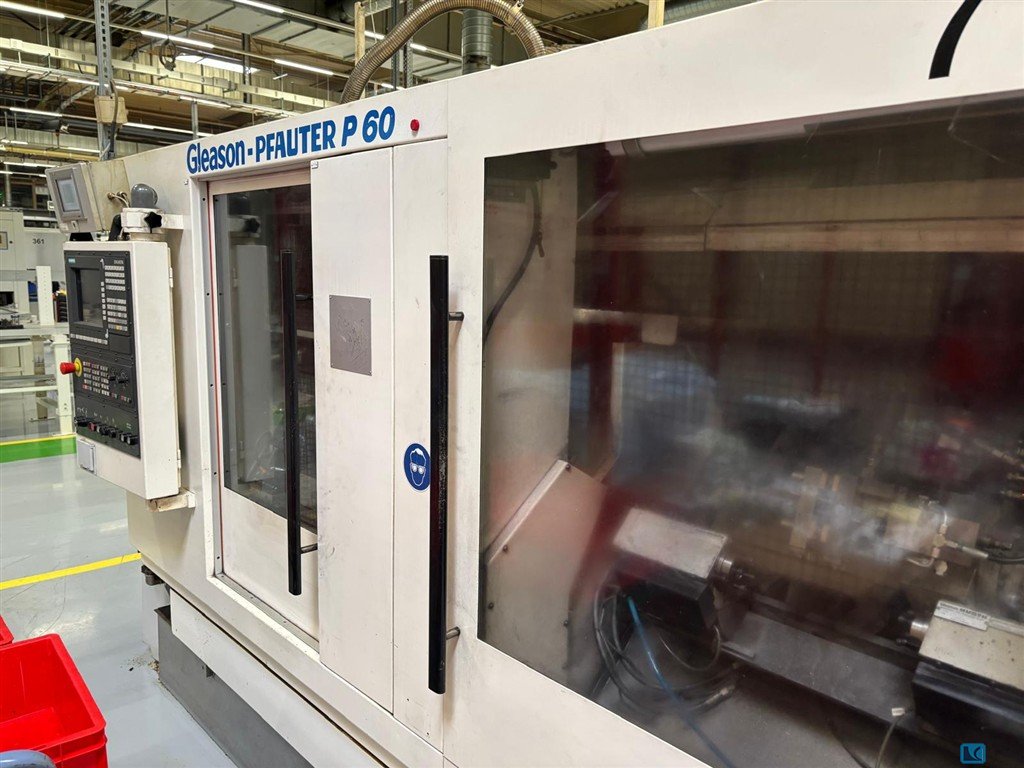

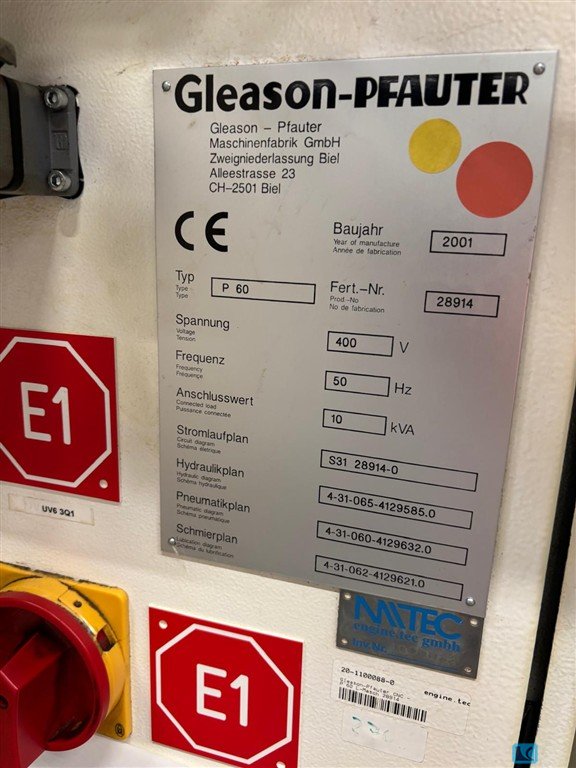

max. wheel diameter:80/120 mmmax. module:2,5 max. top circle diameter:65 mm:22 mm:140 mm:120 mmslide travel axial ( Z-axis ):320/400 mmDimensions (L/W/H):3270 x 3240 x 2020 mmweight of the machine ca.:6 tP60 - The compact all-rounder for wheels, shafts and wormsThe P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms.with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

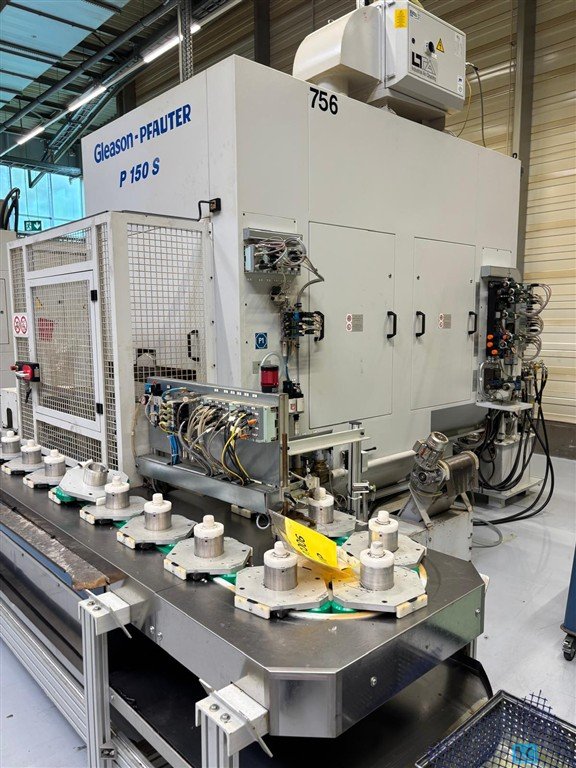

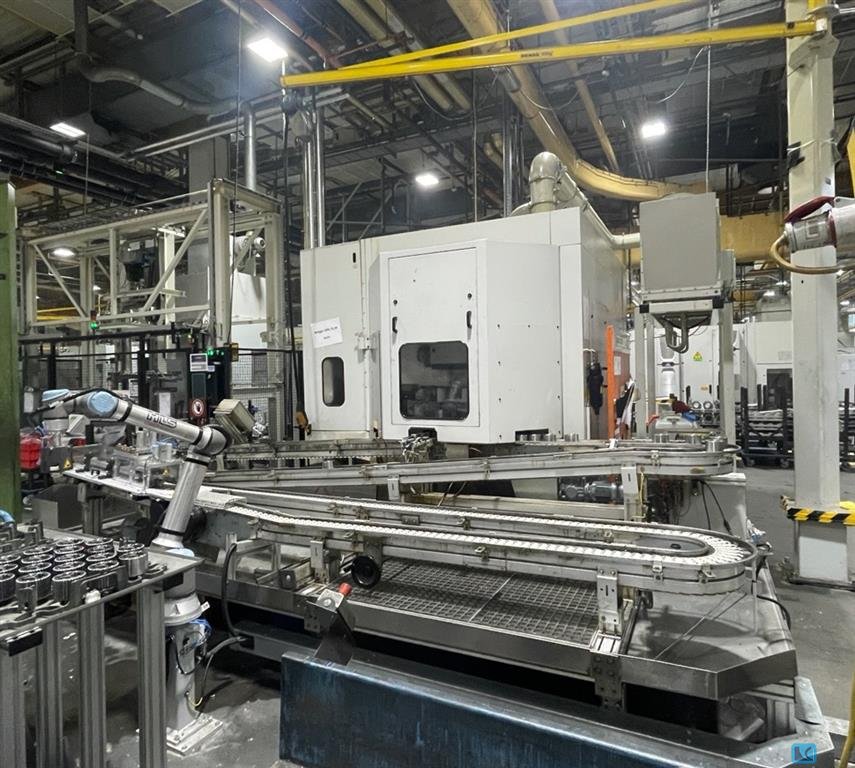

max. wheel diameter:150 mmgear width:350 mmmax. module:4 total power requirement:48 kWweight of the machine ca.:13 tdimensions of the machine ca.:4,88 x 4,40 x 3,56 mspindle turning speed range:100-1000 U/minInfeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning.

Diámetro máximo de la rueda: 0-200 mm. módulo: 25 min. módulo: 0,5 Los datos de este anuncio fueron creados con ModulMWS, la solución de software de LogoTech oHG.

workpiece dia.: 40 mmmax. module: 2 min. module: 0,1 workpiece length - max.: 665 mmweight: 4,5 tspindle bore diameter: 82,5 mmControl: Siemens total power requirement: 5,5 kWTechnical datamax. module 2Pitch 0.5 - 25 mmNumber of speeds multi-speed / multiplemax. workpiece diameter40 mmmax. workpiece length180 mmMilling cutter diameter max.80 mmmax. milling cutter width12 mmZ-axis (milling length with counter point)90 mmZ-axis (milling length without counter point)113 mmMilling head swivelling angle30° / 30°DescriptionGear hobbing and thread cutting machine. LAMBERT - 124 CNCThe machine is in a well-maintained condition.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

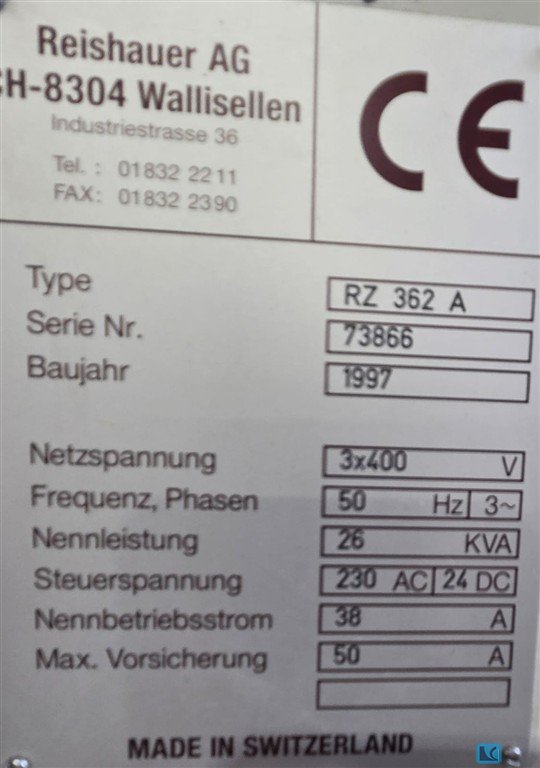

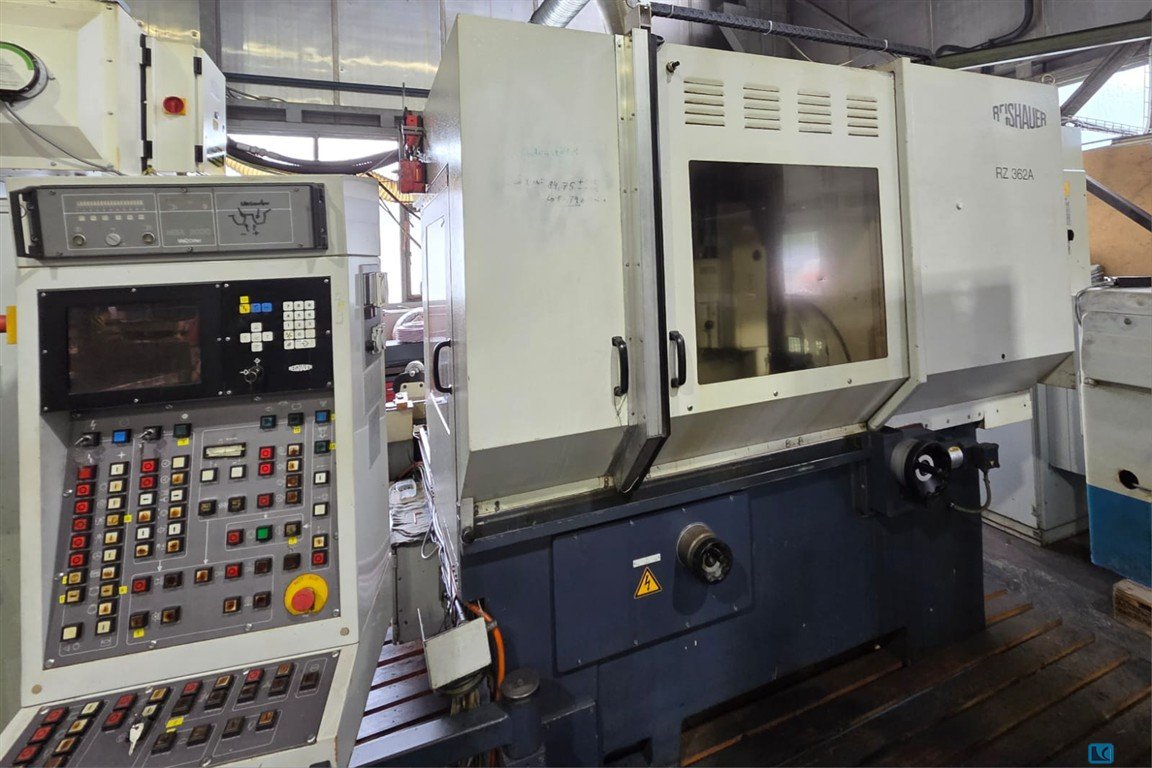

max. wheel diameter: 360 mmgear width: 175 mmmax. module: 7 min. module: 0,5 Control: Reishauer CNC number of teeth: 6 - 600 root circle diameter: 10 mmclamping length: 515 mmworkpiece weight: 60 kggrinding worm dia.: 280 - 350 mmwidth of grinding worm: 84 / 104 mmtotal power requirement: - kWweight of the machine ca.: 5 tdimensions of the machine ca.: - mThe RZ 362 A is a high-precision machine for spur gears and pinion shafts. sheguarantees maximum process reliability with minimal downtime perground workpiece. The profiling of the grinding worm takes place automatically. An integrated Balancing unit allows the grinding worm to be continuously finely balanced To maintain state.The RZ 362 A is designed for automatic operation and can, depending onDegree of automation, in single, small or large series productionbe used. It is equipped with: hood door automatic, grinding spindlefor precisi ...

hobbing length: 1750 mmmilling width: 260 mmmax. module: 10 mmtable size incl. water gutter: 460 x 2100 mmtable clamping surface:: 250 x 1850 mmcutter width - max.: 100 mmfeed of the milling slide, stepless: 0 - 500 mm/min.rapid traverse feeds: 3000 mm/minmilling head -swivable +/-: 30 °Rotation speed range of milling head, in 9 steps: 29 - 178 rpmMilling head swivable 2 sides helical gearcutting: 30 °total power requirement: kWweight of the machine ca.: 4 tdimensions of the machine ca.: 4 x 1,85 x 1,85 mEquipment/accessories- 7 vices- change wheels - Clamping devices- DocumentationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

módulo: 10 diámetro: 180 mm diámetro del diámetro: 40 mm de ancho: 75 mm: 2 peso: 14 kg La fresadora es como nueva, sin señales de uso. Otras fresadoras usadas de cremallera y piñón hasta el módulo 10 a peticiónLos datos de este anuncio fueron creados con ModulMWS, la solución de software de LogoTech oHG.

módulo: 4 diámetro: 180 mm diámetro del diámetro: 40 mm de ancho: 67 mm: 5 peso: 15 kg La fresadora es como nueva, sin señales de uso. Otros cortadores usados de cremallera y piñón hasta el módulo 10 a peticiónLos datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.

max. wheel diameter: 600 mmmax. module: 6 range L-W-H: 2540 x 1500 x 1920 mmtable diameter: 160 mmweight of the machine ca.: 3,6 tHigh-performance gear hobbing machineTooth helix angle 15°Tooth width 270 mmWheel diameter 620 mmTooth helix angle 30°Tooth width 250 mmWheel diameter 610 mmTooth helix angle 45°Tooth width 200 mmWheel diameter 500 mmTooth angle 60°Tooth width 100 mmWheel diameter 450 mmMaximum cutter diameter 105 mmMaximum cutter width 115 mmClamping table diameter 420 mmBore of clamping table 75 mmDepth of bore below table surface — mmDiameter of workpiece clamping wheel 450 mmof clamping mandrel 30 mmof milling mandrels 22–27–32 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

gear hobbing diameter - external: 1200 mmgear hobbing diameter - internal: 1200 mmgear hobbing width -max.: 260 mmmax. workpiece diameter: 1500 mmControl: Siemens 840 D table diameter: 900 mmTable hole Diameter / depth: 320 / 520 mmmax. table load: 95 kNcoolant pump: 120 l/minAxial distance between thrust spindle - table: 0-820 mmwork-spindle diameter: 125 mmtool taper: SK 45 DIN Table rpm: 12 1/minpower requirement: 30 kWweight of the machine ca.: 24 tdimensions of the machine ca.: 11,715 x 5,565 x 4,505 mStrokes: - Stroke length min./max.: 0 mm / 270 mm - Stroke length adjustment range: 270 mm - Stroke rate (double strokes): 10 to 270 strokes/minSliding head carriage: - Max. travel speed: 5000 mm/min Machine bed: - Axial travel: 600 mm Slotting head: - Max. module for rolling slotting: 16 mm - Slotting spindle diameter: 125 mm - Max. tool diameter: 300 mm ...

hobbing length: 1750 mmmilling width: 260 mmmax. module: 10 table size incl. water gutter: 460 x 2100 mmtable clamping surface:: 250 x 1850 mmcutter width - max.: 100 mmfeed of the milling slide, stepless: 0 - 500 mm/min.rapid traverse feeds: 3000 mm/minmilling head -swivable +/-: 30 °Rotation speed range of milling head, in 9 steps: 29 - 178 rpmMilling head swivable 2 sides helical gearcutting: 30 °total power requirement: 4 kWweight of the machine ca.: 4 tdimensions of the machine ca.: 4 x 1,85 x 1,85 mMilling length 1750 mmMilling width 260 mmModule - max. 10Table dimensions incl. water channel 460 x 2100 mmTable clamping surface: 250 x 1850 mmMilling cutter width - max. 100 mmFeed of the milling carriage, infinitely variable 0 - 500 mm/min.Rapid traverse 3000 mm/minMilling head - tiltable + / - 30 °Speed range of the milling spindle, in 9 steps 29 - 178 rpmMilling head swivels on  ...

max. wheel diameter: 1000 mmgear width: 200 mmmax. module: 10 min. module: 0,5 max. dia. of teeth cutting: 1000 mmmin. dia. of teeth cutting: 75 mmtable diameter: 1000 mmboring diameter: 400 mmspindle stroke: 0 - 230 mmstroke position adjustment: 250 mmdistance between table / ram: 480 / 730 mmdia. of shaper cutter: 8 Zolltaper: Morse 5 tool taper: 1 3/4 Zolltotal power requirement: ca. 20 kWweight of the machine ca.: 11 tStandard version- Chip conveyor- Two additional tables with diameters of 850 mm and 1,500 mm- Several cutting tools- Set of interchangeable gears- Program for cutting in 1-2-3-4 passes/cycles- Program for spiral cutting- Several holders and clamps for workpiecesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmdiameter of tools min: 69,85 mmtooth width max.: 58 mmdiameter of tools max.: 230 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmwork piece table - Ø: 212,71 mmb-axis: + 90,1 / - 1 °Control: 160 i - MB FANUCtotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mWAGURIWith EWAB robot cell (KUKA robot)without coolant filter systemFire extinguishing system without CO2 bottlesCooling oil return with various pumps / collecting basinsThreading device A1/B2 axes with measuring probeClamping device for a pinion shaftExternal spindle oil coolerExtraction system pinion shaftThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmtooth width max.: 58 mmdiameter of tools min: 69,85 mmdiameter of tools max.: 230 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmwork piece table - Ø: 212,71 mmb-axis: + 90,1 / - 1 °Control: SIN 840 D SIEMENStotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mWAGURIwith EWAB load cell built in 2012(Linear loader)no coolant filter system available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 180 mmgear width: ca. 220 mmmax. module: 3 / 5 mmControl: Siemens 840D sl max. radial velocity: 5000 mm/minmax. workpiece diameter: 180 mmtable rotation speed: 800 U/mintable diameter: 145 mmaxial travel: 250 mm mmback rest:: axial travel: 300 mmclamping force max.: 13 kNmilling head:: swivelable +/-: 45 °drive capacity: 23 kWturning speeds: 6000 U/mindiameter of tools max.: 90 mmtool clamping length max.: 211 mmmodule hobbing max.: 3 module profile milling max.: 5 tangential speed max.: 7500 mm/minweight of the machine ca.: 9,5 tdimensions of the machine ca.: 4,5 x 3,5 x 2,7 mEquipment / Accessories:- The machine is equipped for dry milling.- workpiece magazine- parallel gripper: - workpiece weight form-fit max. 15 kg - workpiece length max. 400 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 3000 mmgear width: 500 mmmax. module: 25 / 40 spindle turning speed range: 250 U/minfeed speeds: max. 4000 mm/minfaceplate diameter: 2000 mmtable bore diameter: 700 mmtable turning speeds: 51 U/minpower capacity - milling spindle: 53 kWdrive motor for milling spindle: - kWaxial adjustment: 1200 mmmilling head swivable ca.: +/- 45 °control: Siemens 840D total power requirement: - kWweight of the machine ca.: 55 t- CNC Control Siemens 840D- Internal Hob Head IFK- External Hob HeadThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1250 mmgear width: 600 mmmax. module: 16 min. module: 2 tooth width: 490 mmZahnschrägungswinkel max.: 45 °shifting: 200 mmmax. number of teeth: 12 diameter of hob: 240 mmcutter length max.: 280 mmtable diameter: 1020 mmmilling spindle speeds (infinitely variable): 28 - 200 U/minpower capacity: 25 kWweight of the machine ca.: 16,2 tdimensions of the machine ca.: 4,5 x 4,6 x 2,7 mequipped with:- universal hob head- change gearsmachine has been partly overhauled (electrical and machnical) and is now with programmable, digital InfeedThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 2500 mmgear width: 750 mmmax. module: 18 / 22 min. module: table diameter: 1800 mmmin. number of teeth: 12 table hole: 300 mmhob turning speeds: 20 - 100 U/mintable load: 10 tmilling cutter dia. x width: 250 x 340 mmshifting: 150 mmfeeds - tangential: 0,25 - 3 mm/minfeeds - radial: 0,07 - 1,5 mm/minfeeds - longitudinal: 0,55 - 3,5 mm/minmilling feeds: 13,4 - 80 (Einzelteilen) mm/mintotal power requirement: ca. 30 kWweight of the machine ca.: 28 t- change gears, arbors, toolings, clamping plots- universal hob head- swiveling outer steady - single indexing deviceparty overhauled in 2023The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: Longitud de la pieza - máximo: mmmax. módulo: 0 Consumo total de energía: kWweight de la máquina ca.: tEspacio requerido: mLos datos de este anuncio fueron creados con ModulMWS, la solución de software de LogoTech oHG.

max. wheel diameter: 300 mmmax. module: 8 min. module: 0,7 Control: SINUMERIK 840 D min/max. pitch cone angle: - 90 / + 90 °workpiece spindle - bore: 127 mmgrinding wheel diameter: 50 - 230 mmspindle speeds (infinitely variable): 7.500 U/minwork piece spindle speed: 700 U/mintotal power requirement: 146 kWweight of the machine ca.: 21 tdimensions of the machine ca.: 9,5 x 3,6 x 3,1 mMeasuring probefor tooth gap(integrated on the grinding head)External grinding spindle cooling systemELBARON oil mist extraction (integrated in the machine)Hoffmann coolant filter systemWas used for the serial production of spiral-toothed ring gearsNo clamping devicesNo grinding wheels / grinding wheel flangesNo dressing wheelsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ratio of transmission: 10:1 min. number of teeth: 3 max. number of teeth: 200 range of tooth size: 20 mmtooth width max.: 58 mmspindle speeds (infinitely variable): 6000 U/minwork piece spindle speed: 1200 U/mindiameter of tools max.: 230 mmdiameter of tools min: 69,85 mmx-axis: 325 mmy-axis: 350 mmz-axis: 470 mmb-axis: + 90,1 / - 1 °work piece table - Ø: 212,71 mmControl: SIN 840 D SIEMENStotal power requirement: 75 kWweight of the machine ca.: 10.000 Kgdimensions of the machine ca.: 6,10 x 4,40 x 3,30 mInternal probe Renishaw LP2 (axis X2,Y2)Hoffmann coolant filter system HSF 100SE/K (built in 2008)Tank capacity 2500LVT oil mist filter systemThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 1400 mmgear width: 400 mmmax. module: 25 min. module: 1 total power requirement: - kWweight of the machine ca.: 7,0 tdimensions of the machine ca.: 3,0 x 1,2 x 3,2 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Diámetro máximo de la rueda: 1000 mm Ancho de engranaje: 180 mm máximo. Módulo: 7 min. Módulo: 0,5 min. Carrera de RAM: 16 mm. carrera de la ram: 180 mm, agujero de la mesa: 160 mm, consumo total de potencia: 4 kWweight de la máquina, aprox. 5,2 t. Dimensiones de la máquina, aprox. - m. Los datos de este anuncio se crearon con ModulMWS, la solución de software de LogoTech oHG.
