otras máquinas para el procesado de metales usadas para la venta (11,535)

Tool holder, milling holder, collet holder, collet chuck, chuck, milling tool, adapter, clamping unit, tool holder,-Mill holders: holder MK2, 2 pieces-Type: DIN 228 A4 x D2 x32.5-Price/delivery: complete-Dimensions see photos-Total weight: 1.2 kg

An aluminum die casting system is available. Clamping force: 2200kN, opening force: 71kN, max. opening stroke: 430mm, mold closure: double toggle lever, pressure chamber: cold chamber, position: horizontal. Filling piston diameter min./max.: 40mm/70mm, pressure chamber filling volume min./max.: 293cm³/898cm³, casting pressure: 1990bar, blast area min./max.: 110cm²/338cm², output: 780 cycles/h. Clamping plate dimensions X/Y: 755mm/755mm, column spacing: 500mm/500mm, mold height min./max.: 250mm/600mm, min. mold dimensions X/Y: 296mm/296mm. Including crucible furnace, blow-out device, automatic dosing unit and 4x control cabinets. Documentation available.

Dimensiones de la pieza de trabajo X / Y / Z: 1050 mm / 800 mm / 295 mm, peso máximo de la pieza de trabajo: 800 kg, dimensiones de la mesa X / Y: 780 mm / 630 mm, trayectoria transversal X / Y / Z: 500 mm / 350 mm / 300 mm, avance máximo de la mesa: 1300 mm / min, rango de diámetro del alambre: 0,1 mm-0,3 mm, alimentación máxima del alambre: 15 m / min, trayectoria transversal U / V: +/- 32 mm, ángulo cónico máximo: 15. Dimensiones de la máquina X/Y/Z: aprox. 1900 mm/2650 mm/2100 mm, peso: aprox. 3500 kg. Incluye unidad generadora y enhebrador automático de alambre AT. Documentación disponible. Es posible la inspección in situ.

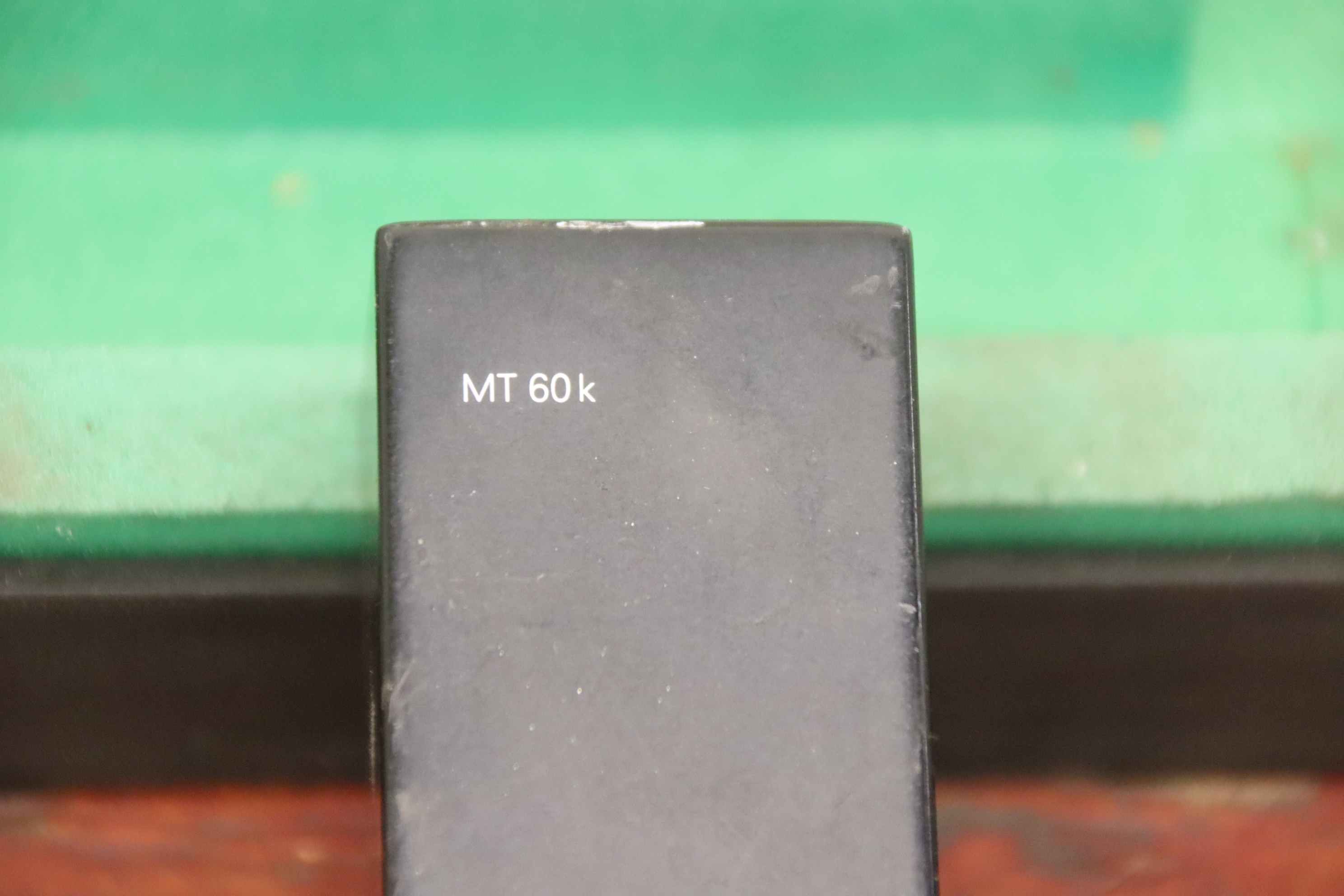

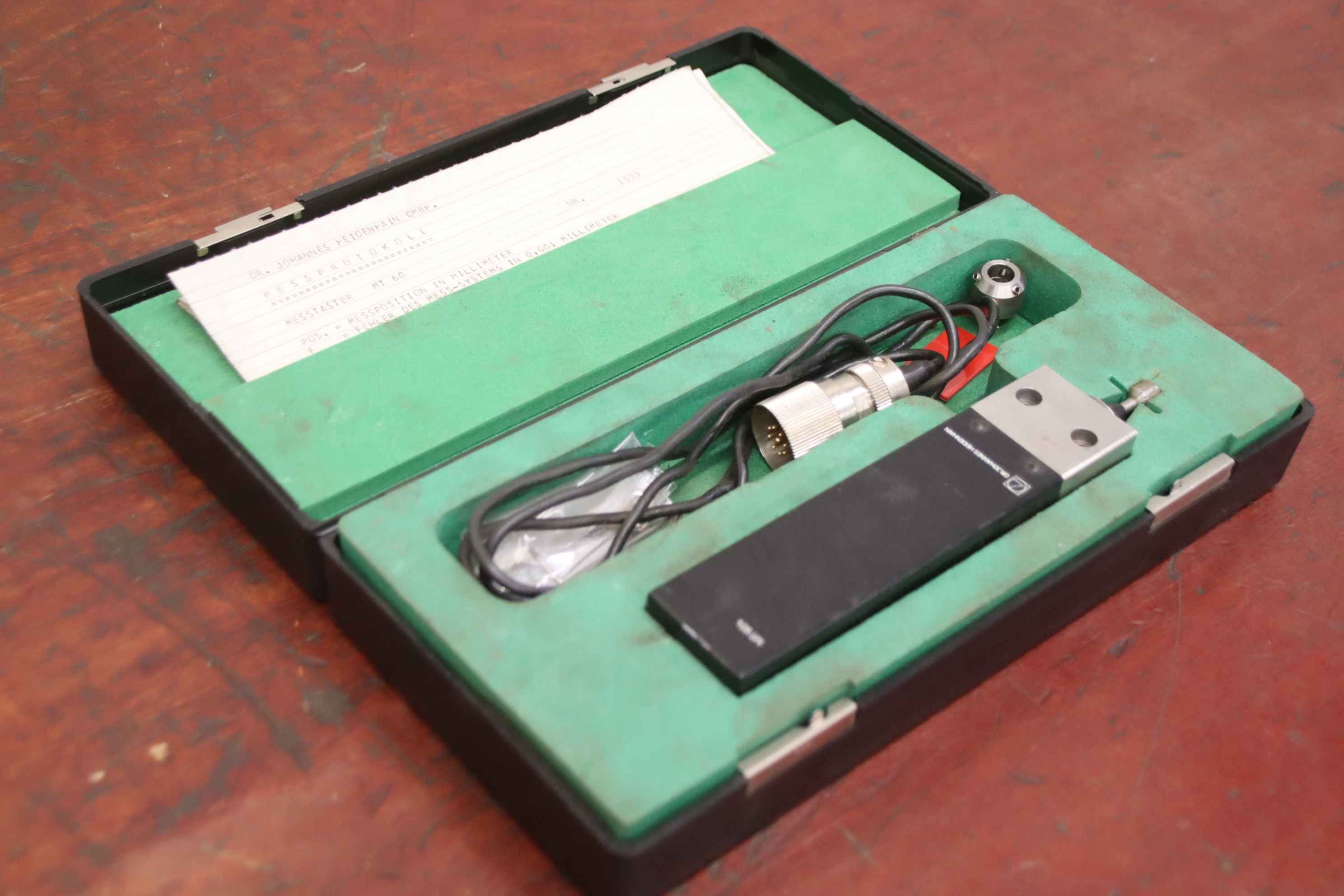

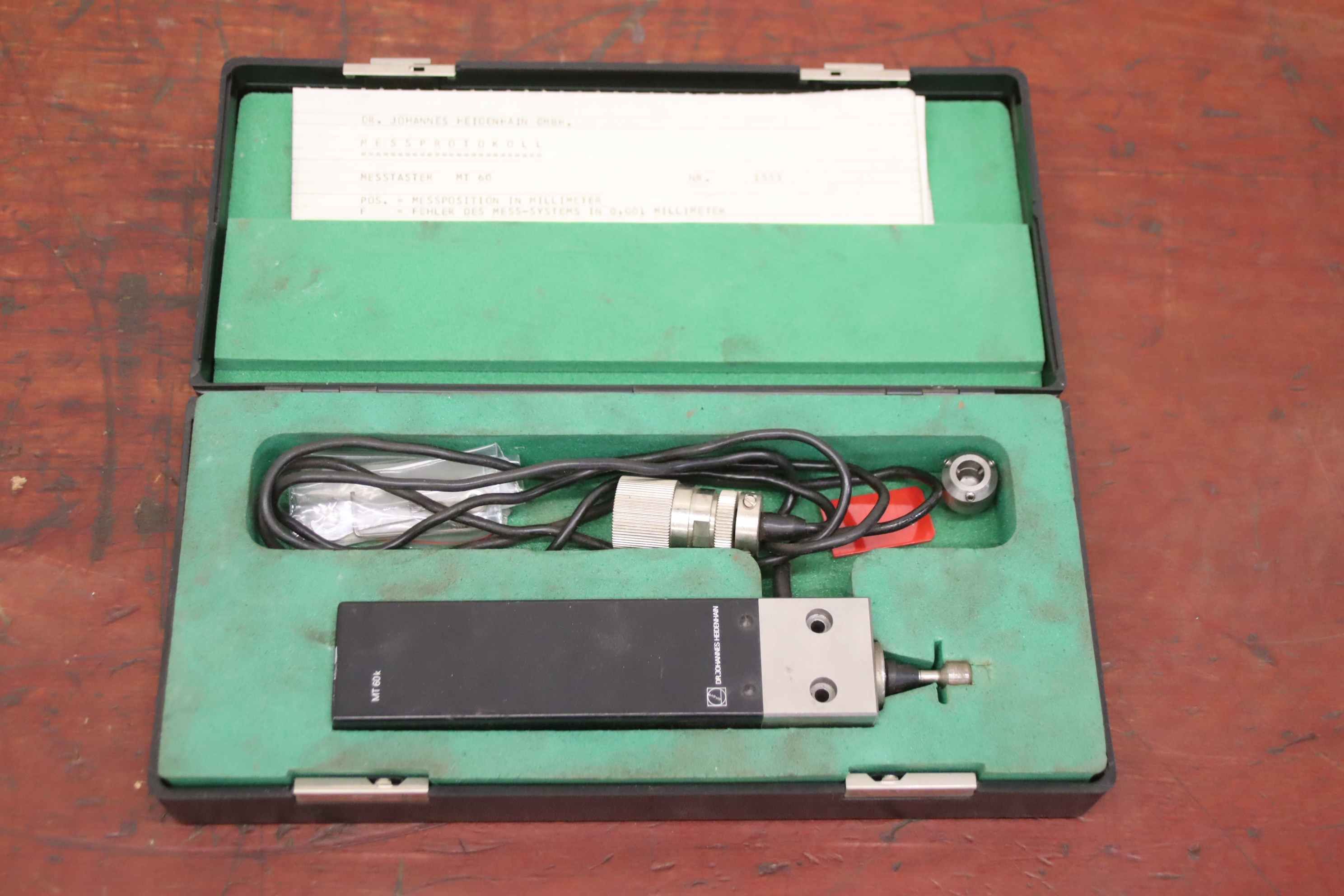

measuring probe, measuring sensor, 3D probe, probe insert, measuring probe head, Digimatic Indicator, scanning head, measuring head-Manufacturer: Heidenhain, digital measuring probe-Type: MT 60-Measuring length: 60 mm-Case dimensions: 285/135/H65 mm-Weight: 1.2 kg

Precision air measuring mandrels/rings, air measuring device, measuring columns and measuring computers, pneumatic-electric measuring column, measuring device, manual measuring device-Manufacturer: Stotz, manual measuring device air measuring device-Probes/measuring accuracy: see photos-Individual components: see photos-Mains voltage: 3x400 VAC / 50 Hz-Compressed air: 3.0 bar-Total dimensions: 2800/800/H2450 mm-Total weight: 702 kg

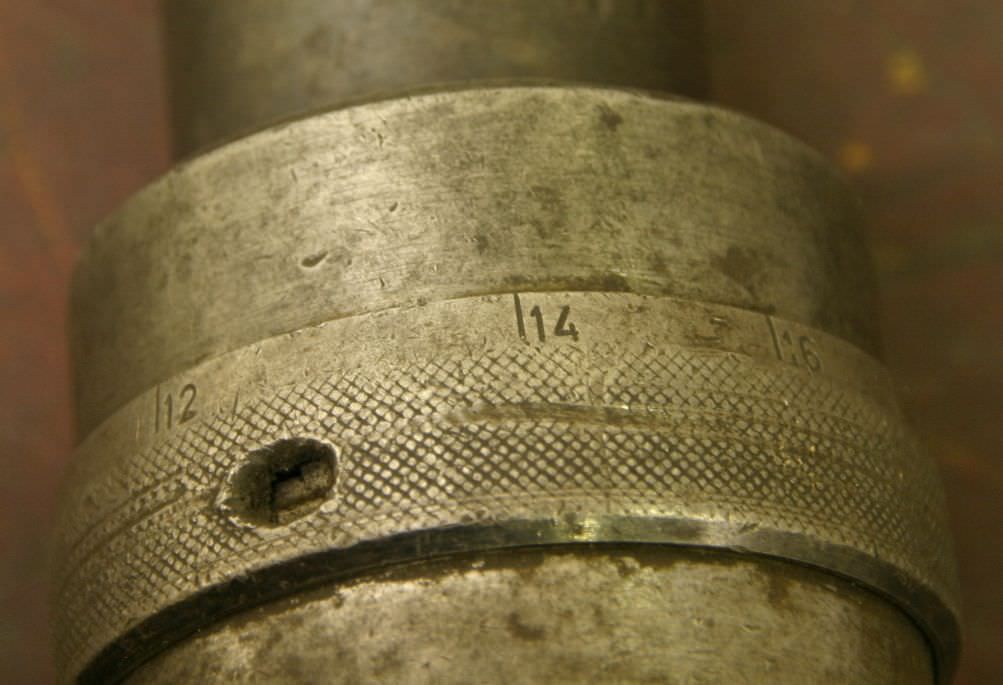

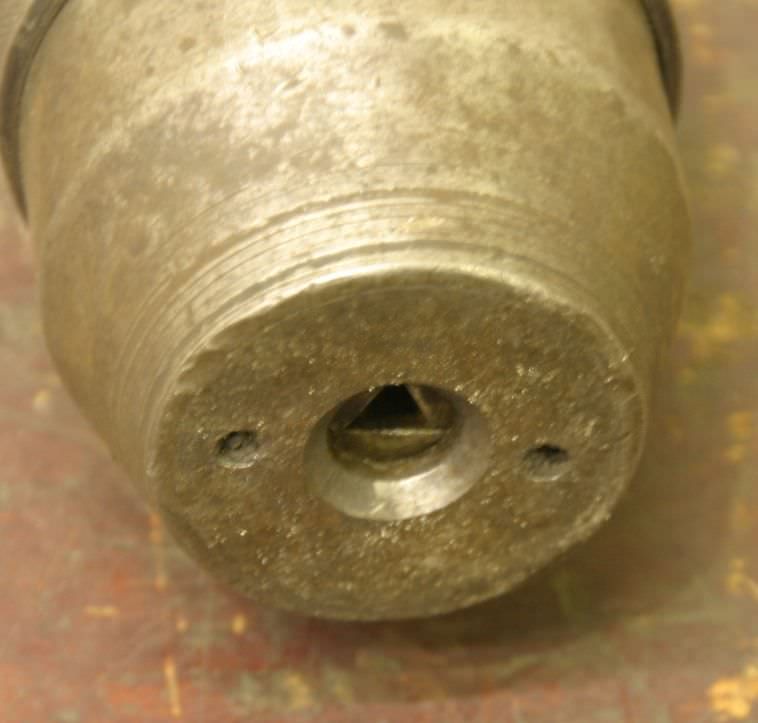

Tapping chucks, thread chucks, tapping chucks -with slip clutch -Cutting capacity: max. M16 -Recording: MK3 -Weight: 3.2 kg

fixed center, fixed punch center, fixed Morse taper, fixed centering center, centering centers-fixed centering point: Morse taper MK5-Number: 1x centering tips available-Dimensions: Ø 45/200 mm-Weight: 1.9 kg

Clamping plate, scribing spotting plate, measuring plate, measuring table, welding table, welding table, straightening plate-Width: 400 mm-Length: 502 mm-Height: 120 mm-Plate thickness: 28 mm-with: support ribs-Weight: 50 kg

clamping head, deadbolt collet, collet sleeves, collet, tool holder, tool holder, milling holder, milling tool, clamping sleeves-Clamping sleeves: length 80 mm, 5 pieces-Sizes: Ø 15/16/20/25/30 mm-Price/Delivery: complete-Transport dimensions: 140/90/H80 mm-Weight: 1.8 kg

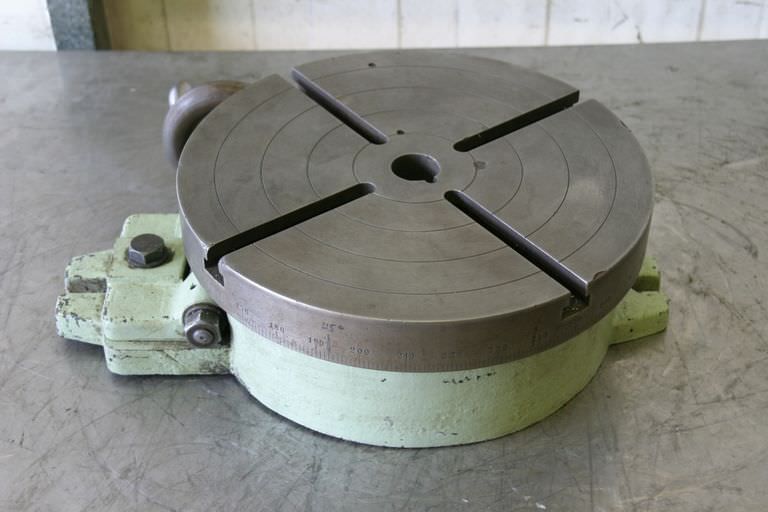

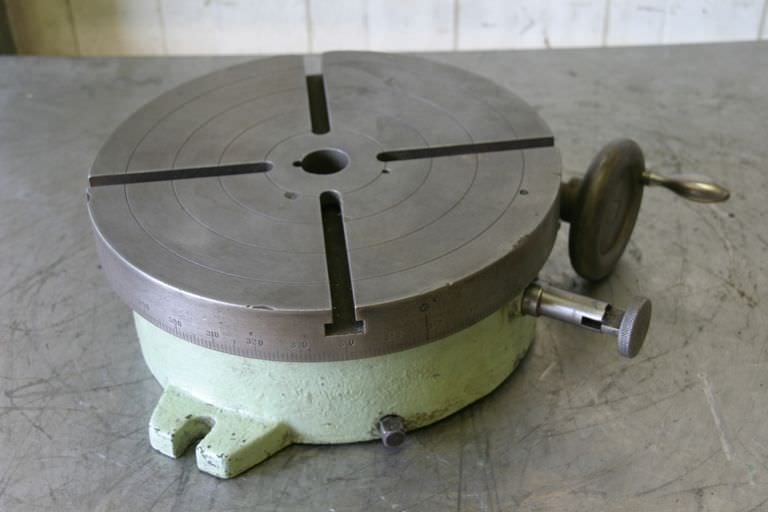

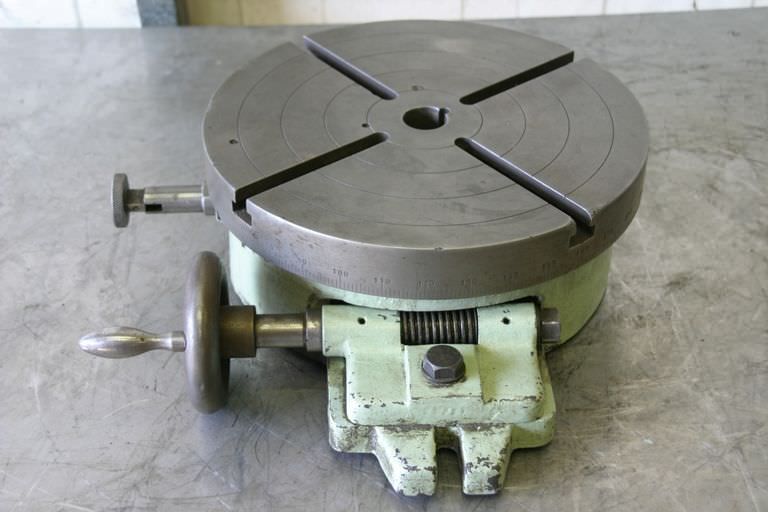

Rotary table, rotary indexing table, dividing head, dividing head-Clamping surface: Ø 310 mm-Height: 130 mm-Groove: mm-Dimensions: 410/380/H130 mm-Weight: 40 kg

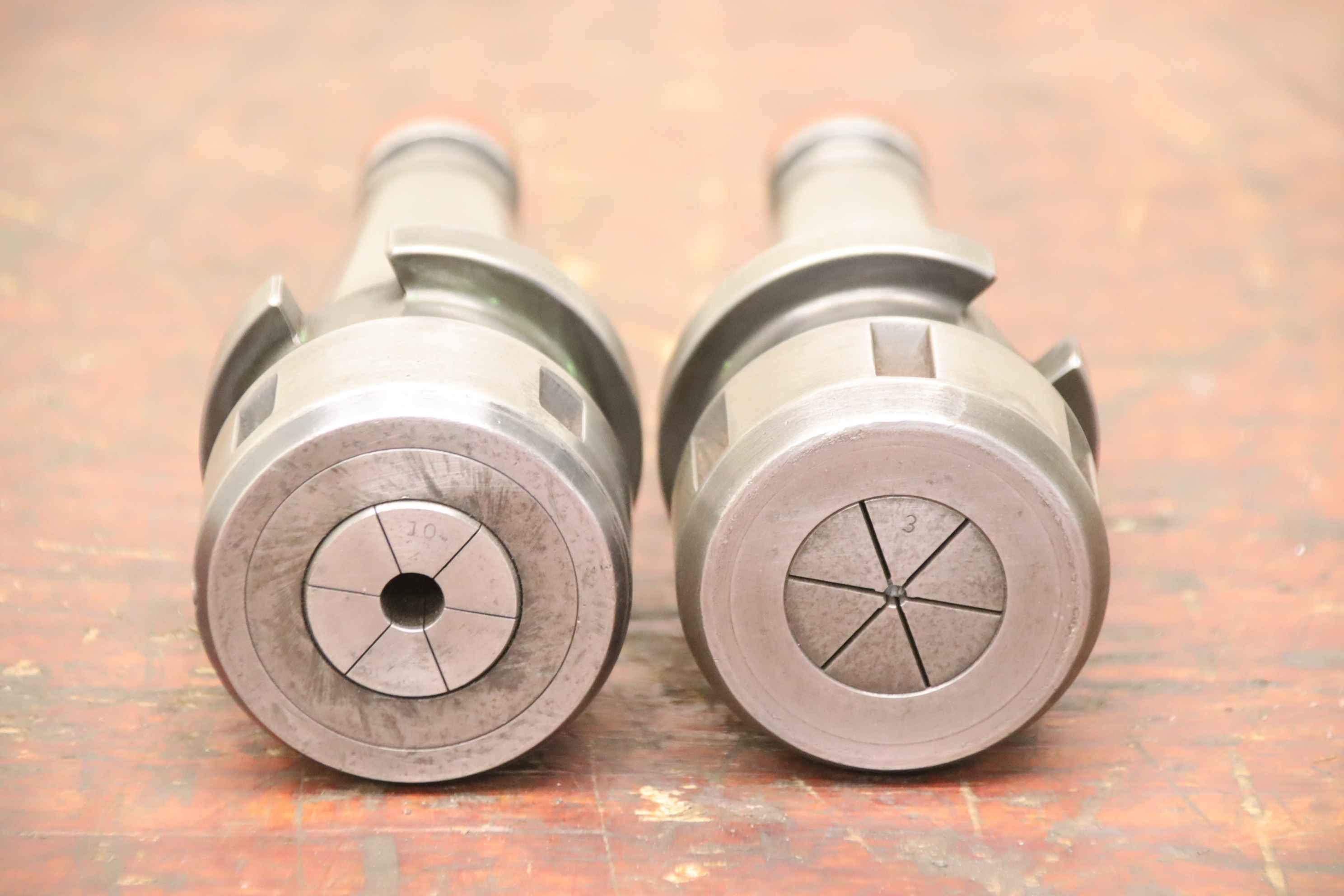

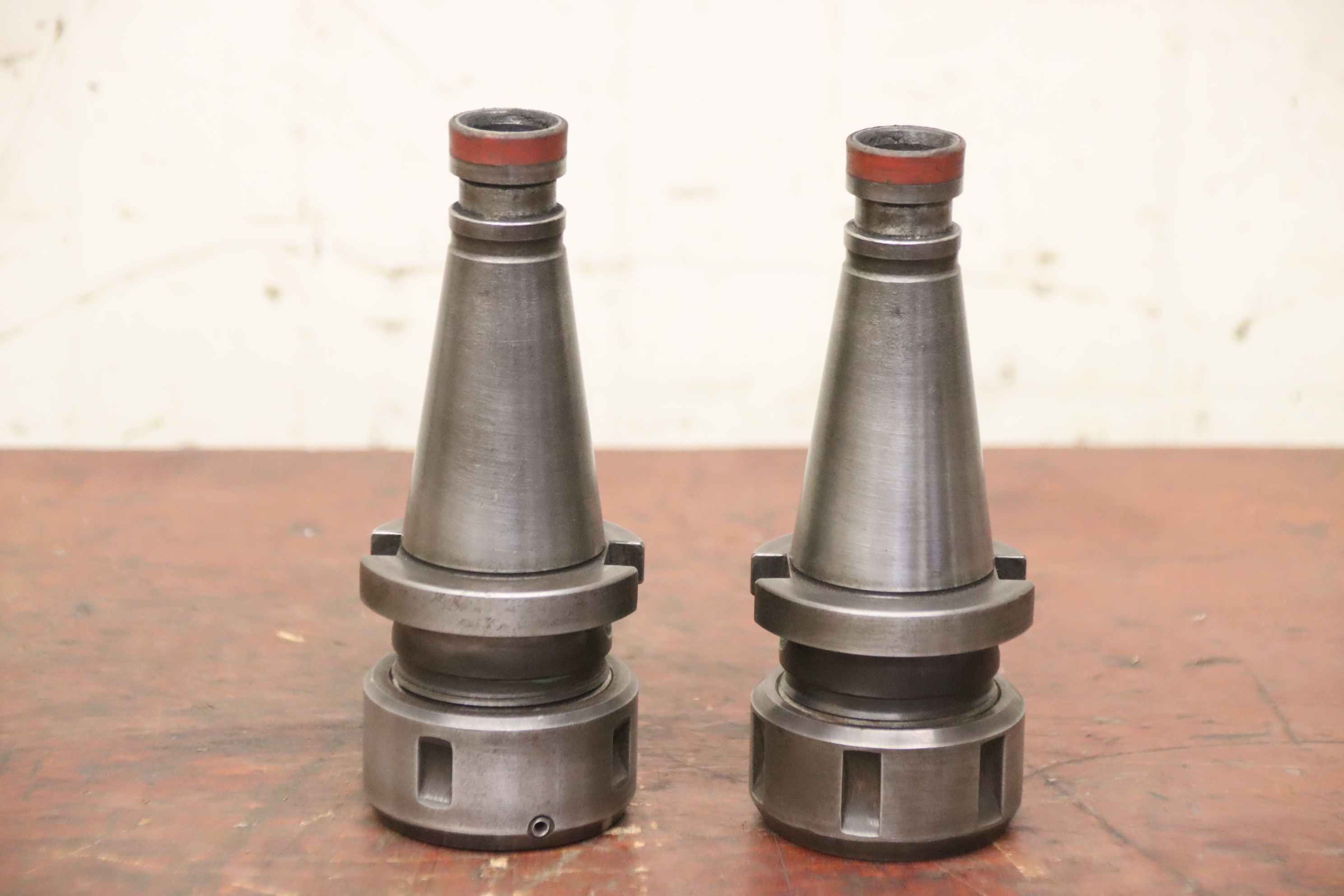

collet chuck, tool holder, tool holder, milling chuck, milling tool-Collet holder: SK40 2 pieces-Type: Ø 63 x 150 mm-Clamping sleeve: Ø3 mm / Ø10 mm-Price/Delivery: complete-Transport dimensions: 150/120/H63 mm-Total weight: 2.6 kg

Moving steady rest, moving steady rest, steady rest, lynette-Bezel: traveling-Top height: approx. 192 mm-Plating: brass-Dimensions: see photos / technical drawing-Quantity: 2x bezel available-Price per piece-Dimensions: 220/60/H325 mm-Weight: 2.4 kg/pc.

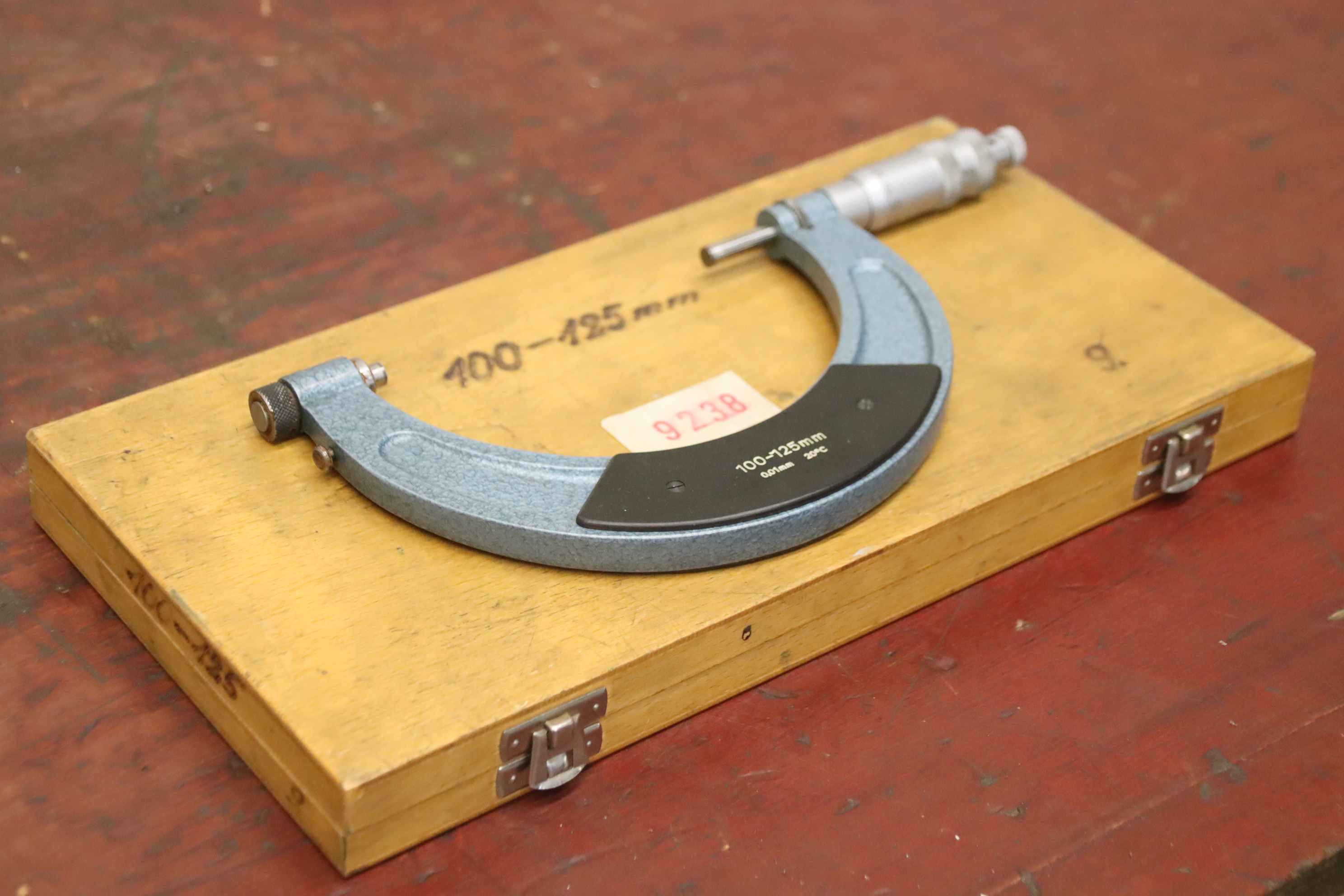

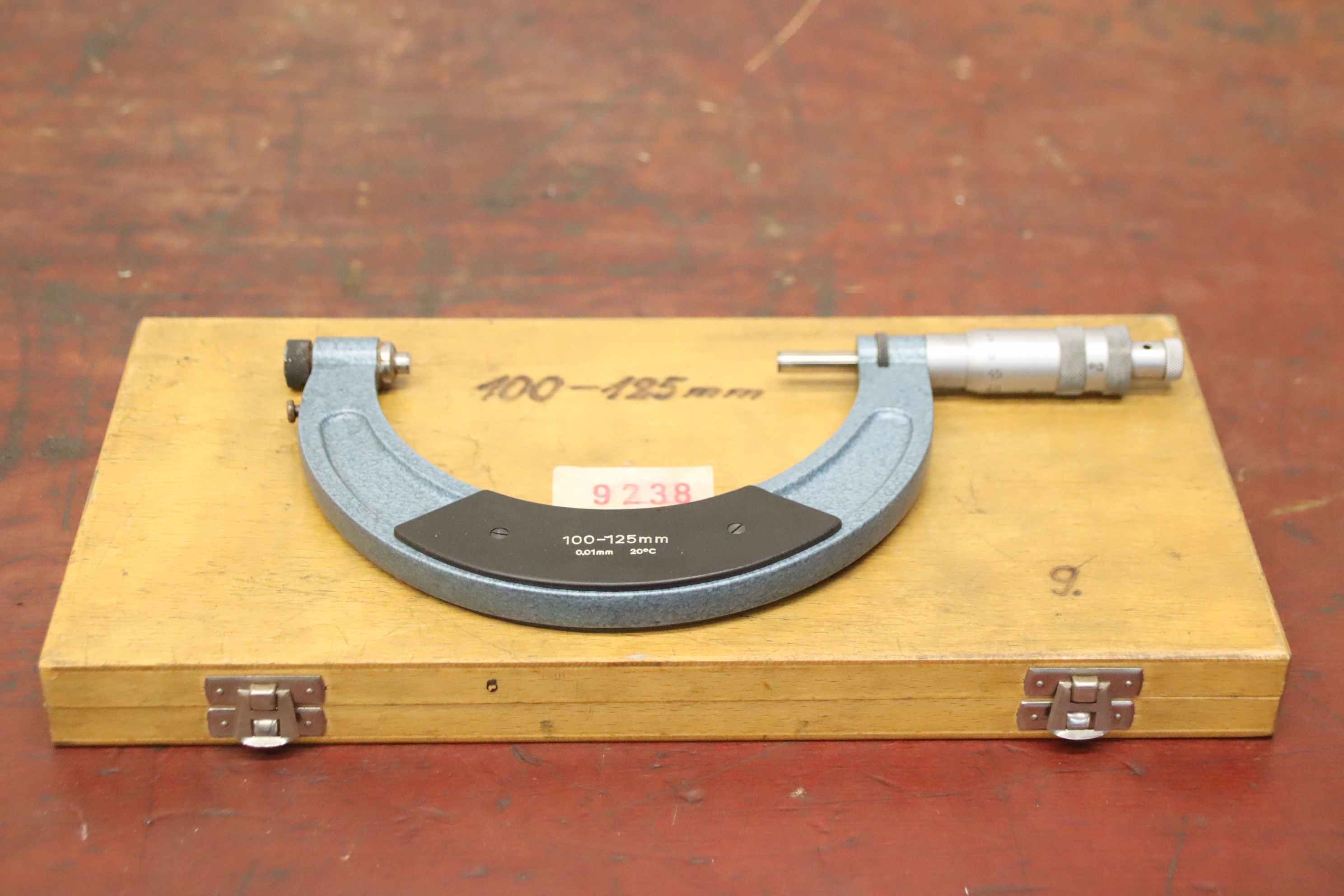

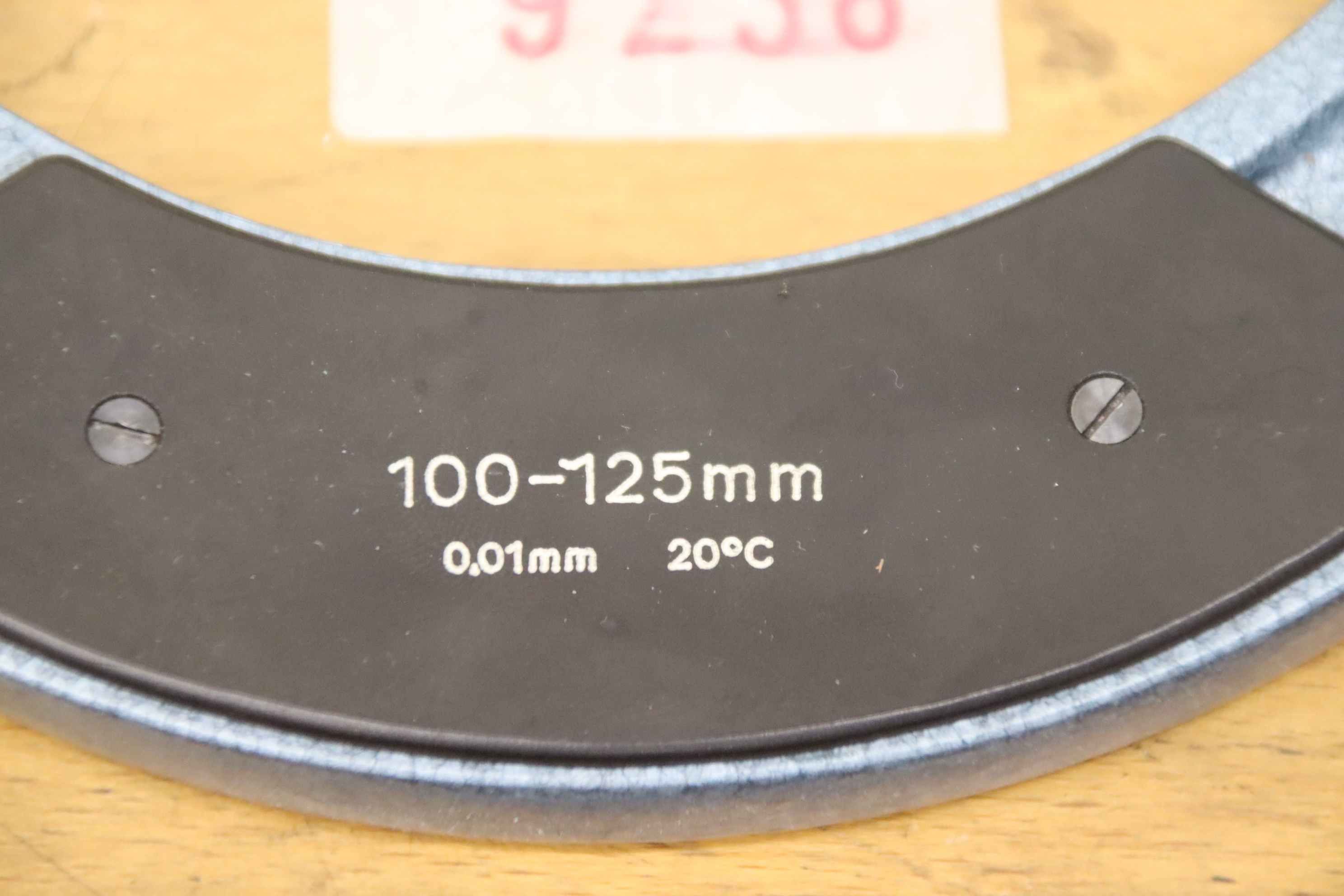

Micrometer screws, micrometer screws, outside micrometers, outside micrometers-Micrometer: outside micrometer-Measuring range: 100-125 mm-Reading: 0.01 mm-locking device-other sizes: also available-Case dimensions: 315/160/H30 mm-Weight: 1.0 kg

Micrometer, micrometer screw, measurement of tooth width, plate measuring surfaces -Measuring range: 100-125 mm -One revolution of the drum corresponds to: 0.5 mm -without locking device -large measuring areas -Measuring force: ratchet -Including case Setting mass -also other sizes available -Weight: 1.0 kg

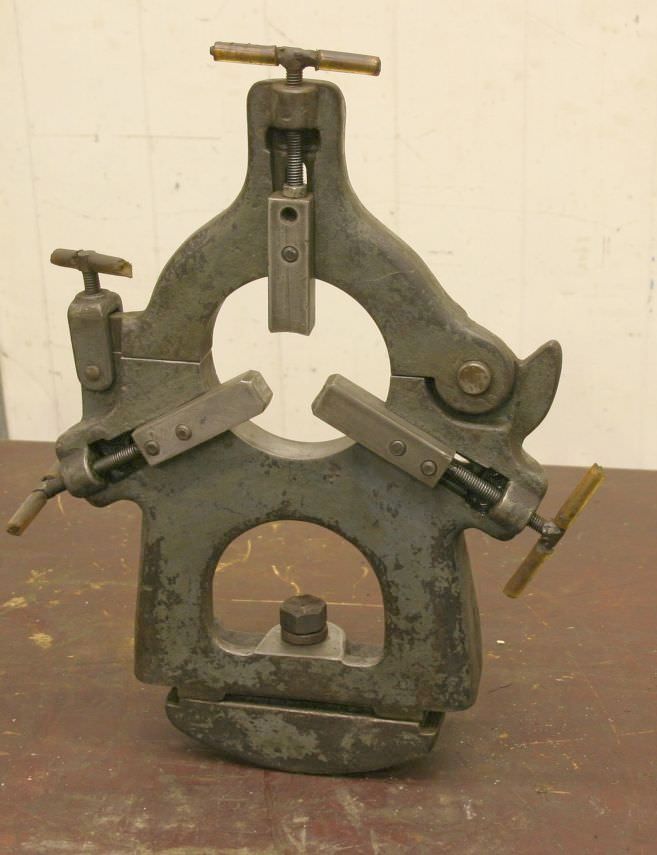

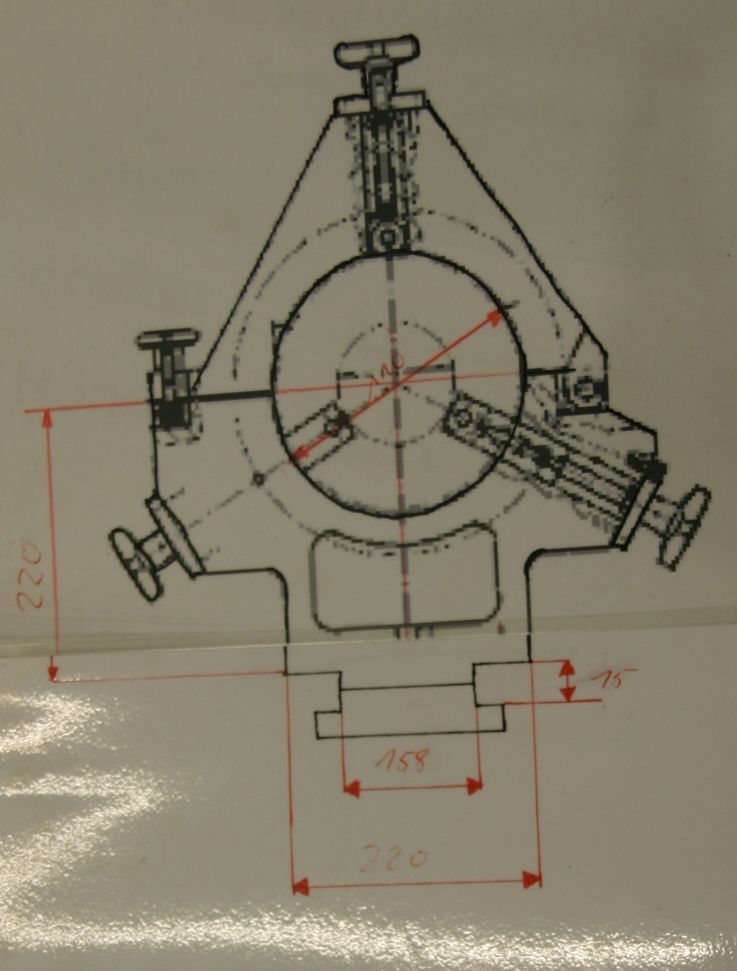

Bezel, stick, lynette -Max. Passage: Ø 110 mm -Tip height: 220 mm -Edition: gray cast iron -technical drawing with the photos -Dimensions: 440/320/H80 mm -Weight: 13.6 kg

fixed point, fixed Morse taper, fixed centering point, centering points, centering ball, centering mandrel-Centering mandrel: fixed centering ball Ø 84 mm-Receptacle: Morse taper MK5-Dimensions: Ø 84 x 297 mm-Weight: 5.2 kg

marking prism, test prism, prism, angle prism, clamping angle, clamping prism, clamping cube, prism block-Prism block: for marking plate, clamping plate, straightening bench ...-Prism width: 40 mm-Dimensions: see photo technical drawing-Dimensions: 160/50/H22 mm-Weight: 1.5 kg

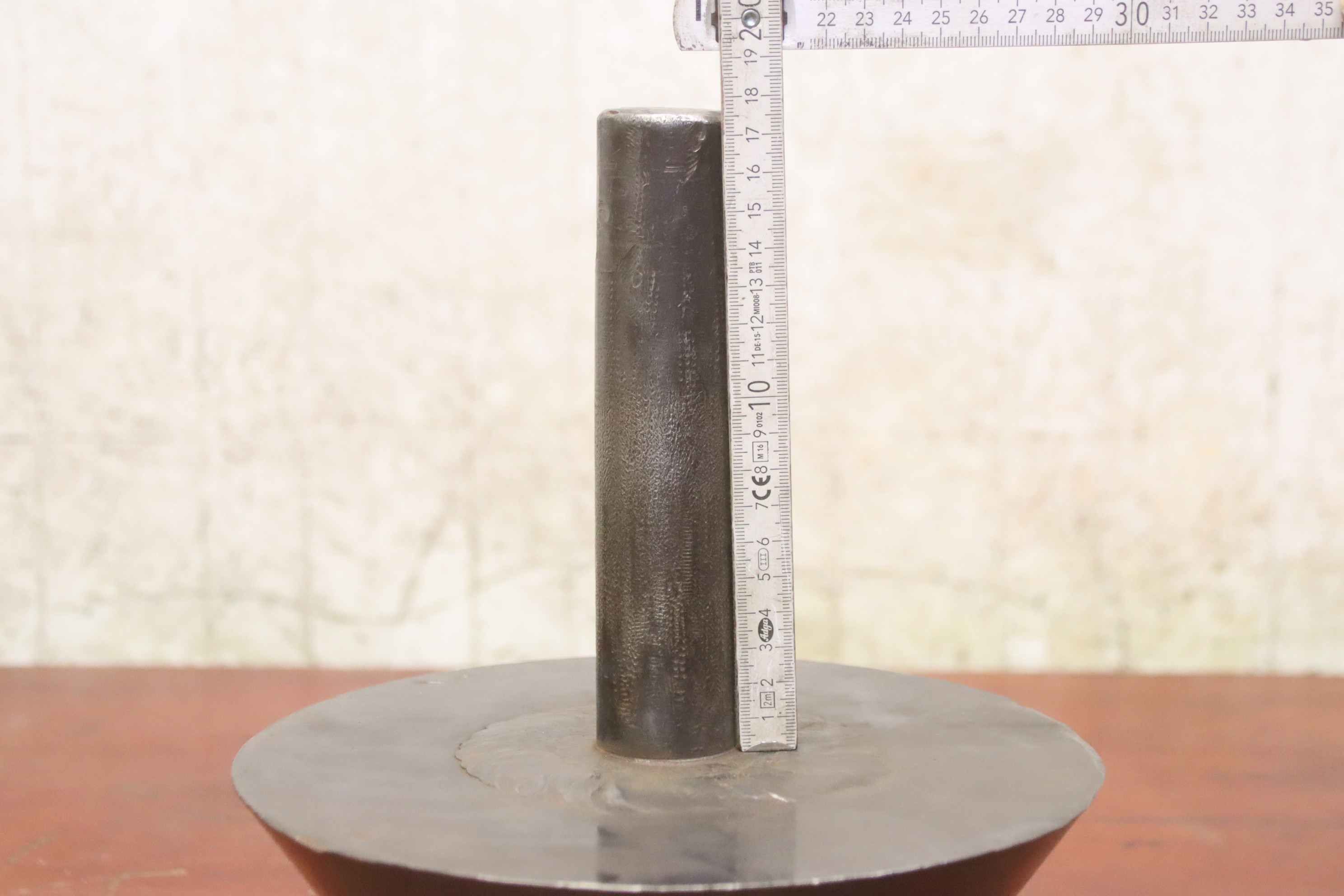

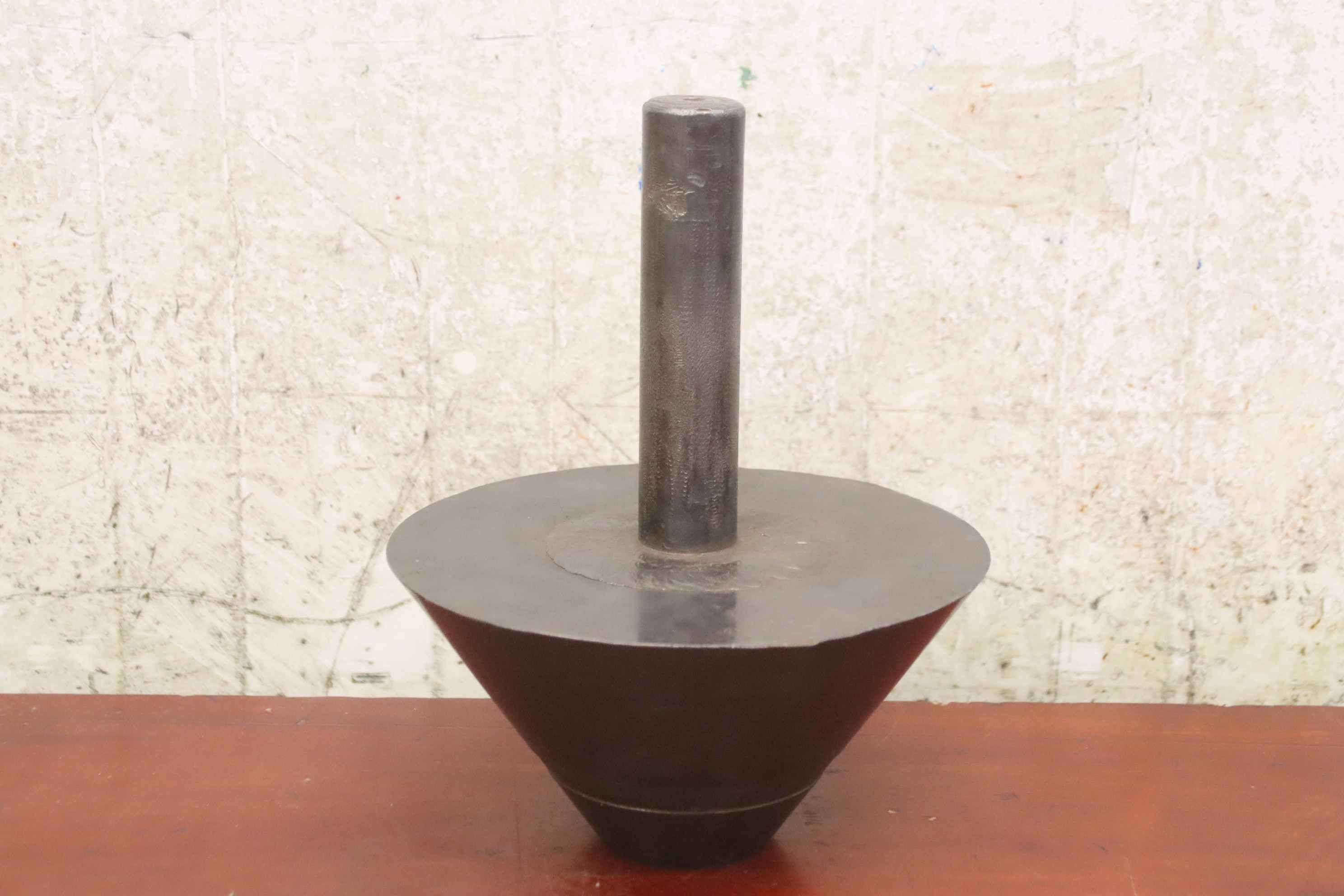

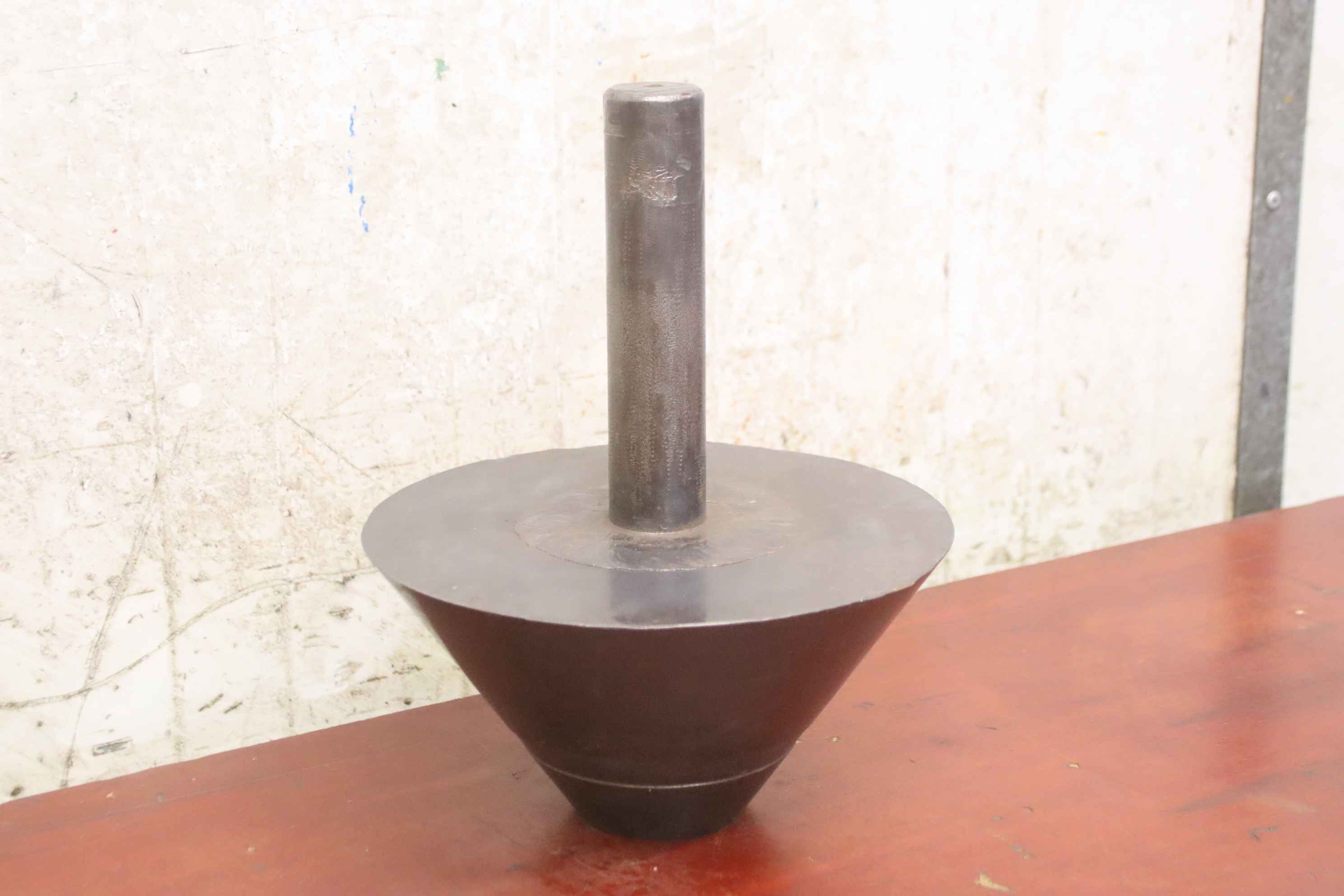

fixed point, fixed center point, fixed Morse taper, fixed centering point, centering points-fixed centering point: Ø 240 mm-Receptacle: Ø 40 mm-Dimensions: Ø 240 x 305 mm-Total weight: 21.4 kg

Spiral milling device, dividing head, dividing attachment, rotary table, rotary table-Admission inside: SK40-Tip height: 65 mm-Distance between centers: 440 mm-Passage: Ø mm-Reversing coupling for: left u. Right spiral-Pivotable for conical spirals: 0 - 45 °-Dimensions: 760/430/H310 mm-Weight: 61 kg

three-jaw chuck, three-jaw lathe chuck-Manufacturer: SCA Skand Chuckfabriks, precision three-jaw chuck chuck size Ø 230 mm-Jaws: individually and fully adjustable-Passage: Ø 66 mm-Bolt circle: Ø 193 mm / M12-Dimensions: Ø 230 x 130 mm-Weight: 21.2 kg

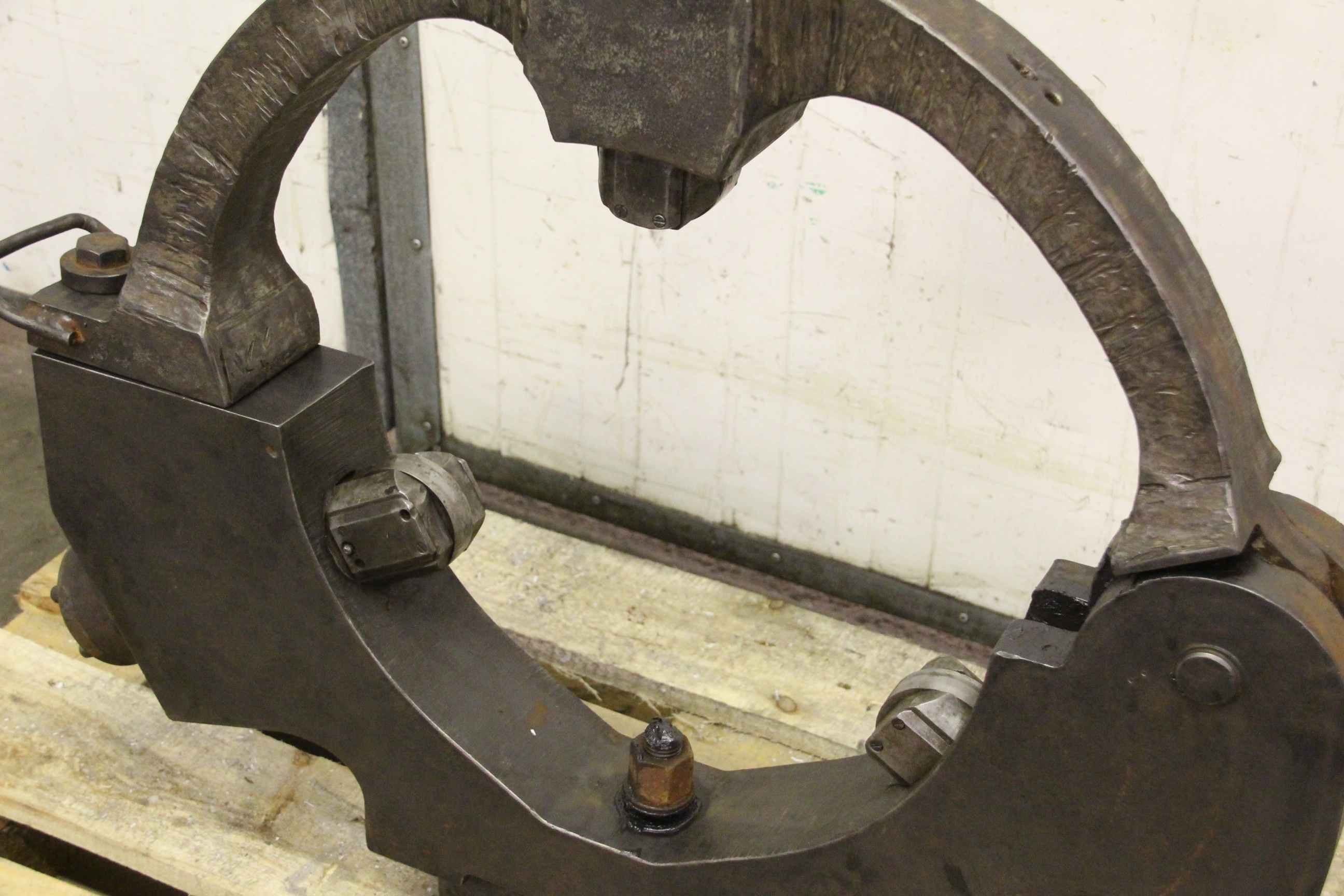

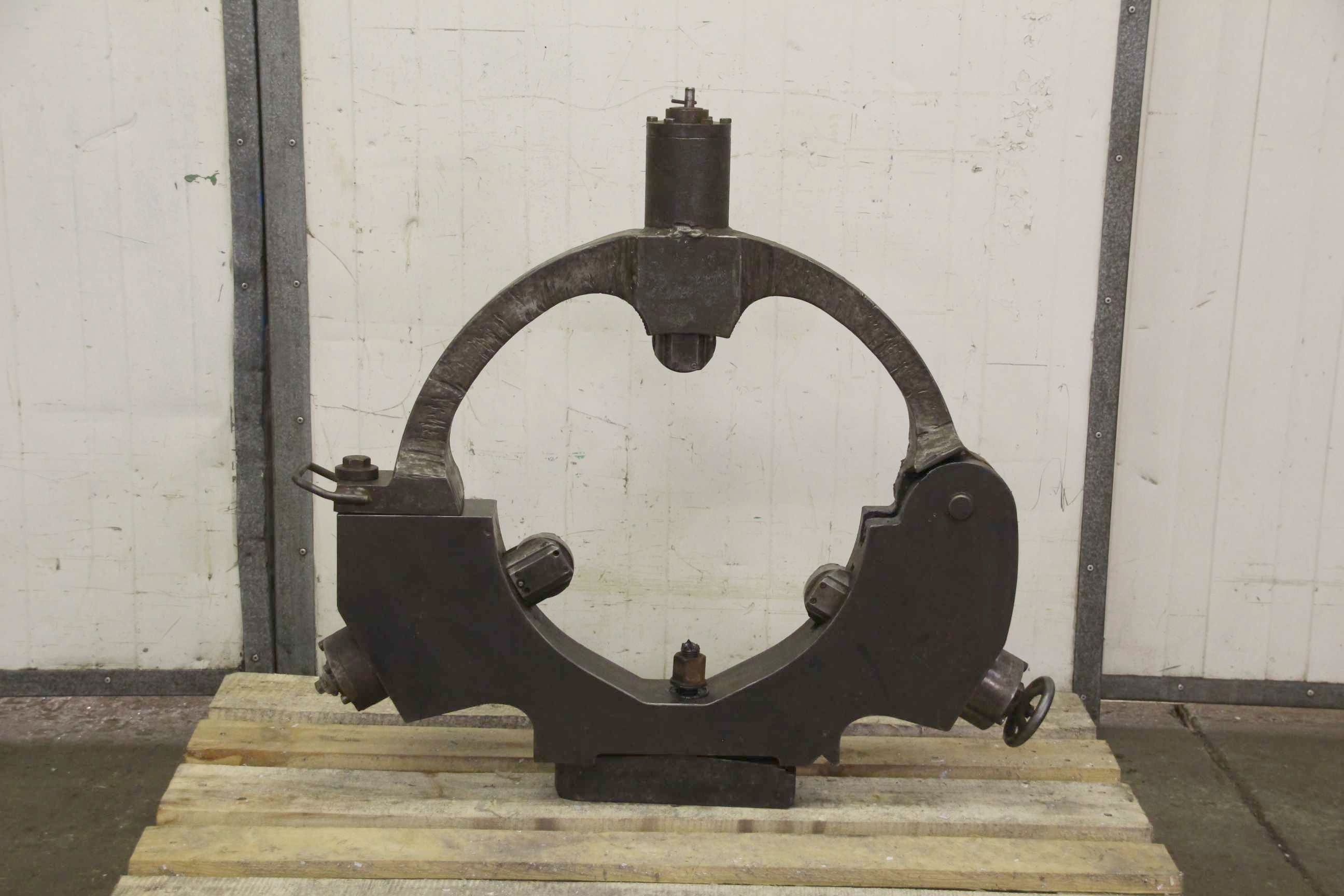

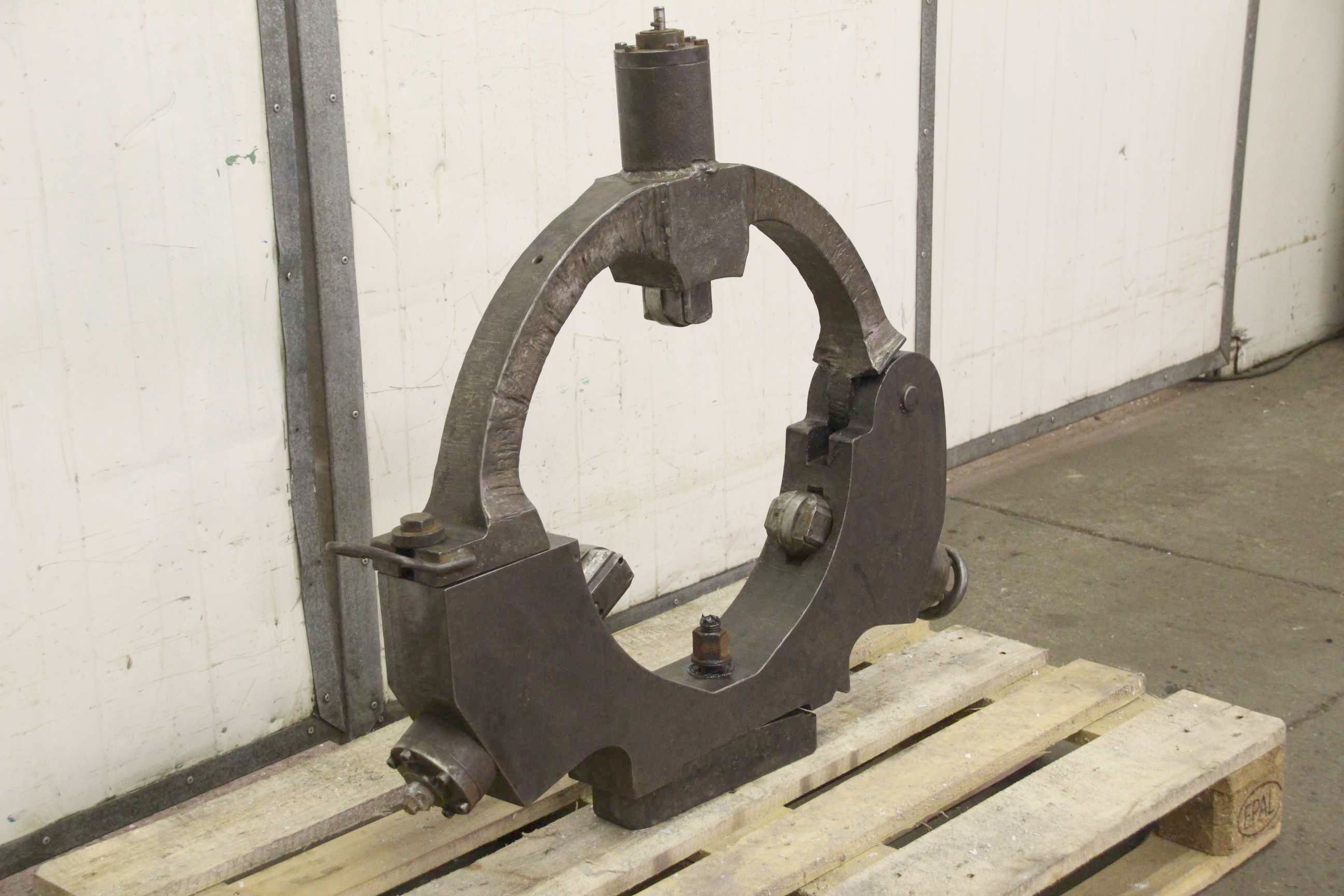

Bezel, stick, lynette -max. passage: Ø 450 mm -Tip height: 305 mm -Edition: ball bearings -Technical drawing: in the photos -Dimensions: 880/100/H870 mm -Weight: 169 kg

Hay dos máquinas idénticas disponibles. Carga conectada: 32kW, longitud: 3500 mm, ancho: 2400 mm, altura: 2400 mm, peso: 3t. Es posible la inspección in situ.

Indexable insert drills, high performance drills with indexable inserts, solid drills, end mills, end mills, milling cutters, indexable insert mills, end mills with internal cooling, indexable insert end mills -Finger milling cutter: indexable insert end mill with internal cooling, 2 pieces -Receptacle: Ø 25 mm -Diameter: 25 and 30 mm -Levy/Price: complete -Transport dimensions: 210/70/H40 mm -Weight: 1.0kg

Chuck flange, flange mount, lathe chuck flange, driving flange-Chuck flange: for drive heart, three-jaw chuck, four-jaw chuck, face plate-Outside: Ø 305 mm-Short taper: 8 -Number: 1x discs available-Price: per piece-Weight: 15.3 kg

marking prism, test prism, prism, angle prism, clamping angle, clamping prism, clamping cube, prism block-Prism block: for marking plate, clamping plate, straightening bench ...-Prism width: 30 mm / 70°-Dimensions: see photo technical drawing-Dimensions: 150/48/H37 mm-Weight: 1.7 kg

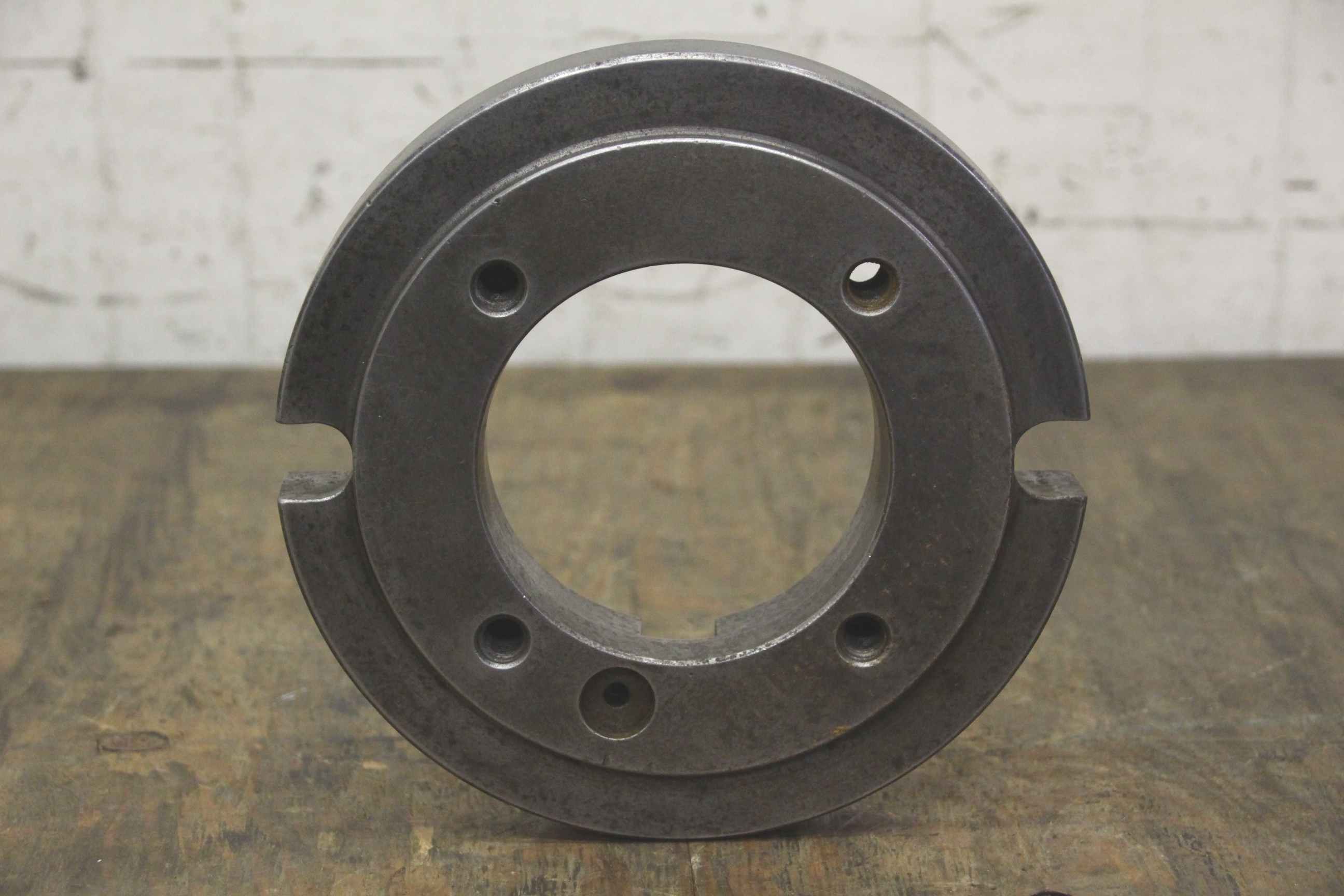

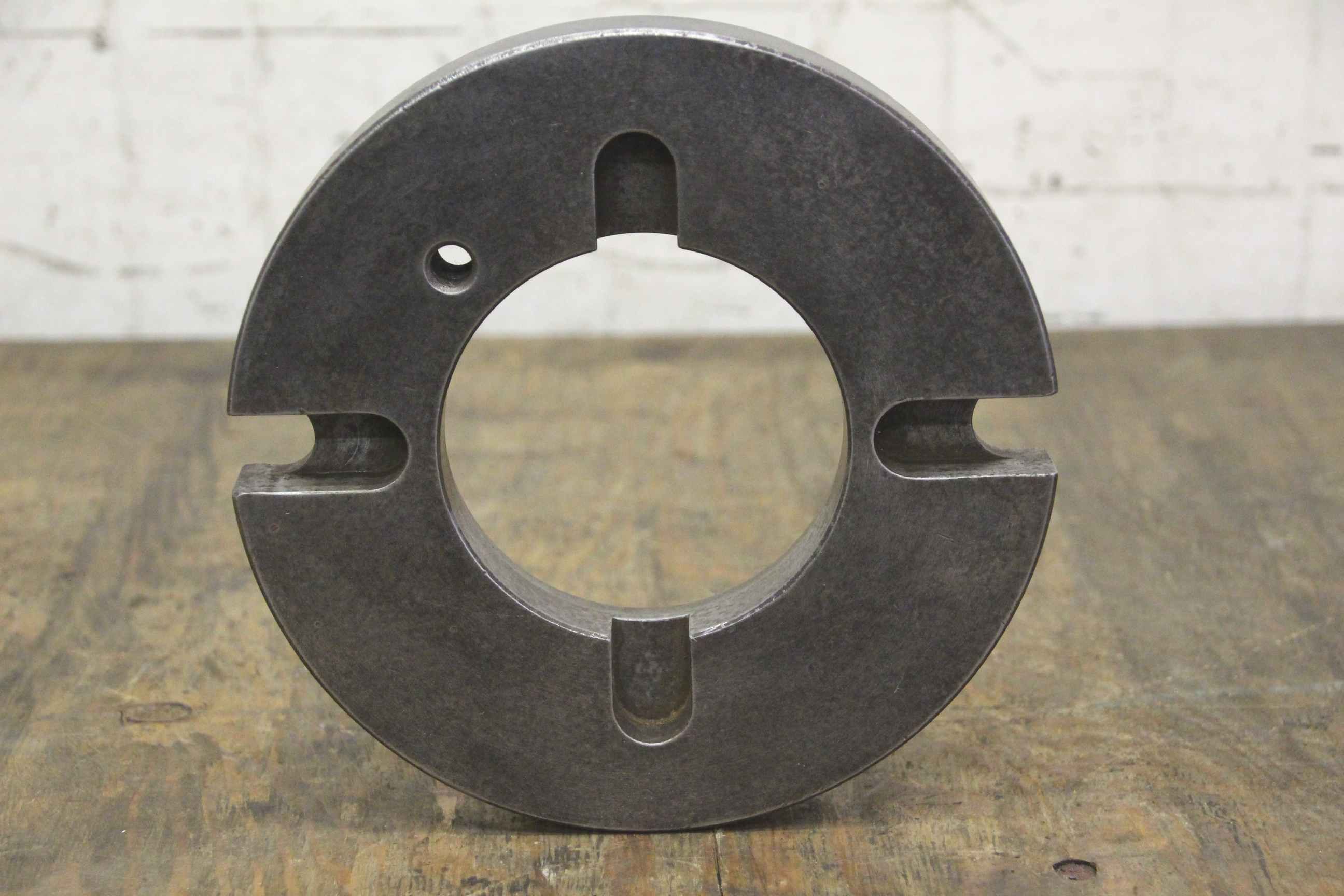

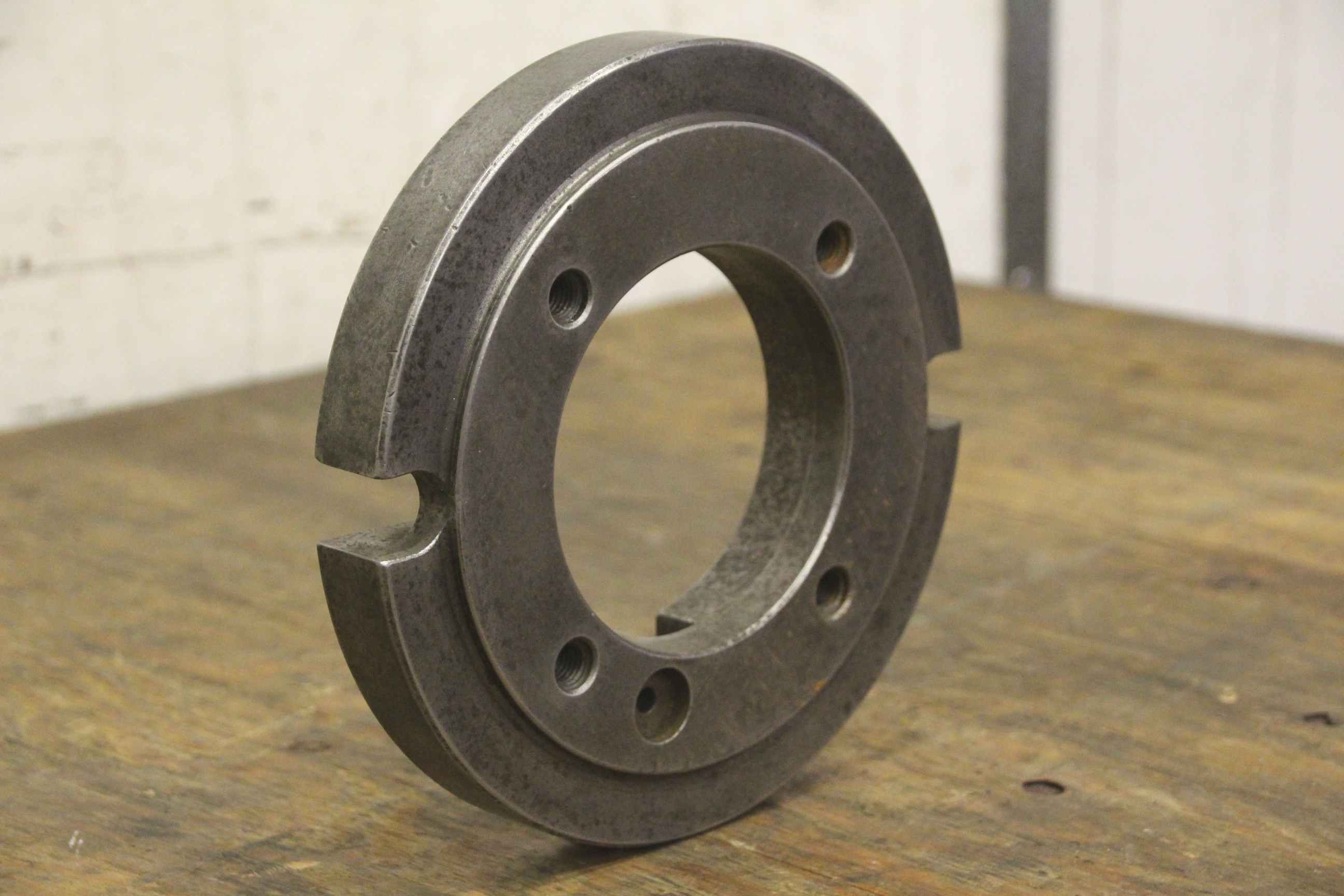

Chuck flange, flange mount, lathe chuck flange, driving flange-Chuck flange for: three-jaw chuck, four-jaw chuck, face plate-Outer diameter: 210 mm-Inside diameter: 105 mm-Hole circle: Ø 133 mm/M12-Dimension: Ø 210/H30 mm-Weight: 5 kg

Castors, leveling units, leveling elements, machine base, machine feet, leveling shoes, machine foundation, leveling shoe, wedge shoe, machine support, leveling foot, leveling roller foot -Manufacturer: Auto CFT Carrymaster, leveling roller 1 set / 4 pieces -Type: AC-1000 -Load capacity: 540 kg -Roll: Ø 72 x 31 mm -Adjustment range: 120 - 139 mm -Number: 2 sets of leveling rollers available -Price: per set -Single dimension: 140/103/H120 mm -Weight 1.6 kg/piece

rotary table, rotary indexing table, dividing apparatus, dividing head, dividing disk-Dividing disc: for rotary table/dividing apparatus 2 pieces-Outside: Ø 125 mm,-Inside: Ø 35 mm-Circle: 33/38/39/42/46 holes-Delivery/Price: complete-Dimensions: Ø 125 x 6 mm-Weight: 0.5 kg/piece

Three-jaw chuck, three-jaw lathe chuck-Three-jaw chuck: Chuck size Drm. 80mm-Passage: Ø 16 mm-Bolt circle: Ø 66 mm / M6-Accessories: incl. 2nd set of hard jaws and clamping tool-Weight: 1.7 kg

Quick-change chuck, quick-change holder, quick-change head, keyless drill holder, keyless drill chuck, CNC short drill chuck-Manufacturer: WTE, keyless drill chuck CNC short drill chuck with coolant supply-Type: 47.296.30.13-Receptacle: Ø 30 mm-Clamping Ø: 0.5-13 mm-Dimension: 137/68/H62 mm-Weight: 1.7 kg
