fresadoras usadas para venda (2,496)

x-travel:200 mmy-travel:100 mmz-travel:100 mmtotal power requirement:1,5 kWweight of the machine ca.:1,1 tdimensions of the machine ca.:0,6 x 0,6 x 1,8 mtable-size:350 x 150 mmNew class condition milling machine with vize and dividing head- Original year of manufacture unknown

x-travel:2000 mmy-travel:1500 mmz-travel:1460 mmmilling spindle motor:35/30 kWspindle taper ISO:50 spindle turning speed range:24 - 3000 U/mintable surface area:1350 x 1550 mmtable load:6 tfeed speeds:10 - 3000 mm/minrapid speed:10 m/mintotal power requirement:48 kWweight of the machine ca.:24 tCNC HEIDENHAIN TNC 426B-axis table roundHoriz. and Vertikal automatic positioning Milling Headdiverses accessories

x-travel:16300 mmy-travel:2600 mmz-travel:1600 mmspindle taper ISO:50 spindle turning speed range:22 - 4000 U/minrapid traverse:24 / 36 m/minmain drive:37 kWtotal power requirement:50 kWwith CNC HEIDENHAIN TNC 430automatic Universal Milling Headautomatic toolchanger 90-pocketscoolant attchament and chip conveyor

x-travel:14000 mmy-travel:3100 mmz-travel:1.200 mm (220 - 1.420) mmdistance between columns:4.417 mmtable-size:14.000 x 2.500 mmworkpiece weight:15.000 kg/mdrive capacity - spindle motor:25 kWspindle cone:63 HSKspindle turning speed range:18000 rpmmilling feeds:30000 mm/mindimensions of the machine ca.:15.000 x 8.418 x 6.033 mmweight of the machine ca.:135 tCNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:2000 mmy-travel:800 mmz-travel:800 mmtable-size:2.000 x 700 mmworkpiece weight:3500 kgdrive capacity - spindle motor:17 kWspindle cone:50 ISOspindle turning speed range:3000 U/mindimensions of the machine ca.:5265 x 3250 x 2730 mweight of the machine ca.:9 tCNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines.- Completely repair of the head, replacing bearings, shafts and engaging gears.- Completely replacement of all the bearings of the machine.- Replacing the joining screws of the bodies.- Completely repair of spindles.- Adjustment and repair of axis.- Grinding and adjusting all guides, because of deterioration.- Grinding and adjusting of the guide ways of the ram.- Repairing o ...

external diameter: - mmbore diameter in mm: - mmwidth: - mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: HEIDENHAIN TNC 155Tool holder: SK 40Table dimensions: 760 x 390 mmwith 6 groovesAttention: the vices on the clamping surface are not included in the scope of delivery!Travel X-axis: 500 mmTravel Y-axis: 400 mmTravel Z-axis: 400 mmincl. post SK 40 Tool holdersReference: Option - Lot 43 Auction-ID: A7-49056-87

x-travel:1000 mmy-travel:1150 mmz-travel:700 mmtable-size:900 mmtable load:1500 kgspindle speeds:10.000 1/minspindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nmspindle taper:A100 HSKT-slots:18mm/7/100 mmmilling feed range:20.000 mm/minrapid traverse feeds:X/Y/Z: 24 m/mindiameter of tools max.:150 mmworkpiece length:300 mmweight of tools max.:20 kgweight of the machine ca.:15 tdimensions of the machine ca.:s. Katalog mCNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fachScales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

Table dimensions: 3000 x 1280 mm Including attached clamping table 2000x1200x500 Auction-ID: A7-32339-7

x-travel:3600 mmy-travel:1250 mmz-travel:1600 mmtable load capacity:8000 kptable clamping surface::4100 x 1050 feed range:10 - 5000 mm/minrapid traverse feeds:10000 mm/minspindle motor:29 kWspindle taper::ISO 50spindle turning speed range:5 - 4000 U/mintotal power requirement:70 kWweight of the machine ca.:28 tdimensions of the machine ca.:8,5 x 5,4 x 3,2 mMachine with Heidenhain TNC 430 Steuerung- tool changer 30-fold- milling head indexable 2,5°- 4. axis turn table

x-travel:600 mmy-travel:450 mmz-travel:400 mmTable area:700 x 480 mmspindle turning speed range:10 - 3150 U/minspindle taper ISO:40 quill stroke:80 mmdimensions of the machine ca.:1,8 x 2,1 x 1,9 mtotal power requirement:8 kWweight of the machine ca.:3,5 tMachine with universal turn, sviwel and tilting table- CNC control DIALOG II- splash guards- misc. parts

Grinding range: 400 × 800 mmControl cabinet: SiemensCircuit diagram: 170525_1Rated current: 27 ANet: 3 Phase-50 HZ-400 V. Auction-ID: A7-49604-12

Equipped with: 24 positions ATC, Longitudinal X 1050 mm, Transverse Y 520 mm, Vertical Zn420 mm, Max. spindle speed 18000 rpm, Max. feed 15000 mm/min, diagrams and manual available. Auction-ID: A1-47359-41

Milling machine with - Toolmaker's table - Heidenhain digital display - Rapid traverse - Coolant system - Central lubrication - Machine feet - Incl. drawer cabinet with contents x-travel 600 mm y-travel 400 mm z-travel 400 mm Table clamping area 720 x 410 mm Spindle speeds 40 - 2000 rpm Tool holder SK 40 Total power requirement 3.0 kW Machine weight approx. 1.4 t Dimensions L x W x H 1.8 x 1.6 x 1.9 m Auction-ID: A7-49782-411

Equipment: - New TFT screen - Coolant system - Hydraulic tool clamping - Milling head with quill - Documentation x-travel 410 mm y-travel 310 mm z-travel 400 mm Table size 700 x 280 mm Control Heidenhain TNC 145 Mounting SK40 Speed range 40- 2,000 rpm Rapid traverse speed 1.5 m/min Feed speed 1500 mm/min Drive power 2.2 kW Quill stroke 63 mm Weight 1.3 t Total power requirement 2.2 kW Machine weight approx. 1.5 t Dimensions L x W x H 1.4 x 2.1 x 2.0 m Auction-ID: A7-49782-469

Machine Brand: Friedrich Deckel, Munich Type: FP1 Serial Number: 35968 Features: universal milling machine with vertical and horizontal spindle head, adjustable height, cross table with handwheels on X/Y, protective cover/splash guard above the spindle Speeds and feeds (type plate cutting data) Horizontal spindle speeds (positions I/II): 60-1200 rpm in multiple steps (60, 95, 120, 150, 190, 235, 300, 375, 475, 600, 750, 1200) Vertical spindle speeds: 95-1900 rpm in steps (95, 120, 150, 190, 235, 300, 375, 475, 600, 750, 950, 1200, 1900) Feed (mm/min): from 0 to 475 mm/min in several steps, adjustable both horizontally and vertically via lever positions Cutting speed diagram (m/min) present on nameplate for cutter diameters 4 to 130 mm Associated fate Cabinet with attachments/parts is offered with this machine Auction-ID: A3-46152-11324

Milling head tiltingly adjustable, including tool trolley with tool holders, including: collet holders, push-on milling holders. including clamping tool and work table with contents; Auction-ID: A1-49001-1

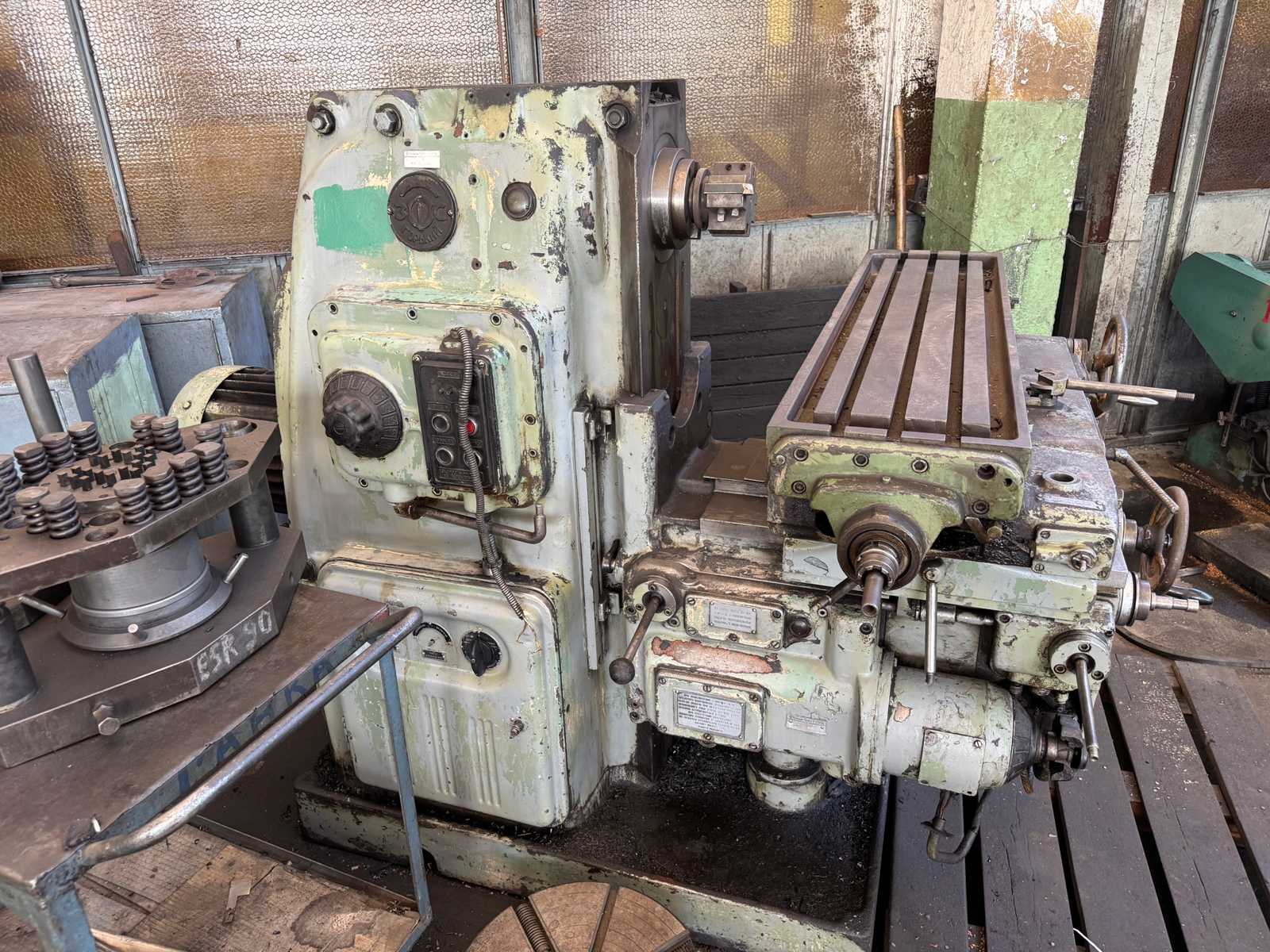

Technical details Manufacturer: ZPS Type: Horizontal milling machine Configuration: - Horizontal spindle - Gear-driven spindle head - T-slotted worktable - Longitudinal, cross and vertical manual feeds - Automatic table feed system - Rapid traverse - Feed gearbox with multiple speeds - Horizontal arbor support mounting - Mechanical control levers - Electrical control cabinet Application: - Flat surface machining - Slot milling - Keyway machining - General metalworking - Workshop and maintenance operations Construction: - Heavy-duty cast-iron machine frame - Conventional manual operation - Industrial gearbox drive Dimensions: - Length: Approx. 2400 mm - Width: Approx. 2200 mm - Height: Approx. 1900 mm Weight: Approx. 3500 kg Condition: Used Observed condition: - Machine appears mechanically complete - Table appears straight - Spindle nose and feed gearbox present - Electrical cabinet inst ...

General Description Horizontal milling machine designed for milling, slotting, gear cutting and general machining operations. The machine is equipped with a horizontal spindle and arbor carrying multiple slitting saws and side-and-face milling cutters, making it suitable for production and toolroom applications. Technical Details Machine type: Horizontal milling machine Horizontal spindle with arbor installed Multiple slitting saws and side-and-face cutters mounted on the arbor T-slotted work table Manual X/Y/Z table feeds Mechanical feed gearbox Feed and spindle speed selector dials Condition Used industrial condition. The machine appears complete with horizontal spindle, arbor, milling cutters, T-slotted table and feed gearbox. Operational status, spindle condition and machining accuracy have not been tested. Auction-ID: A7-49124-23

Mitutoyo LH-600 digital height measuring instrument with QM-Data 100 control/display unit. Measuring range 600 mm, powered on and display visible in the photos. Suitable for quality control and workshop inspection. Auction-ID: A1-49190-58

24 pieces automatic tool changer. Without tools. Auction-ID: A1-49659-1

Includes machine cabinet, table and tools. Auction-ID: A1-49659-13

DECKEL FP1 Universal Tool Milling Machine - Overhauled in 1999 by HARICH Equipped with work table, machine vice and separate control cabinet Tool cabinet with various tools, milling cutters, clamping devices, tool holders, drills and other machine accessories Instruction manual and technical documentation are also available Auction-ID: A1-49712-12

Auction-ID: A1-49309-28

max. diameter of machined gear: 320 mm,max. table feed: 180 mm,max. module of machined gears: 6,distance from cutter axis to spindle nose: 120-300 mm,taper: Morse 5 Auction-ID: A7-49398-44

Mori Seiki CV 500 Machining Center X-axis: 510 mm Y-axis: 510 mm Z-axis: 510 mm Pallet length: 750 mm Pallet width: 550 mm Spindle Type: BT-40 Max. workpiece weight: 200 kg Spindle motor power: 7.5 kW Number of tools: 24 Spindle speed: 8000 rpm Dimensions: L 2000 x W 3600 x H 2750 mm Machine weight: 4400 kg Auction-ID: A7-49053-28

Machine ready for transport Auction-ID: A1-48649-17

• Type of machine: Universal tool milling machine • Control: Heidenhain TNC 114B (positioning control / simple CNC) • Travel (X/Y/Z): approx. 560 / 500 / 400 mm • Table size: ± 800 × 460 mm • Spindle holder: SK40 • Speed: 40 – 4000 rpm • Feed rate: 2 – 2000 mm/min • Quick displacement: ± 3500 mm/min • Pinole stroke: 90 mm Auction-ID: A1-48648-30

x-travel: 3500 mmy-travel: 1000 mmz-travel: 900 mmControl: Heidenhain iTNC 530 total power requirement: kWweight of the machine ca.: 21 tdimensions of the machine ca.: 10770 x 4100 x 3150 mControl system: Heidenhain iTNC 530Operating hours: 54631 hX-axis 3500 mmY-axis 1000 mmZ-axis 900 mmDrive power 30 kWSpeed range 20–3800 rpmRapid traverse 15 m/minFeed rate 4 m/minClamping surface 2x 1600 x 960 mmMax. table load 2 x 4000 kgMachine weight (approx.) 21 tMachine dimensions (WxDxH) 10770 x 4100 x 3150 mmTechnical data / AccessoriesUniversal bed-type milling and boring machineMilling head position: Vertical, horizontal (top, center, left, right)Heidenhain TS 120 3D touch probeKekeisen TW 32 drum-type tool changerKnoll hinged-belt chip conveyorThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

equipped with W-axis, W-axis travel 480 mm, documentation, built-in drawers with tools, 15 positions manual tool changer, machine ready for transport and to be assessed on viewing day. Auction-ID: A1-48649-18
