outras máquinas para trabalhar o metal usadas para venda (11,395)

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:10000 mm

turning diameter:220 mmturning length:- mmcontrol:- distance between milling spindels:800 mmspindle speed max.:12.000 U/mindaylight:66 mmmachine weight ab.:11 ttotal power requirement:90 kVAFanuc controlTwo turretsTwo spindlesSpindle bore 66 mm on both spindlesTwo Y-axesParts gripperHainbuch chuck on both spindlesTailstock functionChip conveyorTool eyeShort bar loaderTool holder package

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:5000 mm

turning diameter:570 mmturning length:- mmcontrol:- Diameter of rotation above the bed slide:360 mmMaximum width:2.000 mmrevolutions per minute:max. 2500 U/min:11 kWmax. longitudinal feed:7,5 m/minmax. transverse feed:7,5 m/minrapid traverse longitudinal:12 m/minrapid traverse cross:15 m/minPinole diameter:95 mmPinolenhub:220 mmPinolen intake: MK 5 weight of the machine ca.:2,97 tdimensions of the machine ca.:3,8m x 1,3m x 2m mTechnical description:- Tool turret - automatic - 8-fold (see also options) - CAPTO Revolver Disc- Machine bed - made of perlite casting GG-26- high stiffness due to strong ribbing- Bed slides - guideways hardened and ground- automatic lubrication of the bed rail- Reitstock - manual- Quick clamp- Operator station - two movable handwheels on the operator panel- a movable handwheel- Control - "Siemens 828 D" CNC control- Siemens "Comfort" (including Shopturn and re ...

Holex / Garant / ABsolute Various sizes, designs. For more details see photo 4PCS Auction-ID: A7-46619-192

LINEAR AXLE:. - Number of moving slides:3 DIMENSIONS / WEIGHTS:. - space requirements length:16000 mm

grinding length:900 mmgrinding width:400 mmworkpiece height:450/530 mmtable clamping surface LxW:1.320 x 300 mmmagnetic plate size:880 mm x 280 mm mmFinimaticCreep speedAdd-on for DiaformRectifier systemCoolant deviceInfinitely variable grinding clamping drive

13pcs Different size, design and make TESA, Garant, MAHR, Holex See photo for more details Auction-ID: A7-46619-194

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:12000 mm

spindle diameter:100 mmx-travel:1250 mmy-travel:1100 mmz-travel:950 mmspindle turning speed range:2500 U/minRotary-table:1100 x 1000 mmtable surface area:1000 x 1100 mmtool clamping:69871 DIN spindle stroke:630 mmspindle taper:SK50 total power requirement:22/34 kWmax. workpiece weight:3000 kgweight of the machine ca.:13000 kg

This jet cabin is included as standard: Blasting gun 4-piece nozzle set Set of gloves Lighting Set of protective films Foot pedal. Pressure regulators Suction with microfilter Internal dimensions 945 x 605 x 605 mm Operating pressure 2.2 - 5.5 bar Dimensions L x W x H 1.0 x 0.61 x 1.65 m Package size max. 1300 x 1000 x 75 cm Machine weight approx. 0.09 t The system is delivered in black Condition: never used / new (5) Auction-ID: A7-46642-13

LINEAR AXLE:. - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:5000 mm

ParameterValueModel NameHerkules 450/10/50TypePiston Air CompressorTank Capacity50 litresMax. Operating Pressure10 bar Motor Power2.2 kW / ~3 HPVoltage230 V AC Frequency50 HzEngine Speed2800 rpmAir Intake Capacity400 L/minAir Delivery (Effective)320 L/min Noise Level95?97 dB Number of Cylinders2 (twin cylinder)LubricationOil-lubricated systemTypical UsesHome workshop, tire inflation, air tools, painting

different sizes; for more details see photos of nameplates Auction-ID: A7-46619-426

LINEAR AXLE:. - Number of moving slides:3 DIMENSIONS / WEIGHTS:. - space requirements length:24000 mm - total weight approx.:10100 kg

Performance·Max. motor power: 30 kW·Max. engine speed: 10,000 rpm·Rated torque (test bench): > 100 Nm·Max. braking torque: up to 122 Nm·Max. braking power: up to 46 kW (overload)Dynamometer·Type: AC asynchronous dynamometer, frequency-controlled·Voltage: 360 V·Cooling: Forced ventilation (IC06)·Protection class: IP23·Insulation class: F·Speed range: 0 ? 10,000 rpm·Continuous operation: up to 40 kW (depending on speed)·Overload capability: 1 min every 10 minMeasurement System·Torque measurement:oHBM T12HP torque flangeoMeasurement range: 200 NmoAccuracy class: 0.02·Speed measurement:oIncremental encoder, 1024 pulses/revoAccuracy: ±0.01 rpm·Vibration monitoring:oIntegrated vibration sensorMechanical Structure·Slotted base plate with air suspension (Bilz air springs)·Vibration-damped test bench·Motor mounting system:oAdjustable aluminum frameoMax. motor weight: 500 kgoCo ...

LINEAR AXLE:. - Number of moving slides:3 DIMENSIONS / WEIGHTS:. - space requirements length:19000 mm

Max. basket weight:50 kgTemperature for washing water:0-60 °CElectrical heating power:2 kWRated power supply:230 VMachine size LxWxH:600x800x1650 mmMachine weight:90 kgDIMENSIONS DxWxH600x800x1650 mmPOWER SUPPLY230 VDETERGENTwaterPUMP POWER1.2 kWTANK CAPACITY100 lLOAD CAPACITY50 kgHEATING ELEMENTS POWER2 kWHEATING TEMPERATURE0-60°WORKTOP DIMENSIONS750x550 mmWEIGHT90 kg

LINEAR AXLE:. - Number of moving slides:2 DIMENSIONS / WEIGHTS:. - space requirements length:7000 mm

travel -x axis:800/1825 mmtravel -y axis:800/460 mmtravel -z axis:600 mmFeeding X,Y,Z up to:0 - 40/40/40 mm/min.swival range +/-:+10 bis -90 x 360 GradRotary-table:800 x 630 mmnumber of T-slots:5 T-slot - distance:125 mmT-Slots:18 mmcenter hole:30H7X15 mmswival range +/-:90 Gradturning speed:20 m/min.Number of axles:3-7 St.Spindle RPM:12.000 1/minmax. tool weight:10 kgmax. tool length:330 mmdiameter of tools max.:80 mmtool changing time:4 secCNC control with15.1" color flat-screen19" machine control panelPCU 50 with Intel Pentium IIWindows XP10.0 GB hard drive

Consisting of: various ISO/HSK A63 holders, collet holders, extensions and milling holders, including Haimer, Seco, EPB, (G2.5 balanced). Auction-ID: A1-45979-10

LINEAR AXLE:. - Movement:3500 mm - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:5000 mm

Keyence Digital Measuring Projector ? Model XM-1600General:Digital measuring projector with a high resolution image measurement system and very easy operation. Place the part on the stage and measure by pressing a button. Supports automated measurements of up to 300 dimensions within seconds.Measuring Head / Control Unit:·Sensor: Monochrome CMOS 1 inch, 20 megapixels·Display: 12.1 inch LCD monitor (WXGA 1280 x 800)·Lens: Double telecentric lensMeasuring Field and Measuring Range:·Standard measuring field: approx. 100 mm diameter·Precision mode measuring field: approx. 25 x 25 mmMeasurement Accuracy and Repeatability:·Display resolution: 0.1 micrometer·Repeatability (standard, without stage movement): approx. plus minus 1 micrometer·Precision mode (without stage movement): approx. plus minus 0.5 micrometerStage / Travel Axes:·XY measuring stage: motorized·Z axis: approx. 75 mm,  ...

LINEAR AXLE:. - Movement:2500 mm - Number of moving slides:1 DIMENSIONS / WEIGHTS:. - space requirements length:4000 mm

turning diameter:500 mmturning length:1500 mmTechnical Specifications:·Turning diameter over cross slide: 290 mm·Spindle bore: 71 mm·Speed range: 3?2,800 rpm·Rapid traverse speed: 10 / 5 m/min·Feed rate: 1?2,000 mm/min·Total power requirement: 22 kW·Machine weight: approx. 3.2 t·Space requirement: approx. 3.0 × 1.6 × 2.0 m

turning diameter:356 mmturning length:700 mmy-axis:±60 mmspindle drive:18 kWcounterspindle motor:15 kWDirect drive for driven tools:5,5 kWMotor starting torque:640 NmMain spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mmmain spindle speeds::4.000 U/minDrehzahl angetriebene Werkzeuge :6.000 U/minrapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg12-station turret, all positions drivenC-axis on both spindlesBelt-driven and infinitely variable drive on all motorsPrismatic guideways on all axesOil cooler for both spindles, manufacturer DaikinAutomatic, dialog-guided programming system MAPPSAutomatic monitoring of tool load and tool wearTwo Renishaw measuring arms for automatic tool measurementInterfaces: USB, PCMCIA card, and RS-232 portInterface for bar feederAutomatic parts catcherDual foot pedal for independent opening and closing of the chucks  ...

complete set, measuring range: 35-150mm, incl. dial gauge Auction-ID: A7-46619-434

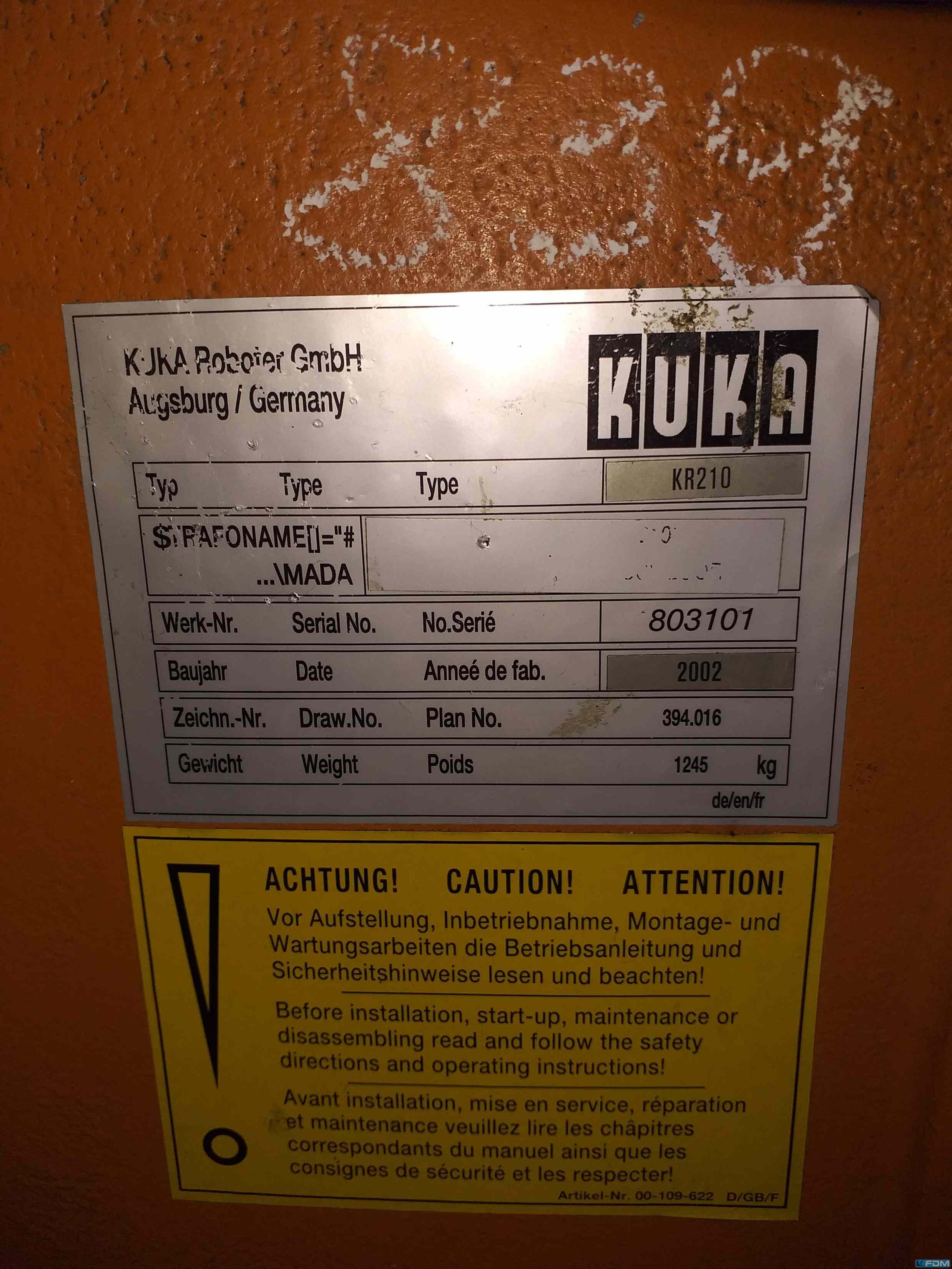

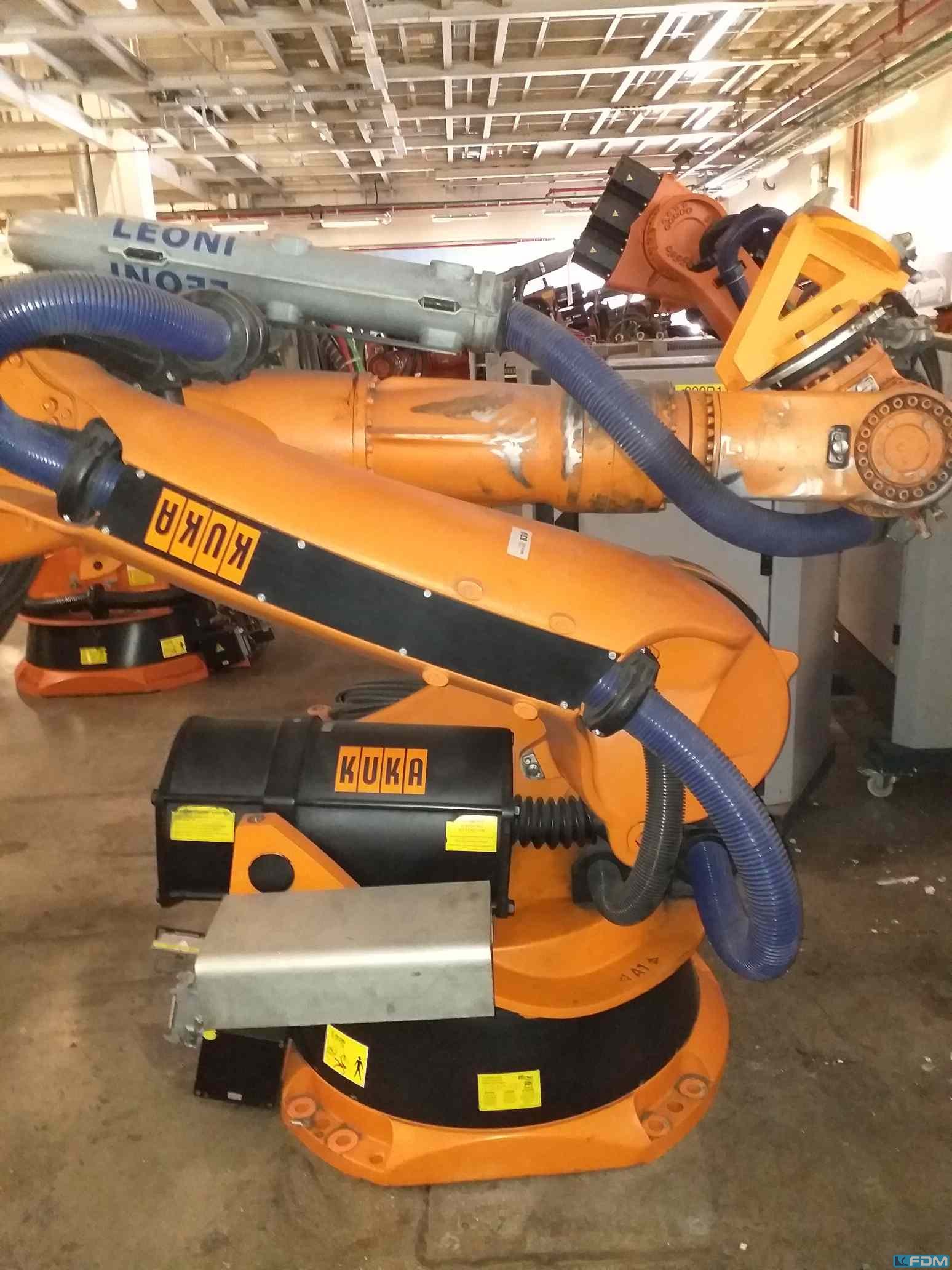

PEDESTAL:. - Hole pattern for robot : Kuka low / medium load :. DIMENSIONS / WEIGHTS:. - total height:1200 mm

Hartner Multi-Step DrillsPrecision reimagined. Efficiency made tangible. Made in Germany.The multi-step drills are the intelligent further development of classic HSS and HSS-E twist drills. Thanks to their innovative step-drill geometry, the drills deliver significantly higher performance, greater precision, and noticeably improved drilling comfort in daily use.What makes the multi-step drill so special? Unlike conventional HSS drills that machine material in a single cutting action, the multi-step drill works in several defined cutting stages. The result is smooth, low-vibration operation with significantly lower force requirements.Additional advantages include optimal chip removal, perfectly round and precise holes, and almost burr-free hole exits. Even when used with hand drills and cordless drills, the special geometry enables controlled drilling without jamming or slipping in the dr ...
