Storage tanks with 2 torospherical heads. Fitted with bottom and side-wall cooling jackets. 2 tanks, each 83 hl total volume, with 2 x cooling jackets, Additional title: Vertical, coolable stainless steel tanks, Gross volume: 8300 l, Operating pressure: 0,9 bar, Operating temperature: 20 °C, Width: approx. 1800 mm, Height: approx. 4030 mm, Material: Stainless steel 1.4301, Position: vertical, Base construction: 4 x pipe feet, Features: bottom cooling jacket; side-wall cooling jacket; sampling valve; 2 x sight glass; side manway; CIP piping; outlet valve (butterfly valve); Contact thermometer; solenoid valve for glycol piping

Fermentation tank with two dished bottoms. - 4 tanks with 52 hl butto content each - 2 tanks with 79 hl gross capacity each, Additional title: vertical stainless steel tanks, Total volume: 7900 l storage tank 2 pcs., Operating pressure each: 0,9 bar, Operating temperature: 20 °C, Width: approx. 1400 mm, Height: approx. 4100 mm, Material: Stainless steel 1.4310, Position: vertical, Base construction: 4 x pipe feet, height-adjustable, Features: Side manway; CIP piping; outlet valve (butterfly valve)

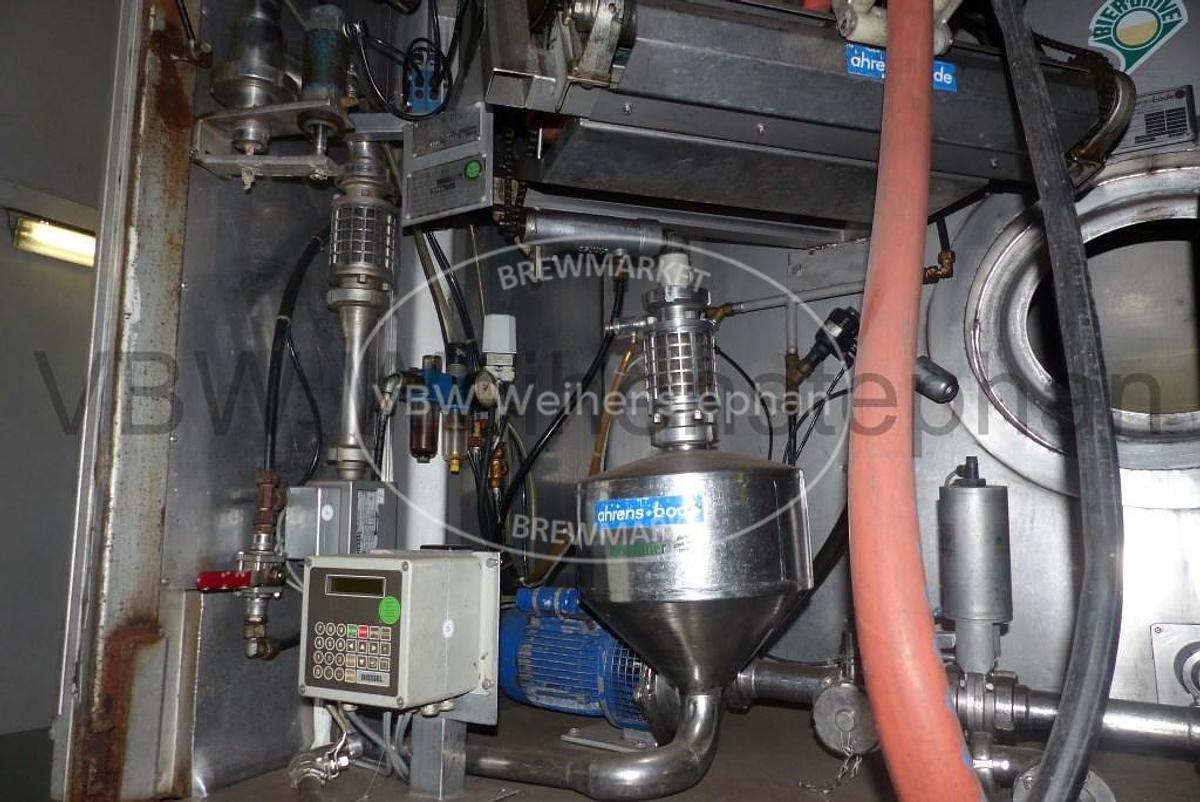

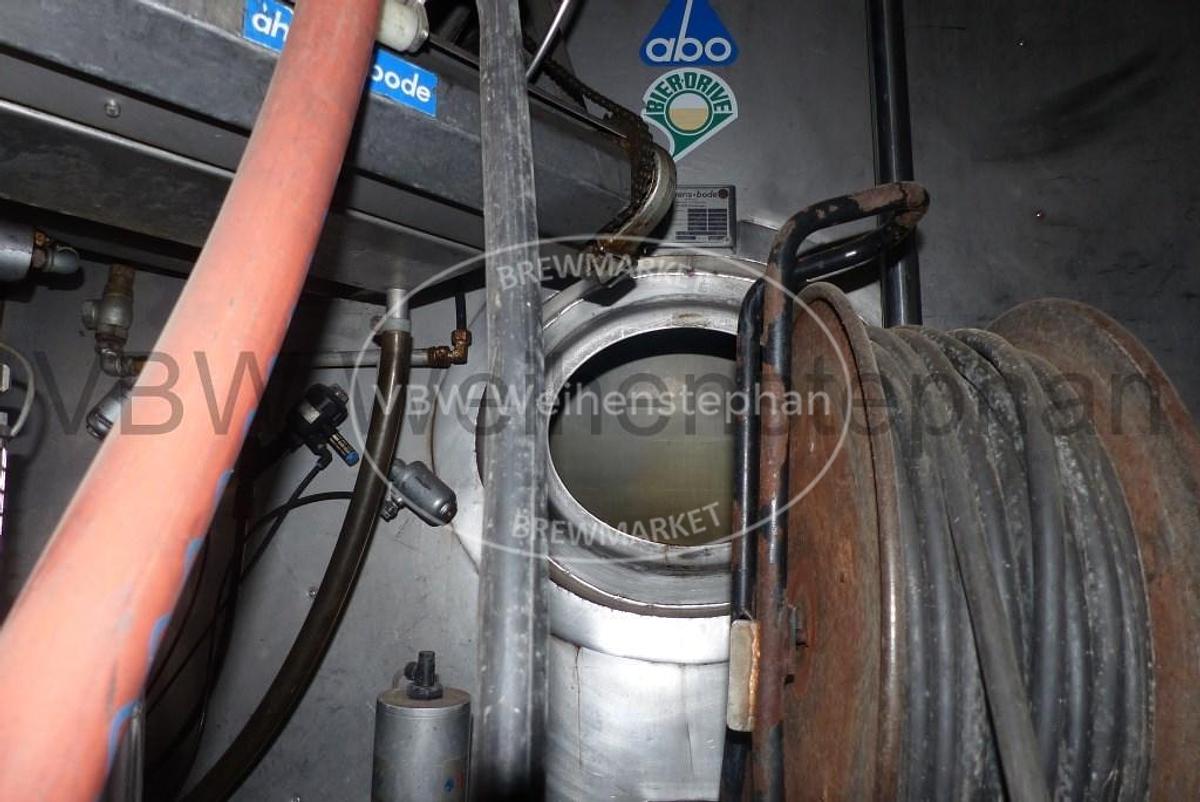

Beer transport tank in a shipping container, with CIP spray head and manhole. Includes a metering system (max. flow rate: 120 l/min)., Additional title: Stainless steel pressure tank housed in a container, Capacity: 7200 l, Operating pressure: 2,5 bar, Operating temperature: 20 °C, Length: 7,25 m, Width: 2,4 m, Height: 2 m, Features: control, pump, hose reel, flow meter, cable drum, fittings, CIP spray head, manhole

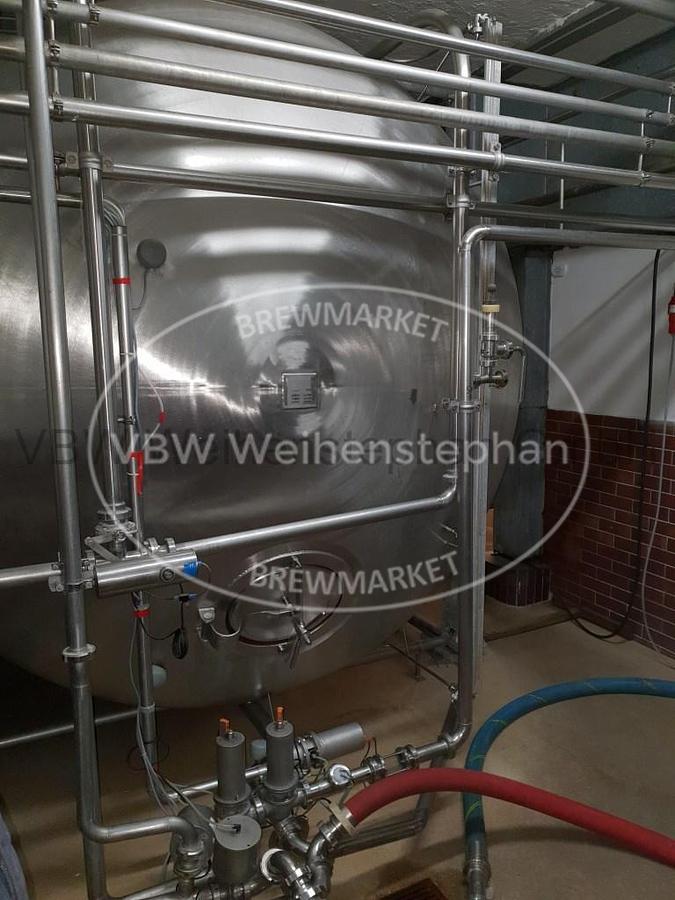

Horizontal stainless steel tank, most recently used as a beer flotation tank., Additional title: horizontal stainless steel tank, Volume: 42300 l, Operating pressure: 0,99 bar, Operating temperature: 20 °C, Material: stainless steel, Position: horizontal, Features: manhole

Vertical stainless steel tank with various fittings., Additional title: vertical tank, Volume: 3158 l, Max. permissible pressure: 0,5 bar, Max. permissible temperature: 110 °C, Material: stainless steel, Position: vertical, Base construction: cylindrical tank with flat heads

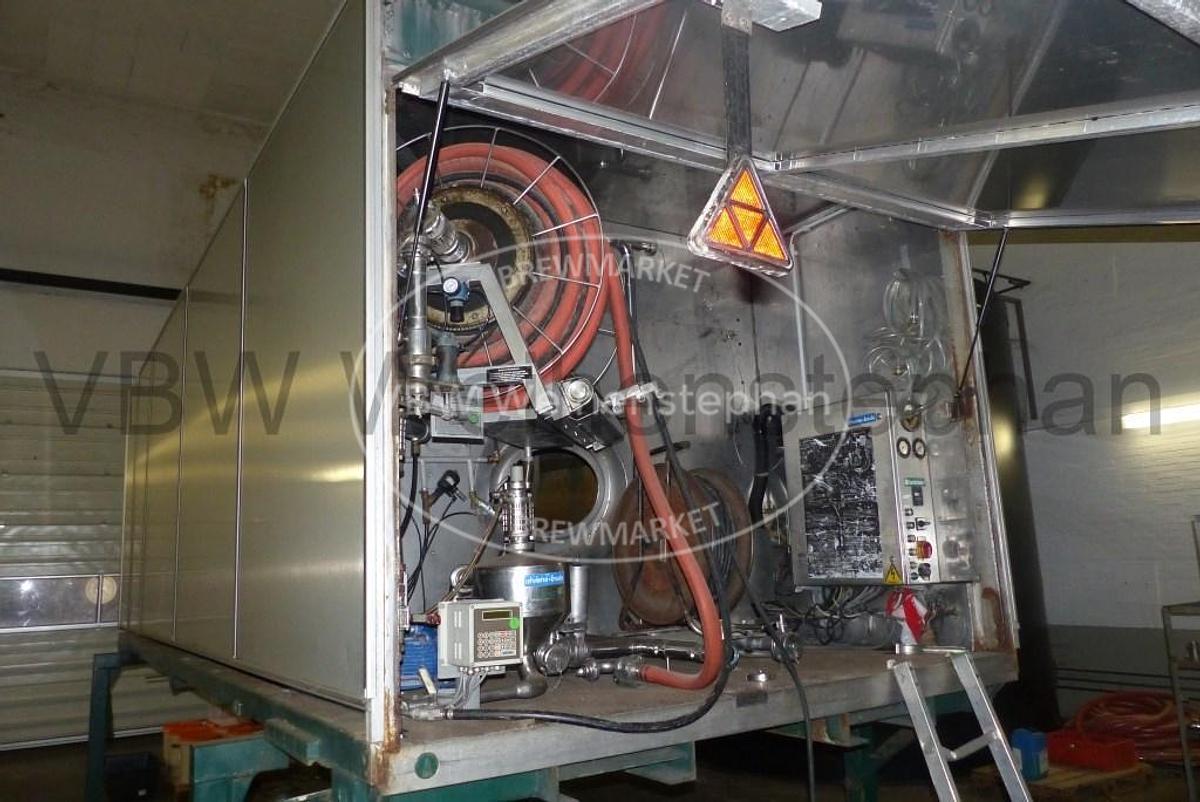

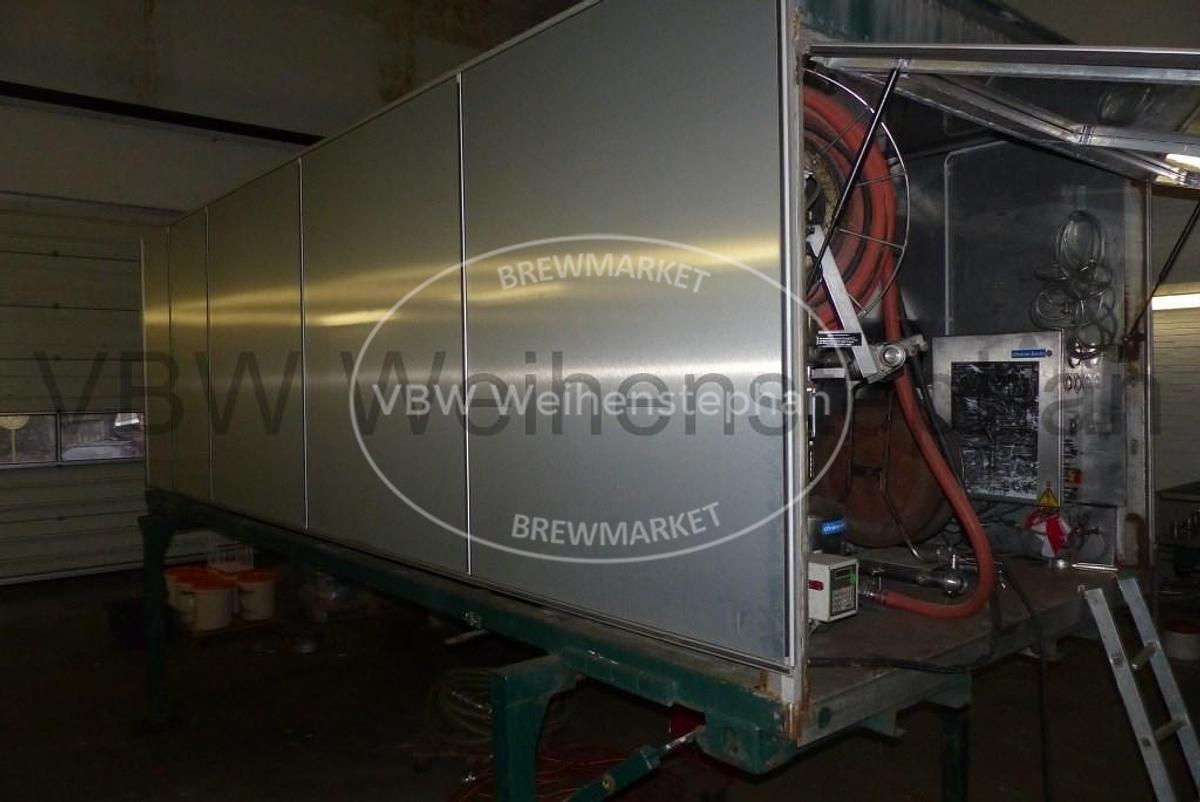

A stainless steel pressure tank housed in a shipping container, fitted with various equipment for dispensing drinks., Additional title: Stainless steel pressure tank housed in a shipping container, Capacity: 3200 l, Operating pressure: 2,5 bar, Operating temperature: 20 °C, Length: 4,65 m, Width: 2,3 m, Height: 1,95 m, Weight: 2500 kg, Features: Beer pump, thermometer, gas measurement, flow meter (Diessel), 2 cable drums, hose reel, safety valve, cleaning and filling connection, spray head, manometer, empty detection electrode Control cabinet, compressed air compressor (AltasCopco), pallet for 4 CO2 bottles, valves, pressure reducer

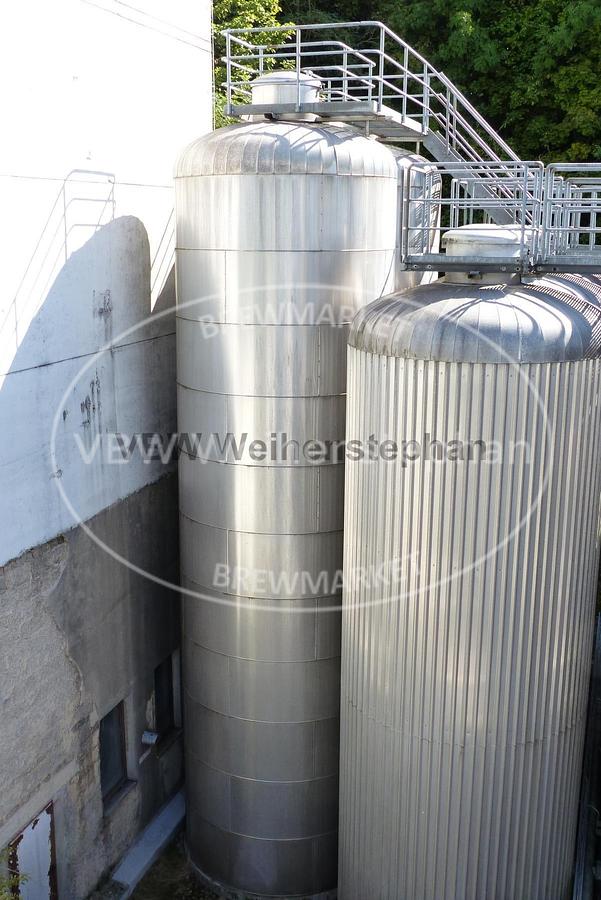

Insulated and clad stainless steel tank with a flat-conical dome. Most recently used as a storage tank for cold water., Additional title: Insulated, vertical stainless steel tank, Volume: 22257 l, Temperature: 20 °C, Width: 2,1 m, Height: 9 m, Weight: 3000 kg, Base construction: insulated and covered, Features: manhole

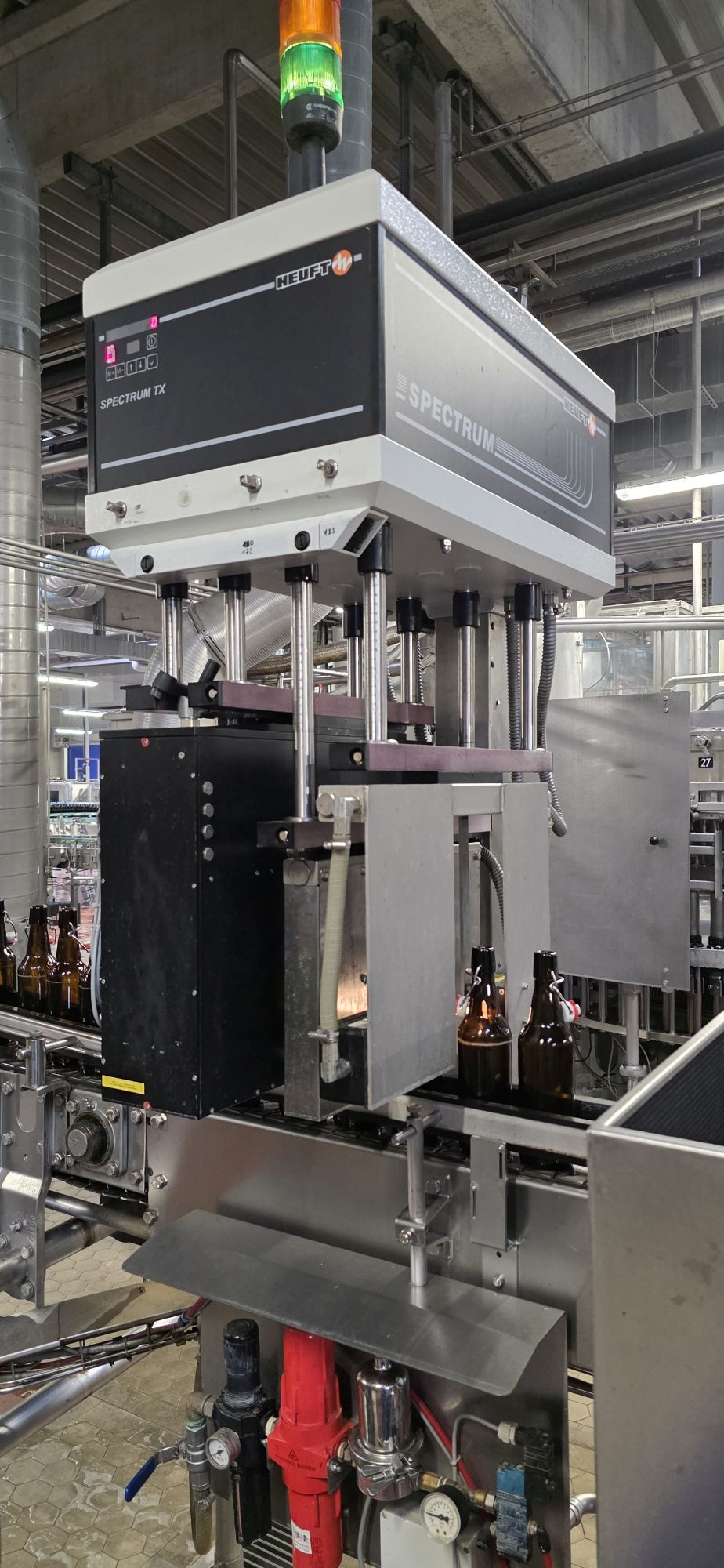

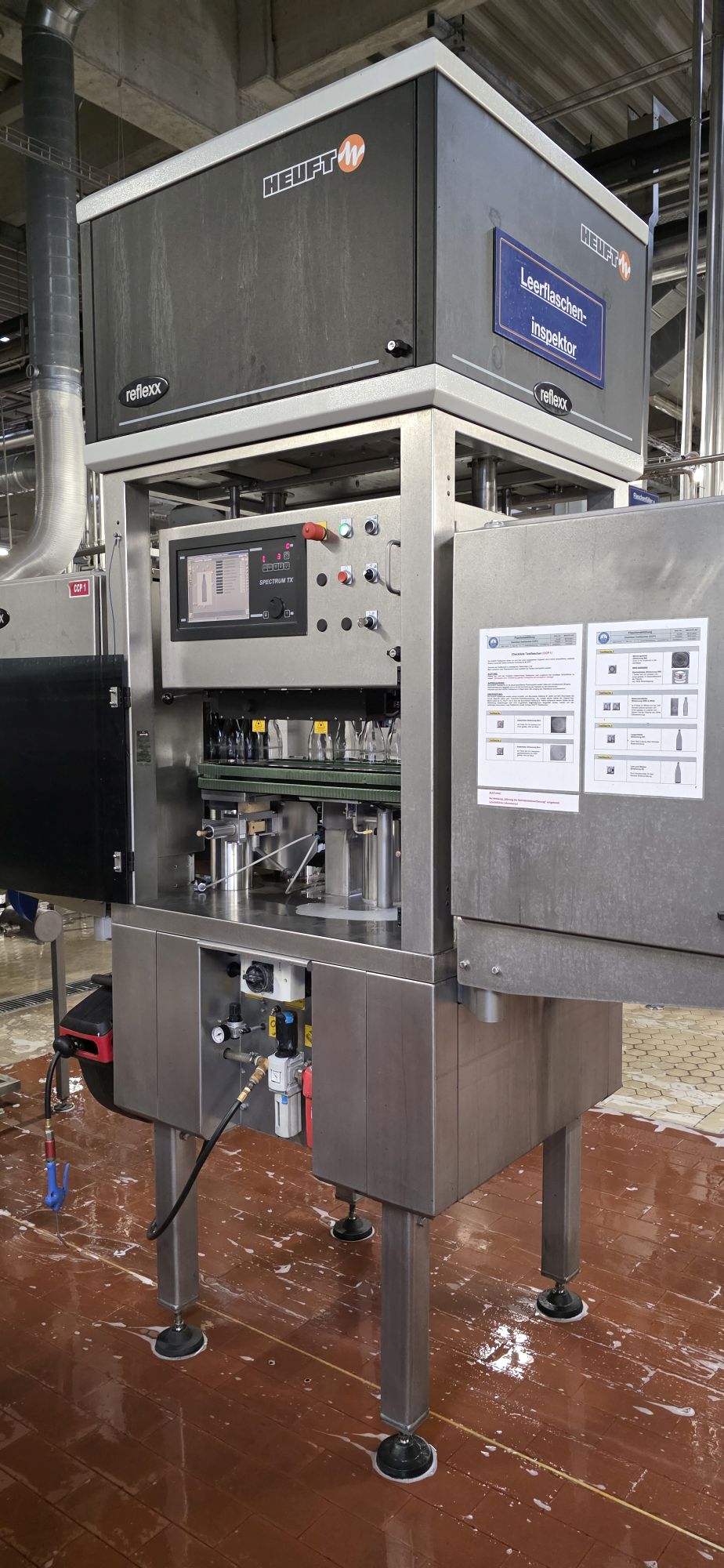

Control unit for checking beer crates for completeness. Also checks the bottle caps, including a conveyor stop in the event of problems., Additional title: with cap detection, Current: 4 A, Voltage: 230 V, Frequency: 50/60 Hz, Compressed air: min. 6 - max. 10 bar, Length: 0,7 m, Width: 0,74 m, Height: 2,1 m, Running direction: Crosswise, Features: inspection over closure detection, with integrated conveyor stopp

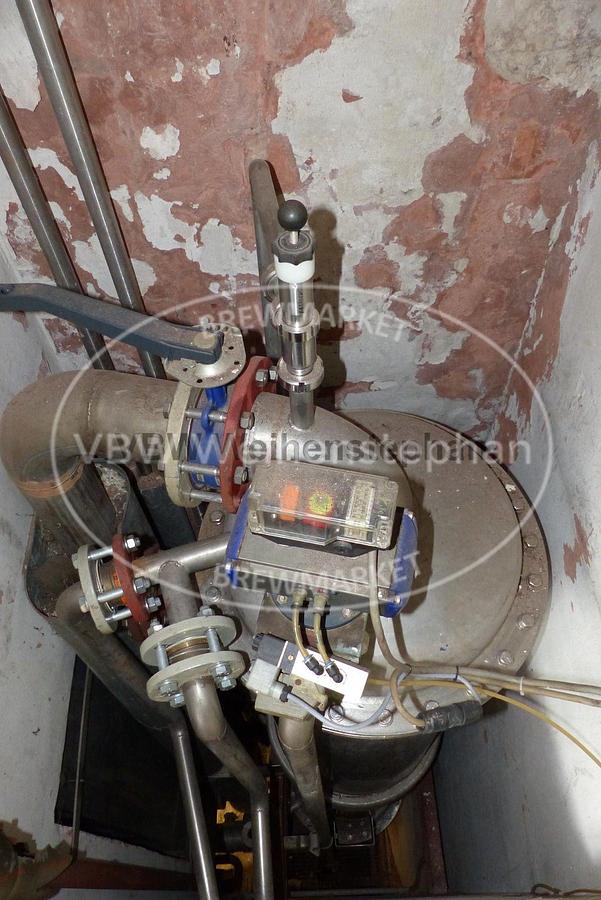

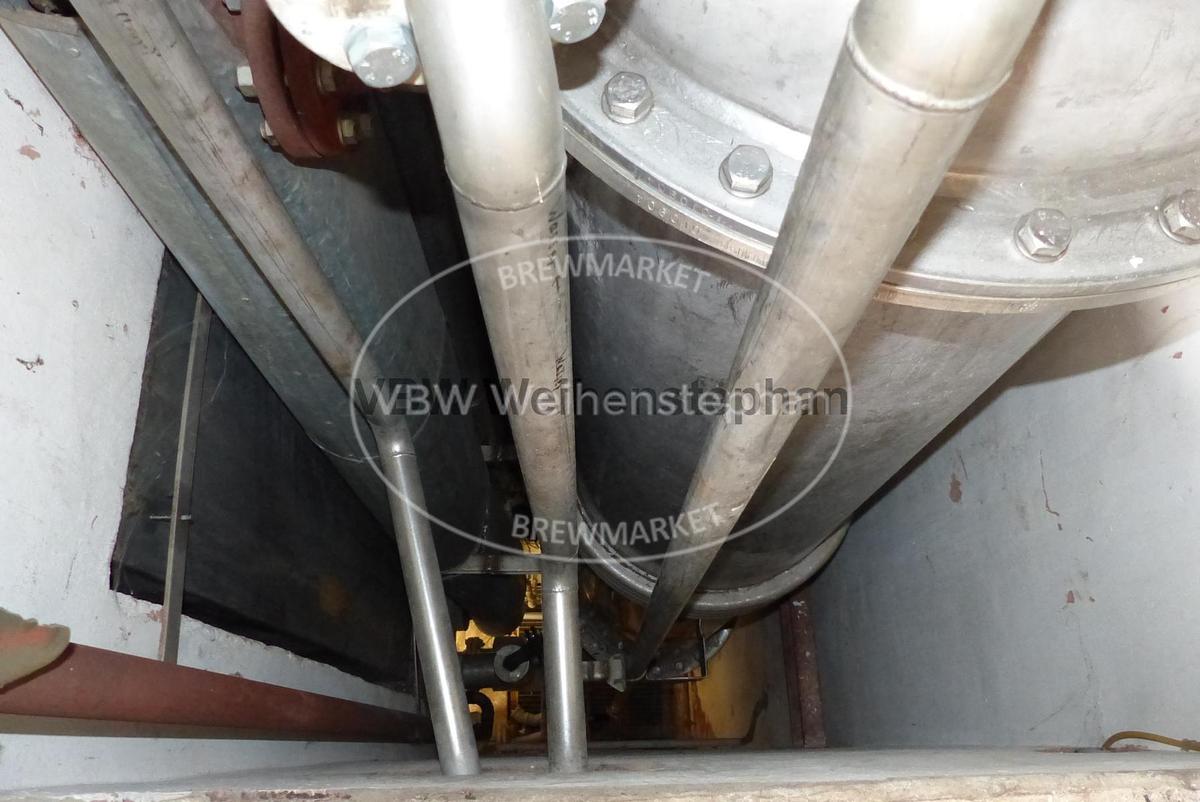

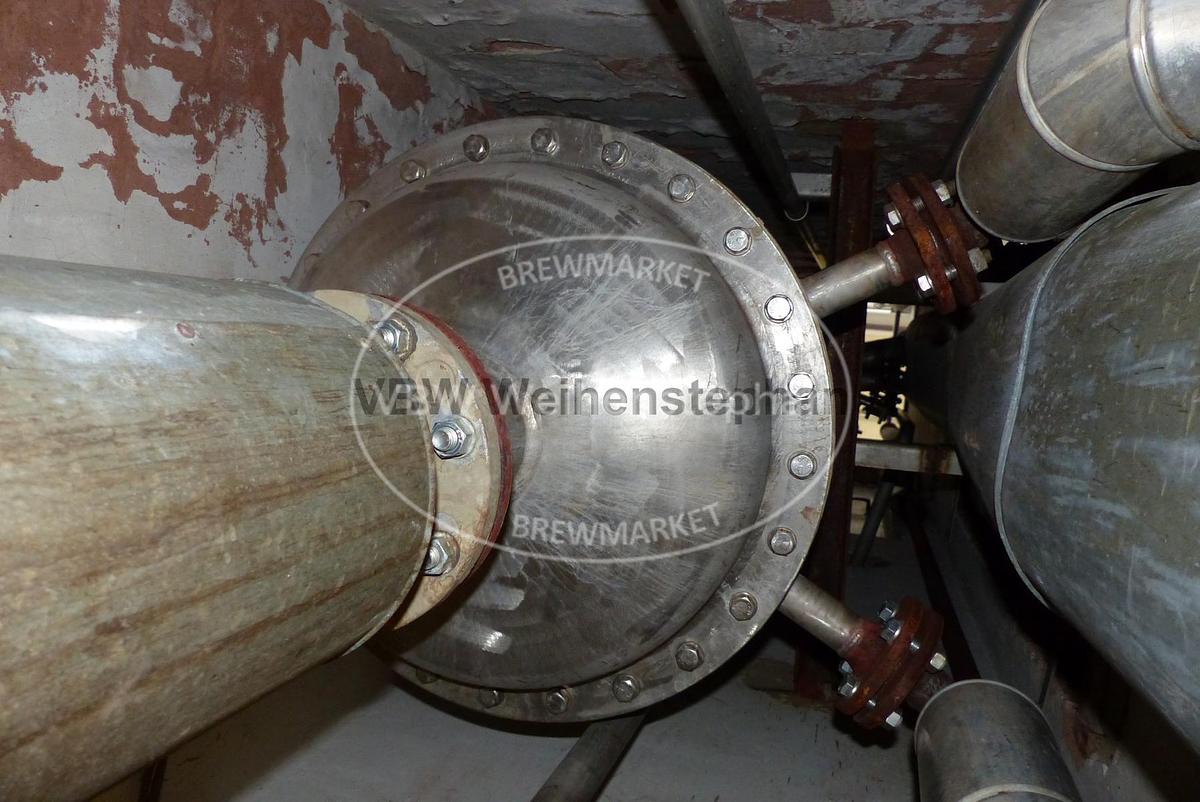

external wort boiler for brewhouse 130 hl knockout capacity;, Additional title: tube and shell heat exchanger, Pressure shell/tube: 2 bar, Volumke shell/tube: 200 l, Material: stainless steel 1.4541 (AISI 321), Base construction: vertical tube and shell heat exchanger with compensator and with support, Features: Steam- and condensate fittings; safety valvel

Complete vacuum evaporation system type SchoKo, with: -Expansion evaporater/vacuum tank -steam condensator -different pumps and fittings, Additional title: vacuum evaporation system, Knockout capacity: 13000 l, Volume of vacuum tank: 1471 l, Length: 2006 mm, Width: 2006 mm, Height: 2503 mm

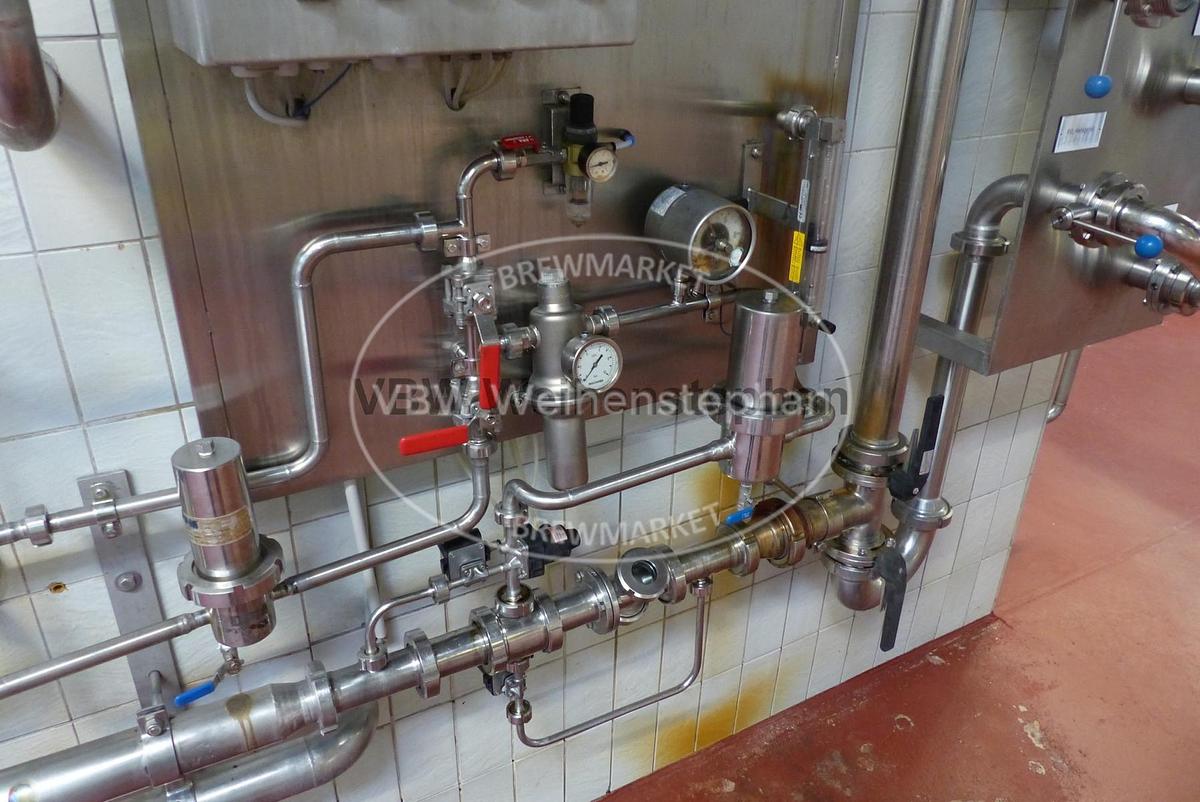

two-component nozzle with sight glass for a wort cooling capacity of approx.130 hl/h completely assembled on stainless steel panel, Additional title: Dual-fluid nozzle for oxygenation of wort, Aeration at a wort cooling capacity of: 13000 l/h, Base construction: mounted on stainless steel panel, Features: air vent DN50, sterile air filter, air flow meter, pressure reducer, membrane valves, control cabinet

Manual operating biological lactic acid plant with 3 tanks in stainless steel as storage and dosing tanks, with all fittings, Additional title: 3-tank system with heating elements, aeration devices and temperature control, Volume and dimension per tank: 2000 l Diameter 1300 mm, cylindrical height 1500 mm, total height 2100 mm, Length: 4500 mm, Width: 1700 mm, Height: 2100 mm, Operation / Control: electrical box with buttons, switches and temperature controls, Material: stainless steel, Position: free standing, Base construction: standing tanks with lids, on pipe feet, Features: electric heating rods, temperature sensor, stand hose for content display, automatic gassing, ladder bracket, internal piping, control box

Flotation tank. - Designed for cooling with ammonia (can also be cooled with glycol), 1 x frame cooling. - Stainless steel - Insulated and clad - Stand frame, short - Cleaning air fitting with safety valve, Additional title: Refrigerated stainless steel tanks for outdoor installation, Capacity: 74480 l, Operating pressure: 0,9 bar, Width: 12,55 m, Height: 3,27 m, Material: Stainless steel, Position: vertical, Base construction: short supporting skirt, Features: Cooling: 1 x side wall cooling jacket; insulation; dearation and cleaning combination with safety valve; temperature measurement

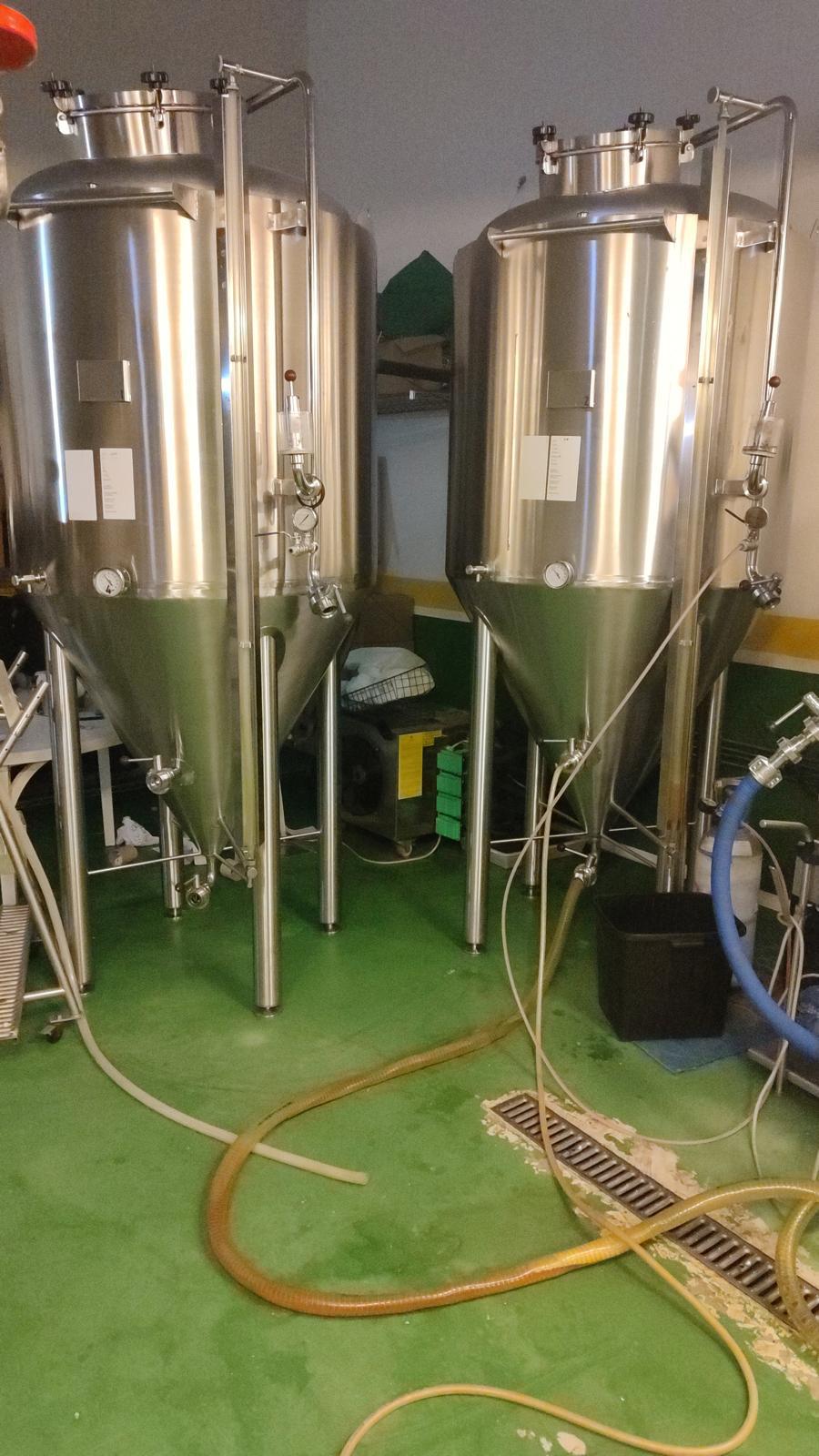

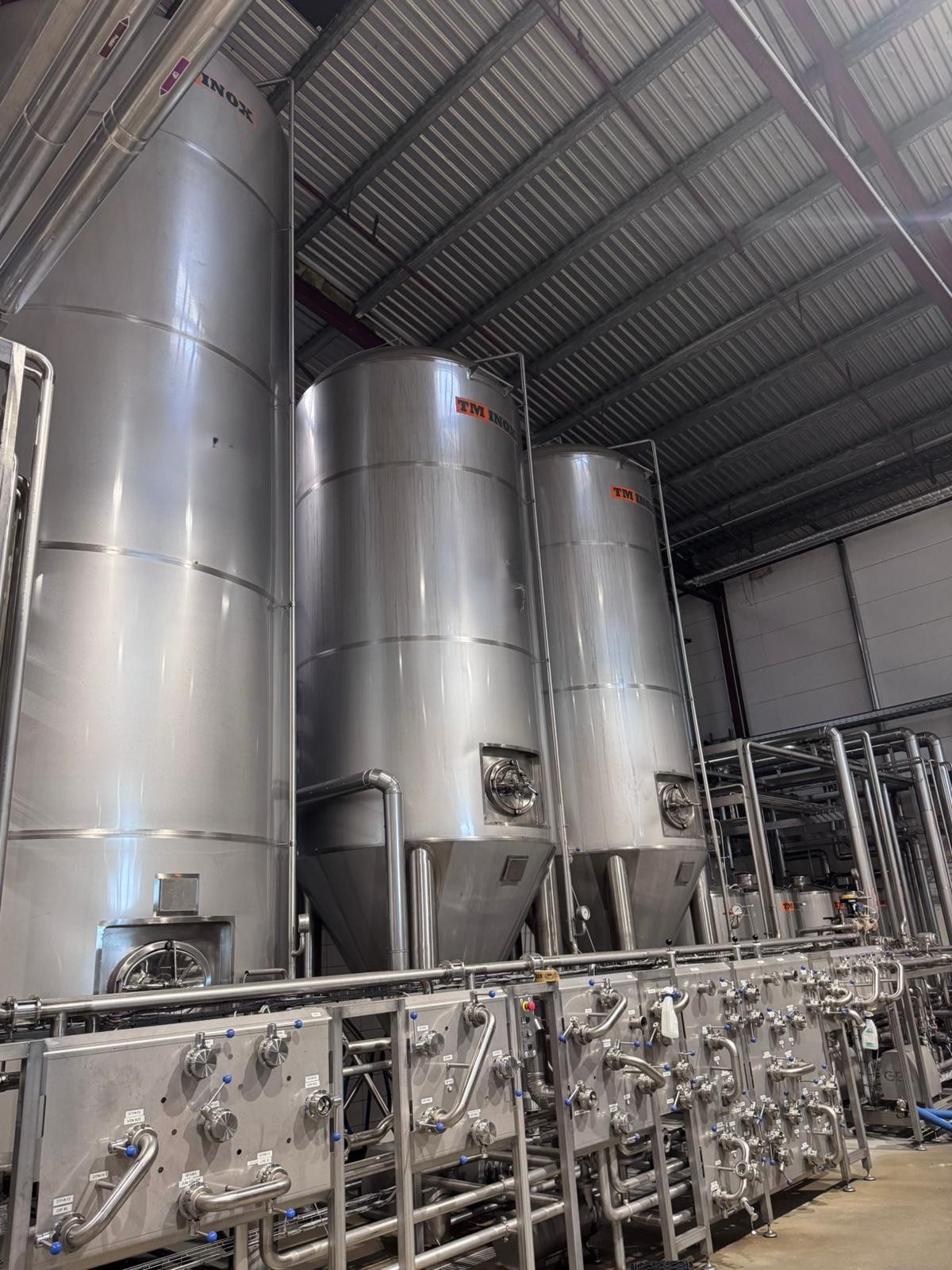

Cylindroconical fermentation and storage tank - Ammonia or glycol cooled, 1 x cone cooling, 3 x frame cooling. - Swivelling cone - Stainless steel - insulated - Standing frame, short - Cleaning air fitting with safety valve - Vacuum valve, Additional title: Refrigerated stainless steel pressure tank for outdoor installation, Capacity: 96450 l, Operating pressure: 2 bar, Length: approx. 12400 mm, Width: approx. 3950 mm, Height: approx. 3950 mm, Weight: 6220 kg, Material: Stainless steel 1.4301, Position: vertical, Base construction: short supporting skirt, Features: Cooling: 1 x cone cooling jacket, 3 x side wall cooling jacket; swivel cone; insulation; dearation and cleaning combination with safety valve; vacuum valve; temperature measurement

Wet spent grain conveyor - Housing with rectangular inlet chute - Wet spent grain bunker mounted at the inlet - Flushing water discharge connection - Mounted gear motor - Non-return flap with air connection, pressure gauge and ball access hatch., Additional title: Wet spent grain conveyor, Capacity approx.: 200 kg/min, Power: 4 kW, Current: 6,98 A, Voltage: 400 V, Frequency: 50 Hz, Material: Stainless steel 1.4301, Features: Spent grain bunker; non-return valve with compressed air connection, manometer and ball access hatch

Filter system constructed with horizontally stacked filter elements. Once filtration is completed the kieselguhr is expelled from the vessel by centrifugal force., Capacity: 140 hl/h, Vessel volume: 26 hl, Length: approx. 4000 mm, Width: approx. 2000 mm, Height: approx. 3500 mm, Material: Stainless steel1.4541 (vessel), Base construction: on feet, Features: Kieselguhr dosing vessel with dosing pump; pumps; fittings, measurement technology

Functioning yeast propagation consisting of 3 cylindrical tanks with jacket cooling. 1 tank is additionally equipped with a conical cooling and serves as a pure breeding tank for yeast production., Additional title: Yeast propagation plant with 3 coolable pressure tanks, Capacity: 32 hl, Pressure: 2 bar test pressure 2,6 bar, Width: 1,3 m, Height: 4 m, Weight: 500 kg, Position: vertical, Base construction: on 3 feet, Features: Operating yeast propagation system, every tank with cooling jacket,1 tank with additional cooling jacket for the cone, used as pure culture tank for yeast propagation , Periphery: After consultation we can equip the tank with the desired fittings.

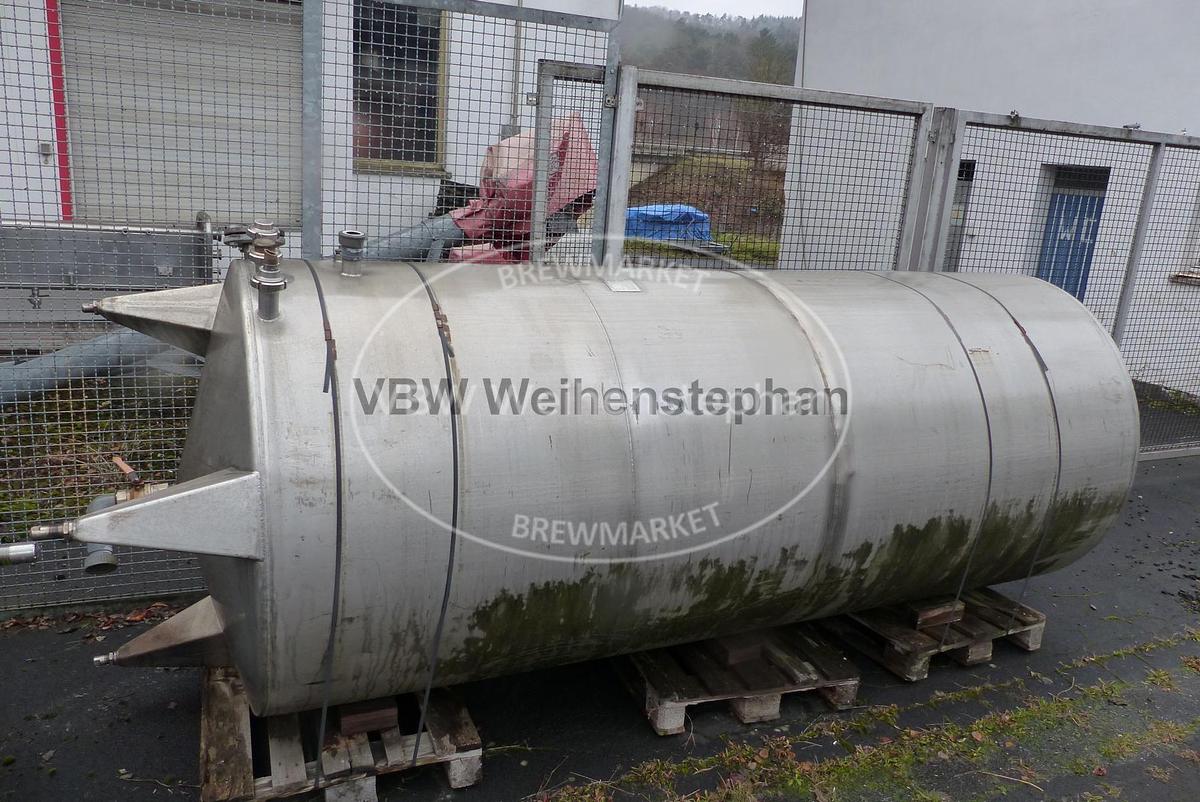

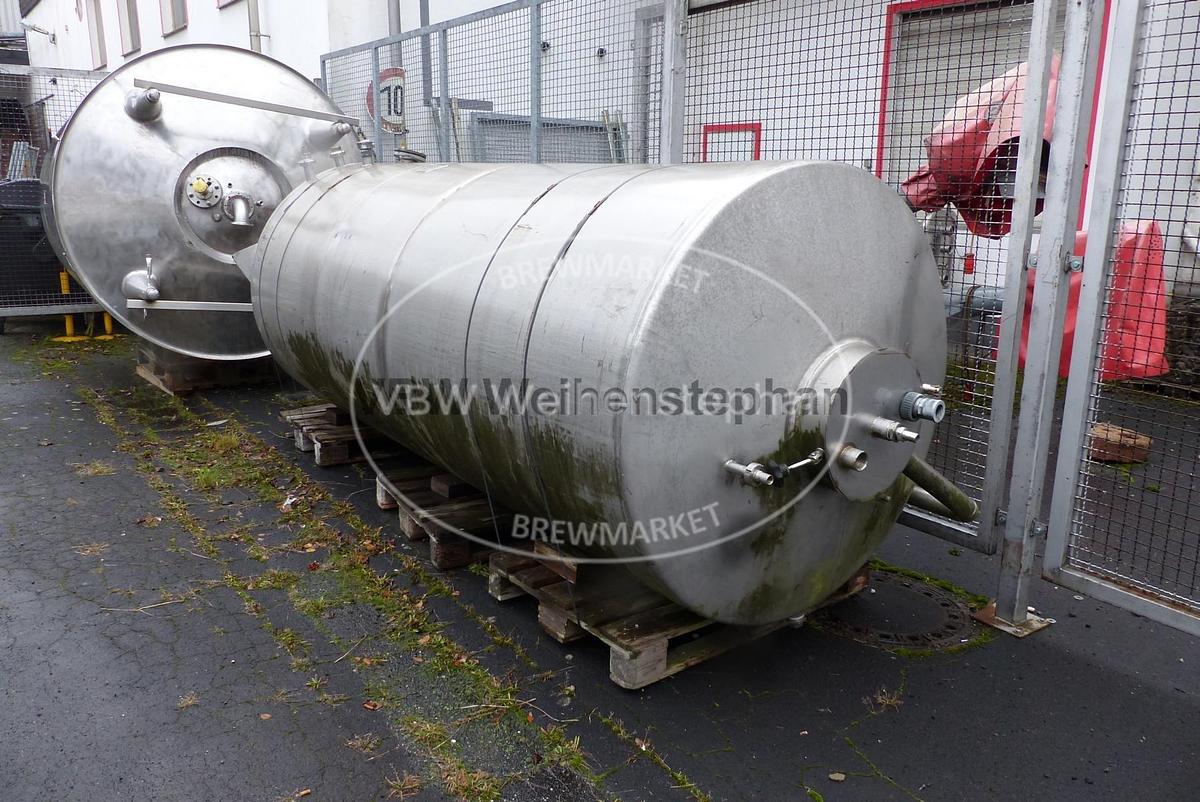

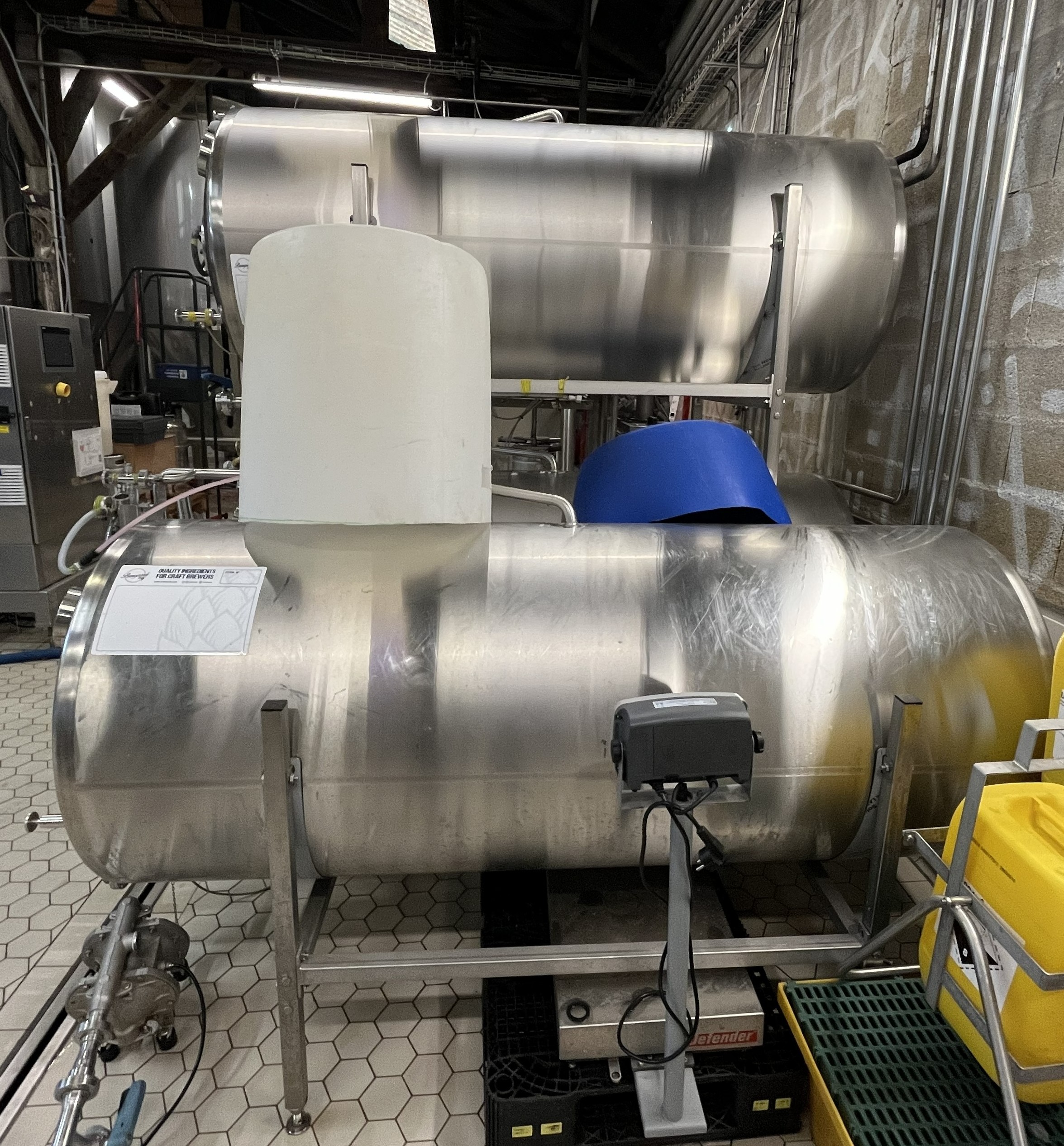

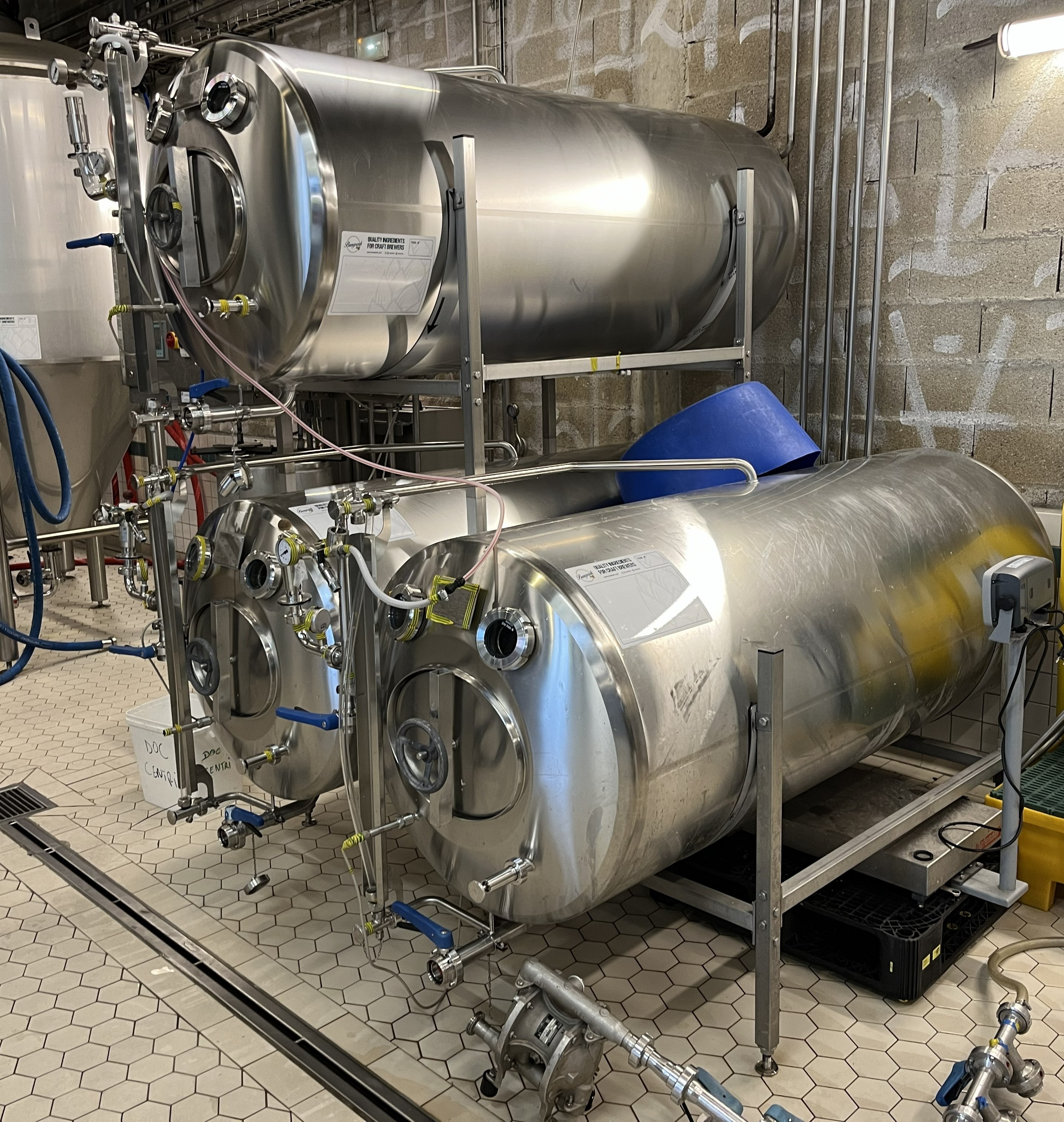

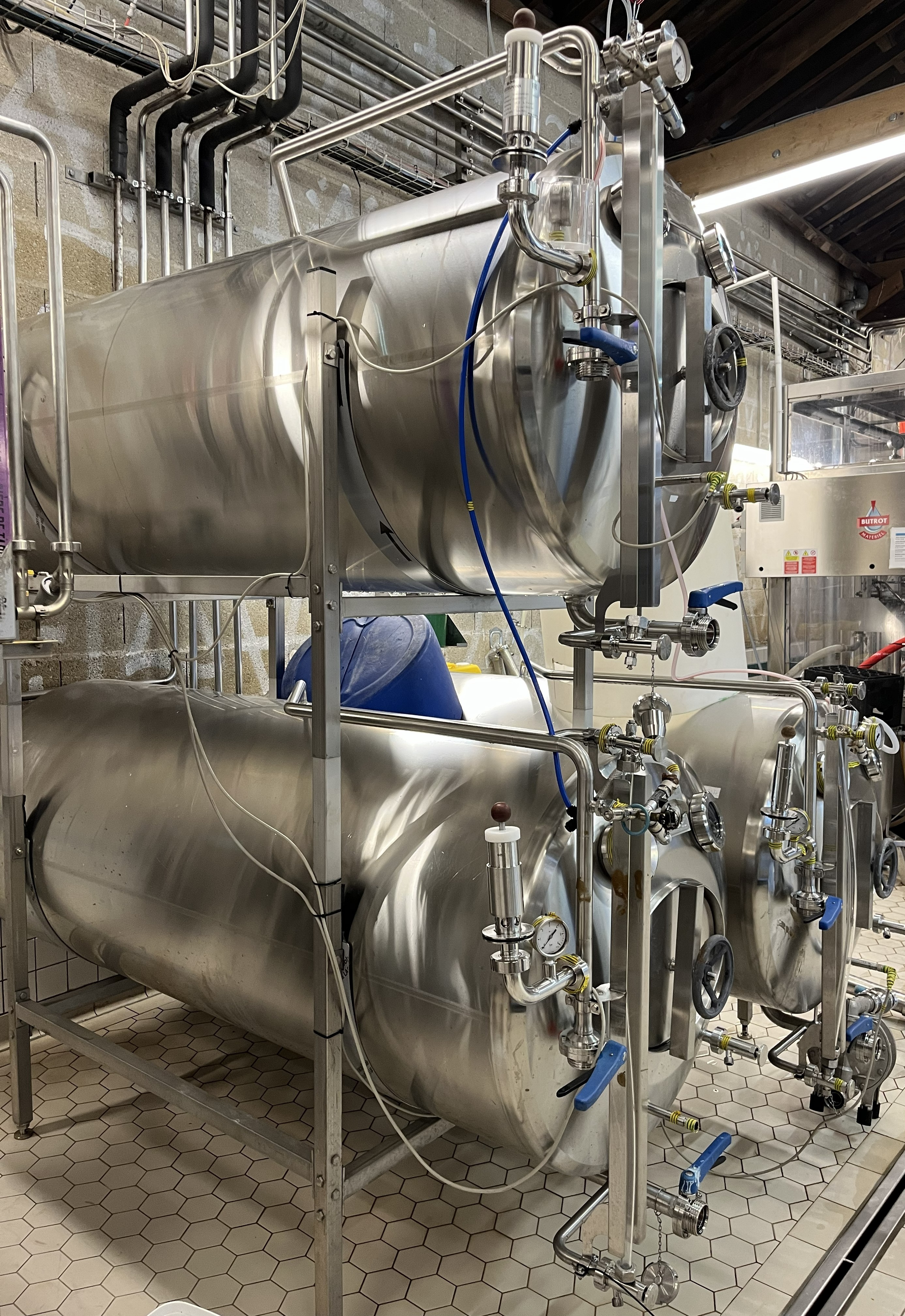

Stainless steel tank with cladding, mounted on a transport frame., Additional title: Horizontal, cladded stainless steel tank, Capacity: 4000 l, Pressure: 0,99 bar, Length: 3,25 m, Width: 1,4 m, Weight: 600 kg, Material: stainless steel, Position: horzontal, Base construction: transport frame, Features: insulation, inlet DN 50, outlet DN 40

Vertical stainless steel tank with frame cooling and various fittings., Additional title: with cooling jacket, Capacity approx.: 2900 l, Width: 1,85 m, Height: 2 m, Weight: 400 kg, Material: Stainless steel 1.4301, Position: Vertical, Base construction: 3 x feet, Features: Cooling jacket (0,5 bar, 30 l); Tank outlet DN50

Vertical stainless steel tank with various connections., Additional title: Vertical stainless steel tank, Capacity: 5000 l, Width: 1,45 m, Height: 3,8 m, Weight: 350 kg, Material: Stainless steel, Position: vertical

Vertical stainless steel tank, most recently used as a CIP tank., Additional title: CIP tank; year of manufacture appr. 1995, Capacity: 7000 l, Width: 1,8 m, Height: 3,2 m, Weight: 350 kg, Material: Stainless steel, Position: Vertical, Base construction: 3 x feet, Features: Side manway; Level indicator; Outlet DN65

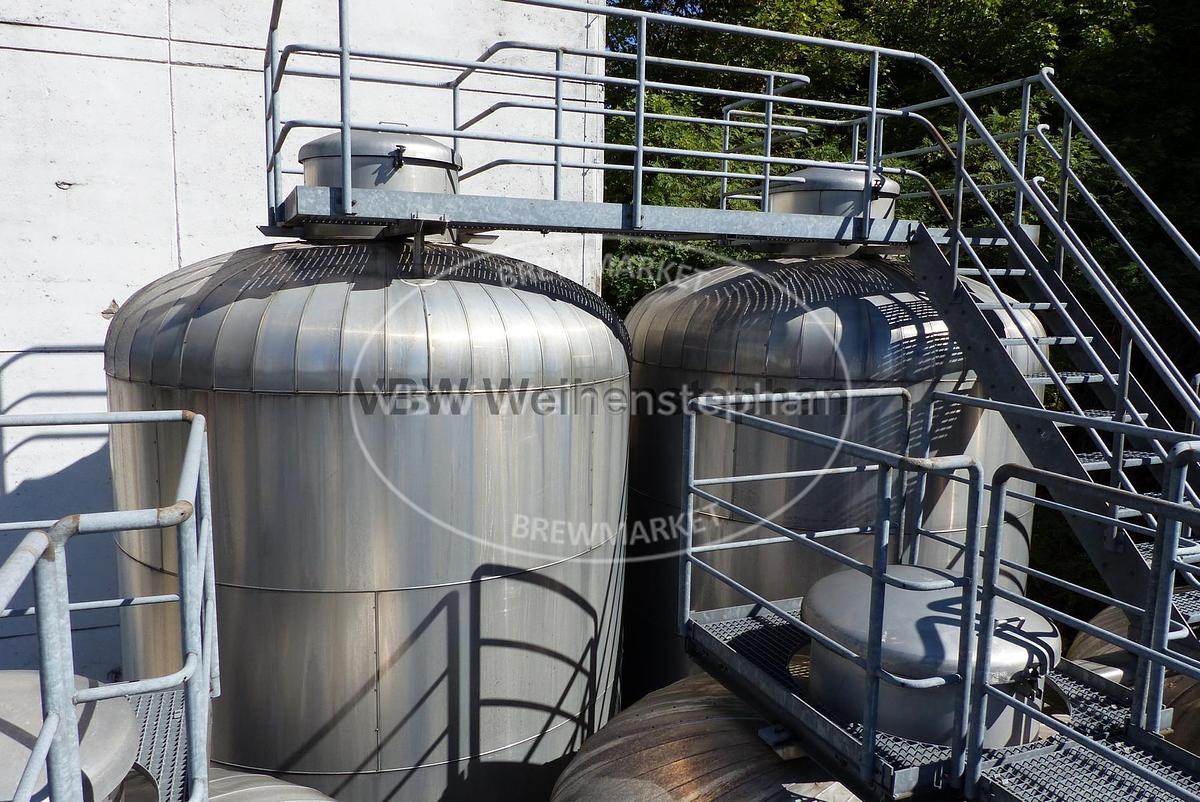

Vertical, insulated stainless steel tank. Most recently used as a CIP tank., Additional title: Vertical stainless steel tank with insulation; built around 2000, Capacity: 7000 l, Width: 2,2 m, Height: 3,1 m, Weight: 800 kg, Material: Stainless steel, Position: Vertical, Base construction: 3 x feet, Features: Side manway; insulation

Additional title: Vertical tank, Capacity: 5244 l, Max. allowable operating pressure: 5 bar, Operating temperature: 20 °C, Width: approx. 1600 mm, Height: approx. 3200 mm, Material: Stainless steel 1.4541, Position: vertical, Base construction: 3 x feet, Features: Manway; safety valve; CIP piping

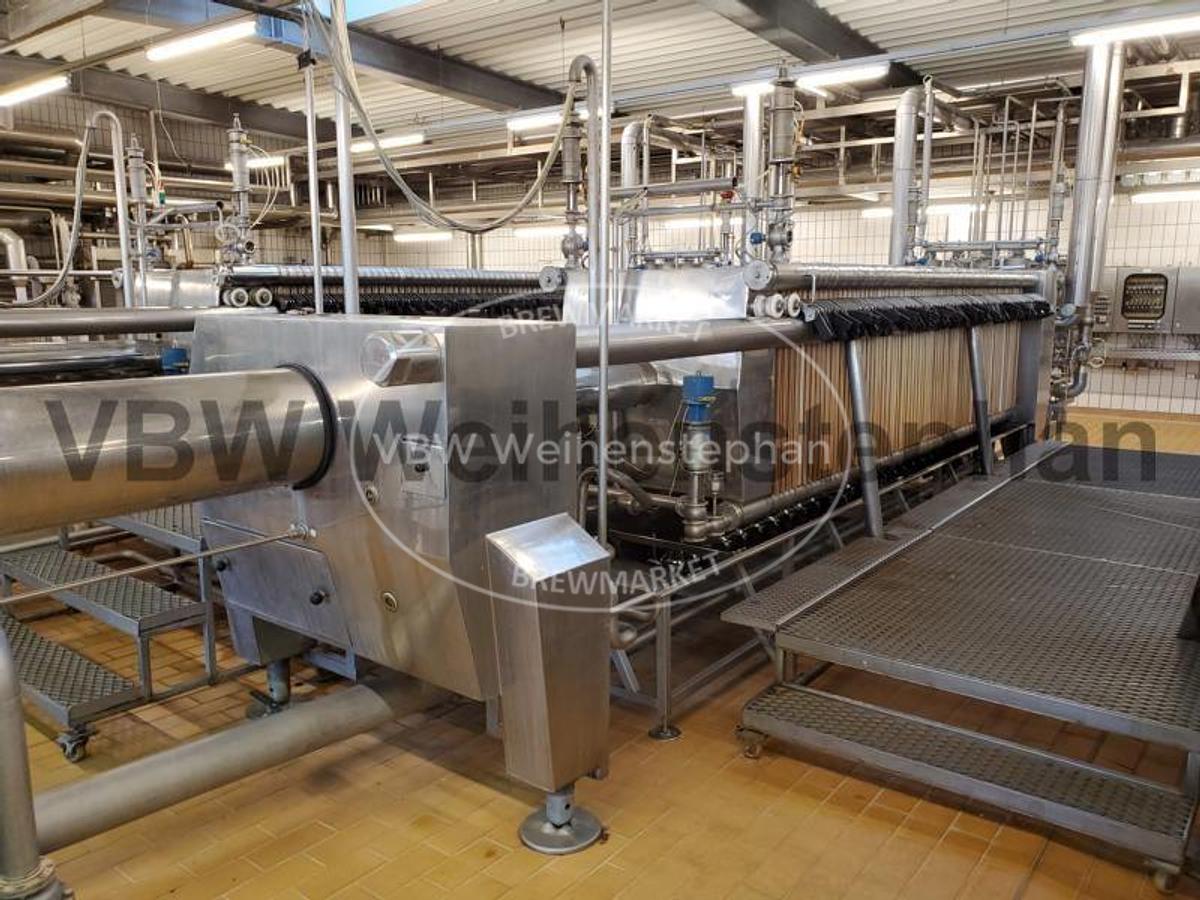

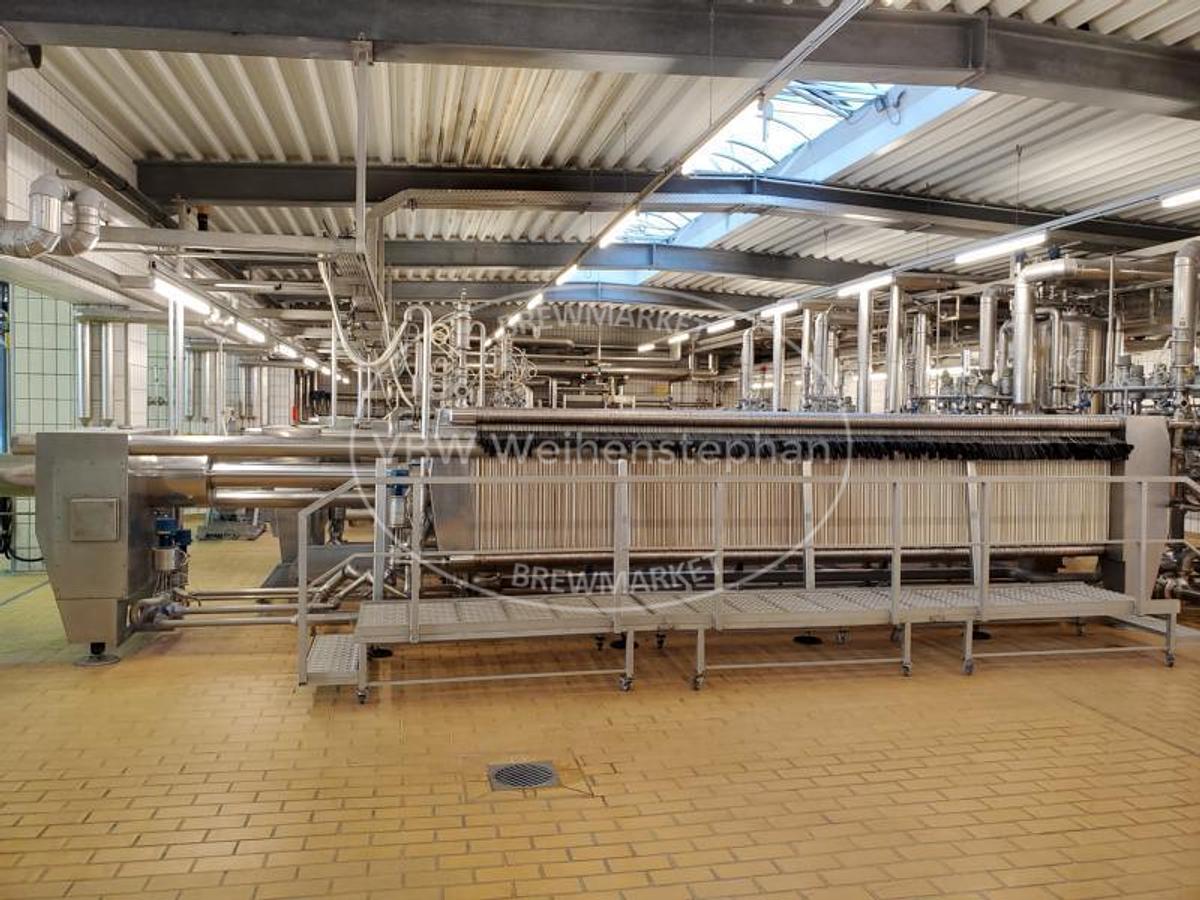

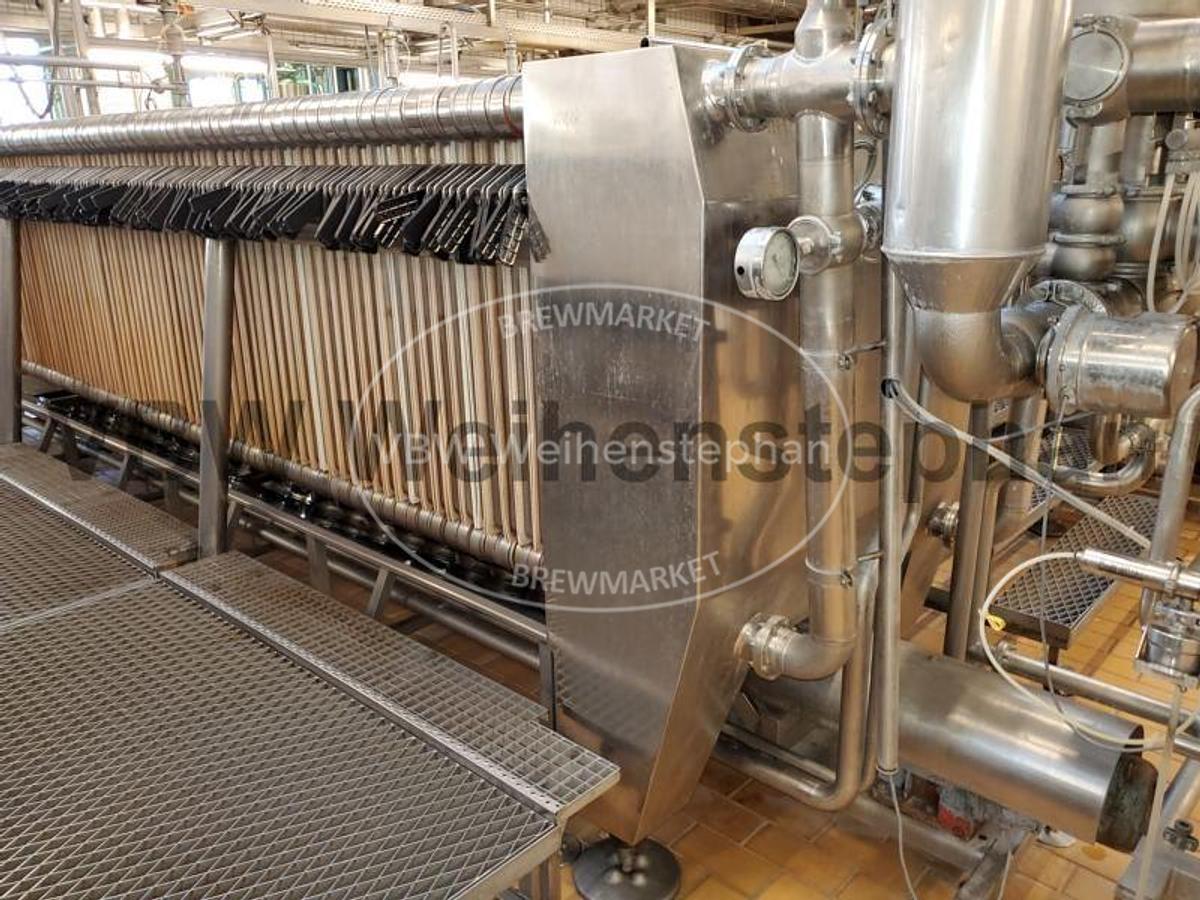

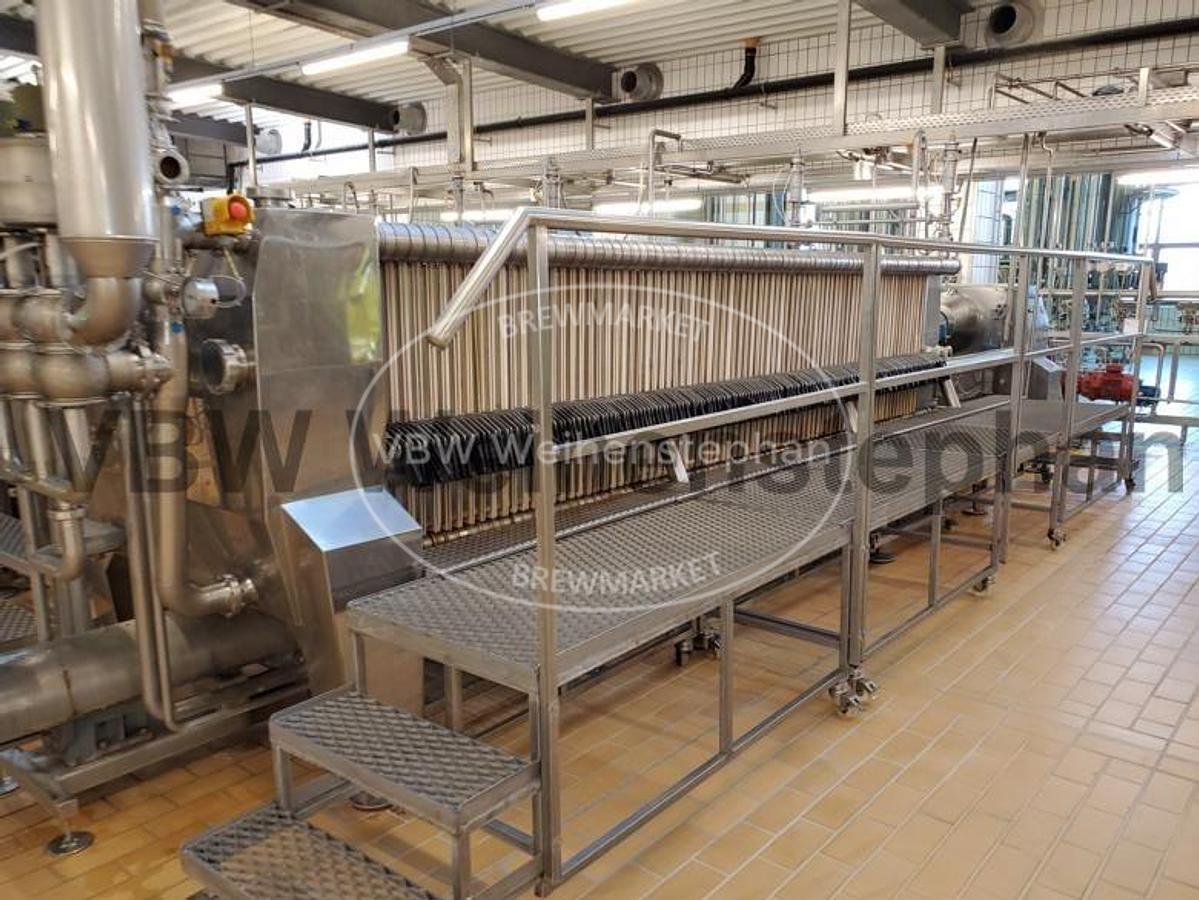

Stationary sheet filter with quadratic filter elements in a row., Additional title: sterilisation filter, Capacity: 140 hl/h, Number of plates: 119 plates, Length: 7500 mm, Width: 1600 mm, Height: 2000 mm, Formats: Quadratic filter elements - 100 cm x 100 cm, Layer patterns: Vertical row arrangement of the filter elements

Combination Kieselguhr and Sheet filter. Stationary sheet filter with square filter elements in vertical row arrangement., Capacity: 60 hl/h, No. of plates - KG Filter: 34 Plates , No. of frames - KG Filter: 35 filter frames, No. of plates - sheet filter: 150 Plates, Length: 6500 mm, Width: 1000 mm, Height: 1500 mm, Formats: Quadratic filter elements - 60 cm x 60 cm, Base construction: Frame, Features: Manual filter element compression , Periphery: Kieselguhr dosing unit with dosing pump, Layer patterns: Vertical filter elements in a row

Open stainless steel tank with a lid., Additional title: Open stainless steel vessel, Volume: 14500 l, Length: 2300 mm, Width: 2300 mm, Height: 4000 mm, Material: Stainless steel 1.4301, Position: Vertical, Base construction: 3 x feet, Features: Lid; access ladder; float valve

Combination Kieselguhr and Sheet filter. Stationary sheet filter with square filter elements in vertical row arrangement. Hydraulic filter layer compression. Control of hydraulics from built-in electrical panel., Additional title: Kieselguhr and sheet filters as a combination design; years of construction 1979, Capacity approx.: 380 hl/h Combination filter - filtration area approx. 76 - 108m2 KG; 180 - 253m2 Sheet with beer filtration, Operating pressure: 8 bar , Power: 6 kW, Voltage: 220/380 V, Frequency: 50 Hz, Length: 10100 mm, Width: 1320 mm, Height: 1750 mm, Formats: Square filter elements, Operation / Control: Built-in control panel, Material: Stainless steel, Position: Horizontal, Base construction: Frame, Features: Filter plates; Filter frames; collection tray with removal screw; hydraulik filter plate compression; hose pump, Layer patterns: Vertical row arrangement

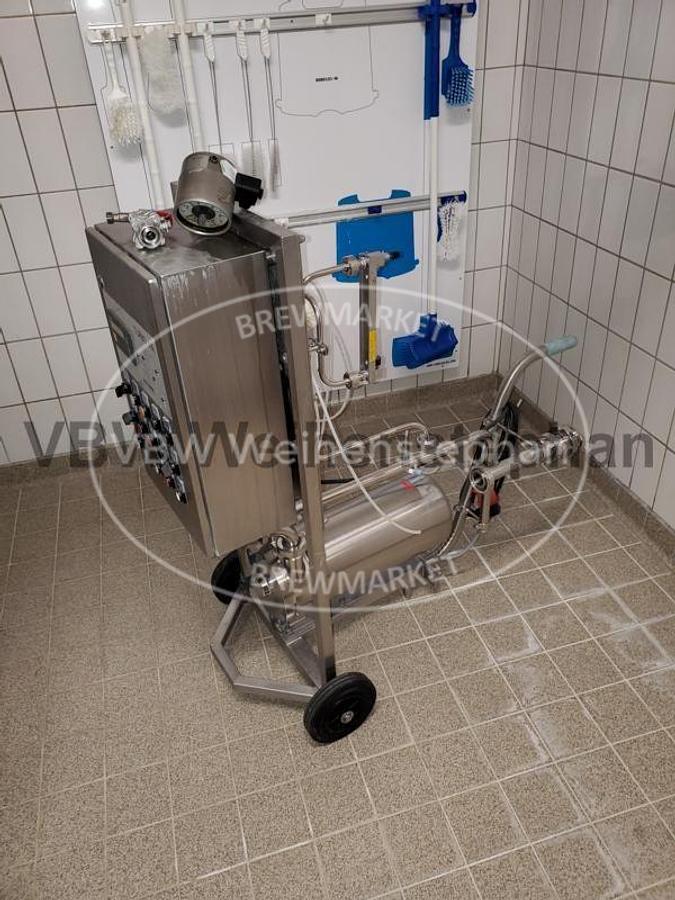

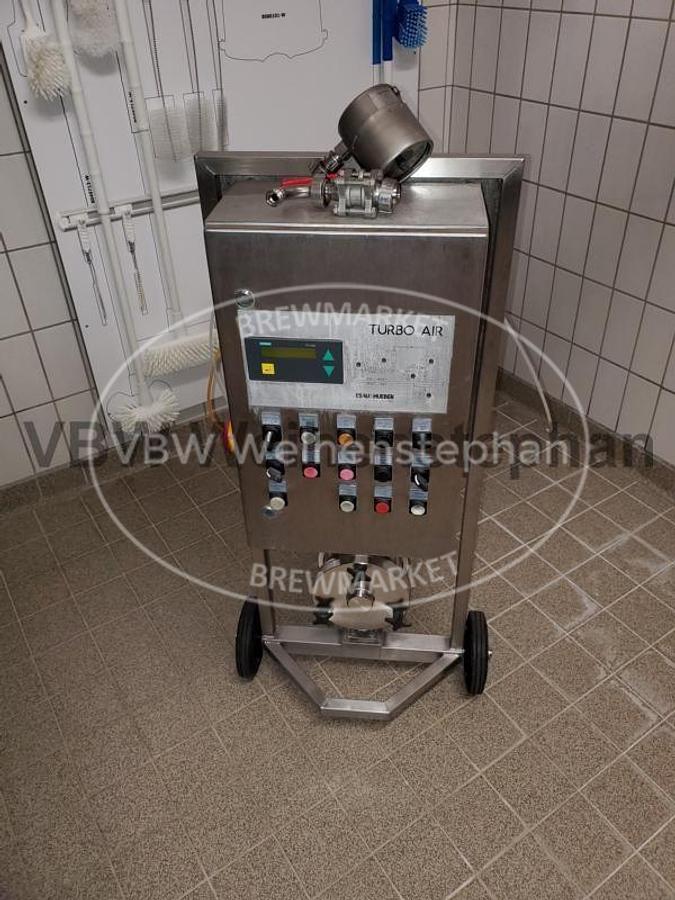

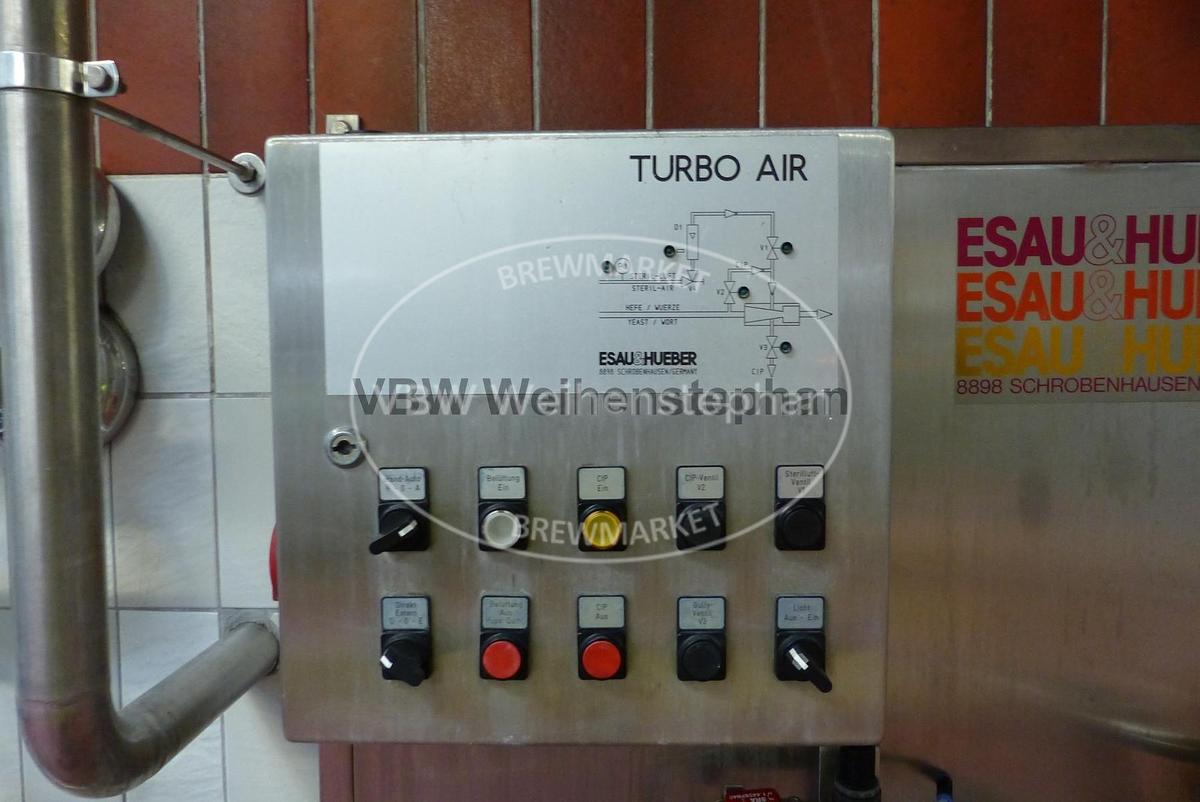

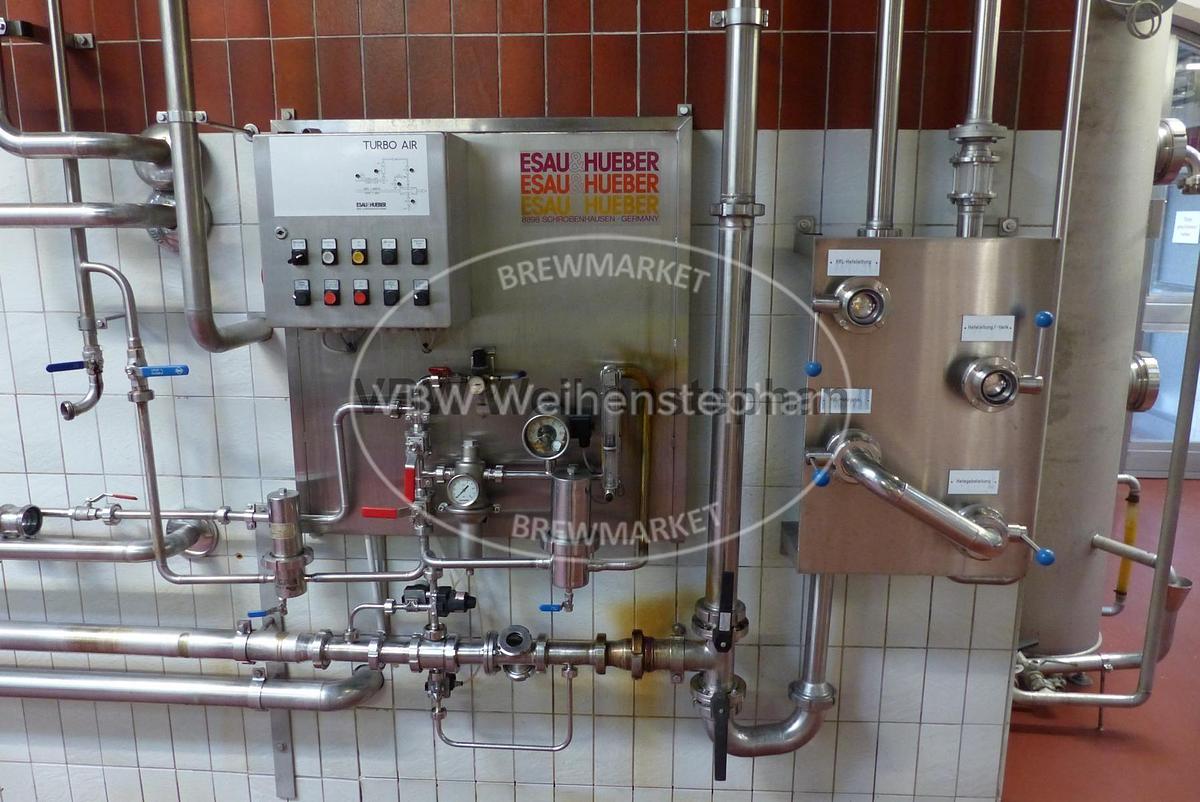

Turbo Air Wort aeration DN40 mounted on frame, mobile, Additional title: Turbo Air; year of manufacture appr. 2000, Length: 1,30 m, Width: 0,60 m, Height: 1,30 m, Weight: 150 kg, Operation / Control: semi-automatic with push buttons on the control box and Siemens TD 390 display, Material: stainless steel, Base construction: mobile on 2 castors (frame), Features: 2-component jet; Siemens control panel TD390

Crushes bottles by pressing them. - high crushing capacity - high volume reduction - accident-proof (splinter-proof) - low noise [85/87 dB(Ai)] - low wear rate - compact design (minimum space requirement), Crushing capacity: 6000 b/h, Current: 6,5 A, Voltage: 380 V, Frequency: 50 Hz, Length: 15220 mm, Width: 1300 mm, Height: 22600 mm, Weight: 700 kg, Base construction: on dome feet, Features: Fragment tub, noise protection box, slot for manual disposal of single bottles

CIP tank system comprising 3 tanks connected by pipes. The smaller tank is divided into 2 sections., Additional title: 3 rectangular containers with pipe connections, Gross volume insulated containers each appr.: 1300 l, Gross volume additional container appr.: 1000 l divided into two compartments with capacities of approximately 700 and 300 litres respectively, Material: stainless steel, Position: Vertical, Features: 2 x insulated containers + 1 x additional container (divided into two sections)
