tornos usadas para venda (3,099)

Article: Programme-controlled automatic latheManufacturer: TraubType: TF60 / 140Yob: 1978Bar automatPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: AF32 S DNTYob: 1994Eight-spindle automatic lathe with 8 main spindlesmax. nominal diameter D=32mmcontrol: Siemens SIMATIC S7electronic cam control Balluffgripper in position 8 for backworkingCNC cross slide position 6CNC cross slide position 7Workpiece beltCoolant cooling SchimpkeChip conveyor with magnetic separatorTapping couplingsThe tooling shown may differ from the scope of delivery!Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AF32 DntYob: 1993eight-spindle automatic latheeight main spindlesfor bars up to D=32mmModernized control: Siemens SinumerikMotors: renewed modern motors suitable for modernized control systemElectronic trip dog control: BalluffCNC cross slide position 5 crossCNC cross slide position 6 crossPreparation for gripper in position 8 (gripper optional)Independent feedsThread cutting couplingsintegrated bar loader: Pietro CUCCHI; type: rack type magazineThe scope of delivery regarding the tooling equipment could be different like pictures.

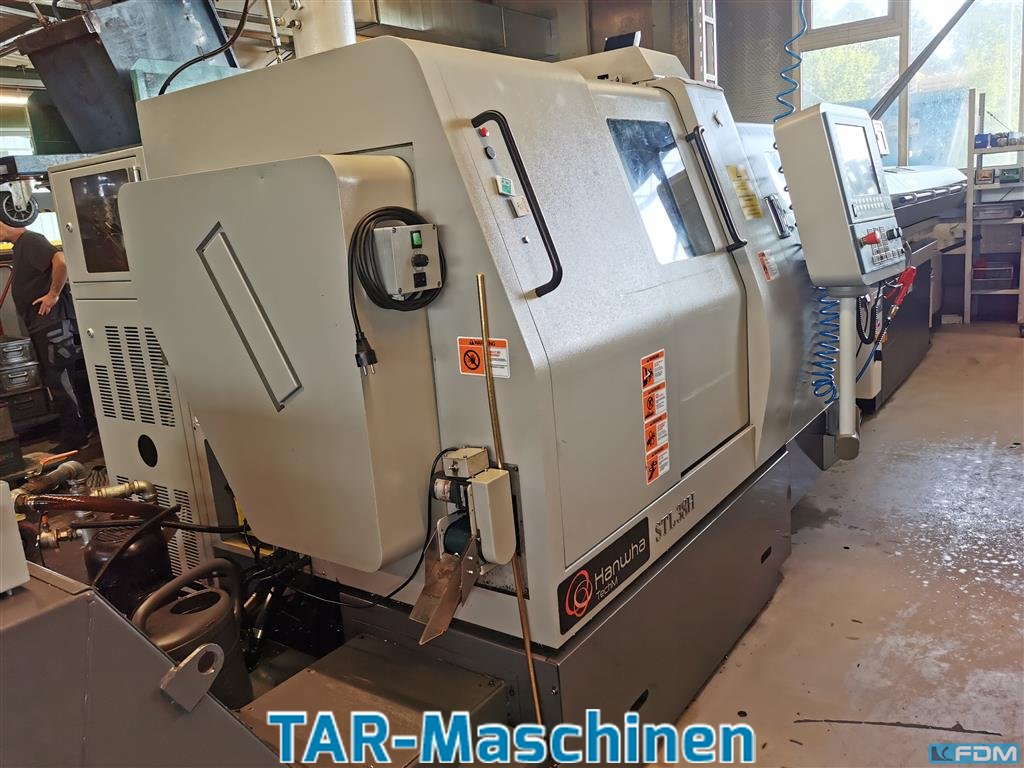

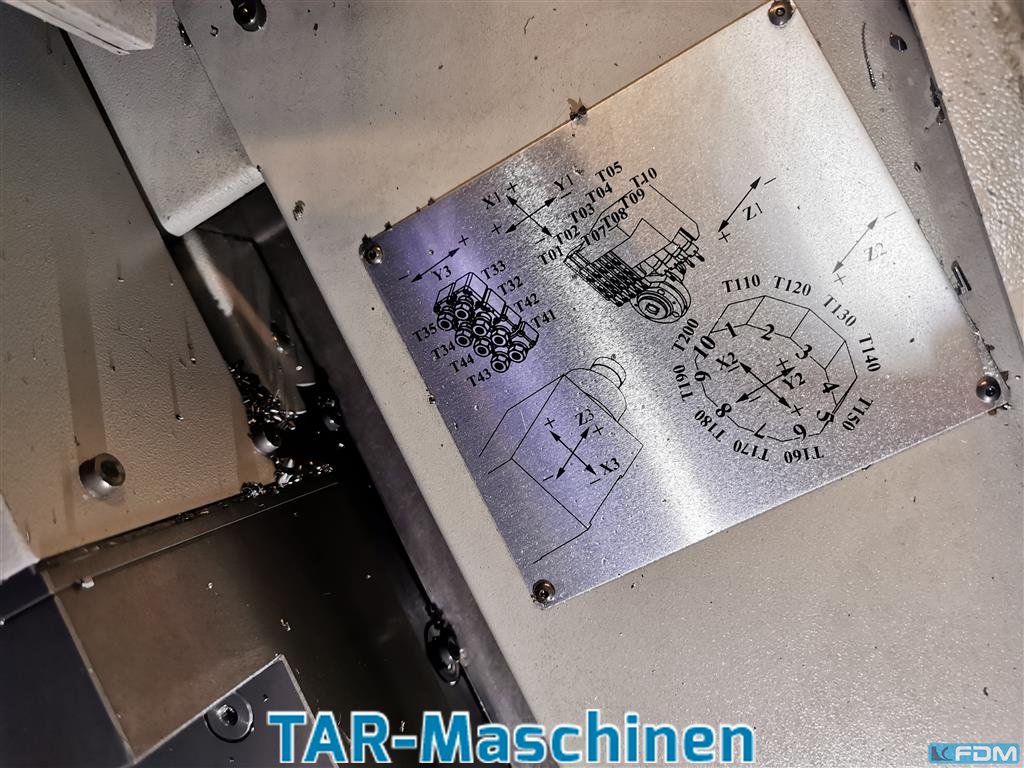

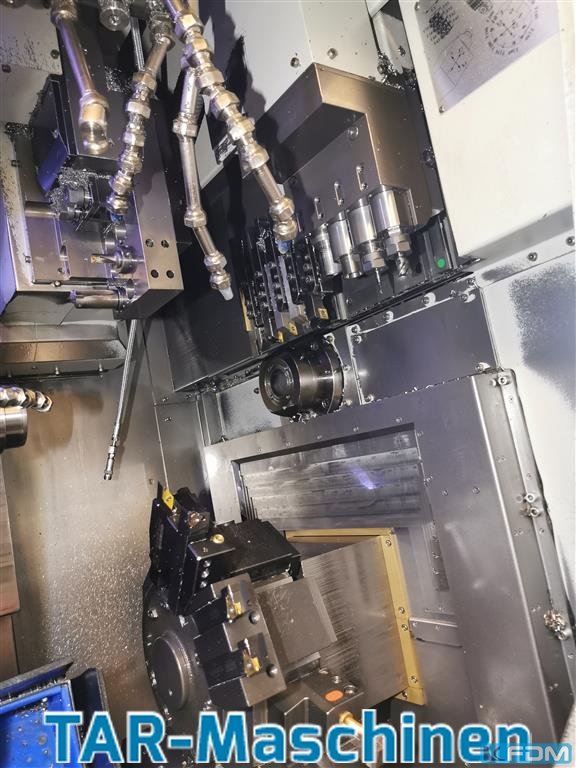

turning diameter:38 mmArticle: CNC latheManufacturer: HanwhaType: STL38HYear of construction: 2013Control: Siemens 840SL for 8 axesMain spindle:max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48Counter spindle:max. pick-up diameter: 38mm, n max. 6,500 rpmPower max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42Tool turret:n max. 6,000 rpmPower max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120Bar feeder FMB Turbo 5-55High-pressure station SFB-301 eco 150barPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

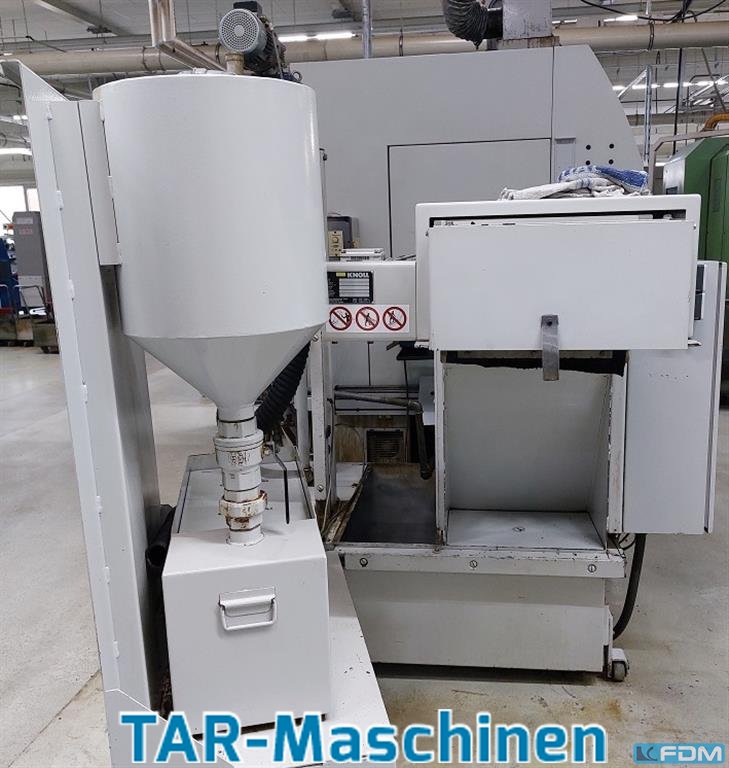

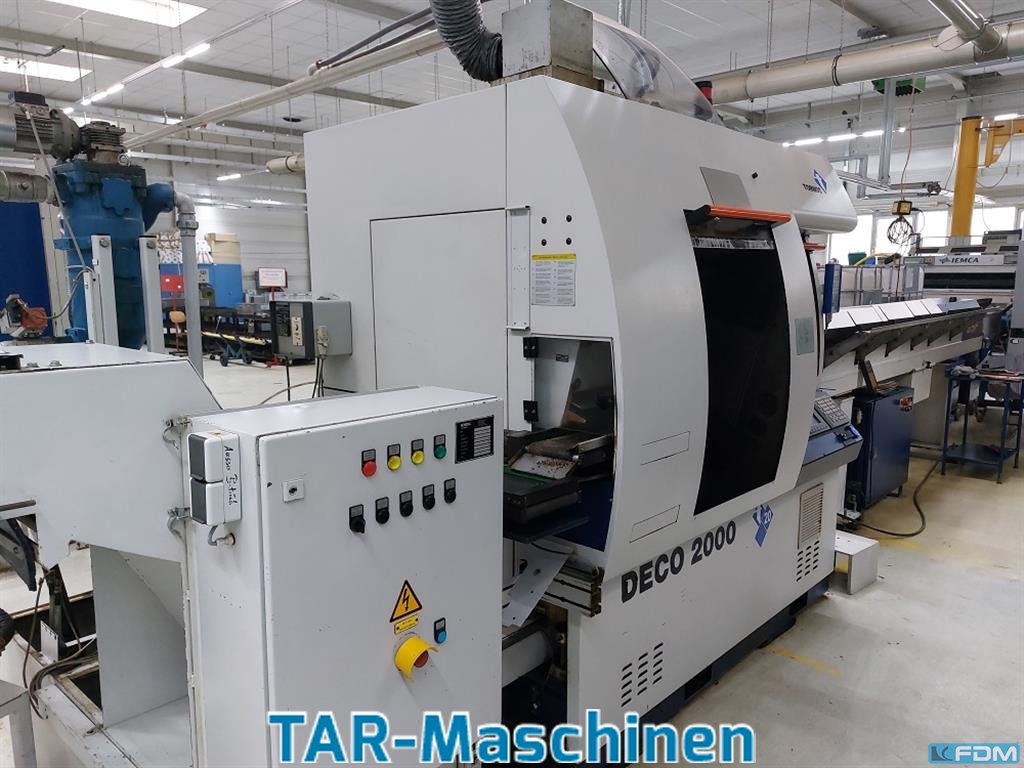

spindle passage:25 mmArticle: CNC sliding headstock automatic latheManufacturer: TornosType: Deco 2000/20Year of construction: 2001Control: Fanucspindle diameter: D25 mmmax. speed: 7000 rpmcomb: 2 (X,Z,Y-axis)Front attachment: 1 (X,Z,S-axis)Loading magazine: Tornos Robobar SSFChip conveyor: Hinged belt conveyorother: various accessories such as polygonal impact device, HF spindlePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:9 spindle passage:46 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: SC9-46Yob: 2016Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindlesMain spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 NmCross slide units, transverse: 6 units, in positions I to VI,Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V,Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpmCross slide units, transverse: 2 units, in positions VIII and IX,Control:Siemens SINUMERIK 840SL with double NCUSoftware: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted,Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion)Synchronous action package ?Level? 2, incl. cross-mode actions/ASUP (maximu ...

turning diameter:26 mmArticle: High-precision CNC lathe with linear cross slideManufacturer: BenzingerType: GOFuture B1Yob: 2016Machine was only used for reworking, i.e. only light machining work was carried out!Control: Siemens Sinumerik 840DslMain spindle: maintenance-free motor spindleBar capacity: D26mmLoading and unloading device type IBAdditional gripper system for placing the workpieces in the correct position on the unloading beltCoaxial valve for coolant to the linear tools (3 pieces)Internal clamping deviceC-axis main spindle for digital control incl. transmit functionAdjusting microscope 16x magnificationCoolant supply through the spindle clamping cylinder,Sealing air,Speed increase of the motor spindle to 8. 0000 rpmNordmann tool monitoringProfibus master interfaceHinged belt conveyor KnollCompact coolant device KnollMBE interfaceSmall fire extinguishing system Kraft & BauerN ...

number of spindles:8 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: AG20Yob: 2002eight-spindle automatic lathe8 main spindlesfor bars up to D=20mmcontrol: Siemens 840D1x polygonal turning/thread milling device (new 2011)1x polygonal turning/thread milling device for long turning (new 2011)1x thread cutting/quick drilling spindle (new 2011)1x pick-up device incl. various pick-up collets 4 cnc-cross slidesDouble cross slide in position 7Loading magazine PRA 52/P type 33 (bar length 3m), year 2004High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004Tool monitoring BrankampAir conditioning unit Rittal in the front switch cabinetincl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slidesThe machine has been run with oil and has processed brassPlease, contact us for getting ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SFH130Yob: 1995six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCDnt driveloading and disloading in position 6additional cooling pump with magnetic spark plug filterPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: SchütteType: SG18Yob: 1999six-spindle automatic lathe6 main spindles as a chucker automatic lathecontrol Siemens S7-200 PLCloading and disloading in position 6spindle brakePlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchütteType: SF20 S DntYob: 1999Six-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=20mmSpindle drum hirth coupled,CNC cross slide in positions 4,CNC cross slide in positions 5,pick up in position 6, sorting chute, 1x independent feed,thread cutting couplings,workpiece belt,Coolant tank with hinged belt chip conveyor Ruez,Oil/steel operation,PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611,The scope of delivery regarding the tooling equipment could be different like pictures.Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)

number of spindles:6 spindle passage:36 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2003Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=36mm!Spindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the images;various collets are included in delivery up to D36mmPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mmArticle: cam-controlled multi-spindle automatic latheManufacturer: SchutteType: SF32 S DntYob: 2001Eight-spindle automatic lathe with 6 main spindlesmax. nominal diameter: D=32mmSpindle drum with hirth coupling,Elbaron oil mist filter,sorting chute,Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F);coolant tank with hinged chip conveyor;Schimpke KSS active cooler,control: Siemens S7-300 PLC;tooling included in delivery may differ from the imagesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Package of 3 Schütte S32PCArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchutteType: S32PCYob: 1998One machine is operational; the other two can be used for spare partsIncludes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader)Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader)Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine)tooling included in delivery may differ from the picturesPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

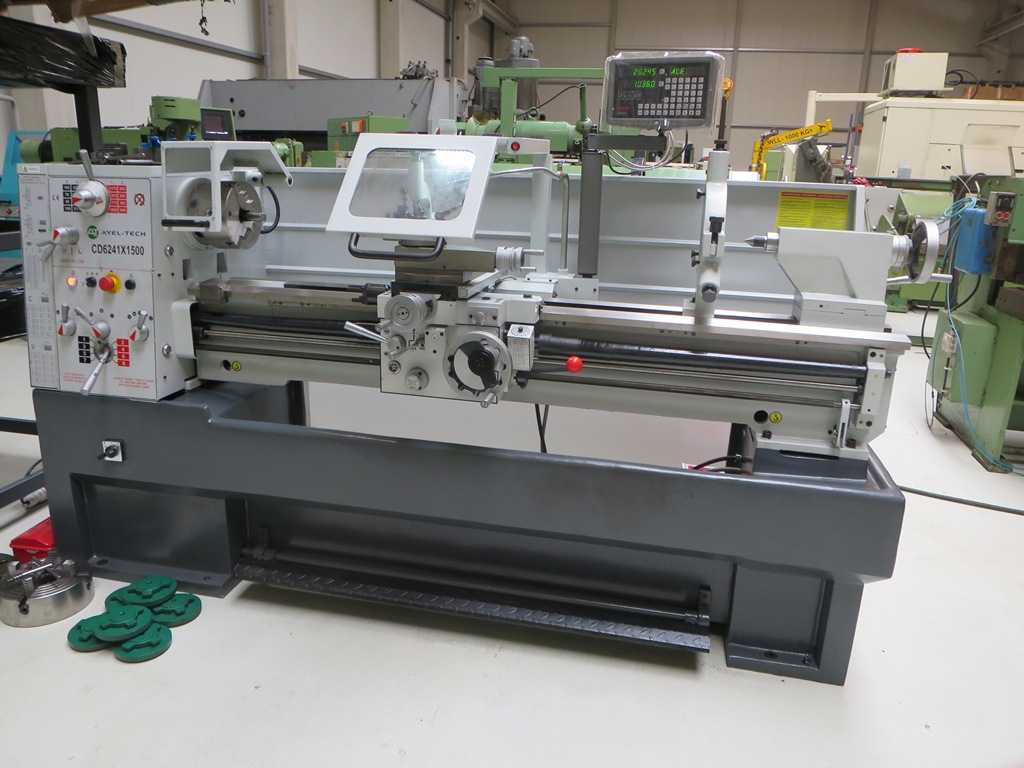

Professional Industrial Machine Digital display 3-jaw chuck 200 mm. 4-jaw chuck Face Plate Fixed bezel Steady bezel Multifix steel holder. Machine Light Foot brake Chip tray, chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine feet Machine Tool Turning diameter over bed 400 mm Turning diameter over support 260 mm Turning length 1500 mm Turning diameter in the offset 570 mm Speed 45 - 1800 rpm Tip height 210 mm Spindle bore 52 mm Tailstock quill holder MK 4 Connection voltage 400 V Total power requirement 3.5 kW Machine weight approx. 1.5 t Dimensions approx. 2.6 x 1.1 x 1.7 m

spindle passage:36 mmArticle: CNC-controlled multi-spindle automatic latheManufacturer: SchütteType: A36PCYob: 2005Loading magazine by Pietro CucchiKnoll unit7 radial cross-type carriages2 additional speed motors in 4th and 5th positions2 additional speed motors for front spindles in position D (pick-up) and B (for front motorized spindle)1 polygon cutter1 motorized front spindle1 radial motorized in position IV for cross-type carriage1 radial motorized in position V to be mounted on X-type carriage only (no cross-type carriage)1 straight head for motorized position IV1 90-degree tilted head for motorized position IV1 tilt-adjustable head for motorized position IVPlease, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

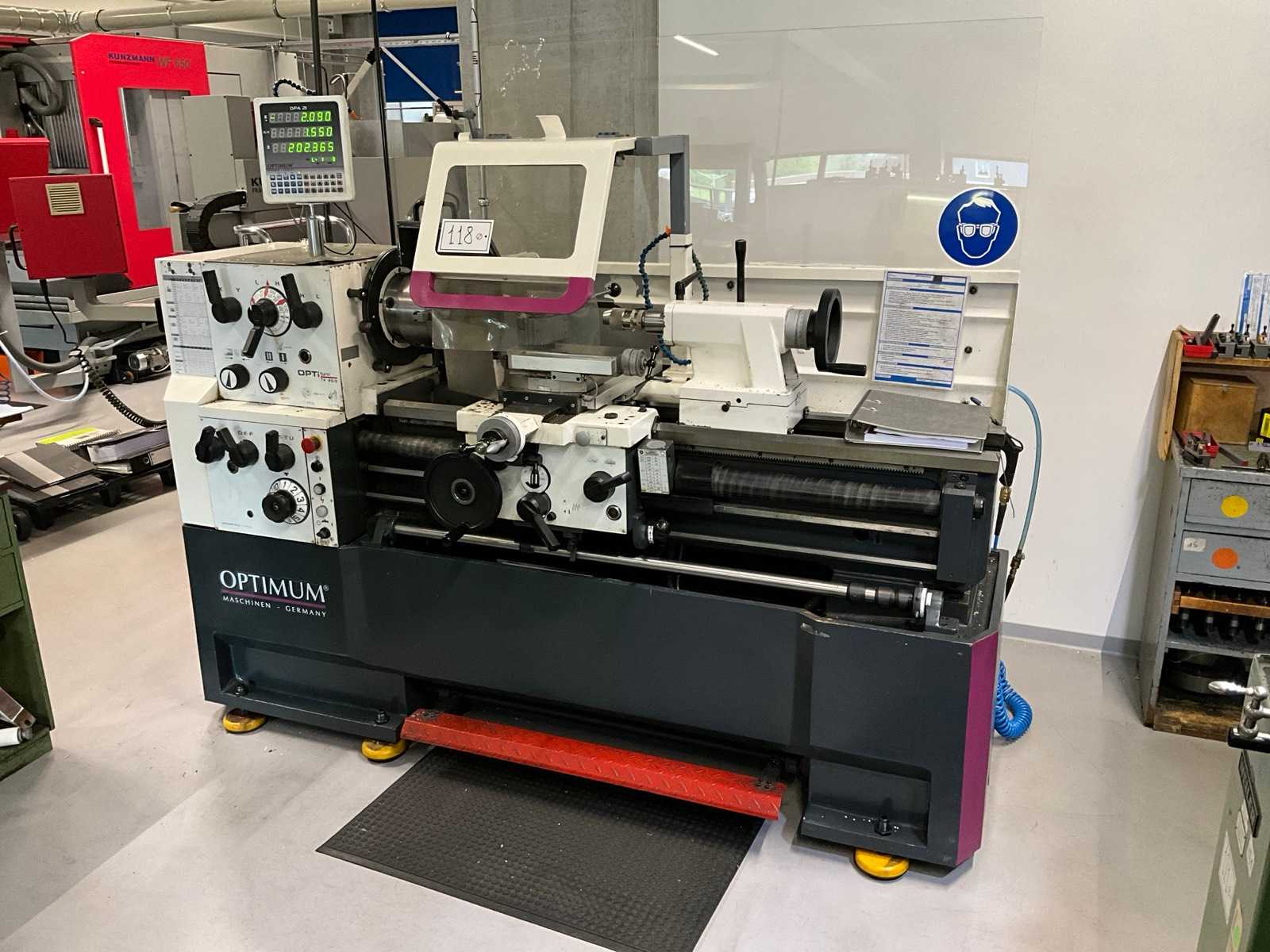

OPTIMUM TH 4610 Centre Lathe (2018) Serial Number: J0517120461 Tip width: 1060 mm Tip height: 230 mm Circulation over bed: 460 mm Circulation over slide: 270 mm Turning length: 240 mm Bore main spindle: 58 mm Max. workpiece weight: 300 kg Morse taper of main spindle: MK6 Spindle speed range: 25 – 2000 rpm Facing slide travel 285 mm Upper slide travel: 125 mm Quill diameter: 60 mm Quill path 130 mm Cone in the quill: MK4 Diameter of three-jaw chuck: approx. 200 mm Feel free to take a look at the videos about this machine

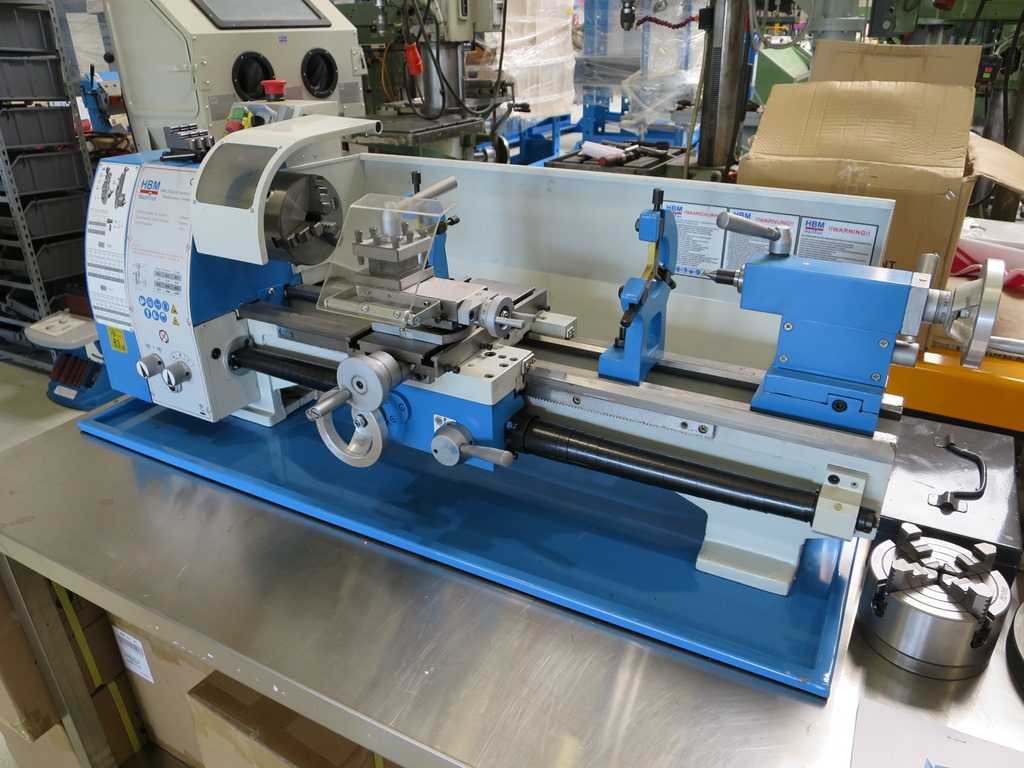

Demonstration machine Speed in 6 steps 125 - 2000rpm. 3-jaw chuck 125 mm. 4-jaw chuck 125 mm. (Independent) Fixed bezel. Rotating bezel. 4-fold steel holder. Scout tub. Back wall. Spindle protection. Hardened bed rails. Longitudinal feed with left/right shift. Set of interchangeable wheels. Related tools. Turning diameter over bed 250 mm Turning diameter over support 140 mm Turning length 550 mm Speed 125 - 2000 rpm Tip height 125 mm Spindle bore 26 mm Tailstock quill holder MK 2 MK Tailstock quill stroke 65 mm Connection voltage 230 V Total power requirement 0.8 kW Machine weight approx. 0.135 t Space requirement approx. 1.25 x 0.6 x 0.6 m Condition: never used / new (5)

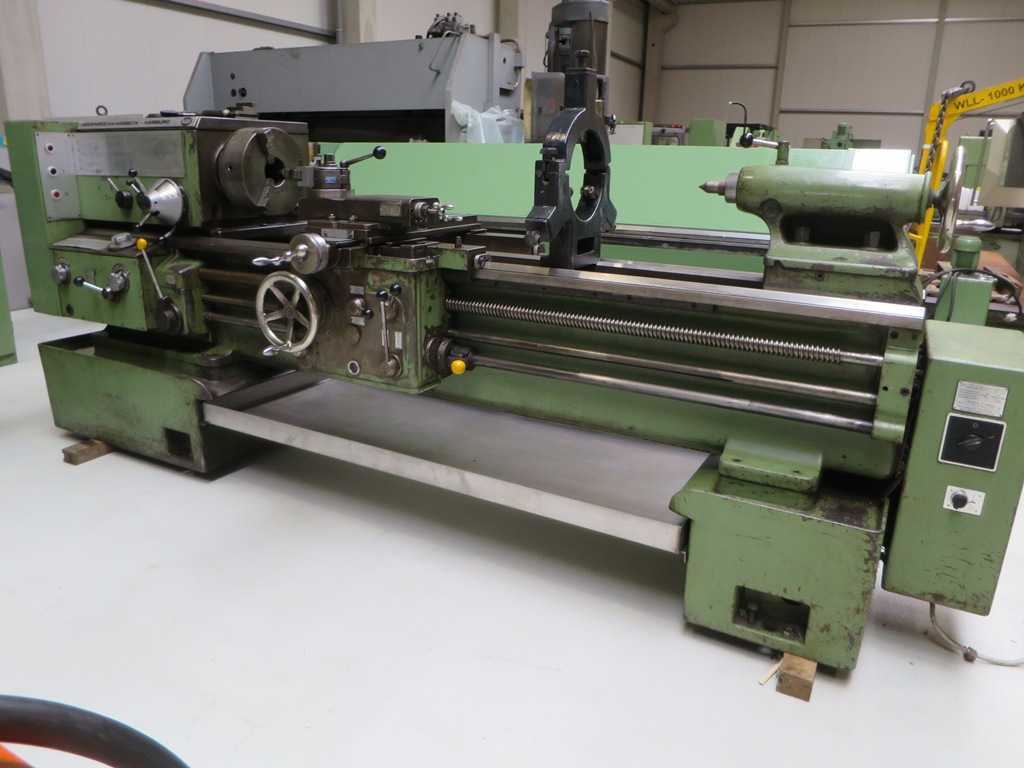

Lead and pull spindle lathe - 4-jaw chuck 315mm - Multifix steel bracket size B - Feed in upper support - Bezel - Machine feet - Chip tray Turning diameter over bed 520 mm Turning diameter over support 260 mm Turning length 1600 mm Speed 14 - 710 rpm Tip height 260 mm Spindle bore 60 mm Total power requirement 11.0 KW Machine weight approx. 2.9 t Space requirement approx. 4.0 x 1.4 x 1.6 m

This Pinacho STH 400-105×3000 was manufactured in 2017. A robust horizontal turning machine with a swing over bed of 400 mm and a distance between centers of 3000 mm. Features a high-torque spindle and CNC-controlled feed for precise heavy-duty turning. Ideal for machining shafts, pipes, and flanges. Consider the opportunity to buy this Pinacho STH 400-105×3000 horizontal turning machine. Contact us for more information.

Horizontal turning machine manufactured in 2019. This SCHAUBLIN 102Mi W25 features a W25 spindle nose and an integrated motor headstock. It includes a pneumatic clamping device and a Tripan-111S quick-change tool holder system. The machine is equipped with a 3-jaw chuck and a tailstock with a rotating center. If you are looking to get high-quality turning capabilities, consider the SCHAUBLIN 102Mi W25 machine we have for sale. Contact us for further details.

This 7-axis Gildemeister TWIN 42 was manufactured in 2008. It features a CNC control Siemens 840D Powerline, two 12-station star turrets, and live tooling capabilities. The machine has a tailstock stroke of 230 mm and is equipped with a optional chip conveyor. If you are looking to get high-quality turning capabilities, consider the Gildemeister TWIN 42 horizontal turning machine we have for sale. Contact us for further details.

Horizontal turning machine manufactured in 2012. This Mazak Quick Turn Smart 200 features a 12-position turret and is equipped with a Hainbuch chuck, enhancing its versatility. It has a bar capacity of 65 mm, making it suitable for various turning applications. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn Smart 200 machine we have for sale. Contact us for further details.

Máquina Tornos de múltiplos fusos controlados por CNC Tipo / Modelo: Tornos MultiDeco 20.6 Condição: usada Horas: 45300 h Varas 5-22 mm Comprimento máximo da peça sem contra-operação 100 mm Comprimento máximo da peça com contra-operação 80 mm Velocidade de rotação do fuso até 4000 rpm Potência máxima do fuso 15 [kW] Potência máxima de diâmetro/rosca interna 3,7 [kW] Potência do motor sub-fuso 1,1 [kW] Número de eixos numéricos 17 Slides axiais 5 Carro de guia transversal (radial e axial) 5 (pos. 1 a 5) Carruagem de Despedida 1 Transporte de guias de contra-operação controlado por CNC com até duas ferramentas de retroprocessamento (item 7) Carga ligada 35 kW Dimensões (LxLxH) aprox. 8053 mm x 1508 mm x 2210 mm Peso aprox. 8500 kg

Máquina automática de barras Tornos de 8 eixos controlada mecanicamente Tipo / Modelo: Tornos B20 Condição: Usada Ano de fabricação: 1981 Dados técnicos Diâmetro máximo da vara cerca de 20 mm Diâmetro máximo da barra ao quadrado 15mm Diâmetro máximo da haste, hexágono 19 mm Comprimento máximo de maquinação (alimentação da barra) 60mm Número de fusos 8 multi-fusos Velocidade do fuso: 20 passos de 620 a máximo. 6.035 1/min Número de deslizadores cruzados 8 (um por fuso) Gestão de produção máximo até 50 peças por minuto Dimensões (LxLxH): aprox. 2465 mm x 1200 mm x 1700 mm Peso aprox. 5.900 kg

Tornos torno automático multi-eixo controlado por CNC Tipo / Modelo: Torno Multi Deco 20.8 Condição: Usada, condição muito arrumada Horas de máquina: aprox. 65724 h Dados técnicos: Diâmetro da haste 5-20 mm comprimento máximo da peça (sem contraoperação) 100 mm Comprimento máximo da peça (com contraoperação) 80 mm Velocidade de rotação do fuso até 5000 rpm potência máxima do fuso 15 kW potência máxima de diâmetro/roscagem interna 3,7 kW Número de eixos numéricos 22 Carro de estriamento (axial) 2 Carro de guia transversal (radial + axial) 5 Slide longo 7 Carruagem de Despedida 1 Potência do motor sub-spindle 1,1 kW Dimensões (LxLxH) aprox. 5880 x 1400 x 1950 mm Peso aprox. 7200 kg Custos de entrega por transitário gratuito, veja o carrinho de compras ou para artigos de consulta na oferta individual.

Torno automático de fuso motorizado: Tornos Tipo / Modelo: MultiAlpha 8x20 Condição: usada Ano de Fabricação: 2008 Horas da máquina: 45017 h Dados técnicos Capacidades e Distâncias de Deslocação Passagem de barra (material redondo) até um máximo de 22 mm (com varas torneadas até um máximo de 25 mm) Comprimento máximo da peça de trabalho 100 mm Curso longitudinal (eixo Z) 80 mm Caminho do deslizamento cruzado (eixo X) 50 mm Unidades finais (slide longitudinal) 200 mm Fuso e Eixos Fuso principal 8 fusos de motor acionados de forma independente Sub-spindle um sub-spindle, com máximo 5 ferramentas de maquinagem e máximo 3 operações de maquinação acionadas possíveis Eixos totais 34 eixos Ferrolha de ferramenta 7 Guia transversal X/Y (posição 1 - 7) 1 carruagem de separação X (posição 8) 7 slides longitudinais (posições 1-7) Potência e ve ...

Horizontal turning machine manufactured in 2007. This Mazak QUICK TURN NEXUS 200-II features a maximum turning diameter of Ø 350 mm and a turning length of 550 mm. It is equipped with a chuck size of 200 mm and a maximum spindle speed of 5,000 rpm. If you are looking to get high-quality turning capabilities, consider the Mazak QUICK TURN NEXUS 200-II machine we have for sale. Contact us for further details.

Geral Fabricante: Emco Tipo: Emcomat EM17D Ano de fabricação: 1996 Curso: X 220 mm Z 710 mm Fuso de trabalho Velocidade: 3.000 rpm Diâmetro do fuso: 50 mm Diâmetro rotativo sobre a bancada: 340 mm Diâmetro rotativo sobre o ferrolho: 190 mm Comprimento de viragem: 700 mm Suporte para fuso: DIN55029 Porta-ferramentas: Multifix B Curso da pena: 120 mm Dimensões e peso Dimensões: 1.650 mm x 1.060 mm x 1.635 mm Peso: aprox. 755 kg Condição Condição: Usada Funcional: Testado e totalmente funcional Outros equipamentos e acessórios incluíam: Contramão MK3 Schunk chuck de 3 mandíbulas Chuck de 4 mandíbulas Placa Facial 4x Suporte Multifix B

A large-format CNC twin-spindle vertical turning machine WMZ is available. Travel X1/X2: 2950mm/2650mm, travel X: 5600mm, travel Z1/Z2: 3200mm/2830mm, feed rate X: 32m/min, feed rate Z: 20m/min, max. workpiece diameter: 3800mm, max. swing in working area: 4000mm, min. workpiece diameter 4-axis internal machining/external machining: 1250mm/1500mm, min. workpiece diameter 2-axis internal machining: 450mm. Table speed: 100rpm, tool stations: 2x47, tool interface: Capto C8, max. tool diameter: 120mm, max. tool length: 400mm, max. tool weight: 20kg, spindle power: 240kW/202kW. Machine dimensions X/Y/Z: approx. 15600mm/10350mm/5750mm, control: Siemens Sinumerik 840D sl. Documentation available. An on-site inspection is possible.
