Gildemeister CTX 410 Year of construction: 2004 Controls: Heidenhain CNC lathe Travel: x-travel 250 mm z-travel 635 mm Max. turning length: 600 mm Circulation diameter over bed: 505 mm Circulation diameter over face slide: 365 mm Spindle bore: 87 mm Max. chuck diameter: 250 mm Max. torque: 320 Nm Max. tailstock displacement by hand/self-acting: 580 mm Tailstock mount/stroke: MK4/580 mm Area requirement (LxWxH): 6.5 m x 4.0 m x 1.8 m Weight: 4500 kg
Description: Very well preserved heavy-duty lathe, make Wohlenberg. The machine was partially overhauled in 2013! Details: Model PT1-1070II Year of construction 1989 partially overhauled in 2013 Country of origin Germany CNC control Siemens 840 D extended from 7 m to 11 m turning length Geometry Santer turret Turning diameter over bed 1,070 mm Turning diameter via support 710 mm Turning length 11,000 mm Bed width 710 mm 2 gear stages Speed 3.55 - 710 rpm. Quill diameter 200 mm Quill stroke 350 mm Spindle passage 128 mm Conveyor Drilling rig incl. boring bar length approx. Ø 200 x 2,430 mm Face plate 1,000 mm Bezel 4 quill 500 mm open Main drive motor 71 kW incl. documentation
-Peak height 240mm -Peak width 1000mm -Control Siemens -Circular permes.about bed 490mm -Umlaufdurchmes.ü.Planschlitten 195mm -Crumpling 520mm -Spindeldurchmes.im in front. Bearing 100mm -Spindle bore 63mm -Torque 736Nm
Ladies and gentlemen, below we offer the following machine for sale: from a tool making, single-layer run and very well maintained. Still under power. CNC lathe Voest - Alpin - Weipert WNE 490 X 1000, peak height 240mm, tip width 1000mm, control Siemens, circulating through mes.over bed 490mm, circulating permes.via plan slide 195mm, crimping 520mm, Spindeldurchmes.im front. Bearing 100mm, spindle bore 63mm, torque 736Nm.
Cam controlled multi spindle automatic lathe, used 6 main spindles, control: Siemens S5 PLC, electronical trip dog control type „Balluff gear box for thread milling (2 pieces) pick up for rear machining in pos. 6, work piece sorting shute, barloader: IEMCA-PRA 40/33 P -rack type- coolant pump, threading clutches, stock stand and reel, tooling: could be different like pictures partly revised
8 main spindles, Chucker AFH130 for complete machining means front- and back side, Control Siemens Sinumerik 840DI, complete revising and new configuration of this machine in year 2010, loading arm, for loading and disloading, Workpiece turn around station in pos. 4 , position 4 with workpiece length control, CNC compound slide in pos. 5, coolant pump with magnet candle filter, tooling: could be different like pictures option: Ergomat TB42 fot cutting off for half finnishing with FMB-Turbo
Inv. Num. : 7468 Type: SL-253BMC/500 Producer: DMG MORI SEIKI Created: 2000 Parameters: Control System: Fanuc MSX-501III Duty cycle: 58953 h Hours: 4810 h Maximum turning length: 485 mm Maximum turning diameter over bed: 254 mm Maximum feed speed axis X: 1260 mm/min Maximum feed speed axis Z: 1260 mm/min Minimum main spindle speed: 35 1/min Maximum spindle speed: 3500 1/min Number of tools: 12 pieces Number of axle: 3 Axis X: 235 mm Z axis: 495 mm Rapid traverse of the X and Z axes: 18000/24000 mm/min Total power requirement: 33.6 kW Length: 2405 mm Width: 1760 mm Height: 1890 mm Weight: 4600 kg Equipment: Driven Tools (X/Z) Kitagawa BB210 Chuck 2018: General overhaul of the control system
Inv. Num. : 7470 Type: INTEGREX 35 Producer: MAZAK Created: 1998 Parameters: Control System: Mazatrol T Plus Hours: 8305 h Maximum turning length: 720 mm Maximum turning diameter over bed: 315 mm Maximum travel length in the X-axis: 450 mm Maximum travel length in the Y-axis: 180 mm Maximum feed rate in the Z-axis: 1065 mm Minimum main spindle speed: 35 1/min Maximum spindle speed: 3300 1/min Number of axle: 4 Power consumption: 50 kW Tool magazine: 80 pieces Rapid traverse X/Y/Z: 12000/11547/18000 mm/min Length: 4500 mm Width: 3200 mm Height: 2600 mm Weight: 6500 kg Equipment: chuck TOS Svitavy UIS 315/6-1-M1
Inv. Num. : 7515 Type: SL-65B Producer: DMG MORI SEIKI Created: 1992 Parameters: Control System: FAPT/Fanuc MF-T5 Hours: 8700 h Maximum turning length: 790 mm Max. turning diameter: 450 mm Minimum spindle speed: 4 1/min Maximum spindle speed: 1010 1/min Travel X: 350 mm Z travel: 860 mm Number of synchronized axes: 3 pieces Tool magazine: 12 pieces Engine power: 56 8 kW Rapid traverse of the X and Z axes: 5000/8000 mm/min Maximum feed speed axis X: 1260 mm/min Maximum feed speed axis Z: 1260 mm/min Length: 3660 mm Width: 1950 mm Height: 2320 mm Weight: 9140 kg Equipment: Kitagawa B-18 Chuck
Inv. Num. : 7067 Type: GA-2600 Producer: Goodway Created: 2005 Parameters: Maximum turning diameter: 350 mm Max. turning length: 606 mm Maximum main spindle power: 15 kW Maximum spindle speed: 4000 1/min Spindle bore: 76 mm Max. rod diameter: 66 mm Clamping diameter: 254 mm Length: 2445 mm Width: 1630 mm Height: 1890 mm Weight: 4000 kg
Inv. Num. : 7432 Type: SW 32 Producer: Goodway Created: 2017 Parameters: Side length: 315 mm Max. turning diameter: 32 mm Weight: 3200 kg
Inv. Num. : 7447 Type: NT 2000 SY Producer: YCM Created: 2015 Parameters: Control System: FANUC TXP-200FB Maximum turning diameter: 350 mm Max. turning length: 519 mm Spindle diameter: 52 mm Number of tools: 12 pieces Axis Y: 50 mm Weight: 7600 kg Equipment: Technical Documentation Conveyor Shovel Spacesaver SS2220 Bar Feeder Tool Probe BMT65 Brackets (External/Front/Internal/2pcs Powered) High Pressure Pump 2x universal chuck for both spindles 3x collet clamp for both spindles Preparation for the connection of the mist collector

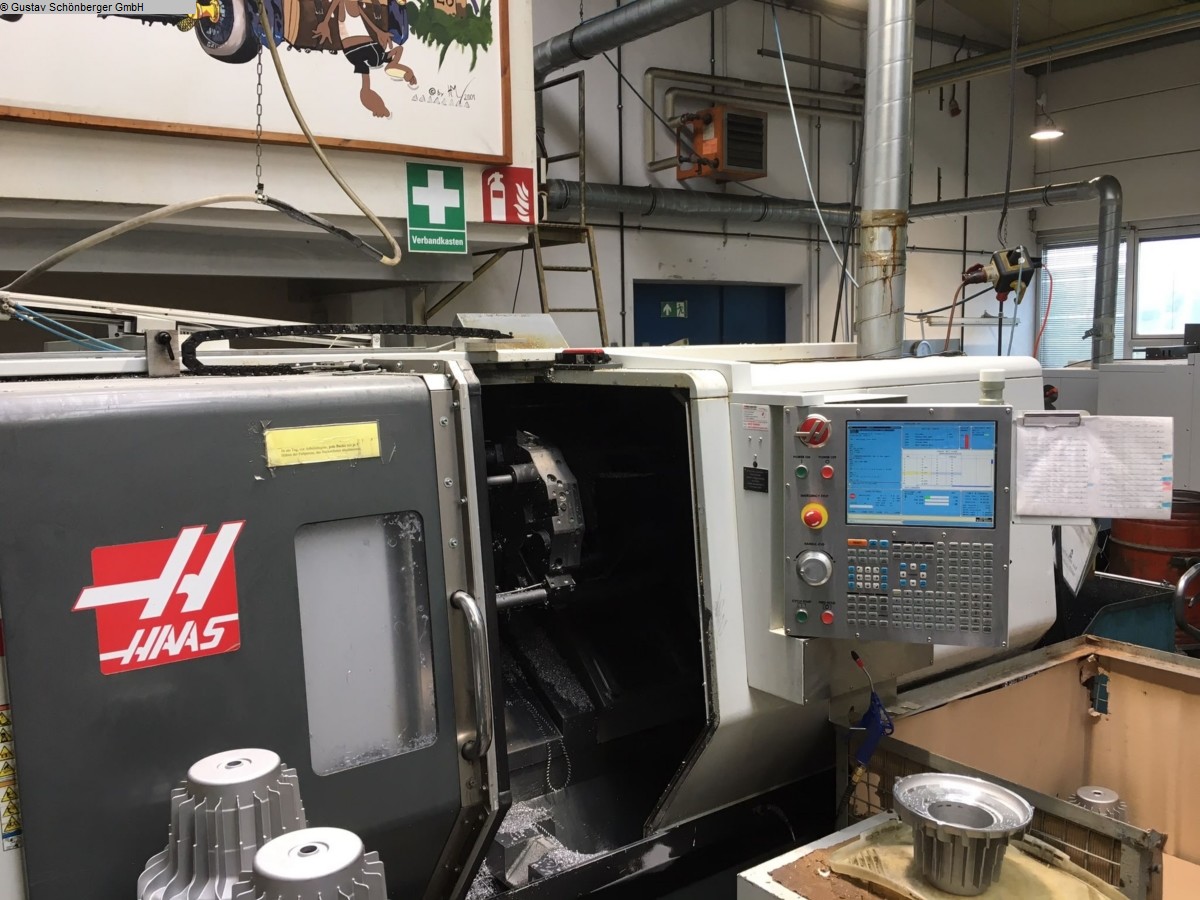

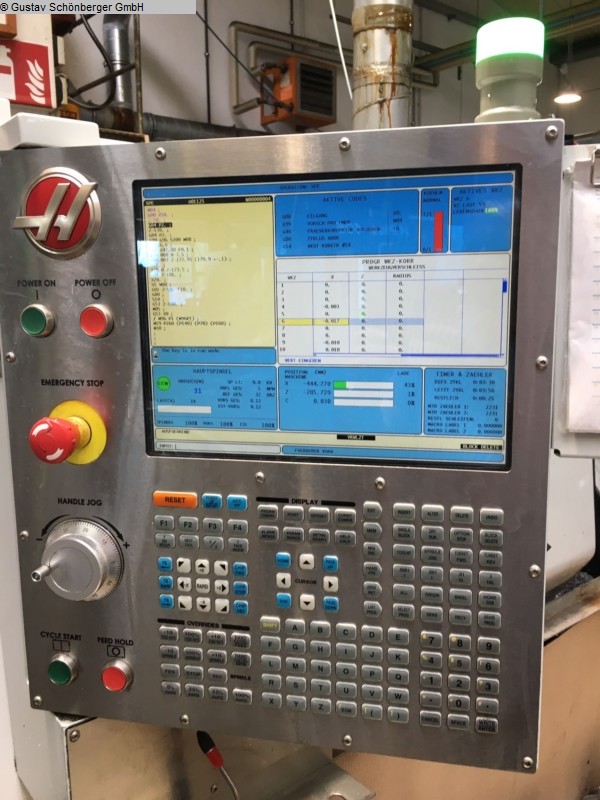

Inv. Num. : 7421 Type: SL 30 HE Producer: HAAS Created: 2001 Parameters: To GO Control system: HAAS Spindle bore: 65 mm Max. turning length: 660 mm Number of tools in the storage container: 12xVDI40 pieces Maximum turning diameter over bed: 533 mm Spindle speeds: 3400 1/min Maximum main spindle power: 22.4 kW Equipment: Bake Tool Holder High-pressure cooling Tool Probe
Inv. Num. : 7399 Type: PUMA 3100 Producer: DOOSAN Created: 2015 Parameters: Control system: FANUC Max. turning length: 760 mm Max. turning diameter: 525 mm Maximum travel length in the X-axis: 293 mm Maximum feed rate in the Z-axis: 830 mm Spindle speeds: 2800 1/min Maximum main spindle power: 22 kW Number of tools: 10 pieces Length: 4095 mm Width: 1978 mm Height: 2010 mm Weight: 5850 kg Equipment: Conveyor Programmable tailstock/quill 3-jaw chuck 2022/8: Replacement of bearings in the spindle
Inv. Num. : 7400 Type: GT 2100 Producer: DOOSAN Created: 2013 Parameters: Control system: FANUC Maximum turning length: 562 mm Max. turning diameter: 390 mm Maximum turning diameter over bed: 600 mm Maximum travel length in the X-axis: 230 mm Maximum feed rate in the Z-axis: 580 mm Maximum main spindle power: 15 kW Maximum spindle speed: 4500 1/min Number of tools: 10 pieces Length: 3890 mm Width: 1628 mm Height: 1700 mm Weight: 3500 kg Equipment: Technical Documentation Conveyor Shovel Collets Bake Knife Collet head Universal three-jaw head Cutter head with 10 positions Programmable tip/spring 2023/3: Replacement of bearings in the spindle
Inv. Num. : 7112 Type: LP 130 CNC ES Producer: Laschet Partner Created: 1997 Parameters: Control system: SIEMENS SINUMERIK Maximum travel length in the X-axis: 300 mm Max. travel length of the Z-axis: 280 mm Maximum main spindle power: 25 kW Maximum spindle speed: 5700 1/min Spindle bore: 80 mm Length: 2800 mm Width: 1450 mm Height: 2000 mm Weight: 4200 kg Equipment: Spares Bar feeder Complete set of collets
Inv. Num. : 7115 Type: LP 100 CNC Producer: Laschet Partner Created: 1999 Parameters: Control System: FANUC Series 0-T Maximum travel length in the X-axis: 300 mm Maximum feed rate in the Z-axis: 280 mm Spindle bore: 300 mm Length: 2800 mm Width: 1450 mm Height: 2000 mm Weight: 3200 kg Equipment: MRW Robopot Feeder
Inv. Num. : 4619 Type: GR 300C Producer: MAHO Graciano Generated: 1990-1993 Parameters: Control system: CNC 432 Philips Maximum turning length (travel in the Z axis): 620 mm Maximum turning diameter over bed: 370 mm Maximum turning diameter over support: 320 mm Maximum travel length in the X-axis: 250 mm Minimum main spindle speed: 1000 rpm Maximum main spindle speed: 5000 rpm Number of turret heads: 12 pieces Equipment: Tailstock
Inv. Num. : 6029 Type: Epa 320 Producer: Hungary Created: 1985 Parameters: Control system: Siemens SINUMERIK 810 T Maximum turning length: 600 mm Maximum turning diameter over bed: 450 mm Maximum turning diameter over support: 250 mm Length: 6000 mm Width: 2500 mm Weight: 4000 kg
