87 CHIRON used machine for sale

CHIRON FZ 08K S Magnum HSP High-Speed CNC Machining Center TECHNICAL FEATURES: Year: 2007 NC Type: FANUC 18i-MB5 Number of axes: 7 X-axis travel: 450 [mm] Y-axis travel: 270 [mm] Z-axis travel: 310 [mm] X, Y and Z fast travel speed: 75000 [mm/min] Maximum diameter in bar turning spindle: 32 [mm] A-axis angular travel: 360 [°] A-axis indexing accuracy: 0.001 [°] B-axis angular travel: -20° / +115 [°] B-axis indexing accuracy: 0.001 [°] Pin Attachment: HSK40 Maximum speed Spindle: 30000 [rpm] Number of tool magazine stations: 40 Installed power: 17 [kVA] Supply voltage: 400 [V] Dimensions: 1500 x 2600 x 2300 [mm] Weight: 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW probe type TS27R x1 Spindle Cooling Unit x1 watering tray x1 unit for 6th side machining x1SCHUNK gripping system x84 HSK40 Type Tool Holder x14 Collet Type F35 x1 Electrical Cabinet Air C ...

General Manufacturer: Chiron Type: DZ 08 W Magnum high speed Control: Siemens 840D Year of Make: 2015 Travel: X 450 mm Y 270 mm Z 310 mm Rapid traverse X/Y/Z: 75 m/min Working spindle Speed: 18,000 rpm Tool holder: HSK 40-A Tool/movement Tool changer: 16-speed Dimensions and weight Weight: approx. 3,600 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Workpiece changing table IKZ Coolant System with Belt Filter Knoll Chip conveyor Oil mist extraction Probes Blum Laser Measurement

General Manufacturer: Chiron Type: DZ 12 W Magnum high speed plus Control: Siemens 840D Year of Make: 2016 Travels: X 550 mm Y 400 mm Z 400 mm Rapid traverse X/Y/Z: 75 m/min Operating hours: 14,709 h Working spindle Speed: 20,000 rpm Torque: 29 Nm Power: 24 – 36 kW Tool holder: HSK 63A Double spindle spindle spacing: 250 mm Tool changing table Dimensions L/W: 660 x 950 mm Tool/movement Tool changer: 32-fold Dimensions and weight Weight: approx. 9,500 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Spindle coolers IKZ high-pressure system with belt filter Knoll KF150/500 Chip conveyor Probes Renishaw Oil mist extraction Blum Laser Measurement

5 axle BAZ Chiron FZ 12 KS BJ 2003 more technical data and more pictures on request,

CHIRON FZ08 KS Magnum High Speed Plus (HSP) High-Speed Machining Center (HSP) TECHNICAL FEATURES: Year: 2006 NC Type: FANUC 18i-MB5 Number of axes: 7 X-axis travel: 450 [mm] Y-axis travel: 270 [mm] Z-axis travel: 310 [mm] X, Y and Z fast travel speed: 75000 [mm/min] Maximum diameter in bar turning spindle: 32 [mm] Maximum speed Turning spindle: 8000 [rpm] Maximum power turning spindle: 12 [kW] A-axis angular travel: 360 [°] A-axis indexing accuracy: 0.001 [°] B-axis angular travel: -20° / +115 [°] B-axis indexing accuracy: 0.001 [°] Pin Attachment: HSK40 Maximum speed Spindle: 30000 [rpm] Number of tool magazine stations: 40 Turning part by robot (6th side machining): Yes RS232 Port: Yes Installed power: 17 [kVA] Supply voltage: 400 [V] Operating hours: 9911 [h] Dimensions: 1500 x 2600 x 2300 [mm] Weight: 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW p ...

Year of construction 2012 Siemens Control 840D Remote diagnostics and teleservice On-screen maintenance instructions 5-axis milling package Rigid table with integrated rotary table Kessler DTE 520 max. speed 1000 rpm Travel X/Y/Z 2000/685/630 mm NC swivel head with headstock NC swivel axis +- 100° - direct measuring system Speed range 20,000 rpm Direct displacement measurement systems Tool changer with 92 places Rapid traverse 40 - 40 - 40 m/min Axle acceleration 0.25 g Chip conveyor (hinge belt) Coolant system HL 450 / 900 (IKZ) Chip gun Coolant recooling unit Additional tub flushing Machine preparation for air through the spindle Extraction for the working area Safety package MILL 2000 reinforced cab with safety washers Zero-point clamping system NSL tur 570-5-Z for DTE 520 Mitfahrende Chiron Lasercontrol Single F295 Tool breakage detection Probes Renishaw OMP ...

General Manufacturer: Chiron Type: DZ 28 P five axis Year of manufacture: 2023 Control: Siemens Sinumerik 840D SL Travels: X 1,200 mm Y 1,100 mm Z 800 mm Rapid traverse: X 120 m/min Y 75 m/min Z 75 m/min Axle acceleration: X 1.0 g Y 0.8 g Z 1.5 g Main spindle drive Speed: up to 20,000 rpm 2-axis torque swivel device 2 x face plates diameter: 479 mm Swivel axis as A-axis Swivel angle: ± 120° Swivel radius: 700 mm Bridge dimension: max. 2,400 mm Repeatability: ± 5" Speed: 42 1/min NC rotary table as C-axis Clamping force: 25 kN +/- 15 % per clamping segment Repeatability: ± 5" Speed: 100 1/min Loading and unloading station for tools Tool Stations: 2 x 36 Tool shank: HSK-A 63 DIN 69893 Tool diameter: max. 78 mm Tool diameter with free adjacent spaces: max. 160 mm Tool length: max. 450 mm Tool weight: max. 10 kg Tool change time: approx. 0.9 s Ma ...

Key data: 2000 mm, 500 mm, 550 mm

Specifications: Manufacturer: Chiron Type: Mill 2000 high speed Control: Heidenhain TNC 530 Year of Make: 2013 Travels: X 2,000, Y 500, Z 550 mm Working spindle Speed: 12,000 rpm Start table Dimensions L/W: 2,600 x 550 mm Table load: 1,000 kg Tool/movement Tool holder: SK40 Tool changer: 40-fold Measuring system: direct X/Y/Z Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Conveyor Preparation FK7 Loading automatically "opening and closing" Tub flushing

CHIRON FZ18 S CNC machining center with SK40 rotary table integrated as 4-axis in the control system Control: SIEMENS NUMERIK 810 Not in operation since 2016

BAZ Chiron FZ18W

BAZ Chiron FZ 12 S

Key data: 450 mm, 270 mm, 310 mm

Chiron FZ08KS Magnum, NC machine: 3-axle Workbench: Length [mm]: 770, Width [mm]: 290 Table information: Rigid table with chip tray for optimal chip fall for wet and dry machining Clamping area: 770mm x 290mm with raster drilling pattern M16 x 15H7 x 50mm Table load: max. 500 kg Rapid traverse: X and Y axis 40m/min, Z axis 60m/min Max. speed [rpm]: 1500 Dimensions/Weight: Length [m]: 2,308, Width [m]: 1,405, Height [m]: 2,447 Total weight [Kg]: 3400 Electronics: Control Type: Siemens CNC Control 84OD PCU 50 / NCU 572.4, 6 measuring circuits, 1 channel incl. 10.4" TFT color screen / full keyboard OPO10S Windows NT Control Panel Logic NO RAM 256KB Machine connection: Voltage [V]: 400 / 230V t 107o - 50Hz/N/PE Frequency [Hz]: 50/60Hz Type of current: three-phase current Power: 13kVA Remark Accessories: Pressure monitoring of internal cooling

Key data: 630 mm, 400 mm, 500 mm

Chiron FZ 18 W, NC machine: 5-axis machine Interference circle diameter [mm]: 630 with variaber Wz alternating plane Plate size: Workpiece changing device 0 / 180° weight-dependent, Self-regulating thanks to self-learning speed control Transport load per side Ø - max. 400Kg with stainless steel centre partition Clamping area 2 x 940 x 470mm² with threaded and fitting hole grid: M16x Ø 15H7x50mm Workpiece change time: approx. 3.7sec. weight-dependent, Self-regulating thanks to self-learning speed control Workbench: Two-axis NC rotary table Type ATU 200/AWU 160, Fabr. PEISELER Face plates Ø 180mm with centering hole A50 + Ø 012 Fixing pin Ø 16H7 and 4x M10 in bolt circle 104.8 Center height 174mm with horizontal axis of rotation Dimension to upper edge of face plate with vertical axis of rotation 263mm Sub-range 5, axis 360° continuous, 4th axis 0-90° S ...

Key data: 450 mm, 270 mm, 310 mm

Chiron FZ08K S Magnum Work table: length 770mm, width 290mm (clamping surface) Rigid table with chip tray for optimum chip fall during wet and dry machining. With raster drilling pattern: M16 x diameter 15 H7 x 50mm Rapid traverse: 75m/min in X, Y and Z axis Max. speed [rpm]: 3000 Dimensions/Weight: Length [m]: 2.308, Width [m]: 1.405, Height [m]: 2.447 Total weight [Kg]: 3400 Electronics: Control type: Siemens CNC control 840D (PCU 50 / NCU 572.3, 6 measuring circuits, 1 channel) incl. 10.4" TFT color screen/full keyboard OP010S Control Panel Logic Windows NT/XP Machine connection: Voltage [V]: 400 / 230 + 6% / -10% - 50Hz/N/Pe Frequency [Hz]: 50/60Hz Type of current: three-phase current Power: 14kVA

Inv. Num. : 7911 Type: FZ 12 WM Producer: Chiron Created: 2011 Parameters: Control system: Fanuc Series 21iM Switch-on hours: 94645 h Hours: 45953 h Work table length: 850 mm Work table width: 350 mm X-axis travel: 550 mm Y-axis travel: 300 mm Z-axis travel: 425 mm Machine height: 2600 mm Machine length: 2800 mm Machine width: 1800 mm Equipment: Grips

Key data: 550 mm, 450 mm, 500 mm

Machine Details Stock-No. 1105-03698 Type of machine Machining Center - Vertical Make CHIRON Type FZ 15 W HI SPEED Year of manufacture 2001 Type of control CNC Storage location FRANCE Country of origin france Delivery time ready for delivery Freight basis EX WORK Price Technical details X-Travel 550 mm Y-Travel 400 mm Z-Travel 425 mm control SIEMENS 840 D table surface area 600 X 350 mm tool taper ISO SK 40 spindle turning speed - stepless 20 - 12,000 rpm Feed Stepless 0 - 60,000 mm/min Rapid Traverse 60 m/min feed force X/Y axis 5.000 N feed force Z axis 10.000 N Tool Magazine: 20 diameter of tools max. 65 mm tool diameter with 2 vacant positions 150 mm Tool length - max. 220 mm Spindle diameter in front bearing 70 mm max. torque on the spindle max. 180 Nm Distance between table/spindle 280 - 705 mm distance between spindle/column 480 mm Milling capaci ...

Key data: 1200 mm, 400 mm, 425 mm

Inv. Num. : 4455 Type: FZ 16L Producer: CHIRON Created: 1987 Parameters: Control system: Siemens Sinumerik System 3 Work table length: 1880 mm Work table width: 475 mm Mechanical feed length axis X: 1200 mm Mechanical feed length axis Y: 400 mm Mechanical feed length axis Z: 425 mm Machine height: 4000 mm Machine length: 2400 mm Machine width: 2800 mm Machine weight: 3500 kg

CNC Manufacturing Center Mill 2000 Commissioning 2007 4 - 5 axis machine Siemens 840 D Commuting X axis 2000 mm y axis 500 mm Z axis 550 mm 40 tool slots Rigid table with chip tray Clamping surface 2600 mm 550 mm with 3 T-slots High-speed package Rapid traverses 60 m/min Speed 20 - 12,000 rpm Coolant pump 30 bar 900 liters 2 extraction units as air purifiers Automatic grease lubrication 2x Rinsing gun Single-shift operation Spindle has been renewed and much more. The machine can be viewed under power

Vertical machining center Chiron FZ08W :::SPECIFICATIONS::: CNC Model: Fanuc CNC version: 21M Tool connection: HSK 32 Spindle power: 3,7Kw Number of spindle revolutions: 15000 Number of tools: 12 X Axis Stroke: 300mm Y Axis Stroke: 250mm Z Axis Stroke: 250mm Rapid feeds linear axes X Y Z: 40 40 60m/min Guides: roller Pallet change: yes Pallet size: 550 x 300mm Maximum load allowed: 200Kg Rotopallet: yes Chip evacuator: carpet :::D IMENSIONS AND WEIGHT::: Length: 2600mm Width: 1400mm Height: 2100mm Weight: 2200Kg

Machine Details Warehouse number 1105-03697 Machine Type Machining Center - Vertical Brand CHIRON Type FZ 08 S Year of construction 1998 Control type CNC Storage location HAGUENAU Country of origin Germany Delivery time immediately - pre-sale Freight base from stock HAGUENAU FRANCE Technical details x-travel 300 mm y-travel 250 mm z-travel 250 mm Total power requirement 8 kW Machine weight approx. 1.8 t Information very well maintained 3 axles BZ CHIRON FZ 08 with FANUC 18 I M - speeds up to 10000 rpm - rapid traverses up to 60 m ! HSK 30

Machine Details Stock-No. 1105-03574 Type of machine Machining Center - Vertical Make CHIRON Type FZ12 WM Year of manufacture 1995 Type of control CNC Storage location HAGUENAU Country of origin Germany Delivery time immediately Freight basis EXW -free on truck Technical details x-travel 550 mm y-travel 300 mm z-travel 425 mm tool taper SK 40 control Siemens 810 total power requirement 12 KVA weight of the machine approx. 4.0 t transport dimensions LxWxH 2,05x3,05x3,0 m Additional information chiron fz 12 wm with changeable plate with 2 x 4. axis PEISELER WIth CONTROL SIEMENS 810 TOOLS SK 40

Twin pallet vertical machining center CHIRON FZ15KW Highspeed Spindle 12000 RPM Rapids asse Z 60m/min 2005 Pallet 2 x 660 x 400 mm X 550 Y 400 Z 360 coolant through spindle 48 tools HSK63 swarf conveyor CNC Siemens 840D This Machine can be inspected and tested under power in our warehouse in Gussago BS Italy

Chiron FZ18W rotopallet 1999 CNC Siemens 840D X 630 Y 400 Z 425 tables (2) 850x450mm 20 tools ISO 40 / 7100 RPM / 18kW / 140 Nm 40m/min HAWE hydraulics automatic doors swarf conveyor machine can be inspected under power in our warhouse 6 ton 3,6 x 2,25 x 2,85

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...

Machine details Bearing number 1105-03038 Machine type Machining Center - Vertical Make CHIRON Type FZ12 WM Built in 1997 Control type CNC Warehouse FRANCE Country of origin Germany Delivery time immediately Freight base freely loaded from location Technical details x-path 550 mm y-path 300 mm z-way 425 mm Tool holder SK 40 Control Siemens 810 Total power requirement 12 KVA Machine weight approx. 4.0 t Transport dimensions LxWxH 2.05x3.05x3.0 m Information Machine is located in the technical GOOD CONDITION with interchangeable plate 2 X 4th axis PEISELET PT 160 WITH SIEMENS 810 WITH HYDROLIC CLAMPING IN THE TABLE 24 FACH WERCKZEUGWECHSLER

FZ15KS HIGH SPEED 4 axis vertical machining center X: 550mm Y: 400mm Z: 360mm 4th axis original Peiseler CNC Siemens 840D Table surface 1050 x 450mm Toolchanger 48 posts ISO 40 Spindle speeds up to 12000 1/min with 4th axis Renishaw broken tool detector Coolant through spindle swarf conveyor Can be inspected under power in our warehouse. Mimu machine tools (Italy)

5 axis machininng center (milling/turning from bar) Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 – 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4)

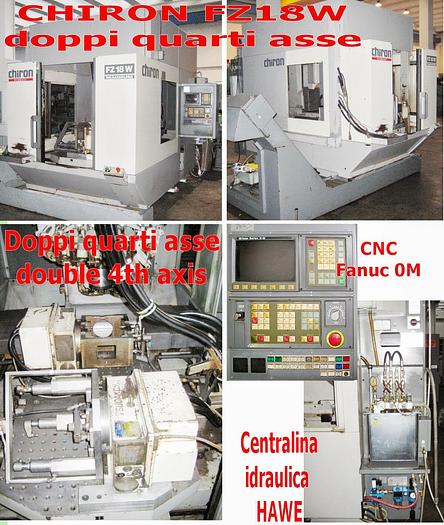

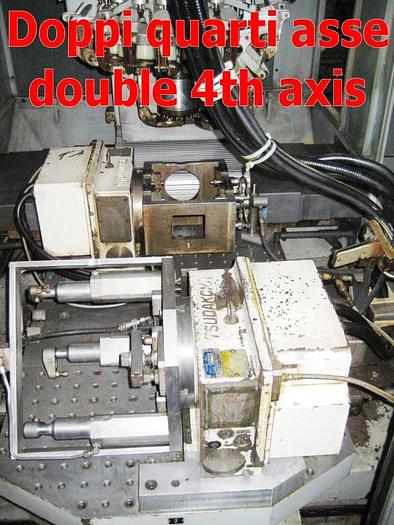

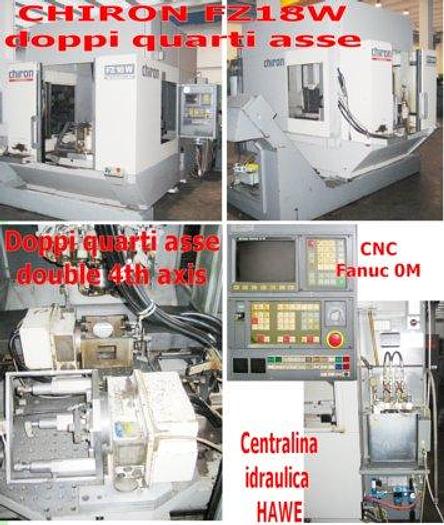

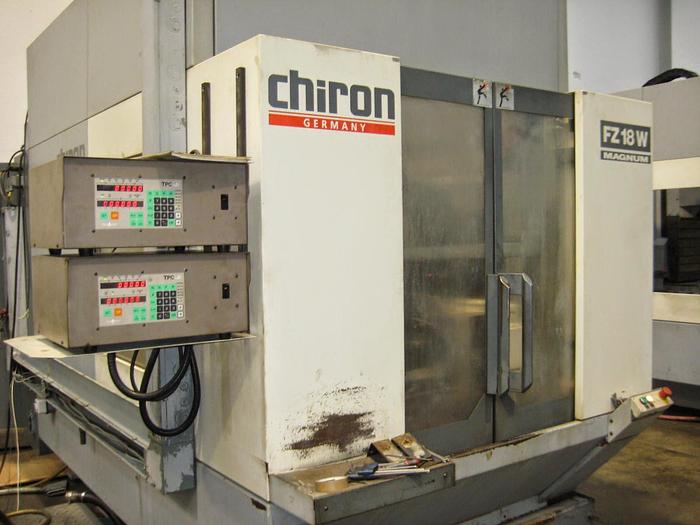

CHIRON MODEL FZ18W MAGNUM 4 axisVertical machining center with rotopallet and double 4th axis20 TOOLSISO 40Toolchange: 2.1 sec Spindle: 20 - 8000 RPM, 18,5k kWX = 625Y = 400Z = 400Rapids 40m/minTable area: 2 x 900 x 470- TSUDAKOMA heavy duty double 4th axis (Japan) 360.000 pos.- original HAWE hydraulic unit - FANUC 0m be inspected under power in our warehouse.Mimu Machine tools Italy

Chiron FZ18W rotopallet 1999 CNC Siemens 840D X 630 Y 400 Z 425 tables (2) 850x450mm 20 tools ISO 40 / 7100 RPM / 18kW / 140 Nm 40m/min HAWE hydraulics automatic doors swarf conveyor machine can be inspected under power in our warhouse 6 ton 3,6 x 2,25 x 2,85

5 axis machininng center (milling/turning from bar) multitasking Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1) X, Y, Z (mm) 800 ? 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min ...
