Other Turning Machines used for sale (19)

OIL LATHE STANKO SPINDEL BORE 300 mm

Prvomajska Raša D480 Conventional Engine Lathe Manufacturer: Prvomajska Raša Model: D480 Equipment type: Conventional Engine Lathe Year: 1983 Serial number: P1925.0765-06 Reference number: 319086 Heavy-duty conventional metalworking lathe designed for turning, facing, boring, threading and related machining operations on cylindrical workpieces. Technical specifications: Working length: 2,000 mm Electrical supply: 380 V, 3-phase, 50 Hz Rated current: 26 A Fuse rating: 35 A Equipment / features: Tailstock Longitudinal carriage Cross slide Tool post Manual operating controls Important: Machine is supplied without chuck. Approx. dimensions (L × W × H): 3,800 × 1,200 × 1,500 mm Approx. weight: 3,000 kg Condition: Used. Main machine structure, carriage, cross slide, tool post and tailstock are present. Spindle, gearbox, feeds, bearings, electrical system and machining accuracy sho ...

Underground lathe for reprofiling train wheels without necessary disassembly. Machine is in excellent condition.

SAICC B26 special purpose/threading machine, made in Pavia, Italy. Older workshop machine with guards, spindle and manual controls. Exact application and operating condition to be confirmed. Auction-ID: A1-51153-60

Max. blank / workpiece over bed1200 Max. blank / workpiece in the gap2400 Ø Centre height over bed600 mm Distance between centers2350 mm Length of the gap400 mm Maximum sheet thickness6 mm Stroke X-Axis1200 mm Stroke Y-Axis300 mm Speedrange6 - 675 Rpm Power40 kW Stroke pinole quill750 mm

Oerlikon DM2e Lathe Manufacturer: Oerlikon Model: DM2e Equipment type: Conventional Lathe Serial number: 227347 Heavy-duty conventional metalworking lathe designed for turning, facing, boring and related machining operations. Technical specifications: Chuck diameter: Ø550 mm Working length: 2,000 mm Spindle bore: Ø70 mm Equipment / features: 3-jaw chuck Tailstock / centre Steady rest Longitudinal carriage Cross slide and tool post Manual machine controls Condition: Used. Chuck, carriage, tailstock/centre and steady rest are included. Spindle, gearbox, feeds, bearings, electrical system and machining accuracy should be verified before operation. Auction-ID: A7-51510-1

NDT lathe - Böhringer Type VDF 400 Spindle 600-440 mm maximum length 2000mm Tool magazine with 12 tools

Small automatic/cam lathe with enclosed working area, bar/feed area and motorized unit. Used machine with visible wear; suitable for repair, parts or workshop use. Manufacturer/model and full specs to be confirmed. Auction-ID: A1-51153-39

Railway Wheel Lathe RAFAMET UBB112

Top High-Performance Magic Bar Loader Automations Technical features: Bar Diameter Capacity: from 8 mm to 100 mm (depending on the specific version of the cylinder head) Bar length about 1500 Driving System: Self-adjusting half-shell channel (managed by servomotor) Diameter Change: Fully automatic in less than 60 seconds via CNC keypad Bar retraction: Managed by bar feeder with integrated lubrication system Feed Speed: Up to 600 mm/sec (adjustable) Compatibility: Interfaceable with any CNC lathe (Fanuc, Mitsubishi, Siemens) Total dimensions: 1,700 x 1,100 mm Spindle Line Height: Adjustable (usually 900 - 1,250 mm) Approximate weight: 1,800 kg Auction-ID: A7-51375-29

RAFAMET Wheel Turning Lathe XAD 112

Mondiale 81 Lathe – 380/220 V – Cooling Pump – Safety Screen – Lighting Compact universal lathe from the Italian brand Mondiale, type 81, suitable for various turning work in workshop, garage and machine building. The machine has a bed length of approx. 900 mm and a spindle bore of approx. 35 mm. Equipped with a cooling pump, lighting and a safety screen with electric breaker. Comes with chuck and brackets/accessories. Technical data: • Brand: Mondiale • Type: 81 • Universal metal lathe • Bed length: approx. 900 mm • Spindle passage: approx. 35 mm • Electrical connection: 380 V / 220 V • Equipped with cooling pump • Equipped with work lighting • Safety screen with electric breaker • Chuck included • Including brackets/accessories • Compact and sturdy workshop design • Italian mechanical engineering Auction-ID: A3-46142-11986

34"/44" x 60" Mazak gap bed lathe Model: Rex, Specifications: Swing over bed ways . 34" Swing in removable gap .. 44" Swing over cross slide .. 24-1/2" Distance between centers 60" Hole thru spindle ... 4-1/16" Spindle nose D1-11" camlock Width of bed 22" Spindle speed range (16) 12 - 1200 rpm Longitudinal feed range . .00217" - .0331" ipr Cross feed range half of longitudinal setting Inch threading range (40) ... 4 - 56 tpi Metric threading range (23) . .5 - 7 mm Tailstock spindle travel 8" Tailstock spindle taper . #6mt Approximate floor space . 144"L x 60"W x 60"H Approximate weight .. 12,500 lbs

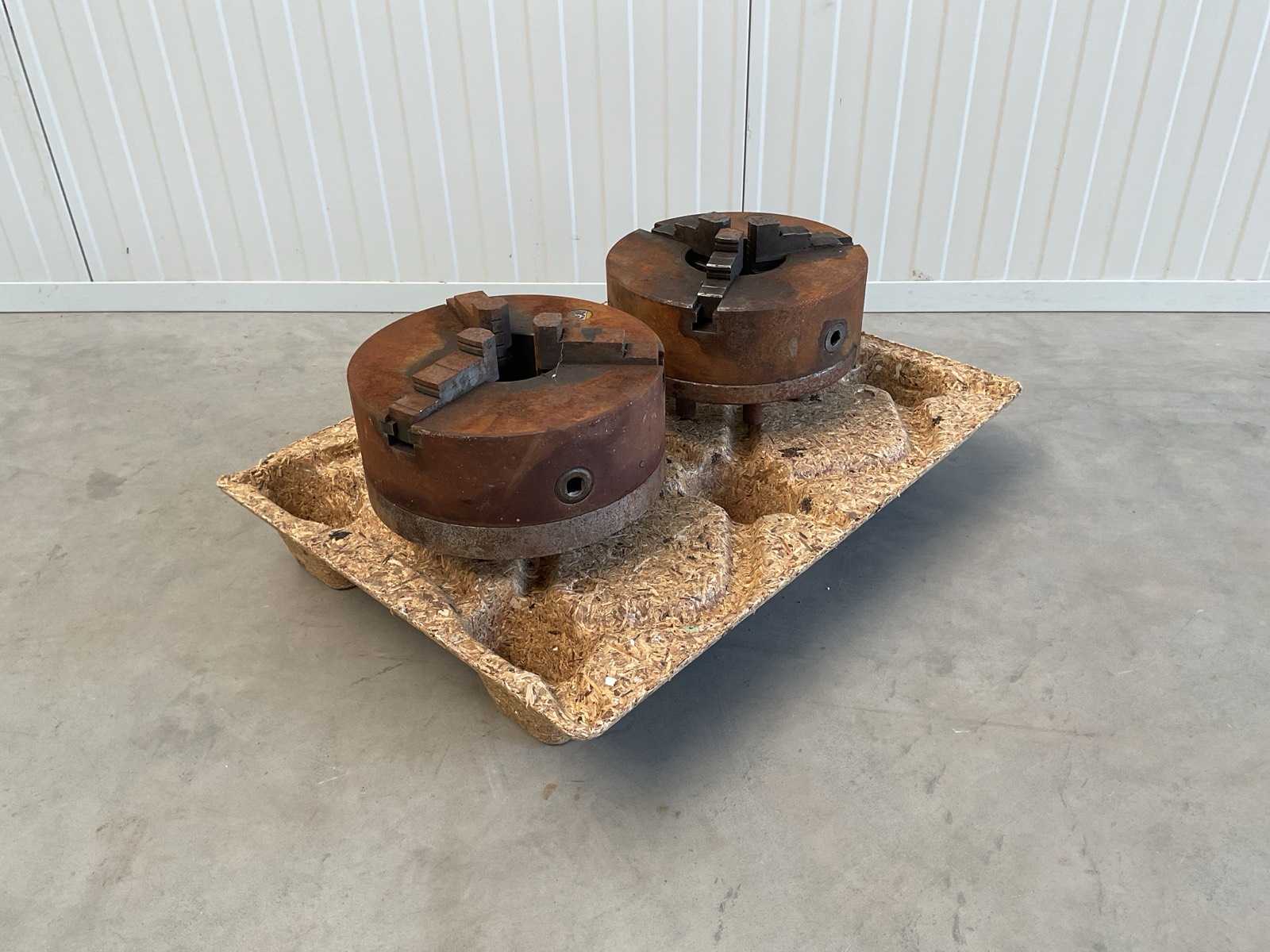

With 2 and 3 fingers Auction-ID: A1-50476-142

Brake boring device Hunger 6.5 A 400 V System Brake drum & disc with accessories Grinding spindle Safety grilles

Heyligenstaedt Heycop 3U/2000 Heavy-Duty Conventional Lathe Manufacturer: Heyligenstaedt & Comp. GmbH Model: Heycop 3U/2000 Equipment type: Conventional Metalworking Lathe Year: 1962 Serial number: 2229 Factory no.: 188 509 Commission no.: 58 121 Heavy-duty conventional engine lathe designed for turning, facing, boring, threading and related machining of metal workpieces. Technical specifications: Chuck diameter: Ø315 mm Working length: 2,000 mm Spindle bore: Ø62 mm Spindle speed range: 22.4–1,120 rpm Equipment / features: 3-jaw chuck Tailstock / centre Steady rest Longitudinal carriage Cross slide Multi-position tool post Manual operating controls Approx. dimensions (L × W × H): 4,300 × 1,500 × 1,600 mm Approx. weight: 3,500 kg Condition: Used. Main machine components, chuck, carriage, tailstock/centre and steady rest are present. Spindle, gearbox, feeds, bearings, ele ...

AUTOMATIC SPINNING LATHE DENN RPE-290 Denn Mod.RPE-290 Automatic Spinning Lathe- Spindle Speeds 615/1060/1825 RPM. More information on request.

Type: SBS-1851 Gebruiksvriendelijke draaibank voor het draaien van de binnenzijde van trommelremmen. 380 voltLong: 1900 mm Depth: 800 mm Height: 900 mm Weight: 275 kg

Tall: 3.000 mm, Weight: 2690 kg, Width: 915 mm, Long: 1.800 mm, Voltage: 220/380V, Spindle cone: MORSE 5, Total power: 7 CV, Ø of the spindle: 63 mm, Base width: 915 mm, Base length: 970 mm, Serial number: 7181319, Ø max. drill steel: 26 mm, Spindle travel: 355 mm, Max spindle column axis distance: 1030 mm, Maximum distance from table to spindle: 1500 mm, Minimum distance from the table to the spindle: 260 mm, Spindle speed range: 16, Maximum/minimum travel of the drill chuck spindle: 0,05/0,5, Spindle nose stock advance: 6, Minimum/maximum spindle speed: 40/2000r.p.m., Specification: Flagged
