trabalho de chapa metálica usadas para venda (3,342)

Hidráulico de 3 rolos com configuração planetária dupla pré-aperto. novo para completar, 45 dias a partir da ordem. -Largura da placa 3000 mm -Espessura da placa rolante de capacidade 50 mm -Pre-beliscar espessura da placa 40 mm Configuração da máquina e acessórios instalados: -comprimento útil da superfície nos rolos 3100 mm -tamanho de rolo superior 480 mm -tamanho de rolos mais baixo 440 mm -Leituras de posição digital. - Endurecimento do tratamento dos 3 rolos. -3 rolos acionados hidráulico motorizados com caixa de engrenagem axial independente em cada rolo. -Acessório de flexão cónico da placa com rolos inferiores inclinados hidráulico. -Certificação de qualidade CE, fabricado na fabricação italiana. -Manuais de serviço e manuais de instruções de funcionamento. -Diagramas hidráulicos - Esquemas elétricos & eletrónic ...

320 toneladas x 4100mm

Máquina de dobra de chapas Kramatorsk de 4 rolos Resistência máxima à tração do material: 500 MPa (50 kg/mm²) Resistência ao rendimento – flexão a frio: 250 MPa (25 kg/mm²) Resistência ao rendimento – flexão a quente (primária): 100 MPa (10 kg/mm²) Resistência ao rendimento – formação a quente (aquecimento secundário): 45 MPa (4,5 kg/mm²) Alongamento no estado frio: ±18% Largura máxima da folha: 4000 mm Espessura máxima da folha – frio, sem pré-curvatura: 71 mm Espessura máxima da folha – frio, com pré-flexão: 63 mm Espessura máxima da chapa – conformação a quente: 150 mm Raio de curvatura mínimo – frio: 560 mm Raio de curvatura mínimo – quente: 600 mm Raio máximo para flexão fechada (borda enrolada): 1000 mm Motor principal: 160 kW Peso: 730 toneladas

sheet width: 2100 mmplate thickness: 3,0 mmdistance between columns: 2450 mmdaylight opening: 160 mm: max. 150 °back stop - adjustable: 6,0 - 1000 mmControl: CNC total power requirement: 5,37 kWdimensions: 3250 x 2450 x 2100 mmweight of the machine ca.: 3850 kgORIGINAL PRICE: ~ 60,000 EUROFeatures:- ERBEND 15.6 CNC control panel operating unit- Electric backgauge from 6.0 to 1,000 mm Material support table with ball rollers Drive with servo motors- LED machine lighting- 1x 30° upper tool - radius 1.0 mm- 1x bending rail 15 mm / 1x bending rail 25 mm- Electric safety device at the front (light barriers)- Freely movable foot control- Operating instructions- CE declaration Special accessories included:- Split gooseneck upper tool, height = 90 mm- CNC electric motorized lower beam adjustment- Manual crowning of the bending beamThe data for this ad was created with ModulMWS - the software s ...

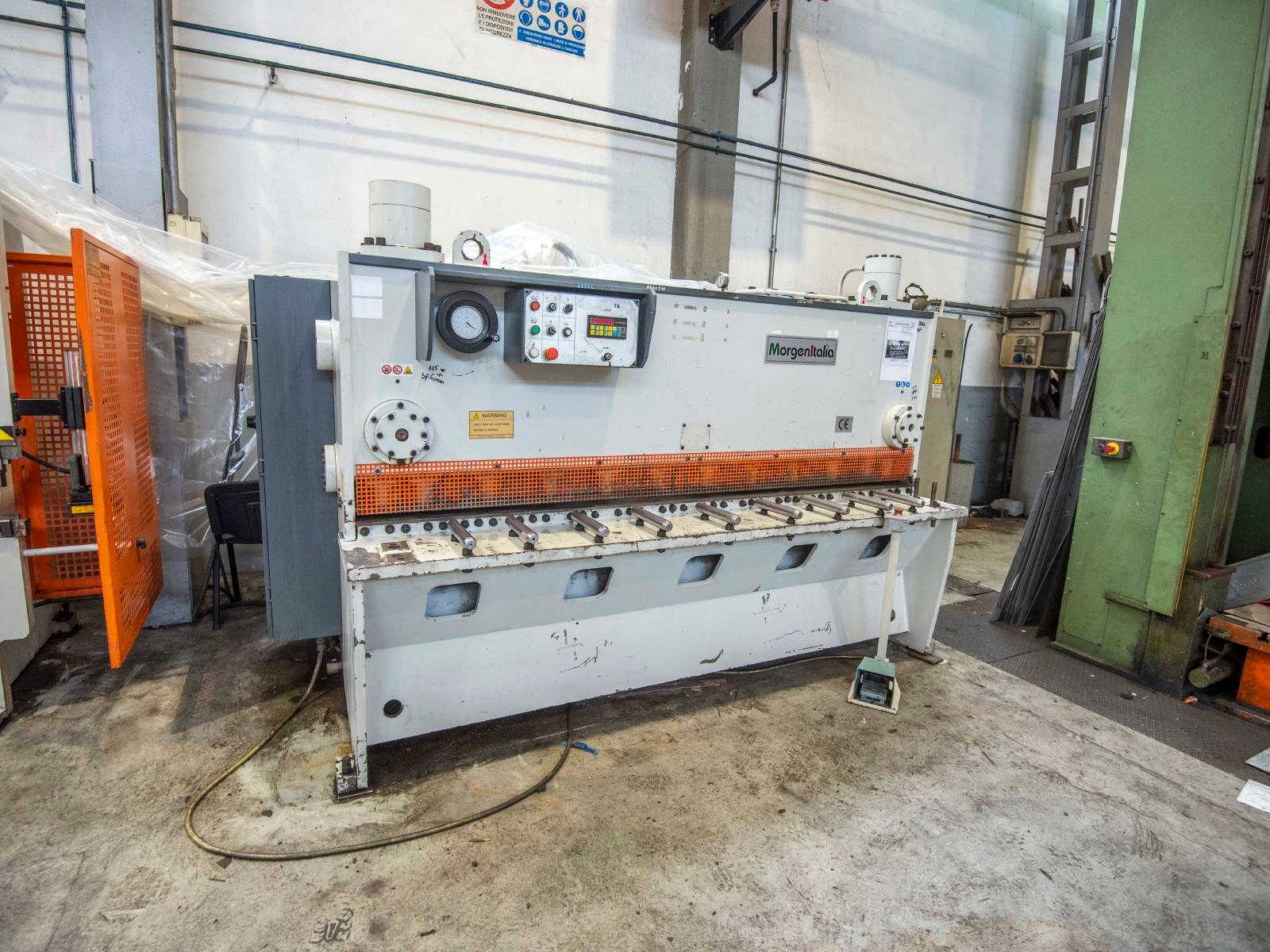

sheet width: 3100 mmplate thickness: 4.0 mmthickness at Niro-steel: 2.5 mmcutting angle adjustment: 1.0 °back stop - adjustable: 10 - 1000 mmadjustment speed: 180 mm/sdown holder: 21 Stückstrokes per minute: 18 - 31 column arm: 200 mmControl: ELGO P8721 oil volume: 160 L0: max. 300 barvoltage: 400 Vmain drive: 7.5 kWweight of the machine ca.: 4800 kg.dimensions of the machine ca.: 3660 x 2070 x 2140 mm from a maintenance workshop good condition ()Features:- Electro-hydraulic sheet metal shear (swing cut)- Machine frame = all-steel welded construction - ELGO NC control system, Model P8721, control panel on the front left for positioning the electrically driven backgauge Target/actual position value input possible Adjustment via three-phase motor using a toothed belt- Support table with ball bearings Recessed handles between the table plates- Front finger guard- Hydraulic sheet metal hol ...

: neu : ca. 10 Wochen ab Auftrags : Türkei : 11800 €: 226.56 €: 1050 mm: 5 mm: 130 mm: 3,5 m/min: 2.2 kW: 2200 mm: 750 mm: 1000 mm: 1200 kg3 rollsasymmetric rolls - prebending2 rolls driven by brakemotormanual Back Rollforward tiltable upper rollforward and reverse revsconical bending by tilt of backrollmovable control panelusers manual in ENGLISH or GERMANOPTIONS (PRICES ON REQUEST):hardened Rolls Motorised Back Roll (Power Rear Roll) Digital Read-OutThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- New ( 2026) Digital read out position side rolls- Hydraulic drop end- Minimum bending diameter 420 mm- Full hydraulic machine- Roll quality C60 900N/mm2

weight of the machine ca.:620 kgdimensions of the machine ca.:1000 x 920 x 1550 mm

material width:500 mmcoil weight:2 x 2,0 tmaterial thickness:1,0 - 6,0 mmcoil internal diameter:350 - 420 mmcoil external diameter:1600 mmno. of straightening rolls:9 straightening roll diameter:50 mmnumber of draw-in rolls:2 speed:0 - 40 m/minmaterial thickness at 500 mm material width:3,5 mmpower requirement:17,5 kWDimensions (WxDxH):2,3 x 4,2 x 2,4 mstraightening machine:RM 5050.4/9 double decoiler:AH 2000/2/M snubber roll:pneumatic interchangeable jaws:130 mm expansion of the inner diameter

material width:300 mmcoil weight:0,5 tcoil internal diameter:420 - 520 mmcoil external diameter:1400 mmweight:0,6 tdimensions (WxDxH):0,8 x 1,2 x 1,7 mexpansion:pneumatic

material width:250 mmmaterial thickness:0,25 - 3,0 mmno. of straightening rolls:11 straightening roll diameter:30 mmspeed:6 - 60 m/minpower requirement:15,0 kWweight:1,1 tdimensions (WxDxH):1,1 x 1,7 x 1,5 mstriaghtening pressure automatic:hydraulic coil loof control:ultrasonic

material width coil line:600 mmcoil weight:2 x 3,5 tcoil internal diameter:460 - 530 mmcoil external diameter:1500 mmmaterial thickness coil line:0,5 - 3,0 mmno. of straightening rolls:7 no. of rolls at in- and outlet:4 roll diameter:80 mmfeed length:0 - 500 mmpower requirement:10,0 kWweight:10,0 tdimensions of the coil line:8,8 x 4,0 x 2,55 mstraightening machine:Dimeco, 1676 EV double decoiler:2382 FFPS lag brake:pneumatic electronic roll feed:Microfeed

material width:800 mmcoil weight:12,0 tcoil internal diameter:470 - 520 mmcoil external diameter:1500 mmmaterial thickness:0,4 - 2,5 mmno. of straightening rolls:8 straightening roll diameter:53 mmnumber of draw-in rolls:2 inlet roll diameter:160 mmspeed:35 m/minmaterial thickness at 150 mm material width:2,5 mmmaterial thickness at 650 mm material width:1,5 mmmaterial thickness at 800 mm material width:1,0 mmstraightening machine:RM 8-53/160-800 decoiler:HE 200-1000

Machine is unused! Auction-ID: A1-47361-7

material width:250 mmcoil weight:2,5 tcoil internal diameter:430 - 520 mmcoil external diameter:1650 mmmaterial thickness:0,5-6 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 weight straightener:1,2 tweight decoiler:1,4 tdimensions straightener (WxDxH):1,2 x 1,2 x 2,0 mdimensions decoiler (WxDxH):1,8 x 1,8 x 2,3 mexpansion:hydraulic

I - beam section - flat steel: 100 x 15 (d 450) mmI-beam section - upend: 60 x 10 (d 500) mmL-beam: 50 x 6 (d 1000) mmround material: 35.0 (d 600) mmbar material dia. max.: 70 x 2 (d 1000) mmsquare material: 50 x 50 x 3 mmbending speed: 4.5 m/minroll diam. toproll: 155 mmbore: 50.0 mmtotal power requirement: 1.5 kWweight: 400 kgrange L-W-H: 990 x 750 x 1350 mmEquipment:- robust electro-motorized ring/profile bending machine- machine base frame, with rear shelf- horizontal and vertical work possible- 1x freely movable foot switch- segmented standard rollers (divided)- 2x motor-driven rollers- manual delivery of the top roller- analog position display of the top rollers (scale)- manually adjustable side/straightening rollers- CE mark / declaration of conformity- operating instructions in GermanThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

material width:203 mmmaterial thickness:0,1 - 1,9 mmfeed length:101 mmweight:0,1 tdimensions (WxDxH):0,5 x 0,8 x 0,5 m

material width:450 mmmaterial thickness:1,0 - 14,0 mmcoil weight:10,0 tcoil internal diameter:470 - 520 mmcoil external diameter:1100 - 2000 mmno. of straightening rolls:12 straightening roll diameter:2x70 / 2x96 / 8x127 mmnumber of draw-in rolls:2 inlet roll diameter:160 mmmin. material width:100 mmspeed:15 m/minpower requirement:75,0 kWweight of decoiler:6,4 tweight of straightening machine:12,8 tdimensions decoiler (WxDxH):3,1 x 1,4 x 3,7 mmdimensions straightener (WxDxH):2,5 x 3,4 x 2,7 mmstraightening machine:RMS-Vario-12-70/96/127-0450 infinitely variable drive:insert drive upper straightening part:hydraulic liftable loop bridge:hydraulic driven threading wedge:hydraulic decoiler:HES 12-650 infinitely variable drive:insert drive lag brake:pneumatic snubber roll:hydraulic; motoric driven expansion:hydraulic coil lifting device:hydraulic cropping shears:HS-150-0450

Machine number: 100377Stroke rate: 60 - 300 rpmTable dimensions: 830 x 600 mmincl. reel, manufacturer KEMMERICH, type: V 500 AE, diameter: 1500 mmincl. press force gauge from the manufacturer GERLACH, type: PKV 100Reference: Wachtendorf - Lot 66 Auction-ID: A7-49834-4

material width coil line:600 mmcoil weight in kg:2 x 3000 kgcoil internal diameter:460 - 630 mmcoil external diameter:1500 mmmaterial thickness coil line:0,5 - 3,0 mmNumber of Straightening rolls:9 roll diameter:30 mmmaterial cross-cut:1200 mm²weight:9,5 tDimensions (WxDxH):4,3 x 2,6 x 2,6 mstraightening machine:30.600/9 double decoiler:Kohler, 3000.2 ausiliary drive:hydraulic lag brake:pneumatic expansion:hydraulic snubber roll:hydraulic; motoric driven

table-size: mmvertical movement: mm

material width:250 mmmaterial thickness:0,5 - 4,0 mmno. of straightening rolls:9 straightening roll diameter:60 mmnumber of draw-in rolls:2 power requirement:3,8 kWWeight:0,8 tDimensions (WxDxH):1,6 x 0,8 x 1,5 m

: neu : ca. 12 - 14 Wochen ab Auf : Deutschland : 1 : 4010 mm: 1.25 mm: 2 mm: 1.25 mm: 4 : 4 : 1130 mm: 180 mm: 915 mm: 2.2 kW: 5200 mm: 1435 mm: 1980 mm: 2600 kg: 145 °hydraulic drivestandard controladditional rail on the bending beam2x foot pedalremoveable material supportsafety equipment accoring to the control rules BG GermanyOPTIONS AS ROTARY SHEAR, CNC CONTROL, BACKGAUGES … ON REQUEST Prices ex works Germany.Transport and commissioningat customers place on request.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 5700 €: 110.01 €: 1550 mm: 1 mm: 68 mm: 1.5 kW: 2110 mm: 700 mm: 1160 mm: 400 kg3 rollsasymmetric rolls - prebending2 rolls driven by brakemotorlateral roll adjustable by ratchet leverlongitudinal grooves in lower and lateral rolltiltable upper rollright / left rotation with double foot switchuser manual in GERMAN or ENGLISHOPTION (PRICE ON REQUEST):hardened rollsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hilmor Rotary Hydraulic No. 3 Hydraulic Pipe/Tube Bender – up to 2 Inch – Electric Hydraulic Unit Professional Hilmor Rotary Hydraulic No. 3 hydraulic pipe/tube bending machine for cold bending of various types of metal pipe and tube. Specifications: Brand: Hilmor Type: Rotary Hydraulic No. 3 Machine: Hydraulic Pipe/Tube Bender Serial number: presumably RH3/3411 Maximum capacity: up to 2 inches, depending on tube type Gas/steam pipe: 1/2–2 inch nominal bore, BS 1387 Thin-walled copper/steel pipe: 1–2 inch diameter Electrical conduit: 3/4–2 inch OD Bending principle: rotary hydraulic Bending angle: adjustable, with degree graduation Hydraulic unit: Lancashire Crypto Power Jacks Ltd. Hydraulic unit engine power: 0.75 hp / approx. 0.55 kW Power supply: 3-phase, 220/380/440 V, 50 Hz Engine speed: 2,850 rpm Year hydraulic unit: 1965 Features: Hydraulic cylinder Adjustable counte ...

material width:500 mmcoil weight:3,0 tmaterial thickness:0,2 - 2,5 mmcoil internal diameter:470 - 530 mmcoil external diameter:1400 mmno. of straightening rolls:9 straightening roll diameter:40 mmnumber of inlet and outlet rolls:4 material cross-cut:1200 mm²speed:1,5 - 30 m/mindimensions decoiler (WxDxH):1,9 x 0,6 x 1,7 mweight decoiler:1,1 tdimensions straightener (WxDxH):3,3 x 1,3 x 2,7 mweight straightener:3,0 tstraightening machine:RYD 40 x 500 decoiler:DY 500 x 3000 coil lifting device:hydraulic rool feed:elektronic; AESL 500-2,8 threading device:hydraulic expansion:hydraulic

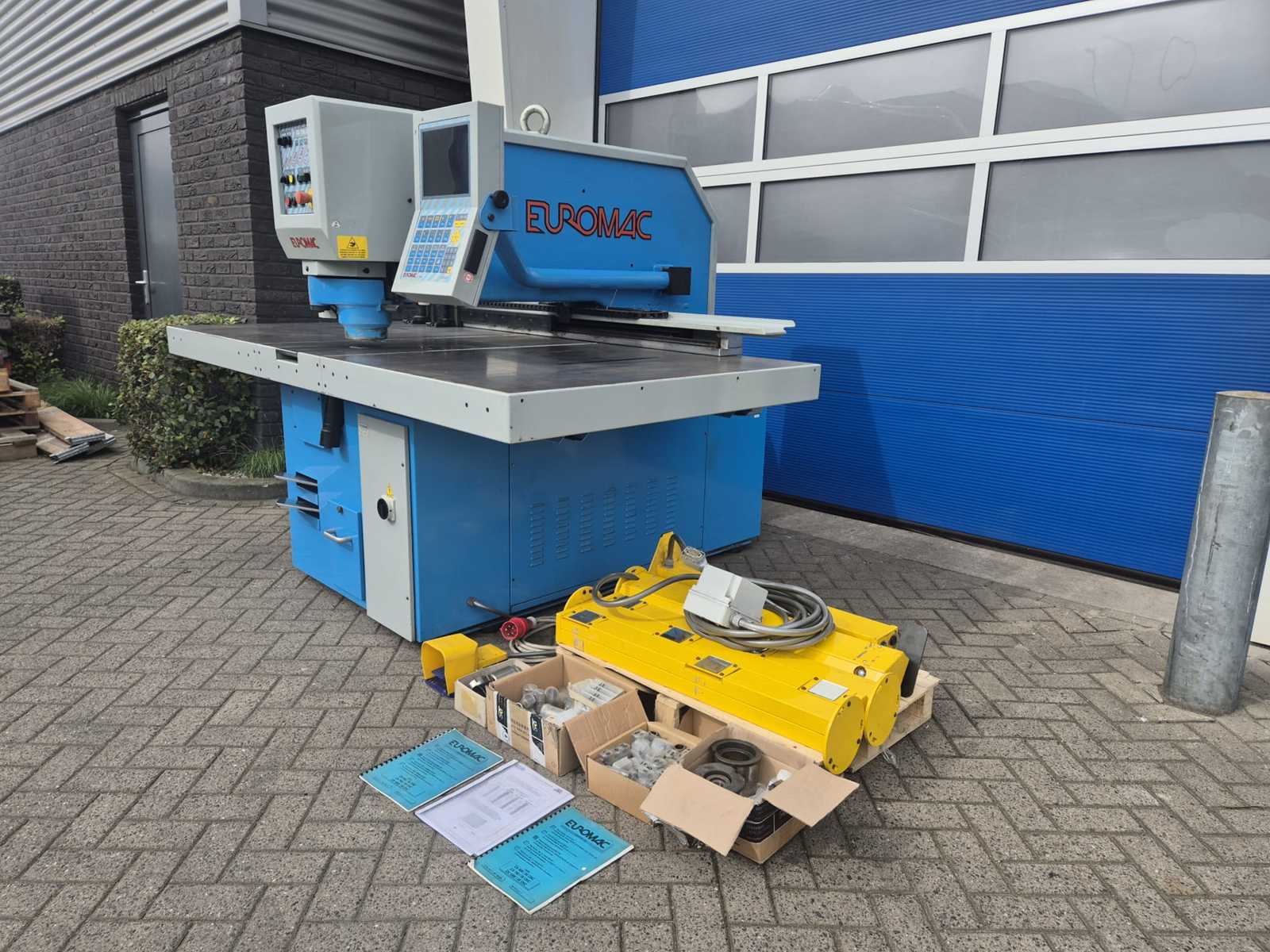

sheet width:400 mmplate length:500 mmplate thickness:4 mmtotal power requirement:0,5 kWPunching and Nibling machine with 6 x 3 mm nibling and 4 mm for cuting

material width:600 mmmaterial thickness: - 4,0 mmno. of straightening rolls:21 straightening roll diameter:30 mmmaterial cross-cut:1800 mm²speed:6 - 36 m/minPower capacity:4,5 kWWeight:2,0 tDimensions (WxDxH):1,5 x 2,0 x 1,9 m

material width:70 mmmaterial thickness:0 - 1,5 mmfeed length:100 mmmaterial cross-cut:60 mm²feeding force:400 Nclamping force of feeding pincer:1300 Nair pressure - required:3 - 6 barWeight:0,01 tDimensions (WxDxH):0,4 x 0,4 x 0,7 m

sheet width:2000 mmplate thickness:1.8 mmControls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mmRAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /minRAM (MECHAN. PRESS):. - ram adjustment:350 mmTOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mmDECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. di ...
