mandriladoras e centros de usinagem usadas para venda (3,260)

x-travel: 1.035 mmy-travel: 560 mmz-travel: 510 mmCNC-control: HEIDENHAIN TNC620 table-size: 1200 x 560 mmmax. table load: 1000 kgspindle taper: SK 40 spindle turning speed range: 10.000 U/mindrive capacity - spindle motor: 13 kWfeed stepless: 20.000 mm/minrapid traverse: 25 m/mintool change unit: 20 Pos.coolant: IKZ 20 bar voltage: 400 Vtotal power requirement: 17 kVAweight of the machine ca.: 4,1 tdimensions of the machine ca.: 2,55 x 2,30 x 2,25 mchip conveyor: 3,90 x 0,95 x 1,60 mcoolant tank: - Serial No.: 1539000377A- Machine ON: 21.689 h- Program Run: 9.021 h- CNC-Control: Heidenhain TNC620- elektronic hand wheel- chip conveyor- coolant through spindle 20 barThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel:800 mmy-travel:410 mmz-travel:510 mmcontrol:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/mintable surface area:1100 x 450 mmtool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mmmax. tool weight:8 kgpower requirement:7,5/5,5 kWturning speed range:6000 1/minweight of the machine ca.:6,3 tUnder offer is a complete CNC tool shop, which will be given up due to old age of owner.The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine.All measuring devices also come with the machine.Upon request orders for parts to be made can be passed on to new owner.This is a low cost all inclusive opportunity for a "Startup"

x-travel:1100 mmy-travel:600 mmz-travel:510 mmcontrol:Heidenhain iTNC 530 table-size:1050 x 600 mmtable load:500 kgspindle taper:SK 40 turning speeds:10000 1/minpower capacity at 100 % load:9 kWrapid travel x/y/z:24 m/minfeed:24 m/minTool changer:40 SK 40dimensions of the machine ca.:4,3 x 2,6 x 2,25 mweight of the machine ca.:8,8 tPOS mill 1100 vertical machining center in very good condition from 2009Options:- parts measuring M&H receiver without probe- external hand wheel Heidenhain HR 410- Air supply through spindle- air gun- paperfilter system with coolant through spindle 40 bar-

bore capacity in steel (diameter):100 mmmax. pitch circle:7000 mmnumber of spindles:2 bore spindle turning speed range:1 - 3000 U/minhigh speed spindle taper ISO:50 bore slide stroke:900 mmfeed speeds:1 - 6000 mm/minmax. workpiece weight:18000 kgtotal power requirement:125 kWdimensions of the machine ca.:13 x 11 x 5,1 mwith CNC SIEMENS 840 DWorkpiece clamping up to dia. 7000 mmThe machine is equipped with 2 drilling spindle supports and through spindle coolant (50 bar)both supports can drill simultaneously. Spindle taper SK 50, 2 stages 1 -600 rpm 1650 Nm and 1 - 3000 rpm. 300 NmChip conveyor and coolant device

x-travel:711 mmy-travel:406 mmz-travel:394 mmdistance spindle nose and table:546 - 152 mmtable-size:864 x 381 mmtable load:226 kgturning speeds:15000 1/minpower capacity:11,2 kWmax. torque on the spindle:62 Nmspindle taper:SK 40 Tool changer:18+1 rapid travel x/y/z:61 m/minfeed:30,5 m/minmax. tool weight:5,4 kgmax. tool length:178 mmdiameter of tools max.:64 mmTool change time tool/tool, milling spindle:1,75 sinternal coolant system feed:21 barweight of the machine ca.:2427 kgdimensions of the machine ca.:2,8 x 2,4 mVertical 3-axis machining center POS mill 1100, from year 2009 in good condition.Accessories:- Chip conveyor Knoll- additional coolant filtersystem- Programmable coolan jet- automatic Coolant refillsystem- Airpressure through tool- Measuring probe system WIPS- Synchronized treading- Haas Connect remote control- Media Display- Cooling of electrical cabinet- fixtures and tools  ...

x-travel:1400 mmy-travel:1200 mmz-travel:1350 mmcontrol:MSX- 701 Mapps III table surface area:800 x 800 mmrapid traverse:50 m/mintable rotating:360.000 x 0,001 B-Achse °table load:2,0 tnumbers of pallets:2 turning speed range:8000 1/minpower capacity - milling spindle:37 kWno. of tools in the magazine:60 Stücktool taper:HSK-A 100 weight:31 tdimensions:5,9 x 3,48 x 3,68 mEquipment:- Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping- Parts program memory 1 MB - Knoll 70 bar high pressure and filter system- Electrostatic oil dust collector LTA- elect. hand wheel- renishaw probe- abso- scale i X/Y/Z- axis- 5 free m- funktions- 48 extra off sets- dual ballscrews on X/Y/Z- axis

x-travel:1800 mmy-travel:1600 mmz-travel:1400 mmB-axis (table):360° size of pallet:1000 x 1250 mmworkpiece swing dia.:2100 mmworkpiece weight:3500 kgspindle taper ISO:50 spindle drive motor:37 kWspindle turning speed range:25 - 10000 U/minfeed range:40/50 m/minrapid power traverse circular:10 U/mintotal power requirement:90 kVAweight of the machine ca.:43 tdimensions of the machine ca.:11 x 9 x 4,5 mMachine with SIemens 840 D control for 4 axis- full B-axis- palette changer- tool changer for 150 tools- coolant device with coolant through spindle- chip conveyor

x-travel:560 mmy-travel:560 mmz-travel:660 mmcontrol:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/minspindle drive:25/ 35 kWmax. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mmTool diameter with no neighbouring tools:170 mmtool length - max.:450 mmweight of tools max.:12 kgnumbers of pallets:2 Pallet dimension:400 x 400 mmmax. workpiece diameter:630 mmworkpiece height max.:900 mmtable load:400 kgrapid travel x/y/z:60 m/minFeed x/y/z:60 m/mininternal coolant system feed:70 barweight of the machine ca.:8,5 tdimensions:3200 x 4800 x 2900 mmRenishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar.The machine has just received a new milling spindle.

x-travel:630 mmy-travel:600 mmz-travel:650 mmcontrol:MSC 502 (Fanuc 16) Spindle RPM:12000 1/minspindle drive:22 / 18,5 kWrapid travel x/y/z:32 m/minPallet dimension:500x500 mmnumbers of pallets:2 table load:0,5 tworking diameter:max. 610 mmNumber of tool station:60 BT40max. tool length:360 mmmax. tool weight:12 kgtool changing time:1,3 secB-axis positioning (non continuous):1 total power requirement:50 kVAweight of the machine ca.:14 tdimensions of the machine ca.:3,3 x 5,8 x 3,2 mspindle load monitor:Typ C This horizontal machining center comes with a pallet changer with 2 pallets, and has the following options:ATC 60 tool stations, High pressure coolant trough spindle interface,

x-travel:630 mmy-travel:630 mmz-travel:630 mmpallet size::400 x 500 mmspindle taper::HSK 63spindle turning speed - stepless:10 - 16000 U/mintotal power requirement:55 kWweight of the machine ca.:11 tMachine with SIEMENS 840 D control for 4 axis- digital drives- palette changer 4-fold- tool changer 160-fold - coolant device with coolant through spindle- full B-axis- chip conveyor- hydr. workpiece clamping

x-travel:630 mmy-travel:630 mmz-travel:630 mmcontrol:Unipro 90 Pallet changer 2x:400 x 500 workpiece - installed height:800 mmmax. clampable workpiece diameter:720 - 850 mmspindle taper::SK 40 spindle turning speed - stepless:10 - 8000 1/minSpindle power:20 / 30 kWSpindle Torque:95/143 Nmtool magazin::80 SK 40total power requirement:55 kWweight of the machine ca.:11 tMachine with Unipro 90 control for 5 axis- twin palette changer- tool magazine 80 HSK-A 63 - coolant device with coolant through spindle 7 pressure levels- full A & B-axis- chip conveyor

spindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-axis:1520 mmw-axis:1000 mmtable surface area:2000 x 1800 mmworkpiece weight:8 tspindle motor:18 kWspindle taper ISO:50 spindle turning speed range:4,5 - 900 U/minfaceplate diameter:785 mmrapid traverse:5 m/mintotal power requirement:40 kWdimensions of the machine ca.:5,5 x 6,9 x 5,2 mweight of the machine ca.:35 tMachine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control- inf. variable spindle spped- 4 x 90° table positioning- diverse toolholders- dDust exhauster

spindle diameter:120 mmx-travel:1250 mmy-travel:1250 mmz-travel:800 mmW-axis (spindle longitudinal):600 mmSpeed of boring spindles:1- 2000 U/min.spindle taper ISO:50 table surface area:1000 x 1000 mmtotal power requirement:55 kWweight of the machine ca.:18 twith CNC HEIDENHAIN TNC 426autom. toolchnager 40-pocketscoolant attachment

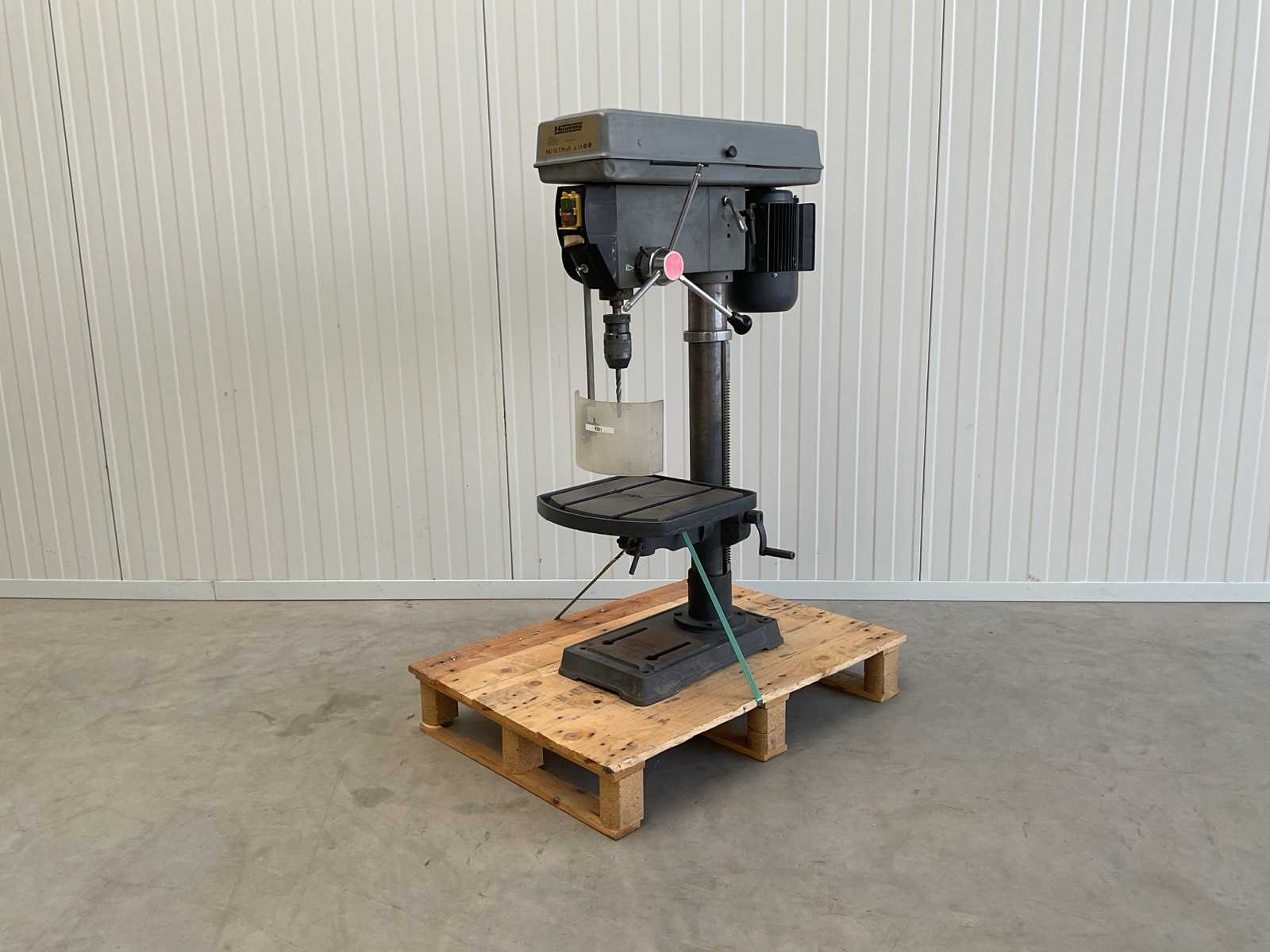

Machine number: 971-ACOperating voltage: 230/400 VFrequency: 50 HzConnection: 3.1 kWDrilling depth: up to 200 mmTable dimensions: 430 x 380 mmwith three groovesSpeed: from 60 to 1500 rpmReference: Zafa - Lot 4 Auction-ID: A7-49882-97

spindle diameter:160 mmx-travel:6500 mmy-travel:3000 mmW-axis (spindle longitudinal):1000 mmdimension of the ram:400 x 420 mmram stroke:1000 mmbore spindle turning speed range:1 - 2000 U/minspindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/minrapid speed:8/10 m/mintotal power requirement:100 kWweight of the machine ca.:76 tdimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) mwith CNC Steuerung HEIDENHAIN iTNC 530autom. toolchanger 40-pocketsautom. Pickup Station for universal milling head, and facing headrotary table 2500 x 2500 mm , max load 25 to.1500 mm longitudinal movementfloor plate 4000 x 2000 mmmeasuring probe, chip conveyor and coolant attachment

x-travel:600 mmy-travel:580 mmz-travel:530 mmdistance spindle center to column:630 mmdistance spindle center to table:100-600 mmmilling feed range:1-10.000 mm/minmax. table load:200/100 kgmax. tool weight:8 kgpositioning accuracy:+/- 0,01 mm:8000/15000 1/minspindle drive:7,5/11,5 /5,5 kWrepeating accuracy:+/- 0,008 mmweight of the machine ca.:7,4 / 7,65 tBrand-new CNC vertical machining center with CNC control FANUC or HEIDENHAINWarranty: 12 monthsMore information can be found in the Appendix.

x-travel:800/945 mmy-travel:800 mmz-travel:600 mmspindle motor:27 kWspindle turning speed range:10 - 8000 U/minspindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kgtable clamping surface::800 630 mmtotal power requirement:55 kWweight of the machine ca.:16 tMachine with Heidenhain iTNC 530 CNC control for 5 axis- pendulum operation with turn- swivil table left and fixed table right- tool changer for 30 tools- coolant device, chip conveyor- complete splash housing

spindle diameter:130 mmspindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-travel:1000 mmw-axis:1075 mmtable surface area:2000 x 1800 mmworkpiece weight max.:8000 kgspindle turning speed range:4,5 x 900 U/minspindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/minfaceplate diameter:785 mmrapid traverse::5000 mm/mintotal power requirement:40 kWweight of the machine ca.:35 tdimensions of the machine ca.:5,5 x 6,9 x 5,2 mMachine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds- table indexing 4 x 90°- facing head 785 mm- exhauster- various arbors and tooling

Auction-ID: A1-43333-72

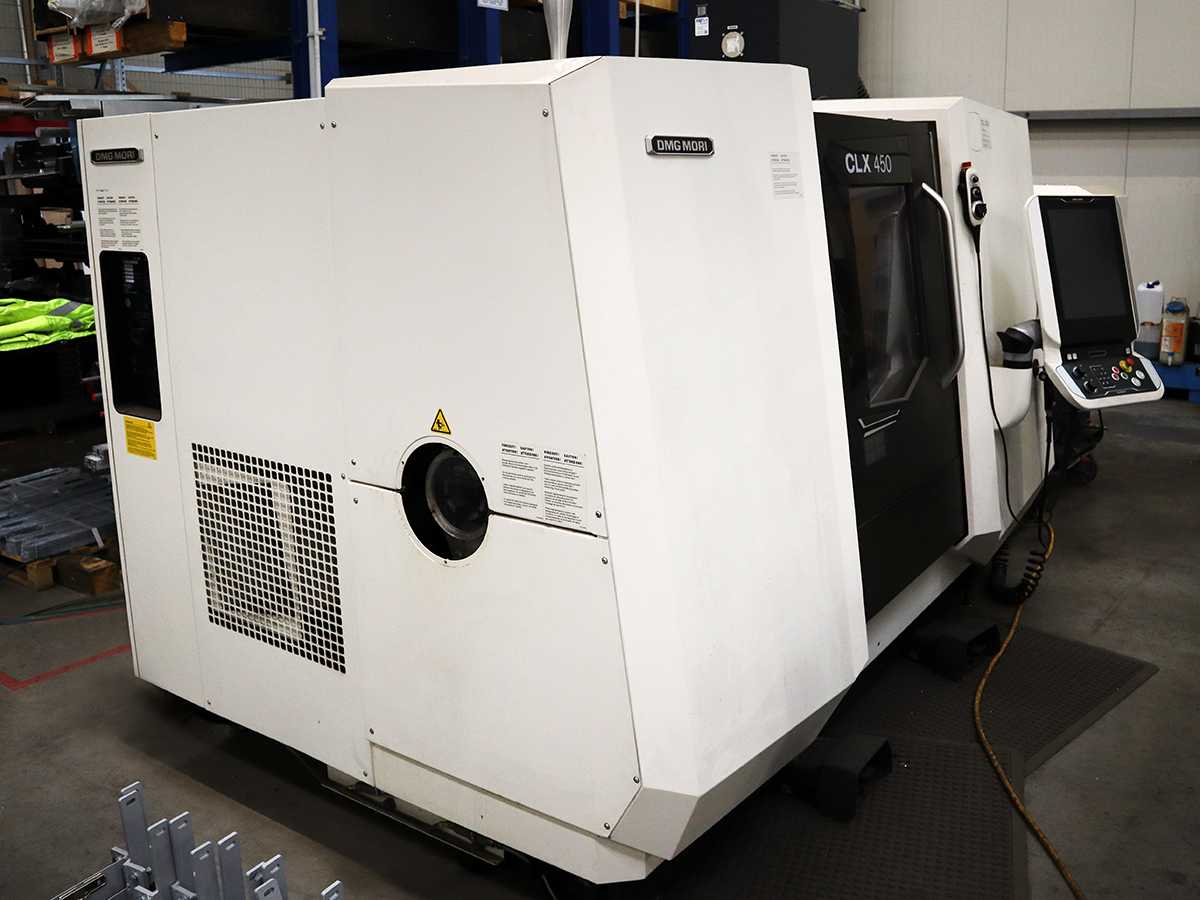

Technical data: Manufacturer: DMG MORI Model: CLX 450 V4 Year of manufacture: 2023 Control: SIEMENS Operate 4.7 on SLIMline® Multi-Touch (19\") Main spindle: A2-8, 17 / 25.5 kW, max. 4,000 rpm C-axis and Y-axis (±60 mm) 12-fold servo turret VDI 40 with 12 driven tool stations and 6 BT stations Max. bar passage: 80 mm Direct position measuring system in X and Y axes Hydraulically movable tailstock External Electronic Handwheel DMG MORI IoTconnector Special equipment: Hydraulic 3-jaw chuck SMW KNCS-N 225 with quick-change system (Ø66 mm passage) Automatic NC tailstock with programmable compression force (1.4–8.0 kN) incl. foot pedal High-pressure coolant system 12 bar with double filter system Coolant spray gun (5 bar) Mechanical oil mist separator AFS 600 (600 m³/h, filter class H13) Coolant/compressed air switchover via turret head DXF import for SIEMENS control system Technolog ...

distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg

x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden

x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

Tool changer 30+1 pieces. Includes chest of drawers with necessities. Auction-ID: A1-49659-7

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

workpiece thickness max.:80 mmworkpiece thickness min.:5 mmplate size without being adjusted:2000x1000 mmsize of plate min.:100x100 mmcontrol:CNC Mubea Matic100 hole diameter:min/max:10/40 mmworkpiece weight:750 kgdeburring device max.:d=40 mmtraversing speed:80 m/minwork height max.:1050 mmpositioning accuracy:+/- 0,5 mmopening of gripping pliers min/max.:Typ I: 5/45 mmopening of gripping pliers min/max.:Typ II: 45/85 mmfeed length:max. 150 mmrapid traverse::8 m/minspindle turning speed range:112-180-224-280-355-560 U/minwork table::L:2500;B:950 mmarm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mmcross travel:y=1000 mmbore spindle stroke:max. 150 mmtotal power requirement:25,0 kWweight of the machine ca.:5,5 tspace requirements approx. LxWxH:5,0x5,5x2,7 mplate size with beeing adjusted also 1000x4000 mm possiblewith roller conveyor 2x1000mmmaterial supp ...

bore capacity in steel (diameter):5 - 30 mmx-travel:450 mmy-travel:380 mmtotal power requirement:1,4 / 2,2 kWweight of the machine ca.:1.100 kgdimensions of the machine ca.:1.000 x 1.400 x 2.900 mmgear box:85 - 2.000 U/minspindle diameter:72 mmbore depth:700 mmthroat:300 mmspindle taper MT:3 T-slots:3 x 16/25 mmtable-size:700 x 300 mmspindle turning speed range:85/170/250/355/475/710/1000/2000 U/minmotor speeds::705/1425 Year:ca. 1975
