mandriladoras e centros de usinagem usadas para venda (3,260)

x-travel: 735 mmy-travel: 650 mmz-travel: 560 mmcontrol: 840D sl FD operate SiemensMain spindle:: turning speed range - main spindle: max. 18.000 min/-1power capacity - main spindel: 35 / 24 kWmax. Torque: 119 Nmtool taper: HSK-A63 DIN 69893swiveling-rotary-table:: table diameter: 680 mmmax. table load: 600 kgmax. workpiece sizes: 650 x 650 x 500 mmswivellable: +/- 120 °rotatable: 360 °tool magazin:: number of toolpositions: 30 pos.tool taper: HSK-A63 max. tool diameter: 80 mmmax. tool-dia with free toolbox: 160 mmmax. tool length: 315 mmmax. tool weight: 8,0 kgchange-time chip to chip: ca. 4,9 secfeeds:: feed speeds: max. 40.000 mm/minrapid traverse: 40 m/mintotal power requirement: 65 kVAweight of the machine ca.: 11,6 tdimensions of the machine ca.: 4,0 x 3,0 x 2,95 mDocuments: Chip conveyor: Coolantsystem: 600 L through spindle coolant: 40 bar paper band filter: test probe:  ...

According to photos, weight estimated Auction-ID: A1-48554-143

Specifications: Control: Fanuc Series 21i-MB Cutting time: 8038 hours X-axis: 1300mm Y-axis: 650mm Z-axis: 625mm Table size: 1400mm x 650mm Max. part weight: 1000kg Spindle speed: 8000 tpm Spindle taper: BT-40 Spindle motor power: 15kW Positions on tool magazine: 30 Machine dimensions: Length: 3000mm width: 2450mm Height: 3150mm Weight: 9000kg Machine is equipped with: - Chip conveyor - Vise clamp - Chuck clamp - 30 Bar through spindle cooling Auction-ID: A1-49370-12

General Description Vertical coordinate boring machine designed for precision boring, drilling and machining of tooling, molds, gauges and precision mechanical components. The machine is equipped with a precision coordinate table and rotary work table for accurate positioning and machining operations. Technical Details Machine type: Vertical coordinate boring machine Vertical precision spindle Large precision rotary table Precision graduated spindle feed Coordinate table with longitudinal and cross travel Enclosed column drive Heavy cast iron construction Condition Used industrial condition. The machine appears complete with precision spindle, rotary table, coordinate table and enclosed drive system. Operational status, spindle accuracy and positioning precision have not been tested. Auction-ID: A7-49124-42

Table Dimensions (mm): 610mm x 370mm X-Travel (mm): 560mm Y-Travel (mm): 400mm Z-Travel (mm): 500mm Number Of Tools In Magazine: 10 Spindle Speed Range: 5 - 8000 rpm Distance Between Spindle & Table (Verticl): 100mm - 600mm Spindle Taper: BT40 Cutting Feed rate: 1 - 20000mm Rapid Traverse Range X,Y,Z: 20M/pm Table load max: 300Kgs Main Drive Power: 15 hp Control: Siemens 802 Foot print W x D x H: 2000mm x 2060mm x 2530mm Weight: 3100Kgs Auction-ID: A7-49260-2

Wagner WMC 1800 CNC Machining Center (2013) Manufacturer: Wagner Type: WMC 1800 Year of Make: 2013 Siemens 828 controller Condition: good, used, under production X-travel 1800mm Y-travel 900mm Z-Travel 700mm Tool holder SK40 IKZ 25 bar with belt filter system Tool Measurement Handwheel Documentation Without tools! Auction-ID: A7-49053-7

Serial Number: 141643 Control: MAZAK MAZATROL M PLUS Table dimensions: 1460 x 510 mm Tool holder: SK 40 X-axis travel: 1120 mm Y-axis travel: 510 mm Travel Z-axis: 510 mm Max. distance from spindle end face to clamping surface: 690 mm Spindle speed: 40 - 7000 rpm Max. permissible weight on machine table: 500 kg Rapid traverse in X and Y axis: 24 m/min Rapid traverse in Z-axis: 20 m/min Cutting feed speed X/Y/Z: 1 - 5000 mm/min Number of tool locations: 24 Max. tool diameter: 80 mm with occupied neighboring space max. tool diameter with free adjacent space: up to max. 110 mm Max. tool length: 350 mm Max. tool weight: 8 kg incl. chip conveyor MAYFRAN incl. the tool holders located on the tool changer Attention: the machine vice clamped on the table is not included in the scope of delivery! Internal reference: previously lot 14 Auction-ID: A7-49056-264

Machine number: 6233-5Speed: up to 2800 rpmDrilling diameter: up to 40 mmProjection: approx. 907 mmwith two tablesTable dimensions: 780 x 600 mm - with four grooves, as well as a three-jaw chuck, diameter: 400 mmTable 2: 1000 x 540 mm, with four grooves and two vices, one jaw width: 125 mm and 100 mma four-jaw chuck, manufacturer RÖHm, diameter: 200 mm as well as a four-jaw chuck, diameter: 150 mmand a dividing head from the manufacturer HOFMANN, type: VTS 160 with a three-jaw chuck, diameter: 200 mmalso various clamping systems, including KOHN clamping system, jaw width: 120 mm Auction-ID: A7-49089-208

Mikron VCE 1600 Pro Type VCE 1600 PRO Year of construction 2014 Control CNC Heidenhein iTNC 530 Country of origin Switzerland Technical details x-travel 1,600 mm y-travel 900 mm z-travel 800 mm Control Heidenhein iTNC 530 Table size 1,700x850 mm Inclusion ISO ISO 40 Speed 14,000 rpm Tool Random 40 pos. Table load 2,000 kg Rapid traverse: 24 m/min Internal cooling supply 20 bar Total power requirement 18 kW Machine weight approx. 18,600 kg Pick-up date will be announced after the auction ends. Machine is loaded with a truck-mounted crane. Without screwing rods, zero clamping system and tools. Auction-ID: A7-49053-31

Machine is dismantled and stored (see photos). May show traces of storage Auction-ID: A7-49688-2

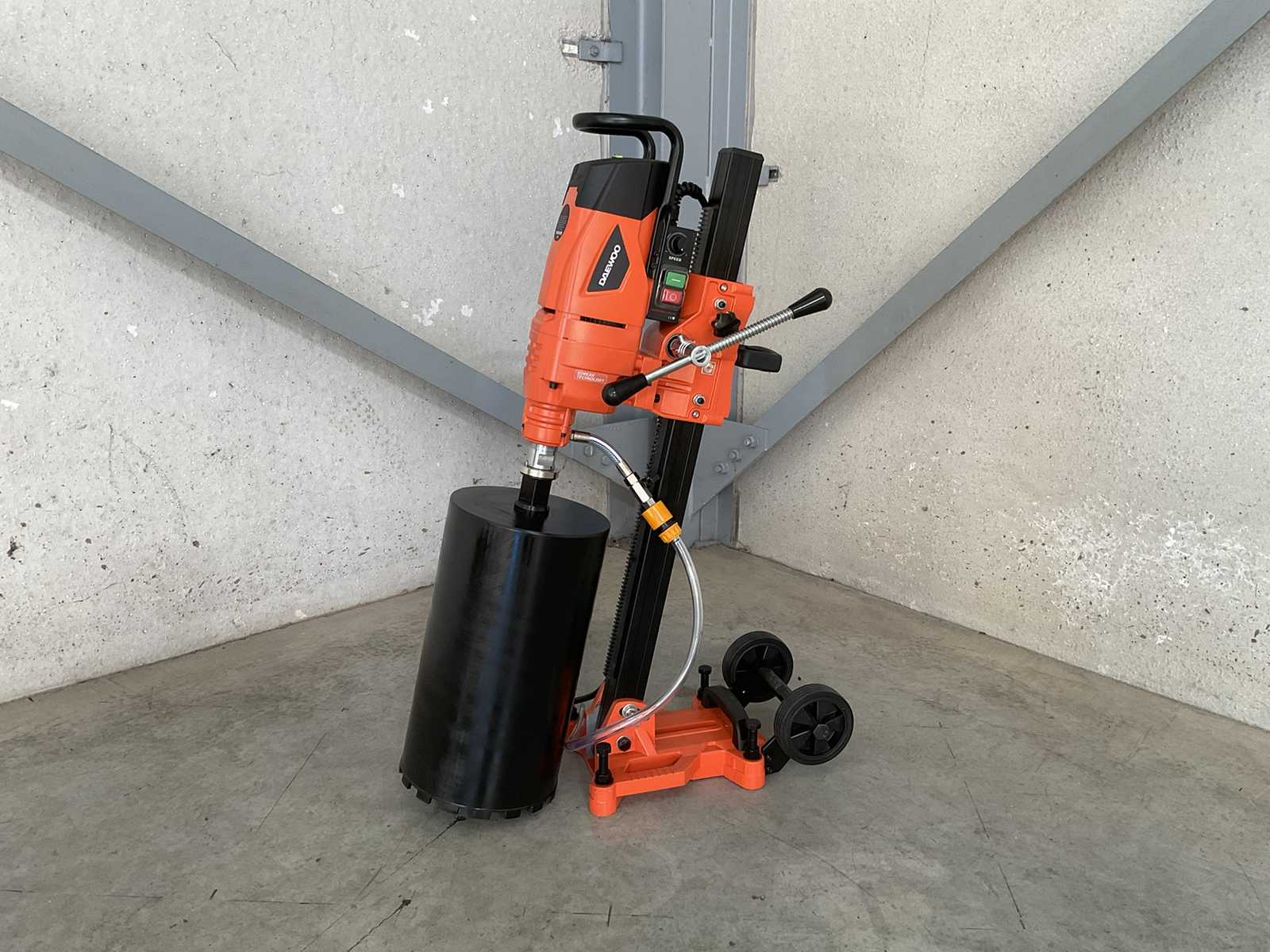

Core drilling machine / diamond drill Brand: Daewoo Type: DADK-D230BE Peak power: 4580 watts Speed: 100-530 RPM (infinitely adjustable) Max. Drilling Diameter: 230 mm Max. Drilling Depth: 550 mm Drill connection: 1/2 inch internal, 5/4 inch external Equipped with: digital display Equipped with: connection for water cooling Equipped with: 30 milliamp residual current device (PRCD) Tripod: Adjustable aluminum tripod Condition: unused, in the original packaging Attention: diamond drill bit not included Auction-ID: A3-46152-1066

TORO DMF-40 Drill Press/Mill with Cross Table and Tap; Drilling capacity: 32 mm; Drilling depth: 120 mm; Speed: 75-1600 rpm; Table size: 600 x 190 mm; Displacement: X-axis 370 mm Y-axis 190 mm; Weight approx. 370 kg Auction-ID: A1-48979-18

A-axis 0-360grd, miter saw ø 550mm, feed conveyor approximately 6mtr, discharge conveyor approximately 5mtr, including walk-in protection, chip extraction Auction-ID: A1-48474-3

Machine is equipped with: - chip conveyor - through spindle coolant - oil cooler Auction-ID: A1-49370-8

CNC Control: Siemens 828D ShopMillCourses X/Y/Z: 1220 / 600 / 610 mmTotal power: 10 / 14 kWSpindle speed: 8,000 rpmSpindle taper: SK40Tool magazine: 20 positionsEquipment: Chip conveyor, coolant, technical documentationPower supply: 400 V – 50 HzManufacturer: HuronYear: 2012Serial number: M02741Estimated dimensions (mm): 3500 x 2800 x 3200Weight (kg): 10000 Auction-ID: A1-49171-10

Serial number: 498-56Important note: A new spindle has recently been installedTravel paths: X: 800 mm Y: 500+50 mm Z: 550 mmSpindle speed: 12000 rpmTool holder: SK 40Number of tool positions: 40Control: SIEMENS SINUMERIK 840 Dincl. chip conveyor from KNOLL, paper belt filter system from KNOLL, zero-point clamping system from SCHUNK Type: SDE 138Table dimensions: 850 x 350 mmincl. the tool holders and tools on the tool changerincl. touch probe as shown in the pictures Atruck with a width of 3000 mm is required for transportReference: Wittner - Lot 11 Auction-ID: A7-49056-412

Technical data Manufacturer: HURCO Model: VMX42i Date of manufacture: 2018/3/6 Spindle speed: 12,000 rpm Machine mass according to nameplate: 6,450 kg Travel X/Y/Z: 1,067 / 610 / 610 mm (Source: Online research) Table size: 1,270 x 610 mm (Source: Online research) Max. table load: 1,750 kg (Source: Online research) Spindle power: 18 kW (Source: online research) Tool holder: ISO 40 (Source: Online Research) Tool changer: 30 places (Source: Online Research) Control: HURCO MAX5 / WinMax with double screen (Source: Online research) Configuration 3-axis CNC vertical machining center with 2 machine vices, chip conveyor and separate cooling/tempering unit. Remarks The machine comes from a well-maintained company liquidation and was actively used in ongoing production until the end. Note information researched to the best of my knowledge and belief. No guarantee is given for completeness and  ...

TOYODA FH400J horizontal CNC machining center equipped with a 58-position tool magazine, ideal for industrial production and machining of complex parts. Thanks to its high-capacity magazine, this machine allows: Automatic sequence of many operations Reduced machine downtime series production with long cycles High machining flexibility Coupled with its turntable and multi-piece clamping system, this horizontal center offers high productivity and optimal precision. Machine perfectly suited for: CNC machine shops Industrial production Precision mechanics Subcontracting Automotive, energy, general mechanical engineering sectors TOYODA centers are known for their robustness, rigidity and reliability in continuous production. Auction-ID: A1-48554-8

Equipped with 4 pneumatic clamps Auction-ID: A1-48474-1

Machine number: 33905Operating voltage: 400 VFrequency: 50 HzRated current: 5 ASpindle speed: from 120 to 2200 rpmDrilling depth: 160 mmTable dimensions: 400 x 300 mmwith two grooves and a vice, jaw width: 70 mm Auction-ID: A7-49089-268

machine ready for transport and to be assessed on viewing day Not included tooling Auction-ID: A1-48648-133

Technical details Manufacturer: Csepel Type: Radial drilling machine Configuration: - Heavy-duty radial arm - Rotating column - Vertically adjustable drilling head - Geared spindle drive - Manual and power spindle feed - Drill chuck installed - Large T-slotted box table - T-slotted base plate - Speed and feed selector gearbox - Mechanical control system Application: - Drilling - Boring - Tapping - Reaming - Machining of large steel workpieces Construction: - Heavy-duty cast-iron frame - Conventional mechanical operation Estimated drilling capacity: Approx. 75 mm in steel Estimated arm reach: Approx. 1750–2000 mm Dimensions: - Length: Approx. 2500 mm - Width: Approx. 1200 mm - Height: Approx. 2900 mm Weight: Approx. 4500 kg Condition: Used Observed condition: - Machine appears substantially complete - Original gearbox and controls installed - Drill chuck fitted - Large cast T-slotted ta ...

Machine is dismantled and stored (see photos). May show traces of storage. Auction-ID: A7-49688-1

Auction-ID: A1-49365-11

Column drill with: - Feed - Variable spindle speed - Coolant pump - Machine light Drilling capacity in steel 32 mm Projection 325 mm Drilling stroke 170 mm Mounting MK 4 MK Table size 570 x 480 mm Feeds 0.1 - 0.16 - 0.25 mm/rev Speed 60 - 1600 rpm Total power requirement 2.9 KW Machine weight approx. 0.65 t Dimensions L x W x H 1.2 x 0.8 x 2.15 m Auction-ID: A7-49782-622

With double pallet, HEIDENHAIN control Excluding machining and tooling supports AVAILABILITY END OF JANUARY/BEGINNING OF FEBRUARY 2027 Auction-ID: A7-49592-15

Connection: 13 kWControl: HEIDENHAIN TNC 425Table dimensions: 700 x 360 mmT-slots Number x width x distance: 3 x 18 x 110 mmDistance table to floor: 840 mmMax. table load capacity: 300 kgTravel X-axis: 960 mmTravel Y-axis: 380 mmBall screw X and Y axis: 32 x 10 mm Pitch DiameterDistance table center to stand: min. 190 mm, max. 570 mmSpindle holder taper: ISO 40Z-axis travel: 380 mmSpindle speed: 100 to 6000 rpmRapid traverse: 15 m/minPositioning accuracy: +-0.01 mmRepeatability: +-0.005 mmResolution: 0.001 mmincl. 16-fold tool changerMax. diameter for adjacent tools: 85 mmMax. diameter for free secondary positions: 135 m Max. tool length: 250 mmPermissible weight per tool: 6 kgmax. total weight of the tools: 60 kgAttention: without the machine vise shown in the photos! Inkl. 3D touch probe Reference: Schönichen - Lot 23 Auction-ID: A7-49056-157

Unused, handbook available Auction-ID: A1-40397-76

Pallet size 630 x 630 mm; 60 tool magazine; Please note! Tools in the warehouse are not included in this lot! Auction-ID: A1-49365-78

Auction-ID: A1-48474-44
