mandriladoras e centros de usinagem usadas para venda (3,260)

General Description Vertical coordinate boring machine designed for precision boring, drilling and machining of tooling, molds, gauges and precision mechanical components. The machine is equipped with a precision coordinate table and rotary work table for accurate positioning and machining operations. Technical Details Machine type: Vertical coordinate boring machine Vertical precision spindle Large precision rotary table Precision graduated spindle feed Coordinate table with longitudinal and cross travel Enclosed column drive Heavy cast iron construction Condition Used industrial condition. The machine appears complete with precision spindle, rotary table, coordinate table and enclosed drive system. Operational status, spindle accuracy and positioning precision have not been tested. Auction-ID: A7-49124-42

spindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-axis:1520 mmw-axis:1000 mmtable surface area:2000 x 1800 mmworkpiece weight:8 tspindle motor:18 kWspindle taper ISO:50 spindle turning speed range:4,5 - 900 U/minfaceplate diameter:785 mmrapid traverse:5 m/mintotal power requirement:40 kWdimensions of the machine ca.:5,5 x 6,9 x 5,2 mweight of the machine ca.:35 tMachine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control- inf. variable spindle spped- 4 x 90° table positioning- diverse toolholders- dDust exhauster

spindle diameter:120 mmx-travel:1250 mmy-travel:1250 mmz-travel:800 mmW-axis (spindle longitudinal):600 mmSpeed of boring spindles:1- 2000 U/min.spindle taper ISO:50 table surface area:1000 x 1000 mmtotal power requirement:55 kWweight of the machine ca.:18 twith CNC HEIDENHAIN TNC 426autom. toolchnager 40-pocketscoolant attachment

Table Dimensions (mm): 610mm x 370mm X-Travel (mm): 560mm Y-Travel (mm): 400mm Z-Travel (mm): 500mm Number Of Tools In Magazine: 10 Spindle Speed Range: 5 - 8000 rpm Distance Between Spindle & Table (Verticl): 100mm - 600mm Spindle Taper: BT40 Cutting Feed rate: 1 - 20000mm Rapid Traverse Range X,Y,Z: 20M/pm Table load max: 300Kgs Main Drive Power: 15 hp Control: Siemens 802 Foot print W x D x H: 2000mm x 2060mm x 2530mm Weight: 3100Kgs Auction-ID: A7-49260-2

Wagner WMC 1800 CNC Machining Center (2013) Manufacturer: Wagner Type: WMC 1800 Year of Make: 2013 Siemens 828 controller Condition: good, used, under production X-travel 1800mm Y-travel 900mm Z-Travel 700mm Tool holder SK40 IKZ 25 bar with belt filter system Tool Measurement Handwheel Documentation Without tools! Auction-ID: A7-49053-7

spindle diameter:160 mmx-travel:6500 mmy-travel:3000 mmW-axis (spindle longitudinal):1000 mmdimension of the ram:400 x 420 mmram stroke:1000 mmbore spindle turning speed range:1 - 2000 U/minspindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/minrapid speed:8/10 m/mintotal power requirement:100 kWweight of the machine ca.:76 tdimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) mwith CNC Steuerung HEIDENHAIN iTNC 530autom. toolchanger 40-pocketsautom. Pickup Station for universal milling head, and facing headrotary table 2500 x 2500 mm , max load 25 to.1500 mm longitudinal movementfloor plate 4000 x 2000 mmmeasuring probe, chip conveyor and coolant attachment

x-travel:600 mmy-travel:580 mmz-travel:530 mmdistance spindle center to column:630 mmdistance spindle center to table:100-600 mmmilling feed range:1-10.000 mm/minmax. table load:200/100 kgmax. tool weight:8 kgpositioning accuracy:+/- 0,01 mm:8000/15000 1/minspindle drive:7,5/11,5 /5,5 kWrepeating accuracy:+/- 0,008 mmweight of the machine ca.:7,4 / 7,65 tBrand-new CNC vertical machining center with CNC control FANUC or HEIDENHAINWarranty: 12 monthsMore information can be found in the Appendix.

Serial Number: 141643 Control: MAZAK MAZATROL M PLUS Table dimensions: 1460 x 510 mm Tool holder: SK 40 X-axis travel: 1120 mm Y-axis travel: 510 mm Travel Z-axis: 510 mm Max. distance from spindle end face to clamping surface: 690 mm Spindle speed: 40 - 7000 rpm Max. permissible weight on machine table: 500 kg Rapid traverse in X and Y axis: 24 m/min Rapid traverse in Z-axis: 20 m/min Cutting feed speed X/Y/Z: 1 - 5000 mm/min Number of tool locations: 24 Max. tool diameter: 80 mm with occupied neighboring space max. tool diameter with free adjacent space: up to max. 110 mm Max. tool length: 350 mm Max. tool weight: 8 kg incl. chip conveyor MAYFRAN incl. the tool holders located on the tool changer Attention: the machine vice clamped on the table is not included in the scope of delivery! Internal reference: previously lot 14 Auction-ID: A7-49056-264

Machine number: 6233-5Speed: up to 2800 rpmDrilling diameter: up to 40 mmProjection: approx. 907 mmwith two tablesTable dimensions: 780 x 600 mm - with four grooves, as well as a three-jaw chuck, diameter: 400 mmTable 2: 1000 x 540 mm, with four grooves and two vices, one jaw width: 125 mm and 100 mma four-jaw chuck, manufacturer RÖHm, diameter: 200 mm as well as a four-jaw chuck, diameter: 150 mmand a dividing head from the manufacturer HOFMANN, type: VTS 160 with a three-jaw chuck, diameter: 200 mmalso various clamping systems, including KOHN clamping system, jaw width: 120 mm Auction-ID: A7-49089-208

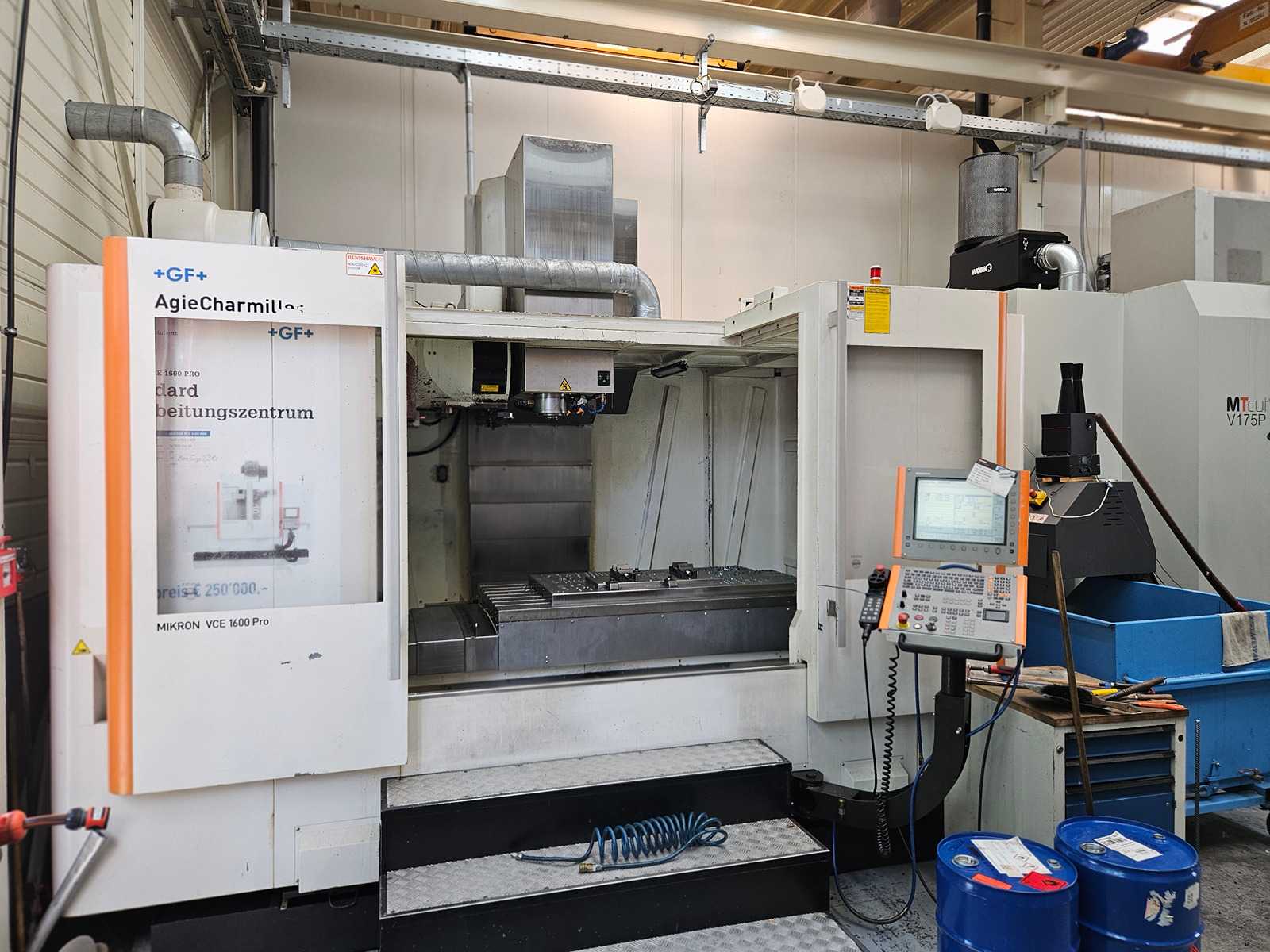

Mikron VCE 1600 Pro Type VCE 1600 PRO Year of construction 2014 Control CNC Heidenhein iTNC 530 Country of origin Switzerland Technical details x-travel 1,600 mm y-travel 900 mm z-travel 800 mm Control Heidenhein iTNC 530 Table size 1,700x850 mm Inclusion ISO ISO 40 Speed 14,000 rpm Tool Random 40 pos. Table load 2,000 kg Rapid traverse: 24 m/min Internal cooling supply 20 bar Total power requirement 18 kW Machine weight approx. 18,600 kg Pick-up date will be announced after the auction ends. Machine is loaded with a truck-mounted crane. Without screwing rods, zero clamping system and tools. Auction-ID: A7-49053-31

x-travel:800/945 mmy-travel:800 mmz-travel:600 mmspindle motor:27 kWspindle turning speed range:10 - 8000 U/minspindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kgtable clamping surface::800 630 mmtotal power requirement:55 kWweight of the machine ca.:16 tMachine with Heidenhain iTNC 530 CNC control for 5 axis- pendulum operation with turn- swivil table left and fixed table right- tool changer for 30 tools- coolant device, chip conveyor- complete splash housing

spindle diameter:130 mmspindle diameter:130 mmx-travel:2190 mmy-travel:1520 mmz-travel:1000 mmw-axis:1075 mmtable surface area:2000 x 1800 mmworkpiece weight max.:8000 kgspindle turning speed range:4,5 x 900 U/minspindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/minfaceplate diameter:785 mmrapid traverse::5000 mm/mintotal power requirement:40 kWweight of the machine ca.:35 tdimensions of the machine ca.:5,5 x 6,9 x 5,2 mMachine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds- table indexing 4 x 90°- facing head 785 mm- exhauster- various arbors and tooling

Machine is dismantled and stored (see photos). May show traces of storage Auction-ID: A7-49688-2

Core drilling machine / diamond drill Brand: Daewoo Type: DADK-D230BE Peak power: 4580 watts Speed: 100-530 RPM (infinitely adjustable) Max. Drilling Diameter: 230 mm Max. Drilling Depth: 550 mm Drill connection: 1/2 inch internal, 5/4 inch external Equipped with: digital display Equipped with: connection for water cooling Equipped with: 30 milliamp residual current device (PRCD) Tripod: Adjustable aluminum tripod Condition: unused, in the original packaging Attention: diamond drill bit not included Auction-ID: A3-46152-1066

TORO DMF-40 Drill Press/Mill with Cross Table and Tap; Drilling capacity: 32 mm; Drilling depth: 120 mm; Speed: 75-1600 rpm; Table size: 600 x 190 mm; Displacement: X-axis 370 mm Y-axis 190 mm; Weight approx. 370 kg Auction-ID: A1-48979-18

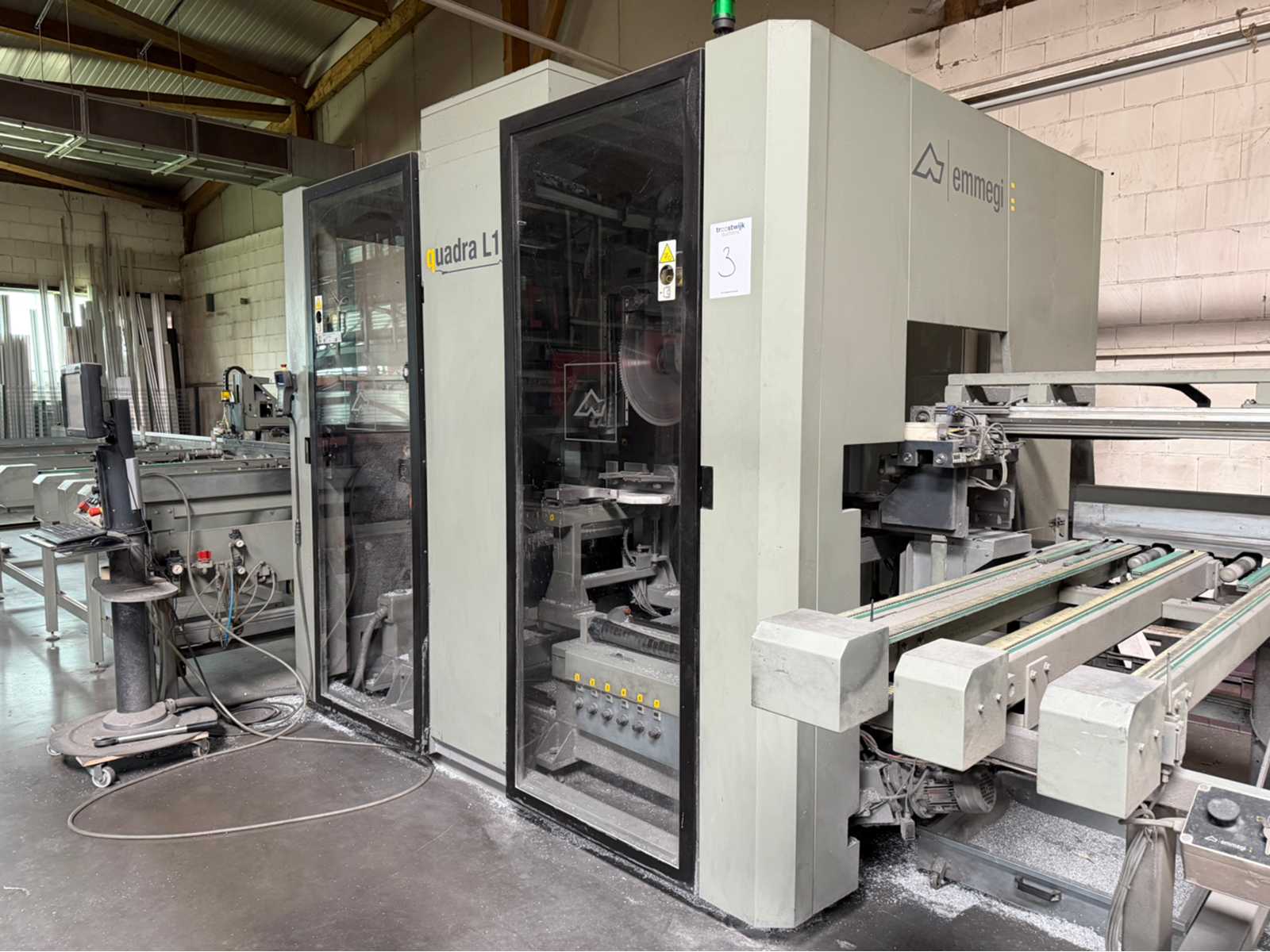

A-axis 0-360grd, miter saw ø 550mm, feed conveyor approximately 6mtr, discharge conveyor approximately 5mtr, including walk-in protection, chip extraction Auction-ID: A1-48474-3

Machine is equipped with: - chip conveyor - through spindle coolant - oil cooler Auction-ID: A1-49370-8

distance spindle /table:min /max 190 / 570 mmdistance spindle /table:190 - 570 mmsurface area:650 x 300 mmBoring power:in GG 20 40 mmbore capacity in steel:ST 60 32 mmturning speed range::50 - 5000 UpMtotal power requirement:2,2 kWthreading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kgtable load:max. 150 kgtable height:770 mmtraversing speed:max X-, Y- u. W-Achse 5 m/min max.traversing speed:Z-Achse 3 m/minw-axis:380 mmworkpiece height max.:495 mmtool changing time:ca. 3 secx-travel:450 mmy-travel:300 mmz-travel:180 mmworkpiece weight:1,5 kg

x-travel:800 mmy-travel:690 mmz-travel:630 mmtotal power requirement:76 kWweight of the machine ca.:25,5 tb-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kgspindle turning speed range:15000 U/minBoring power:30 mmplate size:630 x 630 mmDimension:6000 x 2900 x 2400 mmspindle taper::HSK 63 Documents:vorhanden

x-travel:630 mmy-travel:560 mmz-travel:560 mmtotal power requirement:10 /15 kWweight of the machine ca.:6500 kgdimensions of the machine ca.: 4,4 x 5,4 x 2,9 mTable dimensions:1000 x 610 mmLoading:400 kgrapid traverse::X 26, Y 26, Z 20 m/minspeeds::20 - 12.000 min -1tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St.control:CNC MillPlus/TNC430 Documents:vorhanden

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

bore capacity in steel (diameter):63 mmarm length:2000 mmworkpiece height max.:135 mmspindle stroke:400 mmreus:16 Stufentable-size:630 x 800 mmtool taper:MK 5 speeds:20 - 1600 U/minspindle feeds::0,04- 32 mm/Uwork table::800 x 630 x 550 mmtotal power requirement:5,5 kWweight of the machine ca.:6200 kgdimensions of the machine ca.:3100 x 1250 x 2500 mmYear:ca. 1990

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

bore capacity in steel (diameter):40 mmarm length:1200 mmworkpiece height max.:1227 mmsurface area:1475 x 900 mmno. of flutes:3 groove width:25/ 50 mmspindle cone:MORSE 4 number of spindle speeds:45- 2800 U/minspindle headstock:Bew.Arm : 945 mmwith vertical adjustment:Arm 710 mmspindle diameter:35 mmbore depth:300 mmtotal power requirement:3,0 kWweight of the machine ca.:2800 kgdimensions of the machine ca.:2290 x 910 x 2860 mm

workpiece thickness max.:80 mmworkpiece thickness min.:5 mmplate size without being adjusted:2000x1000 mmsize of plate min.:100x100 mmcontrol:CNC Mubea Matic100 hole diameter:min/max:10/40 mmworkpiece weight:750 kgdeburring device max.:d=40 mmtraversing speed:80 m/minwork height max.:1050 mmpositioning accuracy:+/- 0,5 mmopening of gripping pliers min/max.:Typ I: 5/45 mmopening of gripping pliers min/max.:Typ II: 45/85 mmfeed length:max. 150 mmrapid traverse::8 m/minspindle turning speed range:112-180-224-280-355-560 U/minwork table::L:2500;B:950 mmarm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mmcross travel:y=1000 mmbore spindle stroke:max. 150 mmtotal power requirement:25,0 kWweight of the machine ca.:5,5 tspace requirements approx. LxWxH:5,0x5,5x2,7 mplate size with beeing adjusted also 1000x4000 mm possiblewith roller conveyor 2x1000mmmaterial supp ...

bore capacity in steel (diameter):5 - 30 mmx-travel:450 mmy-travel:380 mmtotal power requirement:1,4 / 2,2 kWweight of the machine ca.:1.100 kgdimensions of the machine ca.:1.000 x 1.400 x 2.900 mmgear box:85 - 2.000 U/minspindle diameter:72 mmbore depth:700 mmthroat:300 mmspindle taper MT:3 T-slots:3 x 16/25 mmtable-size:700 x 300 mmspindle turning speed range:85/170/250/355/475/710/1000/2000 U/minmotor speeds::705/1425 Year:ca. 1975

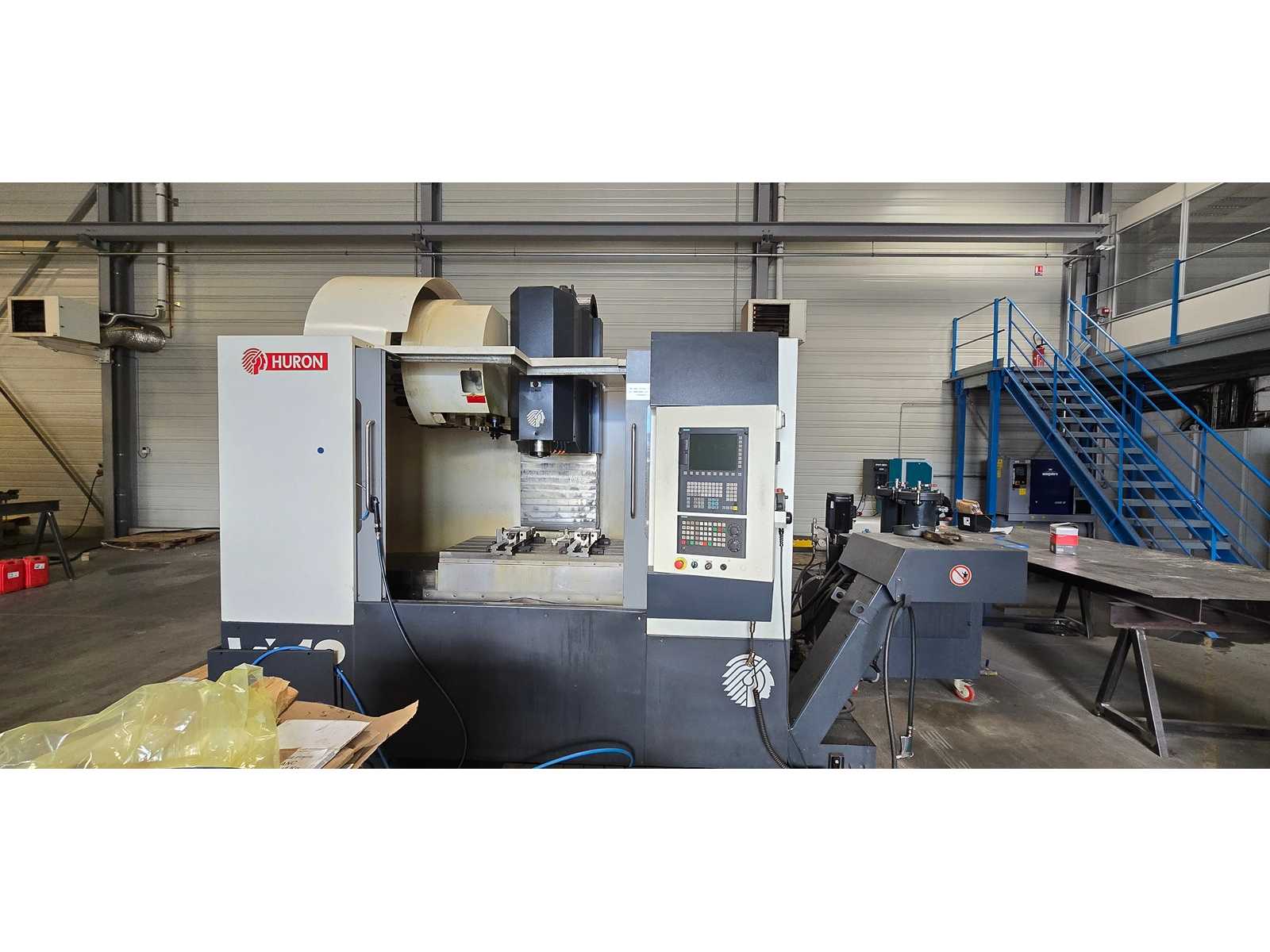

CNC Control: Siemens 828D ShopMillCourses X/Y/Z: 1220 / 600 / 610 mmTotal power: 10 / 14 kWSpindle speed: 8,000 rpmSpindle taper: SK40Tool magazine: 20 positionsEquipment: Chip conveyor, coolant, technical documentationPower supply: 400 V – 50 HzManufacturer: HuronYear: 2012Serial number: M02741Estimated dimensions (mm): 3500 x 2800 x 3200Weight (kg): 10000 Auction-ID: A1-49171-10

bore capacity in steel (diameter):40 mmarm length:1250 mmworkpiece height max.:1390 mmspindle taper: MT:5 table surface area:750 x 1380 mmsurface area:1450 x 920 mmtotal power requirement:5 kWweight of the machine ca.:3000 kgdimensions of the machine ca.:2060× 930 × 2760 mm

bore capacity in steel (diameter):40 mmarm length:1250 mmworkpiece height max.:1390 mmspindle taper: MT:5 table surface area:750 x 1380 mmsurface area:1450 x 920 mmtotal power requirement:5 kWweight of the machine ca.:3000 kgdimensions of the machine ca.:2060× 930 × 2760 mm

Serial number: 498-56Important note: A new spindle has recently been installedTravel paths: X: 800 mm Y: 500+50 mm Z: 550 mmSpindle speed: 12000 rpmTool holder: SK 40Number of tool positions: 40Control: SIEMENS SINUMERIK 840 Dincl. chip conveyor from KNOLL, paper belt filter system from KNOLL, zero-point clamping system from SCHUNK Type: SDE 138Table dimensions: 850 x 350 mmincl. the tool holders and tools on the tool changerincl. touch probe as shown in the pictures Atruck with a width of 3000 mm is required for transportReference: Wittner - Lot 11 Auction-ID: A7-49056-412
