tornos usadas para venda (3,107)

weight of the machine ca.:18 tcentre distance:700 mmmax. swing diameter:200 mmLathe with 4 tools only for 3-cylinder crank shaft

max. workpiece diameter:29 mmmin. workpiece diameter:26 mmworkpiece length:66 mmthe system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mmChanging parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mmTotal length will probably be almost 400 mm possible with a few conversions.Also dependent on tool lengths, machining lengths on the component, etc.Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clampi ...

6 loading meter needed for transport, tooling in Turret not included no tooling included Auction-ID: A1-48649-21

turning diameter:250 mmswing diameter:250 mmturning height:200 mmtotal power requirement:37,7 kWchuck diameter:315 mmspindle speed max.:5500 1/mintravel -x axis:625 mmtravel -y axis:+100/-80 mmtravel -z axis:250 mmworktool system:VDI 30+40 weight of the machine ca.:8 tThe synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm.Typical components are ball cages, ball hubs, gear wheels, sliding sleeves,pump wheels, flanges, synchronizer rings, bearing rings and pivot pins.The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.

number of spindles:6 spindle passage:18 mmturning length:63/50 mmweight of the machine ca.:8,6 tspindle drive motor:11 kW

GILDEMEISTER - CTX 310 V3 Offer details Stock number 1039-9126 Machine type: CNC turning and milling center Manufacturer: GILDEMEISTER Type CTX 310 V3 Year of construction 2003 Control 840 D Siemens Country of origin Italy Additional information CNC turning and milling center GILDEMEISTER - CTX 310 V3 - Incl. 2x reducing tubes Technical details Turning diameter 210 mm Turning length 580 mm Control 840 D Siemens Center height 190 mm Turning diameter over bed 330 mm Turning diameter above the face slide 260 mm Main spindle: Speed range - main spindle max. 4,000 rpm/-1 Drive power - main spindle 10 / 7.5 kW Max. torque 115 / 86 Nm Spindle bore 68.5 mm Usable rod diameter 51 mm C - Axis 0.001 ° Travels: Travel - x 185 mm Travel - z 455 mm Tool turret: Number of tool positions 12 pos. Tool holder VDI 30 Driven tool stations: 6 pos. Tailstock: Tailstock displacement 400 mm Sucti ...

GILDEMEISTER - CTX 320 linear V5 Offer details GILDEMEISTER - CTX 320 linear V5 - Main and counter spindle - Tool drive - C-axis - ShopTurn Technical details Turning diameter max. 246 mm Turning length 600 mm Circumferential diameter over bed 400 mm Circumferential diameter over face slide 300 mm Center width 600 mm Main spindle: Speed range - main spindle max. 6,000 rpm/-1 Drive power - main spindle 16 kW Max. torque 155 Nm Spindle diameter in the vord. Bearing 100 mm Spindle bore 68.5 mm Spindle nose 140H5 Sub-spindle: Speed range - sub-spindle max. 4,000 rpm/-1 Drive power - sub-spindle 7.5 kW Max. torque 48 Nm Spindle diameter in the vord. Bearing 75 mm Spindle bore 37 mm Spindle nose 140H5 Tool turret: Number of driven tool stations 12 pos. Speed range - applied Tools max. 5,000 min -1 Drive power - applied Tools 3.7 kW Max. torque 24 Nm Tool holder VDI 30 Tool shank 20 x 20  ...

Polygon Lathe, Multi-edge Lathe, Profilator LEO Polygon Lathe Tip height: 160 mm Lining: 150 Ø Center width: 800 mm 380 V Dimensions: 2200 x 1200 x 1300 mm https://youtu.be/4QG-Q8bJhAQ https://youtu.be/6YYCQJxWgAA Auction-ID: A7-49701-11

Lead and pull spindle lathe VEB DLZ 280 Center width: 900 mm Tip height over support: 90 mm Tip height above bed: 140 mm incl. accessories as shown ! Dimensions: 2,200 x 1,200 x 1800 mm Video: youtu.be/CeVz3o2XVus Auction-ID: A7-49701-12

OKUMA - MacTurn 50 Offer details Stock number 1039-9061 Machine type: CNC turning and milling center Manufacturer OKUMA Type MacTurn 50 Year of construction 2000 Control OSP 7000 L Storage location D-59302 Oelde Country of origin: Japan Delivery time by arrangement Freight base from location Additional information CNC - Turning and milling center OKUMA - MacTurn 50 Technical details max. turning diameter 580 mm Turning length 1500 mm Control OSP 7000 L Circumferential diameter over bed 610 mm Circumferential diameter over carriage 580 mm Main spindle: Speed range - main spindle 12 - 2,800 rpm/-1 Spindle bearing diameter 150 mm Spindle bore 110 mm Spindle nose JIS A2-11 Drive power - main spindle 37 (30) kW C-axis 0.001 ° Travels: x-axis 598 mm y-axis 230 (+110 / -120) mm z-axis 1,660 mm Feeds: Rapid traverse X / Y: 12,000 mm/min Rapid traverse Z: 20,000 mm/min Rapid traverse  ...

Lead and pull spindle lathe VEB DLZ 450 / 2000 Center width: 2,000 mm Tip height above bed: 250 mm Tip height above support: 150 mm Speed: 16 - 2240 rpm (18 steps) Spindle bore: Ø 45 mm 380V 3AC 50Hz 21A 10.3kW Dimensions: 3,600 x 1,000 x 1,400 mm Auction-ID: A7-49701-10

Sub spindle Driven tools Y-axis Technical Details Drehdurchmesser max. 246 mm Drehlänge max. 445 mm Supporting Fanuc 32 iS Distance between Spitzen 665 mm Spitzenhöhe 365 mm Length diameters over bed 500 mm Length diameters over shelf sections 375 mm Standard diameter 170 - 210 mm Main spindle: Max. Drehzahl Main Spindle 6,000 min/-1 Antriebsleistung - Main spindle 12 kW Max. torque 115 Nm Spindle bearing diameter: 100 mm Spindle drilling 73 mm max. Useless rod diameters 50 mm C-Achse 0.001 ° Spindle head FL 140 h5 max. Futterdurchmesser 170 - 210 mm Futterdurchmesser ( - ) mm Gegenspindle: Max. Drehzahl Gegenspindle 6.000 min/-1 Antriebsleistung - Gegenspindle 7.5 kW Max. torque 48 Nm Spindle bearing diameter: 90 mm Spindle drilling 44.5 mm max. Useless rod diameters 37 mm C-Achse 0.001 ° Spindle head FL 140 h5 max. Futterdurchmesser 170 mm Futterdurchmesser ( - ) mm Transport: ...

GILDEMEISTER - Sprint 20-8 linear Technical details Turning diameter max. 20 mm Turning length max. 80 mm Control Fanuc 310is Main spindle: max. usable rod diameter 20 (25) mm Inner drawbar diameter 28.5 mm Max. speed main spindle 10,000 min/-1 Drive power - main spindle 3.7 kW Max. torque 9.4 Nm C-axis C1: 360° Sub-spindle: Inner drawbar diameter 28.5 mm Max. speed main spindle 10,000 min/-1 Drive power - main spindle 3.7 kW Max. torque 9.4 Nm C-axis C2: 360° Travels: x-axis 1: 50 / 2: 240 mm y-axis 1: 350 / 2: 120 mm z-axis 1: 80 / 2: 300 mm Tool carrier slide 1: Number of tool positions 17 pos. Collet Diameter ESX / ER 16 Speed driven tools 3x 3,450 / 2x 6,000 min/-1 Drive power - applied Tool stations 5x 0.98 kW Max. torque 3x 4 / 2x 2.3 Nm Tool carrier slide 2: Number of tool positions 13 pos. Interior Machining 4 Exterior machining 4 powered stations 5 pos Shaft diameter 20 m ...

Self-centering chuck 3 jaws Rohm 400 mm Independent chuck 4 jaws Rohm 600 mm Running glasses 30-200 mm Fixed Seat with Rollers 40-215mm Fixed Glasses with Rollers 210-390 mm Sony digital readout 2 axis Multifix quick-change holder type D Fixed center Rotating center Pivot bus Manual & drawings German language Manual English Auction-ID: A1-47358-171

HITACHI SEIKI - HiTec-Turn HT 20 RIII Stock number 1039-9425 Country of origin Germany Technical details Turning diameter 450 mm Turning length 380 mm Seico 40L Multi Control Max. machining diameter 340 mm Bar passage 51 mm Speed range - spindle 30 ~ 5,000 rpm Drive power - spindle motor 11 / 7.5 kW Spindle nose A2-6 Spindle bore 59 mm Bearing diameter 100 mm Travel - x 215 mm Travel - z 400 mm Turret head (x-fold) 16 Feed rate 0.001 ~ 500 mm/min Rapid traverse X/Z: 30 m/min Shaft diameter 25 x 25 mm Shaft diameter of the drills 40 mm Tailstock Tailstock mount MK 5 Tailstock Shift 300 mm Total power requirement 23 kVA Space requirements approx. 5.5 x 2.8 x 2.2 m Accessories Documentation Chip conveyor Tailstock Signal Lamp Parts removal Tool measuring arm Workspace lighting Tool holder (turret) Auction-ID: A7-49608-20

Maximum turning diameter above bed: 930 mm Maximum rotation diameter above cross slide: 630 mm Center distance: 5000 mm Spindle nose: Bayonet DIN 55027 K11 Spindle bore: 96 mm Spindle Speed: 8-800 (24) rpm Main drive: 22 kW Dimensions W x D: 2050 x 2200 mm Extras: Clamping plate 400 mm self-centering 3-jaw Clamping plate 800 mm independent 4-jaw Conical Turning Attachment Movable support 260 mm Fixed support with roller inserts 20-400 mm Fixed support with roller inserts 350-580 mm Sony digital readout 2-axis Tool holder Multifix D1 Tool holders 1 piece Cooling system Machine manual and drawings (German language) Auction-ID: A1-47358-175

turning diameter: 140 mmturning length: 615 mmcontrol: C200-4D spindle passage: 65 mmMain spindle: turning speeds: 5.000 U/minmax. torque at 40% / 100% load: 145 / 105 kWturret-slide: 1,2 und 3 x-travel: 110 mmz-travel: 360 mmy-travel: 70 mmrapid traverse X/Y/Z: 25/12/45 m/minOpposed spindle: slide travel X-axis: 150 mmZ- Travel: 600 mmturning speeds: 5.000 U/minB - axis: B-Korrekturachse +/- 1 °tool turret - number of stations: 3 x 12 tool taper DIN 69880: VDI 25 x 48 C-axis: 0,001 °total power requirement: 61 kWweight of the machine ca.: 6,5 tdimensions of the machine ca.: 9,75 x 3,10 x 2,85 mLoading:Breuning Profimat 65.8x270/8 multi-channel loading magazine, built in 2005for bars with lengths of 500–3,000 mm, 8 guide channels with spindle insert tubes (Ø 16, 25, 30, 40, 45, 55, 60, 65 mm)Unloading:BREUNING ILS-REX-7208 automatic workpiece unloader, built in 2007The data for th ...

turning diameter: 275 mmturning length: 900 mmcontrol: TRAUB TX8i-s spindle passage: 65 mmspindle turning speed - stepless: 1 - 5.000 U/minspindle diameter in front bearing: 110 mmC-axis: 1 - 500 U/minx-axis: 175 mmz-axis: 650/975 mmy-axis: +/- 40 mmrapid traverse X/Y/Z: 20 / 40 / 20 m/minfeed capacity X/Y/Z: 5,5 / 5,5 / 10 kNtool turret - number of stations: 10 number of driven tools: 10 mmtoolpiece turning speed range: 1 - 6.000 U/minpower capacity at 25 % load: 5,50 kWmax. torque at 25% load: 17,50 Nmtool taper DIN 69880: Ø30x55 spindle diameter in front bearing: 110 mmtotal power requirement: 95,00 kWweight of the machine ca.: 16,00 tdimensions of the machine ca.: 10,00 x 3,50 x H3,00 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

3-axis digital readout brand SINO, Quick-change tool holder type Multifix TOOB2 with 4 boats, Camlock D1-5, 3-Jaw chuck 200 mm, 4-Jaw chuck 200 mm, Clamping plate 250 mm, Fixed and running glasses, LED work light and cooling system, Electric brake CE, Foot brake, Box with various tools, Manual with parts list, Lathe is on original pallet Auction-ID: A1-48552-55

turning diameter: 1000 mmswing dia.: 1000 mmZ-axis stroke: 900 mmcontrol: Siemens 840 D tool taper: SK 50, VDI 60 tool piece magazine with: 44 Plätzenworkpiece weight max.: 35 kgtool length - max.: 500 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Auction-ID: A1-49309-58

provided with documentation/manual, including 1x pallet of WENDEL clamping tools Auction-ID: A1-48552-10

Lathe for parts sales, defective Auction-ID: A1-48552-74

3-axis digital readout brand SINO, Quick-change tool holder type Multifix TOOB2 with 4 boats, 3-Jaw chuck 200 mm, 4-Jaw chuck 250 mm, Clamping chuck 350 mm, Fixed and running glasses, LED work light and cooling system, Electric brake CE, Box with various tools, Manual with parts list Auction-ID: A1-48552-114

This lathe is defective, so repair is necessary, fixed head is supplied separately Auction-ID: A1-48552-60

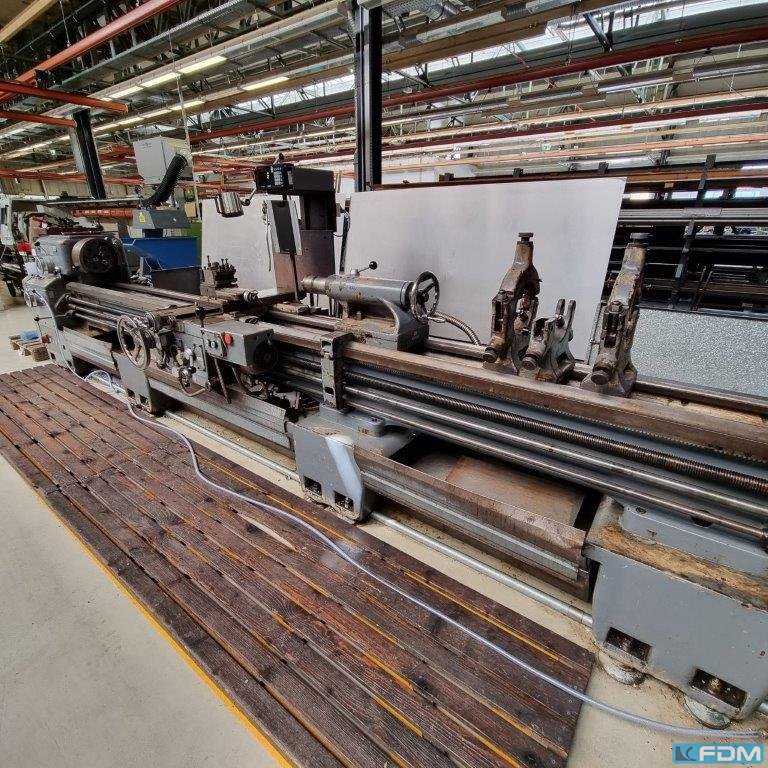

- Maximum distance between points approx. 6000 mm. - Turning on bed approx. 740 mm. - Flip on carriage approx. 420 mm. - Bed width 510 mm. - Bar pitch diameter approx. 80 mm. - 18 rotation speeds from 16 rpm to 1250 rpm. - 3-jaw chainring, diameter 400 mm. - Fagor 20i-T 2-axis (X,Z) digital display. - Equipped with 2 windows. - Operating conditions of this machine: unchecked. Auction-ID: A7-48839-23

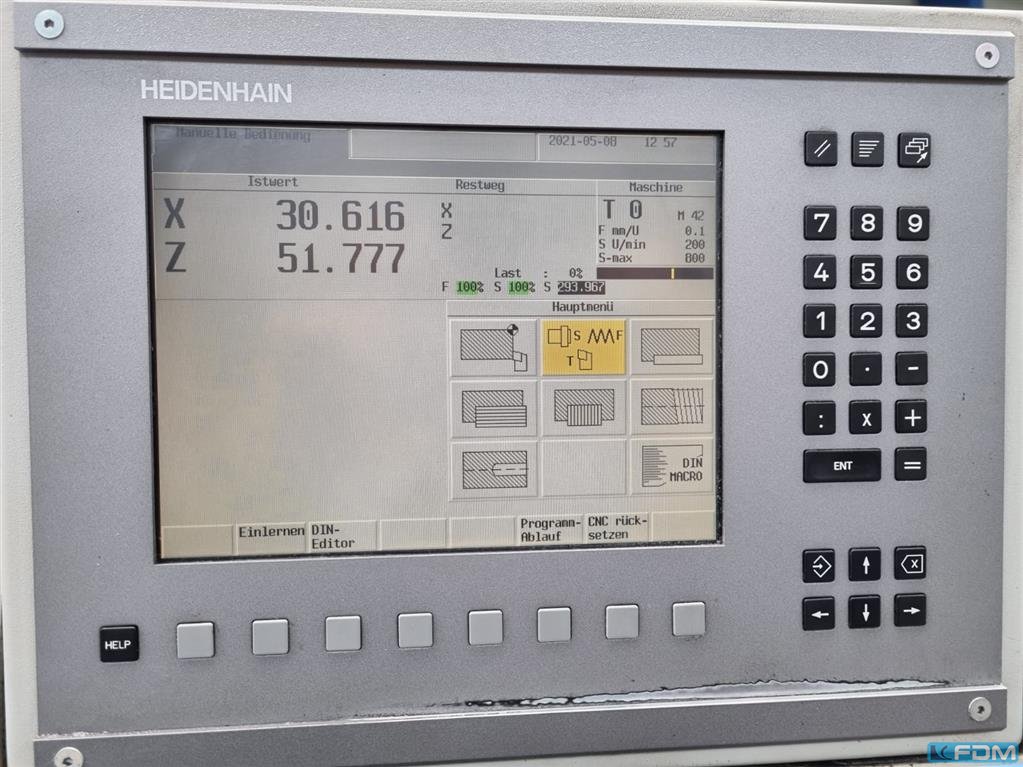

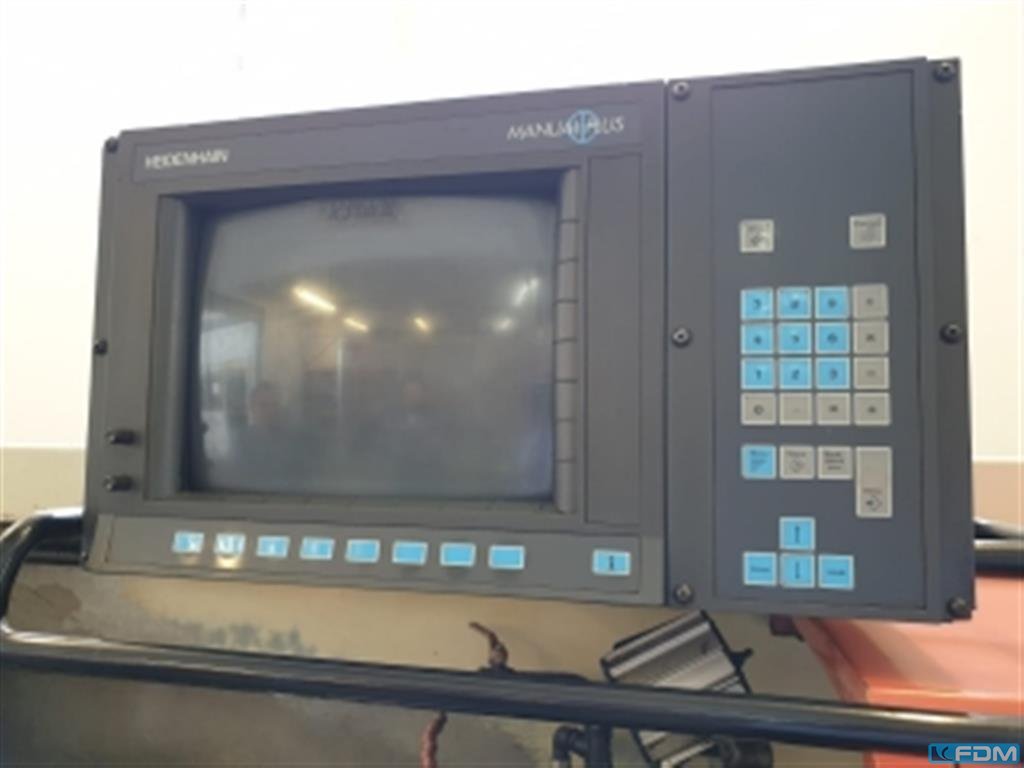

Heidenhain control, Leica microscope Auction-ID: A1-48552-17

12-position turret, 500GH spindle, MORI SEIKI MSD-501II control Excluding machining and tooling supports AVAILABILITY END OF JANUARY/BEGINNING OF FEBRUARY 2027 Auction-ID: A7-49592-14

Mori Seiki ZL 250-600 CNC Lathe Power of the main spindle 18.5 Kw Passage of the main spindle rod 73 mm Diameter of rotation 250 mm Length of rotation 650 mm Number of revolutions of the main spindle 3500 Number of Tool Turrets 2 Number of first turret tool locations 12 Number of motorized first turrets 12 Travel X-axis first turret 238 mm Travel Z-axis first turret 650 mm Number of second turret tool locations 10 Number of fixed tool positions second turret 10 Travel X-axis second turret 173 mm Z-axis travel second turret 650 mm Tailstock Quill stroke 150 mm Chip conveyor Incl. tools in the turret Auction-ID: A7-49053-19

According to photos, weight estimated Auction-ID: A1-48554-211
