tornos usadas para venda (3,093)

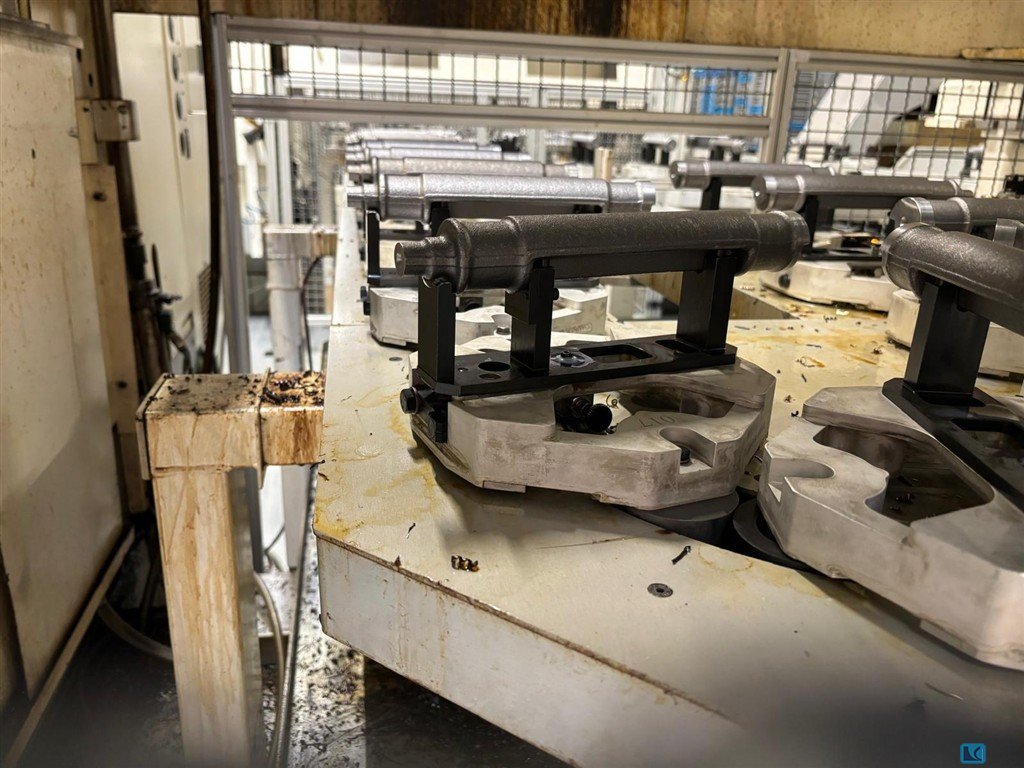

max. workpiece diameter:29 mmmin. workpiece diameter:26 mmworkpiece length:66 mmthe system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mmChanging parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mmTotal length will probably be almost 400 mm possible with a few conversions.Also dependent on tool lengths, machining lengths on the component, etc.Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing the clampi ...

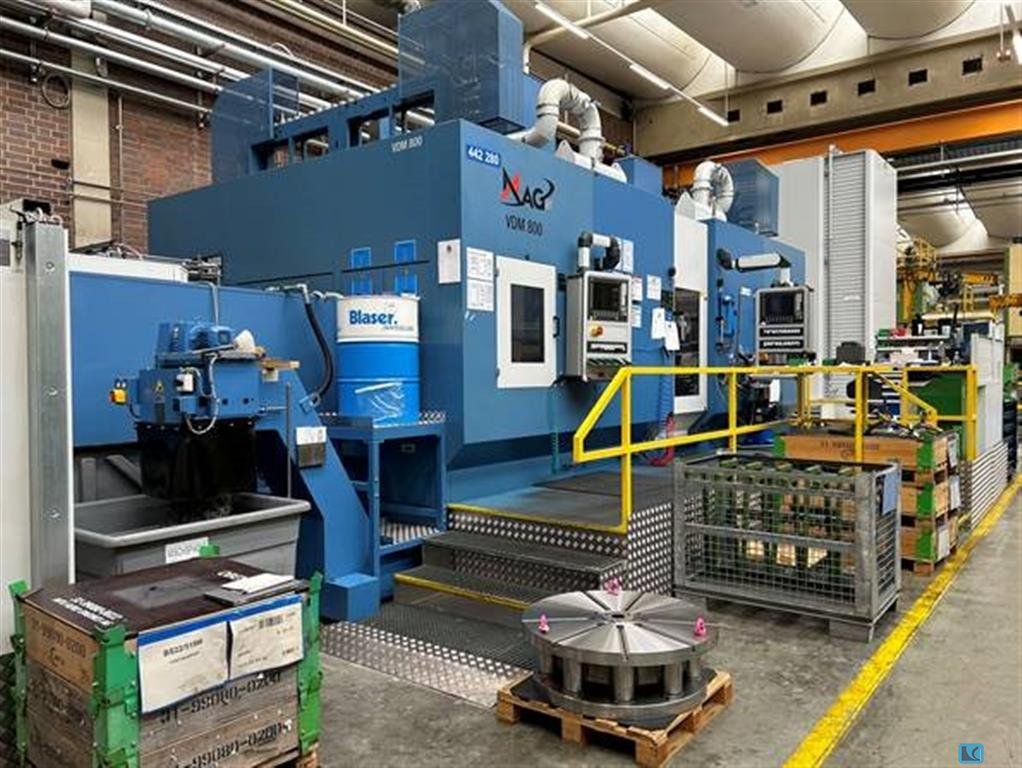

turning diameter:250 mmswing diameter:250 mmturning height:200 mmtotal power requirement:37,7 kWchuck diameter:315 mmspindle speed max.:5500 1/mintravel -x axis:625 mmtravel -y axis:+100/-80 mmtravel -z axis:250 mmworktool system:VDI 30+40 weight of the machine ca.:8 tThe synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm.Typical components are ball cages, ball hubs, gear wheels, sliding sleeves,pump wheels, flanges, synchronizer rings, bearing rings and pivot pins.The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.

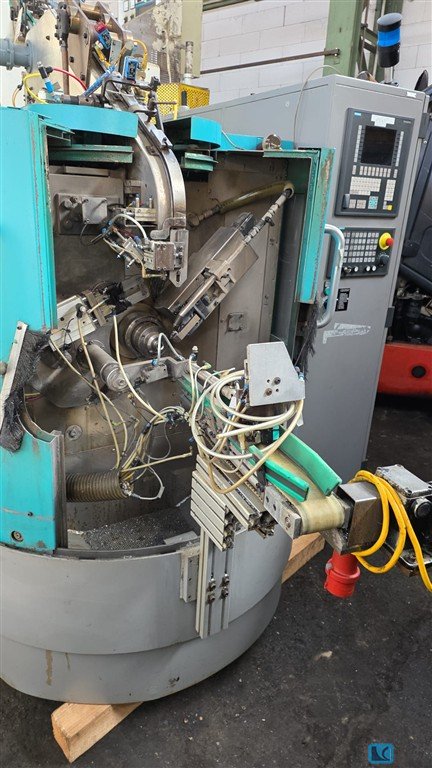

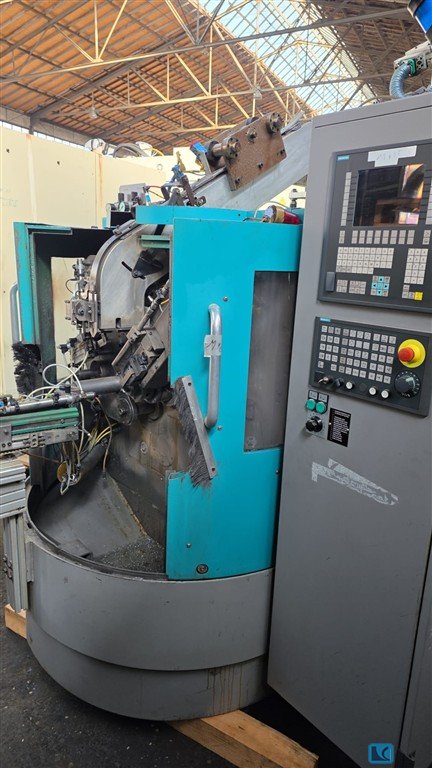

number of spindles:6 spindle passage:18 mmturning length:63/50 mmweight of the machine ca.:8,6 tspindle drive motor:11 kW

turning diameter:200 mmturning height:120 mmweight of the machine ca.:18 tAvailable from 01.08.2024

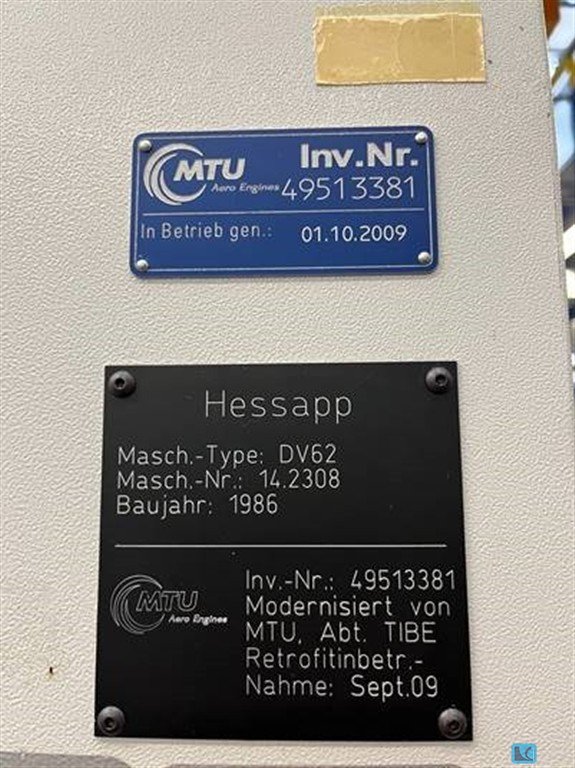

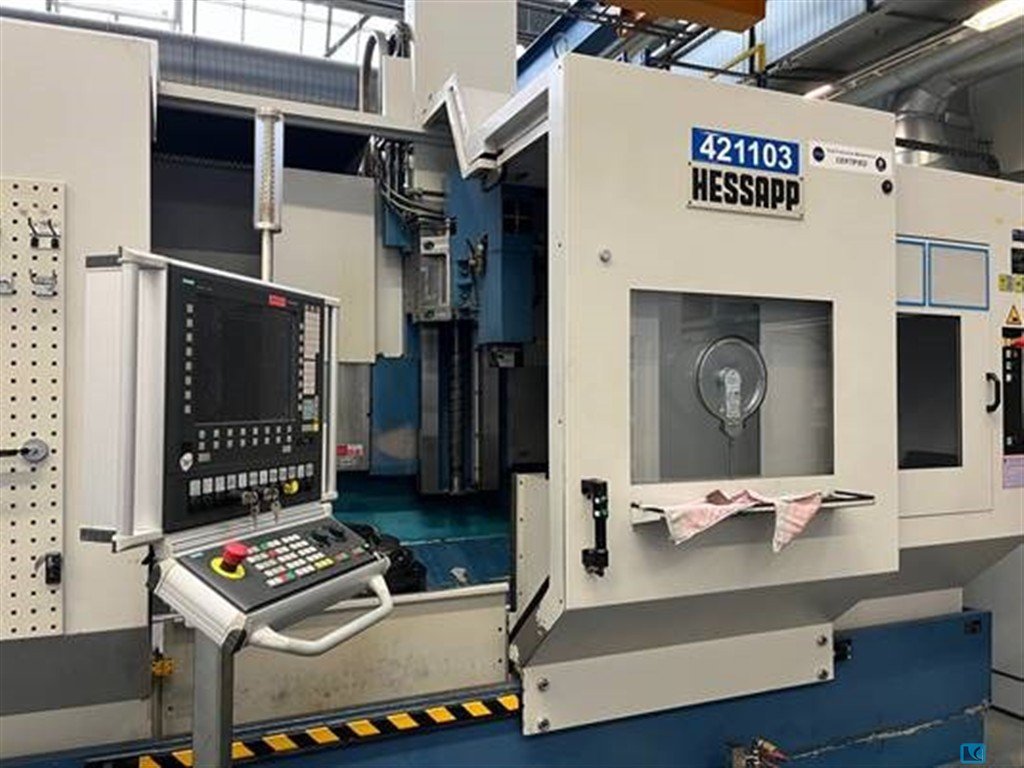

turning diameter:1000 mmswing diameter:1000 mmMachine type: Vertical latheManufacturer: HessappType: DV 62Serial no.: 14.2308Working range of the spindleLargest diameter 1000 mmLargest swing diameter 1000 mmCross slide travelStroke of the vertical slide 900 mmStroke of the horizontal slide 1810 mmTotal travel 2315 mmTurning spindleSpindle head with centering cone according to DIN 55021 A15Spindle diameter in the front bearing 203 mmMain driveVia a controlled asynchronous motor and gear transmissionwith range switching.Spindle speedsSpeed range I: 5 - 350 rpm.Speed range II: 30 - 1000 rpm.Travel speedX/Z axis: 10 m/min.W1 axis: 8 rpmNo C-AxisTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser ...

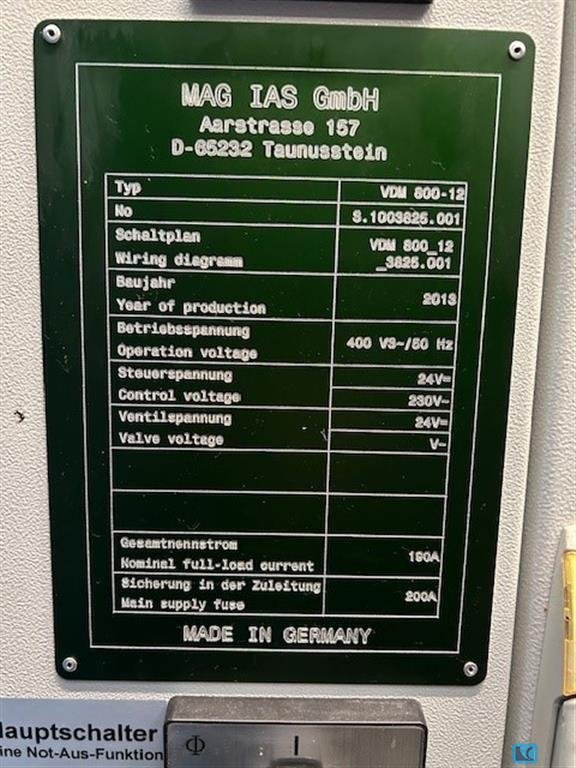

faceplate diameter:800 mmpower requirement:110 kWweight of the machine ca.:37.000 / total 52.000 ttransport measurements machine:5,07 x 2,98 x 3,90 mclamping diameter:800 mm:Ø 800 x 720 mmTool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

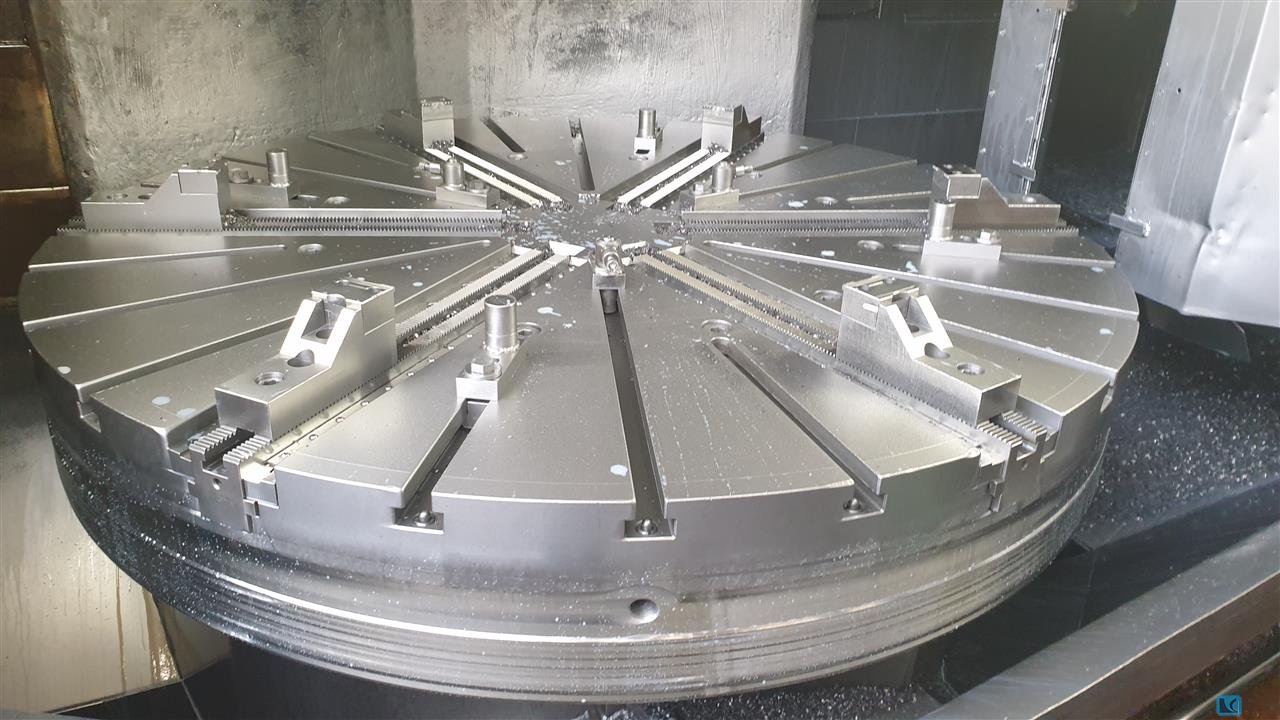

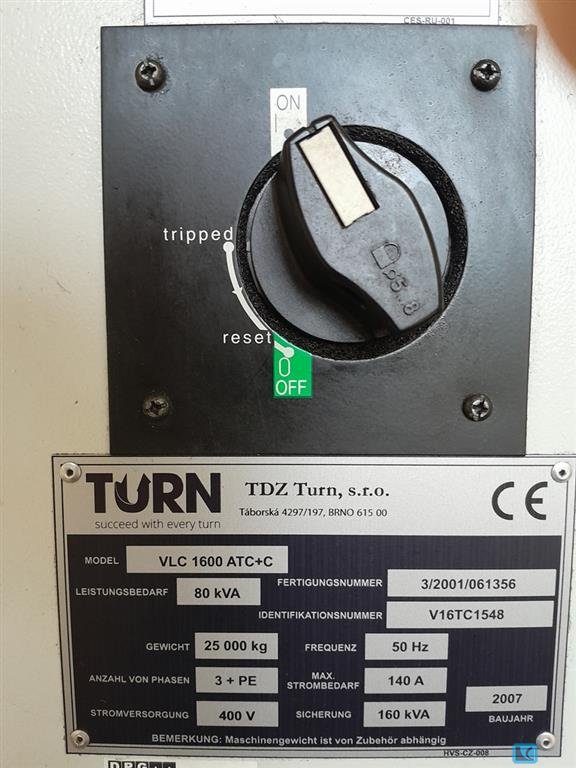

faceplate diameter:1600 mmpower requirement:80 kWweight of the machine ca.:25 tdimensions of the machine ca.:4,4 x 4,62 mmax. workpiece diameter:2000 mmmax. diameter of face turning:1800 mmtool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis

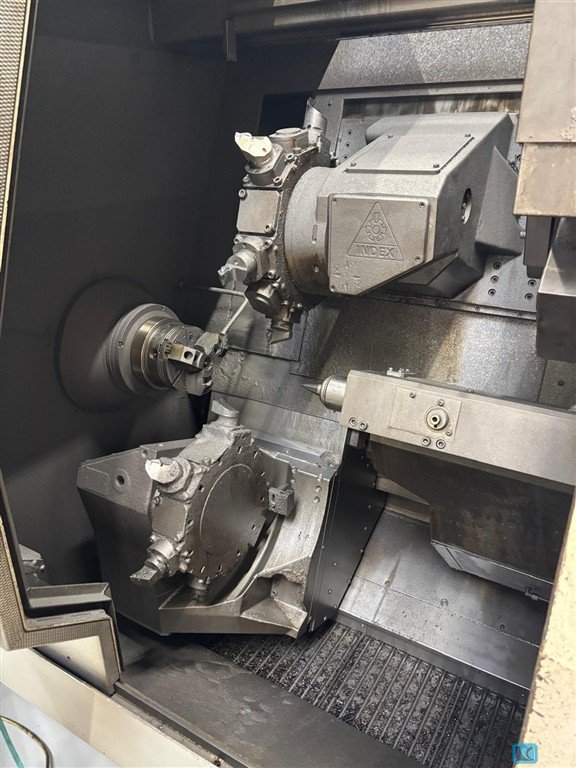

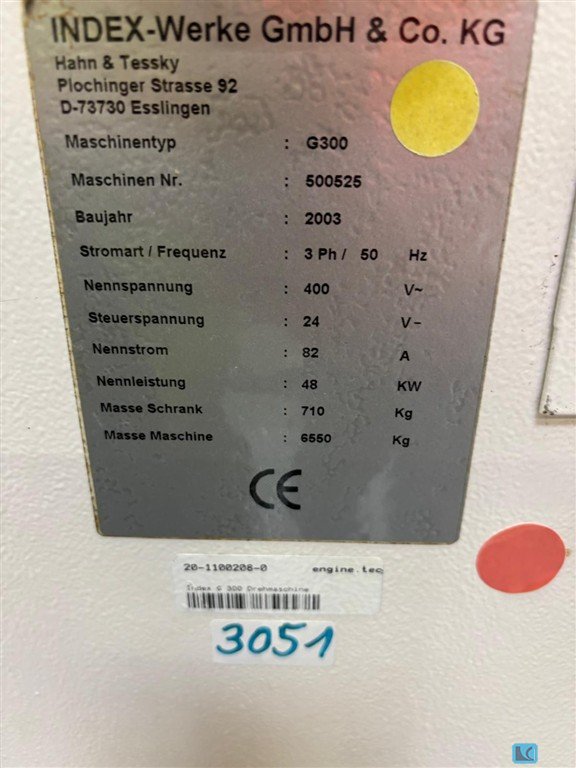

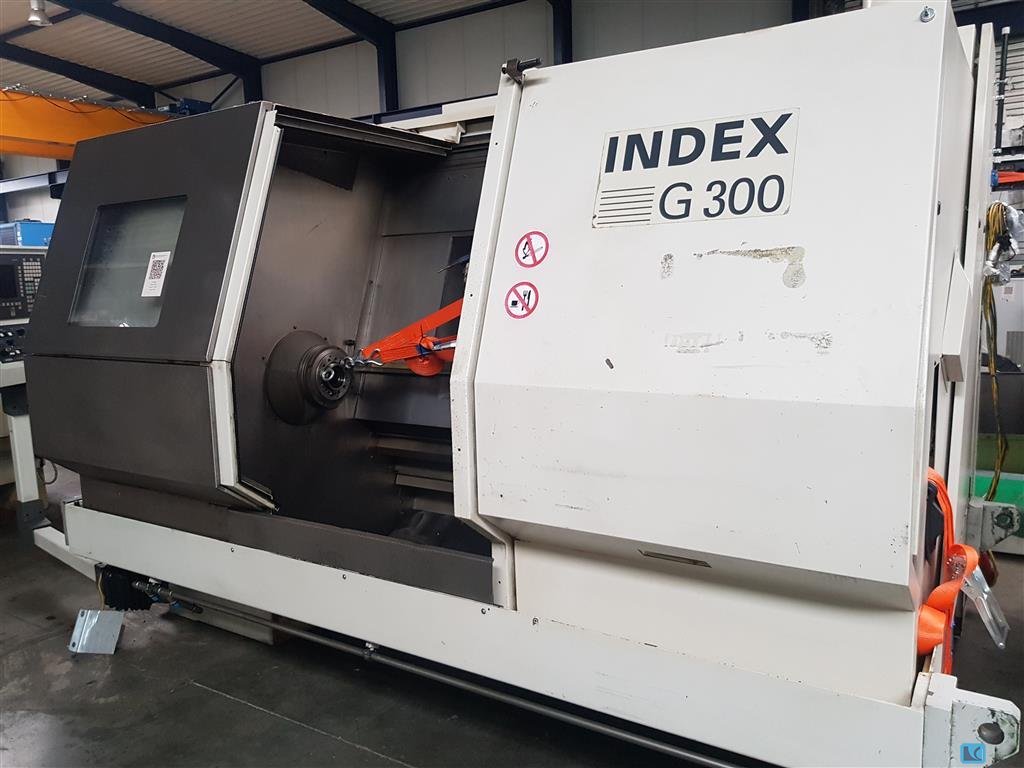

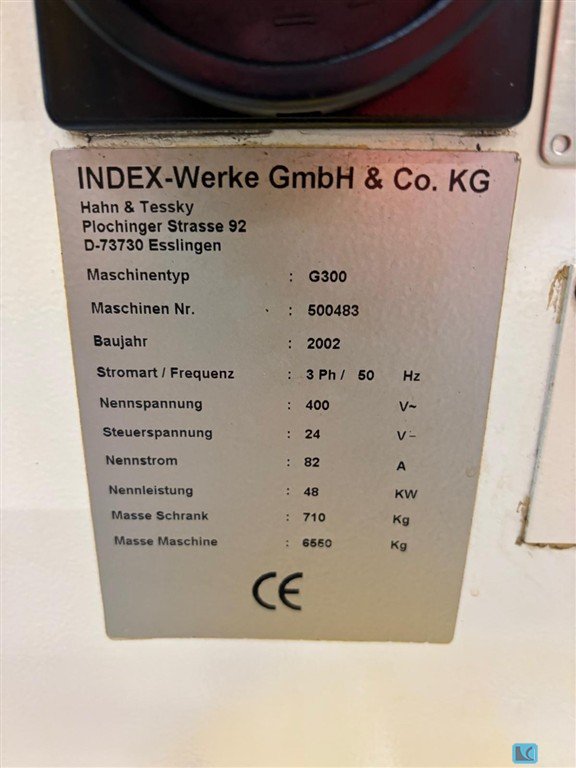

turning diameter:270 -300 mmturning length:710 mmtotal power requirement:43 kWweight of the machine ca.:8,5 tdimensions of the machine ca.:3,16 x 2,15 x 2,15 mThe machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter over bed: 640 mmturning length: 2.000 mmcontrol: 840D incl. Weiler SL1 Siemenscentre height: 320 mmswing diameter over face slide: 405 mmradial face slide travel: 380 mmtravel upper slide: 130 mmbed width: 380 mmturning tool - shaft cross cut: 32 x 25 mmMain spindle:: turning speed range - main spindle: 0 - 2.500 min/-1transmission ratio: 2 transmission ratio 1: 0 - 800 min/-1transmission ratio 2: 0 - 2.500 min/-1power capacity - main spindel: 20,5 / 17 kWmax. Torque: 1.400 Nmspindle head: Gr. 8 DIN 55027spindle diameter in front bearing: 120 mmspindle bore: 83 mmtaper bore: 90 metrischfeeds:: power feed longitudinal: 10.000 Npower feed coss: 9.000 Nfeed range: 0 - 20 mm/-1rapid traverse: 10/7 | 5/3,5 m/minthreading:: metric: 0,1 - 400 mminch: 1/4 - 56 G/1module: 0,125 - 28 mm . IITailstock:: dia. of quill: 100 mmquill stroke: 200 mmcapture: MK 5 total power requir ...

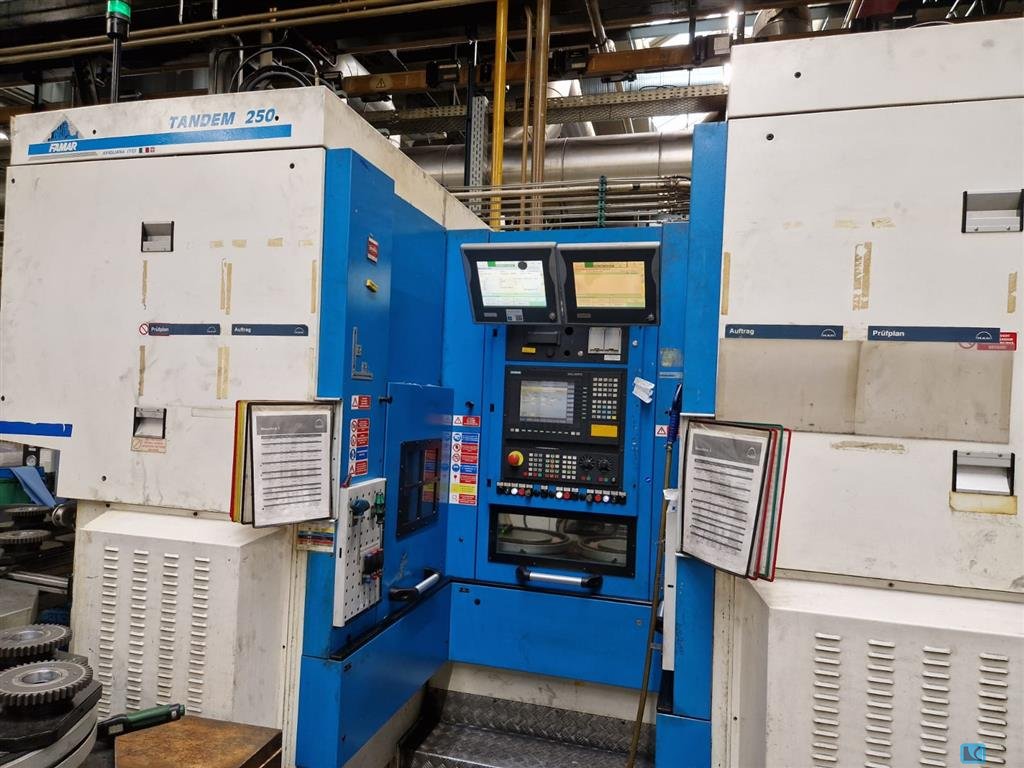

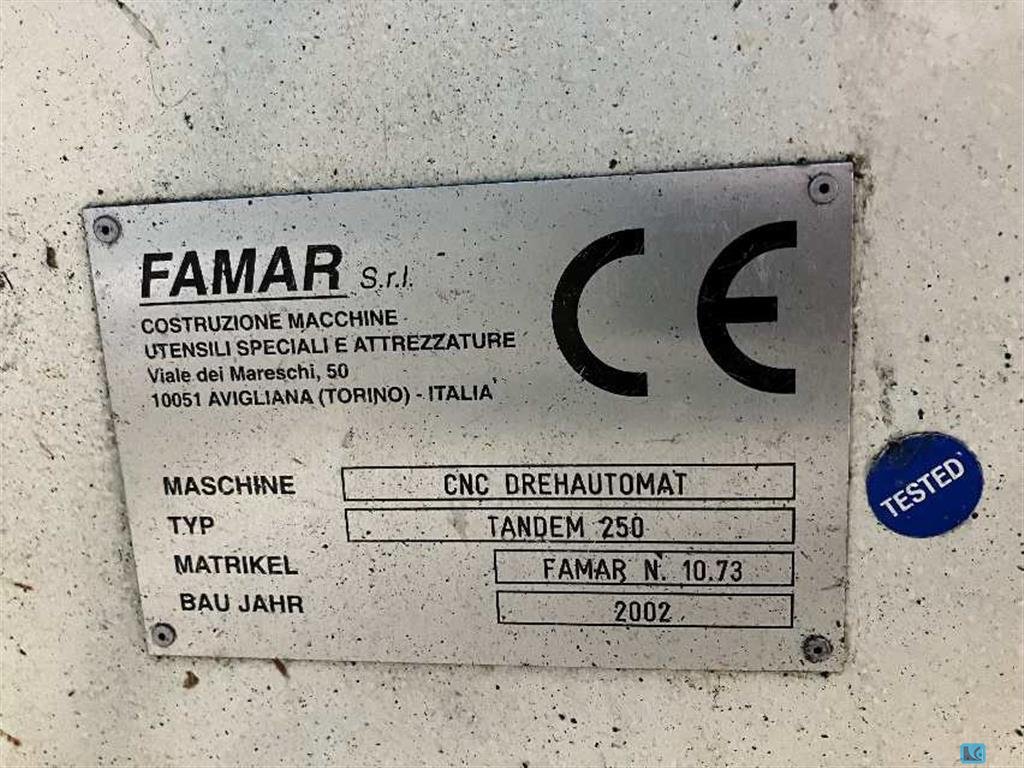

turning diameter:250 mmswing diameter:260 mmAvailable from October 10, 2025 The system consists of two individual systems that are linked together.No driven tools!

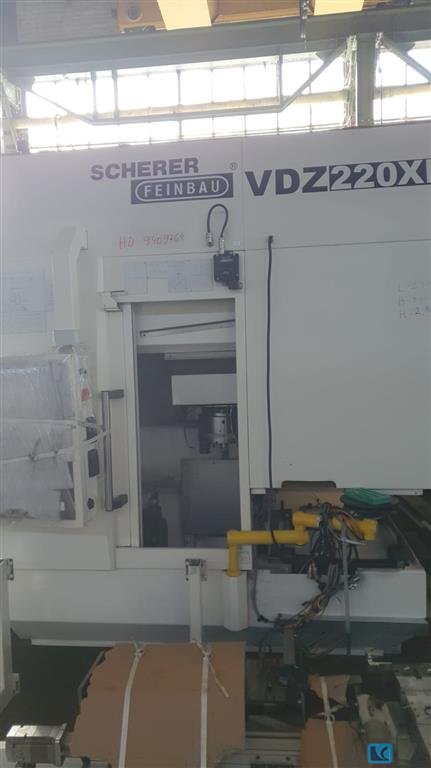

turning diameter:220 mmturning length:310 mmtotal power requirement:17 kWweight of the machine ca.:3,3 tdimensions of the machine ca.:2,25 x 1,63 x 1940 mgreates pass round over bed:430 mmbore diameter:45 mmcentre distance:687 mmslide travel radial ( X-axis ):160 mmslide travel axial ( Z-axis ):310 mmspindle turning speed range:0-6.300 U/min

turning diameter:220 mmturning length:700 / 665 mmtotal power requirement:17 kWweight of the machine ca.:2,6 tdimensions of the machine ca.:2,63 x 1,98 x 1,94 mgreates pass round over bed:430 mmPart length max.:510 slide travel radial ( X-axis ):160 mmbore diameter:45 mmTexte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m

turning diameter:360 mmturning length:520 mmtotal power requirement:20 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3 x 2 x 2 m

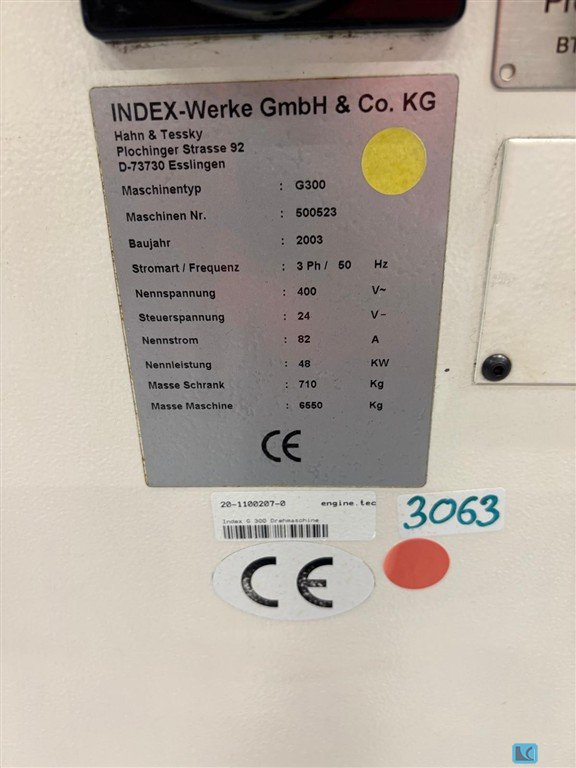

turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith live tools:VDI40 Live tooling VDI40with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock versionChip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mmturning length:710 mmweight of the machine ca.:6,5 tmax. swing diameter:590 mmwith automatic loading and unloading system, chip conveyorG300 with "spindle bore clamping capacity 90mm" in tailstock versionThe machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:250 mmswing diameter:260 mmAvailable from October 10, 2025 The system consists of two individual systems that are linked together.No driven tools!

Out of valve production

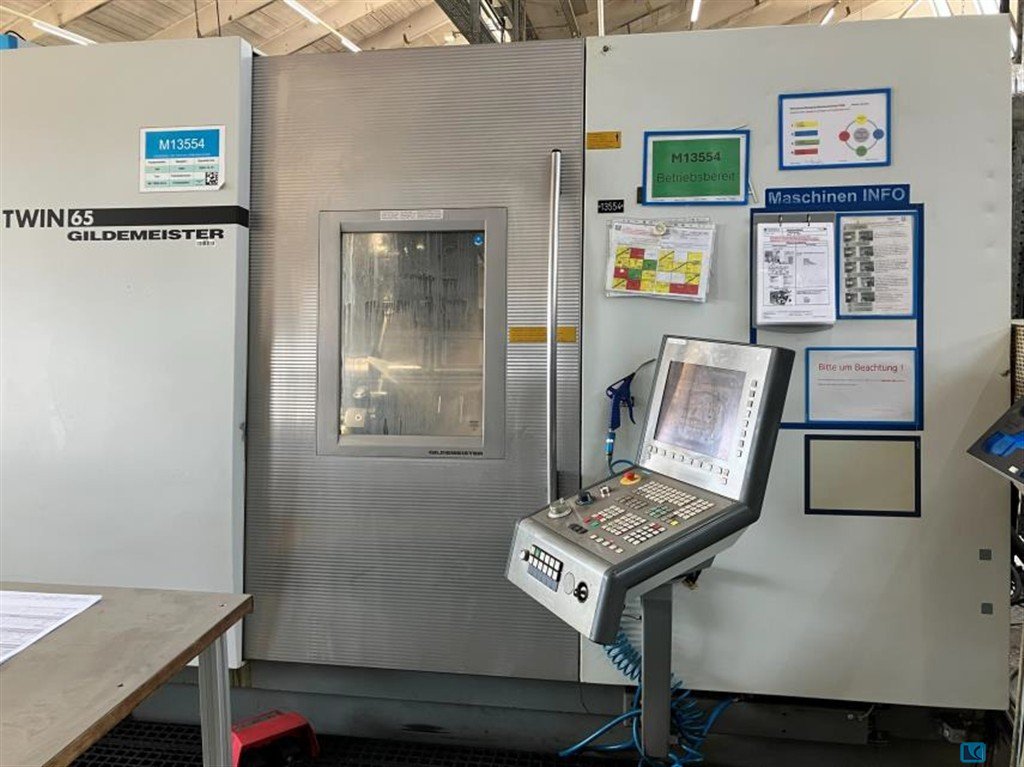

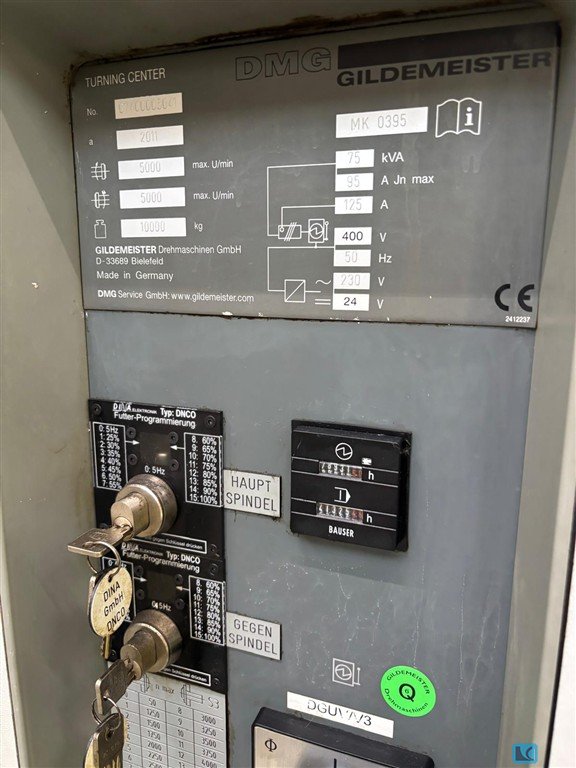

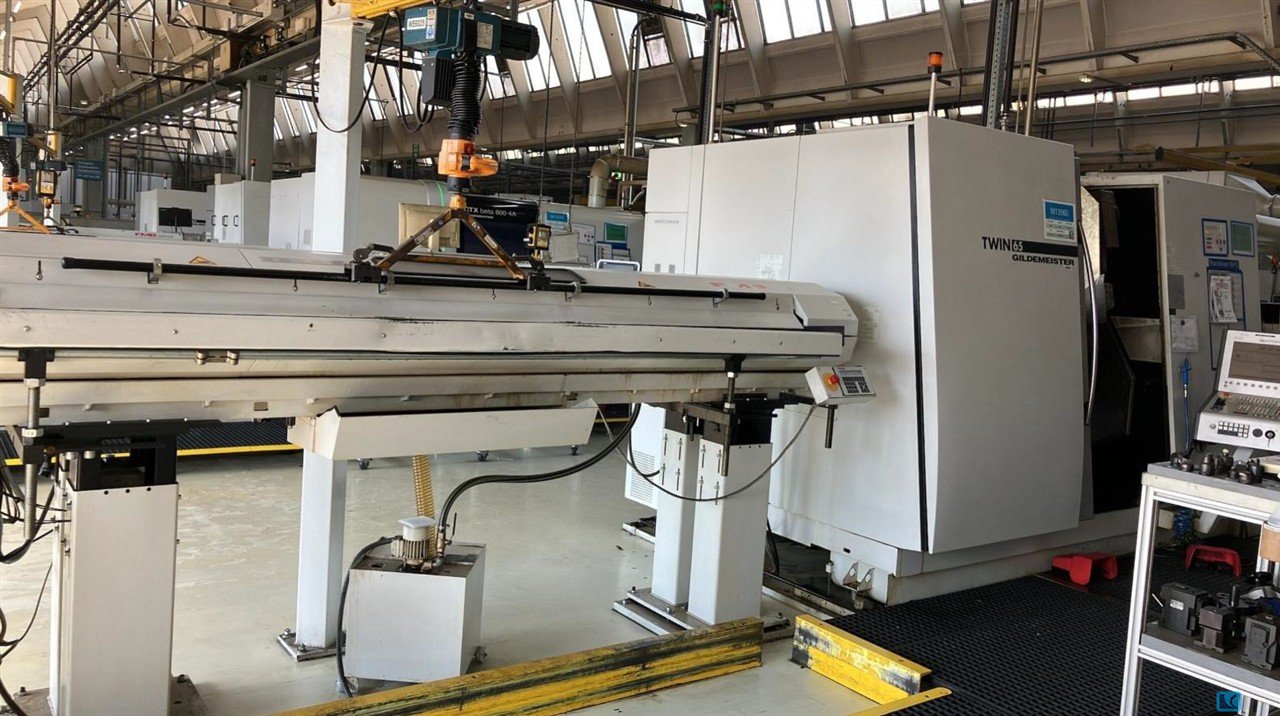

turning diameter:120 mmturning length:650 mmweight of the machine ca.:11 tdimensions of the machine ca.:5,032 x 3,048 x 2,445 mGildemeister MF Twin 65-II lathe with loading automation.This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mmturning length:650 mmweight of the machine ca.:11 tdimensions of the machine ca.:5,032 x 3,048 x 2,445 mmax. swing diameter:250 mmGildemeister MF Twin 65-II lathe with loading automation.This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

weight of the machine ca.:9,5 t

turning diameter:150 mm

faceplate diameter:1800 mmswing diameter:2000 mmturning height:1170 mmz-axis:1000 mmcross rail adjustment - vertical:800 mmfaceplate speeds::2,5 - 280 workpiece weight:12 tfeeds:1 - 6000 mm/minmax. torque on the faceplate:50000 Nmtotal power requirement:85 kWweight of the machine ca.:41 tdimensions of the machine ca.:5,6 x 4,8 x 4,6 mMachine retrofit and overhould in 2005 with SIEMENS 840 D powerline control- 6 jaw hydraulic power chuck- tool changer for 12 tools- chip conveyor, coolant attachment, splash housing- various tool holders

faceplate diameter:1000 mmswing diameter:1600 mmturning height:1200 mmmain drive:75 kWfaceplate speeds from - to:7 - 800 U/minmilling motor:25 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 mmram head dimension:240 x 240 mmweight of the machine ca.:40 todimensions of the machine ca.:9 x 7,8 x 6,0 mMachine general overhould in 2004 and equiped with Siemens 840 D control- tool changer rack magazine- C-axis, live tooling, - Transmit function electronical Y-axis- angular milling head - complete splash housing - coolant device, chip conveyor

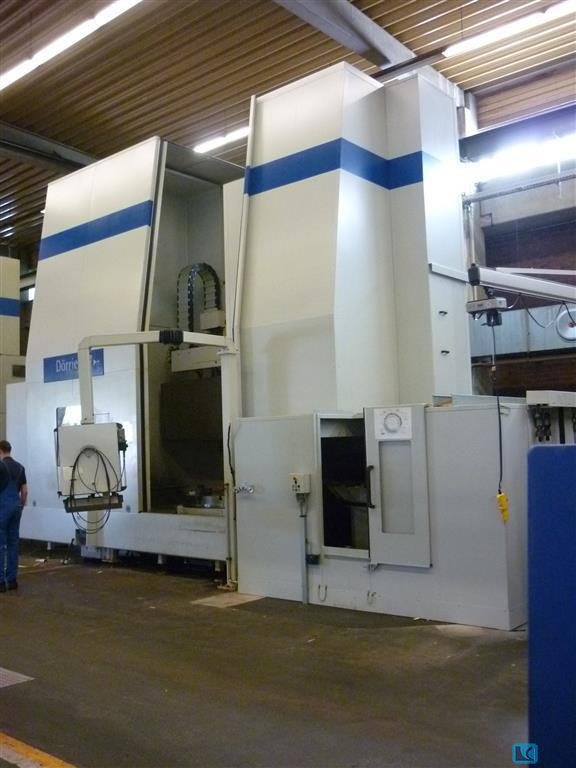

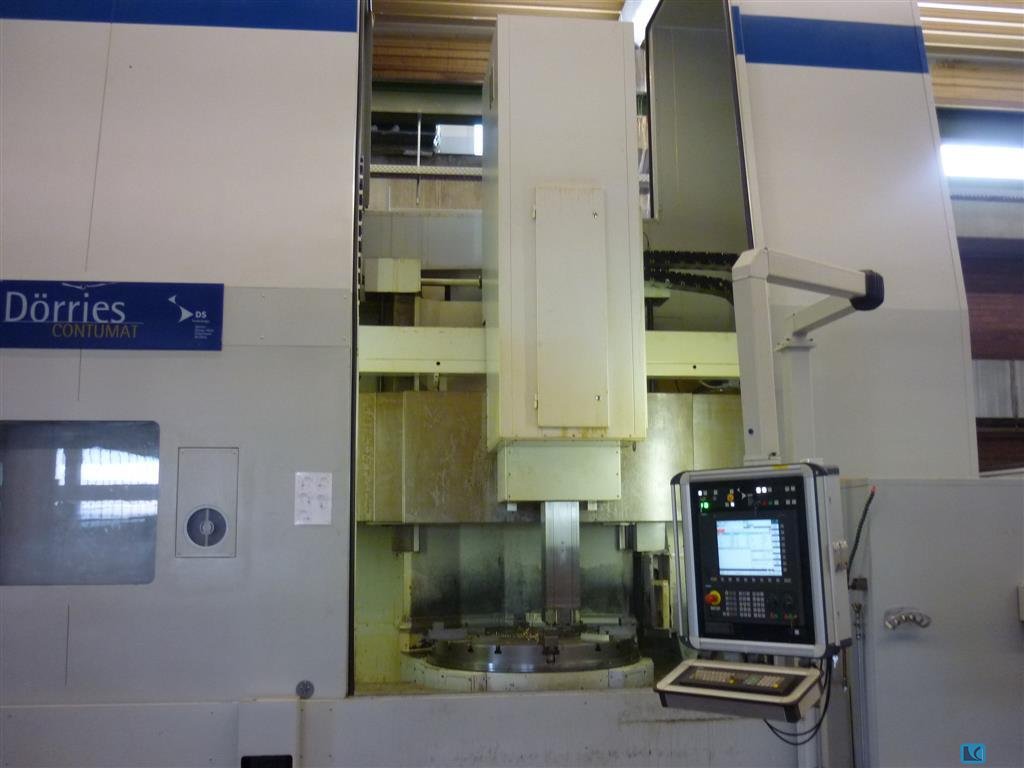

faceplate diameter:1400 mmswing diameter:2000 mmturning height:1270 mmmain drive:80 kWfaceplate speeds from - to:1 - 355 U/minmax. workpiece weight:6.000 kgmilling motor:37 kWmilling head speed:7 - 3000 U/minmilling spindle - taper:ISO 50cross rail adjustment - vertical:800 (8 x 100 mm) mmram head dimension:240 x 240 mmmax. ram stroke:1250 mmweight of the machine ca.:50 tototal power requirement:133 kVAdimensions of the machine ca.:11 x 5 x 6,4 mMachine general overhould in 2008 and equiped with CNC SIEMENS 840 D control- tool changer for 72 tools- C-axis, live tooling- angular- and straight tool holder head with CAPTO taper - Transmit function- complete splash housing - coolant device, chip conveyor- diverse accessories

turning diameter:300 mmswing diameter:350 mmturning height:275 mmx-axis:925 mmz-axis:250 mmclamping chuck diameter:200 mmFeed speed:30 m/min.total power requirement:45 kWweight of the machine ca.:7 tMachine was used just from time to time in the last years - very good condition!with CNC SIEMENS 840 D12-station turret head with driven toolingsworkpiece in and out conveyor beltcoolantattachment and chip conveyordiverse accessories

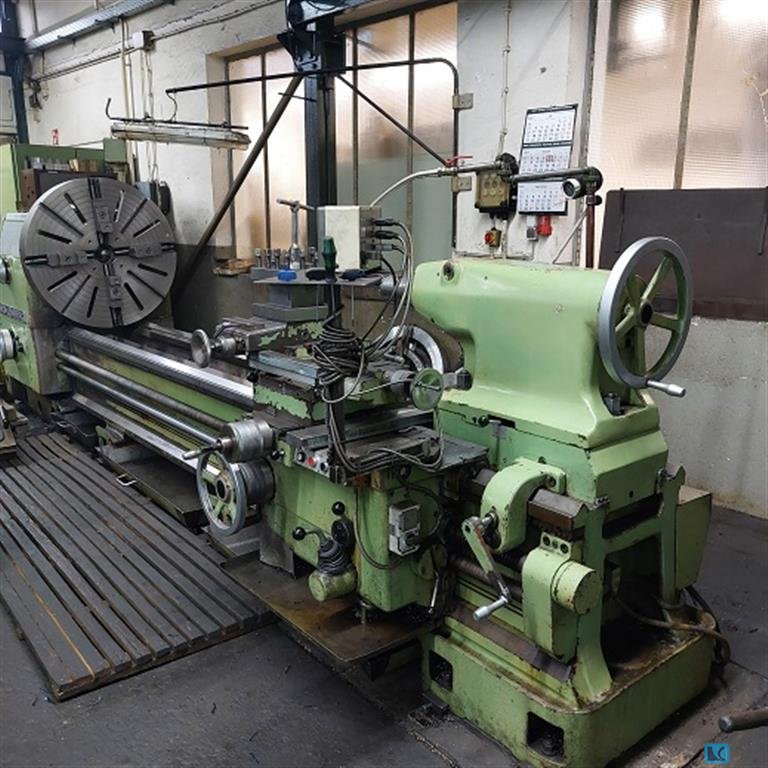

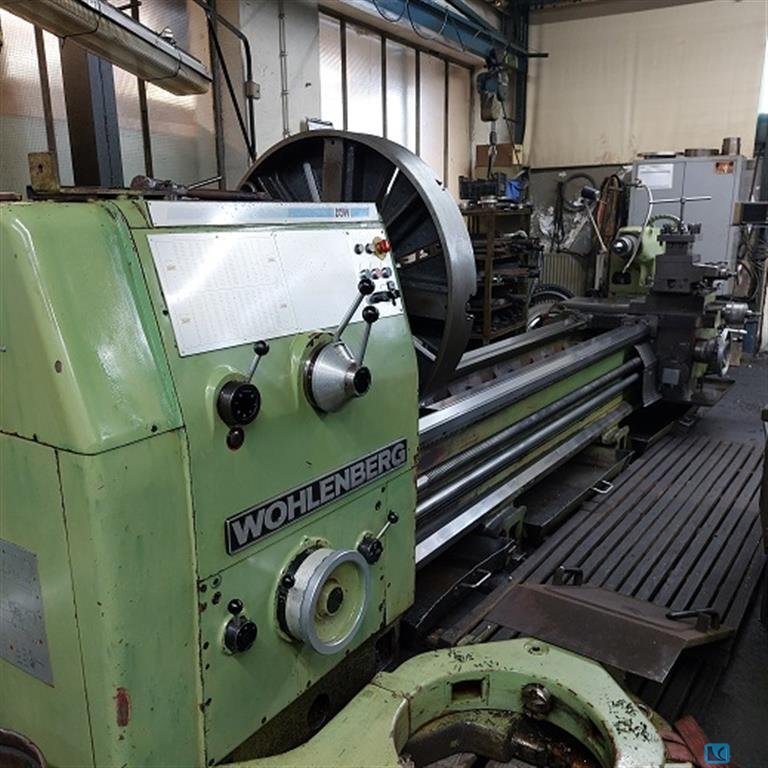

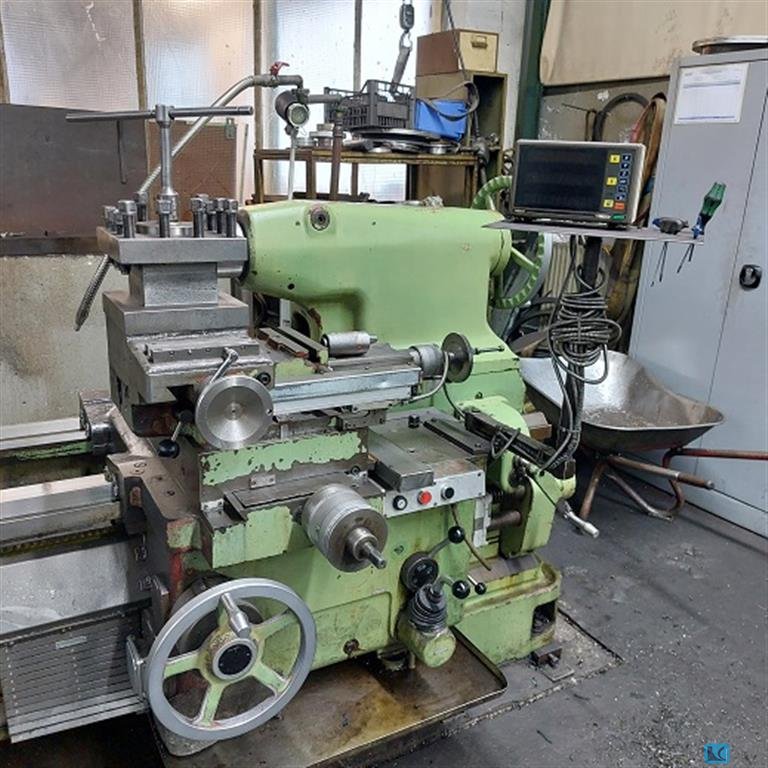

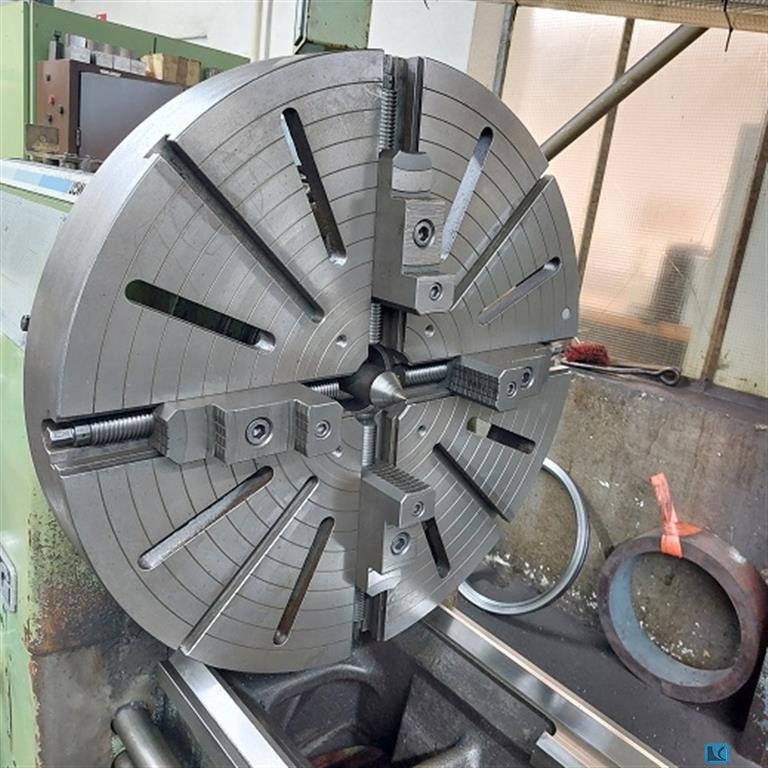

turning diameter over bed:1000 mmturning diameter over slide rest:745 mmturning length:3000 mmturning speed range:4,5 - 900 U/minspindle bore:110 mmmax. workpiece weight between centres:12500 kgtotal power requirement:30 kWweight of the machine ca.:9 tdimensions of the machine ca.:5,2 x 2,3 x 2 m3-axes digital readoutrapid feed, feed at upper support 350 mm 1 fixed steadyface plate diameter 1000 mmcoolant attachment

turning diameter:275 mmturning length:900 mmspindle passage:65 mmpower capacity at 100 % load:25/20 kWspindle turning speed range:1 - 5000 U/minspindle diameter in front bearing:110 mmc-axis:1 - 500 U/min.number of workpiece supports:4 tool turret:1 x-axis:290 mmy-axis:165 mmz-axis:360 mmb-axis:360 °rapid speed:18/30 m/minnumber of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mmtoolpiece turning speed range:8000 / 2000 U/minpower capacity:25% ED 5,8 kWtool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mmz-axis:600/950 mmy-axis:+/- 60 mmrapid speed:18/15/30 m/minnumber of driven tools:10 mmtoolpiece turning speed range:1 - 6000 U/minpower capacity:25% ED 5,8 kWtool taper:DIN 69880 40 x 63 total power requirement:95 kWweight of the machine ca.:16 tdimensions of the machine ca.:10,0 x 3,5 x 3,0 mwith CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000,Main and Sub spindle with C-axis1  ...

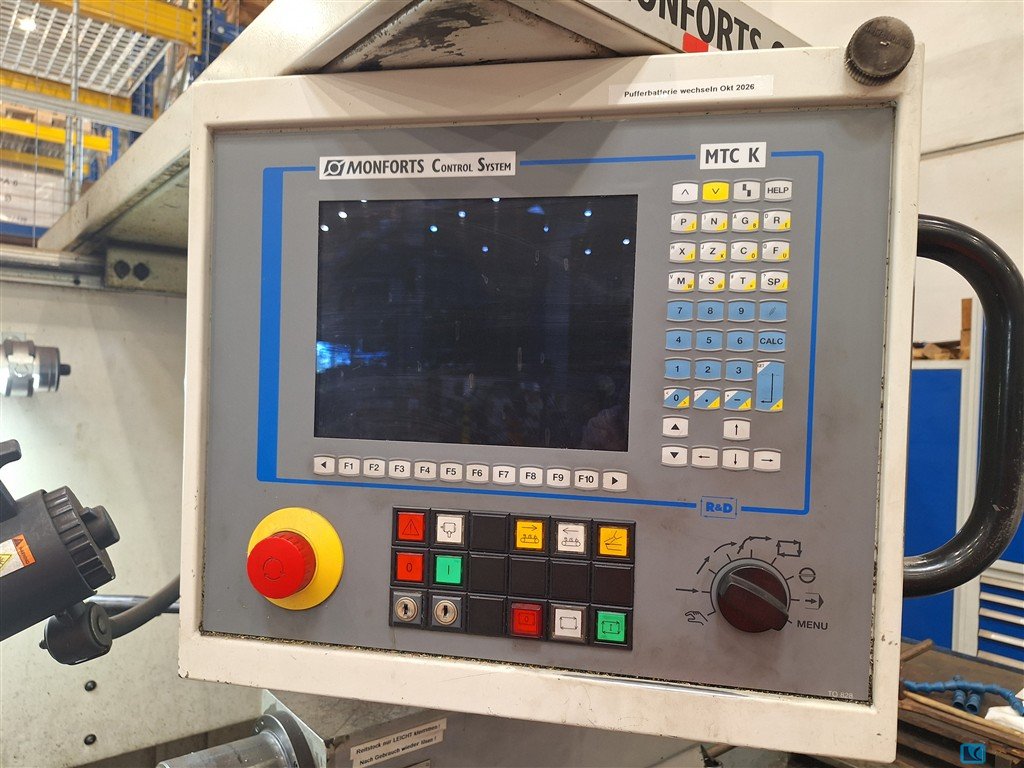

turning diameter:830 mmturning length:4000 mmturning diameter over bed slide:540 mmspindle bore:130 mmturning speed range:2 - 1600 U/minrapid speed:4 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:55 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:7 x 2,2 x 2 mwith Teach In controll R&D MTC-KMULTIFIX toolpost size Dcoolant attachment
