tornos usadas para venda (3,099)

turning diameter:830 mmturning length:4000 mmturning diameter over bed slide:540 mmspindle bore:130 mmturning speed range:2 - 1600 U/minrapid speed:4 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:55 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:7 x 2,2 x 2 mwith Teach In controll R&D MTC-KMULTIFIX toolpost size Dcoolant attachment

turning diameter:500 mmturning length:1500 mmturning diameter over bed slide:290 spindle bore:71 mmturning speed range:3 - 2800 U/minrapid speed:10 / 5 m/minfeed speeds:1 - 2000 mm/mintotal power requirement:22 kWweight of the machine ca.:3,2 tdimensions of the machine ca.:3,0 x 1,6 x 2 mwith Teach In controll R&D MTC-KPARAT toolpost 1 fixed steday dia. 100 mm4 jaw face plate dia. 500 mmcoolant attachment

turning diameter over bed:340 mmturning diameter over slide rest:190 mmturning length:700 mmspindle bore:50 mmspindle turning speed range:40 - 3000 U/mintotal power requirement:6 kWweight of the machine ca.:1,0 tdimensions of the machine ca.:2 x 1 x 1,6 m

turning diameter:800 mmturning length:2965 mmmax. turning dia. over saddle:520 mmspindle bore:92 mmturning speed range:3 - 1800 U/minspindle head:Größe 11 total power requirement:37 kWweight of the machine ca.:6,5 tdimensions of the machine ca.:5,2 x 2,2 x 1,9 mTeach In Control MTC-K3-jaw chuck ROTAS Dia. 400 mmface plate RÖHM Dia. 630 mm4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor

turning diameter:480 mmturning length:800 mmtotal power requirement:30 kWturning diameter over bed slide:240 spindle bore:65 mmdisc turret:12 fachrapid travel range:20 / 10 m/minweight of the machine ca.:4,5 tdimensions of the machine ca.:4 x 2,2 x 2,1 mwith CNC TRAUB TX 8 H C-axis driven tooling, 6 positions 3,5 kW / 4000 rpmpower chuckcoolant attachment, chip conveyordiverse toolholders

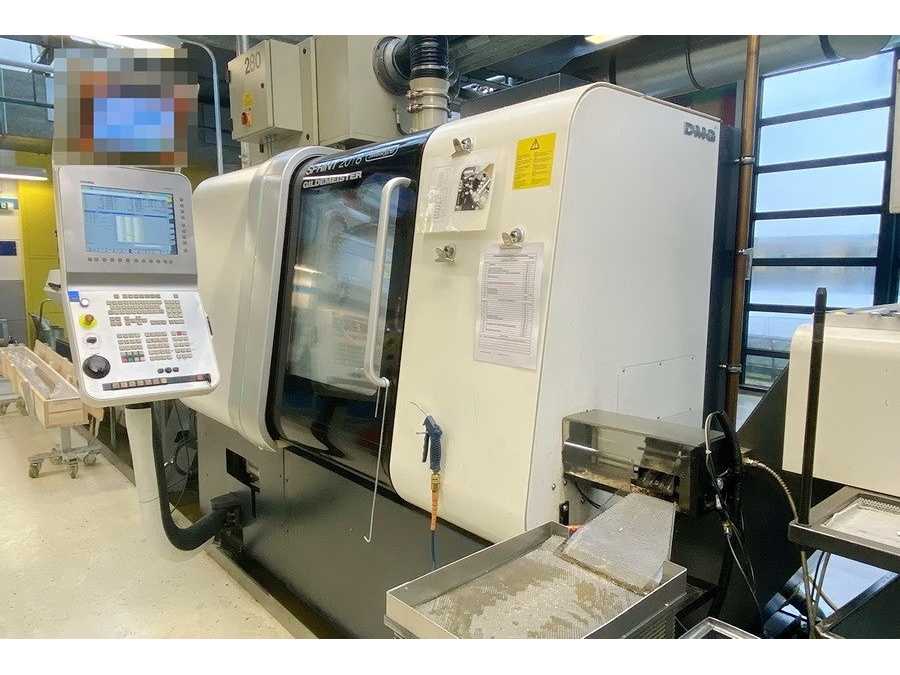

GILDEMEISTER - Sprint 20-8 linear Technical details Turning diameter max. 20 mm Turning length max. 80 mm Control Fanuc 310is Main spindle: max. usable rod diameter 20 (25) mm Inner drawbar diameter 28.5 mm Max. speed main spindle 10,000 min/-1 Drive power - main spindle 3.7 kW Max. torque 9.4 Nm C-axis C1: 360° Sub-spindle: Inner drawbar diameter 28.5 mm Max. speed main spindle 10,000 min/-1 Drive power - main spindle 3.7 kW Max. torque 9.4 Nm C-axis C2: 360° Travels: x-axis 1: 50 / 2: 240 mm y-axis 1: 350 / 2: 120 mm z-axis 1: 80 / 2: 300 mm Tool carrier slide 1: Number of tool positions 17 pos. Collet Diameter ESX / ER 16 Speed driven tools 3x 3,450 / 2x 6,000 min/-1 Drive power - applied Tool stations 5x 0.98 kW Max. torque 3x 4 / 2x 2.3 Nm Tool carrier slide 2: Number of tool positions 13 pos. Interior Machining 4 Exterior machining 4 powered stations 5 pos Shaft diameter 20 m ...

turning diameter:120 mmturning length:100 mmcontrol:Fanuc Spindle 1 power:7,5 kWSpindle 1 RPM:4500 1/minSpindle 2 power:7,5 kWSpindle 2 RPM:4500 1/minDistance between spindle noses:600 mmTurret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kWRPM of rotary tools turret 1:4000 1/minTurret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kWRPM of rotary tools turret 2:4000 1/minTravel x/z turret 1:250 / 300 mmTravel x/z turret 2:250 / 920 mmBar capacity spindle 1:51 mmBar capacity spindle 2:51 mmpower chuck:165 mm Spindle bore sp. 1:62 mmSpindle bore sp. 2:62 mmdimensions of the machine ca.:3700 x 2300 x 3000 mmweight of the machine ca.:5600 kgUsed CNC-2-spindle CNC turning and milling center with gantry loader- 2x 15 station turret-automatic gantry loader with turnaround station.14 station-magazin right sideMax. Parts size Ø 120 x 100 mmDoublegripper ...

turning diameter:370 mmturning length:200 mmSpindle 1 RPM:4000 1/mincontrol:Siemens 840 D Spindle 2 RPM:4000 1/minpower capacity:L / R 18/24 kWmax. torque on the spindle:630 nMC-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40Turret No.2 stations / rotary tools:12/12 VDI 40turning speed range - milling:3000 1/minpower capacity - milling spindle:8,8 kWtorque rotary tools:28 NmBar capacity spindle 1:85 mmtotal power requirement:65 kVAweight of the machine ca.:13 tdimensions of the machine ca.:5,7x2,4x2,1 mTravel x1:260 mmTravel x2:260 mmTravel Y1:600 mmTravel y2:600 mmPower Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mmcontrol:MSX-701 MAPPS IV greates pass round over bed:800 mmMax. distance between centres:1130 mmmax. turning diameter:320 mmmax. workpiecediameter:300 mmbar material dia.:65 mmTraverse X-Axis 1:210 Traverse X-Axis 2:210 mmTraverse X-Axis 3:210 mmTraverse Y-Axis 1:110 (+65/-45) mmTraverse Y-Axis 2:110 (+45,/-65) mmTraverse Z-Axis 1:300 mmTraverse Z-Axis 3:300 mmTraverse Z-Axis 2:810 mmTraverse B-Axis:870 mmturning speed range - spindle:5.000 1/minNumber of spindle speed ranges:2 .spindle nose:JIS A2-6 spindle bore:73 mmspindle bearing diameter:120 mmC-Axis:0,001 °turning speed range - spindle:5.000 1/minspindle nose:JIS A2-6 spindle bore:73 mmbar material dia. max:65/52 mmspindle bearing diameter:120 mmC-Axis:0,001 °Number of Turrets:3 .Number of tool stations:16 x 3=48 posSchank height for square tool:20 mmDiameter of boring bar:32 mm ...

turning diameter:640 / 400 mmturning length:1500 mmcontrol:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mmSwivle angle milling spindle (B-axis):±120° interpol. °Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/minRPM milling spindle:12000 1/minpower capacity - milling spindle:12 / 23 kWTorque of milling spindle:100 NmTool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 sSpindle 1 RPM:4000 1/minSpindle 1 power:36/ 45 kWSpindle 1 Torque:730 NmSpindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/minSpindle 2 power:36 / 45 kWSpindle 2 torque:730 NmSpindle 2 max. bar diameter:90 c-axis:0,001 °Travel turret 2 x:225 mmTravel Turret 2 z:1595 mmRPM of rotary tools turret 2:4000 1/minno. of tools in turret 2:12 VDI 40 high-pressure pump:20 bartotal power requirement:110 kVAweight of t ...

turning diameter:33 mmturning length:330 mmcontrol: 840 total power requirement:20 kWweight of the machine ca.:6 tdimensions of the machine ca.:3850,2000,2100 m17 axes3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axesBarfeederMachine On-time 58,133 hours

turning diameter:500 mmturning length:1000 mmcontrol:Siemens 840 D spindle:42 / 28 kWspindle turning speed - stepless:31 - 4000 1/minmax. torque on the spindle:345 Nmc-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/minrapid traverse:10000 mm/minturret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/mindiameter of quill:90 mmquill stroke:80 mmtailstock quill taper ISO:SK 30 Tailstock Travel:600 mmPower rotary tools:3,5 kW:22,5 NmRotary tool holders:4 ax./ 4 rad. spindle passage:66 mmtotal power requirement:30 kWweight of the machine ca.:7,5 tdimensions of the machine ca.:8x 3 x 4 m

Self-centering chuck 3 jaws Rohm 400 mm Independent chuck 4 jaws Rohm 600 mm Running glasses 30-200 mm Fixed Seat with Rollers 40-215mm Fixed Glasses with Rollers 210-390 mm Sony digital readout 2 axis Multifix quick-change holder type D Fixed center Rotating center Pivot bus Manual & drawings German language Manual English Auction-ID: A1-47358-171

standard turning dia.:200 turning length:max. 810 mmcontrol:MSX-701 MAPPS III greates pass round over bed:800 mmMax. distance between centres:1130 mmmax. turning diameter:320 mmmax. workpiecediameter:300 mmbar material dia.:65 mmTraverse X-Axis 1:210 Traverse X-Axis 2:210 mmTraverse X-Axis 3:210 mmTraverse Y-Axis 1:110 (+65/-45) mmTraverse Y-Axis 2:110 (+45,/-65) mmTraverse Z-Axis 1:300 mmTraverse Z-Axis 3:300 mmTraverse Z-Axis 2:810 mmTraverse B-Axis:870 mmturning speed range - spindle:5.000 1/minNumber of spindle speed ranges:2 .spindle nose:JIS A2-6 spindle bore:73 mmspindle bearing diameter:120 mmC-Axis:0,001 °turning speed range - spindle:5.000 1/minspindle nose:JIS A2-6 spindle bore:73 mmbar material dia. max:65/52 mmspindle bearing diameter:120 mmC-Axis:0,001 °Number of Turrets:3 .Number of tool stations:16 x 3=48 posSchank height for square tool:20 mmDiameter of boring bar:32 m ...

turning diameter:160 mmturning length:300 mmcontrol:Siemens 840D Spindle 1 Power:22 kWSpindle 1 RPM:5000 1/minSpindle 1 max. bar diameter:65 Spindle 1 Torque:150 NmSpindle 2 power:16,8 kWSpindle 2 RPM:5000 1/minSpindle 2 torque:100 NmTravel for pick up of 2nd Spindle:W2=690 mmdimensions of the machine ca.:´4,5x2,0x2,3 mweight of the machine ca.:9 tCNC turning center with 3 turrets with rotary tool drives and 2 spindles.There is an internal coolant system for the turrets with individual pumps

weight of the machine ca.:2,5 tspindle passage:65 mm

turning diameter:190 mmturning length:503 mmcontrol: Fanuc 31i - TA Travel x/z turret 1:135 / 503 mmTravel Y1:62 (± 31) mmTravel x/z turret 2:135 /503 mmc-axis:Sp. 1 / 2 Spindle 1 RPM:6000 1/minSpindle 1 Power:11/7,5 kWSpindle 1 max. bar diameter:42 mmSpindle 2 RPM:6000 1/minSpindle 2 power:11/7,5 kWTurret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:6000 1/minTurret 1 power rotary tools:7,1 / 2,2 kWTurret No.2 stations / rotary tools:12/12 Turret 2 tool RPM:6000 1/minTurret 2 power rotary tools:7,1 / 2,2 kWtotal power requirement:53 kVAweight of the machine ca.:5700 tdimensions of the machine ca.:2,3 x 1,6 x 1,94 mHigh precision cnc turning center, rotary tools and y-axis on upper turret, Robot loader for shafts.

turning length:400 mmtotal power requirement:45 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,58 x 1,91 x 2,05 mspindle passage:45 mm

turning diameter:1600 mmturning length:6200 mmturning diameter over bed slide:1250 Turning rate:5 - 710 U/min.total power requirement:37/52 kWweight of the machine ca.:16 tdimensions of the machine ca.:12 x 4 x 2 mCNC SIEMENS Sinumerik3-jaw chuck SCHUNK Rota Plus Dia. 630 mm3 x fixed steadies ( 1200 / 570 / 400 mm ) coolant attachment and chip conveyordiverse accessories

turning diameter:410 mmturning length:500 mmcontrol:Fanuc 21i TB standard turning diameter:275 mmtravel -x axis:277 mmtravel -y axis:82 (±41) mmtravel -z axis:500 mmSpindle 1 RPM:4500 1/minSpindle 1 Power:18,5/18,5/15 kWSpindle 1 max. bar diameter:65 mmturret stations / rotary tool stations:12/12 Power rotary tools:5,5 kWRPM of rotary tools:6000 1/mintotal power requirement:39,2 kVAweight of the machine ca.:6,2 tdimensions of the machine ca.:3,1 x 2,0 x 2,2 mcollet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading.Stäubli Robot for shaft loading.

turning diameter:500 mmturning length:1000 mmweight of the machine ca.:7,3 tdimensions of the machine ca.:6,5 x 4,45 x 2,21 m

faceplate diameter:4000 mmswing diameter:4300 mmturning height:330 mmfaceplate turning speed range:1 - 92 U/minworkpiece weight:18 tfeeds:1 - 4000 mm/minmain drive motor:55 kWtotal power requirement:85 kVAweight of the machine ca.:64 tdimensions of the machine ca.:90, x 7,2 x 5,5 mwith CNC SIEMENS 840 D for 4 axis2 Vertical Supports tool Basic holderchip conveyor

faceplate diameter:4770 mmswing diameter:7000 mmturning height:1000 mmslide stroke:1000 mmworkpiece weight max.:100000 kgfaceplate turning speed range:2 - 20 U/minfeed speeds:1 - 10000 mm/minrapid traverse:10 m/minram head dimension:250 x 250 mmmain drive:100 kWtotal power requirement:200 kWwith CNC SIEMENS 840 D2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpmChip conveyor and coolant attachment

turning diameter over bed:350 mmturning diameter over slide rest:240 mmturning length:800 mmSpindle RPM:40 - 2000 in 8 Stufen 1/mintotal power requirement:3 kWSpindle bore:26 mmtailstock quill taper MT:MK 2 dimensions of the machine ca.:1,5 x 1,0 x 1,6 mweight of the machine ca.:1,9 tVery well maintened center lathe with accessories- 3-jaw, 4-jaw chuck- tailstock with center- 1 boring head- RAPID quick tool change device with 3 holder- saddle mounted steady rest- collant device- set of collets appr. 75% size B 32

turning diameter:325 mmturning length:600 mmtotal power requirement:35 kWspindle drive:25 kWspindle turning speed range:5000 U/minspeeds of tool:4500 U/minrapid traverse X-axis:60 m/mindiverse toolholders:VDI 40 rapid traverse Z-axis:45 m/minweight of the machine ca.:6,5 tdimensions of the machine ca.:3,5 x 2,5 x 2,1 mMachine with SIEMENS 840 D control power line with shopturn- C and Y-axis, driven tools- bar loader IRCO ILS-RBK- coolant device with coolant throough revolving head- Revolver- counter spindle- chip conveyor- collet clamping - part catcher

turning diameter:626 mmturning length:3000 mmTurning diameter:600 mmspindle bore:100 mmspindle turning speed range:2800 U/minweight of the machine ca.:18 tMachine overhold and retrofit in 2003 with SIEMENS 840 D control- NC steady rest- 12-fold revolving head- splash doors- tailstock- coolant device

HITACHI SEIKI - HiTec-Turn HT 20 RIII Stock number 1039-9425 Country of origin Germany Technical details Turning diameter 450 mm Turning length 380 mm Seico 40L Multi Control Max. machining diameter 340 mm Bar passage 51 mm Speed range - spindle 30 ~ 5,000 rpm Drive power - spindle motor 11 / 7.5 kW Spindle nose A2-6 Spindle bore 59 mm Bearing diameter 100 mm Travel - x 215 mm Travel - z 400 mm Turret head (x-fold) 16 Feed rate 0.001 ~ 500 mm/min Rapid traverse X/Z: 30 m/min Shaft diameter 25 x 25 mm Shaft diameter of the drills 40 mm Tailstock Tailstock mount MK 5 Tailstock Shift 300 mm Total power requirement 23 kVA Space requirements approx. 5.5 x 2.8 x 2.2 m Accessories Documentation Chip conveyor Tailstock Signal Lamp Parts removal Tool measuring arm Workspace lighting Tool holder (turret) Auction-ID: A7-49608-20

turning diameter over bed:930 mmturning diameter over slide rest:630 mmturning length:6000 mmturning dia. in gap:1250 mmspindle bore:95 mmturning speed range:8 - 800 U/mintotal power requirement:25 kWdimensions of the machine ca.:9 x 2 x 1,9 mfaceplate 2 steadiescoolant attachment taper turning attachment

Maximum turning diameter above bed: 930 mm Maximum rotation diameter above cross slide: 630 mm Center distance: 5000 mm Spindle nose: Bayonet DIN 55027 K11 Spindle bore: 96 mm Spindle Speed: 8-800 (24) rpm Main drive: 22 kW Dimensions W x D: 2050 x 2200 mm Extras: Clamping plate 400 mm self-centering 3-jaw Clamping plate 800 mm independent 4-jaw Conical Turning Attachment Movable support 260 mm Fixed support with roller inserts 20-400 mm Fixed support with roller inserts 350-580 mm Sony digital readout 2-axis Tool holder Multifix D1 Tool holders 1 piece Cooling system Machine manual and drawings (German language) Auction-ID: A1-47358-175

faceplate diameter:1600 mmswing diameter:1800 mmturning height:1500 mmmax. ram stroke:1200 mmfaceplate turning speed range -stepless-:2,5 - 250 U/minworkpiece weight max.:10.000 kgram head dimension:240 x 240 mmfeed range:1 - 3000 mm/minpower capacity:45 kWweight of the machine ca.:20 tmodernized and overhauled in 2010 with CNC SIEMENS 840 D12 positions automatic toolchangertelescopic coverssplash guardingchip conveyorcoolant attachmentdiverse toolholders
