This Schaudt Mikrosa SASL 125 was manufactured in 1989. A centerless external grinding machine, it features NC-controlled operations and hydrodynamic axis bearing. Both wheels can be dressed via a controlled axis. Refurbished by UHLMAN Werkzeugmaschinen-Service in 2021/22, it has been regularly maintained. Consider the opportunity to buy this Schaudt Mikrosa SASL 125 centerless grinding machine. Contact us for more information.

Ground precision ball screw, D50mm, 1725mm, Schaudt Mikrosa, new As good as new in original packaging! The high quality part comes from a spare parts warehouse of a mechanical processing of a large car manufacturer, is completely as new and in the original packaging. Attention: We have many, in stock, high quality ball screws in different versions in the diameters 32, 40, 50, 63 and 83mm. Please have a look at our website of IPV GmbH. Ball screw, Type 0/500.04.100.01, D50 mm, 1725 mm, Fa. Schaudt Mikrosa Ball screw diameter 50 mm, Pitch 10 mm, Length of thread 1445 mm Length of ball screw nut 93 mm, Max. total stroke 1352 mm, Total length of the spindle 1725 mm Diameter for ...

Machine type: CNC centerless grinding machine Make/Model: MIKROSA KRONOS M SPECS CNC Fanuc 21iM grinding wheel max sizes: 250mm wide x 610mm diameter 2 controlled axis on grinding wheel dressing (interpolated) 1 axis on regulating wheel 1 axis on plunge axis (workpiece diameter) Throughfeed grinding: yes Plunge grinding: yes can be inspected under power in our warehouse in Gussago BS (Italy)

Mikrosa SASL 5 CNC (Kronos L size), complete overhaul and retrofit Grinding wheel 500 x 610 mm Regulating wheel wheel 400 x 650mm Fixed center Complete mechanical overhaul Complete electrical overhaul No hydraulic movements Application 5-axis CNC controlled in position with digital brushless motors: - working wheel axis motor with Heidenhain linear encoders - Grinding wheel and regulating wheel both with electrical axis movements - rotating axis with digital brushless motor on regulanting wheel - rotating axis with 55kW AC motor with inverter on grinding wheel to regulate number of RPM Protection and fume extraction hood For through-feed grinding and customization possible according to custo ...

(3) Mikrosa SASL 5 CNC (size similar to Kronos M, MX, L) CNC overhaul and retrofit in progress full overhaul and CNC retrofit (pending) komplett Ueberholung + CNC retrofit Grinding wheel 500mm wide x 610mm dia. CNC 5 axis / 5 axis Mikrosa SASL 5 CNC complete overhaul and retrofit Grinding wheel 500 x 610 mm Regulating wheel 400 x 650mm Fixed center Complete mechanical overhaul Complete electrical overhaul Elimination of hydraulic movements Application CNC Siemens 840D 5 axes controlled in position with digital brushless motors: - Operating wheel axis motor with optical scale - 4 dressing axes: 2 on the grinding wheel, 2 on the regulating wheel - rotating axis with adjustable speed motor on r ...

grinding diameter max.: 140 mm regulating wheel width: 250 mm max. width of grinding wheel: 250 mm max. workpiece length: 245 mm grinding wheel diameter min/max.: (630)500 x 305 x 250 mm grinding wheel peripheral speeds:: 35 / 45 / 60 m/sec regulating wheel diameter: 315 x 127 x 250 mm regulating wheel turning speeds: 11 - 280 U/min grinding spindle drive: 22/30 kW : 460 U/min Control: total power requirement: 33 kW weight of the machine ca.: 5 t dimensions of the machine ca.: 4 x 2 m Centreless external cylindrical grinding machine for through-feed and plunge grinding Refurbished and modernised in 2022 Equipped with: - Siemens NC control with latest control software - New control cabinet & ...

Grinding length: 500 mm Grinding diameter: 300 mm Grinding wheel diameter: 400 mm Equipped with: - Bezel - Grinding wheels Country of origin: Germany Machine LxWxH: 2300 x 1700 x 1700 mm Machine Weight: 3500 kg  ...

• more information

grinding length:600 mm centre height:180 mm swing dia.:360 mm workpiece weight:80 kg max. dia. of grinding wheel:500 mm grinding wheel width:80 mm grinding wheel hole diameter:203,2 mm peripheral speed:45 m/sec There is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

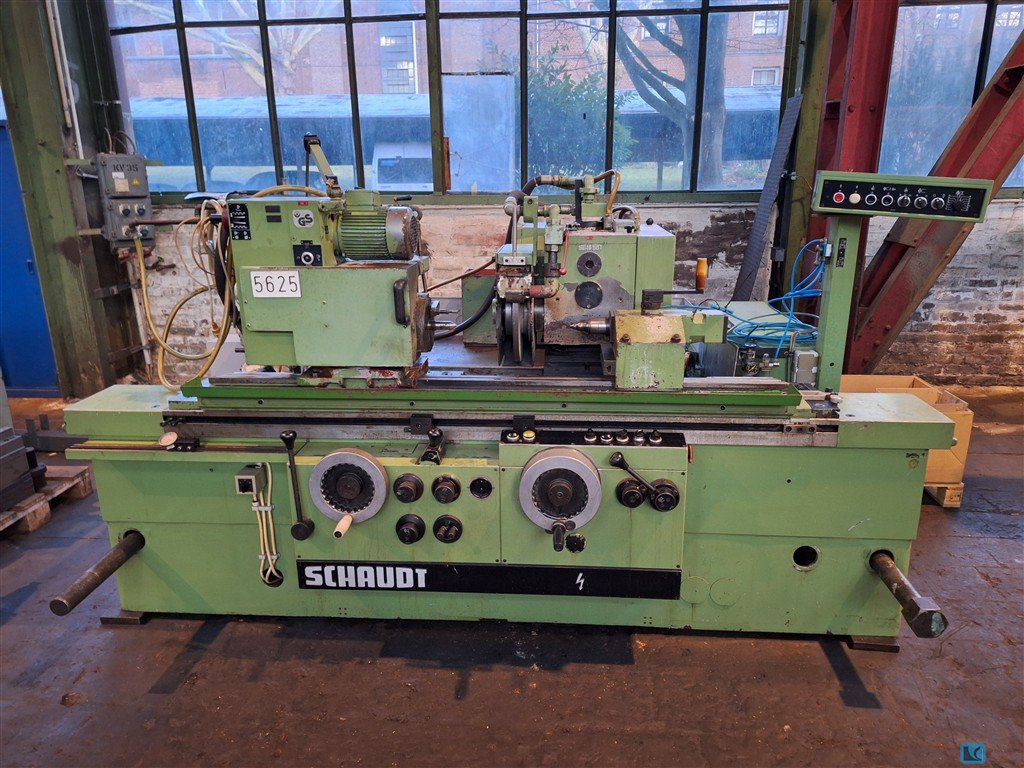

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

grinding diameter:300 mm grinding length:600 mm centre height:190 mm z-axis:865 mm x-axis:250 mm clamping length:1000 mm peripheral speed:45 m/sec grinding slide swivable +/-:8 ° grinding wheel width x diameter:80 x 508 mm work piece spindle speed:1 - 800 U/min weight of the machine ca.:5 t Machine with SIemens 840 C control - coolant device - Marposs measuring device
