Gate valve Inter APP FESTO: 2104682033 N409 DE-CS16 76428A DN 150 PN Multi 10 bar VZAV-C-150-10 S8PN16-H1EP200 V5-V3 E_DX5EX4 Body Disc 2KR/400 Liner EPDM Shaft 14021  ...

• more information

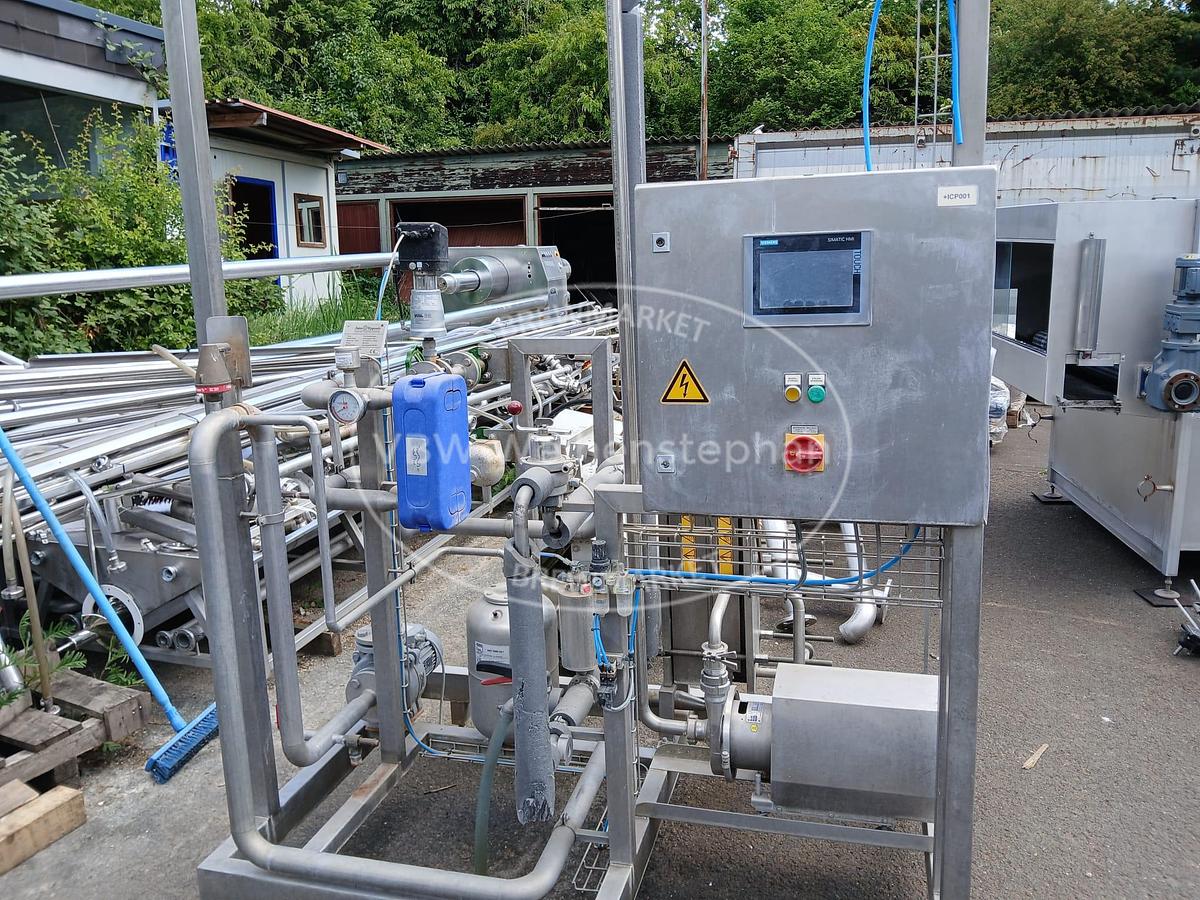

Flash pasteurizer for pasteurizing liquid food products. With pumps, preheater and control unit mounted on a common frame. Designed for a capacity of 1000 liters/hour., Additional title: Pasteurisation, Capacity: 1000 l/h, Compressed air: 6 bar for control air, Length: 1,7 m, Width: 1,2 m, Height: 2,5 m, Operation / Control: HMI on switch cabinet, Base construction: mounted on frame, Features: 2 x Alfa Laval plate heat exchangers, 2 x centrifugal pumps, pressure compensation tank, sight glass, temperature and pressure sensors, various other fittings and valves, HMI

- replaceable stainless steel sifties for adjusting the grinding unit - food-grade - self-sufficient use or mounted directly on pre-basket presses nominal power up to 650 kg/h engine power 1.5 (2.0) kW (PS) Electrical connection 400V 50Hz (3 phases) Electrical protection 16 A La 496 mm width 434 mm He 885 mm He he with frame 1360 mm Hehe Assumption 1360 mm Weight 28 kg weight (without / with frame) 28 / 42 kg material 1.4301 / AISI 304 Hoehe mash release 690 mm Supplied cutter 8mm ; New machine - best condition

- The classic must press nominal power up to 180 kg/h engine power press 1.1 (1.5) Muehle 1.5 (2.0) kW (PS) Electrical connection 400V 50Hz (Electrical connection 400V 50Hz (Electrical connection 400V 50Hz ( 3 phases) Electrical fuse 16 A Laenge 1000 mm width 900 mm Height 1700 mm Hehe Assumption 1770 mm Weight 216 kg material Polystyrene, basket and Muehle in 1.4301 / AISI 304 Press force 16.1 to Press pressure 320 bar Juice yield up to 65% connection for juice drain 30mm High juice drain 480 mm High marc ejection 580 mm Supplied 1 press bag 60l, 3 inserts 38cm, 3 press inserts made of acacia wood 38cm ; New machine - best condition

Rated power up to 300 kg/h engine power press 1.5 (2.0) Muehle 1.5 (2.0) kW (PS) Electrical connection 400V 50 Hz (3 phases) Electrical fuse 16 A Laenge 1200 mm width 1000 mm He 1880 mm Basket and juice tray in 1.4301 / AISI 304 press force 24.2 to Press pressure 380 bar Juice yield up to 65% Connection for juice drain 30mm High juice drain 525 mm Hoehe Marc ejection 585 mm Supplied 1 press bag 100l, 3 insert huellen 48cm, 3 Press inserts made of acacia wood 48cm ; New machine - best condition

- Adjustment of the grinding unit - for the crushing of various fruit varieties food-grade nominal power up to 1000 kg/h engine power 2.2 (3.0) kW (PS) Electrical connection 400V 50Hz (3 phases) Electrical fuse 16 A Laenge 532 mm width 519 mm 1151 mm Hehe with frame 1532 mm He he Assumption 1532 mm Weight 45 kg weight (without / with frame) 45 / 59 kg material 1.4301 / AISI 304 Hoehe mash release 666 mm Supplied New machine - best condition

- for the production of mash - easy operation and easy cleaning nominal power up to 4200 kg/h engine power 5.5 (7.5) kW (PS) Electrical connection 400V 50Hz (3 phases) Electrical protection 16 A Laenge 7 30 mm width 690 mm Hoe 1410 mm Height assumption 1410 mm Weight 88 kg material 1.4301 / AISI 304 Hoehe mash release 470 mm Supplied New machine - best condition

Pasteurizing system with Roehrenwaerme exchanger nominal power l/h 600 l/h power heating heater / oil boiler 55 kW Electrical power 1.1 kW Electrical connection 230V 50Hz (1 phase) Electrical fuse 16 A Laenge 1400 mm width 900 mm Height 1850 mm weight 330 / 430 kg Oil consumption 6 kg/hr ; New machine - best condition

Pasteurizing system with Roehrenwaerme exchanger nominal power l/h 1000 l/h power heating heater / oil boiler 90 kW Electrical power 1.1 kW Electrical connection 230V 50Hz (1 phase) Electrical fuse 16 A Laenge 1400 mm width 900 mm Height 1850 mm Weight 350 / 430 kg Oil consumption 10 kg/hr ; New machine - best condition

Pasteurizing system with Roehrenwaerme exchanger nominal power l/h 1500 l/h power heating heater / oil boiler 140 kW Electrical power 1.8 kW Electrical connection 230V 50Hz (1 phase) Electrical fuse 16 A Laenge 1715 mm width 900 mm He 1900 mm weight 500 / 600 kg Gas consumption flu vinegar gas 11 kg/hr Gas consumption natural gas 15 m3/hr. ; New machine - best condition
