Code 71144 Description Horizontal table borer Make PFEIFER Model F 80 / 100 Serial number 2342 Year 1982 Spindle 100 mm Spindle taper 50 ISO Spindle out (W) 500 mm Table 1000 x 850 mm Cross (X) 1200 mm Longitudinal (Z) 800 mm Vertical (Y) 800 mm Distance table-spindle 0 x 800 mm Speeds 18 steps Spindle speeds 14 – 1500 rpm 16 Feeds 0,03 – 6,0 mm/rev Rapids 2500 mm/rev Rapids all directions ( X-Y-Z-W-B) Motor 7,5 kW 380 Volts Accessoiries X-Y-Z axis are BALLSCREWS Tool clamping Pendant control Condition Machine is in very good condition

Sheet metal clamp, sheet metal claw, beam clamp, beam claw, sheet metal gripper, material gripper, material gripper -Sheet metal claws -Span: 1 to 30 mm -Load capacity: 2000 kg -Number: 1x terminal available -Weight: 10 kg ...

• more information

Spindle diameter 100 mm x-travel 1600 mm y-travel 895 mm z-travel 800 mm Table area 1200x1000 mm Table load 4000 kg Spindle stroke 600 mm Speed 14-1500 rpm Feed 1.7-2400 mm/min Rapid traverse 2500 mm/min Total power requirement 9.7 kW Machine weight approx. 12 t Guide paths hardened Tool holders ISO 50 Machine is energized, Schematic

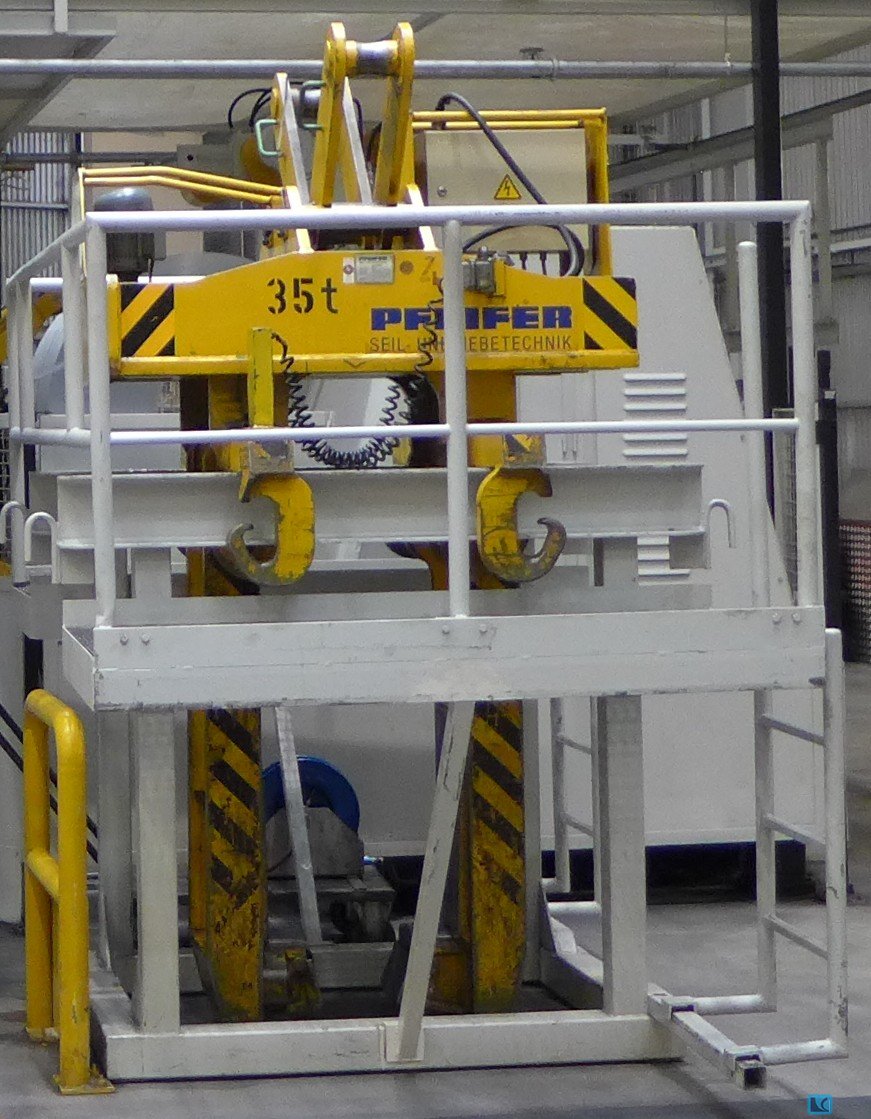

TONGS:. - capacity:35000 kg - Gripping range:2000 mm - Tare weight:2665 kg ELECTRICAL SPECIFICATIONS:. - total power consumption:1.1 kW - mains voltage:400 V - mains frequency:50 Hz DIMENSIONS / WEIGHTS:. - space requirements length:2770 mm - space requirements width:1700 mm  ...

• more information

Spindle Diameter: 80 mm Spindle Adapter: SK50 Spindle speeds: 11 - 1000 rpm. X-axis: 1700 mm Y-axis: 1800 mm Z-axis: 1800 mm Spindle off (W-axis): 710 mm Table dimensions: 1100 x 900 mm Elbo Digital Readout: On Y-axis and Z-axis Equipped with: -Turntable - Some tool containers Spindle motor: 7.5 KW Machine LxWxH: 5100 x 2650 x 3300 mm Machine Weight: 10 Ton

Inv. Num. : 7631 Type: F80 Produzent: Pfeifer Erzeugt: 1976 Parametern: Maximale Drehzahl der Spindel: 1000 1/min Verfahrwege X-Achse: 1700 mm Verfahrwege Y-Achse: 1800 mm Verfahrwege Z-Achse: 1800 mm Verfahrwege W-Achse: 710 mm Spindeldurchmesser: 80 mm  ...

• more information

arm length: 5500 mm total column height: 3600 mm weight max. in kg: 2000 kg height: 4100 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m K9F 0902 The techn. Information is provided by the manufacturer or operator and is therefore non-binding. We reserve the right to prior sale, Our terms of sale apply exclusively. About us More than 400 of our own machines in the warehouse More than 12,000 m² of storage space, crane capacity 70 t More than 1000 items Accessories for your workshop If you want to sell machines, systems or your company, then contact us. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter over bed: 330 mm turning dia. in gap: 400 mm turning length: 600 mm centre distance: 750 mm spindle turning speed range: 20 - 1000 U/min spindle bore: 25 mm 3-jaw chuck: Röhm, Ø 200 mm dimensions of the machine ca.: 2000 x 800 x 1500 mm weight of the machine ca.: 1200 kg Fixed bezel Turning bezel Turning center point Three-jaw chuck Röhm, Ø 200 mm, incl. inner and outer jaws Quick-change tool holder Original Multifix size B with 2 change holders Spindle brake Tailstock quill MK3 Machine feet Lathe chuck guard Chip guard Work light The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

 ...

• more information

Hijshaak voor spoelen Armlengte: 930 mm  ...
