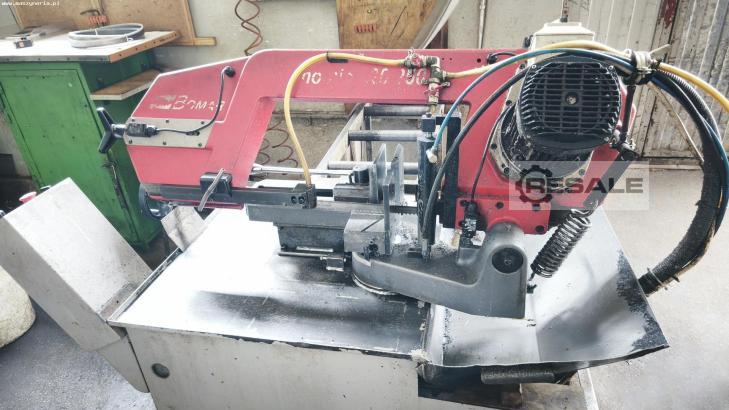

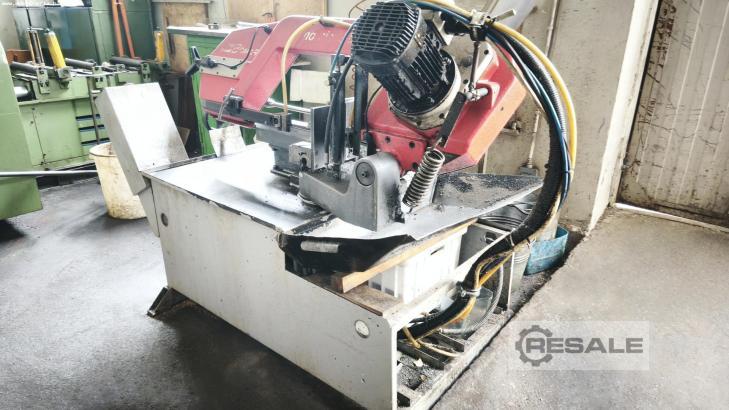

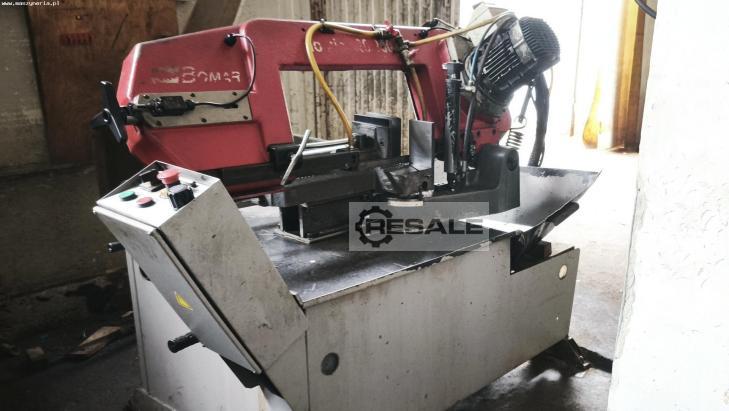

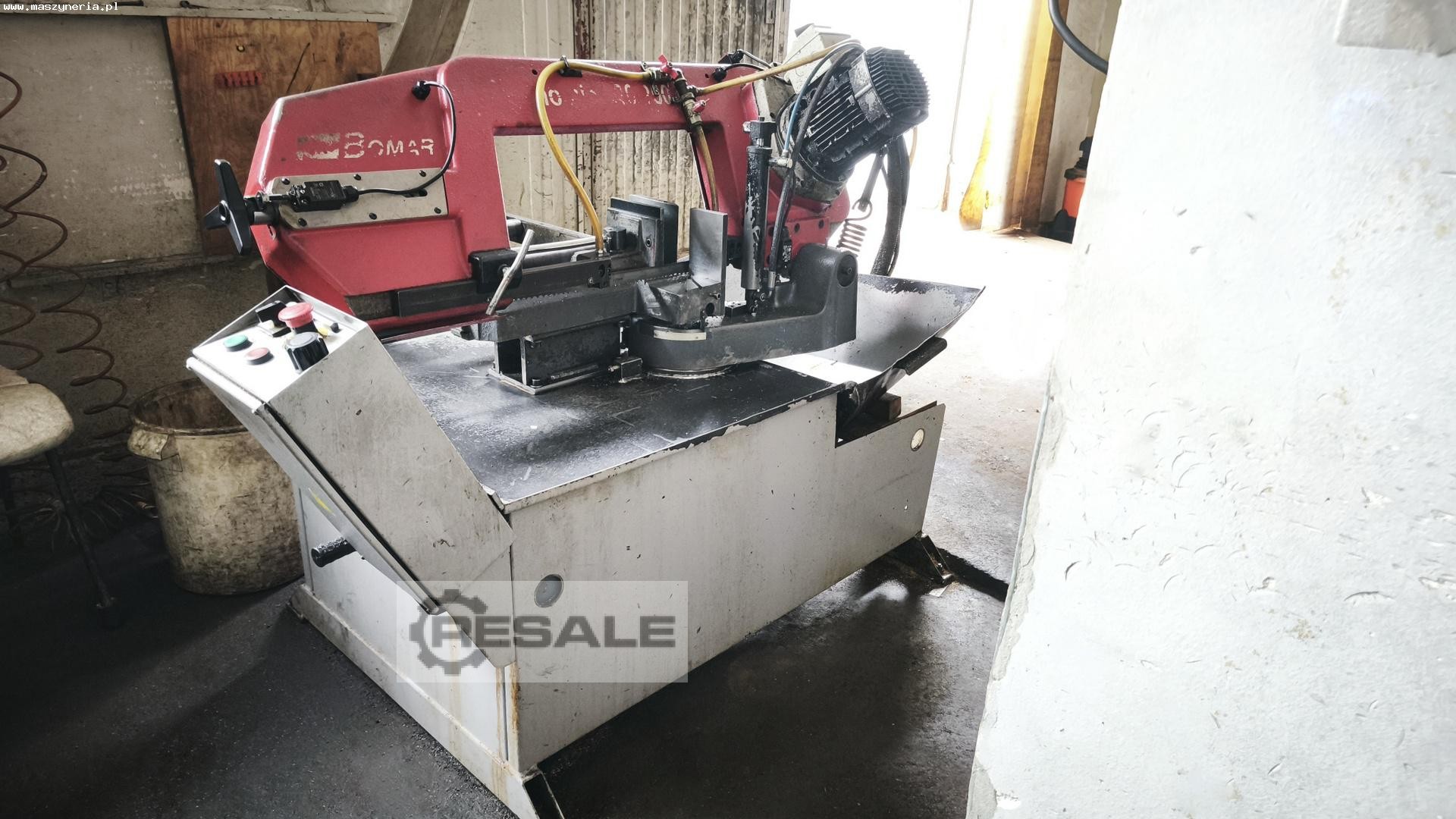

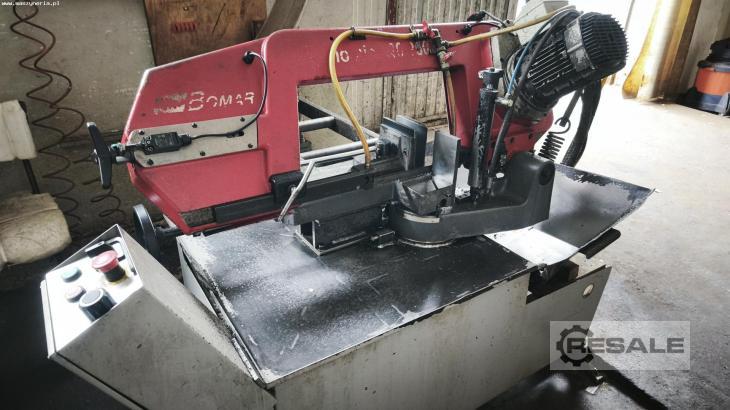

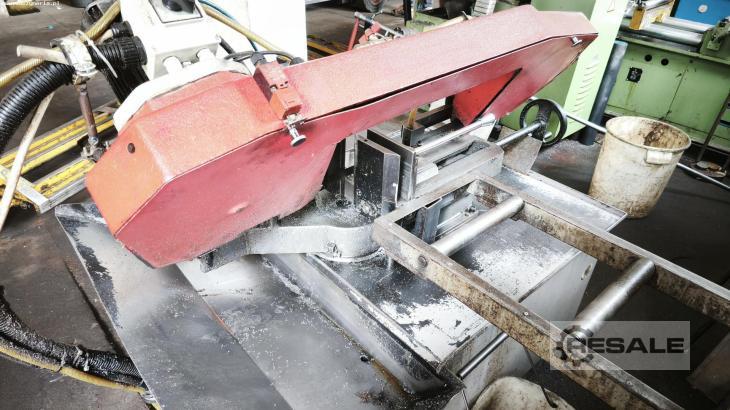

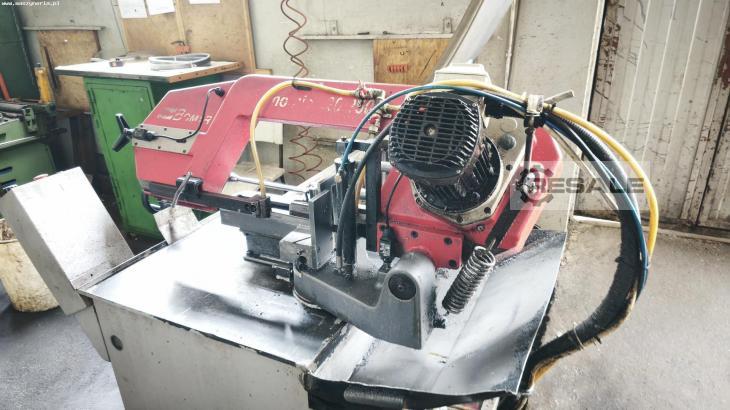

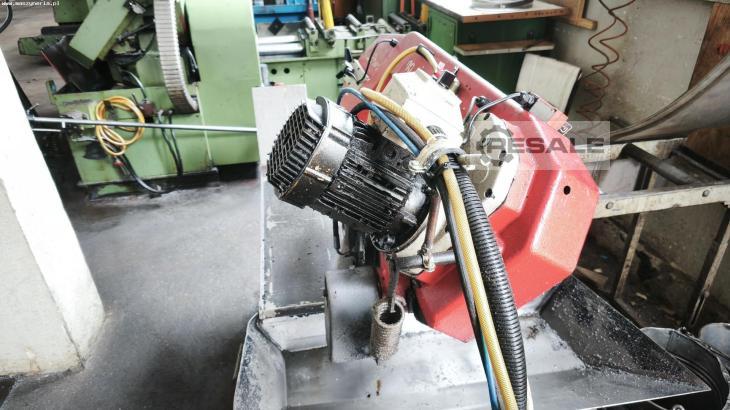

Band Saws BOMAR Ergonomic 320.250 G

BOMAR Ergonomic 320.250 G metal band saw was built in 2011 in the Czech Republic by BOMAR, spol. s r.o. The machine is designed for precise cutting of workpieces at an angle of 0°, +45° and +60°. The machining is performed by a robust saw blade driven by an electric motor with worm gear, which operates in an oil bath. In order to ensure precise guidance of the saw blade, it is mounted in tapered roller bearings with pre-clamping. Secure clamping of the workpiece during cutting is ensured, in turn, by a quick-clamping vice.

The BOMAR Ergonomic 320.250 G is distinguished by its extremely stable design based on a robust arm, which is raised manually and lowered under its own weight. The arm’s descending speed is adjustable via a hydraulic cylinder with flow valve. The combination of high cutting precision with simple operation and reliable components makes the Ergonomic 320.250 G band saw ideal for professional workshops and industrial plants. The total weight of the machine is 319 kg.

Technical specifications of the BOMAR Ergonomic 320.250 G band saw machine
- cutting angle: 0°; +45°; +60°
- cutting capacity at 0°
circular cross-section: 250 mm
square cross-section: 240 x 240 mm
rectangular cross-section: 320 x 170 mm
- cutting capacity at +45°
circular cross-section: 220 mm
square cross-section: 200 x 200 mm
rectangular cross-section: 230 x 140 mm
- cutting capacity at +60°
circular cross-section: 110 mm
square cross-section: 105 x 105 mm
rectangular cross-section: 130 x 105 mm
- maximum cutting diameter: 250 mm
- minimum cutting diameter: 5 mm
- minimum workpiece length in vice: 40 mm
- cutting speed: 40-80 m/min
- saw blade dimensions: 2910 x 27 x 0.9 mm
- distance from the base of the vice to the floor: 760 mm
- raising of arm: manual
- lowering of arm: continuous feed (cylinder)
- motor power: 2 kW
- power supply: 3x 400 V; 50 Hz
- dimensions (L x W x H): 1650 x 900 x 1250 mm
- weight of the Ergonomic 320.250 G machine: 319 kg

(The technical parameters given may differ slightly from reality. A verification with the actual capabilities of the offered machine is required.)
seller offer No. resale 169723734
