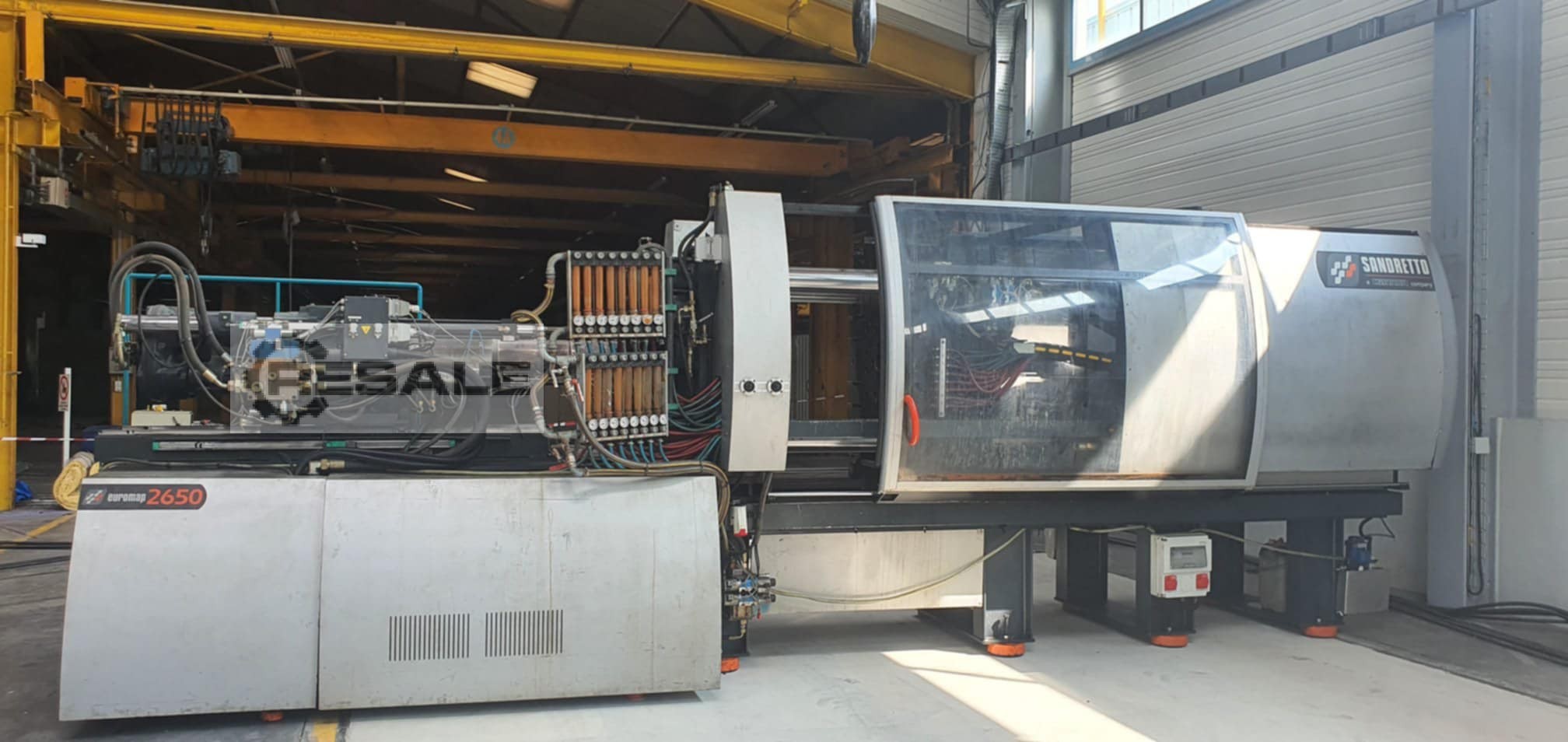

Injection molding machines SANDRETTO Serie 9 2650/4850

machines for plastic / injection moulding machines / Injection molding machines

SANDRETTO 485 T Series 9 Reference: 2650/4850 Year: 2003 Clamping force: 485 T / 4850 kN Distance between tie bar: 740 x 740 mm Platen dimensions: 1120 x 1120 mm Mold thickness (Min/Max) : 250-850 mm Opening stroke: 830 mm Injection volume: 1768 cm³ Injection pressure: 1500 bar Injection screw ...

Manufacturer: SANDRETTO

Model:Serie 9 2650/4850

Type of machine: Injection molding machines

item-No.: 169448995

Quantity: 1

Date: 05.05.2026

Year of manufacture: 2003

Location: Land-fr France 01100 GROISSIAT

Price:


Seller-item-No.:IM104

Clamping force: 4850 kN Screw diameter: 80 mm
SANDRETTO 485 T Series 9
Reference: 2650/4850
Year: 2003
Clamping force: 485 T / 4850 kN
Distance between tie bar: 740 x 740 mm
Platen dimensions: 1120 x 1120 mm
Mold thickness (Min/Max) : 250-850 mm
Opening stroke: 830 mm
Injection volume: 1768 cm³
Injection pressure: 1500 bar
Injection screw diameter: 80 mm
L/D ratio: 20
Options:
4 hydraulic cores
1 air blow gun
2 8-way water boxes
Dimensions: 8.71 x 2.65 x 2.14 m
Weight: 21,500 kg
