Panel saws SCM L'INVINCIBILE SI 6000

Code: 0247
Brand: SCM
Model: L'INVINCIBILE SI 6000 - CE Standard

Automatic panel saw with TOUCH SCREEN VANGUARD electronic control and tilting blade with scoring unit for precise cutting of panels, furniture, custom-made furnishings, kitchens, window frames, doors, plastics, composite materials, and various - CE Standard

Sturdy structure to ensure maximum working precision
Cast iron worktop with extension top
Patented SCM sliding carriage in extruded aluminum with large section, rigid and with closed lattice structure for maximum resistance even with heavy loads
Parallel guide with precision at 25 m/min
Automatic adjustment of scoring unit

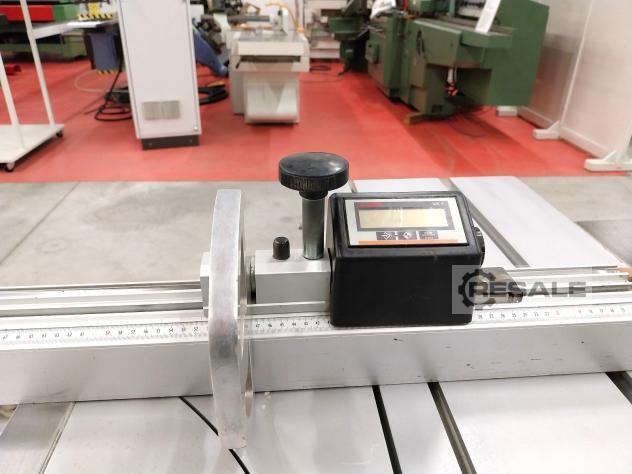

2 digital displays on the square guide

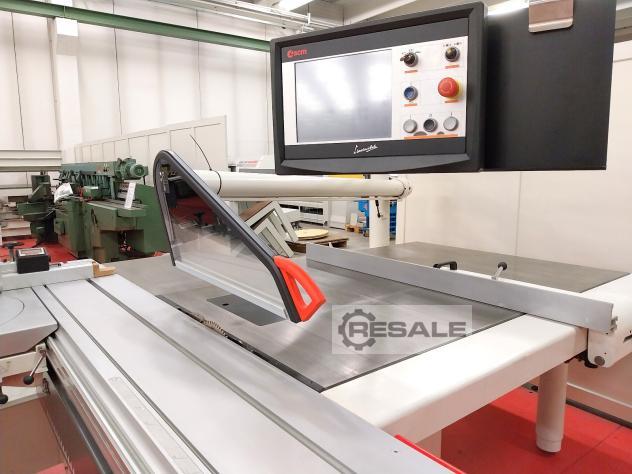

VANGUARD TOUCH SCREEN control - Manual, semi-automatic, and automatic modes - Operator assistance system - 12-inch color video and Touch Screen function
Full Support frame tiltable from + 50° to - 50° for angled cuts with panels of any size
Overhead control panel
Start/stop buttons integrated into the carriage

Technical data:
Carriage length 3200 T51246512 mm
Extendable fence for T51246512 square cuts up to 3200 mm
Cutting width with parallel fence 1500 mm
Blade diameter 400 mm F30
Scoring blade diameter 120 mm F20
Max cutting height at 90° 130 mm
Max cutting height at 45° 92 mm
Blade motor power 7,5 Hp
Scoring blade motor power 0,75 hp
Suction port diameter mm 120/100
Overall dimensions of assembled machine mm 3400 x 4300 x 1720 h
Overall dimensions for transport mm 3400 x 2350 x 1720 h
Weight kg 1380



seller offer No. resale Code: 0247
