Edgebanding machine mod. Used SCM OLIMPIC K1000

SCM edgebander mod. Used OLIMPIC K1000

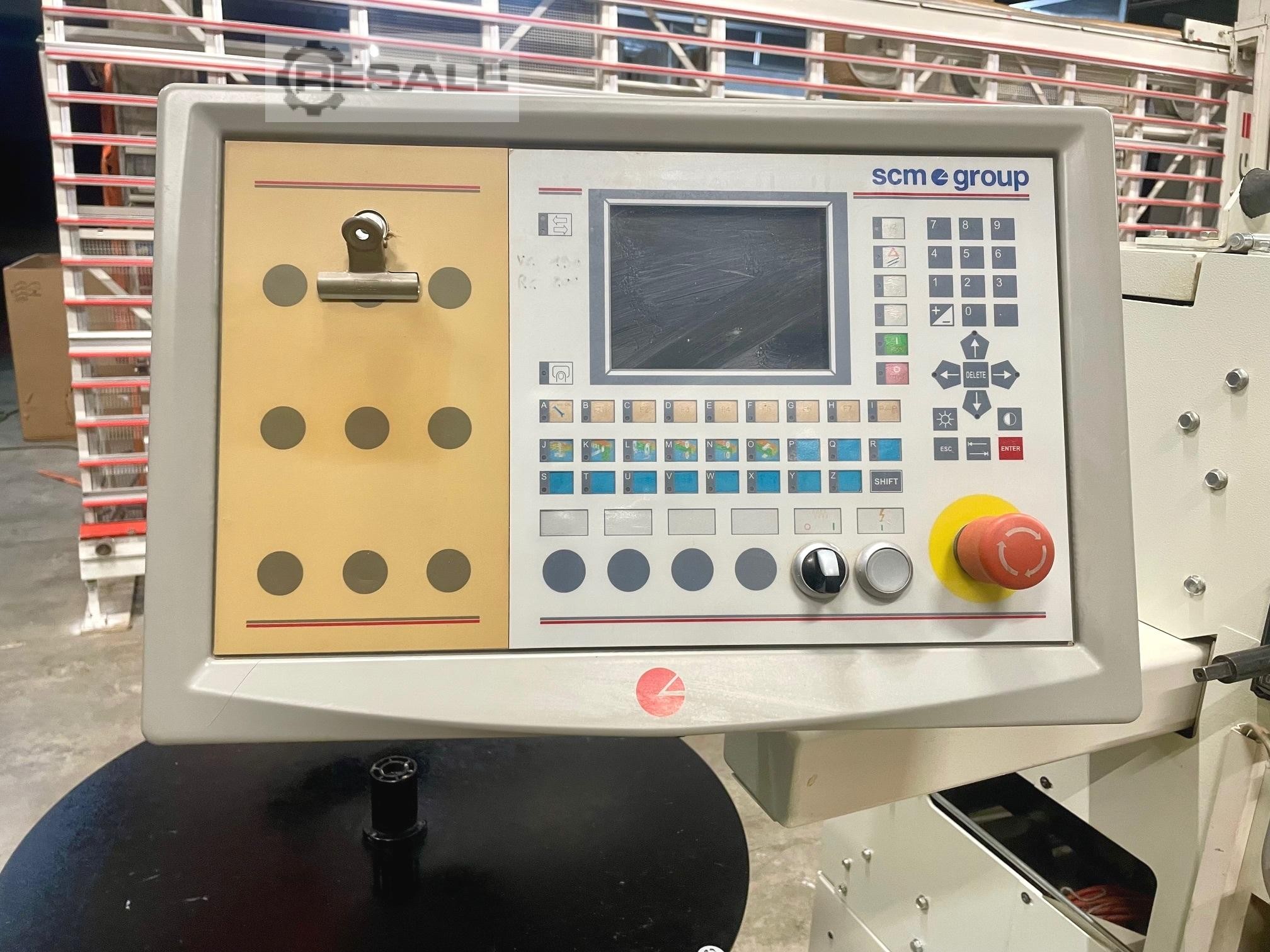

control panel with membrane keypad

Technical data:

Min. height of the panel 8 mm

Max. panel height 55 mm

Min. thickness of the edge in roll 0.4 mm

Max. edge thickness in roll 3 mm

Max thickness of wooden edge mm. 12

Composition:

Strip edge stock

Glue tank capacity kg. 1.5 with independent motor

Nr. 4 counterpressure rollers with pneumatic thrust and 1st roller with independent motor

Shear cutting edge in roll

Trimming unit with 2 independent motors tilting 0-15° - each KW 0.35 - 12.000 rpm

Overlapping trimming unit with 2 motors each KW 0.65 - 12.000 rpm - tools V51247264 with reversible V51247264 knives

Tilting gleaning unit for flat-edge and radius finishing; r. 2 motors each KW 0.5 - 12,000 rpm with electro-pneumatic positioning - tools with reversible knives

electropneumatic group override

Glue scraper assembly

Machine length mm. 4310

EC
