boy injection moulding machines used for sale

A Boy injection molding machine is available. Clamping force: 100kN, tie bar distance (diagonal): 205mm, max. platen distance: 250mm, ejector stroke: 50mm, screw diameter: 14mm, stroke volume range: 1cm³/15.3cm³, machine dimensions X/Y/Z: approx. 1500mm/550mm/1400mm, weight: approx. 500kg, control: Procan ALPHA. Documentation available. On-site inspection is possible.

Clamping force: 220kN, min. mould height: 200mm, max. opening stroke: 200mm, max. platen distance: 400mm, ejector stroke: 80mm, machine dimensions X/Y/Z: approx. 2600mm/800mm/1600mm, weight: approx. 760kg. An on-site inspection is possible.

An injection molding machine Dr. Boy is available. Clamping force: 500kN, tie-bar spacing: 305mm/305mm, platen dimensions X/Y: 500mm/500mm, max. opening stroke: 350mm, max. platen spacing: 600mm, min. mold height: 250mm, max. screw stroke: 120mm. Machine dimensions X/Y/Z: approx. 3450mm/1050mm/2000mm, weight: approx. 2050kg, operating hours: 10524h. The system has minor defects requiring repair. Documentation available. An on-site inspection is possible.

Hydraulic injection moulding machine manufactured in 2024. This BOY XS 161 features a clamping force of 100 kN and a maximum injection pressure of 2298 bar. It includes a 14 mm screw diameter and a theoretical shot volume of 6.1 cm³. If you are looking to get high-quality injection moulding capabilities, consider the BOY XS 161 machine we have for sale. Contact us for further details.

Key data: 550 , 67 , 28

Type: 55 M Built: 2003 Control: Procan MD Closing type: Hydraulic Technical data Closing force: 550 kN Tie bar distance H x V: 360 mm x 335 mm Plate size: 565 mm x 540 mm Tool installation height: min 250 mm Opening distance max.: 400 mm Plate spacing max.: 650 mm Screw diameter: 28 mm Lifting volume / spray weight (PS): 73.9 cc / 67 gram hp Spray pressure: 2778 bar General data Engine: 11 kW Heating: 9.6 kW Operating hours: on request Dimensions L x W x H: 3.3 m 1.8 m x 1.3 m Weight: 2430 kg Accessories Screen text: German Manual: Yes Additional equipment: Core train: x2 Robot interface

Key data: 550 , 92 , 32

Manufacturer: Boy Type: 55 MVV Year of construction: 2008 Control: Procan MD Clamping force: 550 kN Type of lock: Hydraulish Spar spacing: 360 mm x 335 mm Plate size: 565 mm x 540 mm Tool installation height: min 250 mm Opening distance: 300 mm Plate spacing max.: 550 mm Screw: 32 mm Displacement: 96.5 cc Spray weight PS: 92.3 gram HP Spray pressure: 2127 bar General Motor: 11 kW Heating: 7,7 kW Dimensions: 3 m x 1.2 m x 3.7 m Weight: 2700 kg Screen text: German / English / French Additional equipment Robot interface

Key data: 550 , 92 , 32

Manufacturer: Boy Type: 55 AVV Year of construction: 2012 Control: Procan ALPHA Clamping force: 550 kN Type of lock: Hydraulish Spar spacing: 360 mm x 335 mm Plate size: 565 mm x 540 mm Tool installation height: min 250 mm Opening distance: 300 mm Plate spacing max.: 550 mm Screw: 32 mm Stroke volume: 96.5 ccm / 92.3 gram HP Injection pressure: 2127 bar General Motor: 11 kW Heating: 7,7 kW Dimensions: 3 m x 1.2 m x 3.7 m Weight: 2700 kg Screen text: German / English / French Additional equipment Robot interface

BOY 90A (102) Description Without funnel General information Item number: 102 Availability: In stock Year of construction: 2006 Brand: Boy Specifications Injection weight: 193 g Clamping force: 900 kN Screw diameter: 42 mm Spray pressure: 1724 bar Tie bar distance: 430x360 mm Clamping plate size: 635x610 mm Tool installationheight min.: 250 mm Control: Procan CT Language: German Power: 26.3 kW Operating hours: 15070 h Weight: 3100 kg Dimensions: 4.9x1.2x2.1 m Funnel: No

This Dr. Boy injection molding machine is in machine storage at Plastima Used Machinery. The machine is from 1996 and has relatively few working hours for its age. – Brand: Dr. Boy – Model: 80M – Year built: 1996 – Screw diameter: 42mm – Shot volume: 200 cm³ – Closing force: 80T – Working hours: 24,222

Key data: 12 , 10 , 18

Now fully refurbished by our team at STV Machinery in Wellingborough, Northamptonshire is this high precision BOY 12A injection moulding machine. Fitted with the Procan controller and 18mm diameter screw, which gives a shot weight of 9.64 (PS)g. The 12A from BOY is one of the most common small moulding machines we see, it is extremely accurate while still maintaining versatility with tooling and familiar control setup. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP ...

Key data: 900 kN, 42 mm

BOY 90 E Stock No.: 503452 Manufacturer: BOY Type: Boy 90 E Control: Procan ALPHA Year of Make: 2012 Hours: 49130 h Technical data closing page Clamping force: 900 kN Wooden dimensions h x v: 430 x 360 mm Panel size h x v: 635 x 610 mm Min. installation height: 250 mm Plate spacing max.: 725 mm Opening travel: 475 mm Ejector stroke: 130 mm Ejector force: 20 kN Centering of movable plate D: 110 mm Centering fixed plate D: 110 mm Tool weight: 800 kg Technical Data Spray Side Screw diameter: 42 mm Capacity: 157.8 cc Spray pressure: 2347 bar Screw length: 20 l/d Screw stroke: 155 mm Screw speed: 280 min Worm torque: 735 N Plasticizing current: 136 g/s PS Number of heating zones: 4 Nozzle travel: 250 mm Dimensions & Weight Machine dimensions LxWxH: 4.37m x 1.21m x 2.2m Total Weight: 3730KG Equipment Screen text German Core pull hydraulic 1x Machi ...

This injection moulding machine from Dr. Boy is in good condition. The machine is from 2007 and has few working hours. Brand: Dr.Boy GmbH & Co.KG Model: 55M Year of construction: 2007 Clamping force: 55 T Screw diameter: 32mm Shot volume: 96.5 cm³ Working hours: 24,210

Key data: 22 kN

Awaiting refurbishment at our headquarters in Northamptonshire is this BOY 22M injection moulding machine. Any machines awaiting refurbishment with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and additional costs of purchasing mac ...

Key data: 50 kN, 38 mm

Awaiting refurbishment at our headquarters in Northamptonshire is this BOY 50M injection moulding machine. Any machines awaiting refurbishment with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and additional costs of purchasing mac ...

Key data: 220 kN, 32 g/PS, 24 mm

Now fully refurbished by the team at STV Machinery is this Boy 22M-HV machine. It has a horizontal clamp unit and a vertical injection unit which it makes it suited for split-line injection. It is fitted with a 24mm diameter screw. Manufactured in 2006 and has less than 28,000 hours. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and additional costs of purchasing machinery within the UK and  ...

Key data: 805 kN

Awaiting refurbishment at our headquarters in Northamptonshire is this BOY 80M injection moulding machine, fitted with the Procan Controller. Any machines awaiting refurbishment with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and ...

Key data: 900 kN, 42 mm

Dr. BOY 90 E Stock No.: 503581 Manufacturer: BOY Type: 90 E Control: Procan ALPHA Year of Make: 2013 Hours: 32768 h Technical data closing page Clamping force: 900 kN Wooden dimensions h x v: 430 x 360 mm Panel size h x v: 635 x 610 mm Min. installation height: 250 mm Plate spacing max.: 725 mm Opening travel: 475 mm Ejector stroke: 130 mm Ejector force: 20 kN Centering of movable plate D: 110 mm Centering fixed plate D: 110 mm Tool weight: 800 kg Technical Data Spray Side Screw diameter: 42 mm Capacity: 157.8 cc Spray pressure: 2347 bar Screw length: 20 l/d Screw stroke: 155 mm Screw speed: 280 min Worm torque: 735 N Plasticizing current: 136 g/s PS Number of heating zones: 4 Nozzle travel: 250 mm Dimensions & Weight Machine dimensions LxWxH: 4.37m x 1.21m x 2.2m Total Weight: 3730KG Equipment Screen text German Levelling elements EUROMAP 67  ...

Key data: 220 kN

Awaiting refurbishment at our headquarters in Northamptonshire is this BOY 22M injection moulding machine. Any machines awaiting refurbishment (or undergoing refurbishment) with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and addi ...

Awaiting refurbishment at our headquarters in Northamptonshire is this BOY 55A injection moulding machine, fitted with the Procan CT Controller. Any machines awaiting refurbishment (or undergoing refurbishment) with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on reques ...

rand: Dr.Boy Model: 60E Year of construction: 2023 Working hours: 50 Screw diameter: 32 mm Injection pressure max.: 2.142 bar Shotvolume max.: 100,5 cm3 Clamping force: 60 T Max. distance between holms: 360 x 335 mm Min. mould height: 250 mm Distance between plates max. 650 mm Measurements: 3.450 x 1.150 x 1.950 mm Weight: 2.250 kg Options: • Procan ALPHA 4 display • Hydraulic core pull (2x) • Air valve (2x) • Interface package (incl. RS232/485, OPC-UA + Licence fee) • 4 Free programmable AIO’s • Robot interface Euromap 67 • Interface between safety fence and machine Euromap 78 • Colouring contact interface • Quick change mould package – Cooling circuits (3x) on fixed & moving platen – Water distributor 8-fold – Ejector with quick coupling – Open nozzle with thread tip • Energy distribution box 6-fold (feeding via second cable)  ...

B&A REF: 9254 TON: 60 SHOT WEIGHT: 151 STROKE VOLUME: 166CM3 INJECTION PRESSURE: 1235AR PLATEN SIZES: 650 X 650MM DBTB: 360 X 335MM MIN MOULD HEIGHT: 250MM MOULD OPENING STROKE: 400MM MAX DAYLIGHT: 650MM EJECTOR STROKE: 80MM CONTROLS: ALPHA 2 MOTOR: 11 SERVO HEATING CAPACITY: 7.7KW SCREW DRIVE: HYDRAULIC

B&A REF: 9253 TON: 55 SCREW DIAMETER: 32MM SHOT WEIGHT: 92.3 STROKE VOLUME: 96.5CM3 INJECTION PRESSURE: 2127AR PLATEN SIZES: 565 X 540MM DBTB: 360 X 335 MM MIN MOULD HEIGHT: 250MM MOULD OPENING STROKE: 400MM MAX DAYLIGHT: 650MM EJECTOR STROKE: 80MM CONTROLS: ALPHA MOTOR: 11 SERVO HEATING CAPACITY: 7.7KW

Awaiting refurbishment at our headquarters in Northamptonshire is this Boy 22AVV injection moulding machine. Any machines awaiting refurbishment (or undergoing refurbishment) with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within 8 weeks from order. Refurbished machines from STV Machinery undergo a comprehensive test procedure during which every function of the machine is tested and if necessary repaired. A production run of at least 5000 fault free cycles prior to sign off ensures trouble free operation once delivered. Machines are ultra clean and cosmetically as good as we can get them. We guarantee our refurbs are delivered fault free and leak free. Prices shown are ex-works, but we can quickly provide DAP (Delivered at Place) Incoterm pricing on request. We can take out the hassle and ad ...

Injection moulding machine Arburg 270s 500-60 and Boy 12 M 1998

Key data: 350 , 53 , 28

BOY 35 E injection molding machine Type : 350-92 35E?Year: 2014?Screw diameter : 28 mm?Injection pressure: 1639 bars?Injectable volume : 58,5 cm³ Weight in PS : 53,2 gr?Clamping Force: 35 T?Distance between tie bar bar: 280 x 254 mm?Mould installation height min : 200 mm?Plate distance max : 500 mm?Dimensions: 2400 x 820 x 1950 mm?Weight: 1195 kg

Key data: 14000 kN

The machine was fitted with new seals for the spars in 2025. Delivery by pick-up only

Key data: 16000 kN

The machine is still energized and functional. Delivery by pick-up only. The offer is only valid for a short time

BOY 35 E injection molding machine Type : 350-92 35E Year: 2013 Screw diameter : 28 mm Injection pressure: 1639 bars Injectable volume : 58,5 cm³ Weight in PS : 53,2 gr Clamping Force: 35 T Distance between tie bar bar: 280 x 254 mm Min mould height : 200 mm Maw daylight between platen : 500 mm Dimensions: 2400 x 820 x 1950 mm Weight: 1195 kg + BOY option : laminar flow

2 x Injection Molding Machines for Sale: - KraussMaffei KM 280-1000 CC BJ 2000 - JBOY 12M 1998

Key data: 220 kN, 27 g/PS, 22 mm

1.0 St. gebr. Injection Molding Machine Manufacturer: DR. BOY Type: 22 D Year of Make: 1999 Clamping force: 22 tons Tiebar spacing: 254 x 254 mm Installation height MIN, / MAX. 200 / 400 mm Screws DN: 22 mm Moulded part weight 27 g/hp

Key data: 220 kN, 27 g/PS, 22 mm

1.0 St. gebr. Injection Molding Machine Manufacturer: DR. BOY Type: 22 D Year of Make: 2004 Clamping force: 22 tons Tiebar spacing: 254 x 254 mm Installation height MIN, / MAX. 200 / 400 mm Screws DN: 22 mm Moulded part weight 27 g/hp

Key data: 1000 kN

Boy 100E / Hybrid Machine Year of Make: 2014 Injection unit: Screw diameter: 32 mm Injection weight: 92.3 g Spray pressure: 2127 bar Dosing volume: 96.5 ccm Clamping unit: Clamping force: 100 t Tiebar spacing: 430x360 mm Size of the clamping plates: 750x650 mm Ejector: hydraulic Clamping unit: hydraulic Control: Procan Alpha 2 - Touch Screen Additional equipment: Hybrid machine: high-speed, energy-saving and very quiet Euromap 67 Robot interface Control with air valve Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving Dimensions: Weight: 3530 kg Length/Width/Height: 4.37x1.21x2.20 m Drive: Pumps/motor: 15 kW Heating capacity: 7.7 kW Total power: 22.7 kW All offered machines are started by our service technicians before they are sold. It is possible to receive a video of the technical test ...

Key data: 900 kN

Boy 90 M Year of Make: 2004 Injection unit: Screw diameter: 42 mm Injection weight: 193 g Spray pressure: 1724 bar Dosing volume: 214.7 ccm Clamping unit : Clamping force: 90 t Tiebar spacing: 430x360 mm Size of the clamping plates: 635x610 mm Ejector: hydraulic Clamping unit: hydraulic Control: Procan - Touch Screen Additional equipment: Euromap 12 Robot interface Air Valve x 1 Dimensions: Weight: 3100 kg Length/Width/Height: 4.37x1.21x2.20 m Drive: Pumps/motor: 15 kW Heating capacity: 11.3 kW Total power: 26.3 kW All offered machines are started by our service technicians before they are sold. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź. Price: On request

Key data: 800 kN

Boy 80 M Year of Make: 1997 Injection unit: Screw diameter: 36 mm Injection weight: 132 g Spray pressure: 2085 bar Dosing volume: 147.6 ccm Clamping unit : Clamping force: 80 t Tiebar spacing: 410x358 mm Size of the clamping plates: 680x555 mm Ejector: hydraulic Clamping unit: toggle lever Control: Procan CT Additional equipment: Dimensions: Weight: 3200 kg Length/Width/Height: 4.14x1.21x2.07 m Drive: Pumps/motor: 15 kW Heating capacity: 10.4 kW Total power: 25.4 kW All offered machines are started by our service technicians before they are sold. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź. Price: On request

Key data: 550 kN

Boy 55A Pro / Operating hours: 18,153 in automatic mode / Machine in very good technical condition Year of Make: 2016 Injection unit: Screw diameter: 38 mm Injection weight: 123.9 g Spray pressure: 1508 bar Dosing volume: 136.1 ccm Clamping unit: Clamping force: 55 t Spar spacing: 360x335 mm Size of the clamping plates: 665x600 mm Ejector: hydraulic Clamping unit: hydraulic Control: Procan Alpha - Touch Screen Additional equipment: Machine in very good technical condition Operating hours: 18,153 in automatic mode Pneumatic core x 2 Hardened injection unit - Bimetal The machine has been regularly serviced by the authorized Service Boy in France It is possible to change the screw diameter for fi 32 mm or 42 mm Dimensions: Weight: 2430 kg Length/Width/Height: 3.25x1.14x2.02 m Drive: Pumps/motor: 11 kW Heating capacity: 7.7 kW Total power: 18.7 kW Al ...

Key data: 550 kN

Boy 55A Pro / Operating hours: 16,624 in automatic mode / Machine in very good technical condition Year of Make: 2017 Injection unit: Screw diameter: 38 mm Injection weight: 123.9 g Spray pressure: 1508 bar Dosing volume: 136.1 ccm Clamping unit : Clamping force: 55 t Spar spacing: 360x335 mm Size of the clamping plates: 665x600 mm Ejector: hydraulic Clamping unit: hydraulic Control: Procan Alpha - Touch Screen Additional equipment: Machine in very good technical condition Operating hours: 16,624 in automatic mode Pneumatic core x 2 Hardened injection unit - Bimetal The machine has been regularly serviced by the authorized Service Boy in France It is possible to change the screw diameter for fi 32 mm or 42 mm Dimensions: Weight: 2430 kg Length/Width/Height: 3.25x1.14x2.02 m Drive: Pumps/motor: 11 kW Heating capacity: 7.7 kW Total power: 18.7 kW A ...

Key data: 550 kN

Boy 55A Pro / Operating hours: 17,083 in automatic mode / Machine in very good technical condition Year of Make: 2017 Injection unit: Screw diameter: 38 mm Injection weight: 123.9 g Spray pressure: 1508 bar Dosing volume: 136.1 ccm Clamping unit: Clamping force: 55 t Spar spacing: 360x335 mm Size of the clamping plates: 665x600 mm Ejector: hydraulic Clamping unit: hydraulic Control: Procan Alpha - Touch Screen Additional equipment: Machine in very good technical condition Operating hours: 17,083 in automatic mode Pneumatic core x 2 Hardened injection unit - Bimetal The machine has been regularly serviced by the authorized Service Boy in France It is possible to change the screw diameter for fi 32 mm or 42 mm Dimensions: Weight: 2430 kg Length/Width/Height: 3.25x1.14x2.02 m Drive: Pumps/motor: 11 kW Heating capacity: 7.7 kW Total power: 18.7 kW Al ...

Key data: 100 kN

Boy XS / Excellent technical condition Year of Make: 2020 Injection unit: Screw diameter: 12 mm Injection weight: 4.1 g Spray pressure: 3128 bar Dosing volume: 4.5 ccm Clamping unit: Clamping force: 10 t Handlebar spacing: 160 mm Size of the clamping plates: 321x246 mm Ejector: hydraulic Clamping unit: hydraulic Control: Procan Alpha 4 - Touch Screen Additional equipment: Machine like new Euromap 67 Robot interface Air Valve x 6 Built-in side sprue picker Wittmann automatic conveyor with dryer of the Farratech brand It is possible to buy clamping elements for tools of the AMF brand Dimensions: Weight: 450 kg Length/Width/Height: 1.48x0.52x1.38 m All offered machines are started by our service technicians before they are sold. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at  ...

clamping force: 350 kN injection volume: 58,5 cm³ screw diameter: 28 mm platen size: 260 x 254 mm Condition: used, Specification: injection moulding machine for TPE - used clamping unit: - clamping unit: vertical - clamping force: 350 kN - opening stroke max.: 300 mm - platen distance max.: 500 mm - Mould installation height min.: 200 mm - Clear width between tie bars: 260 x 254 mm - Ejector stroke max.: 80 mm - Clamping unit: VV - Lift of protective bonnet: 500 mm Injection unit: - Screw diameter: 28 mm - Screw L/D ratio: 18.6 - Screw stroke max.: 95 mm - Injection volume max.: 58.5 cm³ - Injection pressure: 1577 bar - Plasticising flow: 8.6 g/s - Injection flow: 85.5 g/s - Connected load: 3x 400 V, 50 Hz - Max. heating power: 5.8 kW - Drive power: 7,4 kW - Total power: 13,2 kW - Hydraulics: 210 bar (tank 65 litr ...

clamping force: 500 kN injection volume: 76,5 cm³ screw diameter: 32 mm platen size: 360 x 335 mm Condition: used, as good as new Specification: Injection moulding machine for LSR - Demonstration machine as good as new clamping unit: - clamping unit: horizontal - Clamping force: 500 kN - Opening stroke max.: 400 mm - Platen distance max.: 650 mm - Mould installation height min.: 250 mm - Clear width between the tie bars: 360 x 335 mm - Ejector stroke max.: 80 mm Injection unit SP 82: - Screw diameter: 32 mm - Screw L/D ratio: 16.3 - Screw stroke max.: 95 mm - Injection volume max.: 76.5 cm³ - Injection pressure: 1076 bar - Plasticising flow: 13 g/s - Injection flow: 204.8 g/s - Connected load: 3x 400 V, 50 Hz - Max. heating power: 5.8 kW - Drive pow ...

Offered is a Boy 100E 2K injection molding machine (year 2020, approx. 15160h) including Boy 2C XS unit, Boy LR5 handling (year 2020) as well as Dorner GAL-60 conveyor. 1000kN clamping force, 2-fold core pull, 2-fold air blast, 24mm screw (main unit) + 22mm screw (2K), fully enclosed, hydraulic ejector 42.7kN, OPC-UA & network interfaces, EUROMAP-67 robot interface, robot stroke X/Y/Z: 300mm/800mm/1500mm, conveyor 400mm width, 2m length. Viewing is possible upon arrangement.

Offered is a Boy 80E 2K injection molding machine (year 2016, approx. 29398 operating hours) including 2C XS aggregate, Wittmann Primus 16 handling (year 2022), Dorner GAL-60 conveyor. 800kN clamping force, 2-fold core pull, 2-fold air blast, 24mm screw, completely enclosed, hydraulic ejector 42.7kN, EUROMAP 67 interface, robot stroke X/Y/Z: 2000mm/1200mm/620mm, conveyor 400mm width, 2m length. Viewing is possible by arrangement.

Engel injection moulding machine old

Control CC 100 for ENGEL injection moulding machines

Arburg 420C-1300-675 (167) Item number: 167 Availability: In stock Year of construction: 2000 Brand: Arburg Specifications Spray weight: 297 g Clamping force: 1,300 kN Screw diameter: 50 mm Spray pressure: 2080 bar Spar spacing: 420 x 420 mm Clamping plate size: 615 x 615 mm Tool installation height min.: 350 mm Control: Selogica Language: German Power: 44.9 kW Operating hours: 84840 h Weight: 4330 kg Dimensions: 4.9 x 1.8 m Funnel: No Core train: Yes Air valve: Yes

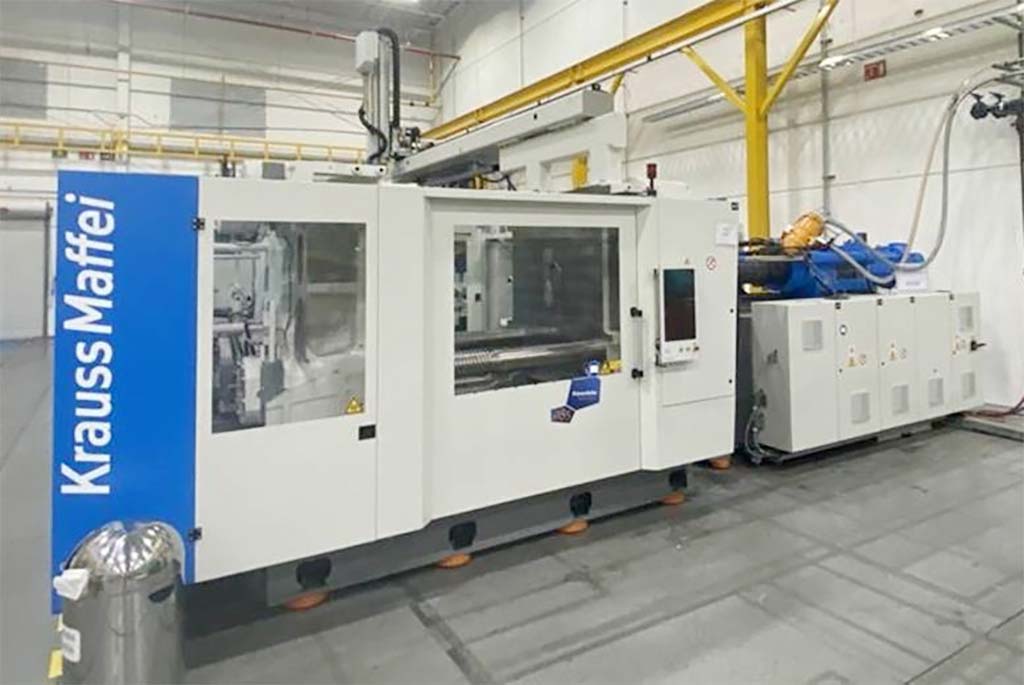

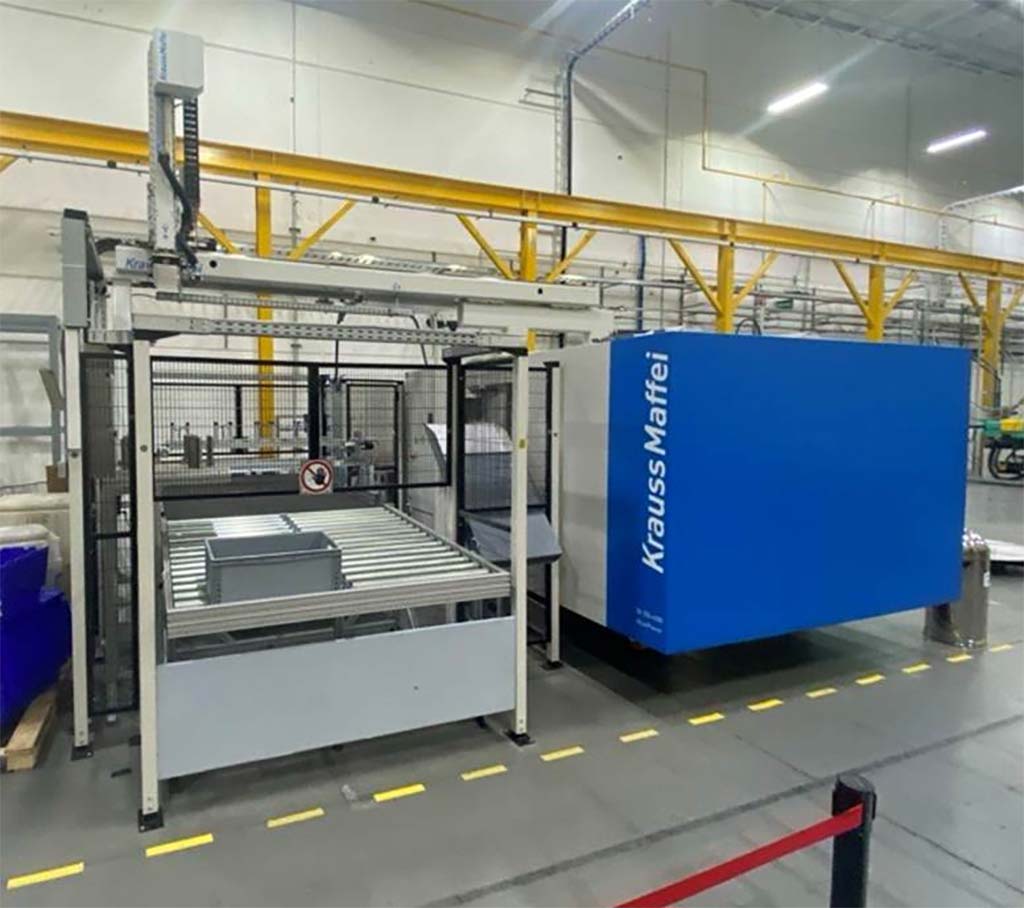

Inv. Num. : 5875 Type: KM 300-1400 C1 Producer: Krauss Maffei Created: 2001 Parameters: Laser ON: 70,000 h Clamping force: 300 t Screw diameter: 60 mm Injection capacity: 679 cm³ Injection mass: 618 g Min. height of clamping plate: 995 mm Min. width of clamping plate: 1050 mm Distance between uprights (horizontal): 630 mm Distance between uprights (vertical): 630 mm Ejector stroke length: 200 mm Maximum spraying pressure: 2000 bar Pump power: 45 kW Opening the mold: 820 mm Machine length: 6000 mm Machine width: 2100 mm Machine height: 2400 mm Injection weight: 12,500 kg Equipment: Robot Getecha Aschaffenburg GL 5 (built in 2001)

Key data: 5500

Screw diameter; H3500 - 85 mm / H2000- 65 mm Injectable volume: H3500 - 946 cm3 / H2000- 511 cm3 Injection pressure: H3500 - 1509 bar / H2000-2228 bar Column width: 930 x 930 mm Minimum mould thickness: 300 mm max: 1000 mm Opening stroke: 1100 mm Cores: 4 Robot Interface: Yes Options: Automatic clamping 24 heated zones

Key data: 2000

Nozzle spacing: 100 mm Screw diameter: H260: 38 H470: 45 mm Injectable volume:H260: 168 H470: 278 cm3 Injection Pressure: H260: 1564 H470: 1659 Column width: 610 x 610 mm Mould thickness: 280-760 mm Opening stroke: 560 mm Cores:: 2 Robot Interface: Yes Possibility of a GROSFILLEY swivel base

Key data: 3200 kN, 359 g/PS, 50 mm

1.0 St. gebr. Two-component injection molding machine Manufacturer: ARBURG Type: 720A3200-800/70 Year of Make: 2017 Clamping force: 320 tons Spar spacing 720 x 720 mm Installation height min./max.: 300 - 800 mm Opening travel: 600 mm Screws DN 1: 50 mm Max. displacement: 392 cm³ Moulded part weight in hp: 359 g Screw DN 2: 22 mm Max. displacement: 34 cm³ Moulded part weight in hp: 31 g Control: Selogica Request technical equipment.

Ref. no.: 18255 Manufacturer: ENGEL Year of construction: 2004 Clamping unit Clamping force: 180 ton Opening stroke: 750 mm Distance between tie bars: 960 x830 mm Mould height min.: 500 mm Opening width: 1250 mm Injection unit Screw diameter: 45 mm Injection volume: 318 cm³ Shot weight: 302 g Injection pressure: 1769/2360 bar Measurements and weight Machine weight: 13500 kg Robot Producer: Wittman Type: W743 Year: 2009 Further information: ENGEL Victory 750/180 Tech – Power, Flexibility and Reliability with Tie-Bar-Less Technology The ENGEL Victory series was specially developed for technical plastic processing and is known as a professional injection moulding machine series offering high energy efficiency and maximum mould flexibility. Unlike conventional tie-bar machines, this series provides a much more flexible working area thanks to its tie-bar-less clamping system. ⸻ Advanta ...

Ref. no.: 18591 Manufacturer: ARBURG Year of construction: 2005 Clamping unit Clamping force: 160 ton Opening stroke: 450 mm Distance between tie bars: 520 x 520 mm Mould height min.: 250 mm Mould height max.: 550 mm Opening width: 700 mm Platen size (h x v): 695 x 695 mm Injection unit Screw diameter: 45 mm Injection volume: 254 cm³ Shot weight: 232 g Injection pressure: 1580 bar Measurements and weight Machine weight: 7100 kg Dimensions LxWxH part 1: 5,1 x 1,7 x 2,3 m Further information: The ARBURG 520 A series is part of the fully electric ALLROUNDER range and is known for its high precision, energy efficiency, and reliability in injection molding processes. These machines are particularly suitable for the production of technical plastic parts with high quality requirements, as well as for applications where repeatability and process stability are essential. Typical features of this ...

Ref. no.: 18092 Manufacturer: ENGEL Year of construction: 2001 Clamping unit Clamping force: 300 ton Opening stroke: 855 mm Platen size (h x v): 1050 x 650 mm Injection unit Screw diameter: 60 +35 mm Injection volume: 735 +135 cm³ Shot weight: 662 + 122 g Injection pressure: 1834 +1620 bar Measurements and weight Dimensions: 7,75 x 2,35 x 2,6 m Machine weight: 24780 kg Further information: ENGEL ES 1350H200W/300HL-2F — 2K Injection Moulding Machine This machine from the prestigious Austrian manufacturer ENGEL, built in 2001, features a clamping force of 300 tonnes and a true 2K L-configuration in horizontal layout. Motor and Hydraulic System The machine is equipped with a powerful electric motor coupled to a high-pressure hydraulic pump group. The electric motor continuously drives the hydraulic pump, providing pressurised oil flow throughout the entire system. This pressurised oil fe ...

Container Size (Max.): 2,5 l

Injection stretch blow moulding machines for PET bottles

Key data: 1500 kN

Clamping force: 150 t. Clamping type: Toggle system. Tie-bar spacing: 470 × 470 mm. Platen size: 700 × 700 mm. Mold height (min–max, approx.): 180–500 mm. Opening stroke: 420 mm. Ejector stroke: 130 mm. Injection volume: 320 cm³. Screw diameter: 42/45 mm (to be confirmed). Heating zones: 4. Machine dimensions: 5000 × 1400 × 2000 mm. Machine weight: 6000–7000 kg.

Key data: 2000 kN, 352 g/PS, 50 mm

1.0 St. gebr. Two-component injection molding machine with robot Manufacturer: ENGEL Type: ES650H/200W-200HL-2F Year of Make: 2000 Clamping force: 200 tons Tiebar spacing sparless Min. installation height: 450 mm Opening travel: 700 mm Screws DN 1: 50 mm Max. displacement: 392 cm³ Moulded part weight in hp: 352 g Screw DN 2: 25 mm Max. displacement: 69 cm³ Moulded part weight in hp: 60 g Control: CC200 Technical equipment: -Engel robot, type: ERC23/1-E -4 core slides -Turntable control

Key data: 2000 kN, 216 g/PS, 40 mm

1.0 St. gebr. Two-component injection molding machine with robot Manufacturer: ENGEL Type: ES650H/200W-200HL-2F Year of Make: 2001 Clamping force: 200 tons Tiebar spacing sparless Min. installation height: 550 mm Opening travel: 700 mm Screws DN 1: 40 mm Max. displacement: 251 cm³ Moulded part weight in hp: 216 g Screw DN 2: 25 mm Max. displacement: 69 cm³ Moulded part weight in hp: 60 g Control: CC200 Technical equipment: -Engel robot, type: ERC23/1-E -4 core slides -Turntable control

Key data: 2000 kN, 216 g/PS, 40 mm

1.0 St. gebr. Two-component injection molding machine with robot Manufacturer: ENGEL Type: ES650H/200W-200HL-2F Year of Make: 2004 Clamping force: 200 tons Tiebar spacing sparless Min. installation height: 500 mm Opening travel: 750 mm Screws DN 1: 40 mm Max. displacement: 251 cm³ Moulded part weight in hp: 216 g Screw DN 2: 25 mm Max. displacement: 69 cm³ Moulded part weight in hp: 60 g Control: CC200 Technical equipment: -Engel robot, type: ERC23/1-E -4 core slides -Turntable control

Key data: 3200 kN, 309 g/PS, 50 mm

Production Line Manufacturing Coffee Capsules NESPRESSO Consisting of the following components: Pos. 01) Injection moulds for capsules, manufacturer: FOSTAG AG 1.0 pcs tool with 16 cavities 1.0 pcs tool with 32 cavities Pos. 02) Two-component injection moulding machine, Bcobrsw Nriue Rvf Nyju Manufacturer: ARBURG, Type: 720A3200-800, Year of manufacture: 2017 The capsules are made as falling parts.

Key data: 1300 kN, 127 g/PS, 35 mm

1.0 St. gebr. Two-component injection molding machine with robot Manufacturer: ARBURG Type: 420C1300-350-60 Year of Make: 2003 Clamping force: 130 tons Spar spacing 420 x 420 mm Screws DN 1: 35 mm Moulded part weight in hp: 127 g Screw DN 2: 25 mm Moulded part weight in hp: 45 g Control: Selogica Equipment: . Core train -Robots

Ref. no.: 18635 Manufacturer: SEPRO Year of construction: 2022 Further information: SEPRO S5-25 med – 3-Axis Servo Linear Robot Manufacturer: SEPRO Robotique S.A.S. (France) Model: S5-25 med Year of manufacture: 2022 Serial number: R015336-02 Condition: Very good and clean condition Application: Injection moulding automation / part removal robot Technical Specifications Description Value Robot type 3-axis servo linear robot X-axis (Traverse) 2000 mm Y-axis 700 mm Vertical stroke 1200 mm Rotation No rotation Payload class approx. 10 kg Control system SEPRO Visual 2 Voltage 3x400V – 3x480V Frequency 50/60 Hz Max. power 1.5 kVA Weight approx. 100 kg Series S5 med Description The SEPRO S5-25 med is a high-performance 3-axis servo linear robot designed for automated part removal and handling applications on injection moulding machines. The robot is in very good technical and visual  ...

Key data: 1500 kN

Ferromatics Milacron Magna T(MTs) 150-450 / Production line with the Wemo 6-5 xDesign robot, Wemo WCS-R conveyor belt and contactor housing / Machine in very good technical condition Year of Make: 2017 Injection unit: Screw diameter: 45 mm Injection weight: 215 g Spray pressure: 1984 bar Dosing volume: 226 ccm Clamping unit : Clamping force: 150 t Tiebar spacing: 510x510 mm Size of the clamping plates: 740x740 mm Ejector: hydraulic Clamping unit: toggle lever Control: B&R - Touchscreen Additional equipment: Hybrid machine: high-speed, energy-saving and very quiet Operating hours: 11,000 in automatic mode Euromap 67 Robot interface Air Valve x 1 Hydraulic core pull x 1 Hot runner controller x 36 (for additional payment) Injection unit is wear-resistant and resistant to corrosion Main motor of the machine – servo motor driven by inverter Central lubricatio ...

Key data: 2700 kN

Battenfeld HM 270/1330H/1000H / 2K machine in very good technical condition / Operating hours: approx. 10,000 h in automatic mode Year of Make: 2006 Injection unit: Screw diameter: 55 mm Injection weight: 594 g Spray pressure: 2041 bar Dosing volume: 653 ccm Clamping unit: Clamping force: 270 t Handlebar spacing: 710x710 mm Size of the clamping plates: 1030x1000 mm Ejector: hydraulic Clamping unit: hydraulic Control: UNILOG B4 Additional equipment: Machine in very good technical condition 2K machine with parallel horizontal injection units Central injection Operating hours: approx. 10,000 in automatic mode Total number of operating hours: 11,876 h Control with air valve Hydraulic core pull x 3 Reinforced Injection Units – Bimetal Proportional valves on injection units - precise spraying Parallel movements Injection unit 1000H Screw diameter: 50 mm I ...

Key data: 2800 kN

Engel e-Motion 740/280 T WP with the TecnoMatic robot / Electric machine / Operating hours: approx. 9000 h in automatic mode Year of Make: 2016 Injection unit: Screw diameter: 50 mm Injection weight: approx. 360 g Spray pressure: 1900 bar Dosing volume: 393 ccm Clamping unit: Clamping force: 280 t Tiebar spacing: 780x780 mm Size of the clamping plates: 1100x1100 mm Ejector: electric Clamping unit: toggle lever Control: CC 300 - touch screen Additional equipment: Production line with the TecnoMatic robot Machine in very good technical condition Electric machine: energy-saving and very quiet Operating hours: approx. 9000 in automatic mode Euromap 67 Robot interface Air Valve x 5 Hydraulic core pull x 4 Control with hot runners x 64 Injection unit is wear-resistant and resistant to corrosion Main motor of the machine - Servo motor driven by inverter - Energy ...

Key data: 1500 kN

Arburg 470C 1500-400 Year of manufacture: 07.2009 Injection unit: Screw diameter: 45 mm Injection weight: 232 g Spray pressure: 1580 bar Dosing volume: 254 ccm Clamping unit: Clamping force: 150 t Spar spacing: 470x470 mm Size of the clamping plates: 650x650 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Core train control Hardened injection unit - Bimetal It is possible to change the screw diameter Dimensions: Weight: 4790 kg Length/Width/Height: 4.44x1.63x2.09 m Drive: Pumps/motor: 18.5 kW Heating capacity: 9.4 kW Total power: 27.9 kW All offered machines are started by our service technicians before they are sold. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź. Price: On request Provider:

R1336 Arburg 420C1300 150 2 K +extra injection module LSR silicone here is a very well-preserved, very highly equipped injection molding machine at the warehouse in ergenzingen was training machine from the universityOnly 6496 operating hours autom and 8628 pump.Accessories roughly expressed 2 K machine and additionally a SLR silicone injection module with the necessary connections on the machine. With hydraulic swivel table, what else the machine can do, we will only be able to do it after connection /Construction.

with spare screw, high-pressure hose and various spare parts - see pictures

Injection Unit Screw Diameter: Ø 50 Injection Volume: approx. 392 cm³ Injection Pressure: up to 2,100 bar Injection Rate: approx. 200 cm³/s Plasticizing Capacity: approx. 30 g/s (PS) Screw L/D Ratio: 22:1 Nozzle Contact Force: 50 kN Clamping Unit Clamping Force: 1,900 kN (190 t) Clamping System: Zhafir Zeres all-electric with servo-hydraulic auxiliaries Platen Size (H × V): approx. 770 × 720 mm Mould Opening Stroke: 450 mm Max. Daylight Opening: approx. 900 mm Min. Mould Height: 200 mm Ejector Stroke: 150 mm Ejector Force (fwd / back): 40 / 30 kN Drive & Control Drive Type: Hybrid electric / servo-hydraulic (Zeres series) Connected Load: 45 kW Full Load Current: 76 A Short Circuit Current: 25 kA Power Supply: 400 V / 50 Hz / 3-phase Control System: SIGMATEK CNC-based control with Zhafir HMI touchscreen Equipment / Features Drive ...

Injection Unit Screw Diameter: Ø 55 Injection Volume: approx. 517 cm³ Injection Pressure: up to 2,000 bar Injection Rate: approx. 220 cm³/s Plasticizing Capacity: approx. 35 g/s (PS) Screw L/D Ratio: 22:1 Nozzle Contact Force: 60 kN Clamping Unit Clamping Force: 2,300 kN (230 t) Clamping System: Zhafir Zeres all-electric toggle system Platen Size (H × V): approx. 850 × 800 mm Mould Opening Stroke: 470 mm Max. Daylight Opening: approx. 940 mm Min. Mould Height: 220 mm Ejector Stroke: 150 mm Ejector Force (fwd / back): 50 / 30 kN Drive & Control Drive Type: All-electric servo drive Installed Power: 47 kW Full Load Current: 79 A Short Circuit Current: 25 kA Power Supply: 400 V / 50 Hz / 3-phase Control System: Zhafir SIGMATEK HMI touchscreen control Equipment / Features Drive Concept: Fully electric servo system for high p ...

Injection Unit Engine not working Screw Diameter: 65 Ø Injection Volume: approx. 1,025 cm³ Injection Pressure: up to 1,800 bar Injection Rate: approx. 450 cm³/s Plasticizing Capacity: approx. 80 g/s (PS) Nozzle Contact Force: 100 kN Clamping Unit Clamping Force: 5,000 kN (500 t) Clamping System: ENGEL Duo two-platen design Platen Size (H × V): approx. 1,300 × 1,200 mm Mould Opening Stroke: 800 mm Max. Daylight Opening: approx. 1,400 mm Min. Mould Height: 400 mm Ejector Stroke: 200 mm Ejector Force (fwd / back): 90 / 60 kN Drive & Control Drive Type: Servo-hydraulic (ecodrive inside) Hydraulic System Pressure: up to 160 bar Pump Motor Power: 37 kW Total Installed Power: approx. 55 kW Power Supply: 400 V / 50 Hz / 3-phase Control System: ENGEL CC300 touchscreen control Equipment / Features Clamping System: Two-platen design f ...

Injection Unit Screw Diameter: Ø 50 Injection Volume: approx. 490 cm³ Injection Pressure: up to 1,800 bar Injection Rate: approx. 350 cm³/s Plasticizing Capacity: approx. 50 g/s (PS) Nozzle Contact Force: 65 kN Clamping Unit Clamping Force: 2,600 kN (260 t) Clamping System: ENGEL Victory tie-bar-less design Platen Size (H × V): approx. 1,000 × 950 mm Mould Opening Stroke: 600 mm Max. Daylight Opening: approx. 950 mm Min. Mould Height: 350 mm Ejector Stroke: 150 mm Ejector Force (fwd / back): 50 / 30 kN Drive & Control Drive Type: Hydraulic Hydraulic System Pressure: up to 160 bar Pump Motor Power: 22 kW Total Installed Power: approx. 30 kW Power Supply: 400 V / 50 Hz / 3-phase Control System: ENGEL CC300 touchscreen control Equipment / Features Clamping Concept: Tie-bar-less design for improved mould accessibility and com ...

Injection Unit Screw Diameter: Ø 65 Injection Volume: approx. 1,075 cm³ Injection Pressure: up to 1,750 bar Injection Rate: approx. 400 cm³/s Plasticizing Capacity: approx. 85 g/s (PS) Nozzle Contact Force: 110 kN Clamping Unit Clamping Force: 5,500 kN (550 t) Clamping System: ENGEL Duo two-platen design Platen Size (H × V): approx. 1,350 × 1,300 mm Mould Opening Stroke: 850 mm Max. Daylight Opening: approx. 1,450 mm Min. Mould Height: 400 mm Ejector Stroke: 220 mm Ejector Force (fwd / back): 95 / 65 kN Drive & Control Drive Type: Hydraulic (pre-ecodrive generation) Hydraulic System Pressure: up to 160 bar Pump Motor Power: 45 kW Total Installed Power: approx. 65 kW Power Supply: 400 V / 50 Hz / 3-phase Control System: ENGEL EC88 digital control panel Equipment / Features Clamping System: Robust two-platen design for hi ...

Injection Unit Screw Diameter: Ø 70 Injection Volume: approx. 1,540 cm³ Injection Pressure: up to 1,800 bar Injection Rate: approx. 500 cm³/s Plasticizing Capacity: approx. 95 g/s (PS) Nozzle Contact Force: 120 kN Clamping Unit Clamping Force: 6,500 kN (650 t) Clamping System: ENGEL Duo two-platen design Platen Size (H × V): approx. 1,600 × 1,500 mm Mould Opening Stroke: 900 mm Max. Daylight Opening: approx. 1,600 mm Min. Mould Height: 450 mm Ejector Stroke: 250 mm Ejector Force (fwd / back): 110 / 70 kN Drive & Control Drive Type: Servo-hydraulic (ecodrive inside) Hydraulic System Pressure: up to 160 bar Pump Motor Power: 45 kW Total Installed Power: approx. 65 kW Power Supply: 400 V / 50 Hz / 3-phase Control System: ENGEL CC300 touchscreen control Equipment / Features Clamping System: Two-platen design for compact footp ...

This DEMAG Ergotech Compact 125-440 hydraulic injection moulding machine was manufactured in 1998. Contact us for more information.

Hydraulic injection moulding machine manufactured in 2005. This Battenfeld TM 210/1330 has a weight of 9200 kg and operates with a hydraulic system pressure of 210 bar. It features a rated motor current of 68 A and a supply system of 3-phase with neutral. If you are looking to get high-quality injection moulding capabilities, consider the Battenfeld TM 210/1330 machine we have for sale. Contact us for further details.

This Engel Insert 80V/40 was manufactured in 2011. A vertical injection moulding machine, its ideal for precision thermoplastic parts. Consider the opportunity to buy this Engel Insert 80V/40 vertical injection moulding machine. Contact us for more information.

2 pcs. molds with 1-1 cavity, automat with hot runnel control, PP material molds sizes both: 300x245x213 mm machine size min. 25 T

1 cavity from PP material mold sizes: 383x450x384 mm machine size min. 100 T

Used injection molding tools for the manufacture of plastic slippers. Offer total 43 pcs. refers to two cavities tooling and accessories. From small children (23) to men (45) in size, it is suitable for the manufacture of slippers of various types and colors. For sale total 12,900 Euro

screw size: 62 mm injection shot weight in Polysterol: 903 g/PS closing pressure: 3300 kN total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

screw size: 98 mm injection shot weight in Polysterol: unbkt. g/PS closing pressure: 8600 kN total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

screw size: 84 mm injection shot weight in Polysterol: unbkt. g/PS closing pressure: 440 kN volumn: 1660 volt: V total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Sumitomo Demag injection molding machine Systec multi 210/580-430h/200r 2021 Wittmann Robot W822 Z:2500/Y:1400/X:550 2021

Key data: 450 mm, 63 , 25

Screw diameter: 25 mm Displacement: 69 cm³ Injection weight in polystyrene: 63 g/hp Injection pressure: 2,400 bar Clamping force: 45 t tie-barless Tool installation height min.: 175 mm Opening distance: 355 mm CONTROL: CC200 Screen text: german / german Instruction manual: german / german Sprue picker er/usp Pump drive power: 11 kW Total connected load: 17.8 kW Total weight: 3,300 kg Dimensions L x W x H: 3.3 x 1.2 x 2.0 m m m Payment terms: 100% before taking over the machine, net only
