deckel accessories for machine tools used for sale

Radius grinding device for DECKEL S11 grinding machine – ISOG ref: 2601X00

type: -- mm tool adaptor: - weight: - kg centre height: -- mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 10000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW The machine can be viewed under current.: operating key and instruction: DECKEL S 11 TOOL GRINDING MACHINE - UNIVERSAL 2178 / 02 380 V, 50 Hz, with CEE plug and cable Original paint ! ! Machine is in delivery condition, depending on customer request the machine can be overhauled ! motorised height adjustment, axial grinding spindle adjustment Accessories: Dividing head Sk 40 with dividing disc 24 R with mounting points for optics Dust extraction device without suction cup Halogen lamp Protective cover 3 pcs. transport lugs 1 set of technical sanding instructions Operating key, operating instructions, spare parts list, wiring diagram The ...

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 10000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW The machine can be viewed under current.: operating key and instruction: DECKEL S 11 TOOL GRINDING MACHINE - UNIVERSAL 465 / 84 380 V, 50 Hz Colour: green ! Original paint ! ! Machine is in conditon from seller ! motorised height adjustment, axial grinding spindle adjustment Accessories: Dividing head Sk 40 with dividing disc 24 R with mounting points for optics Dust extraction device without suction cup Protective cover 3 pcs. transport lugs 1 set of technical sanding instructions Operating key, operating instructions, spare parts list, wiring diagram The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

control: Dialog 3 + 4 type of control: CNC Fräsen The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

control: Dialog 4 type of control: CNC Fräsen The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

control: Dialog 3 / 4 type of control: CNC Fräsen The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

DECKEL GK21 Engraving frause machine More: DECKEL G1L Engraving fraese

x-travel: 150 mm y-travel: 300 mm z-travel: 350 mm table surface area: 350 x 200 mm spindle turning speed range: 475 - 20000 U/min total power requirement: 0,4 kW weight of the machine ca.: 0,46 t dimensions of the machine ca.: 1,2 x 1 x 1,4 m • without templates The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. grinding diameter: 238 - 620 mm grinding length: 190 mm workpiece length: 380 - 940 mm spindle turning speed - stepless: 2 - 10000 U/min current capacity: 380 kVA power capacity - grinding motor: 1,1 kW total power requirement: 2,2 kW weight of the machine ca.: 0,6 t Mechanic: very good: Optical condition: very good: The machine can be viewed under current.: Please notice: We would be happy to make you a free offer. However, please understand that we only process inquiries with complete address details. 1218 400 V, 50 Hz, with CEE plug and cable Colour: light grey RAL 7035 Stand traffic grey RAL 7042 (new paint) axial grinding spindle adjustment Accessories: Machine stand and carrier plate ground Complete electrical conversion included: > new three-phase drive > new brake motor > new frequency controller > new built-in electrics touch-proof > Fi circuit breaker >  ...

Ref. -No.: 10164 Manufacturer: DECKEL MAHO Year of construction: 1986 Type of control: CNC Control: CNC 432 Storage location: Halberstadt Country of origin: Deutschland Total connected load: 40 kVA X-Travel: 800 mm Y-Travel: 450 mm Z-Travel: 500 mm Feed force (X, Y, Z): X 800, Y 24000, Z 8000 N Quill Stroke: 100 mm Speed work spindle: 20-4000 RPM Feeds X/Y/Z: 1-3000 m / min Rapid Traverse X/Y/Z: 8 m / min Tool Taper: ISO 40 Space requirements: 3680 x 3780 x 2720 LxWxH (mm) Further information: Additional information: - with controlled rotary table Ø800 (B axis) - simultaneously controlled axes: 3 - axes controlled one after the other: 4

A universal tool milling machine by Friedrich Deckel, overhauled in 2008 and originally built in 1989, is available. Travels X/Y/Z: 560mm/500mm/450mm, table dimensions X/Y: 900mm/530mm, max. table load: 450kg, tool taper: SK40, quill stroke: 80mm, milling head swivel: +/-90°, spindle speed: 4000rpm, feed rate: 3.6m/min, rapid traverse: 4m/min. Machine dimensions X/Y/Z: 2350mm/2200mm/2000mm, weight: approx. 2200kg. Documentation available. An on-site inspection is possible.

2002 Deckel Maho DMU 50T still in use, can be viewed Find more here - .ucymachines/ Contact us at - sales@ucymachines

The 2005 Deckel Maho DMC 104 V linear is a CNC (Computer Numerical Control) vertical machining center manufactured by Deckel Maho, a part of DMG MORI. This machine is known for its precision and efficiency in machining tasks, including milling, drilling, and tapping. Here are some key features and specifications of the 2005 Deckel Maho DMC 104 V linear: - Travel and Table Size: - X-axis travel: Approximately 1040 mm - Y-axis travel: Approximately 600 mm - Z-axis travel: Approximately 500 mm - Table size: Large enough to accommodate substantial workpieces - Spindle: - Spindle speed: High rotational speeds for efficient cutting - Spindle power: Sufficient for heavy-duty machining tasks - Linear Drives: - Equipped with linear drives for the X, Y, and Z axes, providing higher precision and faster movements compared to traditional ball screw drives. - Control System: - Typically equip ...

x-travel:1000 mm y-travel:320 mm z-travel:400 mm Table dimensions:1000 x 400 mm

x-travel: 300 mm y-travel: 150 mm z-travel: 340 mm total power requirement: 2 kW weight of the machine ca.: 660 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel:560 mm y-travel:500 mm z-travel:450 mm

x-travel:560 mm y-travel:500 mm z-travel:450 mm

x-travel: 300 mm y-travel: 450 mm z-travel: 150 mm total power requirement: 1,5 kW weight of the machine ca.: 500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 630 mm y-travel: 800 mm z-travel: 750 mm control: SIN 840D sl Siemens B - axis: 360 x 0,001 ° A - axis: -200 -- +25 x 0,001 ° spindle turning speed - stepless: 20 - 18.000 U/min power capacity at 100 % load: 28,00 kW power capacity at 40 % load: 34,00 KW max. torque at 40% / 100% load: 110 / 84 Nm tool taper: HSK 63 feed X/Y/Z/-axis: 1 - 100.000 mm/min rapid traverse X/Y/Z: 100,00 m/min feed capacity X/Y/Z: 9 / 6 / 9 kN feed B-axis: 1 - 14.400 °/min feed A-axis: 1 - 7.200 °/min size of pallet: 2x 500 x 500 mm workpiece weight max.: 400 kg max. workpiece diameter: 800 mm workpiece height max.: 800 mm tool magacine with: 63 diameter of tools max.: 280 mm tool length - max.: 550 mm weight of tools max.: 15,00 kg total power requirement: 65,00 kW weight of the machine ca.: 14,00 t dimensions of the machine ca.: 5,50 x 3,50 x H3,20 m 5-axis machining center with SIEMENS SINUMERI ...

A CNC 6-axis laser precision machine for non-contact laser processing and measurement of complex geometries, particularly in the tool and mould making industry, is available. Travel X/Y/Z: 300mm/400mm/500mm, table dimensions X/Y: 300mm/400mm, axes mechanical/optical: 3/3, measurement system: non-contact SI sensor, measurement accuracy: +/-0.01mm, surface finish: Ra under 1µm, operating hours: 21045h, processing hours: 6549h. The laser (Prisma) is defective. Documentation available. An on-site inspection is possible.

Spindle speed range: 9000rpm, travel X/Y/Z: 500mm/400mm/400mm, feed rate: 10000mm/min, rapid traverse: 12m/min. Table dimensions X/Y: 700mm/500mm, max. table load: 200kg, number of T-slots: 7, distance between T-slots: 63mm. Control: Heidenhain, tool changer: 16-fold, dimensions X/Y/Z: 4000mm/2200mm/2450mm, weight: approx. 3500kg.

Travel X/Y/Z: 560mm/500mm/450mm, tool holder: SK40, speed: 4000rpm, feed rate: 3.6m/min, rapid traverse: 4m/min, table dimensions X/Y: 530mm/900mm, max. table load: 450kg. Machine dimensions X/Y/Z: 2350mm/2200mm/2000mm, weight: approx. 2200kg, control: Deckel Contour 2. An on-site inspection is possible.

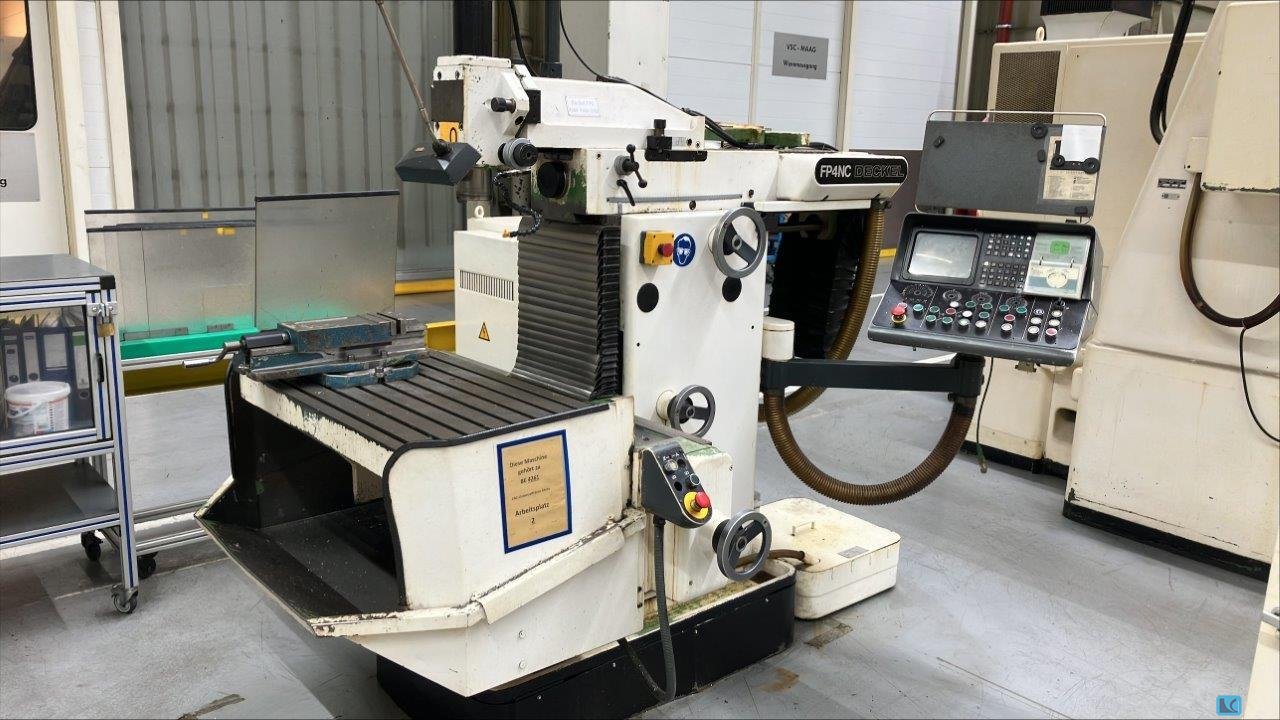

Offered is a Deckel FP4NC vertical milling machine with Heidenhain TNC 355 control. Year 1987, including tool cabinet as well as various tools. Travel distances: X/Y/Z: 560mm/500mm/410mm, dimensions X/Y/Z: approx. 1800mm/1600mm/2000mm, weight: approx. 2400kg. Viewing is possible by appointment.

Spindle-to-table distance min./max.: 81mm/481mm, counter support spindle center distance: 195mm, spindle head swivel: 360°, milling spindle diameter: 70mm, spindle adjustment: 100mm, headstock adjustment: 300mm, table dimensions X/Y: 480mm/820mm, travel X/Y/Z: 500mm/200mm/400mm, max. workpiece length: 400mm, spindle speed: 1600rpm, feed X/Y: 500mm/min, feed Z: 250mm/min, spindle head swivel: +/-30°, machine dimensions X/Y/Z: approx. 1600mm/2550mm/1700mm, weight: approx. 2300kg. The machine was electrically tested at the end of 2025 and a defect of the emergency stop switch was discovered. Documentation available. On-site inspection is possible.

A CNC 3-axis universal milling machine Deckel (DMG Mori) is available. Travel X/Y/Z: 1200mm/600mm/500mm, tool holder: SK40, speed: 5000rpm, feed rate: 10m/min, rapid traverse: 10m/min, table dimensions X/Y: approx. 1600mm/675mm, max. table load: 2000kg. Machine dimensions X/Y/Z: approx. 3300mm/2400mm/2400mm, weight: approx. 7000kg, control: Grundig Dialog 11. An on-site inspection is possible.

A CNC universal milling and boring machine Decke Maho is available. Travel X/Y/Z: 500mm/400mm/400mm, power: 7kW/5kW, torque: 88Nm/63Nm, speed: 4500rpm, tool interface: SK40, feed rate: 5m/min, rapid traverse: 5m/min, rotary table diameter: 700mm, max. workpiece height: 500mm, max. table load: 200kg, machine dimensions X/Y/Z: approx. 3200mm/1650mm/2550mm, weight: approx. 2600kg, control: Heidenhain TNC 124. Documentation available. On-site inspection is possible.

x-travel: 710 mm y-travel: 600 mm z-travel: 500 mm NC-rotary table: 630 mm spindle taper: SK 40 spindle turning speed range: 18 - 6300 U/min control: DIALOG 4 feed: 2 - 3600 mm/min rapid traverse: 6 m/min table load: max. 485 kg quill stroke: 80 mm spindle drive: 9,5 kW total power requirement: 20 kVA weight of the machine ca.: 4,6 t dimensions: 3,8 x 2,24 x 2,35 m Accessories: vertical head with hydr. tool clamping and quill retraction, electron. handwheel, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 485 mm y-travel: 385 mm z-travel: 380 mm table surface area: 800 x 460 mm spindle taper: SK 40 control: CONTOUR 1 spindle turning speed range: 50 - 2500 U/min feeds: 10 - 1000 mm/min rapid traverse: 2 m/min table load capacity: 600 kg quill stroke: 80 mm total power requirement: 7,5 kW weight of the machine ca.: 2,0 t dimensions: 2,4 x 1,7 x 1,98 m Acc.: vertical head with hydr. tool clamping and quill retraction, solid table, coolant - movement of X/Y/Z also possible via handwheels - The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Travel X/Y/Z: approx. 600mm/525mm/500mm, table dimensions X/Y: 1000mm/550mm, max. table load: 350kg, tool holder: SK40, speed: 12000rpm, tool positions: 25, rapid traverse: 24m/min. Machine dimensions X/Y/Z: approx. 2900mm/2000mm/2300mm, weight: approx. 4500kg, control: Heidenhain, operating hours: approx. 87955h, spindle hours: approx. 21800h. Documentation available. On site inspection is possible.

Travel X/Y/Z: 600mm/400mm/500mm, Speed: 8000rpm, Tool holder: SK40, Feed rate: 10m/min, Rapid traverse: 20m/min, Table dimensions X/Y: 1000mm/600mm, max. table load: 500kg. Machine dimensions X/Y/Z: approx. 3560mm/2700mm/2250mm, Weight: approx. 6500kg, Operating hours: approx. 66000h, Spindle hours: approx. 18000h. Including approx. 30 SK40 holders and 2x Allmatic hydraulic vices. Documentation available. An inspection on site is possible. Without IKZ and tool changer.

This 5-axis Michael Deckel S22 was manufactured in 2005. It features a maximum grinding wheel diameter of 150 mm and a spindle speed range of 300 to 8000 rpm. The machine has a robust weight of 3800 kg and includes a cooling/filtration system from Transor Filter GmbH. If you are looking to get high-quality internal grinding capabilities, consider the Michael Deckel S22 internal grinding machine we have for sale. Contact us for further details.

Graver grinder, grinder, angle grinder, rotary steel grinder, thread drill grinder, milling cutter grinder, surface grinder, drill grinder, bench grinder, double bench grinder, tool grinder -Manufacturer: precision mechanics Weilheim, lid tool grinding machine type SO/64-6550 -Motor power: 0.37 kW 2800 rpm -Speed: 2800 rpm -Grinding discs: Ø 100 mm -Dimensions: 510/450/H1280 mm -Weight: 67kg

Three old Hermle and Deckel milling machines are available. 1) Horizontal milling machine Hermle FW 801, tool holder: SK40, travel X/Y/Z: 430mm/150mm/420mm, speed: 2000rpm, machine dimensions X/Y/Z: approx. 2250mm/1700mm/1500mm, weight: approx. 1000kg. 2) Universal milling machine Hermle FW 710, tool holder: SK30, table dimensions X/Y: 710mm/190mm, travel X/Y/Z: 400mm/150mm/350mm, speed: 2240rpm, machine dimensions X/Y/Z: approx. 1500mm/1000mm/1800mm, weight: approx. 700kg. 3) Deckel FP 2, year of manufacture: 1987, tool holder: SK40, travel X/Y/Z: 300mm/2200mm/400mm, table dimensions X/Y: 620mm/390mm, max. table load: 250kg, speed: 3150rpm, feed: 3600mm/min, rapid traverse: 4000mm/min, machine dimensions X/Y/Z: approx. 2500mm/2100mm/1800mm, weight: approx. 1250kg, control: Heidenhain TNC 355. An on-site inspection is possible. Individual sale possible, however a package sale is preferre ...

Number of T-slots: 8, rated current: 23A, controls: CONTOUR 3, with tool magazine. An on-site inspection is possible.

A Deckel engraving and copy milling machine is available. Table dimensions X/Y: 350mm/200mm, travel X/Y: 300mm/150mm, machine dimensions X/Y/Z: approx. 1100mm/1300mm/1500mm, weight: approx. 500kg. An on-site inspection is possible.

Travel X/Y/Z: 380mm/280mm/300mm, working dimensions X/Y/Z: 580mm/450mm/340mm, max. electrode weight: 50kg. Machine dimensions X/Y/Z: approx. 2100mm/1650mm/1750mm, weight: approx. 3500kg. An on-site inspection is possible.

Tool milling machine DECKEL FP1 with 3 axis active digital display TNC 113 from educational institution -Travel X/Y/Z 300x160x340mm -Speed range 40-2000 rpm -Feed infinitely variable in three axes Hobkn Asv Abp Tju S Tjl -Rapid traverse in all three axes -Vertical milling head - 100mm movable -Vertical - Horizontal milling device -Drive power 1.5/1.9KW -Rigid angle table -3 axis digital display Heidenhain TNC113 -Coolant device -Work light -Documentation Dimensions: LxWxH 1.3x1.2x1.6 meters / Weight 850Kg

Table dimensions: 1000-550 mm Control: Grundig x-travel: 1000 mm : ja milling-head swivable +/-: ja control: Grundig serial number: 0209 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A Deckel CNC universal milling machine is offered. Travel X/Y/Z: 700mm/600mm/550mm, quill stroke: 80mm, milling head swivel range: +/-90°, spindle power: 12kW, max. spindle speed: 6300rpm, feed torque X/Y/Z: 13Nm/13Nm/21Nm, feed rate X/Y/Z: 6m/min, rapid traverse X/Y/Z: 6m/min, tool holder: SK40, measuring resolution: 0.001mm, 4th axis resolution: 0.001°, max. slide load: 1000kg, number of T-slots: 1, T-slot width: 14H7mm, mounting holes for table accessories: M12, control: Deckel Dialog 11. Machine weight: approx. 3900kg, electrical cabinet weight: approx. 475kg, 5110mm/4654mm/2335mm, floor space X/Y: approx. 6200mm/5700mm, floor load: 3500kg/m². Documentation available. Inspection by appointment possible.

A Deckel Maho 5-axis CNC milling machine in need of repair is offered. Travel X/Y/Z: 1080mm/710mm/710mm, NC-mounted rotary table C-axis X/Y: 800mm/620mm, swiveling milling head B-axis: 90°, max. spindle speed: 12000rpm, tool taper: SK40, tool positions: 32, control: Heidenhain iTNC 530, control-on hours: 75100h, program run hours: 24720h. Equipped with internal air blast supply, external coolant supply, Heidenhain infrared touch probe, Heidenhain electronic handwheel, Rotoclear rotating inspection window, chip conveyor, oil mist extraction system, coolant system with paper band filter, chip flushing gun, work area light and clamping support next to the mounted rotary table for longer workpieces. The milling head clamping system is leaking, but the machine is still operational. An on-site inspection is possible.

x-travel:600 mm y-travel:450 mm z-travel:400 mm Table area:700 x 480 mm spindle turning speed range:10 - 3150 U/min spindle taper ISO:40 quill stroke:80 mm dimensions of the machine ca.:1,8 x 2,1 x 1,9 m total power requirement:8 kW weight of the machine ca.:3,5 t Machine with universal turn, sviwel and tilting table - CNC control DIALOG II - splash guards - misc. parts

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden

; very good

Table size: 460 x 800 mm stroke x: 485 mm traverse path y: 385 mm traverse path z: 380 mm Quill stroke: by hand approximately 70 mm spindle speeds: 50-3150 rpm stufenl feeds. adjustable: 2-1000 mm / min rapid traverse rate: 2 m / min. Port: 3.7/4,4 kW space: 2100 x 1650 x 1730 mm weight: 1850 kg

Three T-slot plates of a copy-fraes machine from Lid are offered. The T-slot plates can be mounted as a cross table. Scope of delivery only according to photos, without spindles. If you are interested, please request more photos. Further spare parts of lide e.g. towing table of a KF3 pre-wheels. Please ask. Special price Lid cabinet tool cabinet

Various sub-equipment from a training workshop, to hand over individually, e.g. lid sub-device with upper beam and counter holder, Universal part apparatus with initial division Walter UTA150E with counter holder and rotary chuck 3 partial discs with parts see above, Part apparatus Walter can be swivelled without initial division. Furthermore Luenetten standing and running, on request please Specify the tip height and distance mid prism to mid plan area. Rest according to photo. Other sub-equipment susengar, Direct division Indirect division, various large sum. Please ask Sub-discs for UTA 150 E 22 24 29 36 37 49 57 63 16 30 33 36 39 51 57 63 16 27 30 33 41 47 53 61 Special price

2 pallets, 108 wkzg., BJ 1988, interior cooling, with PS8, various clamping means - see pictures

Pallet Pool PS8

-X-Way-700mm -Y-way-700mm -Z-way-700mm -Control-ITNC 530 -Spindle holder HSK A63 -Spindle speed-12000rpm -Plate changer with 7 pallets -Tool magasin with 120 -Internal cooling feeder-40bar -Spindle motor-20kW -Pallet size 500x500mm -Machine weight approx.16t -Top condition,to be visited under electricity

1 x Universall tool-feeding machine Lid FP 4 Built: c.1970 Very robust and rare conventional machine in good condition. Technical data: Travel: X: 700 Y: 400 Z: 450 mm Spindle speeds: 31.5 - 1,600 rpm (18 levels) Tool holder: ISO 40 Pinole stroke: 115 mm Feed in X/Y/Z Feed range: X/Y/Z 5 - 500 mm/min (infinitely adjustable) Rapid response: X/Y: 10 - 500 mm/min Z: 5 -250 mm/min (18 levels) swivel handling table Clamping area: 860 x 500 mm Accessories: 1 x horizontal counter bearing 5 x horizontal frond spine Bftj7cazem 10 x vertical fraes aufnahme 36 x tension tension ingesheis from 0.5 - 18 mm 0.5 mm rising 5 x Direct clamping pliers D: 12/14/16/18/20 mm 1 x machine vice Manual various distance rings and accessories for milling machines complete documentation The machine can be inspected at our warehouse under electricity. A 3-axis digital ...

Control type: CNC Sinumerik 840D-SL x-way 1135 mm y-way 1050 mm z-way 750 mm table size 1400 x 1050 mm Table load 2500 kg max. workpiece size LxWxH 1400 x 1240 x 750 mm Speed 10000 rpm feed speeds X/Y/Z Axis 40000 mm/min Expressspeeds x/y/z 40000 mm/min Tool holder HSK-A100 HSK Number of places in the tool magazine 30 places max. tool weight 20 kg max. tool length 395 mm max. tool diameter 110 mm Machine height 3294 mm Drive power - spindle motor 44 kW machine weight approx. 17.9 t Space requirements approx. 15 m2 Information: Universal milling machine in mono BLOCK design (3-axis) - available September 2019 - only 3800 spindle hours, 13400 power-on hours Equipment / Accessories: - Coolant system - High-pressure pump - Chip conveyor - Hand-held panel - BALLUFF option - Documentation

Milling machine from a training workshop in very good condition Manufacturer lid Type FP1 Active

CNC toolmill cover FP 3 NC Dialog 11 Used machine (very good) Control type Cnc Built 1990 Hours K.a. Dimensions 1800x1700x2000 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making • Travel distances: 400x400x400mm • Control: Dialog 11 Technical data • Control CNC Dialog 11 • Table 600x400mm • Longitudinal path (X,Y,Z axis) 400x400x400mm • Tool changer no • Tool holder: ISO 40 • Vertical spindle speeds: 31.5-3150rpm • Feeds 2-3600mm/min • Connection 50 Hz 3x 380V • Spindle motor 3.4KW

Lid FP 4 A Used machine (very good) Control mode Conventional Built in 1992 Operating hours approx. 500h Price 12,000 € net plus VAT Dimensions 2500x2500x1900 Weight 2000 kg Location Haiger Description Universal tool milling machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 560/500/450mm Control : Dialog 11 Technical data Control CNC Dialog 11 Table 900x530mm Longitudinal path (X,Y,Z axis) 560/500/450mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-5000rpm

Description Universal tooling machine from Lid suitable for tooling, fixture construction, training as well as mold making Technical data Year of construction / YOM 1991 Speeds / Spindle 63 - 6300 rpm Steuerung Control CNC Grundig Dialog 11 Vorschübe / Feeds 2 - 3000mm/min Tisch / Table 910 x 530mm Recording / Taper ISO 40 Way / Travel (X,Y,Z) 600x500x500mm Weight /Weight ca 1830kg Changer / Tool changer No Dimensions / Dimension 2500x2000x2000mm Travel: 600x500x500mm Speed: 31.5 - 6300 rpm The machine comes from a tool making and has been regularly serviced.

Lid FP 4 MA Used machine (Very good) Control type CNC Built in 1990 Operating hours n/a Price 8,000 net plus VAT Dimensions 2500x2000x2500 Weight 1800 kg Location Haiger Description Universal tool ingescent machine of the brand lid suitable for tooling, fixture construction, training as well as mold making Travel: 465x385x380mm Control: Contour 2 Technical data Technical data: Lid FP4 MA (527) Built in 1992 Control CNC Hand / Contour 2 Table 800x465mm Laengsweg (X,Y,Z axis) 465x385x380mm Tool changer no Tool holder: ISO 40 Vertical spindle speeds: 31.5-3150rpm Vorschuebe 2-4000mm/min Connection 50 Hz 3x 380V Spindle motor 4KW Machine weight approx. 1900kg Dimensions 2800x2000x2500mm

Description x-path: 300 mm y-way: 150 mm z-way: 340 mm Clamping area: 600 x 210 mm T-slots: 5 T - slot width: 12 mm Speed range - vertical: 250 - 2000 rpm Speed range - horizontal: 40 - 315 rpm Speed levels working spindle: 8 Feed range: 10 - 500 mm/min Feed levels: 8 Pinolene stroke: 60 mm Spindle holder: SK 40 Total power requirement: 1.7 kW Machine weight approx.: 0.8 t Space requirement approx.: 0.90 x 1.10 x 1.55 m Universal tool milling machine in very good condition, vertical head rotatable +/- 90° incl. drill pin with stroke 60 mm, horizontal spindle, automatic feed in X and Z direction, universal swivel table, turning and tilting range+/- 30°, swivel range+/- 90°, separate control cabinet + main switch incl. digital display (new)

Lid FP 1 in very nice condition x-path: 300 mm y-way: 150 mm z-way: 340 mm Clamping area: 600 x 210 mm T-slots: 5 T - slot width: 12 mm Speed range - vertical: 250 - 2000 rpm Speed range - horizontal: 40 - 315 rpm Speed levels working spindle: 8 Feed range: 10 - 500 mm/min Feed levels: 8 Pinolene stroke: 60 mm Spindle holder: SK 40 Digital display Z-502 Total power requirement: 1.7 kW Machine weight approx.: 0.8 t Space requirement approx.: 0.90 x 1.10 x 1.55 m Universal tool milling machine in good condition, vertical head rotatable +/- 90° incl. drill pin with stroke 60 mm, horizontal spindle, automatic feed in X and Z direction, universal swivel table, turning and tilting range+/- 30°, swivel range+/- 90°, separate control cabinet + main switch

Flat belt pulley, toothed pulley, multi-belt pulley -Spare part comes: from a machining center cover type FP3A -Diameter: 80 mm -Recording: 28 mm -Dimensions: 80/80/H61 mm -Weight: 1.2 kg

Rotary encoder, tachometer, encoder -Spare part comes: from a machining center cover type FP3A -Number: 1x speedometer available -Price: per piece -Dimensions: 83/122/H95 mm -Weight: 1.1 kg

Angular table for lid milling machine Clamping flat 900x530mm 8 St T-hooks Never used

Cover FP2 FP 2A SK40 / with dialog 11 path control Control: CNC Dialog 11 - 3D Web Control Speed: 40 - 4000 rpm Feed rate: 2 - 3600 mm/min infinitely variable Rapid speed: 4 m/min Drive power: 1.6 / 2.0 kW 1400/2800 rpm Quill: Extendable quill vertical 80 mm SK40 with Clamping system DIN 2080 Travel: X/Y/Z: 300/300/400 mm Rotary table: 3 axis Universal table 600 x 330 mm max load 250 kg Equipment: Hydromechanical clamping system SK40 with suit bolt DIN 2080. Vertical & Horizontal spindle , Milling head manually swivel+/- 90 ° Machine light Programming: Dialog-guided programming with cycles. E-handwheel.

Milling machine lid FP 4 NC Built c. 1992 with controlled C-axis 2 pieces of screw sticks Various tool holders Machine is in top condition and was last serviced on 20.08.2020 for approx. 3.000,- € (net). documents available. The machine is sold only because of space requirements. Location of the machine: 76661 Philippsburg

Code 0733 DESCRIPTION CNC Universal toolroom milling machine Make DECKEL Model FP 4 MA S/N 2204-1372 Year 1987 Control Grundig - Contour 2 Table 800 x 460 mm Longitude ( X – axis ) table 485 mm Vertical ( Y – axis ) table 380 mm Cross ( Z – axis ) spindle 385 mm Spindle quill 80 mm Spindle taper 40 ISO Speeds 63 - 3150 rpm Feeds X-Y-Z 2 - 3000 mm/min Rapides 3 m/min Spindle motor 3,7 / 4,4 kW – 380 Volts Accessories Table 800 x 460 mm Coolant Condition Machine is in good condition

Code 1815 DESCRIPTION CNC Universal toolroom milling machine Make DECKEL Model FP 3 A S/N 2206-0593 Year 1980 Control Grundig 2102 ( position ) Table 800 x 460 mm Longitude ( X – axis ) table 500 mm Vertical ( Y – axis ) table 400 mm Cross ( Z – axis ) spindle 300 mm Spindle quill 80 mm Spindle taper 40 ISO Speeds 25 - 2500 rpm Feeds X-Y-Z 1 – 500 mm/min Rapides 1,5 m/min Spindle motor 2,0 / 4,0 kW – 380 Volts Accessories Table 800 x 460 mm Coolant Condition Machine is in good condition

Code 8520 DESCRIPTION CNC bed milling machine Make DECKEL Model FP 42 A S/N 2388 – 0155 Year 1981 Control Grundig 2301 Table 1380 x550 mm Longitude ( X – axis ) table 1170 mm Vertical ( Y – axis ) table 370 mm Cross ( Z – axis ) spindle 370 mm Spindle taper 40 ISO 21 Speeds 10 - 2000 rpm 21 Feeds X-Y-Z 1 - 2500 mm/min Spindle motor 3,7 / 4,4 kW – 380 Volts Weight 3000 kgs Accessories Coolant Condition Machine is in good condition

Milling machine DECKEL MAHO DMG 125

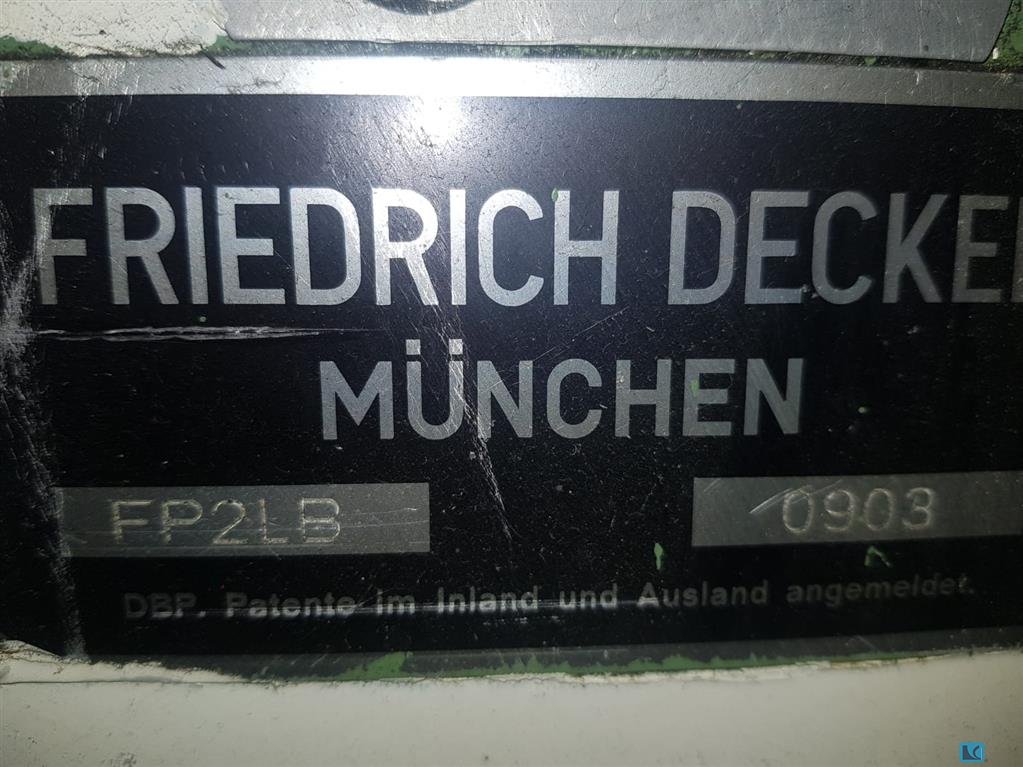

Friedrich Deckel FP 2 LB tool milling machine This universal milling machine FP 2 LB from the well-known German manufacturer Friedrich Deckel in Munich has as a special feature an extremely stable basic body and is designed as a travel column machine i.e. the machine does not lose accuracy should heavy parts (up to 1000 kg) be clamped. Another special feature is the so-called inclined bed of 45 degrees. Thus, after dismantling the universal table, it is possible, especially V-engine blocks with 90-degree cylinder angle (e.B. amerik. V8) directly clamp and process. The long travel distance of 800mm is also an advantage in this case. Lid FP 2 LB universal swivel/tilt table (± 45° / ± 15°) Lid Universal Divider Vice 160 mm Working range: X= 800 mm / Y= 300 mm / Z= 400 mm From 01.07.21 the machines are ready for collection. Dismantling and transport by the buyer.  ...

fully functioning used 3 axis milling machine, brand lid, type FP2, with vice, and many accessories.

Control: Dialog 11 with new MCP card Travel range: x-800 y-600 z-550 mm Spindle speeds: 18 – 6300 rpm Pinole by hand: 80 mm Recording: SK 40 Feed: 2 to 10000 mm/min Rapid response: 10000 mm/min Weight: approx. 4050 kg With full cab, chip conveyor, electr. Handwheel Installation dimensions: L: With controller and chip conveyor approx. 4200 mm (without conveyor approx. 3200 mm) B: approx. 3800 mm (With space to open door E-cabinet approx. 4600 mm) H: approx. 2400 mm Can be visited under electricity.

x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm Control: Heidenhain TNC 430 total power requirement: 26 kW weight of the machine ca.: 6500 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 880 mm y-travel: 630 mm z-travel: 630 mm table surface area: 1250 x 700 mm NC-rotary table: integriert, 700 mmø spindle taper: SK 40 spindle taper: DIN 69871 spindle turning speed - stepless: 20 - 12.000 U/min control: HEIDENHAIN control: TNC 430 feeds x/y/z -stepless: 20 - 15.000 mm/min rapid traverse: 30 m/min ATC: 32 (2 x 16) Pos tool diameter: 80 / 130 mm workpiece length: 315 mm weight of tools max.: 8 kg NC-rotary table - speed -: max. 15 U/min table load: 600 / 500 kg total power requirement: 60 kW weight of the machine ca.: 9,6 t = 5-axis machining center, table clamping surface 1250 x 700 mm with integrated NC-rotary table (=4th axis), movement of milling head via control (=5th axis) Accessories: electron. handwheel, chip conveyor (snailconveyor), coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Year of construction 2001 Siemens 810D Operating hours 1988 Travel distances 350 x 240 x 340 Spindle speed 20 - 6300 Drive power 6.3/10 KW Total connection power 15 kW Tool holder SK40 Accessories: el. Handwheel Spühlpistole Universal swivel rotary table 400 x 280 mm, Rotation range 360 °, swivel range +105/-15 ° with electronic angle display Coolant device

DECKEL FP4 NC Fraesmaschine Dialog 4 Dialog 4 control, working range 560 x 500 x 450 mm, pinole stroke 80 mm, 18 spindle speeds 31.5 -6300 min, folding head, tool holder SK 40, feed speed 1-4000 mm/min, rapid traw 6000 mm/min, table load 800 kg, weight 2070 kg, total connection value 16 kVA.

clamping diameter: max. 17,5 mm grinding spindle speed: 4500 U/min relief angle: max. 45 ° total power requirement: 0,55 kW weight of the machine ca.: 120 kg dimensions of machine L x W x H: 0,54 x 0,47 x 1,31 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
