emag lathes used for sale

Manufacturer: EMAG Model: VL 3 HW mLLT Year of Manufacture: 2008 Data of VL3: - Lifetool available for powered tools - Interface for automation - additional inputs and outputs / M-functions - Shuttle operation - Machine was never driven wet (always dry) Electrical Specifications: Current Supply: 3 AC Frequency: 50/60 Hz Working Voltage: 400/480 V Control Voltage - General: 24 VDC Control Voltage - Valves: 24 VDC Connection Value: 38 kW Rated Current: 58 A Supply Fuse: 80 A Physical Specifications: Total Weight: 5500 kg Find more here - .ucymachines/ Contact us at - sales@ucymachines

GENERAL Project No.: 905398 Quantity: 1 pcs. Manufacturer: EMAG Type: VL 3 Control: Fanuc 18i TB Year of construction: 2001/2022 State of condition: Refurbished machine Layers approx.: 2-3 layers DESCRIPTION TURN circulation diameter over bed cover 210 mm chuck diameter 170 mm speed main spindle 7500 1/min power main spindle at ED 10-40/100% 25/16 kW torque main spindle at ED 10-40/100% 134/85 Nm Spindle diameter in the front bearing Main spindle 80 mm Spindle flange size main spindle size 5 (DIN 55026) Axes on the main spindle unit X/Z Travel in X/Y/Z main spindle unit 400/-/200 mm rapid traverse speed in X/Y/Z main spindle unit 60/-/30 m/min Feed force in X/Y/Z main spindle unit 5000/-/5000 N Direct displacement measuring system main spindle unit X/Z Full clamping cylinder on the main spindle Revolver bottom Number of stations/driven by 12/12 Tool ho ...

turning diameter: 400 mm swing diameter: 420 mm x-travel: 850 mm z-travel: 315 mm spindle head DIN 55026 - Size: 11 spindle bearing diameter: 140 mm turning speeds: max. 4000 U/min tool turret 12 times: C5 Capto rapid traverse x + z axis: 45 / 30 m/min feeding force: 11 kN total power requirement: 58 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 9,5 x 4,5 x 3 m Hard turning Dry machining Chip conveyor Promot Portal and Cellmaster No clamping device available No tools available no Cellmaster accessories available The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8680 Type: VSC 250 DS Producer: Emag Created: 2007 Parameters: Control system: Siemens 840 SL Table diameter: 260 mm Feed length X-axis: 680 mm Feed length Z-axis: 200 mm Maximum turning length: 100 mm Max. turning diameter: 250 mm Maximum workpiece weight: 40 kg Motor power: 35 kW Length: 3800 mm Width: 2100 mm Height: 2400 mm Weight: 7500 kg Equipment: Chip conveyor

Inv. Num. : 8679 Type: VL 5S Producer: Emag Created: 2007 Parameters: Control system: Siemens 840 SL Feed length X-axis: 570 mm Feed length Z-axis: 200 mm Max. turning diameter: 220 mm Maximum workpiece weight: 120 kg Maximum spindle speed: 4500 1/min Max. workpiece height: 110 mm Weight: 6500 kg Equipment: Turret with Leiftool drive Chip conveyor

control: Fanuc 31/32 i : 2 chucking diameter: 170 mm swing diameter: 210 mm x-travel: 400 mm z-travel: 200 mm length: 2500 mm width: 1900 mm height: 2300 mm weight: 5500 kg turning height: mm turning diameter: mm swing diameter: mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

EMAG VTC 250 Vertical lathe GENERAL Project No.: 906007 Quantity: 1 pcs. Manufacturer: EMAG Type: VTC 250 Control: Siemens 840 D Year of Make: 2008 Condition: Used machine Layers Machine Approx (Hrs): 2 Layers DESCRIPTION TURNING Max. turning length 630 mm Max. chuck diameter 200 mm Max. speed main spindle 5000 1/min Max. power main spindle at ED 10-40/100% 38/29 kW Max. torque main spindle at ED 10-40/100% 250/200 Nm Full-clamping cylinder on the main spindle Tailstock NC-controlled Revolver left Number of stations/powered by 11/11 Tool holder in the VDI 40 turret Axles in the turret X/Z Max. rapid traverse speed in X/Y/Z 30/-/40 m/min Revolver right Number of stations/powered by 11/11 Tool holder in the VDI 40 turret Axles in the turret X/Z Max. rapid traverse speed in X/Y/Z 30/-/40 m/min OTHER EQUIPMENT Tool measurement using lasers  ...

Vertical Two-Spindle Turning Center - Control Siemens 840 D - Machine bed VSC 400 Duo - 2 x disc turret 12 x dia 40 mm, driven - 2 x additional drilling and countersinking station - Open workpiece transport system - Transfer and turning unit - Interface to an external handling system - Central cooling center supply high-pressure pump 70 bar - Blowing off the pick-up device and the clamping devices - Workpiece measurement - Tool monitoring - Emag network option - Sister tool management Circumferential diameter 260 mm x-travel 860 mm z-travel 200 mm Main spindle 2 max. speed up to 4500 1/min Spindle spacing 1055 mm Main Drive 2 AC Asynchronous Motor 6ß/100% ED 39/28 KW Maximum torque 460 Nm Rapid traverse x/ z 45/ 30 m/min

EMAG VL 4 ist eine Bearbeitungszelle / Vertikaldrehmaschine für hochpräzise Fertigung, hohe Genauigkeit und zuverlässigen Dauerbetrieb. Kapazitäten: 2 Maschinen, 2 Achsen; Max. Werkstückdimension 200 mm; Z-Achse 400 mm; X-Achse 750 mm; Revolver 12 Positionen, 12 angetriebene Werkzeuge. Technische Daten: Spindeldrehzahlen bis 6000 t/min, stufenlos bis 4500 t/min; Spindelleistung 25/18 kW; Drehmoment 280/202 Nm; Anschluss 3x400V 50Hz; Gesamtbedarf 36 kW; Abmessungen L5300×B2300×H3650 mm. Zubehör: Späneförderer, automatische Be-/Entladeeinrichtung, Satz Werkzeughalter, Zustandsleuchte, Ersatzteile. Erreicht enge Toleranzen; typisch für Automobil, Luftfahrt, Werkzeugmaschinen und Medizintechnik. Technische Daten ohne Gewähr

Vertical CNC centre lathe, uses / outdated machine type: Emag VSC 200 control: Siemens 840 C construction year: From the in 1995 to the in 2007 overtakes TECHNICAL DATA: speed area / speeds: [1 / min].: 6,000 Drehmoment:/torque [Nm]: 480 Max dreh-? over bed swing diam .: 290 mms impulse achievement / power: [kW] 34 feed ? / chuck diam. 200 mms revolver / turret: 12-fold, VDI 40, shoemaker powered work witness / driven tools 7.8 kW Verfahrwege: X axis / x-travel: 550 mms Z-Achse/z-travel: 200 mms express way / rapidly travel: (X/Z) [m / min] 30 / 20 prepush / feeds: (X/Z) [m / min]. 11 KN connected load: [KW] 36 kW machine weight: [kg] 6,500 equipment signs: filings sponsor / chip conveyor, crowd

A vertical EMAG CNC turning machine with automation is available. Speed: 6500rpm, workpiece length range: 22mm-100mm, turning length: 100mm, measuring length: 94mm, max. swing diameter: 220mm, max. pump pressure: 120bar, tool stations: 12, loading stations: 2, robot type: M-10iA, control: Fanuc 16i-TB, weight: approx. 10000kg, power-on hours: 84847h. Including high-pressure pump, tool setting probe, chip conveyor, coolant system, workpiece shuttle system and robot automation. Documentation available. An on-site inspection is possible.

turning diameter: mm swing diameter: mm turning height: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: mm swing diameter: mm turning height: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Vertical turning machine manufactured in 2007. This EMAG VSC 400 features a turning diameter of 400 mm and a swing diameter of 420 mm. It offers an X-travel of 850 mm and Z-travel of 315 mm, with a maximum spindle speed of 4000 rpm. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 400 machine we have for sale. Contact us for further details regarding this machine.

swing diameter:200 mm weight of the machine ca.:15 t Distance between tips:832,5 mm turning length:380 mm with chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers

turning diameter:250 mm swing diameter:260 mm Available from October 10, 2025 The system consists of two individual systems that are linked together. No driven tools!

turning diameter:250 mm swing diameter:260 mm Available from October 10, 2025 The system consists of two individual systems that are linked together. No driven tools!

Inv. Num. : 7575 Type: VL7 Produzent: Emag Erzeugt: 2010, GO 2012 Parametern: Steuerungssystem: Fanuc 32i TB Max. Drehdurchmesser: 420 mm Maximale Drehzahl der Spindel: 3400 1/min Verfahrwege X: 850 mm Verfahrwege Z: 315 mm Spannfuttergröße: 400 Länge: 5250 mm Breite: 3500 mm Höhe: 3500 mm Gewicht: 9000 kg Ausstattung: Kühlung Späneförderer Angetriebene Werkzeuge Messsonde

turning diameter: 250 mm turning length: 100 mm control: SIEMENS 840 D total power requirement: 35 kW weight of the machine ca.: 7500 kg dimensions of the machine ca.: m E M A G (Germany) Vertical CNC Controlled Hard Turning and Grinding machine with tool turret and workpiece handling System Model VSC 250 DS Year 2004 # M7 28.69324 _______________________________________________________ Turning Ø, max. 250 mm Turning length internal / external 100 mm Workpiece length min./max. 29 – 100 mm 6-positon tool turret Ø / swing-Ø 480/790 mm Workpiece spindle Slide travel, X / Z / stroke 680 / 400 / 200 mm Feed rate / Quick feed X/Z 45/30 m/min. Feed force X/Z 5,5/11 kN Spindle speed 4.300 / 6.000 rpm Spindle drive 28 kW Total electrical load, ...

An Emag vertical CNC lathe is available. Clamping chuck diameter: 250mm, max. circulation diameter: 270mm, max. machining diameter: 250mm, max. machining length: 175mm, speed: 4500rpm, tool positions: 12, tool holder: VDI 40, travel X/Z: 660mm/300mm, rapid traverse X/Z: 60m/30m/min. Machine dimensions X/Y/Z: approx. 4300mm/1600mm/3300mm, weight: approx. 7500kg, control: Fanuc Series 32i-Model A, operating hours: 64137h. Including automatic loading and unloading with pick-up spindle and integrated part diverter and workpiece storage. Documentation available. On-site inspection is possible.

A CNC vertical turning machine EMAG is available. Workpiece diameter: 100mm, max. workpiece length: 150mm, max. chuck diameter: 160mm, travel X/Z: 650mm/375mm, travel Y: +/-50mm, spindle power: 15.7kW, torque: 77Nm, speed: 6000rpm, tool stations: 12, rapid traverse X/Z: 60m/30m/min. Machine dimensions X/Y/Z: approx. 2500mm/1800mm/2800mm, weight: approx. 4500kg, control: Fanuc 32-iB, operating hours: approx. 28487h, spindle hours: approx. 18640h. Including extraction system, 2 axial and 2 radial driven tools, 20x fixed tool holders, 3-jaw chuck and probe. Documentation available. An on-site inspection is possible.

A high-performance planetary gear production line EMAG including automation and peripheral equipment is available. 1) Raw parts storage (stacker) EMAG. 2) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 3) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 4) Vertical hobbing machine EMAG VLC200H, max. workpiece diameter: 200mm, max. module: 4, travel X/Y/Z: 790mm/120mm/ ...

A combined vertical CNC turning and cylindrical grinding center EMAG is available. Chuck diameter: 250mm, max. swing diameter: 260mm, travel X/Z: 680mm/200mm, rapid traverse X/Z: 45m/min/30m/min, grinding spindle speed: 45000rpm, tool stations: 12, basket dimensions X/Y: 400mm/600mm, basket stack: 3. Machine dimensions X/Y/Z: approx. 3200mm/1900mm/2650mm, weight: approx. 8000kg, control: Siemens 840DS, operating hours: approx. 35000h, program hours: approx. 22000h. Documentation available. An on-site inspection is possible with power.

grinding diameter: 390 mm grinding length: 650 mm centre height: 200 mm workpiece weight: max. 250 kg x-axis: 380 mm z-axis: 1150 mm sanding disc diameter: 400 mm peripheral speed: 20-50 m/sec workpiece spindle stepless: 1 - 650 U/min tailstock quill taper MT: 4 quill stroke: 45 mm dia. of quill: 50 mm total power requirement: 22 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

chuck diameter: 500 mm swing diameter over bed slide: 700 mm control: Siemens travel -x axis: 630 mm travel -z axis: 500 mm CNC turning and milling center vertical | EMAG - VMC 450 MT The machine is in very good condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VMC450MT | VMC 450MT | VMC-450 | VMC-450MT The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This EMAG VTC 250 Twin was manufactured in 2015. A robust vertical turning machine featuring a MINERALIT base, it handles workpieces up to 140 mm in diameter and 630 mm in length, weighing up to 20 kg. Integrated with an EMAG pick-up system and dual turrets, each with 11 tool stations. Maximum spindle speed reaches 5000 rpm, driven by a 29 kW power unit. Contact us for more information about this machine.

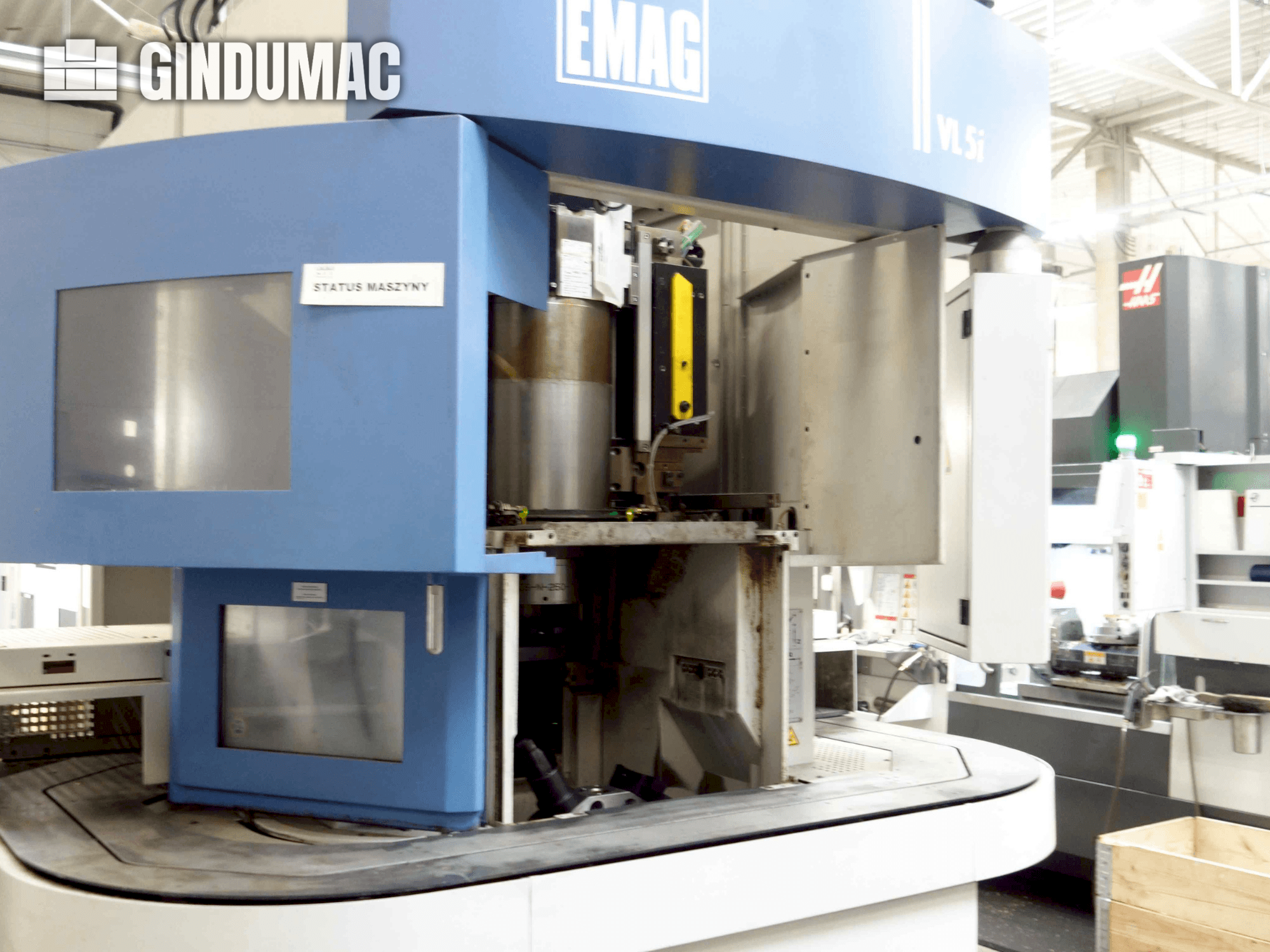

This EMAG EMAG VL5 i DSL vertical turning machine was manufactured in 2014. It features a powerful main spindle drive with 18kW and a speed range of 0-4500 rpm. Equipped with a Siemens SINUMERIK 840Dsl control system and a robust 12-position EMAG flange turret, it ensures precise and efficient operations. Ideal for handling workpieces up to 6kg with its specialized hydraulic chuck. For more information about this vertical turning machine, please reach out to us.

A total of three EMAG vertical turning machines are available. Chuck diameter: 200mm, max. swing diameter: 200mm, travel X/Z: 200mm/400mm, speed: 7500rpm, tool stations: 12. Machine dimensions X/Y/Z: approx. 2450mm/1900mm/2300mm, weight: approx. 5500kg, control: Fanuc. Including extraction system and chip conveyor. Documentation available. An on-site inspection is possible.

grinding diameter: 390 mm grinding length: 650 mm centre height: 200 mm total power requirement: 46 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 3x3x2,4 m Universal cylindrical grinding – Type WUG21 (W27) Grinding length 650 mm EMAG Weiss stands for high-end technology in universal cylindrical grinding between centres. With its CNC-controlled WUG 21 machines, EMAG Weiss offers the right solution for virtually every user. --> Technical data Max. grinding length: 650 mm --> Centre height: 200 mm --> External grinding diameter: 1 – 390 mm --> Max. weight flying MK4: 100 kg --> Max. workpiece weight between centres: 250 kg --> Feed: --> X-axis travel: 480 mm --> Z-axis travel: 1.150 mm --> Workpiece headstock --> Tailstock --> Grinding spindle headstock --> Coolant device, manufacturer HYFRA, --> Belt filter, manufacturer Knoll, type KF 200 - year of manufacture 2012 ...

This EMAG VTC 250 was manufactured in 2013. It features a chuck diameter of 250 mm and can handle workpieces up to 140 mm in diameter. The machine offers an X-axis travel of 300 mm and a Z-axis travel of 740 mm. Consider the opportunity to buy this EMAG VTC 250 vertical turning machine. Contact us for more information.

This 3-axis EMAG VL2 vertical turning machine was manufactured in 2017. It features a max workpiece diameter of 100 mm, chuck diameter of 160 mm, and a swing diameter of 210 mm. The main spindle offers a power rating up to 18.1 kW and a max spindle speed of 6,000 rpm. Consider the opportunity to buy this EMAG VL2 vertical turning machine. Contact us for more information.

This EMAG VTC 250 was manufactured in 2015. A vertical turning machine featuring a chuck diameter of 250 mm and maximum workpiece diameter of 140 mm. Axis travel includes 300 mm on the X-axis and 740 mm on the Z-axis. Consider the opportunity to buy this EMAG VTC 250 vertical turning machine. Contact us for more information.

A complete turning line for the production of drive shafts, consisting of a Lang-Laru cut-off and centering machine, three EMAG lathes with robot automation, conveyor peripheral equipment and measuring station, is available. 1) End machining machine Lang-Laru DHZ 03/1250-RR-S, year of manufacture: 2010, tool stations: 2x12, loading: Kuka robot/EWAB conveyor, machine dimensions X/Y/Z: approx. 8600mm/3000mm/4100mm, weight: approx. 15000kg, control: Siemens Sinumerik 840D. 2) 3x vertical shaft turning centers EMAG VTC 250, year of manufacture: 2010, loading: Kuka robot/EWAB conveyor, max. turning length: 630mm, max. swing diameter over bed: 140mm, max. workpiece weight: 20kg, spindle bore: 52mm, speed: 5000rpm, tool stations: 2, tool holder: VDI40, machine dimensions X/Y/Z: approx. 8100mm/3300mm/4300mm, weight: approx. 14000kg, control: Siemens. This is a complete turning line with peripher ...

EMAG WEISS W 11-CNC SL650Year of manuf. : 2020 Control : Sonstige WEISS CNC Centre width : 650 mm____________Description:In Generel:ear of construction:2020Control system:WEISS CNCCentre width:650 mmCentre height:200 mmGrinding wheel dimensions:400x60 mm + 500x60 mmWorkpiece headstock:Speed:10 -650 rpmWorkpiece weight max.:250 (100) kgSanding diameter max.:390 mmMounting:MK4Grinding headstock:Peripheral speed:20 - 50 m/sGrinding disc dimensions right:500 x 60 mmGrinding disc dimensions left:400 x 60 mmX-axis:380 mmZ-axis:700 mmB-axis:torque motor, infinitely variableTailstock:Pinole diameter:50 mmPionole stroke:45 mmMounting:MK 4Cylinder fine adjustment:+/- 0.04 mmEquipment:Positioning sensors:Direct scalesGrinding spindles:2x grinding spindle (left/right)GAP / Crash Controll:Structure-borne sound (Sensotronik)Balancing:MPM balancing deviceWorkpiece measurement:Marposs PF MEAutomat ...

A complete turning system consisting of two identical EMAG vertical turning machines together with the associated peripheral equipment and automation is available. Main spindles: 2, Speed: 6500rpm, Tool stations: 2x12, X/Z-axis travel: 840mm/425mm, Robot type: M-6iB, Loading stations: 2, Workpiece carriers: 24, Weight: approx. 8000kg, Power-on hours 1/2: 51170h/53006h, Feed/Machining time 1/2: 33418h/30961h, Automatic operation hours 1/2: 14858h/14709h. Both machines are equipped with chip conveyors, 2x tool turrets, 2x loading stations, a workpiece palletizing system, robot automation and coolant system. Documentation available. An on-site inspection is possible.

A vertical EMAG CNC lathe is available. Workpiece length range: 22mm-100mm, turning length: 100mm, max. swing diameter: 220mm, tool stations: 12, measuring length: 94mm, spindle speed: 6500rpm. Machine dimensions X/Y/Z: approx. 2400mm/3300mm/2950mm, weight: approx. 10000kg. Including tool setting probe, chip conveyor, 120bar high-pressure pump, Heilig workpiece shuttle system with two stations and coolant system. Documentation available. An on-site inspection is possible.

A complete turning system consisting of two identical EMAG vertical turning machines together with the associated peripheral equipment and automation is available. Main spindles: 2, Speed: 6500rpm, Tool stations: 2x12, X/Z travel: 840mm/425mm, Robot type: M-6iB, Loading stations: 2, Workpiece carriers: 24, Weight: approx. 8000kg, Power-on hours 1/2: 42668h/42411h, Feed/Machining time 1/2: 29058h/27736h, Automatic operation hours 1/2: 10354h/12404h. Both machines are equipped with chip conveyors, 2 tool turrets, 2 loading stations, a workpiece palletizing system, robot automation and cooling. Documentation available. An on-site inspection is possible.

A vertical CNC lathe by Emag is available. Workpiece length range: 22mm-100mm, turning length: 100mm, speed: 6500rpm, measuring length: 94mm, max. swing diameter: 220mm, tool stations: 12, weight: approx. 7000kg. Including tool setting probe, carousel workpiece transfer system, chip conveyor and coolant system. Documentation available. An on-site inspection is possible.

A vertical CNC lathe Emag is available. Speed: 4500rpm, Tool stations: 12, Travel X/Z: 570mm/200mm, Max. chuck diameter: 260mm, Max. turning diameter: 260mm, Max. machining diameter: 220mm, Max. workpiece length: 110mm, Rapid traverse X: 60m/min, Rapid traverse Z: 30m/min, Feed force: 5.5kN, Max. workpiece weight: 120kg, Weight: approx. 6500kg, Control: Siemens Sinumerik 840. Documentation available. An on-site inspection is possible.

swing diameter: 210 mm x-travel: 400 mm z-travel: 200 mm control: FANUC Series 18i TB weight of the machine ca.: ~ 5.500 kg Vertical Turning Machine | EMAG - VL 3 mLT with driven tools The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL3 | VL3mLT | VL-3 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing diameter: 210 mm x-travel: 400 mm z-travel: 200 mm control: FANUC Series 32i Model A weight of the machine ca.: ~ 5.500 kg Vertical Turning Machine | EMAG - VL 3 + VL 3 The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL3 | VL-3 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

swing diameter: 210 mm x-travel: 400 mm z-travel: 200 mm control: SIEMENS SINUMERIK 840D sl weight of the machine ca.: ~ 5.500 kg Vertical Turning Machine | EMAG - VL 3 + VL 3 Y The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL3 | VL-3 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A vertical EMAG CNC turning machine is available. Turning diameter: 400mm, swing diameter: 420mm, X/Z-axis travel: 850mm/315mm, spindle bearing diameter: 140mm, spindle speed: 4000rpm, rapid traverse X/Z: 45m/min/30m/min, feed force: 11kN, machine dimensions X/Y/Z: approx. 9500mm/4500mm/3000mm, weight: approx. 9000kg. Including hard turning function, dry machining function and chip conveyor. Documentation available. An on-site inspection is possible.

turning speeds: 6000 U/min x-axis: 550 mm z-axis: 200 mm rapid traverse: 30/20 m/min feed: 11 m/min control: Siemens 840 C total power requirement: 35 kW weight of the machine ca.: 6,5 t - speeds: [1/min.] : 6.000 - torque [Nm]: 480 - swing diam.: 290 mm - power: [kW] 34 - chuck diam. 200 mm - turret: 12-fach, VDI 40, Sauter - driven tools 7,8 KW, - x -travel: 550 mm - z- travel: 200 mm - rapid travel: (X/Z) [m/min] 30 / 20 - feeds: (X/Z) [m/min.] 11 KN - connected load: [KW] 36 kW - machineweight: [kg] 6.500 - chip conveyor, pick up conveyor links,300mm wide, Auswurfhöhe 800mm - Messsystem direkt-linear, Glasmaßstäbe in allen Achsen, Heidenhain - parts conveyor for feeding parts into the machine - Specification: - Overhauled in 2007 for approx. €50,000, complete headstock replaced. - Feed unit replaced The data for this ad was created with ModulMWS - the software solution of Logo ...

bed length: 2790 mm bed width: 2 x 240 mm bed height over floor: - total power requirement: 0 kW weight of the machine ca.: 5,6 t dimensions of the machine ca.: 3,51,61,6 m No. 0302 2-station end trimming machine /cutting and centering machine EMAG, type TEC 2/1000 S SIEMENS System 3 control Working area: diam. 6.3-25 x 180-1000 mm, drive power: 12.5 kW Accessories: Loading gantry, chip conveyor, coolant device, internal coolant supply for station 1. coolant supply for station 1. The machine is equipped with 4 spindles, which are steplessly infinitely variable from 500-5000 rpm via separate DC motors. adjustable. Processing options: Grooving, peeling, turning, drilling (thread), thread chasing, chamfering, countersinking. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

power capacity: - kW tool adaptor: KOMET PKB 200-20-112 total power requirement: - kW weight of the machine ca.: 700 kg dimensions of the machine ca.: 1,6 0,7 1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Packing: ca. 2 1,25 2,3 m Shipping weight: ca. 500 kg floor space for switchgear cabinat: ca. 2,2 x 2,5 m switchgear cabinet: 2 teilig/Rücken an Rücken Content div. SIEMENS + INDRAMAT assemblies see PHOTOS The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CONTROLS   CNC controls FANUC BASIC FUNCTIONS   number of spindles: 1   number of turrets: 1 WORKING RANGE TURNING   turning diameter (max): 220 mm   worpiece length max.: 175 mm MAIN SPINDLE   spindle revolutions (max): 6000 /min X/Z SLIDE   Z-axis travel: 300 mm   X-axis travel: 660 mm ELECTRICAL SPECIFICATIONS   total power consumption: 36 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 3820 mm   space requirements -front/back-: 2040 mm   total height: 2400 mm   total weight approx.: 6500 kg

grinding diameter: 715 mm grinding length: 2000 mm centre height: 360 mm control: Siemens 840 D centre distance: 2000 mm max. workpiece weight between centers: 650 kg Grinding spindle:: Spindlespeed: 450 min/-1 driving power - grinding spindle: 7,5 kW taper: 1:5 tool taper: mm feed speeds: 0,01 - 15.000 mm/min travel -x axis: 500 mm travel -z axis: 2700 mm : 280 ° grinding speed: 15 m/min total power requirement: 75 kW weight of the machine ca.: 14,5 t dimensions of the machine ca.: 5 x 2,4 m External cylindrical grinding machine modernised in 2022 -- Siemens 840D / electrical system -- Ball screws on the X and Z axes replaced -- B axis repaired and encoder replaced. -- Hydrostatic system replaced. Equipped with: - Siemens 840D PowerLine CNC control (X, Z, C, B axes) - Marposs measuring system - BalaDyne system - Tailstock - Band filter system The data for this ad was created with Mo ...

Manufacturer: EMAG Model: VSC 250 Year: 2003 Condition: Used Stock number: 9420 Control system: SIEMENS Max. workpiece diameter: 250 mm Max. length of the workpiece: 175 mm Lathe chuck diameter: 315 mm Weight: 6500 kg

CONTROLS   CNC controls SIEMENS BASIC FUNCTIONS   number of spindles: 2   number of turrets: 1   number of c-axes: 2 WORKING RANGE TURNING   turning diameter (max): 100 mm   worpiece length max.: 150 mm MAIN SPINDLE   spindle revolutions (max): 6000 /min TOOL MAGAZINE   number of positions: 12 ELECTRICAL SPECIFICATIONS   total power consumption: 36 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 7000 kg ATTACHMENTS (TURNING)   hydraulic system: yes   European CE standards: yes Machines in good condition: - Integrated pick-up automation - Two EMAG machines configured in a line are for sale. - A robot destacking unit with 100% parts inspection can also be purchased.

weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine

grinding length:1500 mm centre height:325 mm weight of the machine ca.:12 t Karstens EMAG H310 Universal Grinding Machine Year of manufacture: 2004 Center distance: 1500 mm Center height: 325 mm Reinforced workpiece spindle, load capacity up to 250 kg Driven C-axis for polygon, thread, and eccentric grinding. 3 individually mounted grinding spindles. Siemens 840D control system

Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Made in Italy machine according to DIN 8606 Tip height: 260 mm Turning diameter over bed: 520 mm Swing over carriage: 300 mm Centre distance: 1500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (24) 9-1600 rpm (option 11-2000 U/min) Engine output: 5.5 kW (option: 7.5 kW) feed Z-axis: (93) 0.028 6.43 mm / Rev Feed x axis: (93) 0.012 2.73 mm / Rev Thread, metric: (54) 0.5-224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, module: (54) 0.5-112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P.. Cross slide Lxw: 650 x 230 mm Transversal carriage stroke: 340 mm Upper carriage Lxw: 350 x 150 mm Upper carriage stroke: 150 mm Tailstock Quill diameter: 85 mm Tailstock Quill stroke: 200 mm Tailstock taper: MK 5 Weight: 3,100 kg Facilities: -Movement of the tailstock pneumatically supported -Acceptance Protocol according to DIN 8605, ...

Made in Italy machine according to DIN 8605: lathe with increased accuracy. Tip height: 215 mm Turning diameter over bed: 430 mm Swing over carriage: 240 mm Top width: 1,000 mm Bed width: 290 mm Spindle bore: 52 mm Spindle nose: Camlock 6 " Spindle speeds variable: 6 Spindle speeds: 60-2,000 rpm S6/S1 engine power: 4 kW (option: 5.5 kW) feed Z-axis: (38) 0.05 - 1.88 mm / Rev Feed x axis: (38) 0.02 1,084 mm / Rev Thread cutting, metric: (30) 0.45-20 mm Thread cutting, Witworth: (35) 80-1 3/4 TPI Thread cutting, module: (25) 0.25-10 mm Thread cutting, Diametral Pitch: (30) 160-3 1/2 D.P.. Cross slide Lxw: 370 x 190 mm Transversal carriage stroke: 240 mm Upper carriage Lxw: 275 x 115 mm Upper carriage stroke: 120 mm Tailstock Quill diameter: 60 mm Tailstock Quill stroke: 135 mm Tailstock taper: MK 4 Weight: approx. 2,000 kg Facilities: -Infinitely variable  ...

Precision lathe with cycle automatic Make: Hamlet Model: E 70 x 2000 Year of construction: 1997 For food and feed shaft machining Technical data: Workspace Turning length: 2000 mm Swing over bed: 720 mm Swing over cross slide plan: 430 mm Displacement of the plan slide: 410 mm Bed width: 480 mm 3prpek3uq Spindle nose ACC. to DIN 55027: size 11 Spindle diameter in front bearing: 150 mm Spindle bore: 106 mm Inside taper of the main spindle: 112 metric Control: Siemens 805 Spindle gearbox newly stored according to the manufacturer ca. 2.500 EUR

Made in Italy Peak: 300 mm Rotary diameter over bed: 600 mm Rotary diameter via sled: 380 mm Peak: 1,500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (12) 16-1200 U/min Engine power: 9.2 kW (special equipment/standard: 7.5 kW) Reprimor Z-axis: (93) 0.028-6.43 mm/U Feed X-axis: (93) 0.012-2.73 mm/U Thread, metric: (54) 0.5-224 mm Threads, Witworth: (55) 72-1/4 x8 TPI Thread, module: (54) 0.5-112 mm Threads, Diametral Pitch: (54) 64 -1/4 D.P. Crossleigh hub: 340 mm Oberslitten hub: 150 mm Riding stock pinol diameter: 85 mm Riding stove pinol stroke: 200 mm Ridstock cone: MK 5 Weight: About 3,200 kg Facilities: -3-axis digital display -Step-by-step speed adjustment -Automatic lubrication of the management railways -LED lighting -Micrometer bed strike -9.2 kW engine instead of 7.5 kW -Quick change holder system mul ...

Tip width: 700 mm Tip height: 150 mm Circulation diameter over bed: 300 mm Bed width: 180 mm Spindle bore: 38 mm Mounting in the spindle bore: MK 5 Speed range, infinitely variable: 30 - 450 / 150 - 3000 rpm Range of longitudinal feeds: (14) 0.07 - 0.65 mm/U Area of plan feeds: (11) 0.03 - 0.12 mm/U Metric threads: (18) 0.2 - 3.5 mm Inch Thread: (21) 8 - 56 Gg/1" Pinole path: 85 mm Pinole holder: MK 3 Engine power S1 100%: 1.5 kW / 400 V Motor recording power S6 40%: 2.2 kW / 400 V Machine dimensions (W x D x H): 1380 x 640 x 500 mm Weight approx.: 235 kg without base Delivery: - Digital display - 3-jaw chuck PO3-160 mm steel version - Feed flange 160 mm - Solid grain tips - Interchangeable wheels - Quick-release steel holder size 20-2 with 2 straight inserts - Slip clutch - Micrometer longitudinal stop - Plan sled with top support - Frequency inverter ...

1 x L+Z lathe Colchester Mascot 1600/600 Built: c.1975 Very stable lathe. Ideal machine for locksmiths or agricultural machine mechanics. Technical data: Turning diameter over crimson: 710 mm Turning diameter over bed:432 mm Turning diameter via support:267 mm Turning length: 1,000 mm Spindle speeds:20 - 1600 rpm Spindle bore:76 mm Drive motor:5.6 kW Feeds: 0.6 - 10 mm/u Metric threads: 40 (0.4 - 14 mm incline) Machine weight approx.:2000 kg Room requirements approx.:l:2.65 x w:1.1 x h:1.6 m Accessories: 3 - Jaw lining UVA 310 mm 4 Set of change jaws Bfraed8ae0 Tripan quick-change system 4 x Interchangeable holder running counter tip in tailstock (MK 5) Countertip in spindle Alternating wheels Manual Mudguard complete documentation The machine can be inspected at our warehouse in Reichenbach under electricity.

Stepless guide and pull spindle lathe TC 250 V Peak height: 250 mm Circulation diameter via slide: 350 mm Orbital diameter in the croation: 695 mm Tip width: 1500 mm Spindle nose: DIN 55029, Camlock, size 6 Bed width: 305 mm Cross slide path: 272 mm Upper slide path: 155 mm Spindle bore: 80 mm Speed range, infinitely variable: (3) 30 - 2200 rpm Whitworth Thread: (45) 2 - 72 TPI Metric Thread: (39) 0.2 - 14 mm Diametral Thread: (21) 8 - 44 D.P.I Module Thread: (18) 0.3 - 3.5 module Longitudinal feeds: 0.04 - 1.00 mm/U Flat feeds: 0.02 - 0.50 mm/U Engine power: 5.5 kW Dimensions LxWxH, approx.: 2900 x 1175 x 2040 mm Weight, approx.: 2,200 kg characteristics: - Toolmaker accuracy - Stepless speed control (3 pre-level steps) - Finely-balanced main spindle - Stable machine bed with hardened and ground guides - One-piece cast base - Adjustable precision cone roll ...

Maximum diameter to turn on the bench 2,110 mm Maximum diameter to turn on trolley 1,600 mm Maximum distance between platforms 12,830 mm Spindle hole diameter 155 mm Cone on spindle no. 120 metric Cone on spindle (with reduction) no. 6 clamps Cone on the counterpoint (6-bit reduction) no. 120 metrics Maximum stroke of the counterpoint 400 mm DSeed from the tool support plane to the axis of the 80 mm centers Main engine power 100 HP Spindle speed from 0.9 to 90 rpm with continuous variation Longitudinal feed no. 36: 0.2 to 12.8 Transverse advances No. 36: 0.1 to 6.6 Metric fillets #26: 1 to 42 Whitwoth fillets #17: 0.5 to 11 Quick forwards Maximum permissible load on the tips 50-60 ton Refrigerant liquid system

Peak height 2,600 mm Point distance 10,000 mm Closed bench 2,000x6,000 mm To be completed with CNC

IN THE RETROFITTING PHASE Height tips 900 mm Point distance 7,000 mm Turnerable diameter on the bench 1,850 mm Turnerable diameter on trolley 1,350 mm Turnerable diameter on recess 2,150 mm Bench width 1,000 mm Bar passage diameter 206 mm ASA A1 15" spindle attachment Top speed 300 RPM Diameter of the tank counterpoint 220 mm Row stroke counterpoint 450 mm Withworth threads - metrics - diametrics - module Weight allowed between tips without lunettes 15 ton Weight allowed between tips with a 20-ton bezel

Max length 8,000 mm Maximum turning diameter above wagon 1,250 mm Max vault over guides 1,650 mm Maximum turning diameter under spindle 2,000x700 mm Displayed – two axes

Height tips 220 mm Useful length 1,000 mm 42 mm bar pass

Maximum turnerable diameter: 1040 mm Turning diameter above the wagon: 620 mm Maximum workable length: 5200 mm Spindle power: 40 kW CNC ECS Optical line measurement system Maximum flow between tips: 10 tons Machine complete with chip evacuator, 4-position hydraulic turret, safety shelters in compliance and spindle 3-jaw hydraulic self-centering AUTOBLOCK; Various accessories available (tool case, stretchers, lunettes...) EC 2018 remarking possibility

Equipped with no. 03 guides Overhauled with: guide grinding, CN conversion, new electrical and hydraulic system, hydraulic self-centering installation, shaving conveyor; CN Fagor 8055 Numerical Control – BT Maximum turnerable diameter 1800 mm 3-grife hydraulic self-centering with a diameter of 1450 mm with tightening force 30 Ton with 30 bar clamp L max turnerable 3000 mm Spindle engine power 110 Kw Maximum rotation speed 180 rpm Fast value axles 4000 mm/min M3/M4 Spindle Rotation Inversion Possibility 4 speed ranges Hydraulic counterpoint Maximum capacity of workpiece on counterpoint 12500 Kg It is currently possible to work details of up to 3000 mm length but the extension pallet is available to be able to work details up to 8 m in length. (un revised); Machine installed and working

Platò diameter: 1300 mm Used lathe in good condition, available unless sold.

peak heights: 250 mm point distance: 1500 mm bar pass: 105 mm

Code 2841 Description Centerlathe Make Graziano Model SAG 12 Serial No. SAG 12 N 4475 Year 1976 Distance between centers 800 mm Swing over bed 320 mm Swing over gap 420 mm Swing over crossslide 176 mm Spindle bore 41 mm Number of spindle speeds 8 Spindle speeds 75-2000 rpm Feeds Longitude and cross Motor power 2 and 3 kW – 380 Volts Thread cutting Metric, W.W., Modul and D.P. Accessoiries 3 chuck Condition Machine is in normal condition.

Code 2876 Description Centerlathe Make Graziano Model SAG 12 Serial No. SAG 12 N 5150 Year 1980 Distance between centers 800 mm Swing over bed 320 mm Swing over gap 420 mm Swing over crossslide 176 mm Spindle bore 41 mm Number of spindle speeds 8 Spindle speeds 75-2000 rpm Feeds Longitude and cross Motor power 2 and 3 kW – 380 Volts Thread cutting Metric, W.W., Modul and D.P. Accessoiries 3 chuck Steadies Rapid toolpost Condition Machine is in normal condition.

Main technical data: - Tip distance: 6000 mm - Tip height: 640 mm - Lathe complete with spindle, tailstock and tool turret

turning diameter over bed: 490 mm turning diameter over slide rest: 280 mm turning length: 2000 mm centre height: 245 mm centre distance: 2000 mm spindle bore: 62 mm total power requirement: 7,5 kW weight of the machine ca.: 3,5 t dimensions of machine L x W x H: 3,78 x 1,17 x 1,42 m Accessories: 3-jaw chuck 240 mmø, face plate 400 mmø, MULTIFIX-tool post, solid steady, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Tip height: 250 mm Center width: 1500 mm Circulation Ø: over bed 500 mm Spindle bore: 63 mm Spindle holder: Size 8 Mounting cone tailstock: 5 MK Spindle speeds: 170 - 2240 rpm Feeds: longitudinal/flat 0.014-1/0.0063-0.45 mm/U Thread pitches: 0.1 - 112 mm electrical connection: 380 V, 7.5 kW Space requirement: 2300 x 1000 x 1400 mm Weight: 2360 kg

Figure shows MIOTAL® TC 180 x 1000 Center width: 750 mm Center height: 165 mm Orbit diameter over bed: Ø 330 mm Bed width: 190 mm Travel cross slide: 160 mm Travel upper carriage: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 rpm Mechanical counters: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Feed rates X: (40) 0.022 - 0.98 mm/rev Thread Metric: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 gg/inch Thread module: (32) 0.4 - 7,0 Diametrical thread: (32) 7.5 - 112 Quill diameter tailstock: Ø 40 mm Inner cone of the quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 650 kg Characteristics: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with circula ...

Center height: 205 mm Orbit diameter over bed: 410 mm Center width: 1000 mm Bed width: 260 mm Spindle nose: DIN 55029 (Camlock) 9, size 6 Travel cross slide: 220 mm Travel upper slide: 125 mm Spindle bore: 52.5 mm Spindle speeds: 20 - 3000 min-1 Speed control: Infinitely variable Mechanical counters: 2 Motor power: 3.75 kW Coolant pump: 0.13 kW Longitudinal feeds Z: 0.05 - 1.7 mm/rev Face feeds X: 0.025 - 0.85 mm/rev Whitworth Thread: (45) 2 - 72 TPI Metric threads: (39) 0.2 - 14.0 mm Diametric thread: (21) 8 - 44 DP Module thread: (18) 0.3 - 3.5 MP Quill diameter: 52 mm Inner cone quilt: MK 4 Quill stroke: 150 mm Dimensions: 2270 x 1120 x 1900 mm Weight, approx.: 1500 kg Characteristics: - Tool mesh accuracy according to DIN 8605 - Infinitely variable speed control (2 countershafts) - Finely balanced main spindle - Stable machine bed with hardened and gro ...

Center width: 1000 mm Center height: 178 mm Orbit diameter over bed: Ø 356 mm Bed width: 190 mm Travel cross slide: 160 mm Travel upper carriage: 90 mm Spindle connection: DIN 55029 (Camlock) D 1 - 4 Spindle bore: Ø 40 mm chuck diameter: Ø 200 mm Spindle speed, infinitely variable: 30 - 2000 rpm Mechanical counters: 3 Motor power: 2.2 kW Longitudinal feeds Z: (40) 0.044 - 1.96 mm/rev Feed rates X: (40) 0.022 - 0.98 mm/rev Thread Metric: (32) 0.4 - 7.0 mm Thread inch: (32) 4 - 56 gg/inch Thread module: (32) 0.4 - 7,0  Diametrical thread: (32) 7.5 - 112  Quill diameter tailstock: Ø 40 mm Inner cone of the quill tailstock: MK 3 Quill stroke: 100 mm Lateral adjustment: ± 10 mm Weight, approx.: 750 kg Characteristics: - Acceptance protocol according to DIN - Precise, hardened and ground guides - Robust headstock with circulating oil lubrication, precision-be ...

Dreh-Øüber Bett: 320 mm Dreh-Øüber Support: 185 mm turning length: 1000 mm Spindelbohrungs -Ø/ Aufnahme: 32 mm mm spindle turning speed range: (12) 85 - 2000 U/min feeds - longitudinal: 0,006 - 1,77 mm/min feeds - cross: 0,003 - 0,888 mm/min thread - mm pitch: 0,1 - 28 mm thread - module: 0,1 - 1,75 mm thread - inch: 2,5 - 75 inch. voltage: 400 V / 50 Hz power capacity: 2,2 kW weight of the machine ca.: 0.8 t dimensions of the machine ca.: 1,8 x 0,8 x 1,4 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Center height: 315 mm Center width: 1000 mm Circulating Ø: 630 mm Spindle bore: 74 mm Spindle holder: Size 8 Pick-up cone tailstock: 5 MK Spindle speeds: 7 - 710 rpm Feeds: longitudinal/flat 0.063-4/0.030-2 mm/rev Thread pitches: 1 - 14 mm electrical connection: 380 V kW Space requirement: 2750 x 1250 x 1380 mm Weight: approx. 4200 kg
