hauser grinding machines used for sale

HAUSER S40 400 CNC coordinate grinding machine TECHNICAL FEATURES: X-axis travel: 650 [mm] Maximum speed X-axis travel: 4000 [mm/min] X-axis working feed speed: 0 - 1800 [mm/min] Y-axis travel: 450 [mm] Y-axis working feed speed: 0 - 1800 [mm/min] Z-axis travel: 130 [mm] Minimum speed. Z-axis travel: 0.5 [mm/min] Maximum speed Z-axis travel: 12000 [mm/min] Z-axis stroke frequency: max. 4 [Hz] W-axis travel: 500 [mm] C-axis speed (planetary): 5 - 250 [rpm] Maximum speed W-axis travel: 800 [mm/min] U-axis stroke (radial advance): 5.5 [mm] Distance between columns: 750 [mm] Table length: 770 [mm] Table width: 630 [mm] Clear passage between grinding motor and table: 585 [mm] Maximum weight Tabletop Allowable: 500 [Kg] Supply voltage: 400 [V] Weight: 4550 [Kg] EQUIPMENT INCLUDED: x1 HI-CUT pack including: -protection of the work area -Exhaust device with ele ...

HAUSER S40-400 CNC coordinate grinding machine TECHNICAL FEATURES: X-axis travel: 650 [mm] Maximum speed X-axis travel: 4000 [mm/min] X-axis working feed speed: 0 - 1800 [mm/min] Y-axis travel: 450 [mm] Y-axis working feed speed: 0 - 1800 [mm/min] Z-axis travel: 130 [mm] Minimum speed. Z-axis travel: 0.5 [mm/min] Maximum speed Z-axis travel: 12000 [mm/min] Z-axis stroke frequency: max. 4 [Hz] W-axis travel: 500 [mm] C-axis speed (planetary): 5 - 250 [rpm] Maximum speed W-axis travel: 800 [mm/min] U-axis stroke (radial advance): 5.5 [mm] Distance between columns: 750 [mm] Table length: 770 [mm] Table width: 630 [mm] Clear passage between grinding motor and table: 585 [mm] Maximum weight Tabletop Allowable: 500 [Kg] Supply voltage: 400 [V] Weight: 4550 [Kg] ADDITIONAL INFORMATION: x1 HI-CUT pack including: -protection of the work area -Exhaust device with ...

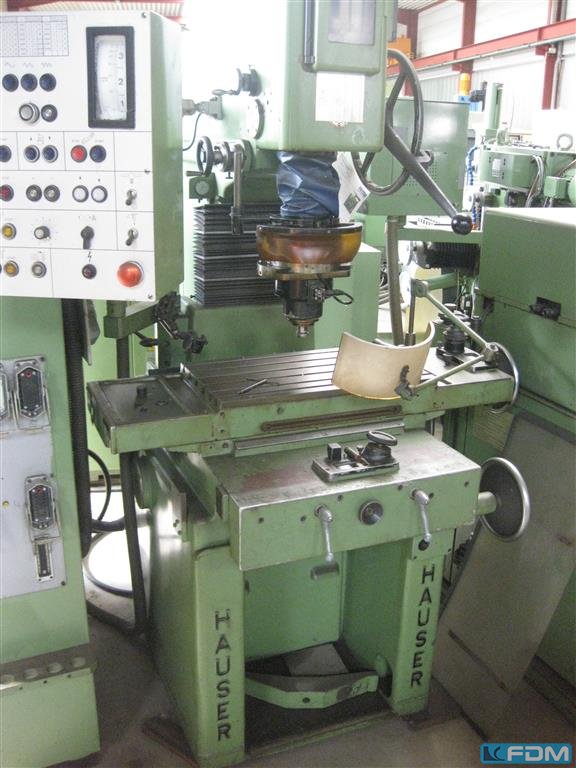

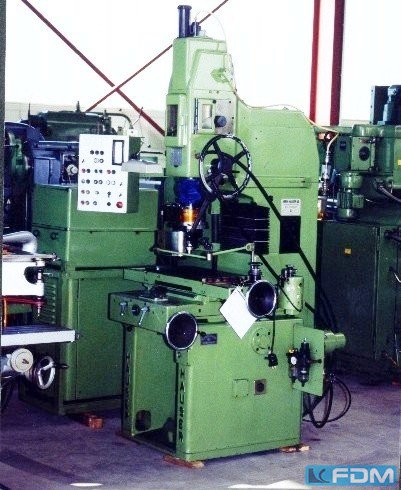

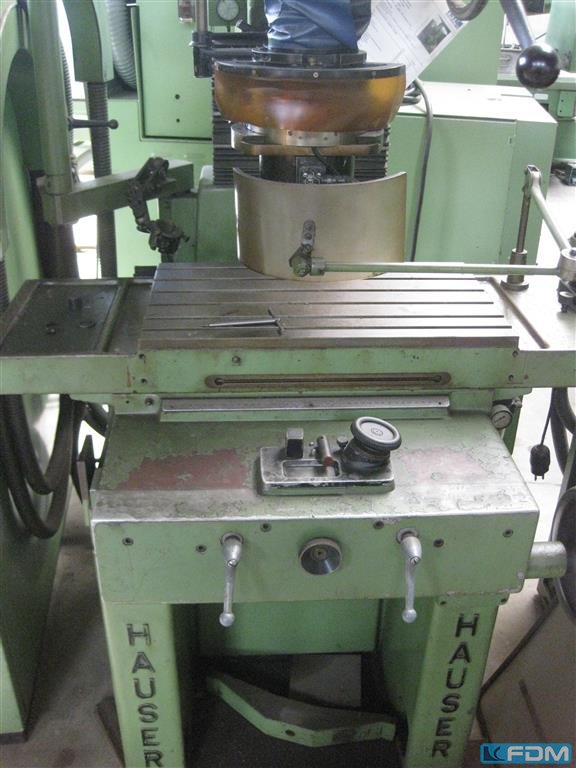

Code 9602 DESCRIPTION Vertical JIG Grinder Make HAUSER Modell 3 SMO Serial No. 257 Machine No. 1519-2564 Table surface 600 x 320 mm Table movement longitude (X) 400 mm Table movement cross (Y) 250 mm Max. grinding diameter Ø 190 mm Column-Spindle 300 mm Max. height under spindle 500 mm Vertical movement spindle 90 mm Vertical movement grindinghead 500 mm Max. speeds grindingspindle up to 80.000 omw./min Weight 2000 kg Total power 6,6 kW – 380 Volts Accessories Grinding spindles, etc. Condition Machine is in good condition

x-travel: 400 mm y-travel: 250 mm workpiece height: 400 mm total power requirement: - kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 2 x 3 x 2 m No. 0444 Jig grinder HAUSER 3 SM Working area: 400 x 250 x 400 2-axis digital display The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 250 mm workpiece height: mm Control: CNC 314 ELESTA total power requirement: 15 kW weight of the machine ca.: 5500 kg dimensions of the machine ca.: m H A U S E R (Switzerland) CNC - Controlled High Precision Jig Grinding Machine Model S 3 – CNC 314 Year approx.. 1990 S/N 32086 ____________________________________________________________ Table size, approx. 600 x 380 mm Max. load on table, approx. 300 kg Table travel, longitudinal, max. (X Axis) 400 mm Table travel, cross, max. (Y Axis) 250 mm Vertical adjustment of grinding head max. (W Axis) 450 mm Stroke of grinding spindle, max. (Z Axis) 120 mm Table Longitudinal and cross feeds (X/Y-Axis) 0 – 1.500 mm/min Speed of grinding head stroke 15 – 12.000 mm/min Vertical distanc ...

x-travel: 400 mm y-travel: 250 mm workpiece height: 485 mm Control: ELESTA CNC 314 total power requirement: 10 kW weight of the machine ca.: 4000 kg dimensions of the machine ca.: m H A U S E R CNC - Controlled Vertical Precision Coordinate Grinding Machine Model S 3 – CNC 314 Year 1987 / 1998 partially reconditioned by Swiss-HTT # 0463 ____________________________________________________________ Table size, approx. 600 x 380 mm Max. load on table, approx. 300 kg Table travel, longitudinal, max. (X Axis) 400 mm Table travel, cross, max. (Y Axis) 250 mm Vertical adjustment of grinding head max. (W Axis) 450 mm Stroke of grinding spindle, max. (Z Axis) 120 mm Table Longitudinal and cross feeds (X/Y-Axis) 0 – 1.500 mm/min Speed of grinding head stroke 15 – 7.500 mm/mi ...

x-travel: 650 mm y-travel: 450 mm workpiece height: 585 mm Control: ADCOS CNC 400 total power requirement: 15 kW weight of the machine ca.: 5000 kg dimensions of the machine ca.: m H A U S E R (Switzerland) CNC Controlled Hi Precision Double Column Jig Grinder Model S 40 – CNC 311 / ADCOS 400 CNC Year 1981 / CNC modernized in 2008 # 0126 _____________________________________________________________________ Table size approx. 630 x 770 mm Table load capacity approx. 500 kg Table travel longitudinal max. (X) 650 mm Grinding head slide cross max. (Y) 450 mm Vertical adjustment of cross rail max. (W) 500 mm Grinding spindle stroke max. (Z) 140 mm Stroke number of grinding head (4cycles) 0,5-12 m/min. Vertical distance between Table/grinding spindle 0-585 mm Dista ...

table length: 600 mm table width: 380 mm control: FANUC 0-M longitudinal travel: 500 mm cross travel: 300 mm largest grinding diameter: 230 mm Jig grinding machine | HAUSER - S35-400 The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 600 mm table width: 380 mm control: FANUC 16-M longitudinal travel: 500 mm cross travel: 300 mm largest grinding diameter: 230 mm Jig grinding machine | HAUSER - S35-400 The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Jig grinding machine HAUSER S3-111

Grinding spindle to Hauser coordinate grinding machines. 2 electric spindles with mounting shaft 3mm and 1 compressed air grinding spindle for receiving shaft 3mm. All spindles are tested for function.

A CNC jig grinding machine Hauser is available. Weight: approx. 3000kg, control: ADCOS CNC 400, control option: ASS. Includes a coolant system and various accessories. An on-site inspection is possible.

Manufacturer: Hauser Model: S3-DR Type: Jig grinder / coordinate grinding machine Find more here - / Contact us at -

x-travel:400 mm y-travel:250 mm workpiece height:500 mm grinding diameter:220 mm table surface area:600 x 320 mm throat:310 mm range of angles:12 ° grinding wheel stroke - vertical:110 mm stroke speeds:0 - 6 m/min grinding spindle speed:bis 50000 U/min peripheral speed:max. 35 m/sec capacity:ca. 7 kVA power capacity:6 kW weight of the machine ca.:2 t dimensions of the machine ca.:3 x 3 x 3 m rotary table d = 300 mm frequency changer Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

Jig boring/Milling machine HAUSER 3DR Travel X: 400 mm Travel Y: 200 mm Travel Z: 400 mm Spindle: 2 speeds Cone:CM2 Spindle exit: 120 mm 2 speed ranges 60-1500 RPM / 1500-3000 RPM Table size: L 590 mm x W 320 mm Speed variator at the spindle 2 advances Auto descent: 0,03 mm/min - 0,06 mm/min X-axis functional with Mitutoyo devise Y and Z axis: defective scale Voltage: 380 V Width: 1500 mm Depth: 1700 mm Height in low position: 1800 mm Weight: approx 1,5 T

Inv. Num. : 8153 Type: OP3 Producer: Hauser Generated: Parameters: Work table length: 595 mm Work table width: 320 mm Maximum spindle speed: 3000 1/min X-axis travel: 400 mm Y-axis travel: 250 mm Travel Z axis: 400 mm Spindle diameter: 130 mm Machine height: 1800 mm Machine length: 1350 mm Machine width: 1300 mm Machine weight: 1500 kg Equipment: DRO

spindle diameter: 85 mm x-travel: 400 mm y-travel: 250 mm z-travel: 140 mm w-axis: 450 mm table surface area: 600 x 380 mm table load: 300 kg speeds: 30 - 2500 U/min adjustment speed: 0,02 - 0,08 mm/min tool taper: SK 30 Control: Elesta CNC 211 total power requirement: 9,2 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2750 x 1700 x 2700 mm - CNC Control Elesta 211 - with misc. tool holders The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

amplification -fold: ? diameter: 380 mm workpiece height max.: 200 mm voltage: 230 V weight of the machine ca.: 245 kg dimensions of the machine ca.: 0,80 x 1,20 x 2,00 m - Serial-No.: 1740 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: Fanuc 16MB Max.travel range: X 1300 mm Y 800 mm Z 635 mm Clamping table: 1440 x 860 mm Spindle speed ? 4500 - 80000 rpm Taper ? HSK25 Tool changer ? 12 positon Automation: Erowa Easy changer XT for 4 UPC pallets, Robot.Made in Switzerland

Control: Fanuc 16MB Max.travel range: X 1300 mm Y 800 mm Z 635 mm Clamping table: 1440 x 860 mm Spindle speed ? 4500 - 80000 rpm Taper ? HSK25 Tool changer ? 12 positon Automation: Erowa Easy changer XT for 4 UPC pallets; Robot Made in Switzerland

spindle diameter: 0 mm x-travel: 700 mm y-travel: 600 mm table length: 800 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Double Column Design Jig Borer Tablesize: 800 x 600mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

amplification -fold: 100 diameter: 560 mm workpiece height max.: mm total power requirement: kW weight of the machine ca.: 350 t dimensions of the machine ca.: 650 x 1000 x 1800 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

projection area: 510x350 mm table-size: 300x170 mm longitudinal travel: 200 mm cross travel: 50 mm vertical movement: 150 mm amplification -fold: 10/20/50/100 voltage: 220 V dimensions of the machine ca.: 850x110x1800 mm weight of the machine ca.: 310 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Coordinate grinding machine Hauser 3 SM BJ 1996 Surface Grinding Machine Okamoto BJ 1996 Cylindrical Grinding Machine White W11 BJ 2009

Code 0776 Description Surface grinding machine Make ELB Type SWBD 030 MCNC82 Machine No. 18.346.0383 Manufacturing date 1983 Control MCNC / 82-PC Tablesize 3520 x 600 mm Table grinding size L x B x H 3000 x 600 x 600 mm Magnetical plate size L x B 3000 x 400 mm Speed table movement 0,2 – 6 m/min. Max. distance table – centre grinding wheel 850 mm Speeds vertical 3 – 375 mm/min. Speeds cross 1,2 m/min. Speeds grindingwheel stepless 750 – 1400 omw/min Grindingstone: Ø 600 x Wide:100 x Bore: 200 mm Weight 18.000 kg Motor power 37 kW – 380 Volt Accessoiries Electro table 3000 x 400 mm Grinding unit with water cooling Filtering unit with paperfilter Profile grinding unit Condition Machine is in very good condition

GER RS-12/50 surface grinding machine. Grinding area: 1200x550mm. Distance table-centre of spindle: 625mm. Table speed: 2 to 25m/min. Maximum table travel: 1250mm. Maximum work weight: 1200Kgs. Maximum cross travel: 500mm. Grinding wheel size: 400x80x127mm. Manual diamond grinder. Vertical orientable headstock. Vertical automatic feed. Power of grinding spindle: 12,5cv. Weight: 4500Kgs.

220627 Code Description Universal Cylindrical Grinder Make Jones - Shipman Model 1310 ( 8" x 18" ) Serial No. Year ? Grinding length, max. 450 mm Grinding diameter, max. 203 mm Center height 103 mm Weight workpiece kg Table tilting angle - 15 ° till + 15° Diam. Grinding wheel 350 mm Width Grinding wheel, max. 40 mm Motor power grindingwheel 1.5 kW Speeds Grindingwheel 1750 / 2300 rpm Speeds workpieceholder ( 6x ) 30 – 415 rpm Total power 3.5 kVA 380 Volts Machine size L x W x H 1.7 x 1.2 x 1.75 meters Weight 1800 kg Accessories internal grinding ( 10500-16500-24500 rpm ) coolant some tooling Condition Machine is in good condition

Machine overhaul , Repairs , On-site maintenance at the user's site , Spare parts supply , We specialize in the overhaul and repair of Kellenberger and Strausak universal grinding machines. We have the production and license rights of the company Strausak for the Type 57 U / W the resulting Special machines 82 S , multi-spindle fine milling machines, as well as CNC machines built from type 57 U / W We manufacture special machines especially for the ceramics and carbide industry.

In 2001 we acquired the license and production rights of Strausak. These rights include the entire 57 U / W conventional series as well as the CNC machines of the type U / W CNC in the tool grinding range 3 G / 4 G / 5 G as well as in the universal cylindrical grinding area, the 2 axes / 3 axes and 4 axes CNC machine and special machines 81 CNC. We have an extensive stock of spare parts. Our specialization is the general overhaul of these machines, as well as the new production of the above-mentioned machine types and the production of special machines.

NC – controlled precision rotary table face grinding machine with vertical grinding spindle and cup grinding wheel - brand new Rotary table diameter 400 mm Largest grindable diameter 400 mm Rotary table speeds 0 to 50 rpm infinitely variable Maximum workpiece weight 75 kg Cup grinding wheel Ø 200 mm x H 80 mm Grinding wheel speed 280 to 2,800 rpm infinitely variable Maximum workpiece height 170 mm Smallest programmable infeed dimension of the grinding wheel 0.001 mm Grinding wheel drive power 3 kW Rotary table drive power 0.5 kW Weight approx. 650 kg

ELB Perfect BD 15 PLC surface grinding machine, grinding area 1500 x 550 mm, grinding wheel 400 x 100 mm, electric perm magnetic clamping plate 1500 x 550 mm, automatic dresser with compensation, paper belt filter, the machine is overhauled, grinding spindle rebeared, guideways are scraped, meets the tolerance of a new machine. We are happy to take over the installation / training on site, as well as the subsequent service

Magnetic table 455 x 170 mm Digital Water tank Pulling device Wet grinding device

Precision Surface and Profile Grinding Machine FS1570 SL Grinding area: 1500 x 700 x 650 mm Grinding spindle motor: 18 KW Table drive: hydraulic Transverse drive: electromechanical Paintwork: RAL 6011 – reseda green Equipment: •Central lubrication • Wet grinding device • Fine adjustment knob on the transverse path handwheel • Dressing Diamond • Electro magnetic clamping plate 1500 x 750 mm • Magnetic plate adhesive force control Accessories: • Vertical automatic type SL with "LCD" flat screen and membrane keypad • Electric Straight Dresser • Stepless change of speed • Universal paper filter machine • Machine light • Column elevation by 200 mm • Precision balancing scale • 2 new grinding wheels Machine has been overhauled in 08/2018 "Invoice is available" Here's what was done: •Timing belt •Storage • Ball screw •  ...

ELB Perfect BD 10 750 PLC, Year of construction 2008 Control Siemens STC Grinding area 1000 x 750 mm Grinding wheel 400 x 100 mm Grinding spindle 10 KW Electro Perm Magnetic Clamping Plate 1000 x 750 mm Automatic straight-dressing device with compensation Coolant system with paper belt filter Machine is immediately ready for use CE compliant Installation / on-site training included

Condition of the machine: The machine is currently in a used, unoverhauled condition. All machine wear parts are replaced, including the feed spindle in the X-axis, and all assemblies are restored to like-new condition. After the overhaul, the machine can be easily compared to a new machine. Geometry: The machine is completely dismantled except for the guides. Before the geometry of the individual tables and assemblies can be restored, the two guides of the Z and X axes are scraped by hand and restored to mint condition. After completion of the work, the machine receives a measurement report according to the original specifications of the manufacturer. Electronics: The electronics and the control cabinet housing will be completely replaced. All electrical parts are replaced, including the motors. Hydraulics: The entire lubrication system, including the lubrication un ...

Favretto 500, Rotary table surface grinding machine, horizontal spindle, dia 500mm, electric elettrico with DRO

Cylindrincal grinding machine, KNUTH RSM 750, interna/external, DRO, This machine can be inspected under power in our warehouse., Mimu Machine Tools, Gussago BS Italy

CNC cylindrical grinding machine, STUDER S31 CNC LeanPro, with Pictogramming, Distance between centers: 1000mm, Center heigh 175mm, Grinding Wheel head rotation (B) 360° (1°), 2 ext Grinding Wheels, 1 int Grinding Wheel, Ext Grinding wheel, 400 mm x 40 mm x 127 mm, overhauled spindle > see photos, Workhead, CM 4, 0-1000 RPM, CNC Fanuc, Programming: Pictogramming, Heidenhain linear encoders, This machine can be inspected under power in our warehouse in Gussago BS Italy

grinding diameter: 360 mm grinding length: 1600 mm centre height: 180 mm internal diameter: 0 mm grinding depth: 0 mm swing diameter: 0 mm total power requirement: 40 kW weight of the machine ca.: 10000 kg dimensions of the machine ca.: m K A R S T E N S (Germany) Universal CNC” - Cylindrical Internal and Face Grinding Machine also for grinding excentric and cam profiles and polygons and even suitable for Threadgrinding Model K 51 – 1500 Year 2000 Serial No. 99 093 Height of centres 180 mm Distance between centres / grinding length 1,700/1.600 mm Cylindrical Grinding: Grinding Ø, approx. 5 - 360 mm Grinding wheel: Ø x width x bore 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s) 1.900 / 2.200 rpm Drives of cyl./int/face spindle units 7.5/4,0/7,5 kW Grinding Wheelhead: 3  ...

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während des Schleifprozesses) Hierdurch werden Schleifzeiten reduziert und Abrichtzeiten eingespa ...

The machine underwent a general overhaul in 2015 The following tasks were performed as part of the overhaul: repair of the electrical cabinet and hydraulics, scraping of the bed and table, replacement of bearings in the headstock, new springs for the axial bearings, new table piston rod and sleeves, installation of sludge separators. Documentation for the machine is available. Year of manufacture: 1980.

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm Control: total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Mit komplett neuem Schaltschrank und neuer Steuerung mit BEMA Schleifsoftware Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während de ...

workpiece diameter: 300 mm workpiece weight: 999 kg workpiece height: 999 mm grinding length: mm grinding width: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Ausstattung: -Digitalanzeige senkrecht Achse -Automatische Zustellung -Automatische Endabschaltung programmierbar -Schleifspindelantrieb mit stufenloser, elektronischer Drehzahlregelung -stufenlos regelbarer Quervorschub, und Tischdrehung -24V Magnetspannplatte 300 mm -diverse Arbeitsschutzeinrichtungen z.B. Schutzhaubenüberwachung, Betriebszustandsanzeige per Ampel -Schmierölstandsüberwachung -die Maschine wurde 2015 generalüberholt, damals Austausch der gesamten Elektrik auf SPS-Steuerung und 24V Steuerspannung -Papierbandfilteranlage speziell für diese Maschine passend Folgende Arbeiten wurden nun noch durchgeführt: -Austausch Faltenbalg und Riemen -Schleifspindel neu gelager ...

GENERAL Project No.: 905789 Quantity: 1 pcs. Manufacturer: BUDERUS Type: BDG 220 Control: Siemens 840 D solutionline Year of Make: 2020 Condition: Used machine Spindle Approx (hrs): 3000 Shifts machine one approx. (hour): rarely used DESCRIPTION GRINDING Max. workpiece diameter 440 mm Max. workpiece height 150 mm Travel in X 170 mm Max. rapid traverse speed in X/Z 30 m/min Max. feed speed in X 0.01-15 mm/min Max. speed workpiece spindle 1000 1/min OTHER EQUIPMENT Workpiece probes for measuring thickness deviation Gate sensor Splash protection cladding with fully encapsulated working area Automatic work room door Lighting in the work area Mechanical oil/emulsion mist extraction system Coolant device with paper belt filter High pressure pump 25 bar Mobile control unit for set-up operation with electronic handwheel Machine condition light Au ...

Very good surface grinding machine Table surface / working area 200 x 600 mm

grinding height: mm grinding width: mm grinding wheel diameter: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 1000 mm centre height: 175 mm b-axis: 1 ° max. dia. of grinding wheel: 500 mm internal grinding spindles: 60000 U/Min c-axis: 0.001 ° weight of the machine ca.: 5.7 t dimensions of the machine ca.: 4.25 x 2.2 x 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

rotary table diameter: 600 mm grinding height: 600 mm grinding head - power requirement: kW workpiece weight: 300 kg grinding wheel diameter: 600 mm power spindle motor: 15 kW grinding height: 600 mm Control: SIEMENS STC weight of the machine ca.: 19 t dimensions of the machine ca.: 4,7 x 3,6 x 2,5 m Equipment & Accessories ? Wet grinding unit with universal paper belt filter, discharge container and magnetic separator, tank capacity approx. 500 l ? Electrical cabinet with digital drives SIMODRIVE 611D ? Coolant Mist extractor ? Recooling unit for grinding spindle motor ? Fully closed machine enclosure ? Central lubrication ? Swivebale Control Panel with SIEMENS Simatic 10” Touch HMI mounted at front of the machine ? Electro-permanent magnetic plate Ø 600 mm with 4mm pitch, absolute accuracy due to lack of heat, incl. Adhesion control (30-100%), autom. magnet pole switching via push b ...

workpiece diameter: - mm workpiece weight: - kg workpiece height: - mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

voltage: 380 V connected load: 7,5 kVA dimensions: 2725 x 1930 x 1773 mm weight of the machine ca.: 2500 kg --> Technical data Main data: --> Table surface: 605 x 300 mm --> Table longitudinal movement max. (manual): 750 mm --> Table transverse movement: 340 mm --> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm --> Standard size of magnetic clamping plate: 600 x 300 mm --> Workpiece weight incl. magnet: 420 kg --> X-axis / longitudinal movement: --> T-slots (number x width): 3 x 17 mm --> Table feed, hydraulic: 0.3 - 25 m/min --> Travel per handwheel revolution: 47 mm --> Y-axis / height movement: --> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm --> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm --> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm --> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm --> Trigger strokes: 0 - ...

CNC cylindrical grinding machine, (carousel) for internal, external and surface grinding. A lot of accessories, such as grinding wheels of different types and sizes. Retrofitted 2007 . Magnetic clamping plate dia 1500mm, Circumferential diameter 1800mm, Largest grinding diameter 1600mm Maximum grinding height 880mm Max. workpiece weight 5to Swivel angle of the grinding spindle: 90° left, 60° right

internal grinding spindles: . centre height: 125 mm grinding length: 1000 mm grinding wheel diameter: 400 & 225 mm weight of the machine ca.: 3.1 t Internal grinding attachment with grinding spindle Misc.accessories www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ELB ELB Super Rubin 020 VA II CNC surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth control Magnetic Table 600 x 300 mm Movements axis X/Y/Z: 650/300/250 mm 4th axis- rotational Grinding wheel: -Dia 300 mm -width 40-50 mm -bore size 76,2 mm Spindle speed 1400-2800 rpm Total power requirement 5,5 kW Weight of the machine ca. 3,4 t 4th axis devices: -Punch former PF350 V-block -Punch former PF650-ER20 -Punch former PFD-ER40 -Punch grinder PGAS- centreless Accessories: Collets Radius and angle dresser RDC Sinusoidal-table for devices SPF 50 Balancing rack for wheels LBS 14 surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth c ...

Technical data Machine Type: Grinding workstation with belt sanding machines and double grinding machine Manufacturer: Metabo, Optimum Maschinen Germany Model belt sander: Metabo BS 175 Model belt sander: Optimum SL-2 Model Double Grinding Machine: Optimum OPTIgrind GU 25S Configuration Workbench with grinding workstation 2 belt sanders available Double grinding machine available AEG angle grinder available Machine vise available Signs of use and dirt present Auction-ID: A7-47277-3113

Pot discs - diameter:175 mm spindle extension:180 mm operating voltage:400 V Machine weight approx.:300 kg room requirements approx.:0.90 x 0.60 x 1.80 m
