tacchella grinding machines used for sale

Universal cylindrical grinding machine TACCHELLA 715 UA, Information about technical data are not binding., Machine available subject to prior sale., Height centres: 150 mm, Distance between centres: 750 mm, Wheel dimension: 450x50x127 mm, Wheel speed: 1450 rpm - Variable and programmable, Spindle motor power: 7.5 Kw, Internal grinding spindle speed: 16.000 rpm, Weight: 3.600Kg

TACCHELLA ELEKTRA 1518 MPC CNC grinding machine was built in Italy in 1999. Characterised by high reliability and performance, the machine is used in the process of highly accurate grinding of the external rotating surfaces of workpieces with a maximum length of 1500 mm and a diameter of 350 mm. The TACCHELLA CNC shaft grinding machine has a large workspace with tailstock, grinding wheel spindle and workpiece spindle. After placing a shaft with a maximum weight of 50 kg in the spindle holder, the workpiece is ground at high speed by an incremental encoder driven grinding wheel with a maximum diameter of 450 mm. In order to simplify the machining process, the ELEKTRA 1518 MPC CNC grinding machine is equipped with state-of-the-art features, such as the HOFLER BALANCE SYSTEMS VM 24 operator panel and a functional and user-friendly FAGOR CNC controller, which allows full control of the m ...

GENERAL Project No.: 905670 Quantity: 1 pcs. Manufacturer: TACCHELLA Type: Elektra 1018 MPC Control: MPC Year of Make: 1999 Condition: Used machine Layers approx.: less than 1 layer DESCRIPTION CYLINDRICAL GRINDING Max. grinding diameter 350 mm Max. grinding length 1000 mm Center height 180 mm Center width 1000 mm GRINDING SPINDLE UNIT Travel in X/Z 350/1180 mm Max. rapid traverse speed in X/Z 10/10 m/min Grinding headstock can be swivelled manually Belt-driven grinding spindle for external grinding wheel right with max. diameter x width x bore 400x50x127 mm left with max. diameter x width x bore 450x80x203 mm Max. circumferential speed 35 m/s2 Max. power at ED 10-40/100% 7.5 kW Mounting MK5/ASA4 TAILSTOCK Tailstock can be moved manually Tailstock quill holder MK4 Cylinder Fine Adjustment Tailstock Manual Dresser with dressing tile on tailstoc ...

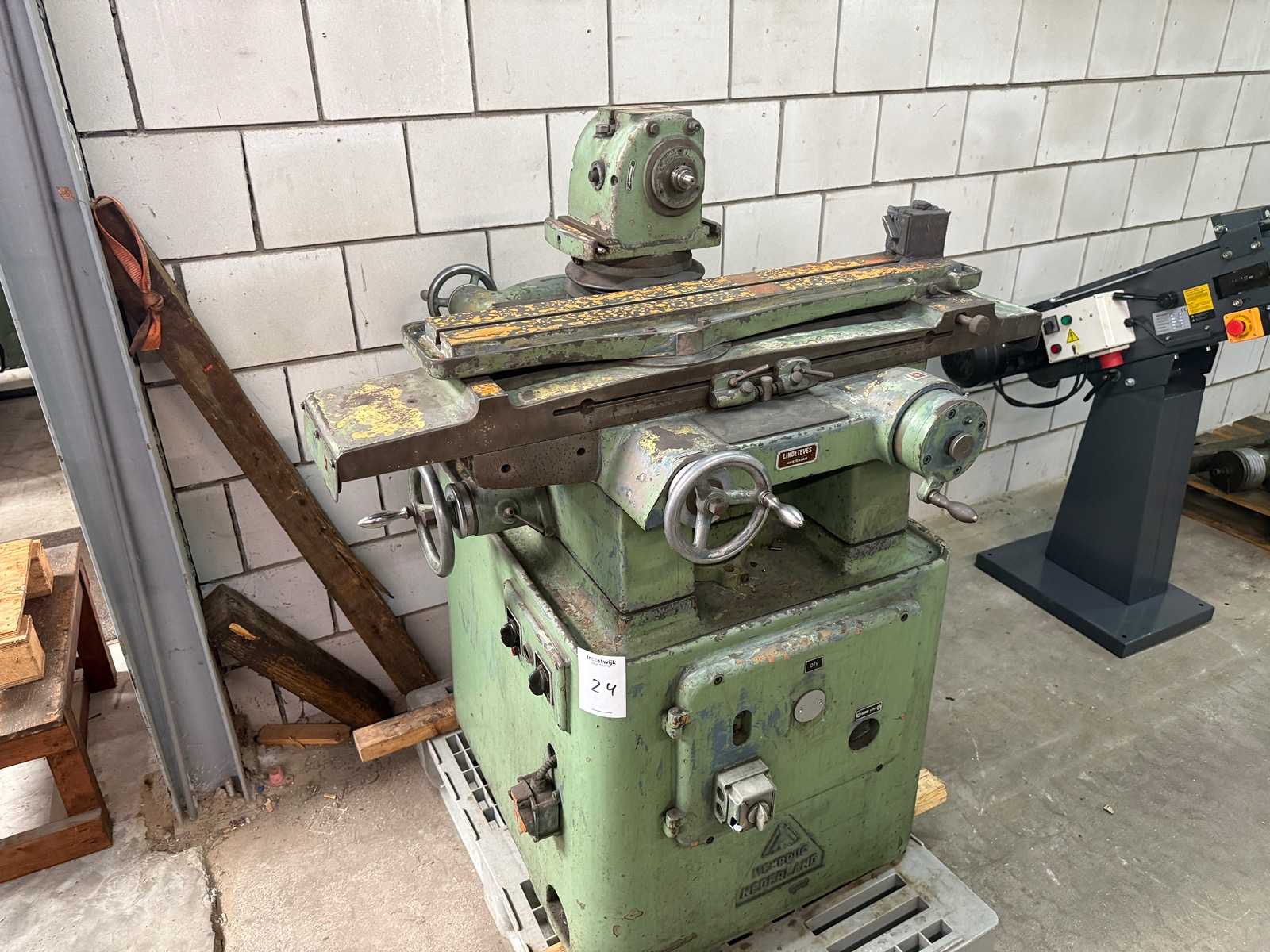

Universal tool and cutting grinding machine TACCHELLA 4 AM - Universal device, Hydraulic movement of the table., Information about technical data are not binding., Machine available subject to prior sale., Longitudinal travel x axis: 400 mm, Cross travel y axis: 250 mm, Clearance between worktable and spindle axis: 375 mm, Wheel speed: 3000/6000 rpm, Wheel dimension: 200x20 mm, Spindle motor power: 1,5 Kw, Weight: 1150 Kg, Accessories: Cooling system, motorized dividing device

grinding diameter: 350 mm grinding length: 1000 mm centre height: 180 mm Control: Fanuc 180-T grinding wheel width: 80 (100) mm grinding wheel diameter: 450 mm power capacity - grinding motor: 7,5 kW table speed -stepless-: 10 m/min grinding spindle head - swivable: +5 / -180 ° turning speed range - workpiece spindle: 10 - 800 U/min grinding head swivelling: 0 - 15 ° workpiece weight max.: 120 kg taper in tailstock-quill: MK 4 tailstock quill stroke: 35 mm dressing device: voltage: 400 V total power requirement: 18 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,75 x 2,25 x 1,80 m band filter unit: 1,75 x 1,20 x 0,80 m - Serial No.6769 - Universal Cylindrical Grinding Machine with internal grinding spindle - CNC-controlled B-Axis for automatic. swivel of spindle head The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

hydraulic: . centre height: 130 mm table-size: 900 x 200 mm grinding length: 400 mm grinding head - revolution: 360 ° weight of the machine ca.: 1.4 t dimensions of the machine ca.: 1.6 x 1.8 x 1.8 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: - mm grinding length: - mm centre height: - mm diameter: - mm length: - mm tool adaptor: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Universal cylindrical grinding machne TACCHELLA ELEKTRA-Evo 1018 MPC - FANUC 21i MPC, Information about technical data are not binding., Machine available subject to prior sale., Height centres: 180 mm, Distance between centres: 1000 mm, Wheel dimension: 508x80x203,2 mm, Wheel speed: 2000 rpm - Variable and programmable, Spindle motor power: 8,2 Kw, Internal grinding spindle speed: 30.000 rpm, Weight: 6.500Kg

Internal Device TACCHELLA 612 complete with spindle, dressing unit, Information about technical data are not binding., Machine available subject to prior sale.

Code 0776 Description Surface grinding machine Make ELB Type SWBD 030 MCNC82 Machine No. 18.346.0383 Manufacturing date 1983 Control MCNC / 82-PC Tablesize 3520 x 600 mm Table grinding size L x B x H 3000 x 600 x 600 mm Magnetical plate size L x B 3000 x 400 mm Speed table movement 0,2 – 6 m/min. Max. distance table – centre grinding wheel 850 mm Speeds vertical 3 – 375 mm/min. Speeds cross 1,2 m/min. Speeds grindingwheel stepless 750 – 1400 omw/min Grindingstone: Ø 600 x Wide:100 x Bore: 200 mm Weight 18.000 kg Motor power 37 kW – 380 Volt Accessoiries Electro table 3000 x 400 mm Grinding unit with water cooling Filtering unit with paperfilter Profile grinding unit Condition Machine is in very good condition

GER RS-12/50 surface grinding machine. Grinding area: 1200x550mm. Distance table-centre of spindle: 625mm. Table speed: 2 to 25m/min. Maximum table travel: 1250mm. Maximum work weight: 1200Kgs. Maximum cross travel: 500mm. Grinding wheel size: 400x80x127mm. Manual diamond grinder. Vertical orientable headstock. Vertical automatic feed. Power of grinding spindle: 12,5cv. Weight: 4500Kgs.

220627 Code Description Universal Cylindrical Grinder Make Jones - Shipman Model 1310 ( 8" x 18" ) Serial No. Year ? Grinding length, max. 450 mm Grinding diameter, max. 203 mm Center height 103 mm Weight workpiece kg Table tilting angle - 15 ° till + 15° Diam. Grinding wheel 350 mm Width Grinding wheel, max. 40 mm Motor power grindingwheel 1.5 kW Speeds Grindingwheel 1750 / 2300 rpm Speeds workpieceholder ( 6x ) 30 – 415 rpm Total power 3.5 kVA 380 Volts Machine size L x W x H 1.7 x 1.2 x 1.75 meters Weight 1800 kg Accessories internal grinding ( 10500-16500-24500 rpm ) coolant some tooling Condition Machine is in good condition

Machine overhaul , Repairs , On-site maintenance at the user's site , Spare parts supply , We specialize in the overhaul and repair of Kellenberger and Strausak universal grinding machines. We have the production and license rights of the company Strausak for the Type 57 U / W the resulting Special machines 82 S , multi-spindle fine milling machines, as well as CNC machines built from type 57 U / W We manufacture special machines especially for the ceramics and carbide industry.

In 2001 we acquired the license and production rights of Strausak. These rights include the entire 57 U / W conventional series as well as the CNC machines of the type U / W CNC in the tool grinding range 3 G / 4 G / 5 G as well as in the universal cylindrical grinding area, the 2 axes / 3 axes and 4 axes CNC machine and special machines 81 CNC. We have an extensive stock of spare parts. Our specialization is the general overhaul of these machines, as well as the new production of the above-mentioned machine types and the production of special machines.

NC – controlled precision rotary table face grinding machine with vertical grinding spindle and cup grinding wheel - brand new Rotary table diameter 400 mm Largest grindable diameter 400 mm Rotary table speeds 0 to 50 rpm infinitely variable Maximum workpiece weight 75 kg Cup grinding wheel Ø 200 mm x H 80 mm Grinding wheel speed 280 to 2,800 rpm infinitely variable Maximum workpiece height 170 mm Smallest programmable infeed dimension of the grinding wheel 0.001 mm Grinding wheel drive power 3 kW Rotary table drive power 0.5 kW Weight approx. 650 kg

ELB Perfect BD 15 PLC surface grinding machine, grinding area 1500 x 550 mm, grinding wheel 400 x 100 mm, electric perm magnetic clamping plate 1500 x 550 mm, automatic dresser with compensation, paper belt filter, the machine is overhauled, grinding spindle rebeared, guideways are scraped, meets the tolerance of a new machine. We are happy to take over the installation / training on site, as well as the subsequent service

Magnetic table 455 x 170 mm Digital Water tank Pulling device Wet grinding device

Precision Surface and Profile Grinding Machine FS1570 SL Grinding area: 1500 x 700 x 650 mm Grinding spindle motor: 18 KW Table drive: hydraulic Transverse drive: electromechanical Paintwork: RAL 6011 – reseda green Equipment: •Central lubrication • Wet grinding device • Fine adjustment knob on the transverse path handwheel • Dressing Diamond • Electro magnetic clamping plate 1500 x 750 mm • Magnetic plate adhesive force control Accessories: • Vertical automatic type SL with "LCD" flat screen and membrane keypad • Electric Straight Dresser • Stepless change of speed • Universal paper filter machine • Machine light • Column elevation by 200 mm • Precision balancing scale • 2 new grinding wheels Machine has been overhauled in 08/2018 "Invoice is available" Here's what was done: •Timing belt •Storage • Ball screw •  ...

ELB Perfect BD 10 750 PLC, Year of construction 2008 Control Siemens STC Grinding area 1000 x 750 mm Grinding wheel 400 x 100 mm Grinding spindle 10 KW Electro Perm Magnetic Clamping Plate 1000 x 750 mm Automatic straight-dressing device with compensation Coolant system with paper belt filter Machine is immediately ready for use CE compliant Installation / on-site training included

Condition of the machine: The machine is currently in a used, unoverhauled condition. All machine wear parts are replaced, including the feed spindle in the X-axis, and all assemblies are restored to like-new condition. After the overhaul, the machine can be easily compared to a new machine. Geometry: The machine is completely dismantled except for the guides. Before the geometry of the individual tables and assemblies can be restored, the two guides of the Z and X axes are scraped by hand and restored to mint condition. After completion of the work, the machine receives a measurement report according to the original specifications of the manufacturer. Electronics: The electronics and the control cabinet housing will be completely replaced. All electrical parts are replaced, including the motors. Hydraulics: The entire lubrication system, including the lubrication un ...

Favretto 500, Rotary table surface grinding machine, horizontal spindle, dia 500mm, electric elettrico with DRO

Cylindrincal grinding machine, KNUTH RSM 750, interna/external, DRO, This machine can be inspected under power in our warehouse., Mimu Machine Tools, Gussago BS Italy

CNC cylindrical grinding machine, STUDER S31 CNC LeanPro, with Pictogramming, Distance between centers: 1000mm, Center heigh 175mm, Grinding Wheel head rotation (B) 360° (1°), 2 ext Grinding Wheels, 1 int Grinding Wheel, Ext Grinding wheel, 400 mm x 40 mm x 127 mm, overhauled spindle > see photos, Workhead, CM 4, 0-1000 RPM, CNC Fanuc, Programming: Pictogramming, Heidenhain linear encoders, This machine can be inspected under power in our warehouse in Gussago BS Italy

grinding diameter: 360 mm grinding length: 1600 mm centre height: 180 mm internal diameter: 0 mm grinding depth: 0 mm swing diameter: 0 mm total power requirement: 40 kW weight of the machine ca.: 10000 kg dimensions of the machine ca.: m K A R S T E N S (Germany) Universal CNC” - Cylindrical Internal and Face Grinding Machine also for grinding excentric and cam profiles and polygons and even suitable for Threadgrinding Model K 51 – 1500 Year 2000 Serial No. 99 093 Height of centres 180 mm Distance between centres / grinding length 1,700/1.600 mm Cylindrical Grinding: Grinding Ø, approx. 5 - 360 mm Grinding wheel: Ø x width x bore 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s) 1.900 / 2.200 rpm Drives of cyl./int/face spindle units 7.5/4,0/7,5 kW Grinding Wheelhead: 3  ...

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während des Schleifprozesses) Hierdurch werden Schleifzeiten reduziert und Abrichtzeiten eingespa ...

The machine underwent a general overhaul in 2015 The following tasks were performed as part of the overhaul: repair of the electrical cabinet and hydraulics, scraping of the bed and table, replacement of bearings in the headstock, new springs for the axial bearings, new table piston rod and sleeves, installation of sludge separators. Documentation for the machine is available. Year of manufacture: 1980.

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm Control: total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Mit komplett neuem Schaltschrank und neuer Steuerung mit BEMA Schleifsoftware Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während de ...

workpiece diameter: 300 mm workpiece weight: 999 kg workpiece height: 999 mm grinding length: mm grinding width: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Ausstattung: -Digitalanzeige senkrecht Achse -Automatische Zustellung -Automatische Endabschaltung programmierbar -Schleifspindelantrieb mit stufenloser, elektronischer Drehzahlregelung -stufenlos regelbarer Quervorschub, und Tischdrehung -24V Magnetspannplatte 300 mm -diverse Arbeitsschutzeinrichtungen z.B. Schutzhaubenüberwachung, Betriebszustandsanzeige per Ampel -Schmierölstandsüberwachung -die Maschine wurde 2015 generalüberholt, damals Austausch der gesamten Elektrik auf SPS-Steuerung und 24V Steuerspannung -Papierbandfilteranlage speziell für diese Maschine passend Folgende Arbeiten wurden nun noch durchgeführt: -Austausch Faltenbalg und Riemen -Schleifspindel neu gelager ...

GENERAL Project No.: 905789 Quantity: 1 pcs. Manufacturer: BUDERUS Type: BDG 220 Control: Siemens 840 D solutionline Year of Make: 2020 Condition: Used machine Spindle Approx (hrs): 3000 Shifts machine one approx. (hour): rarely used DESCRIPTION GRINDING Max. workpiece diameter 440 mm Max. workpiece height 150 mm Travel in X 170 mm Max. rapid traverse speed in X/Z 30 m/min Max. feed speed in X 0.01-15 mm/min Max. speed workpiece spindle 1000 1/min OTHER EQUIPMENT Workpiece probes for measuring thickness deviation Gate sensor Splash protection cladding with fully encapsulated working area Automatic work room door Lighting in the work area Mechanical oil/emulsion mist extraction system Coolant device with paper belt filter High pressure pump 25 bar Mobile control unit for set-up operation with electronic handwheel Machine condition light Au ...

Very good surface grinding machine Table surface / working area 200 x 600 mm

grinding height: mm grinding width: mm grinding wheel diameter: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 1000 mm centre height: 175 mm b-axis: 1 ° max. dia. of grinding wheel: 500 mm internal grinding spindles: 60000 U/Min c-axis: 0.001 ° weight of the machine ca.: 5.7 t dimensions of the machine ca.: 4.25 x 2.2 x 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

rotary table diameter: 600 mm grinding height: 600 mm grinding head - power requirement: kW workpiece weight: 300 kg grinding wheel diameter: 600 mm power spindle motor: 15 kW grinding height: 600 mm Control: SIEMENS STC weight of the machine ca.: 19 t dimensions of the machine ca.: 4,7 x 3,6 x 2,5 m Equipment & Accessories ? Wet grinding unit with universal paper belt filter, discharge container and magnetic separator, tank capacity approx. 500 l ? Electrical cabinet with digital drives SIMODRIVE 611D ? Coolant Mist extractor ? Recooling unit for grinding spindle motor ? Fully closed machine enclosure ? Central lubrication ? Swivebale Control Panel with SIEMENS Simatic 10” Touch HMI mounted at front of the machine ? Electro-permanent magnetic plate Ø 600 mm with 4mm pitch, absolute accuracy due to lack of heat, incl. Adhesion control (30-100%), autom. magnet pole switching via push b ...

workpiece diameter: - mm workpiece weight: - kg workpiece height: - mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

voltage: 380 V connected load: 7,5 kVA dimensions: 2725 x 1930 x 1773 mm weight of the machine ca.: 2500 kg --> Technical data Main data: --> Table surface: 605 x 300 mm --> Table longitudinal movement max. (manual): 750 mm --> Table transverse movement: 340 mm --> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm --> Standard size of magnetic clamping plate: 600 x 300 mm --> Workpiece weight incl. magnet: 420 kg --> X-axis / longitudinal movement: --> T-slots (number x width): 3 x 17 mm --> Table feed, hydraulic: 0.3 - 25 m/min --> Travel per handwheel revolution: 47 mm --> Y-axis / height movement: --> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm --> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm --> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm --> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm --> Trigger strokes: 0 - ...

CNC cylindrical grinding machine, (carousel) for internal, external and surface grinding. A lot of accessories, such as grinding wheels of different types and sizes. Retrofitted 2007 . Magnetic clamping plate dia 1500mm, Circumferential diameter 1800mm, Largest grinding diameter 1600mm Maximum grinding height 880mm Max. workpiece weight 5to Swivel angle of the grinding spindle: 90° left, 60° right

internal grinding spindles: . centre height: 125 mm grinding length: 1000 mm grinding wheel diameter: 400 & 225 mm weight of the machine ca.: 3.1 t Internal grinding attachment with grinding spindle Misc.accessories www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ELB ELB Super Rubin 020 VA II CNC surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth control Magnetic Table 600 x 300 mm Movements axis X/Y/Z: 650/300/250 mm 4th axis- rotational Grinding wheel: -Dia 300 mm -width 40-50 mm -bore size 76,2 mm Spindle speed 1400-2800 rpm Total power requirement 5,5 kW Weight of the machine ca. 3,4 t 4th axis devices: -Punch former PF350 V-block -Punch former PF650-ER20 -Punch former PFD-ER40 -Punch grinder PGAS- centreless Accessories: Collets Radius and angle dresser RDC Sinusoidal-table for devices SPF 50 Balancing rack for wheels LBS 14 surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth c ...

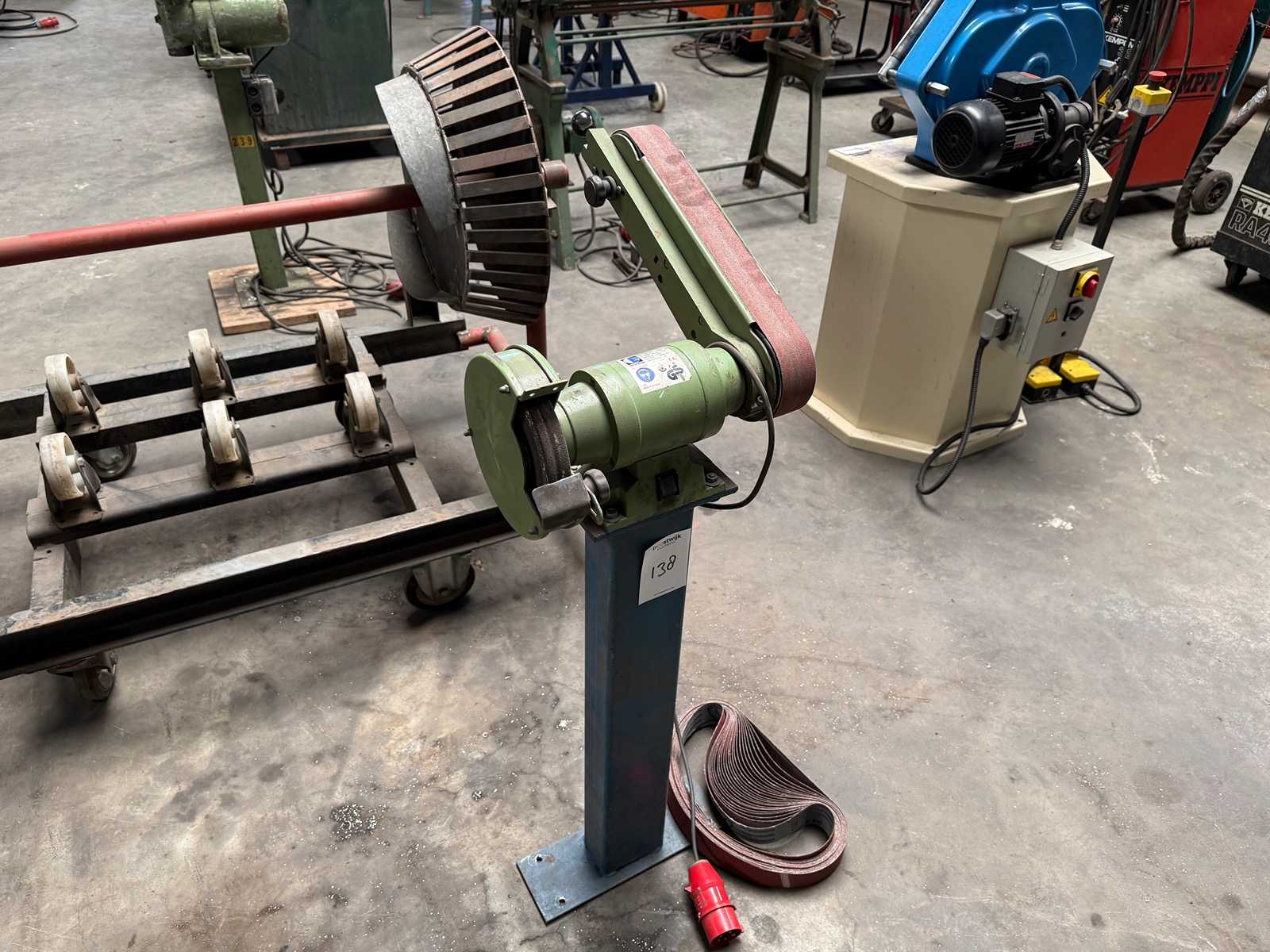

Technical data Machine Type: Grinding workstation with belt sanding machines and double grinding machine Manufacturer: Metabo, Optimum Maschinen Germany Model belt sander: Metabo BS 175 Model belt sander: Optimum SL-2 Model Double Grinding Machine: Optimum OPTIgrind GU 25S Configuration Workbench with grinding workstation 2 belt sanders available Double grinding machine available AEG angle grinder available Machine vise available Signs of use and dirt present Auction-ID: A7-47277-3113

Technical data Machine Type: Grinding workstation with belt sanding machines and double grinding machine Manufacturer: Metabo, Optimum Maschinen Germany Model belt sander: Metabo BS 175 Model belt sander: Optimum SL-2 Model Double Grinding Machine: Optimum OPTIgrind GU 25S Configuration Workbench with grinding workstation 2 belt sanders available Double grinding machine available AEG angle grinder available Machine vise available Signs of use and dirt present

Pot discs - diameter:175 mm spindle extension:180 mm operating voltage:400 V Machine weight approx.:300 kg room requirements approx.:0.90 x 0.60 x 1.80 m

From plant disassembly

-High performance -Belt grinding device height-adjustable 0-90° -Maximum usable face grinding surface -Belt adjustment with fine adjustment -Combined belt grinding/grinding machine -Longitudinal stop for material guidance -Perfectly balanced and low vibration -Double-sided connection for dust extraction Ø 50 mm -Motor circuit breaker with undervoltage trigger -Fixed stop -1 sanding belt standard (brown), grain 80 -1 grinding wheel 250 x 40 x 51 mm, grain 80 -Spark protection -Connection cable with CEE plug -with machine stand, EMERGENCY STOP push button, brake and suction Delivery: in Germany free domicile incl. packaging

Technical data Machine Type: Drill Bit Grinding Machine / Tool Grinding Machine Manufacturer: Brierley Dimensions: approx. H1300 x W600 x L700 mm Floor-standing unit with base cabinet Grinding wheel available Configuration Drill clamping device available Swivel grinding head Various clamping sleeves and collets included Additional grinding wheels included Tool and adjustment accessories in the base cabinet Machine with extensive accessory package Signs of use and dirt present Auction-ID: A7-47277-3111

Reichmann Steel Grinding Machine ST 1/125 General data • Manufacturer: Reichmann & Sohn GmbH • Model: ST 1/125 • Machine type: Steel grinding machine • Year of construction: 2022 • Serial number: 20221007158 • CE marking available Technical data • Connection: 400 V • Frequency: 50 Hz • Motor power: 0.37 kW • Three-phase version • Compact tabletop machine Grinding unit • Reichmann precision grinding wheel mounted • Grinding wheel diameter: 125 mm • Grinding wheel width: 50 mm • Grinding wheel speed: approx. 2,839 rpm • Robust grinding unit for precise machining of steel tools Facilities • Adjustable sanding table • Angle adjustment with degree scale • Precise stop guidance • Easy and quick angle adjustment • On/off switch with motor protection function • Industrial plug mounted Application area • Resharpening of  ...

Sharpening stone 350x125x300 (two extra sharpening knives included) Overhauled in 2015 Away from work Grinding of round edges Auction-ID: A1-47349-79

Working diameter: 40 - 250 mm Automatic work piece loading and removing for ball diameters: 40 - 105 mm Manual loading for diameters: 105 - 170 mm Direct ball attaching: 170 - 250 mm Rotation speed, stepless: 10 - 300 rpm Grinding spindle speed range: -160 - 3150 rpm -80 - 1580 rpm -38 - 775 rpm -20 - 385 rpm Weight: 6,5 tn Electrical connection: 17 kW Year of manufacturing: 1991

Grinding wheel flange for Kellenberger / Strausak u.-Miwatec grinding machines type 57 U / W in special design. Questions us please at we do extensive accessories for these machine types.

Grinding wheels recording for Kellenberger / Strausak u.-Miwatec grinders. Wheels shot 38 mm. For more details please call us. We carry special accessories in our program. We repair and repaired on the spot and make complete engine overhauls Special grinding machines

Grinding wheels recording for Kellenberger / Strausak u.-Miwatec grinders. Grinding wheel holder for 76 mm bore. More technical info. on request.

Reduction sleeves for work piece headstock recording MK 5 Reduction MK 5 / MK 1 MK 5 / MK 2 MK 5 / MK 3 MK 5 / MK 4 Reduction sleeves with forcing nut. Price indication per piece. We carry new & - used Center points in special dimensions.

We give our wheel bearing. Vitrified bonded grinding wheels for metal processing. From 100 mm to 600 mm in diameter. We carry also diamond and CBN wheels for tool grinding machines new and used. Strausak Fleximat 91 we have yet complete disc sets for all common diameters for the machining of solid carbide and HSS milling and drilling tools. Price and info. on request.

We give our wheel bearing. Ceramic grinding wheels of different binding and hardness. Dimensions von75 mm to 600 mm. The discs are new, unused, and undamaged. Retail possible, price on request.

We have a very wide range of accessories for Kellenberger - Santiago &-Miwatecmaschinen. Grinding wheel flanges new u. - used. Chuck flange recordings MK 5 SK 50 for magnetic Chuck, three & four-jaw Chuck. Running with Center points, and fixed. Three-jaw four-jaw &-special Chuck. Magnetic clamping plates, cross - ring - Sternpolteileung. Truing devices, RADIUS &-inclined dressing Lynetten 2 & 3 jaw

We offer a new Movomatic Tischlängspositionier Setup. The device is new, unused and undamaged. The device is longer years in our camp, we have never used this. It is also can be used with security at other cylindrical grinders manufacturers.

Tip height: workpiece or grinding diameter 500 mm centre distance: approx. 2000 mm maximum workpiece weight: 1200 kg wheel dimensions: 600 Ø x 300 mm wheel speeds: 965 RPM elect. Supply: 380 V, approx. 15 kW space: 2300 x 9000 x 2000 mm weight: 13000 kg

Tip height: Grinding diameter 250 mm centre distance: loop length 575 mm grinding wheel dimensions: 500 x 60 x 127 mm Electr. Supply: 380 V, approx. 9 kVA kW space: 2650 x 2600 x 2240 mm weight: 3400 kg

Spindle speed min: 9,000 Umd.min Max: 15.000 Umd.min Tip height min: 230 mm Max: 510 mm Spindle stroke: 210 mm Horiz. Table large: 700 x 1000 mm Table stroke: 1,800 mm Equipped with: - feed table - feed Hor. Grinding movement - coolant equipment - protection doors table

ZM punch grinder

Band dimensions: 150 x 2000 mm speed: 14.5 / 29 m / sec. Contact plate: 200 mm / 155 mm plan grinding table diameter: 460 x 150 mm Extractor connection: 100 mm in diameter engine power: 4 kW

Band dimensions: 75 x 2,000 mm speed: 14.5 / 29 m / sec. Contact plate ø x B: 200 / 80 mm plan grinding table: 460 x 75 mm suction connection Ø: 100 mm motor power output S1 100%: 2.4 / 3.0 kW absorbed motor power S6 40%: 3.0 / 4.0 of kW voltage: 400V dimensions (L x W x H): 1080 x 440 x 1000 mm weight about: 67 kg

Surface grinding machine. Magnetic chuck of 550x250mm. Table travel: 700mm. Grind surface area: 600x350mm. Max. height: 375mm. Cross travel: 300mm. Wheel: 350x127x50 / 300x127x100 Weight: 2900Kg.

Gr. Swing diameter: 600 mm Top width: 2200 mm Gr. Grinding diameter on grinding wheel 800 mm Ø: 125 mm Wheels Ø use of put sticks: 20-125 mm Grinding wheel dimensions: 800 x 28-800 x 42 x 305 mm 2 wheel speeds 3 workpiece speed: 32, 55 and 96 RPM Table Shift manual coarse/fine: 10/2 mm Machine. Feed speed of the grinding wheel: 0,005 - 0,025 mm Table 6-speed: 120-1540 mm / min Grinding spindle stock drive: 8 kW Electr. Supply: 380/400 V, 10 kW Space requirements: 6100 x 2300 x 1600 mm Weight: 7T

Key data: 1000 , 600 , 400

Surface grinders - horizontal ELB perfect BD 10 PLC Second-hand machine overhauled 2014 Surface grinders - horizontal ELB-SCHLIFF perfect BD 10 PLC Second-hand machine Grinding length: 1000 mm Grinding width: 600 mm Workpiece height: 600 mm Table size: 1000 x 600 mm Grinding wheel dimensions: 400 x 100 mm Grinding spindle motor: 11 kW Table speed: 2-30 m / min Grinding wheel speed: 0-35 m / s U/min Total power consumption: 35kW Machine weight approx.: 6 t Space requirement approx.: 3.8 x 2.5 x 2.5 m Part of 2014 overhauled with 12 month warranty Paper machine Magnetic clamping plate 1000 x 600 Automatic dressing device with compensation 1 flange Items put up

Horizontal grinding optimum surface grinders ELB - 6375 ND - PLC Second-hand machine Surface grinders - horizontal ELB optimal 6375 ND - PLC Second-hand machine overhauled 2016 Surface grinders - horizontal ELB-SCHLIFF optimal 6375 ND - PLC Second-hand machine Grinding length: 600 mm Grinding width: 375 mm Workpiece height: 375 mm Table clamping surface: 600 x 350 mm Grinding wheel dimensions: 300 x 50 mm Grinding spindle motor: 4.7 kW Table speed: 2-30 m / min Grinding wheel speed: 1450 RPM Total power: 12kW Weight approximately: 3.5 t Space requirement approx.: 2.8 x 2.5 x 2.5 m Part overtaken 2016 + 12 months warranty, condition Control with touch screen new Paper machine Magnetic Chuck 600 x 350 Automatic table dressing with compensation 1 flange Items put up Installation / commissioning / transport

1 Qty.1 Second-hand brush grinding machine Mfc.: Gurutzpe Type: Brushes cutting machine Built: 1975 Model: Max. Q800x2500 2 Qty. 1 Second-hand Rubber Grinding Machine Mfc.: Churchill Type: PCH 24" X 96" Built: 1957 Model: Max. Q600x2400

High-quality construction Drive roller is crowned (thus the sanding belt centered automatically centered on the role) and fully Vulcanized for longest life and best smoothness Tool-less and allow fast, easy change of the sanding belt Stepless height adjustment for optimal setup of the belt sander on the user Free adjustable metal fence to the optimal and safe guide workpieces during use of the large plan grinding area Speed design optimized for burning of the workpiece during the machining can be excluded as far as possible Models with fume control system equipped with robust and flexible suction hose Motor protection switch with CEE collar Steckvorrichtung incl. phase inverter 5 year warranty on the motor 1 year warranty on the belt sander Strap length: 2000 mm Band width 75 mm Plan grinding range 600 mm Speed 15/30 m/s RAL 9007 colour Motor three-phase 400 V 3.0/3,75 kW Suction capa ...

Machine type: CNC centerless grinding machine Make/Model: MIKROSA KRONOS M SPECS CNC Fanuc 21iM grinding wheel max sizes: 250mm wide x 610mm diameter 2 controlled axis on grinding wheel dressing (interpolated) 1 axis on regulating wheel 1 axis on plunge axis (workpiece diameter) Throughfeed grinding: yes Plunge grinding: yes can be inspected under power in our warehouse in Gussago BS (Italy)

HF FeinfräÃ? & - grinding spindle, manufacturer Fischer Schaffhausen. Designation; MFVS 830, Series number: EL-S-007 The spindle is undamaged, unused and in their original packaging. The spindle can be used with electrodes and-precision Strausak type. 82 CNC. or as RF - internal grinding spindle. Tech. Data.: 220 V 600 HZ 4-pin 2.5 KVA 1.4 KW / 600 HZ for further information: The grinding technology: Tool &-profile grinding coarser has in 2001 of the production & - Strausak license rights wage purchased. The rights include the complete series 57 U/W, 57 U CNC, 57 W CNC 3.-4.u-5-axis, and from this all developed machines.

Surface grinders - horizontal ELB-SCHLIFF SWBE 10 PLC Second-hand machine Mint Control cabinet, motors, wiring, control new Hydraulic new, trim, loop length: 1000 mm Grinding width: 500 (600) mm Workpiece height: 600 mm Table size: 1000 x 550 mm Grinding wheel dimensions: 400 x 100 mm Grinding spindle motor: 11 kW Table speed: 2-30 m / min Grinding wheel speed: 5-35 m / sn Total power: 18 kW Machine weight approx.: 5,5 t Space requirement approx.: 3.5 x 2.5 x 2.5 m General outrun 2019 with 12 month warranty Paper machine Levelling feet Installation included Instruction includes

Gr. Grinding length: 620 mm gr. Grinding width: 250 mm table size: 200 x 620 mm grinding wheel dimensions: 200 x 220 x 51 mm Electr. Supply: 380 V, 1/1.8 kW space: 1650 x 1450 x 1800 mm weight: 1350 kg

Mikrofinishingmaschine, microfinishing machine, used gebrauchtTyp: MA 3/1000Hersteller: Thielenhaus machine factory WuppertalSteuerung: manually, konv. maximum part size / max. worksize: d = 155 mmMax. 310 part length / max work.length: mmGenauigkeit / precision: 0.001 mmLeistung / load: 12.4 kW, 380/400 ~ specification: stock finish. grinding wheels Floor finishing tools including Machine application: high-precision surface grinding of piston pin

Stock number 1105-02617 Machine type flat grinding machine Make Elf Type OPTIMALLY 4250 NC-K Built in 1993 Control type NC Storage warehouse Country of origin Germany Delivery time immediately Exhibition Hall, ver free freight basis Technical details Grinding length 450 mm Grinding width 250 mm Workpiece height 375 mm Table length 800 mm Table width 250 mm maximum work-piece weight 400 kg Autom. Cross feed adjustable 3-50 mm / stroke Vertical delivery, 1 Division 0.001 - 0.06 mm Grinding wheel diameter 300 mm Grinding wheel width 50 mm Grinding wheel diameter 36 mm Voltage 380 V Grinding spindle motor 3.7 / 4.7 kW Total power demand 9 kW Machine weight approx. 2.6 t Space requirement of approx. 2800 X 2500 2300 mm Additional information automatic delivery -Electro magnetic clamping plate with straight fine pole pitch, dimens ...

Precision flat grinding machine Manufacturer: COSMOS Model: Earth 1050 NC Built: New factory Grinding length: 1000 mm Grinding width: 500 mm Grinding height: 400 mm Electric magnetic release plate 1000 x 500 mm Single fitters at the table firmly assembled for straight judting with compensation Programble display 4.7 " Unseated grinding spindle drive Universal paper tape filter

Type SAXW 63/3000 Producer WMW Meuselwitz Year of manufacture 1979 Parameters 63mm, 3000mm Location Praha CZ Swing 750 mm Distance between centres 3000 mm Max. weight of workpiece 6000 kg Machine suitable for modernisation

Tip width/grinding length: 1000/1075 mm Gr. Grinding diameter: 250 mm Table swivel: +/- 8° Gr. Table longitudinal movement: 1210 mm Workpiece spindle stick swivel: 0 - 90° Spindle bore/cone: 38 mm/MK 5 Grinding spindle stick easily swivelling Hydr. Quick adjustment approx.: 50 mm Grinding wheel dimensions: 400 x 50 x 127 mm 2 grinding wheel speeds due to V-belt step disc Drive power: 3 kW Space requirement: 2900 x 2200 x 1750 mm Weight: approx. 3.5 t

Drill diameter: 2 - 13 mm Tip angle: 90° - 140° Speed: 4800 rpm Connection: 230 V Engine power: 0.18 kW Weight, approx.: 11 kg Dimensions, approx.: 320 x 180 x 190 cm Characteristics: - Ideal for grinding HSS/hard metal spiral drills - Safe operation due to forced grinding - Peak angle adjustable from 90° - 140° - Compact design, with collet storage in the machine and handle for quick storage - Including sharpening device to reduce feed force - Device for back grinding of the drill cuttings to reduce the friction between the drill and the workpiece - Rotor with precision ball bearings Delivery: - Grinding wheel CBN - 11 collet pliers ER 20, 3 - 13 mm - collet holder ER 20

Drill diameter: 13 - 32 mm Tip angle: 90° - 140° Speed: 4800 rpm Connection: 230 V Engine power: 0.25 kW Weight, approx.: 28 kg Dimensions, approx.: 490 x 250 x 260 mm Characteristics: - Ideal for grinding HSS/hard metal spiral drills - Safe operation due to forced grinding - Peak angle adjustable from 90° - 140° - Compact design, with collet storage in the machine and handle for quick storage - Including sharpening device to reduce feed force - Device for back grinding of the drill cuttings to reduce the friction between the drill and the workpiece - Rotor with precision ball bearings Delivery: - Grinding wheel CBN - 20 collet pliers ER 40, 13 - 32 mm - collet holder ER 40 Optional extension, at extra cost: - collet set 5pcs. 8.0 / 9.0 / 10.0 /11.0 /12.0 mm

Grinding length 500 mm Grinding width 250 mm Workpiece height 375 mm max. table load 350 kg Table longitudinal movement 525 mm Table feed 2-28 m/min Total power requirement 4.5 kW Machine weight approx.1900 kg Control NC Height: approx.2.60 m Width: approx. 2.10 m Depth: approx. 2.00 m Total weight with cooling lubricant container: approx. 2.3 t.

Figure shows precision flat grinding machine: FSM 2550 AH Table size: 300 x 600 mm Installation height: 500 mm Max table load: 300 kg Engine power: 4.6 kW Connection: 400 V Dimensions: 2300 x 1790 x 2200 mm Weight, approx.: 2000 kg Equipment and scope of delivery: - All castings, such as machine stand, table, etc. made of MEEHANITE® quality casting - Automatic cross and longitudinal feed - Permanent lubrication - Automatic cross-stroke device - Rear splash protection - Grinding wheel - Grinding wheel flange - Pulling device - Balancing mandrel - Balancing scales - Dressing diamond - Machine light - Nivilier elements - Operating tool - Operating instructions - CE Special equipment of our storage machine: - Electric magnetic clamping plate 300 x 600 mm (fine pole) - 2-axis digital display, accuracy 0.001 mm, X 450 / Y 500 mm - Automatic verti ...

Ger RHC1500 Universal Rectifier. Indoor head. Distance between points: 1500mm. Maximum part diameter: 355mm. Point height: 180mm. Tooth diameter: 400mm. Power: 7.5hp. Weight: 4500Kgs.

Steel grinding machine Offer number: 20064 Make: REMA Type: DS 12 ST Machine Number: 108267 Built: 1988 Technical data: - Grinding wheel diameter approx. 125 mm - 2 disc speeds 1450 / 2200 rpm - Right, - Left-hand run - tilting fixed support table ATF 340 x 150 mm - Support table -5° to +15° tiltable - Lighting - Drive 400 V / 0.65 / 0.9 kW - Working height 1000 mm - Space requirement approx. W 850 x H 1150 x D 550 mm - Weight approx. 120 kg

Machine details 1105-02942 Machine type Flat Grinding Machine - Horizontal Make Sit Type R4 CA Built 1981 Control type Conventional Location France Origin Germany Delivery Right away Freight base EX WORK Price On request Technical details Grinding length 450 mm Grinding width 180 mm Workpiece height 300 mm Total performance requirements 9 kW Information Grinding length max. 500 mm Table stroke maximum 600 mm Grinding width max. 180 mm Table size 600 x 300 mm Working height under grinding wheel 500 mm Grinding head Vertical path 300 mm Vertical delivery 0.001 - 0.06 mm/stroke Grinding slide adjustment across 200 mm Grinding wheel size 400 x 150 x 305 mm Grinding wheel speed stfl. 47 - 970 rpm Table load.600 kg Table lifting speed max. 30 m/min. Grinding spindle drive 12 kW Total drive approx. 20 kW - 380 V - 50 Hz Weight approx. 2,00 ...
