walter grinding machines used for sale

Walter AG Helitronic Power CNC Universal 5-Axis Tool Grinding Machine CNC control HMC 400 CNC X-axis travel 400 mm Y-axis travel 250 mm Z-axis travel 580 mm C-axis (table rotation) ± 200° Max. grinding wheel diameter Ø 200 mm Spindle speed (grinding) 3000 / 6000 rpm If you have any questions about the machine, please do not hesitate to contact us by phone or e-mail. Feel free to check out our other listings for a full overview of our stock.

Walter Helitronic CNC Tool Grinding Machine - Grinding machine Hersteller [manufacturer]: Walter Type [ type]: Helitronic Control unit: Heidenhain TNC 360C Incl. handwheel Baujahr[construction year]: 10/2002 Travel path: X= 1500mm Y=500mm Z=450mm Workbench: L = 1800mm W=500mm Spindle [spindle]: swivel +-90° Feed speed [feed speed]: 10-4000mm/min Spindle rotation speed: 30-3000 rpm Feed force [feed force]: 10,000-15000N Tool holder: SK 50 after DIN2080 Weight: 7.000kg Approx. (W x D x H): 3.0m x 2.25m x 2.85m Incl. various accessories according to photos Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Tel. +4917621834834 Price, from stock here plus VAT. Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - u ...

Suitable for regrinding and production of wood and metalworking tools of all kinds., Accessories:, Total enclosure, Fanuc robot loader with 6 controlled axes and camera system, Software Toolstudio Standard & Advanced Version 3, Software Helitronic Toolstudio Option Step Tools/Drills, Automatic fire extinguishing system, Drive chiller for all drives, Measuring probe, Oil drip tray, Glass scales on the linear axes, Electrostatic mist collector, Pneumatic workpiece clamping, Automatic, hydraulically actuated steady rest, Measuring mandrel ISO 50, 3 grinding wheel adaptors, Longitudinal movement (X-axis): 400 mm, autom. X‘-axis for moving the workpiece carrier: 110 mm, Vertical movement (Y-axis): 320 mm, Transverse movement (Z-axis): 320 mm, Rotary table swivel range (C-axis): - 110 ° - + / 160 °, Swivel range B-axis (grinding head): +/- 20 °, Workpiece carrier (A-axis): ISO 40, Speed  ...

longitudinal feed: X: 490 mm Vertical feed: Y: 320 mm cross travel: Z: 660 mm Swivel range: C: +/- 200 ° Control: HMC 500 WWM Walter lenght tool piece capture: A: 175 mm ISO 50 Max. rpm: A: 60 min/-1 centre height: 145 (190) mm max. workpiecediameter: 320 mm max. workpiece length: 320 (350) mm resolution: 0,0001 ° Resolution: 0,0001 mm Grinding spindle:: spindle diameter: 80 mm grinding wheel diameter: max. 200 mm Max. rpm: 0 - 7.000 min/-1 driving power - grinding spindle: 24 kW max. Torque: 6 Nm total power requirement: 35 kVA weight of the machine ca.: 4,65 t dimensions of the machine ca.: 3,6 x 2,5 x 2,95 m Documents: pallet loading station: CNC - Tool-Grinding-Machine WALTER - Helitronic Power Production - Optional for an additional charge: WALTER Heli ToolCheck (stock number 1039-9375) https://stiens.de/en/machines/offerdetails.html?m=1039-9375&s=WALTER%2 0Heli%20Toolcheck T ...

Press company Walter SL 60t (beverage vending machine) 1991 Punching machine Peddinghaus 1997 Longitudinal seam welding machine Weil 2007 NC Milling Machine FP-4MA N/A Lid CNC Milling Machine DMC63-V N/A Lid Maho Automatic Circular Saw KKS 450 R 2008 Kaltenbach MAG welding machine Fronius Vario Star Unknown Fronius MAG welding machine Fronius Vario Star Unknown Fronius MAG welding machine Fronius Vario Synergic Unknown Fronius MAG welding machine Fronius Vario Star Unknown Fronius MAG welding machine Fronius Vario Synergic Unknown Fronius

Vibrator 2 tubs WALTHER TROWAL type TA 2/145 Internal tub dimensions: L 840 mm x W 360 mm x Depth 470 mm Coating in good condition Loading from the top Unloading of parts through the front traps Functional machine Voltage: 380 V Dimensions (L x W x H): 2600 x 2000 x 1300 mm Weight: approx 4 T

Inv. Num. : 3483 Type: HELICHECK Producer: WALTER MASCHINENBAU Created: 2004 Parameters: The machine is in good technical condition and energized Accessories: Hydraulic clamps SK50

Walter Helitronic RtWN 200 NEGI-U

Milling cutters, End mills, drop cutters, Unused Mostly Kestag, Seco, Sandvik, Walter, Böhlerit, ... different diameters, singles, sets or entire batches ! Please request a list !

WALTER HELICKECK NC 4 ist eine CNC Messmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Verfahrwege: X 150 mm, Y 350 mm, Z 250 mm. Hauptdaten: Verfahrgeschwindigkeit 50 mm/s; Anschluss 50 Hz 3x 230 V; Gewicht ca. 3300 kg; Abmessungen L1350 x B1200 x H1750 mm. Erreicht enge Toleranzen; typische Einsatzbereiche: Automotive, Uhren/Feinmechanik, Werkzeugmaschinen, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

This Walter Helitronic Power Grinding machine was manufactured in the year 2004. It is equipped with a WALTER HMC 600 control unit and has 5 axis. The machine has a spindle speed of 7000 rpm.

Offered is a WALTER 5-axis CNC tool grinding machine for the production and resharpening of rotationally symmetrical cutting tools such as drills, milling cutters, reamers and special tools. Travels X/Y/Z: 400mm/250mm/580mm, C-axis swivel range: +/-200°, A axis: 360°, rapid traverse X/Y/Z: max. 15m/min, linear axis resolution: 0.0001mm, center height range: 130mm-165mm, max. workpiece diameter: 190mm, workpiece mounting: ISO 50, spindle motor power: 4.4kW, grinding spindle speed: 6000rpm, spindle diameter: 70mm, max. grinding wheel diameter: 200mm, control: WALTER HMC 400. Overall dimensions X/Y/Z: approx. 1420mm/2010mm/2150mm, weight: approx. 3100kg. An on-site inspection is possible.

Tool holder, milling holder, milling tool, adapter, clamping unit -Manufacturer: Walter, 41 pieces holder/clamping units SK50 -Various types: see photos, more pictures can be sent -Price/sale: complete -Total dimensions: 700/600/260 mm -Weight: 129 kg

Dividing head, dividing head, tool holder for grinding, drill grinding machine, milling cutter grinding machine, drill grinding holder, milling cutter holder -Accessories for: tool grinding machine -Recording: MK5 -Tip height: 145 mm -Part head: swiveling -Dimensions: 250/230/H300 mm -Weight: 23 kg

Cutter head, milling chuck, carbide cutter, indexable insert cutter -Diameter: 200 mm -Number of teeth: 12 -Indexable inserts: Carbide -Recording: SK50 -Dimensions: 200/200/H330 mm -Weight: 19 kg

Dividing head, dividing head, tool holder for grinding, drill grinding machine, milling cutter grinding machine, drill grinding holder, milling cutter holder -Accessories for tool grinder -Take: SK40 -Tip height: 100 mm -swiveling -Dimensions: 640/260/H290 mm -Weight: 48 kg

Rotary table, rotary indexing table, dividing head, dividing head -Manufacturer: Walter, rotary table type RT 250 TG -Clamping surface: Ø 250 mm -Bore center: Ø 48 mm -Groove width: 12 mm -Dimensions: 460/400 / H150 mm -Weight: 44 kg

Rotary table, rotary dividing table, dividing attachment, dividing head -Manufacturer: Walter, rotary table type Rts 400 G -Clamping surface: Ø 400 mm -Center bore: Ø 31 mm -Groove width: 14 mm -Dimensions: 700/510/H260 mm -Weight: 294 kg

Cutter head, milling cutter holder, carbide cutter, indexable insert cutter, face milling head, milling head, cutter head shell milling cutter, face milling cutter -Manufacturer: Walter, face milling cutter head -Type: WA ER 06 Ø315 mm -Hole: Ø 60 mm -Dimensions: Ø 335 x 110 mm -Weight: 33.7 kg

rotary table, rotary indexing table, dividing head, dividing head -Manufacturer: Walter, dividing head with: three-jaw chuck -Type: UTA 160 N -Three-jaw chuck: Röhm Ø 200 mm -Spindle bore: Ø 38 mm -Dimensions total: 625/580/H285 mm -Weight: 122 kg

Cutter head, milling chuck, carbide cutter, indexable insert cutter -Diameter: 160 mm -Number of teeth: 10 - Carbide indexable inserts: 16 mm -Recording: SK50 -Weight: 14 kg

end mill, end mill, milling cutter -Outer diameter: 80 mm -Radius: 4 mm -Teeth: 6 -Weight: 1.6 kg

End mill, end mill, milling cutter, indexable inserts -Outer diameter: 50 mm -Teeth: 4 -Weight: 0.5 kg

Shell end mill, indexable insert mill, hedgehog mill, tool holder, milling holder, milling tool -Diameter: 63 mm -Fresh height: 49 mm -Mounting hole: Ø 22 mm -Weight: 0.75 kg

end mill, end mill, milling cutter -Outer diameter: 80 mm -R: 4 -Teeth: 6 -Weight: 1.6 kg

centre height: 125 mm spindle bore: 27 mm taper in dividing head spindle: MK 4 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Horizontal dividing head WALTER mounted on a SINUS-table WELK. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: - mm table load: - t table height: - mm Control: - total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m CNC Swivel Rotary Table/ CNC Dividing Apparatus incl. Tailstock The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

centre height: ? mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: 400330300 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 500 mm table load: 0,4 t table height: 160 mm total power requirement: 0 kW weight of the machine ca.: 0,18 t dimensions of the machine ca.: 0,70,80,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 400 mm table load: . t table height: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The technical data is provided by the manufacturer or operator and is therefore not binding for us. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, crane capacity 70 t More than 10,000 items of accessories for your workshop If you want to sell machines, production lines, or your business, then get in touch with us. You can find more offers on our website. Viewings are possible by arrangement. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 400 mm table load: . t table height: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Small defect on the faceplate, see pictures. The technical data is provided by the manufacturer or operator and is therefore not binding for us. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, crane capacity 70 t More than 10,000 items of accessories for your workshop If you want to sell machines, production lines, or your business, then get in touch with us. You can find more offers on our website. Viewings are possible by arrangement. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 400 mm table load: . t table height: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The technical data is provided by the manufacturer or operator and is therefore not binding for us. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, crane capacity 70 t More than 10,000 items of accessories for your workshop If you want to sell machines, production lines, or your business, then get in touch with us. You can find more offers on our website. Viewings are possible by arrangement. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 400 mm table load: . t table height: . mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m The technical data is provided by the manufacturer or operator and is therefore not binding for us. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, crane capacity 70 t More than 10,000 items of accessories for your workshop If you want to sell machines, production lines, or your business, then get in touch with us. You can find more offers on our website. Viewings are possible by arrangement. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Press Walter

Key data: 200 mm

Face plate 200 mm, partial accuracy +/- 15", incl. Servo motor with hydraulic clamping Fixed tailstock Tip height 200 mm

Max. forming force: 80t, connected load: 3.5kW, current type: 3 phases, frequency: 50Hz, operating voltage: 380V, control voltage: 24V, rated current of the machine: 10A, rated current of the supply fuse fast-blow: 25A, slow-blow: 15A, weight: 1.79t. With documentation, without accessories or spare parts. Regularly maintained, machine has a defect, the speed adjustment no longer functions fully. An on-site inspection is possible.

table diameter: 400 mm table load: 0,2 t table height: hor. 200 / vert. Sph. 310 mm total power requirement: 0 kW weight of the machine ca.: 0,155 t dimensions of the machine ca.: 0,60,530,2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

centre height: 100 mm weight of the machine ca.: 30 kg dimensions: 300 x 250 x 400 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 400 mm table load: . t table height: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The technical data is provided by the manufacturer or operator and is therefore not binding for us. We reserve the right to prior sale, our terms and conditions of business and sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, crane capacity 70 t More than 10,000 items of accessories for your workshop If you want to sell machines, production lines, or your business, then get in touch with us. You can find more offers on our website. Viewings are possible by arrangement. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: . mm grinding width: . mm workpiece height: . mm Table: 870x130 mm total power requirement: 2,5 kW weight of the machine ca.: 0,8 t dimensions of the machine ca.: 2x1x2 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 500 mm table load: ? t table height: hor. 235 / Sph. vert. mm groove width: 18 mm total power requirement: - kW weight of the machine ca.: 0,270 t dimensions of the machine ca.: 800640235 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

measuring range X-axis: 300 mm measuring range Y-axis: 290 mm measuring range Z-axis: 650 mm tool diameter: SK 50 mm Number of revolutions: 30 U/min max. workpiecediameter: 300 mm max. workpiece length: 500 mm max. workpiece weight: 40 kg accuracy +/-: 0,002 mm feeds:: Working speed: X/Y/Z: 80 mm/s dimensions of the machine ca.: 2,5 x 2,0 x 2,5 m weight of the machine ca.: 1,2 t total power requirement: 1 kVA Documents: Tool-Presetter WALTER - Heli Toolcheck The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

centre height: - mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

WALTER RI 400 TG ist ein Rundtisch, ausgelegt für präzise Bearbeitung mit hoher Genauigkeit und zuverlässiger Ausführung. Wichtige Arbeitskapazität: Durchmesser 400 mm. Weitere technische Spezifikationen sind in den vorliegenden Daten nicht angegeben. Er ermöglicht enge Toleranzen und eignet sich für Anwendungen in der Automobilindustrie, Uhrmacherei, Werkzeugmaschinen, Luft- und Raumfahrt sowie Medizintechnik. Technische Daten ohne Gewähr

WALTER 480 ist ein Rundtisch, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Arbeitsdaten: Durchmesser 480 mm, 6 T-Nuten, T-Nutenbreite 16H7 mm. Technische Daten: Länge 800 mm, Breite 600 mm, Höhe 160 mm. Ermöglicht enge Toleranzen; typische Anwendungsbereiche: Automobil, Uhrenindustrie, Werkzeugmaschinen, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

WALTER RTW 400 TGA ist ein Rundtisch mit hoher Präzision, Genauigkeit und Zuverlässigkeit. Aufspannfläche Durchmesser 400 mm; 6 T-Nuten, T-Nutenbreite 14H7 mm. Technische Daten: Maschinengewicht ca. 154 kg; Abmessungen L514×B550×H310 mm. Entwickelt für enge Toleranzen, geeignet für Automotive, Luftfahrt, Werkzeugmaschinen, Medizintechnik und Uhrenindustrie. Technische Daten ohne Gewähr

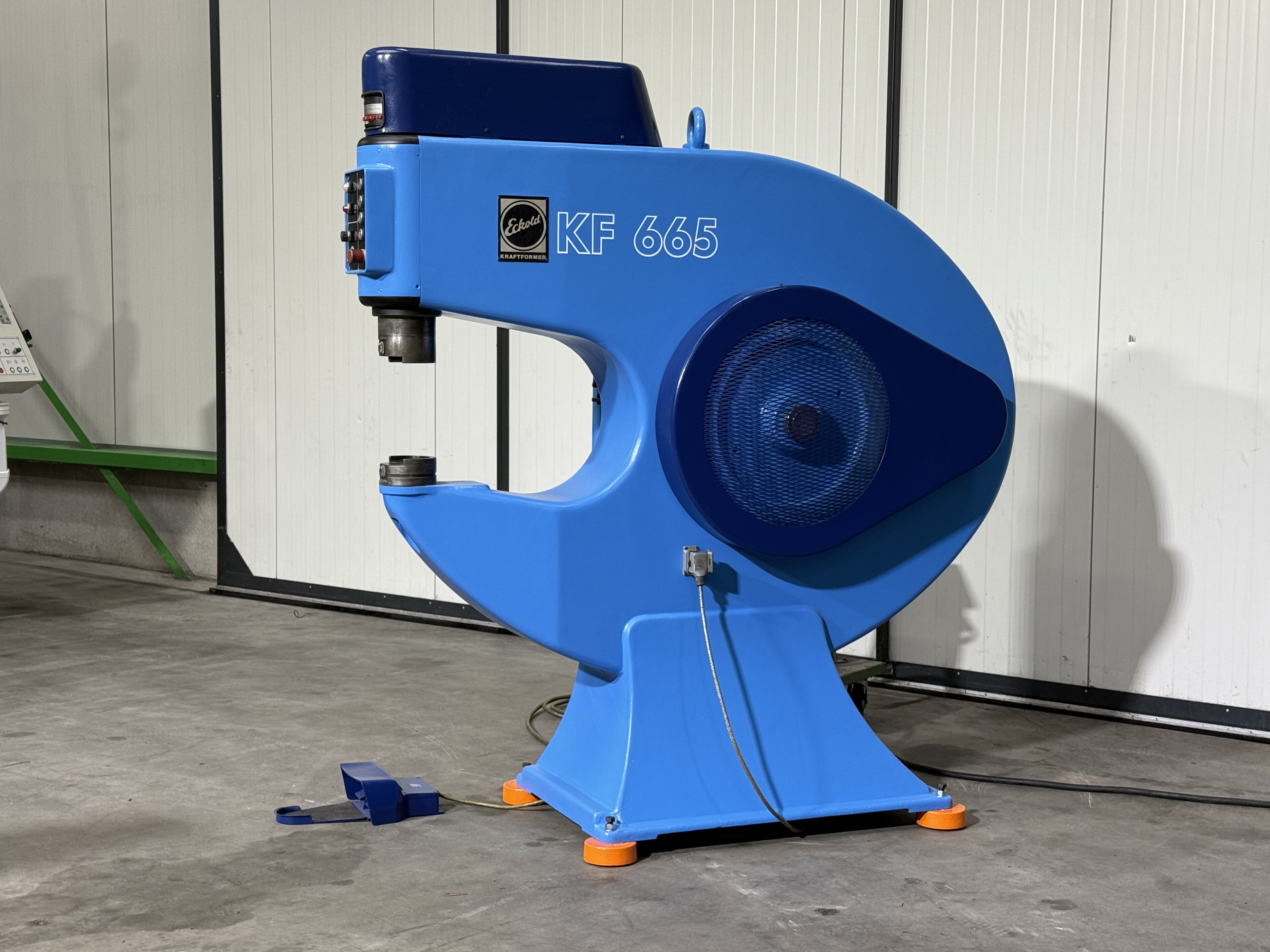

Universal machine for chipless coldforming of sheet metal, pipes and profiles. Shrinking, Stretching, Doming, Planishing, Finishforming, Flattening, Straightening ECKOLD technology means precise and chipless cold forming of sheet metal, tubes and profiles with minimum noise.The same machine is used for bending profiles and forming sheet metal, for making new parts as well as for repairsand the precise correcting of parts.  Available for the machines are a wide range of tools which can be mounted andchanged in a matter of seconds to suit the work in hand with the machine like FWR-1307X and  FWA-1306X this forming technology is unique throughout the world. ECKOLD Kraftformer type type KF 665 are extremely sturdy and durable. They can deliver great pressurecombined with a very sensitive control. Their high degree of versatility is due to the wide range of tools which are easyto change thu ...

Code 0776 Description Surface grinding machine Make ELB Type SWBD 030 MCNC82 Machine No. 18.346.0383 Manufacturing date 1983 Control MCNC / 82-PC Tablesize 3520 x 600 mm Table grinding size L x B x H 3000 x 600 x 600 mm Magnetical plate size L x B 3000 x 400 mm Speed table movement 0,2 – 6 m/min. Max. distance table – centre grinding wheel 850 mm Speeds vertical 3 – 375 mm/min. Speeds cross 1,2 m/min. Speeds grindingwheel stepless 750 – 1400 omw/min Grindingstone: Ø 600 x Wide:100 x Bore: 200 mm Weight 18.000 kg Motor power 37 kW – 380 Volt Accessoiries Electro table 3000 x 400 mm Grinding unit with water cooling Filtering unit with paperfilter Profile grinding unit Condition Machine is in very good condition

GER RS-12/50 surface grinding machine. Grinding area: 1200x550mm. Distance table-centre of spindle: 625mm. Table speed: 2 to 25m/min. Maximum table travel: 1250mm. Maximum work weight: 1200Kgs. Maximum cross travel: 500mm. Grinding wheel size: 400x80x127mm. Manual diamond grinder. Vertical orientable headstock. Vertical automatic feed. Power of grinding spindle: 12,5cv. Weight: 4500Kgs.

220627 Code Description Universal Cylindrical Grinder Make Jones - Shipman Model 1310 ( 8" x 18" ) Serial No. Year ? Grinding length, max. 450 mm Grinding diameter, max. 203 mm Center height 103 mm Weight workpiece kg Table tilting angle - 15 ° till + 15° Diam. Grinding wheel 350 mm Width Grinding wheel, max. 40 mm Motor power grindingwheel 1.5 kW Speeds Grindingwheel 1750 / 2300 rpm Speeds workpieceholder ( 6x ) 30 – 415 rpm Total power 3.5 kVA 380 Volts Machine size L x W x H 1.7 x 1.2 x 1.75 meters Weight 1800 kg Accessories internal grinding ( 10500-16500-24500 rpm ) coolant some tooling Condition Machine is in good condition

Machine overhaul , Repairs , On-site maintenance at the user's site , Spare parts supply , We specialize in the overhaul and repair of Kellenberger and Strausak universal grinding machines. We have the production and license rights of the company Strausak for the Type 57 U / W the resulting Special machines 82 S , multi-spindle fine milling machines, as well as CNC machines built from type 57 U / W We manufacture special machines especially for the ceramics and carbide industry.

In 2001 we acquired the license and production rights of Strausak. These rights include the entire 57 U / W conventional series as well as the CNC machines of the type U / W CNC in the tool grinding range 3 G / 4 G / 5 G as well as in the universal cylindrical grinding area, the 2 axes / 3 axes and 4 axes CNC machine and special machines 81 CNC. We have an extensive stock of spare parts. Our specialization is the general overhaul of these machines, as well as the new production of the above-mentioned machine types and the production of special machines.

NC – controlled precision rotary table face grinding machine with vertical grinding spindle and cup grinding wheel - brand new Rotary table diameter 400 mm Largest grindable diameter 400 mm Rotary table speeds 0 to 50 rpm infinitely variable Maximum workpiece weight 75 kg Cup grinding wheel Ø 200 mm x H 80 mm Grinding wheel speed 280 to 2,800 rpm infinitely variable Maximum workpiece height 170 mm Smallest programmable infeed dimension of the grinding wheel 0.001 mm Grinding wheel drive power 3 kW Rotary table drive power 0.5 kW Weight approx. 650 kg

ELB Perfect BD 15 PLC surface grinding machine, grinding area 1500 x 550 mm, grinding wheel 400 x 100 mm, electric perm magnetic clamping plate 1500 x 550 mm, automatic dresser with compensation, paper belt filter, the machine is overhauled, grinding spindle rebeared, guideways are scraped, meets the tolerance of a new machine. We are happy to take over the installation / training on site, as well as the subsequent service

Magnetic table 455 x 170 mm Digital Water tank Pulling device Wet grinding device

Precision Surface and Profile Grinding Machine FS1570 SL Grinding area: 1500 x 700 x 650 mm Grinding spindle motor: 18 KW Table drive: hydraulic Transverse drive: electromechanical Paintwork: RAL 6011 – reseda green Equipment: •Central lubrication • Wet grinding device • Fine adjustment knob on the transverse path handwheel • Dressing Diamond • Electro magnetic clamping plate 1500 x 750 mm • Magnetic plate adhesive force control Accessories: • Vertical automatic type SL with "LCD" flat screen and membrane keypad • Electric Straight Dresser • Stepless change of speed • Universal paper filter machine • Machine light • Column elevation by 200 mm • Precision balancing scale • 2 new grinding wheels Machine has been overhauled in 08/2018 "Invoice is available" Here's what was done: •Timing belt •Storage • Ball screw •  ...

ELB Perfect BD 10 750 PLC, Year of construction 2008 Control Siemens STC Grinding area 1000 x 750 mm Grinding wheel 400 x 100 mm Grinding spindle 10 KW Electro Perm Magnetic Clamping Plate 1000 x 750 mm Automatic straight-dressing device with compensation Coolant system with paper belt filter Machine is immediately ready for use CE compliant Installation / on-site training included

Condition of the machine: The machine is currently in a used, unoverhauled condition. All machine wear parts are replaced, including the feed spindle in the X-axis, and all assemblies are restored to like-new condition. After the overhaul, the machine can be easily compared to a new machine. Geometry: The machine is completely dismantled except for the guides. Before the geometry of the individual tables and assemblies can be restored, the two guides of the Z and X axes are scraped by hand and restored to mint condition. After completion of the work, the machine receives a measurement report according to the original specifications of the manufacturer. Electronics: The electronics and the control cabinet housing will be completely replaced. All electrical parts are replaced, including the motors. Hydraulics: The entire lubrication system, including the lubrication un ...

Favretto 500, Rotary table surface grinding machine, horizontal spindle, dia 500mm, electric elettrico with DRO

Cylindrincal grinding machine, KNUTH RSM 750, interna/external, DRO, This machine can be inspected under power in our warehouse., Mimu Machine Tools, Gussago BS Italy

CNC cylindrical grinding machine, STUDER S31 CNC LeanPro, with Pictogramming, Distance between centers: 1000mm, Center heigh 175mm, Grinding Wheel head rotation (B) 360° (1°), 2 ext Grinding Wheels, 1 int Grinding Wheel, Ext Grinding wheel, 400 mm x 40 mm x 127 mm, overhauled spindle > see photos, Workhead, CM 4, 0-1000 RPM, CNC Fanuc, Programming: Pictogramming, Heidenhain linear encoders, This machine can be inspected under power in our warehouse in Gussago BS Italy

grinding diameter: 360 mm grinding length: 1600 mm centre height: 180 mm internal diameter: 0 mm grinding depth: 0 mm swing diameter: 0 mm total power requirement: 40 kW weight of the machine ca.: 10000 kg dimensions of the machine ca.: m K A R S T E N S (Germany) Universal CNC” - Cylindrical Internal and Face Grinding Machine also for grinding excentric and cam profiles and polygons and even suitable for Threadgrinding Model K 51 – 1500 Year 2000 Serial No. 99 093 Height of centres 180 mm Distance between centres / grinding length 1,700/1.600 mm Cylindrical Grinding: Grinding Ø, approx. 5 - 360 mm Grinding wheel: Ø x width x bore 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s) 1.900 / 2.200 rpm Drives of cyl./int/face spindle units 7.5/4,0/7,5 kW Grinding Wheelhead: 3  ...

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während des Schleifprozesses) Hierdurch werden Schleifzeiten reduziert und Abrichtzeiten eingespa ...

The machine underwent a general overhaul in 2015 The following tasks were performed as part of the overhaul: repair of the electrical cabinet and hydraulics, scraping of the bed and table, replacement of bearings in the headstock, new springs for the axial bearings, new table piston rod and sleeves, installation of sludge separators. Documentation for the machine is available. Year of manufacture: 1980.

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm Control: total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Mit komplett neuem Schaltschrank und neuer Steuerung mit BEMA Schleifsoftware Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während de ...

workpiece diameter: 300 mm workpiece weight: 999 kg workpiece height: 999 mm grinding length: mm grinding width: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Ausstattung: -Digitalanzeige senkrecht Achse -Automatische Zustellung -Automatische Endabschaltung programmierbar -Schleifspindelantrieb mit stufenloser, elektronischer Drehzahlregelung -stufenlos regelbarer Quervorschub, und Tischdrehung -24V Magnetspannplatte 300 mm -diverse Arbeitsschutzeinrichtungen z.B. Schutzhaubenüberwachung, Betriebszustandsanzeige per Ampel -Schmierölstandsüberwachung -die Maschine wurde 2015 generalüberholt, damals Austausch der gesamten Elektrik auf SPS-Steuerung und 24V Steuerspannung -Papierbandfilteranlage speziell für diese Maschine passend Folgende Arbeiten wurden nun noch durchgeführt: -Austausch Faltenbalg und Riemen -Schleifspindel neu gelager ...

GENERAL Project No.: 905789 Quantity: 1 pcs. Manufacturer: BUDERUS Type: BDG 220 Control: Siemens 840 D solutionline Year of Make: 2020 Condition: Used machine Spindle Approx (hrs): 3000 Shifts machine one approx. (hour): rarely used DESCRIPTION GRINDING Max. workpiece diameter 440 mm Max. workpiece height 150 mm Travel in X 170 mm Max. rapid traverse speed in X/Z 30 m/min Max. feed speed in X 0.01-15 mm/min Max. speed workpiece spindle 1000 1/min OTHER EQUIPMENT Workpiece probes for measuring thickness deviation Gate sensor Splash protection cladding with fully encapsulated working area Automatic work room door Lighting in the work area Mechanical oil/emulsion mist extraction system Coolant device with paper belt filter High pressure pump 25 bar Mobile control unit for set-up operation with electronic handwheel Machine condition light Au ...

Very good surface grinding machine Table surface / working area 200 x 600 mm

grinding length: 1000 mm centre height: 175 mm b-axis: 1 ° max. dia. of grinding wheel: 500 mm internal grinding spindles: 60000 U/Min c-axis: 0.001 ° weight of the machine ca.: 5.7 t dimensions of the machine ca.: 4.25 x 2.2 x 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

rotary table diameter: 600 mm grinding height: 600 mm grinding head - power requirement: kW workpiece weight: 300 kg grinding wheel diameter: 600 mm power spindle motor: 15 kW grinding height: 600 mm Control: SIEMENS STC weight of the machine ca.: 19 t dimensions of the machine ca.: 4,7 x 3,6 x 2,5 m Equipment & Accessories ? Wet grinding unit with universal paper belt filter, discharge container and magnetic separator, tank capacity approx. 500 l ? Electrical cabinet with digital drives SIMODRIVE 611D ? Coolant Mist extractor ? Recooling unit for grinding spindle motor ? Fully closed machine enclosure ? Central lubrication ? Swivebale Control Panel with SIEMENS Simatic 10” Touch HMI mounted at front of the machine ? Electro-permanent magnetic plate Ø 600 mm with 4mm pitch, absolute accuracy due to lack of heat, incl. Adhesion control (30-100%), autom. magnet pole switching via push b ...

voltage: 380 V connected load: 7,5 kVA dimensions: 2725 x 1930 x 1773 mm weight of the machine ca.: 2500 kg --> Technical data Main data: --> Table surface: 605 x 300 mm --> Table longitudinal movement max. (manual): 750 mm --> Table transverse movement: 340 mm --> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm --> Standard size of magnetic clamping plate: 600 x 300 mm --> Workpiece weight incl. magnet: 420 kg --> X-axis / longitudinal movement: --> T-slots (number x width): 3 x 17 mm --> Table feed, hydraulic: 0.3 - 25 m/min --> Travel per handwheel revolution: 47 mm --> Y-axis / height movement: --> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm --> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm --> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm --> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm --> Trigger strokes: 0 - ...

CNC cylindrical grinding machine, (carousel) for internal, external and surface grinding. A lot of accessories, such as grinding wheels of different types and sizes. Retrofitted 2007 . Magnetic clamping plate dia 1500mm, Circumferential diameter 1800mm, Largest grinding diameter 1600mm Maximum grinding height 880mm Max. workpiece weight 5to Swivel angle of the grinding spindle: 90° left, 60° right

internal grinding spindles: . centre height: 125 mm grinding length: 1000 mm grinding wheel diameter: 400 & 225 mm weight of the machine ca.: 3.1 t Internal grinding attachment with grinding spindle Misc.accessories www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ELB ELB Super Rubin 020 VA II CNC surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth control Magnetic Table 600 x 300 mm Movements axis X/Y/Z: 650/300/250 mm 4th axis- rotational Grinding wheel: -Dia 300 mm -width 40-50 mm -bore size 76,2 mm Spindle speed 1400-2800 rpm Total power requirement 5,5 kW Weight of the machine ca. 3,4 t 4th axis devices: -Punch former PF350 V-block -Punch former PF650-ER20 -Punch former PFD-ER40 -Punch grinder PGAS- centreless Accessories: Collets Radius and angle dresser RDC Sinusoidal-table for devices SPF 50 Balancing rack for wheels LBS 14 surface grinder High-precision horizontal surface grinder, specialized for profile punches grinding. With 4 added digital axes CNC Control Wireless Handwheel Bluetooth c ...

Universal cylindrical grinding machine TACCHELLA 715 UA, Information about technical data are not binding., Machine available subject to prior sale., Height centres: 150 mm, Distance between centres: 750 mm, Wheel dimension: 450x50x127 mm, Wheel speed: 1450 rpm - Variable and programmable, Spindle motor power: 7.5 Kw, Internal grinding spindle speed: 16.000 rpm, Weight: 3.600Kg

internal grinding spindles: . centre height: 240 mm grinding length: 2500 mm grinding wheel diameter: 750 mm Dimensions (L/W/H): 6000 x 3000 x 2500 mm weight of the machine ca.: 9 t Internal grinding attachment with grinding spindle Misc.accessories www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

DELTA LC 400 / Rotary Table - Surface Grinding Machine -Magnetic clamping plate (turntable) 400mm -Max. grinding diameter 400mm -Grinding height (distance table - grinding wheel) approx. 220mm -Grinding wheel dimension / standard / 200x80x78mm -Speed / grinding spindle 2840 rpm -Fine adjustment 0.01mm -Distance / column - Grinding wheel axle 315mm -Spindle motor / 3KW -Side grinding wheel puller -Machine enclosure -Coolant device Dimensions : LxWxH 1.2x0.8x1.8 meters / Weight 700Kg

ELB Brilliant-Future 20 CNC Surface & Profile Grinding Machine Manufacturer: ELB-Schliff (Germany) Model: Brilliant-Future 20 CNC Serial No.: 430090398 Country of Manufacture: Germany A high-precision German-made CNC surface and profile grinding machine equipped with automatic dressing system. ELB Brilliant-Future machines are designed for precision grinding applications requiring high accuracy and excellent surface finish. Specifications: Table size: 460 × 2440 mm Control: CNC Automatic wheel dresser: Included Machine type: CNC Surface / Profile Grinder Grinding applications: Tool & die manufacturing Mold production Precision mechanical components General high-accuracy grinding operations Features: CNC-controlled grinding operation Automatic grinding wheel dressing German precision engineering Suitable for long workpieces requiring  ...

ZIERSCH + BALTRUSCH STARLINE 800 CNC ist eine CNC Flach/Profilschleifmaschine mit hoher Präzision, Genauigkeit und Zuverlässigkeit. Tisch 800×300 mm, Abstand Tisch–Spindelmitte 600 mm; Schleiflänge 800×300 mm; Scheibe Ø250 mm, max Breite 70 mm, Bohrung 51 mm. Tisch 2–35 m/min; Kriech 2–1000 m/min; Quervorschub 1–10000 mm/min; Vertikal bis 10000 mm/min. Spindelmotor 6,6 kW; 3×400 V 50 Hz; Gesamtbedarf 22 kVA; Gewicht ~4500 kg. Zubehör: Kühlung, Papierfilter, Ölnebelabsaugung, Temperaturstabilisierung, Magnetplatte 800×300, TAG/TAD, Auswuchten, Kabine, RS-232. Erreicht enge Toleranzen; geeignet für Automotive, Werkzeugbau, Luftfahrt, Medizintechnik, Uhrmacherei. Technische Daten ohne Gewähr

ELB SMART BD10 STC ist eine CNC-Flach/Profilschleifmaschine für hohe Präzision, Genauigkeit und Zuverlässigkeit. Kapazität: Tisch 1360×590 mm, X1100 Z670 Y400, Schleifmaß 1000×600 mm, Zuladung 1000 kg. Daten: Scheibe Ø400×100 mm (Bohrung127), 1450 U/min, Spindel 10 kW, Tisch 2–30 m/min, Vorschübe bis 2000/1500 mm/min, Eilgang Y 1 m/min, 3×400V, Gesamt 30 kW, Gewicht ~6900 kg, Abm. 3550×2410×2660 mm. Zubehör: Kühlung, Papierfilter, Ölnebelabsaugung, Magnetplatte 800×600, Abrichter, Profileinrollvorrichtung, Satz Scheiben/Flanschen, elektronisches Handrad. Ermöglicht enge Toleranzen; geeignet für Automotive, Luftfahrt, Werkzeugbau, Medizin, Uhren. Technische Daten ohne Gewähr
