9 ABA flat grinding machines used machines

Gr. Grinding length: 620 mm gr. Grinding width: 250 mm table size: 200 x 620 mm grinding wheel dimensions: 200 x 220 x 51 mm Electr. Supply: 380 V, 1/1.8 kW space: 1650 x 1450 x 1800 mm weight: 1350 kg

aba FF 625 Surface grinding machine ABA Precision Surface Grinding Machine FF600/25 Grinding length 600mm Scrap width 250mm Electric Magnet 600x250mm Workpiece height 400mm Diamond puller Height adjustment digital Motor 3,27 KW 400 V 50 HZ Coolant device Grinding wheels and flanges Weight: approx. 1350 kg G&-5020-M1768

Grinding area: 600 x 400 mm Magnetic table Coolant tank various grinding wheels

grinding length: 1000 mm grinding width: 750 mm workpiece height: 700 mm Control: SIEMENS, SIMATIC S 7-1500 table surface area: 1050 x 640 mm table height over floor: 1000 mm table speeds: 3.000 - 30.000 mm/min cross feed of table continual: 5 - 5.000 mm/min cross feed of table intermittent: 0,1 - 65,0 mm vertical adjustment, 1 graduation: 0,002 mm rapid traverse vertical: 0,25 m/min grinding spindle speed: 50 - 2.500 U/min grinding wheel size: ø 400 x 50 x ø 127 mm workpiece weight: max. 1.000 kg table load: max. 1600 kg total power requirement: 33,2 kW weight of the machine ca.: 9,3 t dimensions of machine L x W x H: 4,50 x 2,37 x 2,65 m - complete electronic / electric renewed in 2018 Accessories: magnetic plate 1000 x 650 mm, grinding wheel with flange, wheel trueing attachment, extraction The data for this ad was created with ModulMWS - the software solution of Log ...

grinding length: 500 mm grinding width: 250 mm workpiece height: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 1250 mm grinding width: 400 mm workpiece height: 550 mm table surface area: 1720 x 400 mm dimensions of grinding wheel: 400 x 50 x 127 mm table height over floor: mm : 1250 x 600 mm grinding spindle speed: 3000 U/min table load capacity: 1100 kp total power requirement: 13,8 kW weight of the machine ca.: 6,0 t dimensions of the machine ca.: 5,0 x 3,4 x 2,4 m Surface grinding machine - Magnetic grinding wheel - Coolant system - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 2000 mm, 1000 mm

max. grinding length 2000 mm max. sanding width 1000 mm max. working height for new disc 600 mm max. workpiece weight 3200 kg max. table load 4500 kg Clamping area 2860 x 1000 mm Grinding spindle drive 26 KW Spindle speeds 1000 - 3000 1/min Transverse movement feed 1 - 5000 mm/min Vertical feed rate 1 - 5000 mm/min Minimum programming value 0.001 Recooling unit Mechanical suction Paper Belt Filter Machine Grinding wheel balancing electronics Pneumatic folding dresser Control ABAMATIC 1 N.D.

grinding length: 1000 mm grinding width: 500 mm workpiece height: 630 mm table-size: 1000x400 mm grinding wheel diameter: 400 mm weight of the machine ca.: 5.8 t Magnetic plate 1000x500mm www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 1000 mm grinding width: 500 mm workpiece height: 630 mm table-size: 1000x400 mm grinding wheel diameter: 400 mm weight of the machine ca.: 5.8 t Magnetic plate 1000x500mm www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length: 1000 mm grinding width: 500 mm workpiece height: 630 mm table-size: 1000x400 mm grinding wheel diameter: 400 mm weight of the machine ca.: 5.8 t Magnetic plate 1000x500mm www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ABA-WERK Aschaffenburg Hand Lever - Surface Grinding Machine FFK -Total power: 1.75 kW -Magnetic clamping plate: approx. 300 × 150 mm -Working range: approx. 350 × 300 × 150 mm -Grinding length: approx. 350 mm -Grinding width: approx. 150 mm -Max. workpiece height: approx. 150 mm -Grinding wheel dimensions: approx. Ø 200 × 20 × 76 mm -Grinding spindle speed: approx. 2,800 rpm -Table adjustment longitudinal: manual -Table adjustment transverse: manual -Height adjustment: manual -Magnetic Clamping Plate: Permanent Magnet -Machine feet -Grinding wheel protection -Extraction system Dimensions: LxWxH 1.1x1.1x1.7 meters / Weight 700Kg

ABA-WERK Aschaffenburg Hand Lever - Surface Grinding Machine FFK -Total power: 1.75 kW -Magnetic clamping plate: approx. 300 × 150 mm -Working range: approx. 350 × 300 × 150 mm -Grinding length: approx. 350 mm -Grinding width: approx. 150 mm -Max. workpiece height: approx. 150 mm -Grinding wheel dimensions: approx. Ø 200 × 20 × 76 mm -Grinding spindle speed: approx. 2,800 rpm -Table adjustment longitudinal: manual -Table adjustment transverse: manual -Height adjustment: manual -Magnetic Clamping Plate: Permanent Magnet -Machine feet -Grinding wheel protection -Extraction system Dimensions: LxWxH 1.1x1.1x1.7 meters / Weight 700Kg

Geibel & Hotz FS 1050 GT SL Surface Grinder Flat grinding grinder Specifications for the FS 1050 GTSL Assembly / Axis Parameter Value Working range grinding length (max.) 1,000 mm Grinding width (max.) 500 mm X-axis (longitudinal) longitudinal table stroke 50 – 1,050 mm Table speed 0.001 – 35 m/min (infinitely variable) Y-axis (vertical) Distance table to spindle center 180 – 625 mm (optionally up to 825 mm) Perpendicular speed 50 – 4,000 mm/min Z-axis (transverse) transverse travel (max.) 500 mm Grinding spindle Grinding wheel dimensions 400 x 100 x 127 mm (Ø x width x bore) Spindle drive (standard) approx. 11 kW Max. speed up to 2,380 rpm / 35 m/s Weight & installation Total weight of the machine approx. 4,500 kg Max. table load approx. 1,380 kg Various accessories included. If you have any questions, please contact us at Tel. 017621834834 ----- ...

Code 61063 Description Surface grinding machine Make ABA Model FFU 2000/60 Serial No. 208 125 Control Abamatic 3 Year 1986 Tablesize 2510 x 500 mm Grinding surface L x B x H 2000 x 600 x 700 mm Magnetical plate size L x B 2000 x 500 mm Speed table movement 3 – 30 m/min. Max. distance table – centre grinding wheel 900 mm Grinding stone dim. Stone x Wide x Taper Ø 400 x 50 x Ø 127 mm Spindel power 26 kW Spindel speed 1600 - 3000 rpm Motor power 26 kW – 380 Volt Total electr.com. 34 kW Total space L x W x H 7000 x 3500 x 2650 mm Weight 10500 kgs Accessoiries Elec. Magneticplate 2000 x 500 mm Coolant with paperfilter Digital readout Grinding stones, etc. Condition Machine is in good condition

ABA Grinding Machine Starline CNC Profile Grinding Machine Surface Grinding Machine Hersteller [manufacturer]: ABA ELB Type [ type]: Starline Control unit: Siemens Sinumerik Incl. handwheel Baujahr[construction year]: 10/2004 Weight [weight]: 6000kg Approx. (W x D x H): 4.1m x 5.1m x 2.5m Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Phone +49 17621834834

grinding length: 600 mm grinding width: 400 mm workpiece height: mm total power requirement: 11 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Surface Grinding Machine ABA FFV 1000/50 Travel X: 1000 mm Travel Y: 500 mm Travel Z: 400 mm Magnetic chuck dimensions: 1000 x 400 mm Auto stepover X / Y / Z Separate electrical panel Separate lubricant tank Separate hydraulic group Voltage: 380 V Length: 4000 mm Depth: 1700 mm Total height: 2300 mm Weight: approx 6 T

Specifications: Areas of work: X-axis: 1870 mm Y-axis: 400 mm Z-axis: 560 mm C-axis speed: 3000 1/min Grinding area, max.: 1700 x 620 mm without table dresser: 1500 x 620 mm Table dressing machine, diamond wheel: ø 110 mm Grinding wheel diameter: 400 mm Max. width: 100 mm Grinding wheel bore: 127 mm Distance table-spindle center: 800 mm Table height: 900 mm Table load, max.: 2200 kg Weight, approx.: 12,000 kg Equipment: - Control Siemens SINUMERIK 840D, control panel OPO12 -System - Electro-magnetic clamping plate - Full-space encapsulation -Central lubrication - Mist extraction - Clamping system for autom. Disc replacement - Coolant device - Cooling water recooler

x-travel: 500 mm : breite 450 mm serial number: 386 weight of the machine ca.: 1,8 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Surface grinder, grinding machine, horizontal surface grinder, surface grinder, magnetic grinder -Manufacturer: aba Abawerk, surface grinding machine-horizontal type FFK with magnetic plate -Magnetic plate: 360 x 122 mm -Traverse paths: x 390 mm / y 170 mm / z 260 mm -Drive: 2.0 kW -Grinding wheel: Ø170 mm, max. 245 mm -Coolant device -Transport dimensions: 1120/1100/H1630 mm -Total weight: 604 kg

Max. grinding length: 2000mm, max. grinding width: 1000mm, max. working height with new grinding wheel: 600mm, max. workpiece weight: 3.2t, max. table load: 4.5t, clamping surface dimensions: 2860x1000mm, tool mounting: 4x grinding wheel mounts, spindle diameter at front bearing: 90mm, grinding wheel diameter: 500mm, max. grinding wheel width: 150mm, mounting diameter: 203.2mm, spindle speed: 1000-3000/min, cross travel: electromechanical, cross travel feed: 1-5000mm/min, max. cross travel: 1100mm, smallest programmable value cross axis: 0.001, vertical travel: electromechanical, vertical travel feed: 1-5000mm/min, max. vertical travel: 650mm, smallest programmable value vertical axis: 0.001, feed drive type: hydraulic, connected load: 125kVA, length: 10,284mm, width: 5137mm, height: 3925mm, weight: 22t, operating hours: 18,176h, with documentation. An on-site inspection is possible.

grinding length:600 mm grinding width:300 mm total power requirement:7,5 kW number of spindle speeds:0-3000 grinding wheel motor:7,5 kW grinding wheel diameter:300 mm dimensions of grinding wheel:76 x 20 mm ABA magnetic table flat grinding machine

grinding length:1250 mm grinding width:400 mm workpiece height:550 mm workpiece weight:750 kg table-size:1720 x 400 mm magnetic clamping plate:1250 x 400 mm dist. center of grinding spindle - table:750 mm turning speed range - grinding wheel:3000 U/min Length movement of the table:1300 mm grinding wheel size:Ø 400 x 50 x 127 mm switchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 V table load:max. 1100 total power requirement:13,8 kW weight of the machine ca.:6000 kg dimensions of the machine ca.:5000 x 3400 x 2400 mm Documents:inkl.

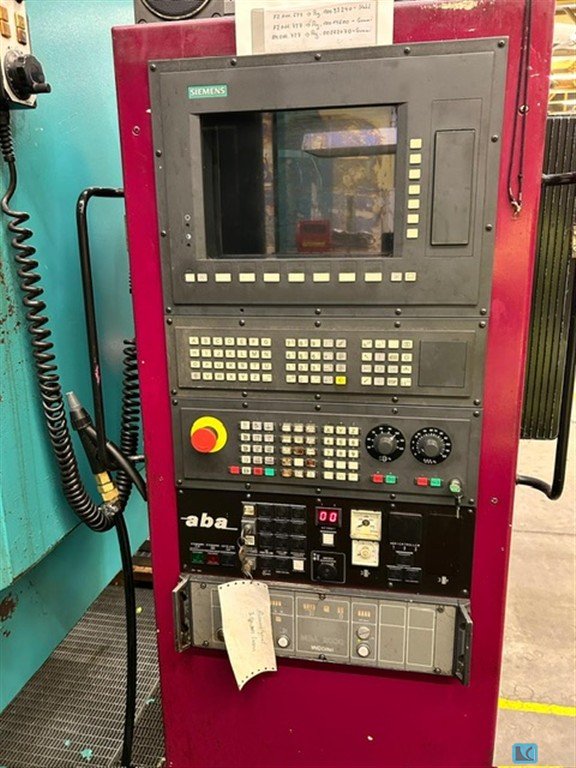

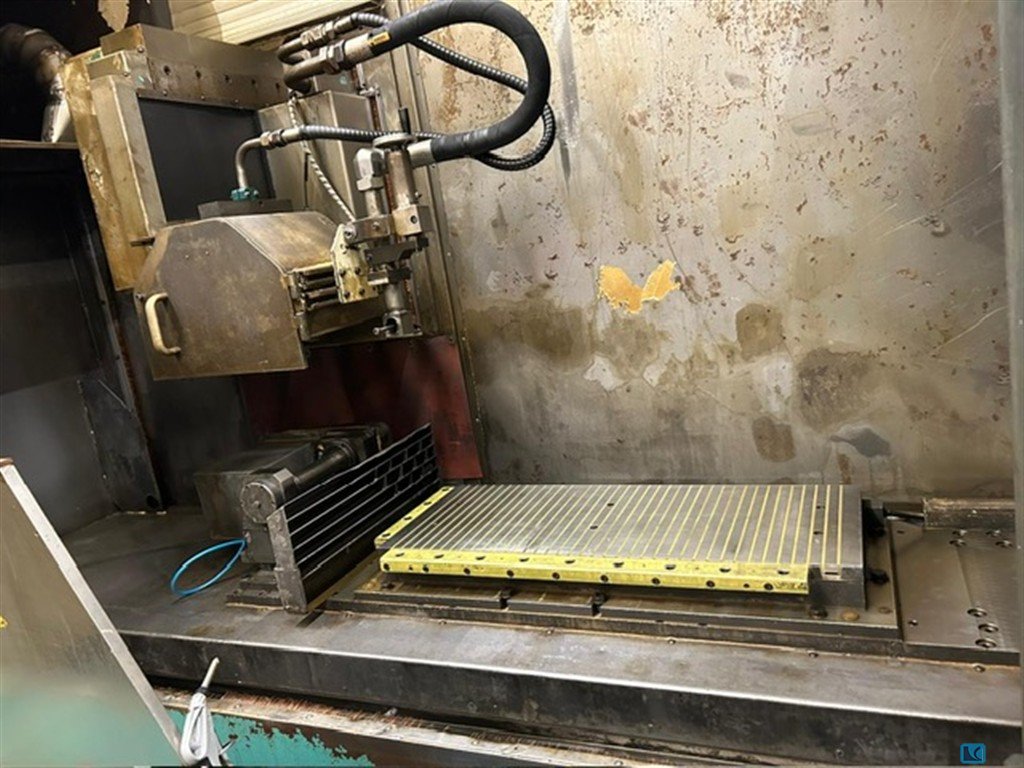

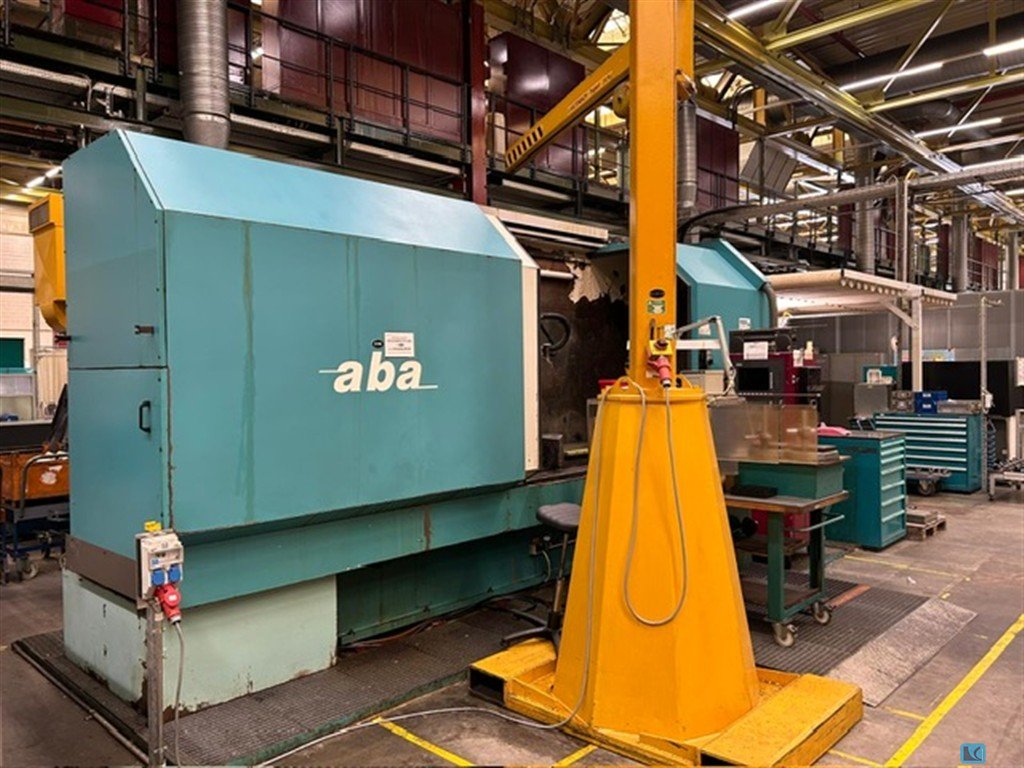

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

Length: 600 mm Width: 300 mm
