ALZMETALL ab used machines

with NC round table WALTER 1000 mm, see pictures

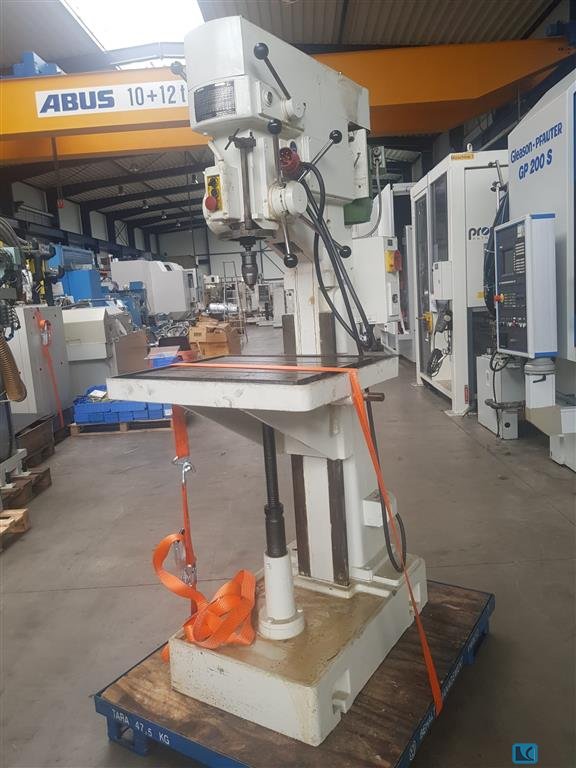

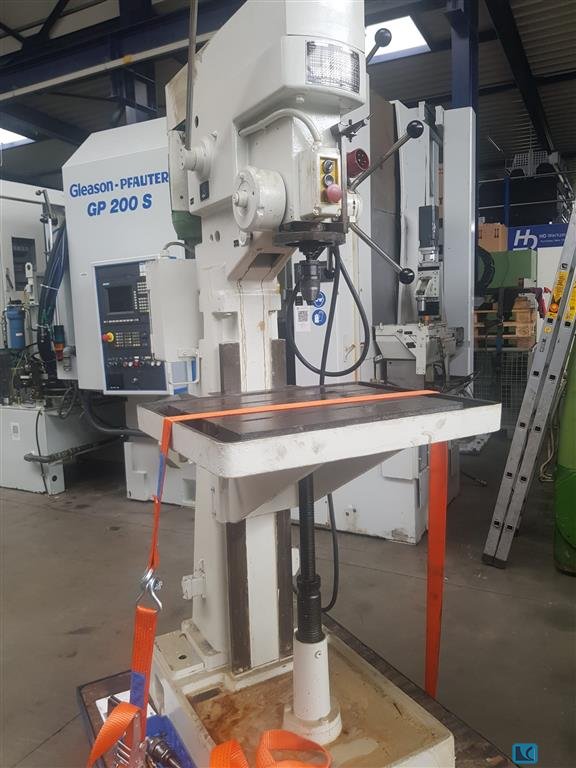

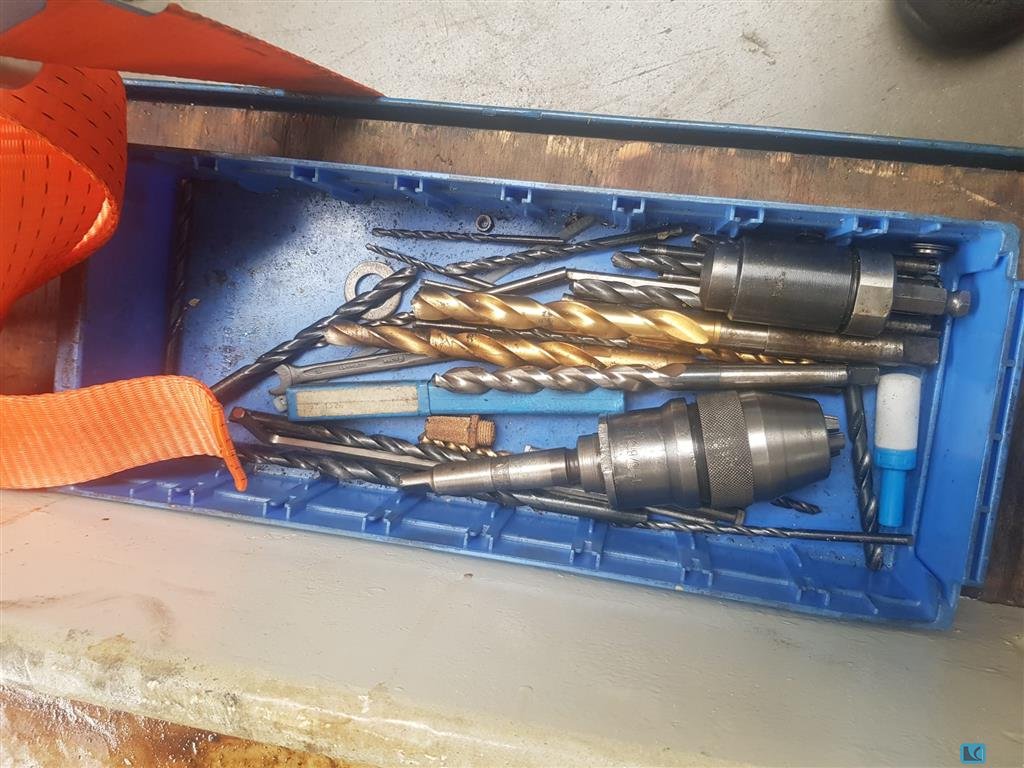

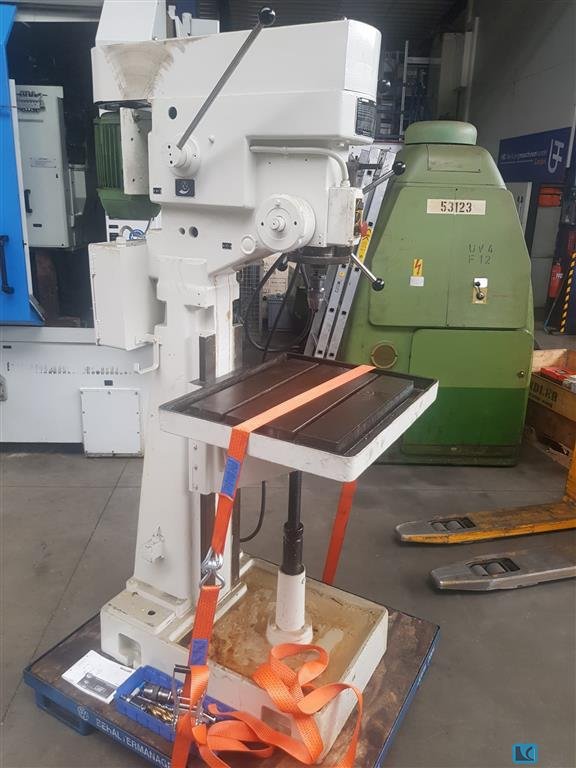

Alzmetall AB4SJ Tool holder MK4 automatic feed with 3 feed speeds 2 shoot stages and infinitely variable speed control right left barrel, thread cutting device Cooling agent device in the foot Round table with holes without rev counter Machine hood modern made of plastic with cracks and loechers Speed: 80-710 rpm Table diameter: 450 mm Max distance from spindle to foot: 1200 mm Extension to center spindle: 170 mm Machine hoe approx. 200 cm Bt323s8 SPECIAL PRICE due to visually poor condition according to photos, technically usable condition, the drill is not locked at the shaft drill spindle tool holder in the rotational motion (see photos). If the drill is not firmly in the drill spindle, it rotates through. Special price

Column Drilling Machine ALZMETALL AB3 ESV Spindle: CM3 Rotation: 1 range 220 -800 RPM + 1 range 800-2900 RPM Table size: Length 615 mm x Width 470 mm Spindle travel: 160 mm Throat depth: 280 mm Speed adjustment by belt drive Rotative table at 360° Automatic Descent 3 speeds: 0,006 - 0,12 - 0,18 mm/min. Lubricant pump Voltage: 380 V Width: 800 mm Depth: 1300 mm Total height: 1900 mm Weight: approx 800 kg

Drill, pillar drill, column drill, column drill -Manufacturer: Alzmetall, pillar drilling machine type AB5/S -Engine: VKS 3 kW -Speed: 40 - 800 rpm, continuously variable right-left rotation -Feed: 0.1 - 0.14 - 0.2 - 0.28 - 0.4 mm/rev. -Table size: Ø 500 mm, travel 470 mm -Spindle holder: MK5 -Spindle stroke: 240 mm -Projection: 380 mm -Column Ø: 220 mm -Dimensions: 1450/680/H2160 mm -Weight: 1262 kg

see side sheet below, with 2-spindle drill head Franz X. LINDNER SBS-2/2, spindle distance 300 mm, (translation 1:1)

see side sheet below, with 2-spindle drill head Franz X. LINDNER SBS-2/2, spindle distance 300 mm, (translation 1:1)

see side sheet below, with 2-spindle drill head Franz X. LINDNER SBS-2/2, spindle distance 300 mm, (translation 1:1)

bore capacity in steel (diameter): mm throat: 290 mm bore stroke: 180 mm total power requirement: 1,9 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 32 mm throat: 290 mm bore stroke: 180 mm total power requirement: 1,9 kW weight of the machine ca.: t dimensions of the machine ca.: m Description to follow! The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: 345 mm bore stroke: 180 mm spindle turning speed range: 25-640 U/min column diameter: 180 mm table-size: Ø ca. 560 mm surface area: Ø 445 mm feeds: 0,1, 0,2, 0,3 mm/U spindle taper MT: 4 weight of the machine ca.: 1 t dimensions: ca. 650 x 1000 x 2100 mm with thread cutting device foot switch With coolant device in the base steplessly variable speeds, 2 gear stages, and 2 motor speeds The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drill diameter: 65mm, outreach: 380mm, tool holder: SK50, speed: 1600rpm, table dimensions X/Y: 630mm/500mm, rapid traverse Z: 4750mm/min, drilling capacity steel/cast iron: 65mm/80mm, thread cutting capacity steel/cast iron: M68/M72, machine dimensions X/Y/Z: approx. 1500mm/1200mm/2950mm, weight: approx. 2000kg, control: PLC. Including three tool holders, safety enclosure, minimum quantity lubrication system, spare parts and digital readout. Without milling head attachment and drill crown. The control cabinet has optical damage. Documentation available. An on-site inspection is possible.

bore diameter: 65 mm throat: 380 mm Control: PLC-Steuerung bore spindle turning speed range: 63 - 1600 U/min table-size: 630 x 500 mm rapid traverse Z-axis: 4,75 m/min boring feeds:: 0,05 - 0,56 mm/U total power requirement: 9 kW weight of the machine ca.: 2,0 t dimensions of the machine ca.: 1,50 x 1,20 x 2,95 m Drilling capacity in steel ST60: 65 mm Drilling capacity in cast iron GG20: 80 mm Thread cutting ST60: M68 Thread cutting GG M72 SPS-controlled automatic drilling machine with Drilling/deep hole drilling/thread cutting Sequence: 1st rapid traverse to start position 2. switch on the speed 3. switch on the drilling feed 4. drilling until the drilling depth is reached 5. return in rapid traverse to start position Manual operation possible (speed and direction of rotation, rapid traverse positioning, Switching the drill feed on/off) Selection of the drill feeds and spindle speed man ...

bore capacity in steel (diameter): 40 mm throat: 300 mm bore stroke: 180 mm turning speeds: 55-1450 U/min Feed: 0,1-0,3 mm/U keyless drill chuck: machine.: Nummer 5112 table surface area: 620x470 mm spindle taper metric: 4 thread cutting attachment: The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoT ...

bore capacity in steel (diameter): 65 mm throat: 390 mm bore stroke: 250 mm spindle taper MT: 5 table-size: 880x670 mm spindle turning speed - stepless: 40-800 U/min weight of the machine ca.: 1.2 t www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: throat: mm bore capacity in steel (diameter): 35 mm tool taper: MK4 0 bore spindle turning speed range: 1400 U/min feed range: 0.04-0.40 mm/min total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 / 23 mm throat: 320 mm bore stroke: 180 mm : 4 speeds: 30 - 765 U/min table-size: 720 x 550 mm weight: 480 kg dimensions: 750 x 900 x 1900 mm Equipment: - Multi-spindle head, drill Ø 23 mm - automatic feed - coolant device - infinitely variable speed - adjustable drilling depth stop The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

IMPORTANT - PLEASE READ *** If you are interested, please contact us by phone. Location of the machine on request *** Sale preferably from location, buyer organizes dismantling and transport *** INFORMATION TO FOLLOW

bore stroke:170 mm total power requirement:3,5 kW dimensions of the machine ca.:0,75 x 1,10 m bore spindle turning speed range:30-3000 U/min bore range:diameter:4-60 mm

Key data: 35 mm, 280 mm, 180 mm

Column drilling machine ALZMETALL AB 3 ES – Powerful & immediately ready for use For sale is a high-quality column drill from the renowned manufacturer Alzmetall, model AB 3 ES. The machine impresses with its robust design, precise operation and reliable performance. Ideally suited for workshop, metalworking and industrial applications. General information: Machine Type: Column Drilling Machine Manufacturer: Alzmetall Model: AB 3 ES Condition: Used, good general condition, fully functional Shipping time: Immediately available Technical data: Drilling capacity in steel: approx. 35 mm Projection: approx. 280 mm Drilling stroke: approx. 180 mm Recording: MK 3 Speed: Infinitely variable Table size: approx. 600 × 470 mm Equipment: • Drilling depth stop • Drill chuck Machine data: Dimensions (L × W × H): approx. 1200 × 800 × 2100 mm Weight:  ...

Alzmetall AC 32 Turret Double Head In-Line Drilling Machine Extremely robust and rare double-head in-line drilling machine based on two Alzmetall AC 32 drill tops. This system is a high-quality industrial design designed for highly efficient series or step machining. Instead of simple spindles, this machine is equipped with two separate tool turrets. This enables fully automatic machining cycles (e.g. centering, drilling, countersinking, threading) without the need to manually retool tools. Technical data & equipment (per capita / total system): Manufacturer of drill tops: Alzmetall (Germany) Model: AC 32 (electronically controlled with digital display) Drilling capacity: max. 32 mm in steel Threading capacity: max. M 24 / M 30 Tool changer: 2x swivelling turret heads with several stations Machine table: Solid, ground cast iron table with T-slots for flexible constru ...

This 3-axis Alzmetall GS 800/3 vertical machining centre was manufactured in 2008. It features an impressive X-axis travel of 800 mm, Y-axis travel of 800 mm, and Z-axis travel of 500 mm. The machine is equipped with a HEIDENHAIN iTNC 530 control and a robust table surface area of 920 x 900 mm, supporting a maximum table load of 1,800 kg. If you are looking to get high-quality machining capabilities, consider the Alzmetall GS 800/3 machine we have for sale. Contact us for further details.

Alzmetall AB 40 SV Price 9500,-€ Drilling capacity : 45mm Spindle : MK 4 Drilling capacity 45mm Spindle MK 4 Speed 65-1750 rpm Feed rate Yes 0.1 - 0.2 - 0.3 Drilling stroke 165mm Connection 50Hz 380V Motor 2.4KW Machine weight approx. 500kg

CNC Milling-Turning Center Alzmetall GS 600/5-FDT !! Milling-turning machine !! Commissioning 05/2021 At call!!! Heidenhain TNC640 Spindle HSK-T 63 / 18,000 rpm Balancing system (only for FDT) Kinematics Opt Electr. Handwheel Skiving (only for FDT) Dyn. Collision Monitoring Heidenhain DNC Heidenhain Remote Desktop 3D model of the machine Advanced tool management Operating mode 3 Probe Heidenhain Tool Measurement Blum Laser Signal tower on the machine 18,000 spindle HSK-T 63 Continuous air through the spindle (with lubrication interval) Continuous air from the outside 76 mm tool magazine Spray gun Chip flushing of the working area (recommended for Al) Emulsion Mist Extraction Production package C, 80 bar, hinged belt conveyor Machine Interior Trim Remote diagnostics The options list is complete! No interest in dealer enquiries! No separate dealer price!  ...

CNC Milling-Turning Center Alzmetall GS 600/5-FDT !! Milling-turning machine !! Commissioning 03/2019 At call!!! Heidenhain TNC640 Spindle HSK-T 63 / 18,000 rpm Balancing system (only for FDT) Kinematics Opt Electr. Handwheel Skiving (only for FDT) Dyn. Collision Monitoring Heidenhain DNC Heidenhain Remote Desktop 3D model of the machine Advanced tool management Operating mode 3 Probe Heidenhain Tool Measurement Blum Laser Signal tower on the machine 18,000 spindle HSK-T 63 Continuous air through the spindle (with lubrication interval) Continuous air from the outside 76 mm tool magazine Spray gun Chip flushing of the working area (recommended for Al) Emulsion Mist Extraction Production package C, 80 bar, hinged belt conveyor Machine Interior Trim Remote diagnostics The options list is complete! No interest in dealer enquiries! No separate dealer price!  ...
