APV sr used machines

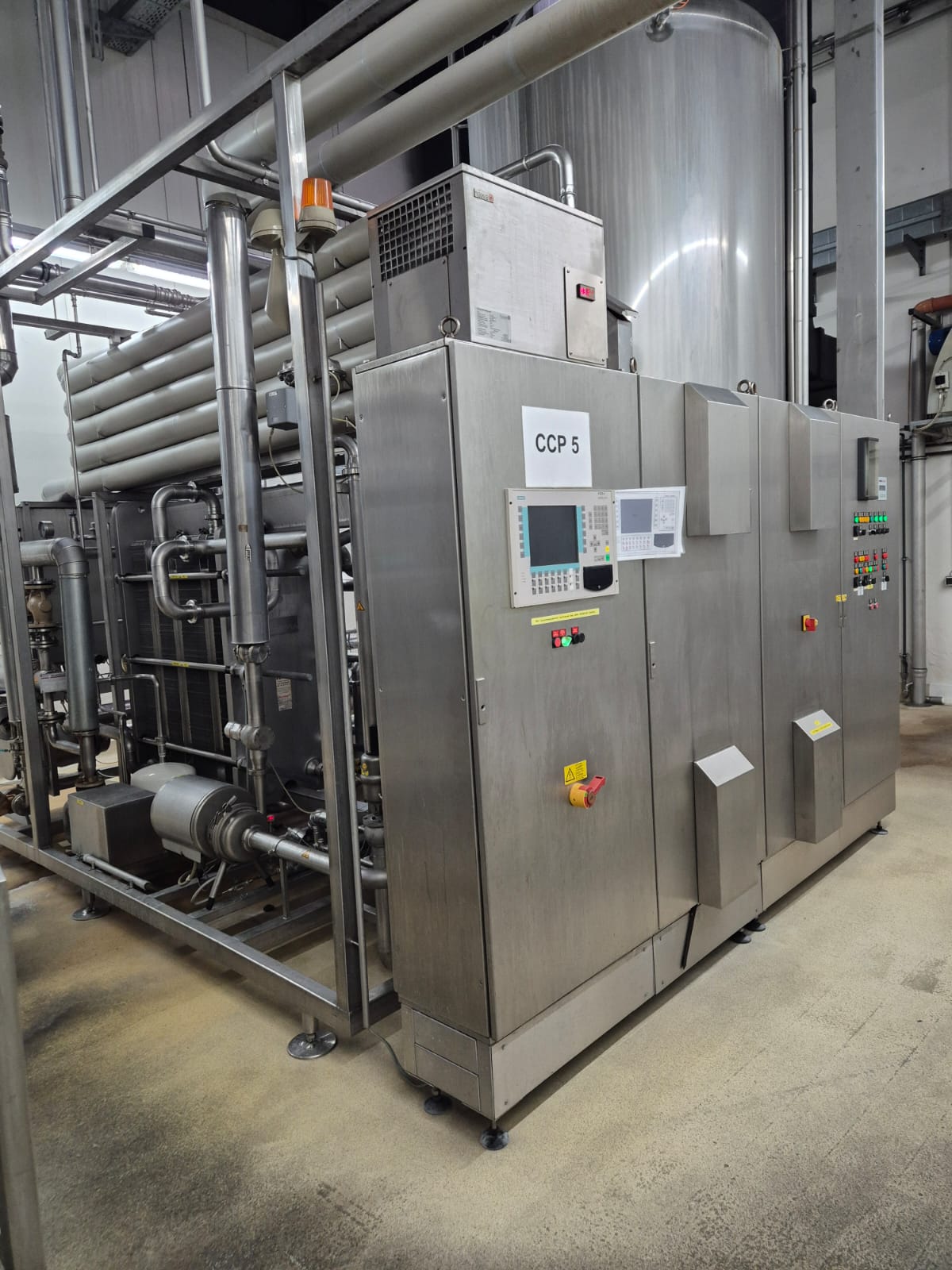

Pasteuriser and Operating Panel Manufactured by APV Consisting of APV heat exchanger, holding tubes, pump and control panel with chart disc recording Output 200 BBL/320HL Complete with: 30BBL/49HL sterile beer tank Side entry manway Insulated and clad in stainless steel 2BBL/300 litre sterilising tank This is a SECOND HAND item and is sold as seen For more information and more available stock please visit us at - advancedbrewing.co.uk

APV COMBI UHT TREATMENT STERILIZATION PASTEURIZATION PLANT – 2006 Includes both TUBULAR and INJECTION systems. Capacity 4.000 - 8.000 Lt /h DISASSEMBLED AND READY FOR LOADING - APV PLATE HEAT EXCHANGER for cooling - APV TUBULAR ( INDIRECT ) UHT Treatment system. - APV INJECTION ( DIRECT STEAM ) UHT Treatment system. - APV ASEPTIC HOMOGENIZER 250 BAR - OPTIONAL - APV CIP CLEANING UNIT - APV VALVE CLUSTER FOR ASEPTIC TANK - (TANK IS EXCLUDED) - ELECTRIC CONTROL PANELS Fast heating (~300°C/sec) for optimal taste and minimal degradation Instantaneous flash cooling for flavor and aroma preservation Uniform heating via indirect tubular exchangers for gentle thermal treatment High energy recovery (up to 90%) to reduce utility consumption and cost. Precise thermal control with uniform product treatment Efficient spore kill with very low C ...

Used APV N35 Plate pasteurizer 10246 KghTechnical Specifications & Performance DataThis plate pasteurizer is engineered for continuous high-efficiency thermal treatment in beverage and dairy processing. Manufactured by APV Products, the N35 model provides reliable heat exchange performance with a compact footprint, making it ideal for integration into a used bottling line or broader industrial packaging and beverage production setup.Manufacturer: APV ProductsModel: N35Nominal capacity: 10,246 kg/hHeat transfer surface: 54.6 m²Working pressure: 10 barWorking temperature range: 0.9 to 100 °COverall width: 1300 mmOverall height (max): 2500 mmOverall length: 2700 mm (approx. 3000 mm with control cabinet)Configuration: Plate heat exchanger pasteurizer (HTST/flash process)Previous application: Milk processingAdvanced Automation & Control SystemsThe APV N35 plate pasteurizer supports modern a ...

APV PASTEURIZATION SYSTEM FOR FISH BROTH 1,000 LITRES/HOUR Automatic system designed for the pasteurization of 1,000 litres/hour of strained fish broth for subsequent packaging. Manufacturer: APV Year: 2002 OPERATION DESCRIPTION: - Inlet temperature: 20 °C - Process temperature: 105 °C - Outlet temperature for packaging: 35 °C The whole process consists of different stages that can be programmed using the control panel: 1. Sterilization: carried out by the circulation of hot water at a temperature of 115-120 °C for 30 minutes. 2. Production with water: cooling water flows inside the circuit until the process temperature that will be applied to the product is reached. 3. Production: the unprocessed product is fed into the regulation tank and then the production phase takes place in the circuit. 4. Cleaning-in-place: the installation is cleaned in place by ...

This Sterile Milk Tank has a Capacity of 16,700 Litres, it does not include the valve cluster and PLC program. There are a few valves available with the tank but these would need to be reconnected to a valve cluster program. This tank was connected to a central control room . The condition is good and there has not been any damages . Aseptic tanks are used for the process of Milk, Juice and other liquids required aseptic pasteurisation prior to the filling machines., The APV Aseptic Tank is a type of equipment designed for the storage and processing of liquids, particularly in industries such as food and beverage, pharmaceuticals, and biotechnology. Here are some key features of the APV Aseptic Tank:, - Sterile Environment: The APV aseptic tank maintains an environment that is free from contaminants, crucial for the integrity and safety of the stored product., - Construction Material: Ty ...

Milk pasteurisation line of 25.000 ltr/h with cream separator / skimmer. Temperature cylce: ± 3/4° (in) - regeneration - ± 55 °C (separator) - ± 72/75 °C (pasteurisation) - holding - regeneration - ± 3/4 °C (out). Line existing out of open level tank (2x lid, spraybowl), product pump (APV W 50/50), digital flow transmitter (Yokogawa FLXA402), Transmitter (Rosemount 8712) plate heat exchanger (APV N35 RKS, year: 2004, serial nr 1286, drawing no: NZ032, 4 sections, working pressure 6 bar), cream separator / skimmer (Westfalia MSA200-01-076, year 1980, serial nr 1669 642, self cleaning, bowl, motor (37 kW), motor cover, base plate with feet, water valves (original Westfalia), control panel including original GEA operation panel, all inlet / outlet pipes with pumps, flow indicator and only a few service tools for maintenance, holding tube with slope, booster pump (APV Puma 2-2 1/2) s ...

Used APV N35 Plate pasteurizer 10000LhTechnical Specifications & Performance DataThe APV Products N35 is a plate pasteurizer engineered for high-efficiency thermal treatment of liquid food and beverage products. Built in 2004, this second hand system offers a compact, hygienic solution for beverage production and industrial packaging processes where consistent heat transfer and reliable performance are essential. Previously operated on whey in a dairy environment, it is now dismantled and ready for integration into a used bottling line or processing plant.Manufacturer: APV ProductsModel: N35Year: 2004Type: Plate pasteurizer (plate heat exchanger design)Nominal capacity: 10,000 l/hHeat transfer surface: 56.35 m²Working pressure: 10.0 barPrevious application: Whey (dairy processing)Advanced Automation & Control SystemsThe N35 plate pasteurizer architecture supports modern automation strat ...

REF-2705 APV GAULIN 15-3.0 B HOMOGENIZER 1000 LITRES/HOUR Manufacturer: APV Brand: Gaulin Model: 15-3.0 B Serial no.: 1-02.452 Year: 2002 Single-stage homogenizer for liquids Overall dimensions (mm): 1,400 x 900 x 1,600 (LxWxH) Capacity: 1,000 l/h Max. temperature: 50 °C Homogenization pressure: 200 bar Electric motor: 11 kW/3x380 V/50 Hz Inlet/outlet connections: 50/65 mm Made of stainless steel, including some AISI 316 components N.B.: This homogenizer can be purchased separately or as part of an APV complete pasteurization system for fish broth also advertised on this site.

APV Gaulin G132T-3.6P high-pressure homogenizer – 15,000 l/h – 250 bar – very good condition Kebn Heytv Iisg Hd Nedk For sale is a high-performance high-pressure homogenizer from the manufacturer APV Gaulin, model G132T-3.6P, designed for industrial use in milk and beverage processing. The machine has been continuously serviced and is in good, fully functional condition. Ideally suited for applications such as milk, yoghurt drinks and similar products. Technical data: * Manufacturer: APV Gaulin * Type: G132T-3.6P * Year of construction: 2000 * Capacity: approx. 15,000 l/h * Operating pressure: up to 250 bar * Version: 2-stage * Pistons: 3 * Engine power: 137 kW * Application: Milk / Yoghurt Drinks / Liquid Products * Electric cabinet: available Condition: * Machine is fully functional * Regularly serviced during operation * No known defects * Ready to ...

APV pilot UHT plant equipped with an indirect heating module using a plate heat exchanger and an aseptic homogeniser. The unit was previously used for R&D purposes in a dairy plant in Belgium. Capacity up to 400 litres per hour. Temperature profile: approx. 4 – 145 – 20 °C., The skid-mounted unit consists of a plate heat exchanger (APV T4) with 5 sections and a total of 127 plates (9-15-23-55-25), two regeneration sections, heating and cooling sections, hot water/steam section and indirect steam heating. The system is further equipped with three connectable holding tubes, balance tank (Ø 38 cm, height 75 cm, volume approx. 80 litres) with agitator for ingredient mixing, water circulation pump, centrifugal product pump feeding the balance tank and a high-pressure plunger pump (Cat) with variable speed control via frequency inverter. The installation includes all required valves and  ...

THE LINE IS FOR SALE ONLY AS A WHOLE PIECE. THE BANK THAT OWNS THE LINE DOESN'T AGREE TO SELL THE MACHINES INDIVIDUALLY! Apple juice and concentrate production line consisting of: 1). 3-stage evaporation station made by APV. The station is equipped with an aroma trap. Max. capacity 12.000 l / h of evaporation on the juice. 2). Ultrafiltration station made by APV, PCI A19 membrane type. New 1996. Previously worked on juice. Capacity 10.000 l / h. Temperature 50 C. Pressure 5.5 Bar. 24 KW motor. 19 membranes dia. 12.5mm 3). Piston press made by Zamet, capacity 5.000 l / h. 2 pieces available. 4). Belt press made by AMOS, model Apex 1600. New 1997.

UHT Pilot Plant APV Tube Heater Capacity: approx. 100 Ltr./h - Tube heater - 2 process tanks with a capacity of approx. 70 litres each - High-pressure homogenizer APV LAB 100 - PWA Cooler

Homogenizer APV Rannie BLP 63.60 Manufacturer: APV Homogenisers AS Model: Rannie BLP 63.60 Machine Type: Homogenizer Serial number: 1.97.187 Year of Make: 1997 Max. pressure: 70 bar

Manufacturer: APV Rosista GmbH,Condition: used,Other: - Manufacturer: APV- Type: DELTA SR52- permissible Operating overpressure of the frame: 13 bar,last use: Winery,Nameplate: Yes,Total height: 2,050,Total width: 700,Total length: 1,750

APV K 55 plate apparatus, 6 departments, Y.O.M.1994, late 2005 dismantled, cleaned, new clip seals and plates UV tested. test log exists. Power approx. 960,000 Kcal/h

APV Homogenizer LAB 100 Ball valves Technical data see also pictures: Type: 100-6 TBS Capacity: 100 LTR. / h Engine: 2.2 KW

Stainless steel centrifugal pump manufactured by APV.

Used pasteuriser by APV model N35. New 2005. Capacity 10246 kg/h. Heat exchange surface 54.6 m². Operating pressure 10 bar. Operating temperature max/min °C 100/0.9.

Used pasteuriser by APV model N35. New 2004. Capacity 10000 l/h. Heat exchange surface 56.35 m². Operating pressure 10 bar. Operating temperature max/min °C 100/0.

Used APV ultrafiltration plant. New 1994. Nominal capacity of 20 000 kg/h. Information on the membranes that were last used in UF3: Burkert T CUT Core UF200-125 075 3659 – 3.6 m x 80 pieces. Each membrane contains 19 filter tubes, i.e. these are AC19 membranes. Tubular core for ultrafiltration Membrane - Material: PES - MWCO: 200 kDa - Tube diameter: 12.3 mm (inside) - Membrane area: 2,7 m² Module - Length: 3,658 mm - Diameter: 75 mm - Head material: Polysulfone -Electrical connection power: 120kW

HOMOGENISER Manufacture : APV MANTON GAULIN Model : K3 Capacity : 1200 L/h Bar : 200 bar Stages : 2 Manual Book : Included

APV Screw Compressor 3 Screw compressors Control Panel, Fridge watch 2100 system DX system Last run on 404a Last used to run a Spiral Freezer 33 Kw each, Total = 99Kw Max Model: HS2116 Built 1994 Complete with Searle Condensor (4 fan) Model: MDR 110-12 Serial: 961246 Physical dims: 5.1m x 1.16m x 0.7m (h)

This - APV Concentrate dosing line for UF. Is for dosing of Various products and has multiple dosing pumps with the complying tank for each dosing system, This is all controlled through the control panel with accuracy., Number Dosing systems: 6, Number Tanks: 5 , Steam Heating: With Regulating Valve , PHE: Heating Plate heat exchanger , Product Pumos: 2 , Situated: On stainless steel skid for easy transport , Connections: Exchange plate , CIP: Yes , Electrics: 3 ~ / 400 Vac , Available: Immediately

MANUFACTURER: APV GAULIN MC 45 MILK HOMOGENISER TYPE: 5283 MC45-2,5 TPS CAPACITY: 20.000 l/h PRESSURE: 175 BAR 2 STAGES PRESSURE CONTROL: HYDROULIC CONTROL NUMBER OF PISTONS: 3 MOTOR 90 KW

APV high-pressure homogenizer., Maximum working pressure: 2000 Bar / 29,000 psi / 200 MPa , Nominal flow rate:: 11 litres/h , Minimum sample: 100 ml , Dead volume: 13 ml , ATEX: EEx e II T1%T6 / EE d IIC T1%T6
