7 BACHILLER used machine for sale

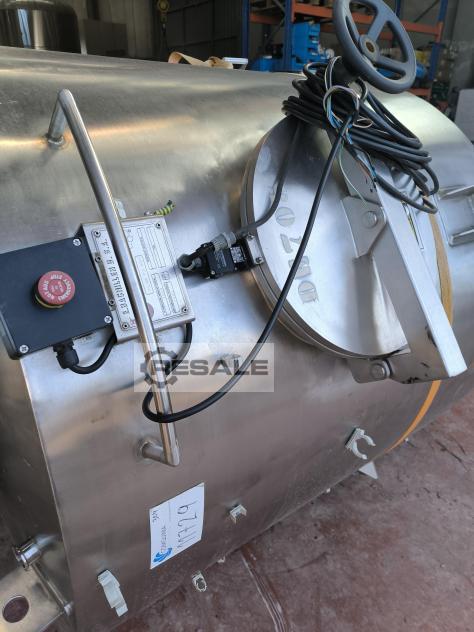

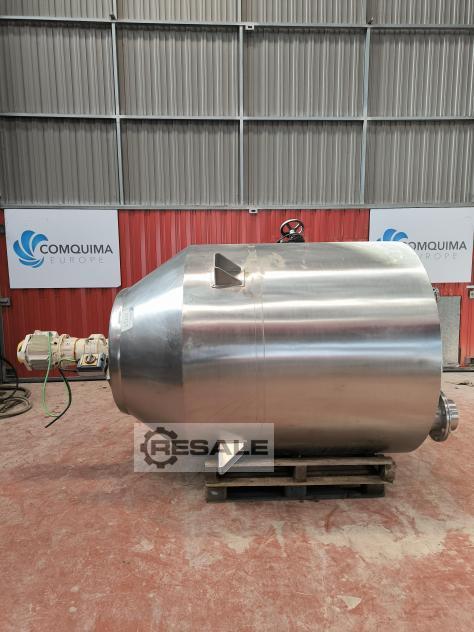

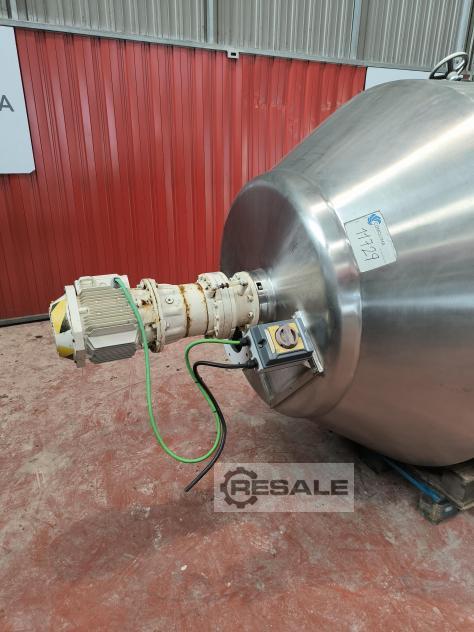

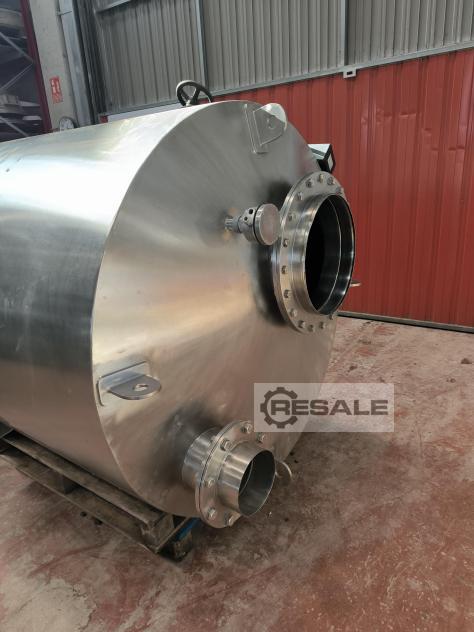

ATEX buffer hopper manufactured in stainless steel by E.BACHILLER in 2003, with a total capacity of 3,000 liters. Incorporates agitation and 4 support brackets. Motor: 4 kW 1435 rpm 50 Hz 380 V. Connections: Manhole of 440 mm in diameter. Top flange with an outer diameter of 315 mm. Lower flange with 620 mm outer diameter. Lower flange with an outer diameter of 340 mm. Hopper dimensions: Body height: 1,450 mm. Inner body diameter: 1,500 mm. Bottom diameter: 830 mm. Hopper inclination: 520 mm. Total capacity 3000 L Material Stainless steel Year of manufacture 2003 ATEX Working Conditions Transportation Information Width 1700 mm Height 3000 mm No documentation In your state

Reactor manufactured by BACHILLER with a capacity of 500 liters. Propeller agitation at different heights. Cowless agitation. No documentation In its state.

Calibrating disintegrator mill manufactured by BACHILLER in stainless steel, model MDCB 300. Equipment for the disintegration of agglomerated products, unification of particles for bulk solids and granulation of wet products. Productions from 50 to 5,000 Kg/h. Material Stainless steel Technical features Model MDCB 300 Year of manufacture 2004 ENGINE 1 FIMM 4PE80 B 0,75 kW 50 Hz 1990 rpm Condition As is Made by BACHILLER

ATEX air micronizing mill manufactured by BACHILLER in stainless steel, model JET-MILL MSB305. High efficiency equipment, very suitable for the micronization of all types of powdery products. Includes bag filter reference C9905 Material 316/316L stainless steel Technical features Model JET-MILL MSB305 Year of manufacture 2004 Equipment configuration ATEX Condition As is Made by BACHILLER

ATEX calibrator disintegrator mill manufactured by BACHILLER in stainless steel, model MDCB 300. Equipment for the disintegration of agglomerated products, unification of particles for bulk solids and granulation of wet products. Productions from 50 to 5,000 Kg/h. Material Stainless steel Technical features Model MDCB 300 Year of manufacture 2011 ENGINE 1 TECHTOP 5,5 kW 50 Hz 975 rpm Equipment configuration ATEX Condition As is Made by BACHILLER

Vacuum reactor model BACHMIX with a total capacity of 340 liters, manufactured by BACHILLER. Mounted on a stainless steel structure. Hydraulic system for lid lifting. Equipped with three agitation systems: Anchor-type agitator with Teflon scrapers + two two-blade axial turbine propellers at different heights Cowless agitator Turrax agitator Volume Total capacity 340 L Material 316/316L stainless steel Technical features Model BAXHMIX PC200 Vessel working pressure -1 bar Vessel working temperature 140 ºC Half-coil/jacket working pressure 2.5 bar Half-coil/jacket working temperature 140 ºC Half-coil/jacket volume 56.6 L Equipment configuration Jacketed Electrical panels Dimensions Inner diameter 800 mm Shell height 620 mm Transport information Length 2450 mm Width 1350 mm Height 1950 mm Documentation CE Certificate Operation Manual Drawi ...
