4 BOEHRINGER cycle lathes used machines

turning diameter: 1020 mm turning length: 4000 mm turning diameter over slide: 720 mm Holder Multifix: control: Siemens type: 805 tailstock quill taper MT: 6 transmission ratio: 2 turning speeds: U/min turning speeds: U/min bed width: 560 mm spindle bore: 200 mm workpiece weight: kg faceplate: 1000 mm make: Forkhardt PSA 1000 3 jaw chuck Forckrath: 500 mm steady: 263 mm steady: 500 mm total power requirement: KVA weight of the machine ca.: t dimensions of the machine ca.: 7,4x2,5x2,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 650 mm turning length: 2000 mm turning diameter over slide: 260 mm Holder Multifix: control: Siemens type: Sinumerik tailstock quill taper MT: 5 transmission ratio: 2 turning speeds: 1-2000 U/min spindle bore: 106 mm total power requirement: 38 KW weight of the machine ca.: t dimensions of the machine ca.: 7,4x2,5x2,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 820 mm turning length: 6000 mm turning diameter over slide: 520 mm Holder Multifix: control: Siemens type: 805 tailstock quill taper MT: 6 transmission ratio: 2 turning speeds: 8-1600 U/min bed width: 560 mm spindle bore: 128 mm faceplate: 600 mm 3 jaw chuck Forckrath: 400 mm steady: 250-500 mm chip conveyor: diameter of quill: 125 mm quill stroke: 280 mm total power requirement: KVA weight of the machine ca.: 12 t dimensions of the machine ca.: 9,5x2,5x2,5 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, p ...

Universal lathe with cycle control VDF Boehringer VDF 400 DUS Control: Siemens Sinumerik 840 Year of Make: 2014 Internal machine no. 57 Turning length: 1,000 mm Turning diameter over bed / face slide: 420 / 235 mm Displacement of face slides: 250 mm Max. speed: 10 – 3,000 rpm Accessories: - Bezel - Suction - 3- Jaw chuck Schunk 250-62 - Tool holder

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

turning diameter over bed: 490 mm turning diameter over slide rest: 280 mm turning length: 2000 mm centre height: 245 mm centre distance: 2000 mm spindle bore: 62 mm total power requirement: 7,5 kW weight of the machine ca.: 3,5 t dimensions of machine L x W x H: 3,78 x 1,17 x 1,42 m Accessories: 3-jaw chuck 240 mmø, face plate 400 mmø, MULTIFIX-tool post, solid steady, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 400 mm

Description Lead and pull spindle lathe VDF Boehringer Göppingen Details Height 1,500 mm Width 1,700 mm Length 4,000 mm without tailstock Bed width 550 mm Bed height 800 mm Bed length 2,000 mm Face Plate Ø 900 mm Forkardt Chuck Ø 500 mm without tailstock, but can be placed Max. workpiece lengths without tailstock 1,500 mm Turning diameter over bed 800 mm Turning diameter over support 640 mm Center height 400 mm 6 pieces of baking 4-fold turning steel holder

Key data: 340 mm

Description Lead and pull spindle lathe VDF Boehringer Göppingen Details Height 1,400 mm Width 1,300 mm Length 4,150 mm Bed width 480 mm Bed height 850 mm Bed length 3,000 mm Face plate Ø 600 mm Forkardt Wedge Bar Chuck Ø 315 mm max. workpiece lengths 2,000 mm Turning diameter over bed 680 mm Turning diameter over support 480 mm Center height 340 mm Drive power 6.5 / 10 kW Lynette Ø 320 mm Multifix holder size C with 5 cassettes

Center height: 400 mm Center width: 1250/1300 mm Circumferential Ø: over bed 440 mm Spindle bore: Spindle holder: Pick-up cone tailstock: 5 MK Spindle speeds: 11.2 - 2240 rpm Feeds: longitudinal/flat 0.1-2.8/0.05-1.4 mm/rev Thread pitches: Electrical connection: 380 V, 11 kW Space requirement: 3400 x 1400 x 1300/1700 mm Weight: approx. 2700 kg

turning diameter over bed: 820 mm turning diameter over slide rest: 600 mm turning length: 5000 mm faceplate: 750 mm spindle passage: 125 mm turning speeds: 9-450 U/min Rapid travel: steady for max. workpiece diameter from: 520 mm steady for max. workpiece diameter from: 330 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m No. 59 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look f ...

turning diameter over bed: 570 mm turning diameter over slide rest: 365 mm turning length: 1500 mm centre distance: 1800 mm spindle turning speed range: 11-2240 U/min spindle bore: 62 mm weight of the machine ca.: 4 t Misc accessories More details on www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter over bed: 840 mm turning diameter over slide rest: 640 mm turning length: 3300 mm spindle bore: 74 mm turning speeds: 7,1-1400 U/min 3-jaw chuck: 315 mm steady: rapid traverse: turning dia. in gap: 920 mm length of gap: 370 mm total power requirement: 22 kW weight of the machine ca.: 10 t dimensions of the machine ca.: 8x2x1,8 m Multifix steel holder with inserts The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. W ...

turning diameter over bed: 390 mm turning diameter over slide rest: 190 mm turning length: 1000 mm turning dia. in gap: 460 mm spindle head: DIN 55026 Gr. 6 spindle bore: 52 mm turning speed range: 11,2 - 2240 U/min power requirement: 7,5 kW bed width: 355 mm dimensions: 2,8 x 1,3 x 1,6 m weight of the machine ca.: 1,9 t Equipment: - Multifix B with 5 pic. toolholders - 3-jaw-chuck Ø 250 - coolantsystem - 2-axis digital readout Heidenhain - some jaws The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

BOEHRINGER DUE 800 Precision lathe Year of manufacture 1989 3-Axis Digital Display HEIDENHAIN Model ND 780 Center height 400 mm Circumferential diameter over bed 820 mm Circumferential diameter via face slide 515 mm Center width approx. 2,200 mm Turning length effective approx. 2,000 mm Bar Passage 128 mm Spindle head DIN55022 size 11 Drive power 30 kW Max. torque 6,300 Nm 24 speeds: 7.1 – 1,400 rpm. 60 flat feeds 0.05 – 28 mm/rev 60 longitudinal feeds 0.06 – 56 mm/rev Rapid traverse in longitudinal transverse feed Motorized upper support Tailstock quill stroke 280 mm Tailstock Cone MK 6 Space requirement LxWxH approx. 6,700 mm x 2,500 mm x 2,250 mm Weight approx. 7,500 kg Equipment: 3-jaw chuck 400 mm Face Plate 800 mm Steady bezel Fixed bezel Multifix steel holder head Lighting Moving grain tip and much more More photos on request All oth ...

turning diameter: 820 mm turning length: 300 mm turning diameter over slide: 465 mm control: max. torque on the spindle: 3000 Nm turning speeds: 5,6-1120 U/min Feed: 1-5000 mm/min Rapid movement: 5000 mm/min tailstock quill taper MT: 6 3 jaw chuck Forckrath: mm steady: mm main drive motor: 50 kW diameter of main spindle: 170 mm spindle passage: 128 mm tailstock quill diameter: 125 mm tailstock quill stroke: 250 mm z-axis: 3000 mm x-axis: 550 mm total power requirement: 52 kW weight of the machine ca.: 7,1 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 570 mm turning length: 2000 mm control: Sinumerik 805 Siemens swing diameter over face slide: 365 mm main spindle speeds:: 3-2.500 U/min drive of main spindle: 15/19 kW spindle bore: 62 mm spindle head: DIN 55027 No.8 tailstock taper MT: 5 quill stroke: 190 mm pinole diameter: 80 mm feed range - long. and cross: 0,01-50 mm/u total power requirement: 50 KVA weight of the machine ca.: 5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 820 mm turning length: 5000 mm turning diameter over slide: 460 mm control: B2T max. torque on the spindle: 3400 Nm turning speeds: 5,6-1120 U/min Feed: 1-5000 mm/min Rapid movement: 5000 mm/min tailstock quill taper MT: 6 3 jaw chuck Forckrath: 630 mm steady: 525 mm steady: 335 mm main drive motor: 50 kW total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 820 mm turning length: 2.000 mm control: SIN 810 D center height over square guideway: 400 mm turning diameter over slide rest: 500 mm x-travel: 540 mm z-travel: 2.100 mm feed x/z-axis: 0,01 - 50 mm/min rapid traverse X-axis: 5,00 m/min rapid traverse Z-axis: 10,00 m/min feeding force facing: 12.500 N power feed longitudinal: 20.000 N spindle turning speed range: 6,4 - 1.600 U/min spindle turning speed - gearbox stage 1: 6,40 - 376 1/min. spindle turning speed - gearbox stage 2: 27,40 - 1.600 1/min. power capacity at 60% / 100 % load: 46,00 / 37,00 KW max. torque at 60% / 100% load: 5.073 / 4.069 Nm constant cutting rate: 1 - 9.999 m/min. spindle head DIN 55027 - Size: 11 spindle diameter in front bearing: 170 mm spindle bore: 128 mm tailstock quill taper MT: 6 diameter of quill: 125 mm quill stroke: 280 mm thread pitch: 0,1 - 400 mm total power requirement: 35,00 kW we ...

Center height: 280mm, distance between centers: 2000mm, turning diameter over bed/cross slide: 570mm/365mm, spindle bore: 62mm, speed: 2500rpm, max. workpiece weight: 1000kg, bed width: 360mm. Machine dimensions X/Y/Z: approx. 4000mm/2250mm/2000mm, weight: approx. 5500kg, control: Siemens. An on-site inspection is possible.

centre height: 280 mm centre distance: 1200 mm turning diameter over bed: 570 mm turning diameter over slide: 365 mm turning length: 1000 mm spindle taper: DIN 55027 Gr. 8 control: Sinumerik 810 D SIEMENS bed width: 360 mm spindle bore: 62 mm turning speed range: 3 - 2500 U/min feed:: 5000 mm / min rapid travel - longitudinal/face: 10 m/min 3-jaw-chuck diameter: 250 mm quick change toolholder: SANDVIK Coromant Capto drive capacity - spindle motor: 25 kW taper in tailstock-quill: MK 5 dia. of quill: 100 mm quill stroke: 190 mm coolant: voltage: 400 V weight of the machine ca.: 5,0 t dimensions of the machine ca.: 3,55 x 2,20 x 1,95 m - Serial No.: 2022-3742-03 - CNC-Control SIEMENS Sinumerik 810 D - Rapid feed - Coolant equipment - Machine lamp The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

greates pass round over bed: 640 mm swing diameter over face slide: 435 mm control: Siemens SINUMERIK 810D pl turning speed range: 3 - 2.500 U/min centre distance: 1.500 mm spindle bore: 70 mm spindle diameter in front bearing: 100 mm Lathe - cycle-controlled | VDF-BOERHRINGER - DUS 630 ti The machine is in good condition and can be inspected under power at any time. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: DUS630ti | DUS 630ti | DUS 630 ti The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A universal CNC cycle lathe Boehringer is available. Center height: 280mm, swing diameter over bed/cross slide: 570mm/365mm, turning length: 1000mm, distance between centers: 1500mm, quill diameter: 80mm, quill travel: 190mm, spindle speed: 2500rpm, bed width: 360mm, rapid traverse X/Z: 5m/min/10m/min. Machine dimensions X/Y/Z: approx. 3500mm/2200mm/2400mm, weight: approx. 4000kg, control system: Siemens. Documentation available. An on-site inspection is possible.

turning diameter: 570 mm turning length: 2000 mm control: num + CNC Keller centre height: 280 mm turning dia. over face-slide: 365 mm spindle bore: 62 mm spindle turning speed range: 3 - 2500 U/min spindle head: DIN 55 027 Gr. 8 cutting speed: Konstant 1 - 9999 m/min feed in x - axis: 0,01 - 50 mm/U feed range Z-direction: 0,01 - 50 mm/U rapid travel - longitudinal/face: 10 / 5 m/min feed power: x-Achse 7100 N feed power: z-Achse 12.500 N travel of cross-slide: 345 mm upper slide travel: 125 mm bed width: 360 mm tailstock quill diameter: 80 mm tailstock quill stroke: 190 mm tailstock taper MT: 5 max. workpiece weight -without tailstock: 400 kg max. workpiece weight between centres: 1000 kg max.workpiece weight:each extra steadyrest: 300 kg threading metric: 0,1 - 400 mm/Stg. dimensions of machine L x W x H: 3,98 x 1,87 x 1,81 m total power requirement: kW weight of the machine ca.: t A ...

centre distance: 1000 mm turning diameter over bed: 420 mm turning diameter over bed slide: 235 turning length: 1000 mm spindle taper: DIN 55027 Gr. 6 control: MANUALPlus 4110 spindle bore: 51 mm turning speed range: 3 - 3000 U/min feed:: 5.000/10.000 mm / min drive capacity - spindle motor: 11 kW taper in tailstock-quill: MK 4 dia. of quill: 70 mm quill stroke: 110 mm coolant: ja/yes voltage: 400 V Number of working hours: 6.908 h weight of the machine ca.: 3 t dimensions of the machine ca.: 3,4 x 2 x 2,2 m BOEHRINGER DUS 400 ti CNC cycle-controlled lathe, built in 2006 -Control system: Heidenhain ManualPlus 4110 -11 kW AC main drive with 2-stage gearbox -Work area cover with chip guard door -Control panel mounted on the support, moves with the machine -Holding brake -Programmable cycles -4-position quick-change turret -Size 2 tool holder on fixed base -With 1 WD ‘/25’ tool holder - ...

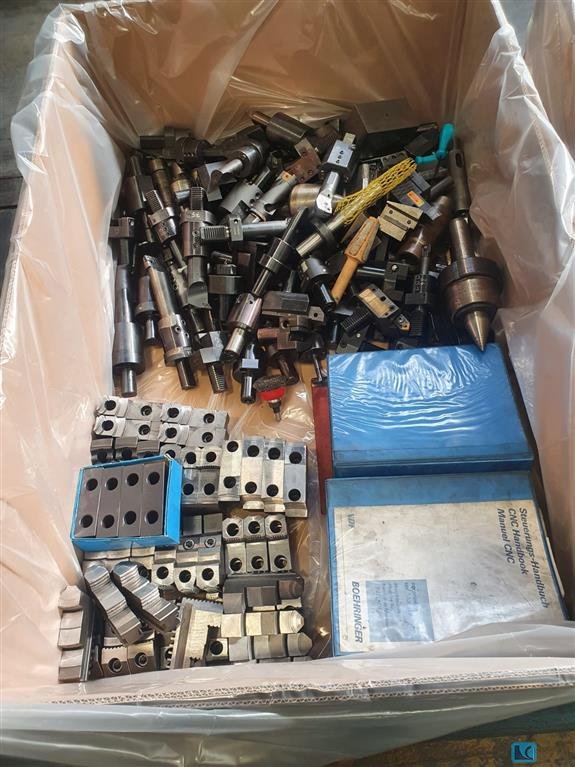

turning diameter:570 mm turning length:1000 mm dimensions of the machine ca.:3,25 x 2,03 x 1,95 m Tool disc turret for 8 tools with VDI 30. Not for power tools machine manual, technical documentation; Accessories: 3-jaw chuck, various tool holders Video is available
