117 BOGE used machine for sale

Lot 606: Boge Screw Compressor Variable Frequency Rotary Screw Compressor The 2019 Boge SLF51/3 is a high-efficiency, frequency-controlled screw compressor ensuring optimal and continuous industrial air supply with minimized energy consumption. Technical Details ‍ 1. Machine identification data Name: Screw Compressor Manufacturer: Boge Model: SLF 51/3 Year of manufacture: 2019 2. Operational parameters Effective free air delivery (Min - Max): 2.36 – 7.16 m³/min Operating pressure: 8.00 bar Main drive motor rated capacity: 37.0 kW Fan motor rated capacity: 1.10 kW Motor protection / Insulation class: IP 55 / F Operating voltage: 400 V / 50 Hz Control voltage: 230 V AC / 24 V DC Ambient temperature range: +5°C to +40°C Cooling air flow volume: 5,500 m³/min Residual oil content: < 3 m³/min Sound pressure level: 79 dB(A) Operating hours: 18,65 ...

Sale of BOGE Ecoline screw compressors at the following special prices: BL S 18 eco - 7,5bar 400V 50Hz L 18,5kW €4.350,00 BL S 22 eco - 7,5bar 400V 50Hz L 22kW €5.060,00 BL S 22 eco T - 7,5bar 400V 50Hz L22kW €5.250,00 BL S 22 eco - 10bar 400V 50Hz L 22kW €5.060,00 BL S 22 eco T - 10bar 400V 50Hz L22kW €5.250,00 BL S 30 eco - 7,5bar 400V 50Hz L 30kW €5.900,00 BL S 30 eco T - 7,5bar 400V 50Hz L30kW €6.060,00 BL S 30 eco - 10bar 400V 50Hz L 30kW €5.900,00 BL S 30 eco T - 10bar 400V 50Hz L30kW €6.060,00 Warranty: 6 months from the date of invoice Image: Catalogue image. Queries will be answered during normal working hours from Mon-Fri. answered See also our homepage boge under Used Machines.

BOGE screw compressor Good condition, fully functional, can be viewed and tried out on site. Shipping also abroad. Viewing: Basically, I would like to point out that the article can be viewed and tested under power before purchase in order to rule out misunderstandings. Please ask questions before purchasing to avoid confusion. If you have any general questions or would like to make an appointment for a viewing, I can be reached at any time on the telephone number below or above. Errors in the description and prior sale excepted. VAT is shown separately on my invoices. Shipping with forwarding agent.

Screw compressor Boge C15F Inverter integrated 11 kW 8 bar 1.74 m3/min Year of Make: 2014 Hours: 14,938

Specifications Brand: Boge Type: C3LR Kind: Screw compressor, air-cooled Max. final pressure: 10 bar Chassis number: 5063340 Year of construction: 2013 Capacity: 0.24 m³/min. = 8.3 CFM Engine speed: 1,500/ min. Drive power: 2.2 kW (3 hp) Pressure vessel: 90 liter Voltage: 400V / 50Hz (3-phase) L x W x H: 1185 x 550 x 1010 Sound level: 61 dB (A) Weight: Approx. 130 kg Residual oil content: < 3 mg/m³ Connection: G ½” (ball valve) Cooling air volume: 600 m³/h Ambient temperature range: +5 to +40 °C Photos/video available: Photos available 10.2.195

Compressor Boge, CL 4– used - : Ex-location prices (net): 2.950.-€ (net) Manufacturer: Boge Type: CL 4 Year of Make: 2005 approx. 4,000 operating hours Compressed air tank: Manufacturer: BWB H-Nr 540226 Volume: 90L PS 11 bar T.max: 80 degrees T.min: -10 degree K-SK 3400 Ph 16.5 bar Condition: good Available: immediately Location: Waltrop

nieuwe schroefcompressor 4 Kw op ketel met droger

Brand: Boge Type: C3LR Kind: Screw compressor, air-cooled Max. final pressure: 10 bar Chassis number: 5063340 Year of construction: 2013 Capacity: 0.24 m3/min. = 8.3 CFM Engine speed: 1,500/ min. Drive power: 2.2 kW (3 hp) Pressure vessel: 90 liter Voltage: 400V / 50Hz (3-phase) L x W x H: 1185 x 550 x 1010 Noise level: 61 dB (A) Weight: Approx. 130 kg Residual oil content: < 3 mg/m³ Connection: G ½” (ball valve) Cooling air volume: 600 m³/h Ambient temperature range: +5 to +40 °C Photos/film available: Photos available 10.2.195

Screw compressor Boge 400 V 11 KW 1.45 m3/min 10 bar Accessories : belts, filters, small parts The compressor goes to fault after switching on:

Screw compressor C9 Flow rate 1.1 m3/min 10 bar 7.5KW Hours 9000 Schematic E-Parts Compressor is unchecked.

New airend BOGE BA 15 as a replacement for Termomeccanoca SCA8D-R (TM SCA 8 D-R) The installation dimensions are the same. BOGE Id.Nr.: 201021166P ( incl. gasket 60 x 60 x 2 and O-Ring-76x3-N-FKM (Viton) 75)

New airend BOGE BA 30 as a replacement for Termomeccanoca SCA10D (TM SCA 10 D) The installation dimensions are the same. BOGE Id.Nr.: 201021766P ( incl. gasket DN 60x D110x 2 and O-Ring-90x3-N-FKM (Viton) 75)

dimensions – Height (soundproofed) [mm] 930 – Height (supersonic insulated) [mm] 2120 – Width (acoustic/supersound-insulated) [mm] 1200 – Depth (acoustic/supersound-insulated) [mm] 980 weight – soundproofed [kg] 315 – supersound-insulated [kg] 365 Highest sound pressure level [± 3 dB(A)] according to DIN 45635, part 13 86/79 – schallg. / supersound-insulated [dB(A)] Measuring area measure 15/15 schallg. / supersound-insulated [dB(A)] Formwork power level 101/94 – schallg. / supersound-insulated [dB(A)] compressor compression final temperature [°C] 110 Volume flow to PN 2 CPTC 2 at: – pmax = 8 bar [m3/min] 3.35 – pmax = 10 bar [m3/min] 2.85 – pmax = 13 bar [m3/min] 2.45 Motor Rated power [kW] 22 rated speed – 50 Hz [min-1] 3000 – 60 Hz [min-1] 3600 Protection class IP 55 Design IMB 3 ISO Class F Electrical connectio ...

With the help of our rental machines, you can bridge the time periods during which there is an increased demand for compressed air. This is useful, for example, in the event of unexpected peaks in demand or the failure of one of your own compressors. The usual high BOGE quality standards also apply to our used rental machines – in addition to various compressors, a wide range of high-performance compressed air components is available for you. Before renting, all machines are carefully reworked and tested – we give you a guarantee for this. Visit the BOGE compressors Used Machinery Shop

compressor Boge/Germany, 2013 type SLF101, 10 bar, 12.33 m3/min., 77.2 kW, with inverter, general overhauls in 2019, with new screw, only 3,000 running hours

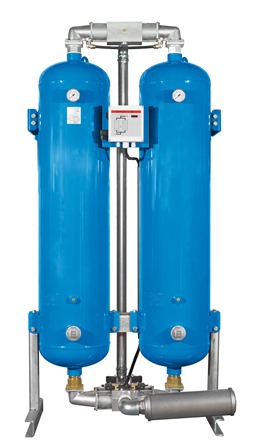

die Steuerung ist vorbereitet für Kompressor-Gleichlaufsteuerung. inkl. · Drucktaupunkt-Steuerung ·Mit einer Drucktaupunkt-Steuerung können Sie den Trockner im starren oder variablen Zyklus betreiben. Im starren Zyklus erfolgt die Umschaltung nach einer festgelegten Zeit (in der Regel nach 5 Minuten). Im variablen Zyklus erfolgt die Umschaltung abhängig vom erreichten Drucktaupunkt und der Beladung des Trockenmittels. Die Adsorptionszeit im variablen Zyklus beträgt maximal 60 Minuten. Neugerät Achtung: Das Gerät wird ohne Vor-, und Nachfilter geliefert. Ein Vorfilter ist dringend erforderlich, falls nicht schon vorhanden.. Siehe Optionen unten. (Bild: Katalogbild) Erforderlich: Vorfilter (lose beigefügt) - Euro 3.600,- + MwSt. Nachfilter (lose beigefügt) - Euro 3.600,- + MwSt.

die Steuerung ist vorbereitet für Kompressor-Gleichlaufsteuerung. inkl. · Drucktaupunkt-Steuerung ·Mit einer Drucktaupunkt-Steuerung können Sie den Trockner im starren oder variablen Zyklus betreiben. Im starren Zyklus erfolgt die Umschaltung nach einer festgelegten Zeit (in der Regel nach 5 Minuten). Im variablen Zyklus erfolgt die Umschaltung abhängig vom erreichten Drucktaupunkt und der Beladung des Trockenmittels. Die Adsorptionszeit im variablen Zyklus beträgt maximal 60 Minuten. Neugerät Achtung: Das Gerät wird ohne Vor-, und Nachfilter geliefert. Ein Vorfilter ist in den meisten Fällen dringend erforderlich. Siehe Optionen unten. (Bild: Katalogbild) Erforderlich: Vorfilter (lose beigefügt) - Euro 3.600,- + MwSt. Nachfilter (lose beigefügt) - Euro 3.600,- + MwSt.

feed pressure:10 bar airflow volume:1,06 m³/min Motor RPM:3920 1/min total power requirement:7,5 kW electrics - voltage/frequency:400/50 V/Hz machine weight approx.:250 kg dimensions L x W x H:1,5 x 2 x 2 m Professional, soundproofed compressor with the lowest noise level in its class, designed to eliminate noise problems in working environments. The powerful 5.5 hp pump unit guarantees maximum efficiency and reliability. It is also equipped with an additional intake silencer, a belt tensioning device that regulates belt tension and facilitates replacement, and a forced ventilation fan for better cooling. The control panel with star-delta start control is positioned for easy reading and operation. The opening front door allows for easy maintenance.

Screw compressor with dryer. Pressure vessel capacity: 750 liters. Capacity: 3.09 m?/min. Max. pressure: 10 bar. Motor 22 kW.

Pressure: 13 bar Motor: 7,5 kW Voltage: 400 Volt / 50 Hz Free air delivery: 0,87 m³/min Measurement (WxHxD): 1835 x 1645 x 955 Weight: 425 kg Compressed air connection: 1/2

Pressure: 10 bar Motor: 7,5 kW Free air delivery: 1,03 m³/min Measurement (WxHxD): 1815 x 1365 x 720 Weight: 260 kg Compressed air connection: 1

Pressure: 7,5 bar Motor: 55 kW Voltage: 400 Volt / 50 Hz Free air delivery: 9,81 m³/min Measurement (WxHxD): 2100 x 1720 x 1200 Weight: 2030 kg Compressed air connection: DN 65

Pressure: 40 bar Motor: 5,5 kW Free air delivery: 1,209 m³/min Measurement (WxHxD): 1650 x 1395 x 928 Weight: 480 kg Compressed air connection: 1/2

Pressure: 15 bar Motor: 11 kW Free air delivery: 1,319 m³/min Measurement (WxHxD): 2125 x 1730 x 820 Weight: 550 kg Compressed air connection: 1 1/4

Pressure: 10 bar Motor: 5,5 kW Free air delivery: 0,815 m³/min Measurement (WxHxD): 1890 x 1520 x 854 Weight: 437 kg Compressed air connection: 1/2

Pressure: 13 bar Motor: 22 kW Free air delivery: 2,74 m³/min Measurement (WxHxD): 1610 x 1380 x 915 Weight: 635 kg Compressed air connection: 1

Pressure: 7,5 bar Motor: 18,5 kW Free air delivery: 3,12 m³/min Measurement (WxHxD): 1610 x 1380 x 915 Weight: 550 kg Compressed air connection: 1

Pressure: 13 bar Motor: 18,5 kW Free air delivery: 2,32 m³/min Measurement (WxHxD): 1610 x 1380 x 915 Weight: 550 kg Compressed air connection: 1

Pressure: 13 bar Motor: 75 kW Free air delivery: 10,4 m³/min Measurement (WxHxD): 2780 x 1990 x 1490 Weight: 2410 kg Compressed air connection: 2 1/2

Pressure: 40 bar Motor: 11 kW Free air delivery: 2,42 m³/min Measurement (WxHxD): 1652 x 1456 x 928 Weight: 662 kg Compressed air connection: 1/2
