3 DEMMELER welding rotary tilting tables used machines

Offer 25347 Hydr. Manipulator - Positioning - Welding Rotary and Tilting Table Specifications: - Max. load capacity incl. work table 4000 kg - Face plate hydraulically swivel 0 - 180 ° - hydr. Height adjustment of the face plate - Face plate with holes D 28 + threaded holes Ø 1600 mm - Table moves in the last inclination or horizontally approached - Rotary movement electrically hydraulic with right + counterclockwise rotation - min. / max. rotation speed 0.1 - 1.4 rpm - min./ max. table height in horizontal position - approx. 1040 / 2140 mm - Welding current transmission approx. 600 A - Drive 400 V - Handheld remote control + E. foot switch - Space requirement approx. W 2000 x H 1100 x D 3200 mm - Weight approx. 5700 kg

Offer 25352 Hydr. Manipulator - Positioning - Welding Rotary and Tilting Table Specifications: - Max. load capacity incl. work table 2000 kg - Effective payload 1700 kg - Face plate hydraulically swivel 0 - 180 ° - hydr. Height adjustment of the face plate - Table moves in the last inclination or horizontally approached - Rotary movement electrically hydraulic with right + counterclockwise rotation - min. / max. rotation speed 0.75 - 2.0 rpm - 3 D work table DEMMLER 800 x 800 mm - min./ max. table height in horizontal position - approx. 600 / 1550 mm - Welding current transmission approx. 600 A - Drive 400 V - Handheld remote control + E. foot switch - Space requirement approx. W 2100 x H 600 x D 1500 mm - Weight approx. 1200 kg

Offer 25357 Hydr. Manipulator - Positioning - Welding Rotary and Tilting Table Specifications: - Max. load capacity incl. work table 4000 kg - Face plate hydraulically swivel 0 - 180 ° - hydr. Height adjustment of the face plate - Face plate with holes D 28 + threaded holes Ø 1600 mm - Table moves in the last inclination or horizontally approached - Rotary movement electrically hydraulic with right + counterclockwise rotation - min. / max. rotation speed 0.1 - 1.4 rpm - min./ max. table height in horizontal position - approx. 1040 / 2140 mm - Welding current transmission approx. 600 A - Drive 400 V - Handheld remote control + E. foot switch - Space requirement approx. W 2000 x H 1100 x D 3200 mm - Weight approx. 5000 kg

Standard base for welding table, table base, table base for welding tableWelding and assembly tables -Manufacturer: Demmeler, standard foot for welding table 2 pieces -Type: 3-D -Pendulum feet: finely adjustable -Mounting countersunk screw: M24 -Price/Delivery: complete -Total dimensions: Ø 90 / 635 mm -Weight: 8.1 kg/piece

Standard foot for welding table, table foot, table foot for welding table welding and assembly tables, support foot -Standard foot: Support foot for welding and assembly tables -Height: finely adjustable -Quantity: 20x table base available -Price per piece -Total dimensions: 670/100/100 mm -Weight: 7.6 kg/piece

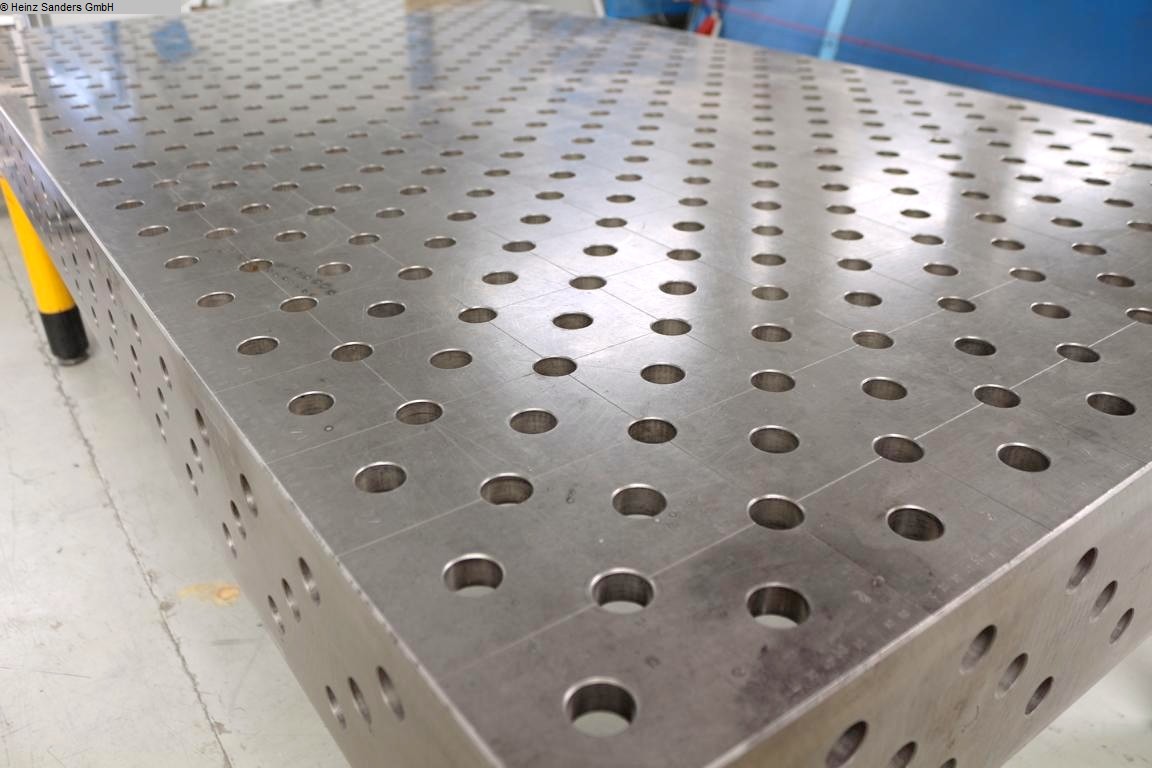

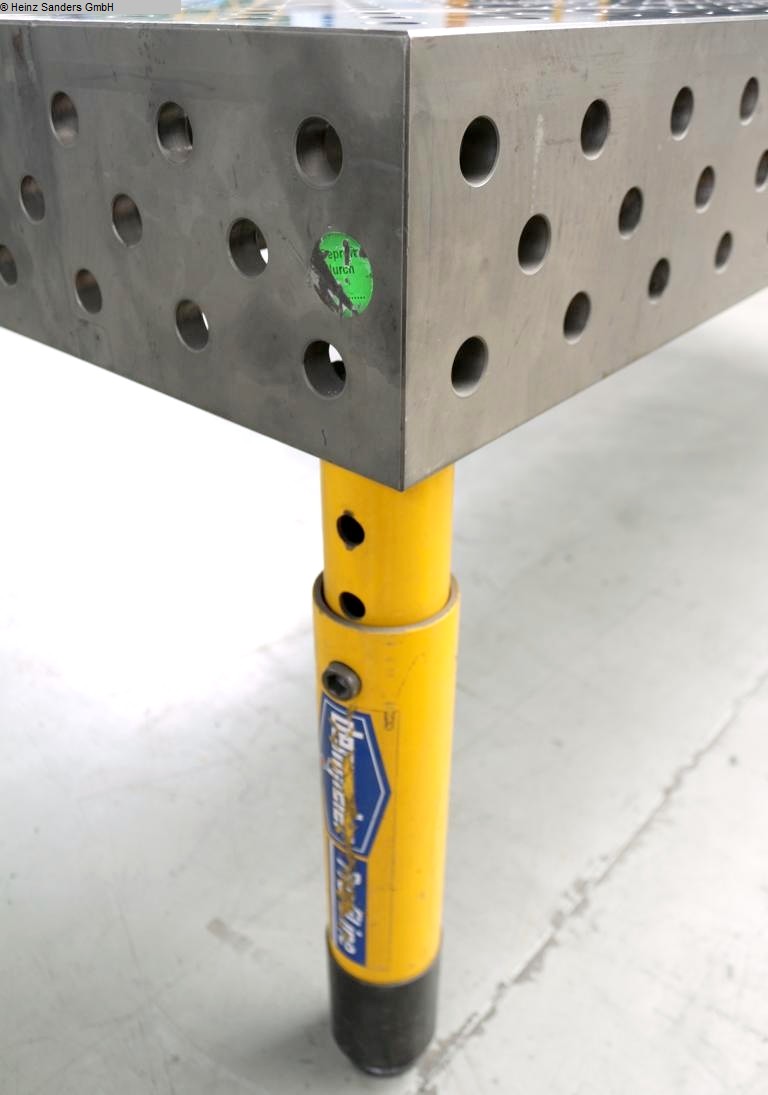

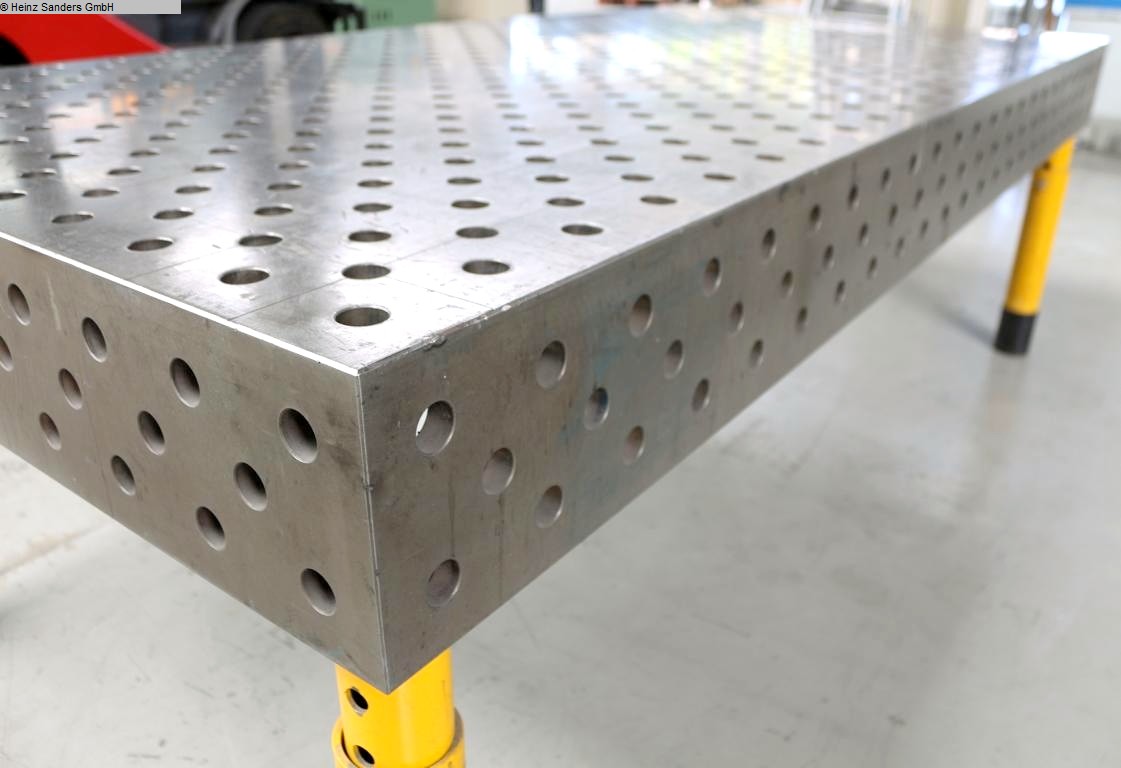

table length: 2400 mm table width: 1200 mm table height (lateral area): 200 mm weight: 824 kg dimensions of the machine ca.: 2400 x 120 mm ** New price approx. 4.500 euros ** Special price on request Product description - Table top with system holes D28 - in double grid 100 x 100 mm - 3-row hole pattern on the table sides - All system holes with protective countersink - Optimized table outer edges - Improved table reinforcement . due to additional cross ribbing - Fine scaling with millimeter graduation Features: - 28 hole pattern / dimensions 2400 x 1200 x 200 mm - incl. 4x foot basic equipment (height-adjustable) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Faceplate speed level 1: 0.005 0.25 Faceplate speed level 2: 0.019 1.02

Table load: 12 to.

Technical data: Table load 40 to. Table diameter 3,330 mm Speed 0.01 0.2 U/Min. Voltage 400 V / 50 Hz Power 6 KW To the weight of the table 15. Dimensions L x W x H 5,600 x 2500 x 3,200 mm

Technical data: -max load capacity 3000 kg -Faceplate cross 1600 x 1600 mm -Faceplate cross extension tubes - faceplate cross mot. adjustable 0-90 / 135 ° - rotation infinitely variable 0,01-4 U/min -Right - + rotation control -Transmission of welding current approx. 500 A -400 V - table height in horiz drive. Position without stand approx. 1200 mm -Table height at horiz. Position with frame approx. 2200 mm -Space requirement approx. B H 1600 x 1200 + 1000 X 2400 mm -Weight approx. 2700 kg

Technical data: -Load capacity 300 kg -Faceplate diameter 500 mm -Faceplate in grid levels of tilt - rotation Electr. infinitely variable approx. 0-1.2 m / min -Sweat power 650 A -Drive 220 V / 0.09 kW -Table height in horizontal position approx. 650 mm -Re + reverse - space requirement approx. B H 800 x 650 X 700 mm -Weight approx. 180 kg

Welding turning and tipping-positioning table Technical data: -Load capacity at horizontal position 15000 kg -Load capacity in vertical position 10000 kg -Planpauc diameter 1850 mm -Plane disc with crane support can be swivelled continuously -Rotary motion electr. infinitely controllable -Right-Link Run -Drive 400 V -Ft remote taster -Massea cables -Welding current transmission 500 A -Table height at horizontal position 1850 mm -Space requirements approx. B 2450 x H 1850/2300 x T 3000 mm -Weight approx. 6000 kg

Specifications: - max. Load capacity 10000 kg - Flat discs 1400 x 1400 mm - Flat disc hydr. swivel 0 - 90 / 135 ° - Rotary movement infinitely variable 0.05 - 1.2 rpm - Right - + left-hand running controllable - Welding current transmission approx. 500 A - Drive 400 V - Table height at horiz. Position approx. 2500 mm - E. handheld remote button - Space requirement approx. W 2000 x H 2500 x D 2700 mm - Weight approx. 5200 kg

Specifications: - max. Load capacity 750 kg - Face disc diameter 750 mm - Hollow continuous spindle 65 mm - Face disc motorically swivel 0 - 90 ° - Rotational movement electr. infinitely variable 0.05 - 2.0 m/min - Right - + Left - Run - E. – Foot switch + hand remote control - Welding current transmission approx. 500 A - Drive 400 V - Table height with horizontal position 1050 mm - 3. Cheek lining - Space requirement approx. W 1600 x H 1050 x D 1600 mm - Weight approx. 400 kg

Specifications: - Load capacity 100 kg - Face disc diameter 400 mm - Faceplate infinitely tiltable - Table height with horizontal position approx. 470 mm - Rotational movement electr. infinitely variable 0 - 2.5 m/min - Welding current transmission 400 A - Drive 400 V - Right - Left rotation - Foot switch with foot roller controller for speed regulation - Ground cable - Space requirement approx. W 700 x H 700 x D 600 mm - Weight approx. 100 kg

Stock number: 3876 WELDING TURNTABLE Manufacturer: ESAB, Type: MLA 500 Machine NO.: 414767 Specifications: Large workpiece weight 500 kg Infinitely variable table rotations. pr/min Horizontal / Vertical Length: 1200 mm, Height: 800 mm, Width: 800 mm, Weight: 500 kg

Hydr. Welding Rotary and Tilting Table - Four Axis - Welding Manipulator Specifications: - Max. load capacity 15000 kg - Face plate dimensions 2990 x 2990 mm - min. table height in horizontal position approx. 1070 mm - Face plate mot .rotatable + swivel or tiltable - Face plate horizontal + vertically movable, travel distance 1250 mm - Rotary movement electr. Infinitely variable - Right + Counterclockwise - Welding current transmission approx. 700 A - Drive 400 V - Connected load 33.0 kW - Handheld remote control for speed regulation - E. footswitch - Space requirement approx. W 2990 x H 1070 x D 5500 mm - Weight approx. 12500 kg

Offer 24410 Welding Rotary and Tilting Table – Three Axis – Welding Positioner Specifications: -Max. Load capacity 250 kg - Face plate diameter 400 mm - min. table height in horizontal position approx. 500 mm - Max. table height in horizontal position approx. 800 mm - Working height in 3 steps manually height-adjustable - Face Plate mot. rotatable - Face plate can be swivelled or tilted manually + height adjustment - Rotary movement electr. infinitely variable approx. 0.01 - 2.0 rpm - Right + Counterclockwise - Welding current transmission approx. 500 A - Drive 400 V - Connected load 1.5 kW - Handheld remote control for speed - E-footswitch - Space requirement approx. W 1100 x H 750 x D 700 mm - Weight approx. 500 kg

Specifications: - Load capacity (vertical) 100 kg - Face plate diameter 400 mm - Passage opening 60 mm - Face plate manually infinitely tiltable 0 - 135 ° - Rotational movement infinitely variable mot. Adjustable 0.05 - 5 m/min - E.- Footswitch for start - stop - Table height in horizontal position without castors approx. 750 mm - 3 cheek chuck - Drive 220 V - Space requirement approx. W 450 x H 850 x D 650 mm - Weight approx. 60 kg

Offer 24508 Specifications: - Load capacity 100 kg - Face plate diameter 500 mm - Passage opening 155 mm - Manual face plate infinitely variable left + right tilt - Rotational movement infinitely variable mot. Adjustable - Right + Left Rotation - E.- Footswitch for start - stop - Table height in horizontal position approx. 940 mm - 3 cheek chuck - Drive 220 V - Space requirement approx. W 750 x H 940 x D 750 mm - Weight approx. 100 kg

Offer 24518 Specifications: - Load capacity 150 kg - Pick-up crosses + mounting bolts - Height of mounting bolt in horizontal position 1350 mm - Diameter of mounting bolt 55 mm - Rotary movement infinitely variable - Right.- Counterclockwise rotation - Drive 400 V / 3.0 kW - Height of mounting bolt in horizontal position 1350 mm - Space requirement approx. W 600 x D 1200 x H 1350 mm - Weight approx. 150 kg

Offer 17230 Specifications: - Load capacity 3600 kg - Face plate diameter approx. 1050 x 1050 mm - Face Plate mot. swivel + swivel - Face plate speed electr. infinitely variable 0.2 - 1 rpm -Mot. Right - + Left - Run - Handheld remote control - Welding current transmission 600 A - Drive 400 V - Table height in horizontal position approx. 1450 mm - Space requirement approx. W 1650 x H 1550 x D 2400 mm - Weight approx. 3500 kg - Handheld remote control

Offer 24037 Specifications: - Max. load capacity 150 kg - Face plate diameter 800 - min. table height in horizontal position approx. 600 mm - Max. table height in horizontal position approx. 1100 mm - Face plate hydraulically infinitely variable swivel or tilt - Right + counterclockwise rotation of the face plate - Rotary movement electr. hydt. adjustable - Welding current transmission approx. 500 A - Drive 400 V - Connected load approx. 0.75 kW - Space requirement approx. W 1700 x H 1450 x D 1000 mm - Weight approx. 900 kg

Welding Rotator SARAZIN type HD 100 Maxi loading capacity: 5000 KG Shelf diameter: Ø 1500 mm Shelf diameter with external extensions: Ø 2100 mm Tilting: de 0 to 135° New electrical panel with speed variator Voltage: 380 V Length: 2600 mm Width: 2200 mm Total height in height position: 1700 mm Weight: approx 4 T

Welding Rotator SARAZIN type HD 100 - No 2 Maxi loading capacity: 5000 KG Shelf diameter: Ø 1500 mm Shelf diameter with external extensions: Ø 2100 mm Tilting: de 0 to 135° New electrical panel with speed variator Voltage: 380 V Length: 2600 mm Width: 2200 mm Total height in height position: 1700 mm Weight: approx 4 T
