6 EMAG vtc 250 used machines

swing diameter:200 mm weight of the machine ca.:15 t Distance between tips:832,5 mm turning length:380 mm with chip conveyor and belt filter press, infeed and outfeed belt 2 x 12-position revolvers

Manufacturer: EMAG Year of manufacture: 2009 Model: VTC 250 Find more here - / Contact us at -

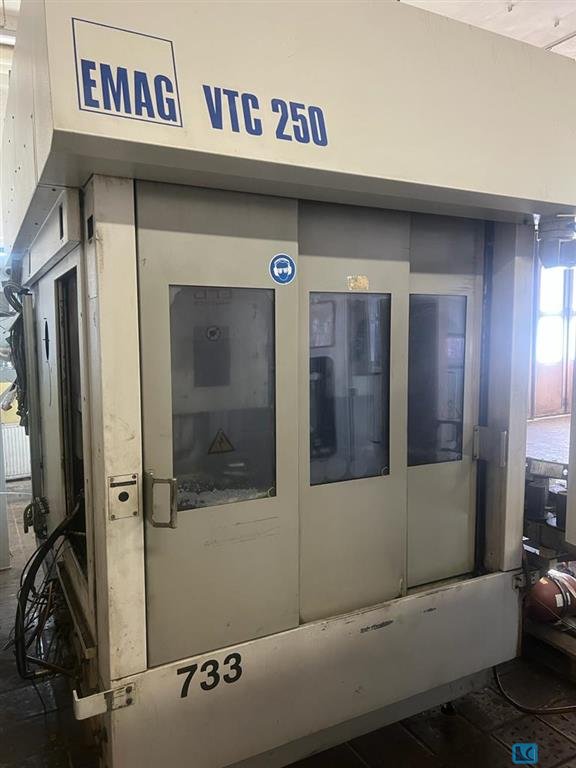

This 4-axis EMAG VTC 250 vertical turning machine was manufactured in 2009. It features a maximum workpiece diameter of 140 mm and a workpiece length of 630 mm. The machine is equipped with a chuck diameter of 250 mm and a maximum spindle speed of 5,000 rpm. If you are looking to get high-quality turning capabilities, consider the EMAG VTC 250 machine we have for sale. Contact us for further details.

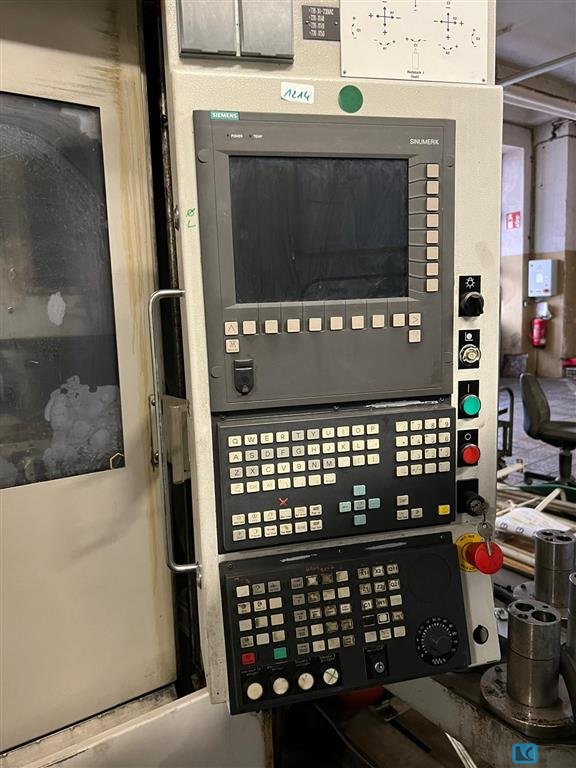

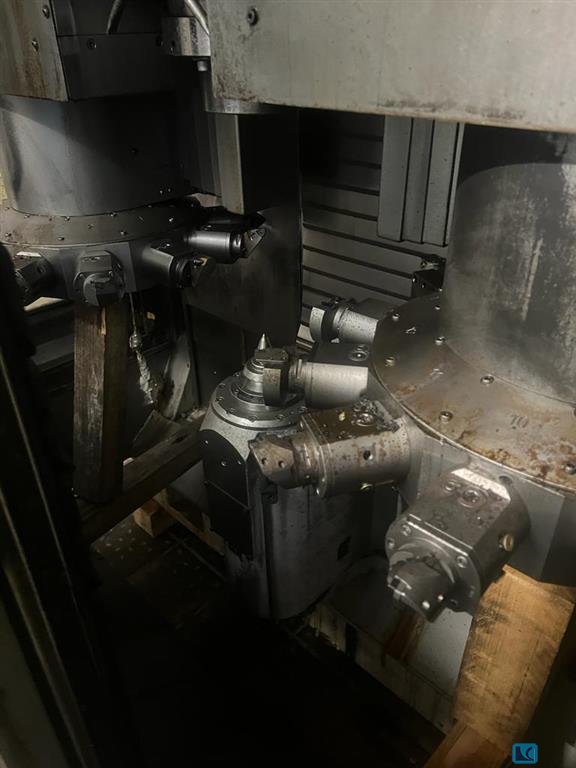

EMAG VTC 250 Vertical lathe GENERAL Project No.: 906007 Quantity: 1 pcs. Manufacturer: EMAG Type: VTC 250 Control: Siemens 840 D Year of Make: 2008 Condition: Used machine Layers Machine Approx (Hrs): 2 Layers DESCRIPTION TURNING Max. turning length 630 mm Max. chuck diameter 200 mm Max. speed main spindle 5000 1/min Max. power main spindle at ED 10-40/100% 38/29 kW Max. torque main spindle at ED 10-40/100% 250/200 Nm Full-clamping cylinder on the main spindle Tailstock NC-controlled Revolver left Number of stations/powered by 11/11 Tool holder in the VDI 40 turret Axles in the turret X/Z Max. rapid traverse speed in X/Y/Z 30/-/40 m/min Revolver right Number of stations/powered by 11/11 Tool holder in the VDI 40 turret Axles in the turret X/Z Max. rapid traverse speed in X/Y/Z 30/-/40 m/min OTHER EQUIPMENT Tool measurement using lasers  ...

This EMAG VTC 250 was manufactured in 2013. It features a chuck diameter of 250 mm and can handle workpieces up to 140 mm in diameter. The machine offers an X-axis travel of 300 mm and a Z-axis travel of 740 mm. Consider the opportunity to buy this EMAG VTC 250 vertical turning machine. Contact us for more information.

This EMAG VTC 250 was manufactured in 2015. A vertical turning machine featuring a chuck diameter of 250 mm and maximum workpiece diameter of 140 mm. Axis travel includes 300 mm on the X-axis and 740 mm on the Z-axis. Consider the opportunity to buy this EMAG VTC 250 vertical turning machine. Contact us for more information.
