0 EMCO turning machines lathes used machines

turning diameter over bed: 280 mm turning diameter over slide rest: 170 mm turning length: 600 mm weight of the machine ca.: 400 kg spindle passage: 26 mm speeds: 55-2000 U/min total power requirement: 1,4 kW dimensions of the machine ca.: 1,5 x 0,8x 1,3 m Including EMCO SOD grinding support Including EMCO 4-jaw chuck Including machine feet Including change gears The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Machine according to DIN 8605: lathe with increased accuracy. Top width: 700 mm Tip height: 170 mm Swing over bed: Ã? 340 mm Swing over cross slide: Ã? 190 mm Bed width: 260 mm Longitudinal slide displacement: 600 mm Cross slide displacement: 220 mm Upper carriage displacement: 110 mm Plan carriage length: 410 mm Plan slide width: 150 mm Bed slide length: 380 mm Turning tool cross section: 20 x 20 mm Distance turning Center - upper carriage: 34 mm Range of the upper carriage (support): 60 / 120 ° Main spindle: Spindle connection DIN 55029 (camlock): S 5 spindle bore: Ã? 50 mm Internal cone according to DIN 7178: 1:22 spindle diameter in front bearing: Ã? 70 mm Maximum Chuck diameter: Ã? 200 mm Faceplate diameter: Ã? 200 mm Spindle speeds: 40-3000 rpm Speed: Stepless mechanical speeds: 4 Main drive: Power at 40% ED: 5,3 kW Maximum no ...

Workspace: - Travel in X/Y/Z: 220 / - / 710 mm - Center width: 700 mm - Tip height: 170 mm Main spindle: - Max. speed: 3000 rpm - Spindle connection: size 5 (DIN 55029) - Max. drive power: 5.3 kW Tailstock: - Inner cone: MK3 - Quill stroke: 120 mm - Inner cone of the quill: 50 mm

Key data: 330 mm, 850 mm, 190 mm

Circumferential diameter over bed / support 330 / 190 mm Center width 850 mm Bore 36 mm Speed range 60 - 2400 1/min Tailstock quill MK 3 / stroke 100 mm incl. accessories: 4-fold holder, chip back panel, T-slots in cross support Tightening tube for collets (New machine was designed according to DIN 8605)

Lathe beds, unused Compakt 5 , Compakt 8, Compakt 11, Super 11, Interchangeable Wheels , Other EMCO Parts: Clamping tables, angle tables, steady rests, lathe spindles, milling spindles, ...

The machine is in good technical condition, testing is possible by prior arrangement.

General Manufacturer: Emco Type: Emcomat EM17D Year of Make: 1996 Travel: X 220 mm Z 710 mm Working spindle Speed: 3,000 rpm Spindle bore: 50 mm Rotary diameter over bed: 340 mm Rotary diameter over slide: 190 mm Turning length: 700 mm Spindle holder: DIN55029 Tool holder: Multifix B Quill stroke: 120 mm Dimensions and weight Dimensions: 1,650 mm x 1,060 mm x 1,635 mm Weight: approx. 755 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: Tailstock MK3 3-jaw chuck Schunk 4-jaw chuck Face Plate 4x Multifix holder B

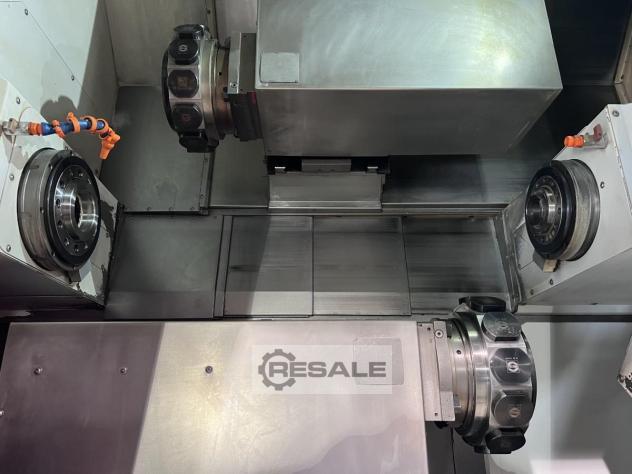

CNC turning-milling center Emco Hyperturn 65 Powermill SMYB Commissioning 7/2019 At call!!! Siemens 840D-SL Shopturn Main spindle BigBore spindle passage 76mm KK8 - 4,000 1/min Sub-spindle KK6 - 5,000 1/min 40-speed chain magazine HSK-T63 Turret bottom VDI30 / Sauter Electronic handwheel Emco Tool Breakage and Wear Gear milling Shopturn Expansion Pack 5-axis simultaneous machining Energy management for Sinumerik OPC UA / Siemens interface 3D machine model Emco Standard Bar Feeder Interface Machine Status Lamp LED Multiflow Cleaning Gun Oil Mist Separator Belt filter system with IKZ Main Spindle Clamping Hook Hainbuch Clamping Top Mini Combi Ax Hoist Sub-spindle Schunk 185mm THW-plus with hard jaws The options list is complete! No interest in dealer enquiries! No separate dealer price! WB mechanics GmbH is a precision mechanics workshop that markets i ...

CNC turning-milling center Emco Hyperturn 65 Powermill SMYB Commissioning 10/2017 At call!!! Siemens 840D-SL Shopturn Main Spindle SuperBigBore Spindle Passage 95mm KK8 - 3,500 1/min Sub-spindle KK6 - 5,000 1/min Milling spindle HSK-T63 12,000 1/min / new milling spindle 2024 40-speed chain magazine HSK-T63 Turret bottom VDI30 / Sauter Electronic handwheel Emco Tool Breakage and Wear Gear milling Shopturn Expansion Pack 5-axis simultaneous machining Energy management for Sinumerik OPC UA / Siemens interface 3D machine model Emco Standard Bar Feeder Interface Machine Status Lamp LED Multiflow Cleaning Gun Oil Mist Separator Belt filter system with IKZ Main Spindle Clamping Hook Hainbuch Clamping Top Mini Combi Ax Hoist Sub-spindle Schunk 185mm THW-plus with hard jaws The options list is complete! No interest in dealer enquiries! No separate dealer price ...

For sale Emco CNC double spindle lathe type Hyperturn 45. A very complete CNC lathe with left and right spindle, as well as an upper and lower turret. Both turrets have driven tool positions! The upper turret also has a Y-axis with 70 mm travel. Tool holder attachment VDI25, rod capacity left spindle is Ø 45 mm, maximum speed 7,000 rpm. Maximum diameter is Ø 300 mm. Maximum part diameter is 480 mm. The distance between the two spindles is 720 mm. Fanuc 18i-TB control. The machine is equipped with high pressure pump, chip conveyor with right ejection, parts catcher, manual collet devices, etc. Available from stock, subject to prior sale. The machine has a light layer of soot. This can be easily removed.

Manufacturer: Emco and Padovani Model : EMCOMAT-E200/1000 Year of manufacture: 2001 CE certified: Yes Included with the Machine - Complete set of tools - Full set of accessories Find more here - / Contact us at -

Emco Maximat V10-P Lathe. 3-speed 380V, 2-stage motor runs smoothly! Forward and reverse rotation. Geared spindle drive, gears run in oil. 8 spindle speeds adjustable from 60 to 2500 RPM. Automatic feed in longitudinal and cross directions. Norton gearbox for easy thread cutting. Metric. MT2 tailstock taper. Emco quick-change tool post with 7 holders. Made in Austria! Includes accessories as shown in the last two pictures at the front of the machine. The machine is in very good condition! Center distance: 650 mm Center height: 125 mm Spindle bore: 22 mm Overall dimensions: 125 x 55 x 40 cm

turning diameter: 200 mm turning length: 0,0 mm control: Siemens 810 D working spindle speed range: 4200 U/min travel -x axis: 210 mm travel -z axis: 610 mm spindle passage: 65 mm total power requirement: 0,0 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dear Ladies and Gentlemen, the machine is to be returned immediately.the machine ran in a single shift, the Siemens modules are new

Machine Type: NC Cycle Lathe Manufacturer: Emco Type: Emcomat EM300x2000 Year of Make: 2015 Condition: used / very good, few operating hours **Serviced exclusively by Hedelius** **Offer will only be sent if a complete imprint is provided!** Price VB Location Warstein , Germany Reference MV-EMC-0824 DESCRIPTION We offer you a used NC cycle lathe from the manufacturer Emco. Control Fagor Spindle speed max. 2500 Multifix Base Holder Tip width 2000 Availability: immediately Our offer is aimed at tradespeople who are registered within the meaning of the Trade Regulation Act according to §14 GewO. The offer is subject to change, subject to prior sale. Please provide your full contact details to receive a quote with our terms and conditions of payment. Errors in the descriptions and offers are reserved

turning diameter: 420 mm turning length: 600 mm control: Sinumerik 810D spindle turning speed range: 4200 U/min spindle motor: 18 kW spindle bore: 65 mm x-axis: 210 mm z-axis: 610 mm greates pass round over bed: 600 mm swing diameter over slide rest: 360 mm tailstock travel: 500 mm tailstock quill taper MT: 4 dimension of workpiece: dia 200 x 520 mm total power requirement: 20 kVA weight of the machine ca.: 4,5 t dimensions of the machine ca.: 3 x 1,9 x 1,9 m - CNC control Siemens Sinumerik 810D - 12-position turret (VDI 30), driven tools 4000 rpm - Main spindle - Tailstock (MK 4) - C-axis - Coolant device - suction unit - Chip conveyor Machine has mainly processed plastic The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 85 mm, 255 mm, 6300 1/min

CNC lathe Emco E25 Powermill TCM Commissioning 03/2019 At call!!! Siemens 828D Shopturn Main spindle spindle passage 25mm PF - 6,300 1/min Turret 12-speed VDI16 driven tools 6,000 1/min PC Keyboard Machine set-up and fastening material Parts collection device Emco Standard Bar Feeder Interface Machine Status Lamp LED Multiflow Cleaning Gun 8-bar high-pressure coolant device Power Chuck 95/3 Röhm Pliers chuck KZF 20 for 148E Tool holder pact stationary/driven 9 pieces Radial Milling Holder VDI16 2 WStück Axial Milling Holder VDI16 2 WStück OPC UA / Siemens interface The options list is complete! No interest in dealer enquiries! No separate dealer price! WB mechanics GmbH is a precision mechanics workshop that markets its used machines on its own. We are not a machine dealer, but the machine user! The machine is in use in our company until it is sold ...

Twin Turret Twin spindle type CNC Lathe Control Unit: Siemens 840 D Turning diameter: 140 mm Turning length: 480 mm Distance main-spindle - subspindle: 720 mm Main spindle hole diameter 42 mm Turret type: 12 station with VDI25 tool holder

Control Fanuc 21T Turning diameter 158 mm Circumferential diameter over bed 340 mm Speed 6,000 min-1 8-speed revolver Tailstock 3-jaw chuck, 2-jaw chuck, collet chuck Collets Versatile tool holders

Inv. Num. : 8736 Type: TURN E65 Producer: EMCO Created: 2018 Parameters: Control system: SIEMENS Max. turning diameter: 500 mm Maximum turning diameter over bed: 610 mm Maximum length of travel in the X-axis: 210 mm Maximum length of travel in the Y-axis: 40 mm Maximum feed in the Z-axis: 610 mm Maximum main spindle power: 22 kW Maximum spindle speed: 5000 1/min Max. rod diameter: 65 mm Length: 3335 mm Width: 2315 mm Height: 2450 mm Weight: 6500 kg

Key data: 340 mm, 2000 mm

Emco Emcomat E-300 2-Axis Teach-In/Cycle-Controlled CNC Lathe CNC control Fagor 8055 i Power TC Turning diameter 340/570 mm Turning length 2000 mm Center height 275 mm Spindle diameter 108 mm Spindle nose D 1-8 Spindle speed 0-2,500 rpm X-axis travel 310 mm Travel Z-axis 2000 mm If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail. Feel free to check out our other ads for a full overview of our stock.

With C axis Swing over bed Ø 610 mm Swing over slide Ø 360 mm Distance between centers on tailstock version 682 mm Maximum turning diameter Ø 500 mm Maximum part length 520 mm Maximum bar diameter Ø 65 Travel in X / Z 260 / 610 mm Spindle speed 5000 rpm Number of tool on turret 12 Tool holder type VDI30 Controller FANUC Oi TF

turning diameter: mm turning length: mm control: 0 total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

EMCO Hyperturn 45 - CNC lathe - Main spindle equipped with full-clamping cylinder (operation with bar feeder not possible or loading and unloading via automatic. Swivel loader, see video) - Year of construction 2011 Technical data Working Range: - Maximum circumferential diameter over bed: 430 mm - Circumferential diameter over face slide: 300 mm - Maximum turning diameter: 300 mm - Maximum part length: 480 mm - Maximum bar passage: 45 mm - Distance main spindle - counter spindle (spindle lugs): 720 mm Carriage travel range: - Carriage travel X / X2: 160 / 150 mm - Carriage travel Z / Z2 / Z3: 510 / 510 / 510 mm Main spindle (spindle 1): - Spindle connection - DIN 55026: KK 5 - Spindle bore: 53 mm - Spindle bearing (inner diameter): 85 mm - Maximum mass inertia for clamping device and workpiece: 0.08 kgm² Main spindle clamping system: - Hollow clamping cylinder ...

Inv. Num. : 9029 Type: TURN E65 Producer: EMCO Created: 2008 Parameters: Control system: FANUC Max. turning diameter: 500 mm Maximum turning diameter over bed: 610 mm Maximum length of travel in the X-axis: 210 mm Maximum length of travel in the Y-axis: 40 mm Maximum feed in the Z-axis: 610 mm Weight: 6500 kg
