Tilting spindle moulders used for sale (27)

Table milling machine - swivel spindle milling machine Manufacturer: Holzkraft Model: Tecnomax T50 Year of Make: 2007 Spindle swivel Feed unit Manufacturer: Maggi Model: Steff 2034

Martin T25 Schwenkspindelfräse mit 2 Achs-elektrische Verstellung Marke: Martin Typ: T25 M-Nr.: V175170 Baujahr: 1990 Motor: 5/6 kW Schwenkung Frässpindel: -5° – +45° Fräsdorn: 30 mm Spindelhöhenverstellung: 150 mm (elektrische Einstellung) Drehzahlen: 3000/4500/6000/9000 U/min (2 Drehzahlmotor) Konus der Frässpindel: MK5 Softstarter: Automatischer Frässpindel-Anlauf/-bremsung per Drehknopf Systemsteuerung: Unteres Spindelverstellung: Elektromotorhöhenverstellung mit Analog-Auslesung Schrägstellung -5° – +45°: -5° – +45° Elektromotorschräge mit digitaler Lesart Fräsanschlag: Aigner Intergraal Anschlag Zustand: Voll funktionsfähig getestet

Robust swivel milling machine T 26 swivel from -45 to +45 degrees Pole-switchable drive motor 5 / 6kW with automatic motor brake R/L Barrel Swivel angle from - 45 to + 45 degrees electrically adjustable Height adjustment max. 150mm, electrically adjustable When adjusting the height, the correction factor for the swivel angle is displayed in the upper display, which is then adjusted at the stop, so that adjustments can be made according to drawings Four speeds 3000, 4500, 6000 and 9,000 rpm Spindle diameter 30mm, mandrel fix quick-change spindle with torque wrench Comfort stop T226 with digital displays for total adjustment and infeed jaw individually, as well as input of the cutter diameter, whereby the cutting depth is automatically calculated Stop with lifting device can be swivelled away (for sheet milling work) Table extension right and left with pull-out workpiece suppor ...

Table dimensions: 2.000 x 815 mmMotor output: 7,5 kWSpindle diameter: 30 /40 mmreus: 1.500-10.000 U/minWeight: ca. 820 kgswival range +/-: -45,5° bis +45,5° °table height: 890 mmheight adjustment: ca. 145 mmtool taper: MK5 : Ja : Ja Dust suction hood: 120 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

MARTIN Swivel milling machine, type T 23, built in 1978, swivel range: -5 to 45°, spindle diameter 30mm, speeds: 4, height adjustment: handwheel, motor: 6 kW, table dimensions 1,100 x 940 mm, swivel adjustment handwheel

Martin T25 tilting table spindel moulder with 2-axl electric positioning Manufacturer: Martin Type: T25 M-Nr.: V172604 Year: 1990 Motor: 5/6 kW (2 RPM drive motor) Tilting: -5° – +45° Spindle diameter: 30 mm Spindle elevation: 150 mm (electrical adjustment) Rotation speed: 3000/4500/6000/9000 U/min (2 RPM drive motor) Spindel pick-up: MK5 Table: Table extension 2.500mm with extendable support (pull-out for wide workpieces) Softstarter: Automatic spindel softstart/- braking Control panel: Eye-level with digital read-out Spindel elevation: 150 mm elelvation electric with digital read-out Spindle tilting: ‘-5° – +45° Electric with digital read-out Feeder: Five-pole socket via central control Condition: Fully functional Optional: Aanvoerapparaat: Not included Aigneraanslag: Not included

Spindle moulder with tilting shaft SCM mod. T110I - CE -Volt. 400/50 - Matr. AB/118120 - Year 1998

Martin T26 tilting table spindel moulder with 2-ax control and 7.5 kW frequency controlled spindle RPM Manufacturer: Martin Type: T26 with 7.5 kW frequency controlled spindle RPM Machine Nr.: 20000 Year: V415216

HOFMANN swivel spindle milling machine TFS 1200 Year of manufacture: 2004 S/N 127-01323 Manufacturer: Hofmann Bad Windsheim from a training company very good condition electric height and swivel adjustment manual height and swivel adjustment for fine adjustment analogue display for height adjustment, height adjustment 125mm Table size 1200 x 820mm and table extension 200 x 820mm Swivel range -5° to + 45 Spindle speed 3000/4000/5000/6000/8000/10000 rpm. Milling spindle D=30mm milling mandrel MK5 Engine 4.7 Kw / 6.3 hp Suction nozzle D=120 mm Side roller table with eccentric hold-down device and adjustable angle stop Height adjustable with handwheel CE mark Weight 1300 kg

Martin T26 tilting table spindel moulder with 2-ax electric control and 7.5/9.5 kW 2-speed motor Manufacturer: Martin Type: T26 M-Nr.: 2005 Year: V453599 Control: electrical spindel-elevation, -tilting,-feeder elevation, manual fence positioning with digital reading Control panel: machine stand Motor: 7.5/9.5 KW 2-speed motor rpm Spindel : ø40 mmSK40 plus Dornfix-quick change system Tilting: Tilting from -45 to + 45° Spindle elevation: Electric spindle elevation 150 mm; quick- and slow speed Electro-pneumatic spindle fixation for safe and easy tool change Central greasing (long life greasing) Rotation speed: 2-speed motor 7.5/9.5 kW Spindel pick-up: SK40 Dornfix quick change system Table: 1255 x 900 x 95 mm from cast iron Ax-control: 1. Digital-electric controlled spindle height setting, with automatic milling dept. Compensation when spinlde is tilted 2. Digital-electric controlled spi ...

Weibert WJ-F10 Table milling machine new • New version: WJ-F10-1150 • Milling machine: swivel 90°-45° • Milling machine rpm 1400/3500/6000 and 8000 min. • Sliding table 1150mm (optional 1600mm) • Motor power: 400V 3 KW (4.0 HP) • WJ-600100 • Options at extra cost: • Telescope 900mm • Eccentric clamp • Milling motor 4 KW (5.5HP), S1 100% • Milling motor 5.5 KW (7.5 HP)S1 • Milling spindle 30mm • Eccentric clamp • Integral safety rails 500mm • Clockwise and counterclockwise rotation • Table extension right/left

Martin T25 tilting table spindel moulder with 5-axl CNC control Manufacturer: Martin Type: T25 M-Nr.: V252368 Year: 1998 Motor: 7.5/9.5 kW oder 10/13 BHP, 2 RPM Dalander motor Tilting: -5° till +45° Spindel diam.: 30 mm Spindel pick-up: ISO-quick change Spindel elevation: Spindle height adjustment: 150 mm Rotation speed: 3000/4500/6000/9000 U/min Table: Table extension 2.400mm with extendable support (pull-out for wide workpieces) Control panel: CNC control at eyes height with LCD screen Spindel elevation: CNC-controlled with electric elevation (programm controlled of hand switch setting) Spindel tilting: CNC-controlled with electric tilting, angle: -5° +45° (programm controlled of hand switch setting) Fences: CNC-controlled with electric positioning vs. spindel position (programm controlled of hand switch setting) CNC-controlled with electric positioning infeed vs. outfeed fence (pr ...

SPECIFICATIONS: Swiveling spindle milling machine Table size mm: 1200 x 820 vertical spindle stroke length mm: 180 I Spindle diameter mm: 50 II Spindle diameter mm: 30 Powerlock Spindle speed: 10,000 rpm. Motor power KW: 7,5 Complete with: -Control panel - 4-roller feed with variable adjustment

MARTIN T27 FleX with 4-ax CNC control + 5-ax manual controlled but integrated in central control + electric feeder elevation Year: 2007 Tilting: from -46° to +46° T27FX/1-a: T27 FleX tilting spindle moulder CE-norm with 7,5KW/10 HP motor and variable speed – frequency controlled CNC controlledspindle elevation CNC controlled tilting with automatic height adjustment when tilted T2704-a: Motor 9,5KW/13 HP motor and variable speed – frequency controlled rpm 1.000 – 12.000 tpm., incl. collission control T2711-a: Infeed fence manually controlled with digital counter, whereas position is integrated in central control linked T2712-a: CNC controlled fence positioning (left& right hand-side combined) T2714-a: CNC controlled table opening (programm integrated for tools Ø70 upto 250 mm T2715-a: Electric controlled feeder elevation-product thickness T2731-a: Table extension at infeed-outfee ...

Weibert WJ-F10 Swivel spindle milling machine Milling machine: swivel 90°-45° Milling U/min 1400/3500/6000 and 8000 Sliding table 1150mm (Optional 1600mm) Engine power: 400V 3 KW (4.0 hp) WY-600100 Options at extra cost: Telescope 900mm WJ-600108 Eccentric tensioner Milling motor 4 KW (5.5HP), S1 100% Milling motor 5.5 KW (7.5 HP)S1, WJ-600102 Milling spindle 40,50 or 60mm, Integral safety rails 500mm, WJ-500111 Right and left-hand milling machine, WJ-600106 Table extension right/left, WJ-600107 Feed

Martin T26 tilting table spindle moulder with CNC 4-ax control Manufacturer: Martin Type: T26 CNC Year: 2002 Control: 4-ax CNC Control Control panel: eye-level Remark: Special paint Martin 75 Years Ral 7035& 6004 Motor: 7.5/9.5 kW – twin-speed motor Tilting: -45 tot + 45° Spindel diam.: ø40 mm spindel SK40 – Dornfix-quick change Spindel elevation: Electric spindel elevation 150mm (2 speed) Spindel elevation Electric-pneumatic spindel lock (Tool changing) Central greasing Rotation speed: Twin-speed 3000-6000 rpm or 4.500-9000 rpm, electronic display, electric -automatic brake Spindel pick-up: Dornfix-quick change spindel Table: Table extension, infeed and outfeed 2405mm long, frontside support 3000mm long, frontside extension 700mm Control panel: 1. CNC-controlled spindel elevation, with automatic dept and height control when spindle is tilted 2. CNC-controlled spindel tilting, with ...

Professional spindle grinding machine with aluminum sliding table and tilting device KUSING SFna 1200. Technical parameters: Power of the main engine: 3 kW (4 hp) Spindle diameter: ø 30 mm Spindle length: 140 (120) mm Stroke of the spindle: 170 mm Maximum tool diameter: ø 180 mm Tool speed: 3000/5000/8000 rpm The size of the iron table: 980 x 450 mm Size aluminium table: 1200 x 360 mm Tilt: 0-45° Weight of the machine: 320 kg Formatting trolley of the highest quality according to the principle of hardened rod guide (ALTENDORF principle) KuSING has been manufacturing woodworking machines since 1991.

Panhans 245 Easy Tilting spindlemoulder Manufacturer: Panhans Type: 245 Easy M-Nr.: 3003 Year: 2008 Control: 2-ax electrical controlled, spindle elevation and -swivelling, Handwheel controlled rearfences vs. spindel with digital counter reading and handwheel controlled right vs. left fence setting with digital counter. Control panel: Eye level, ergonomic turning Remark:

According to the PDF prospectus!

MARTIN T27 FLEX tilting table spindle mouder: +/- 46º plus 2 CNC controlled axes Brand: Martin Type: T27Flex M-Nr.: V528804 Year: 2014 Specifications: Frame: Composite structure: Steel outer walls filled with a steel-concrete composite structure providing the best stability, stiffness ande high vibration absorption capabillities Weight: ca. 1.450 kg Table dimensions: 1255 x 900 x 95 mm., cast-iron Working height: 900 mm Tool opening-table: 255/205/161/106/74 mm. diam. Tools with max diam. Ø 250 mm (max. 150 mm. when tilted 45º) under table level elevation RPM: 3.000, 4.000, 5.000, 6.000, 8.000, 10.000 rpm RPM-adjustement: Frequency controlled Control panel at eye level, turning for highest operator comfort Control: PowerPC-controll industrial controll, equipped with Linux TFT Touchscreen Controll panel with 216 colours), CAN-controlled servo-motoric driven axes for highest repeatabili ...

Martin T26 tilting table spindel moulder with 2-ax control and 7.5 kW frequency controlled spindle RPM and tenon table Manufacturer: Martin Type: T26FleX M-Nr.: 2000 Year: V409217 Control: Control at eye level: spindel-elevation, -tilting, infeed fence positioning, rpm-setting Control panel: Panel at eye-level, swivelling for operator comfort Motor: 7.5kW (10 BHP) with frequency controlled motor rpm Spindel : SK40 plus Dornfix-quick change system Tilting: Tilting from -45 to + 45° Spindle elevation: Electric spindle elevation 150 mm; quick- and slow speed Spindle elevation referencing tool 0-position Electro-pneumatic spindle fixation for safe and easy tool change Central greasing (long life greasing) Rotation speed: Frequency controlled 7.5 kW Spindel pick-up: SK40 Dornfix quick change system Table: Table ext6ension infeed side and tenontable outfide, that can also be used as table ext ...

Martin T26 tilting table spindel moulder with 2-ax control and 7.5 kW frequency controlled spindle RPM Manufacturer: Martin Type: T26 M-Nr.: 2000 Year: V415216 Control: Control at eye level: spindel-elevation, -tilting, infeed fence positioning, rpm-setting Control panel: Panel at eye-level, swivelling for operator comfort Motor: 7.5kW (10 BHP) with frequency controlled motor rpm Spindel : SK40 plus Dornfix-quick change system Tilting: Tilting from -45 to + 45° Spindle elevation: Electric spindle elevation 150 mm; quick- and slow speed Spindle elevation referencing tool 0-position Electro-pneumatic spindle fixation for safe and easy tool change Central greasing (long life greasing) Rotation speed: Frequency controlled 7.5 kW Spindel pick-up: SK40 Dornfix quick change system Table: Table length 2.40 mm, width: 700 mm front-side extendable Achs-control: 1. Digital-electric controlled spin ...

Table dimensions: 1100 x 760 mmMotor output: 4,7 kWSpindle diameter: 30 mmreus: 4 U/minWeight: 850 kgYear: 1979 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

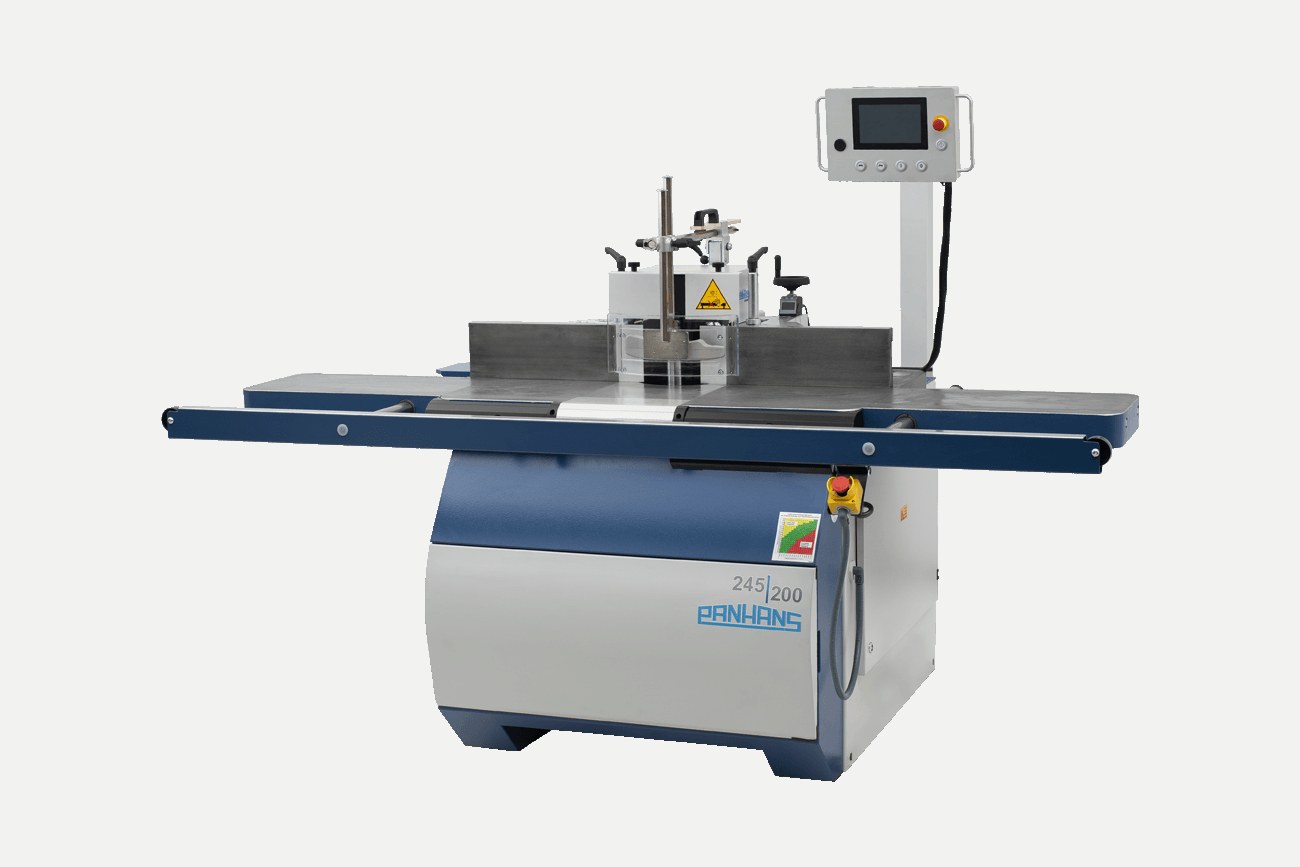

Swivel spindle milling machine Brand: Panhans type: 245/200 New machine Solid 880 kg machine with smart control system - Infinitely variable speed regulation 1500 - 10,000 rpm, - 7.5 kW motor with 11 kW frequency converter - Pushbutton with electronic soft start 7 touch control, optional use, top and bottom - Cutter zero point selectable in program, 3 reference points - Simple operating menu through innovative touch control (max. 2 levels) - Operating hours counter - Warning messages in case of operating errors - Remote maintenance via Internet (VPN tunnel) - USB interface for data backup and import of tools, programs and users - Tool database for 5 tools (20 programs are possible per tool) - 2-axis positioning control for height and swivel adjustment - Electronic position and speed displays Double-sided swiveling, fixed milling spindle for the swiveling range  ...

Table dimensions: 1.200 x 780 mmMotor output: 7,5 kWSpindle diameter: 30 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Spindle milling machine, swiveable Brand: Panhans Type: 245/20 New machine Technical specifications: - Table size 1100 x 760 mm - table height 870mm - Milling spindle 30 mm, not exchangeable - Clamping height 140mm - Height adjustment 125mm - Extraction nozzle 2 x Ø 120mm - 4 speeds 3000/4500/6000/9000 rpm. - Weight approx. 800 kg - Motor power 5.5 kW / 7.5 PS - voltage 400V / 50Hz - Space requirement 1200 x 1400mm Solid German mechanical engineering Table milling machine with double-sided swiveling permanently installed milling spindle for a swivel range from -5 ° to + 45.5 ° Positioning control for height and swivel adjustment with zeroing of the height and offset Electronic position and speed indicators Quick release belt device Push button for spindle start and stop Left and right rotation Quick clamping device for milling cutters Finely planed gray c ...

Table dimensions: 1100 (2300) x 760 mmMotor output: 7,5 kWSpindle diameter: 30 mmreus: 1500 - 10000 U/minWeight: ca. 880 kgPanhans swivel milling machine 245|200------------------------------------Technical specifications------------------------------------Pos. 1:Table size 1100 x 760mmTable height 905mmMilling spindle 30mm with quick-release nutClamping height 140mmHeight adjustment 125mmExtraction connection 2 x Ø 120mmStepless speed regulation 1500-10000 rpmEngine power 7.5 kW (10 hp)Net weight approx. 880kgTechnical description:7 touch control, optionally usable, top andbelow7 capacitive touchscreen, even with glovesoperable (e.g. with Maxi Flex)Language switching German, English, French(other languages on request)Milling zero point selectable in the program, 3 reference pointsSimple menu structure through innovative touch control(max. 2 levels)Display (work screen) for tool andProg ...
