Measuring Machines CARL ZEISS CMM PRISMO 9/12/7

Fully functional without the slightest defect.

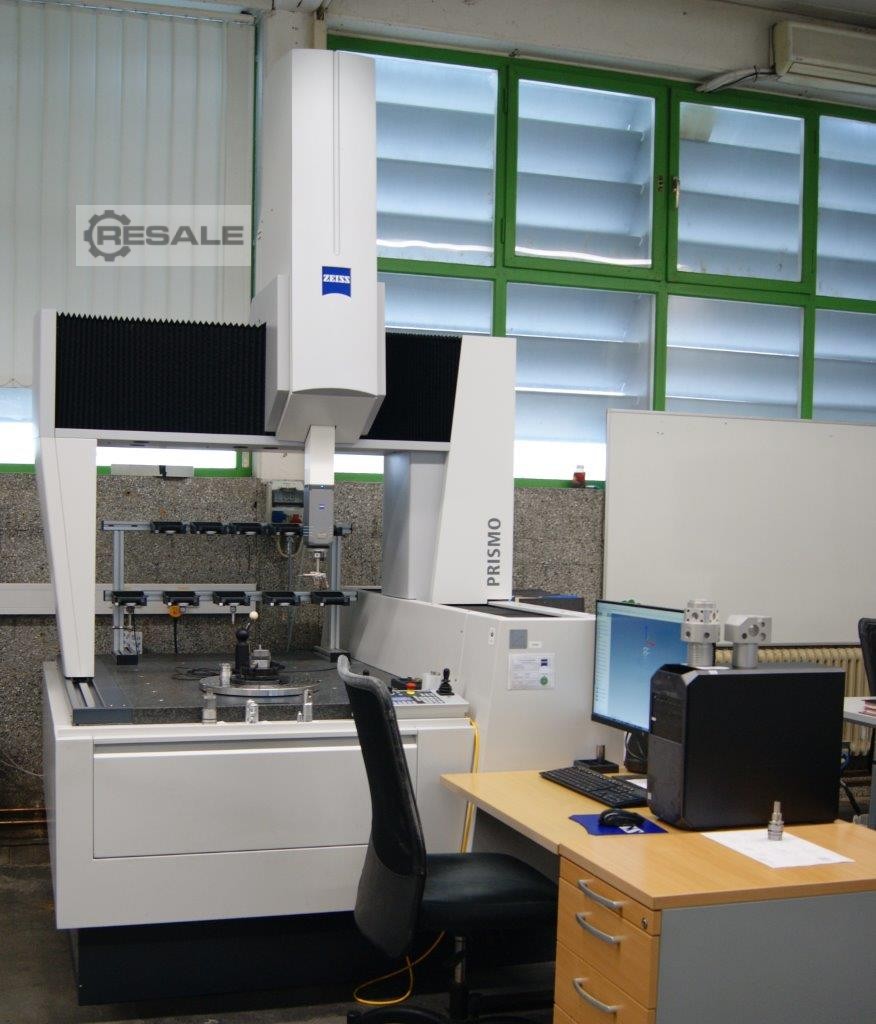

CNC coordinate measuring machine (CMM) in gantry design (ceramic technology)
Audrey CMM PRISMO 9/12/7
incl. accessories
Year of manufacture 2018
Last calibration: March 2024
New price at that time: €348,313 gross

- Measuring volume X = 900 mm, Y = 1200 mm, Z = 650 mm
- Table height TH = 850 mm

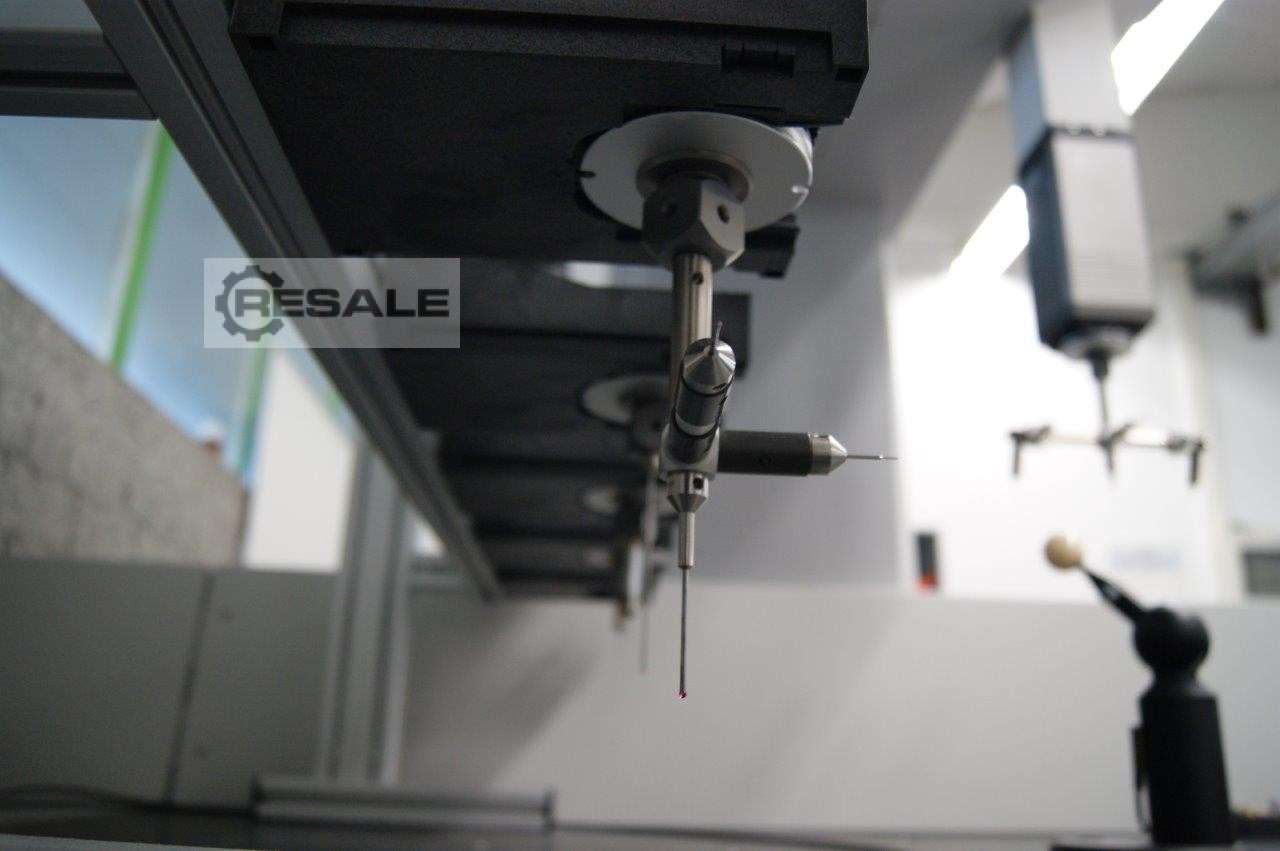

Tactile Active and Tactile Passive Sensors for Multi Application Sensor System (mass)
- VAST Navigator, VAST Performance, and VAST XXT measurement technologies (tactile passive scanning)
- PC-based Integrated Scanning Control (ISC) through external C99N controller
- International Protection Code: IP54 for enclosures
- Glass-ceramic scales in all 3 axes

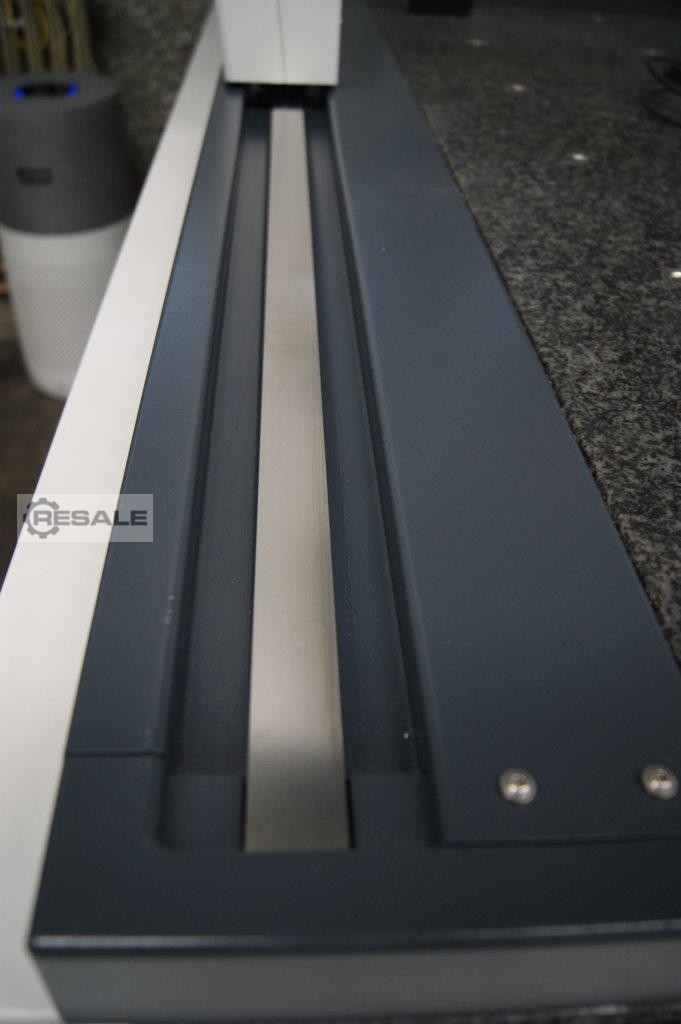

- Guideways: X-axis fully enclosed, Y-axis fully enclosed on both
Pillar Sides
- 2 magnetic temperature sensors for workpiece, additional for VAST gold: 1
Temperature Transducer RST-T
- Thermal insulation of the granite base plate
- Integrated passive, highly efficient viscous vibration damping
- AirSaver technology to reduce air consumption, documentation and licensing
- CMM documentation (EPLAN21 in pdf format) on data carrier
- Acceptance documents, operating instructions
- Software licenses for CALYPSO basic package, VAST navigagtor, VAST performance
- Remote service during the warranty period Serial number: (212042)

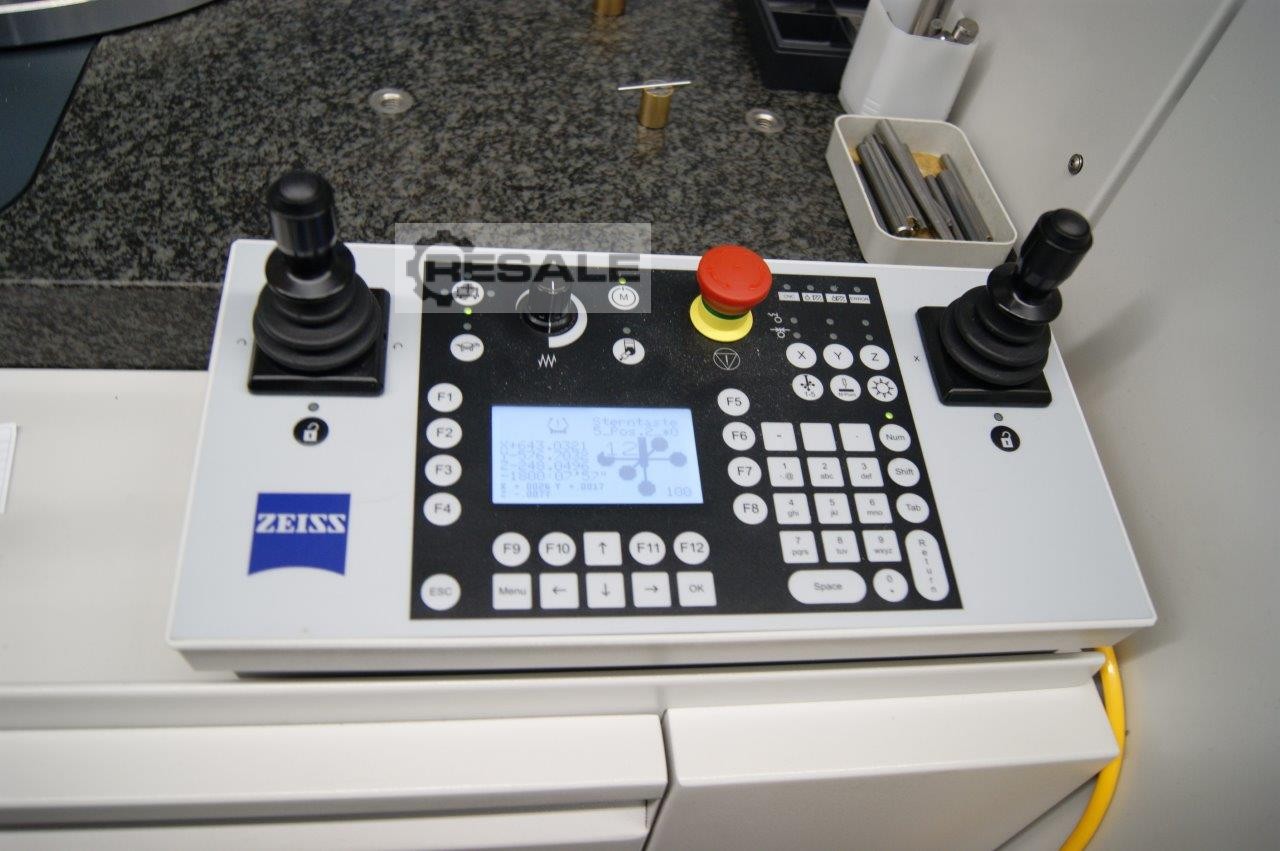

CMM control panel
- For CMMs with their own power button (on the control cabinet)
Features
- Allows manual control of the CMM and the swivel joint
- Two progressive joysticks, can be used as a mouse
- LCD display for CMM status, coordinates and current transducer number
- Rotary knob for speed adjustment
- Quick function keys F1 to F12
- Emergency stop button

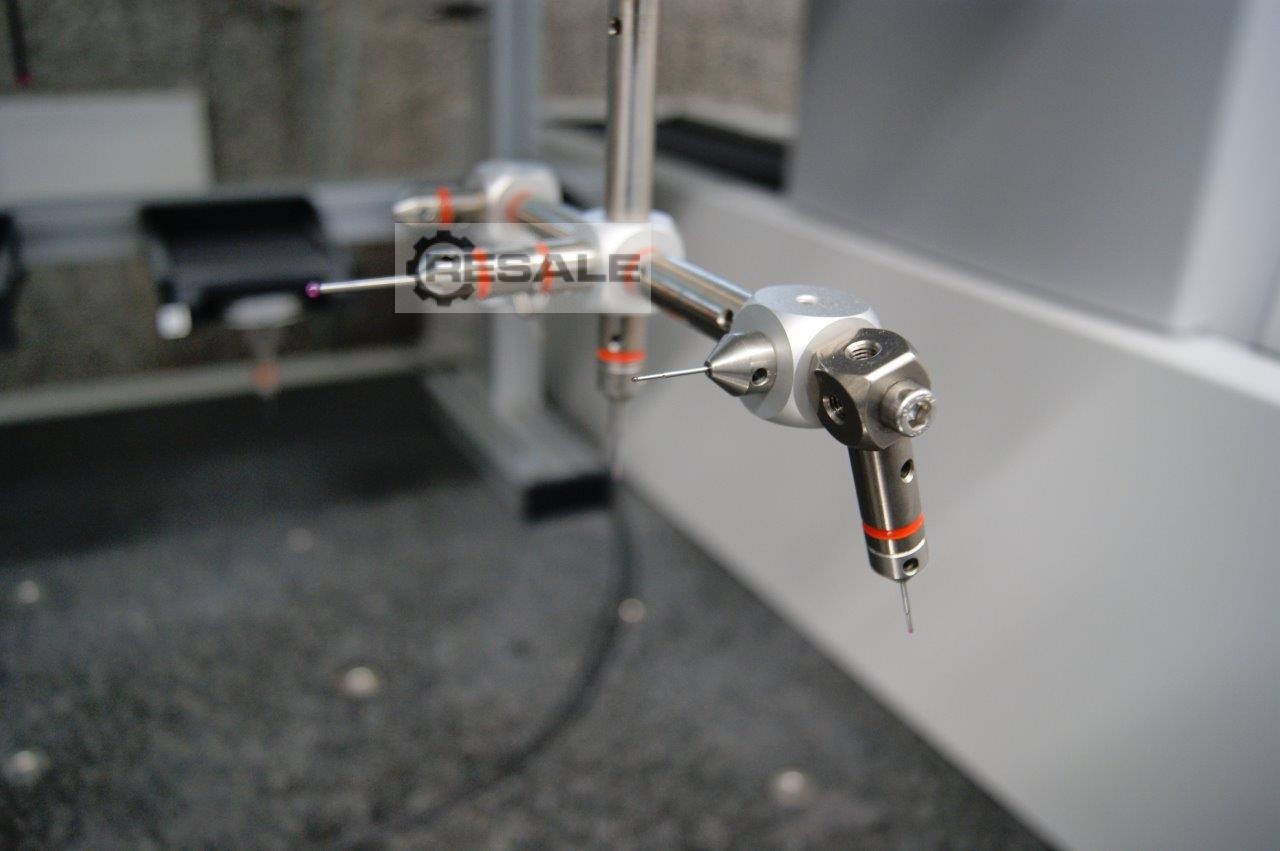

Sensors
Technical features
- Active scanning process with high-resolution inductive systems
- Active measuring force generator for pre-selectable, constant probing force
- Active sensor interface for RST-T temperature transducer option for fast CNC
Programmable workpiece temperature detection
- Self-centering probing function
- Mechanical collision protection
- Styluses can be used up to 800 mm
- Stylus mass up to 600 g permissible
- Automatic button taring after each change
- Incl. 1 interchangeable plate for reference buttons
- Reference stylus D = 8 mm, L = 63.5 mm

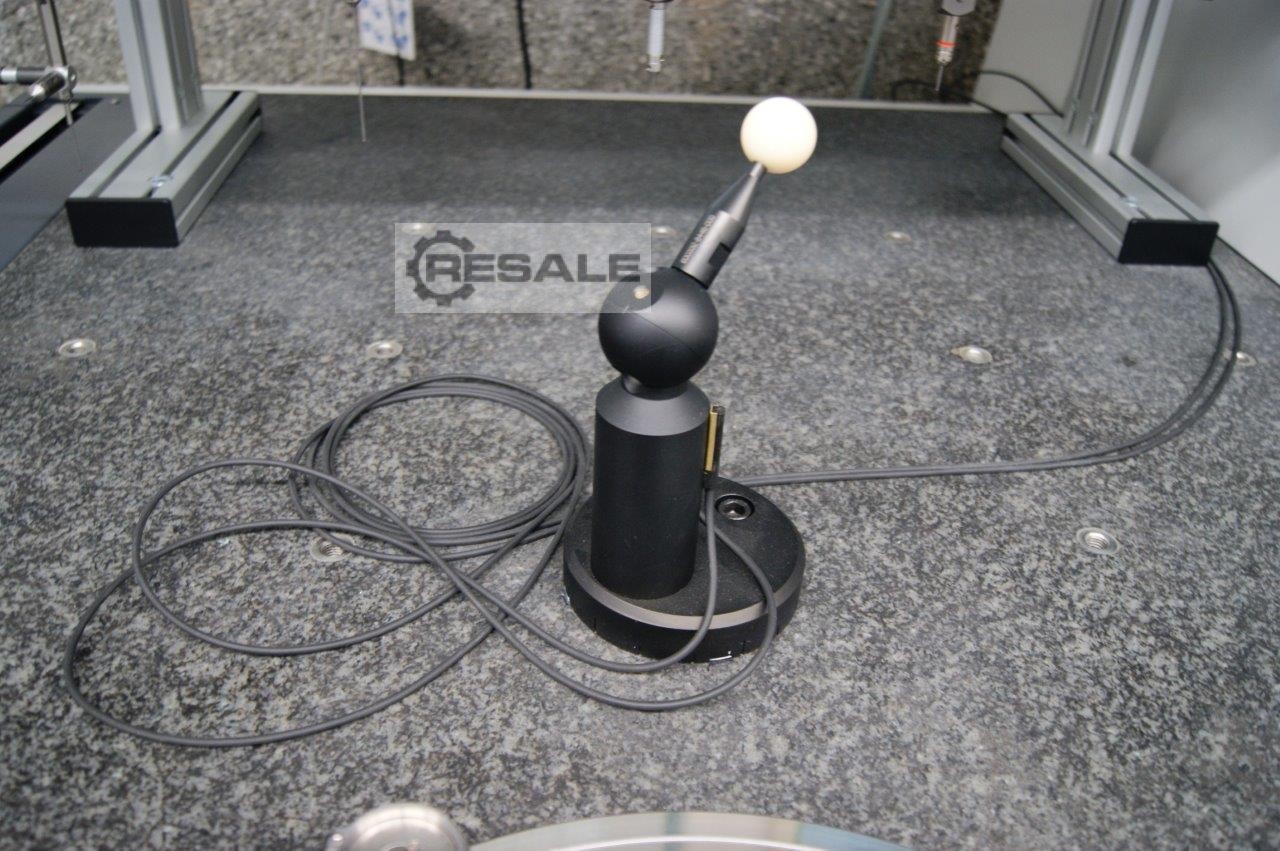

Measuring ball RS-D8-C
- Diameter 8 mm, ceramic
- Ball with shaft M6 for RSH systems
- Ball incl. calibration certificate

Calibration set: RSH-214 with measuring ball RS-DK30-C
- Measuring ball holder RSH-214
- Total height of holder with ball: 214 mm
- Mounting kit for CMM base plates with M12 thread
- Ball with shaft M6 for RSH systems
- Ball incl. calibration certificate
- incl. tools
- in a transport case

Turntable
- Rotary table RT-AB built-in version
-Precision. Air-bearing rotary table
- Axial rest 0.1 μm; radial rest 0.2 μm
- Maximum payload 600 kg
- Maximum tipping torque 40 Nm
- Maximum mass moment of inertia 20 Kgm²
- Connection cable 10 m

Face plate for RT-AB rotary table, diameter 400 mm
Three-jaw quick-release chuck, inner diameter 36 mm for rotary tables RT-AB, RT1, RT2
- Clamping ranges: 1.5 – 118 mm for shafts, 40 – 125 mm for bores
CALYPOS Performance Software Set included in the machine price, consisting of:
CALYPSO Basis CNC, CALYPSO VAST Navigator and CALYPSO VAST Performance

Multi-Sensor Rack (MAR), X = 900 mm for CONTURA, ACCURA, PRISMO
- For measuring range X >= 900 mm
- Width 1000 mm, height 550 mm

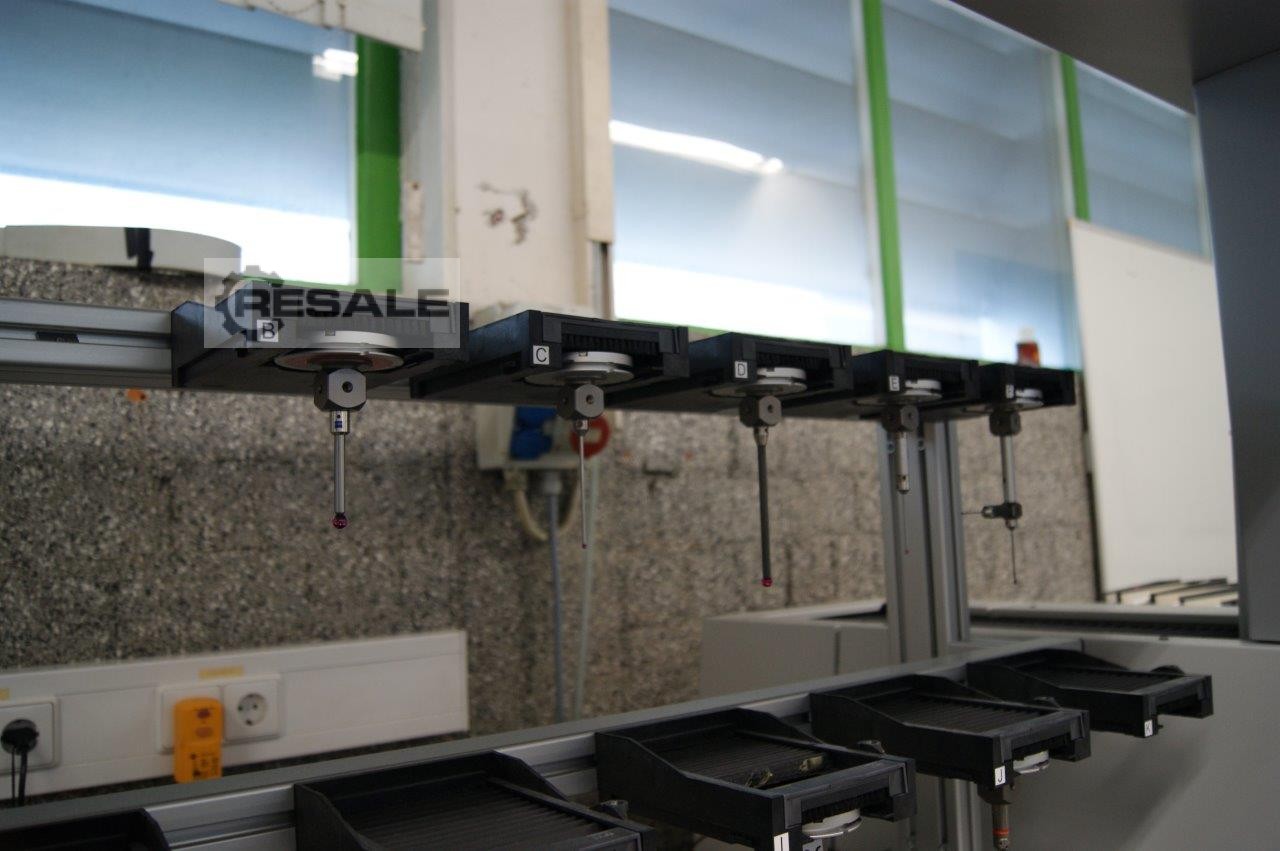

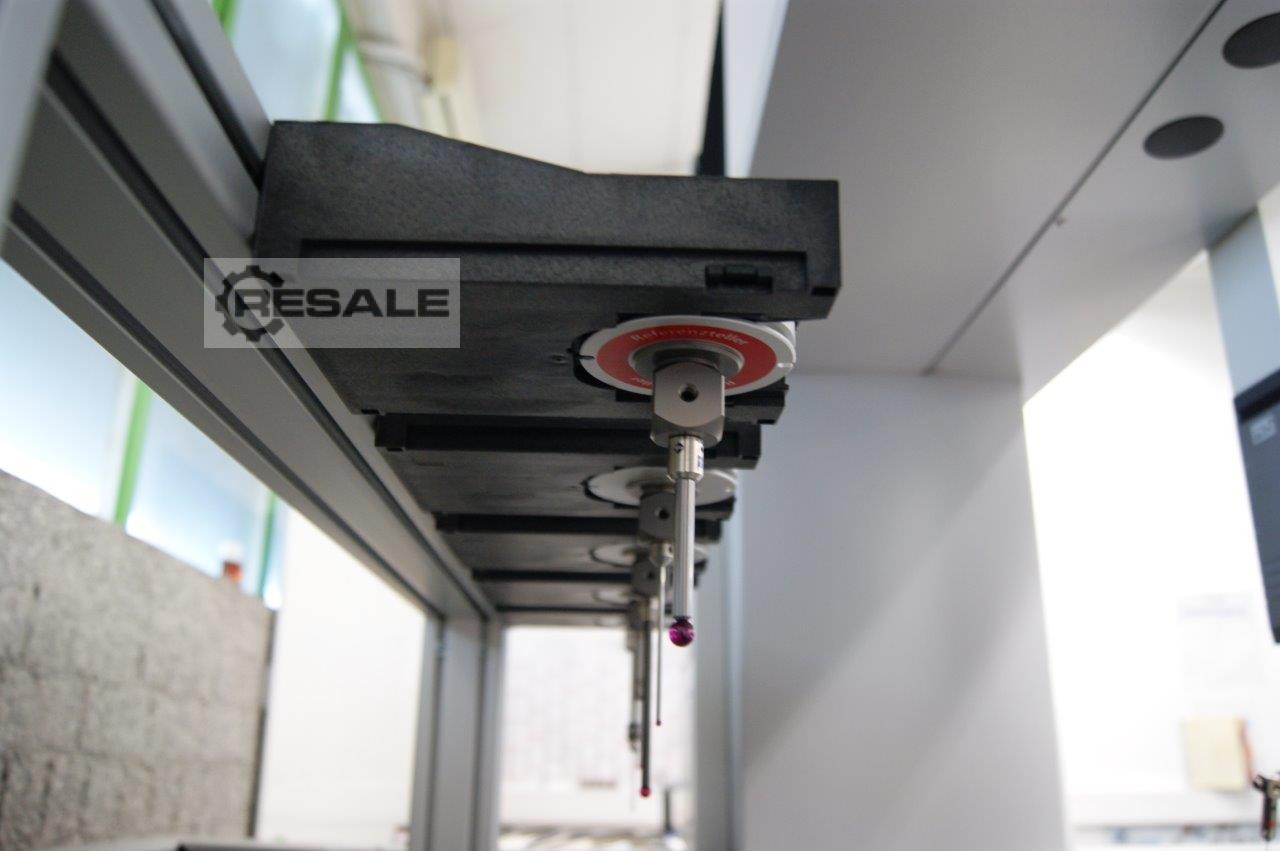

Rigid interchangeable magazine with 2 levels for changing the stylus system
- Upper level permanently mounted, lower level height-adjustable
- Expandable by 3rd storage level
- Requires probe/probe trays (not included)

Pushbutton Tray for Pushbutton Changer Plate VAST for Multi-Sensor Rack (MSR), MSR mini, ProMax
Button contingent 1027986396
Pushbutton of your choice worth 11,000.00 EUR
Data System
Workstation PERFORMANCE
- Workstation Z4 V1 SAPSJ
- License Windows 10 IOT-Enterprise 2016
- CPU I XeonW-2123 3.6 4C
- RAM 64 GB (4x16 GB) DDR4 2666 ECC
- GFX NVIDA Quadro P2000 5 GB (4)DP
- HDD 4TB 7200RPM SATA Ent 3.5 2nd
- SSD256GB SATA
- Premium Flo 2xUSB3.1 TypeC 2xUSB3 TypeA
- ODD 9.5 DVDWR 1st ODD
- HP Optical USB Mouse
- HP TPM Disabled

- High-performance components for operating CMMs

Monitor HP 27 inch
Monitor HP ZDisplay Z27n G2 27" IPS
- Maximum resolution: 2560 x 1440
- Aspect ratio: 16:9 (widescreen)
- Size, unpacked with stand (W x H x D): 64.3 cm x 40.9 cm x 19.7 cm
- Input ports: 1 x VGA, 1 x HDMI 1.4, 1 x DisplayPort 1.2 (HDCP support for HDMI and
DisplayPort)

Bluetooth Keyboard Kit with Mouse (German)
- Bluetooth keyboard
- Bluetooth mouse, mouse pad
- Pair of speakers
- Image creation software

Software
CALYPSO VAST Performance Software Set PC-Bonded licenses, included in the machine price, consisting of CALYPSO Base CNC, CALYPSO VAST Navigator and CALYPSO VAST Performance

CALYPSO CNC PC bound basic license, fully graphical measurement and evaluation software with CAD core for all prismatic measurements.
- Easy handling thanks to a protocol-oriented approach
- Strong graphical support with visualization of the measurement task and the input values
- Few button presses and low susceptibility to errors due to automatic element detection and
Automatic route generation
- Measurement time optimization through variable test scope (FOCUS)
- Variable design of the presentation of results with easy integration of workpiece-specific graphics
- Multimedia support for documenting part clamping and pushbutton arrangement for CNC start

CALYPSO VAST® W51232897 Navigator PC Hardcover W51232897 Base License
Increased measurement performance and productivity through
- Increase scanning speed without sacrificing accuracy
- Quickly navigate from object to object to object
- Helix scanning
- Dynamic calibration of the buttons, as well as compensation of the stylus bending, particularly effective in extremely
long buttons
CALYPSO VAST® Performance PC Restricted Base License
To increase productivity through an intelligent scanning process (fly-scan) on interrupted structures and a faster change of the stylus system (quick-change).

CALYPSO CNC Curve PC Bound Basic License
For measuring and digitizing 2D and 3D curves with VDA interface (point/vector).

CALYPSO PCM PC bound basic license
CALYPSO Parameter Control Manager (PCM)
By replacing the numerical values in the inspection plan with parameters, PCM technology enables fast and flexible program creation for part families and different processing stages. The parameter definition can be done by entering CALYPSO or by reading ASCII files.

GEAR PRO Involute Basic PC License
Basic software for the measurement and evaluation of cylindrical gears (cylindrical gears).
Support is provided by straight and helical external and internal gears as well as involute shims. Optionally, other special profiles can be measured. The evaluation is carried out according to common standards such as DIN, ISO, AGMA, ANSI, JIS or free tolerances.
The measurement report includes features such as profile, flank line, pitch, concentricity, tooth thickness, two-ball and two-roller dimensions, tooth width, head and foot circle diameter.
Corrections such as height and latitude, head and foot withdrawal, final withdrawals can be evaluated. In addition, the definition of K-diagrams (tolerance band), entanglement measurement and topography is possible. Segmental gears and gears with interrupted flank lines can also be measured.
The knife bits can be automatically saved in PDF OR ASCII format.
The CAD interfaces SAT, STEP, IGES are included.

Interfaces for exporting measurement results in Q-DAS transfer format.

The machine can be viewed on site. It is still energized and works perfectly.

A delivery date for the machine is not yet known and will only be made by prior arrangement.

We would love to hear from you.

We will be happy to answer any questions you may have at any time.

We are looking forward to a good cooperation and thank you for your interest in advance.
seller offer No. resale 168279168
