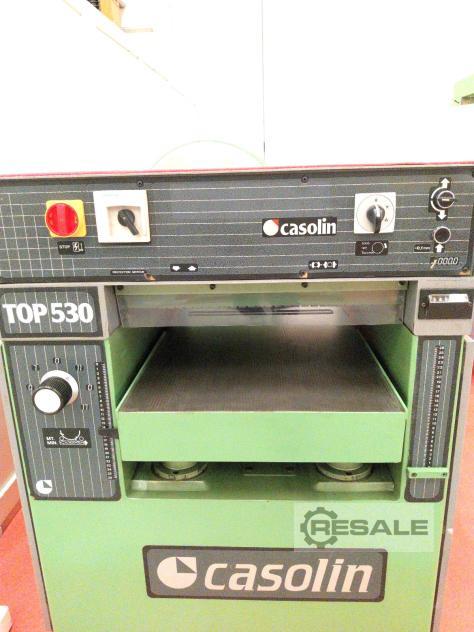

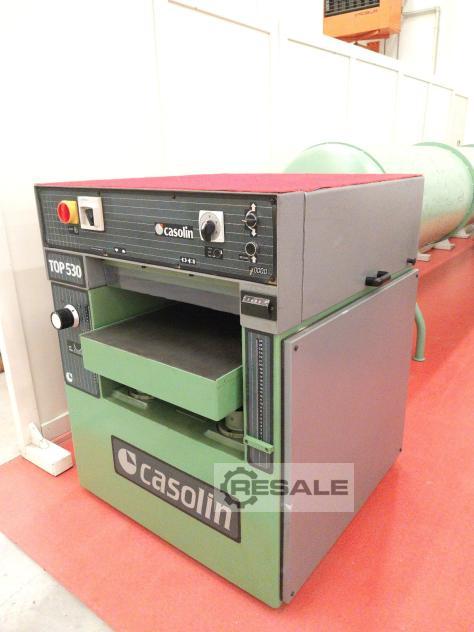

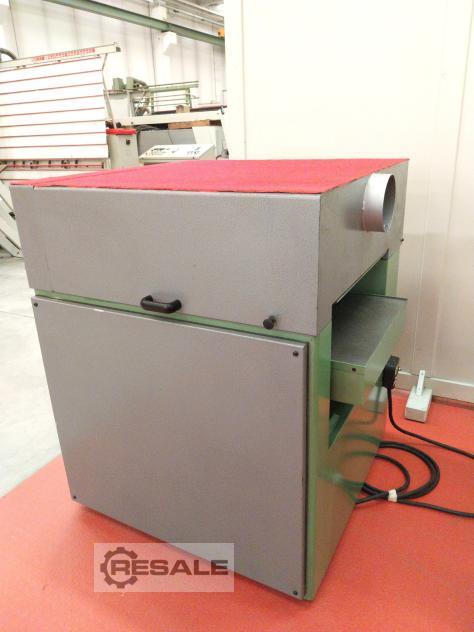

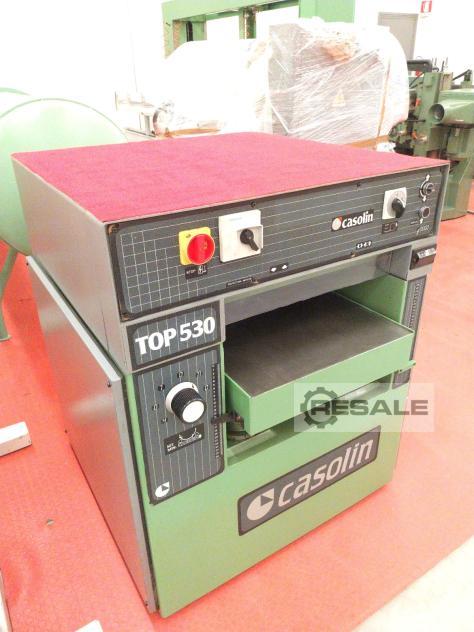

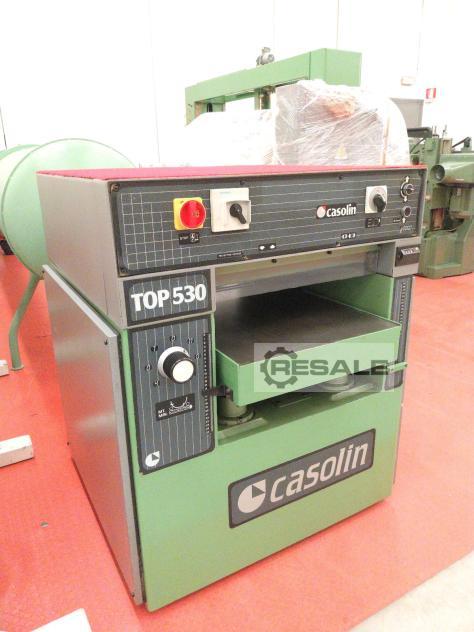

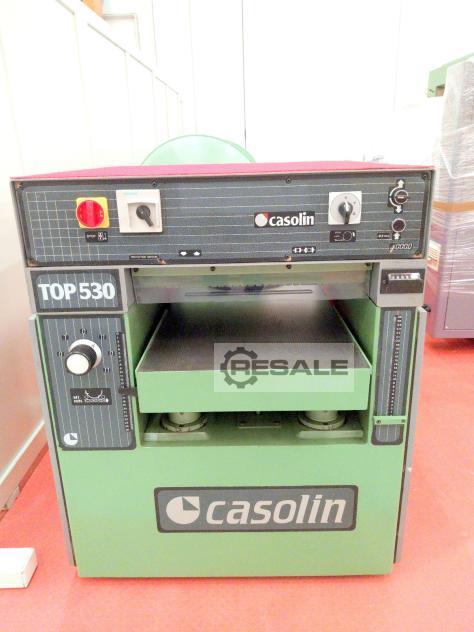

Thicknessing machines CASOLIN TOP 530

Code: 0372
Brand: CASOLIN
Model: TOP 530

Automatic thickness planer for wood, joinery, furniture, customer-made furniture, wooden joinery, doors, panels, timber framing, sawmills, plastics, composite materials and various

Features:

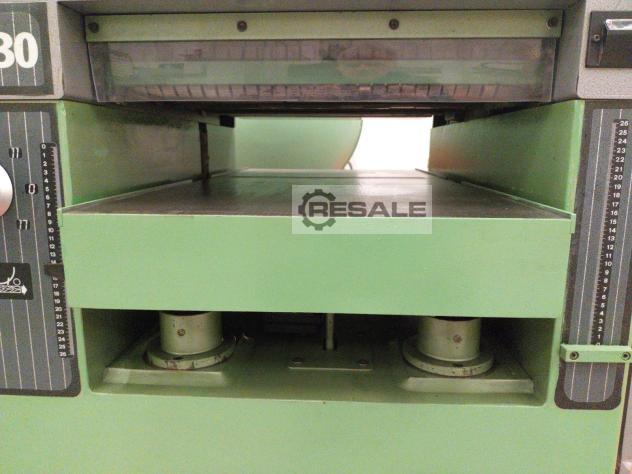

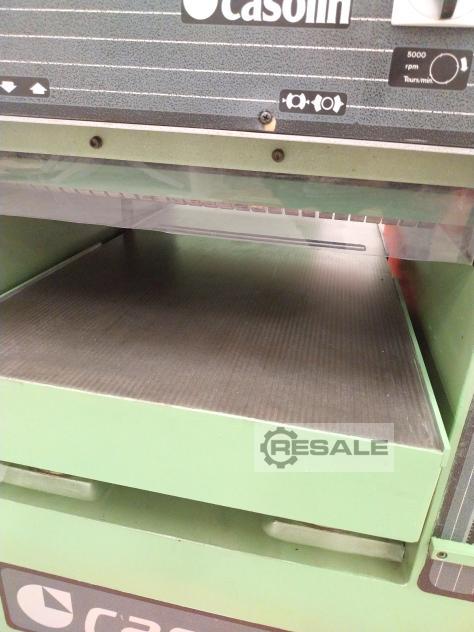

Cast iron work table supported by 4 ground columns with inner rise screw syncronously which guarantees the greates rigidity, the work surface of thicknessing table, worked with a particular processing, guarantees excellent performance of guidance and sliding of the workpiece
Automatic locking of thicknessing table
Shaft with 4 replaceable cutters ‘TERSA’
Rear pressure roller adjustable to 3 positions
Steel feed rollers

Technical data:
Max working width 530 mm
Work table dimensions 530 x 1060 mm
Max working height 300 mm
Min working height 3 mm
Useful thickness 8 mm
N° 4 replaceable cutters ‘TERSA’
Shaft rotation speed 5000 rpm
Feed speed 4-7-11-17 mt/min
Main motor 5,5 Hp
Automatic table lift
Suction inlet diameter 160 mm
Overall dimensions mm 960 x 1080 x 1100 h
Weight kg 970



seller offer No. resale Code: 0372
