Collaborative Electric Parallel Gripper DH ROBOTICS PGC-50-35

DH Robotics PGC-50-35 Collaborative Electric Parallel Gripper without Brake
Net weight: 500 g

Payload: 1000 g

With a stroke of 35 mm and a payload of 1 kg, the DH Robotics PGC-50 is designed to combine intuitive design with practicality. With its impressive accuracy, self-locking and a host of other features, the PGC-50 is the perfect gripper for light collaborative applications. The PGC-50 is easy to set up and comes with plug-ins for most major cobot brands such as Universal Robots, OMRON, etc.

Properties

The DH Robotics PGC-50 is an electric two-finger gripper designed for both industrial and collaborative applications. The award-winning PGC-50 gripper (Red Dot Award, IF Award) combines progressive design with proven reliability. The PGC-50 offers a stroke of 35 mm and a recommended payload of 1 kg.

With its self-locking function, maximum force limits and other collaboration-oriented features, the DH Robotics PGC-50 is an ideal companion for your cobot. However, the PGC-50 is not limited to cobots and can also be used with conventional industrial robots. This gripper is built to last and can handle quite harsh environments with its IP67 facility. This makes the gripper particularly suitable for working on CNC machines, for example.

Another great advantage of the PGC-50 is that it is very easy to set up. DH Robotics offers plug-ins for a variety of cobot brands, including Universal Robots, OMRON TM, Hanwha, AUBO, Fanuc, and more. It only takes a few minutes from unpacking to using your new gripper.

Additional technical information

Communication Standard: Modbus RTU (RS485) Digital I/O Interface
Optional: TCP/IP, USB 2.0, CAN2.0A, PROFINET, EtherCAT
Open/close time: 0.7 s / 0.7 s
Recommended Operating Environment: 0-40°C, < 85% RH

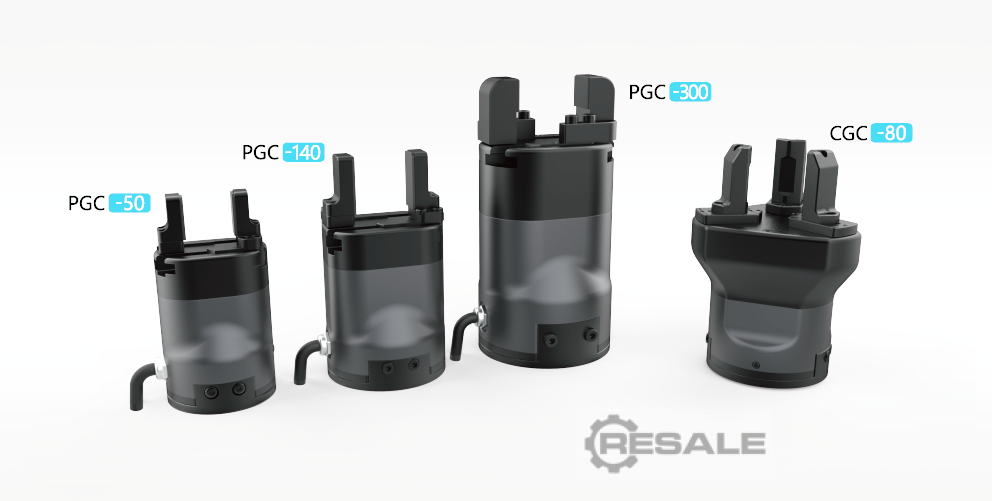

Looking for more power or a bigger hub? Check out the DH Robotics PGC-140 and PGC-300.
