gear cutting and hobbing machines used for sale (213)

max. module:7 weight of the machine ca.:5 tworm grinding diameter:280-350 mmwidth of grinding worm:84-104 mmmin. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mmmax. workpiece weight:60 kgwithout filter

max. wheel diameter:780 mmgear width:130 mmmax. module:10 weight of the machine ca.:8,5 tno. of strokes:30 Hub/minHier fully functional machine, Little usedThere are some Tools and Change gearsLiebherr WSC501 CNC gear shaping machine, used, ready for useManufacturer: LiebherrType: WSC 501Mach.- No.: 4407/05Year of manufacture: 1985Details:Max. gear shaping module: 8mm(30°gears possible up to module 10°)Max. gear width: 130mmDiameter of the machine table: 500mmMaximum wheel diameter: 780mmShut height ? table: 650mmStroke rate min. 30DH/minContinuously adjustable max. 1500 DH/min.Operating voltage: 380VFrequency: 50HzControl voltage: 110VConnected load: 36 kVARated current: 55AWeight: 8500kgDimensions: approx. 4,85 x 3,655 x 3,78(width x depth x height in m)The machine has seen only very limited use in our company. It remains fully operational and can be demonstrated in function upon a ...

max. wheel diameter:80/120 mmmax. module:2,5 max. top circle diameter:65 mm:22 mm:140 mm:120 mmslide travel axial ( Z-axis ):320/400 mmDimensions (L/W/H):3270 x 3240 x 2020 mmweight of the machine ca.:6 tP60 - The compact all-rounder for wheels, shafts and wormsThe P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms.with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

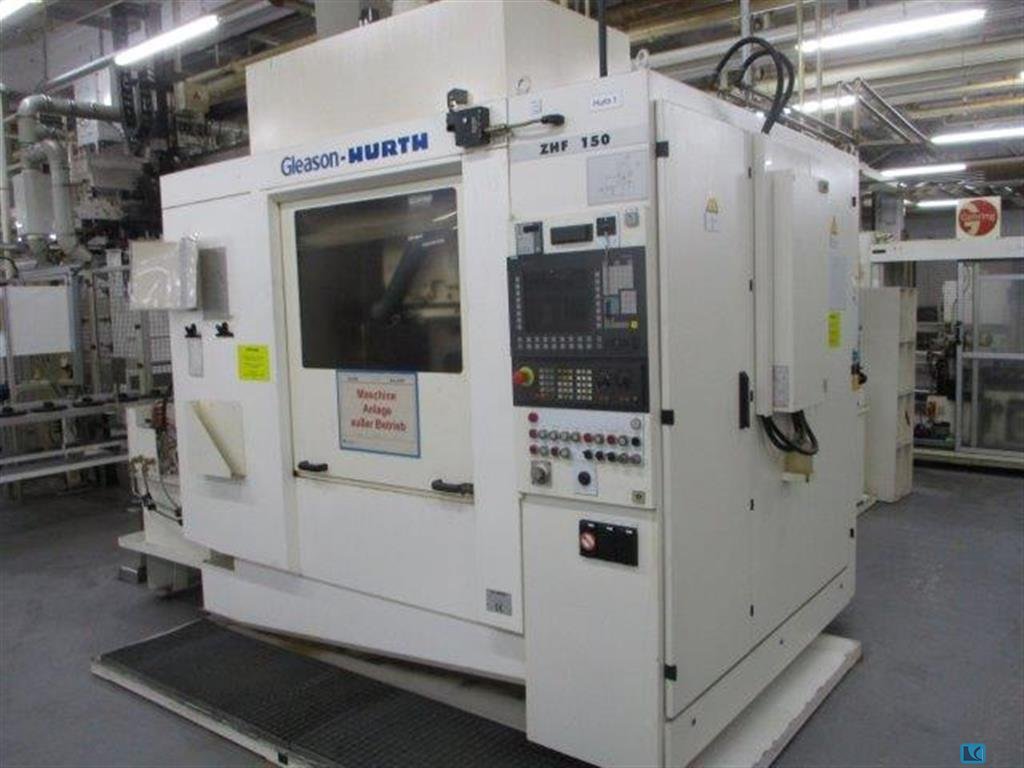

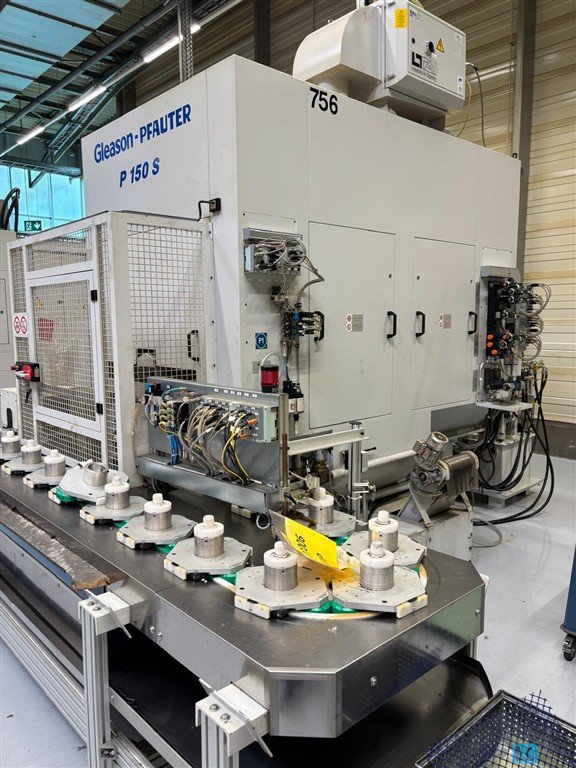

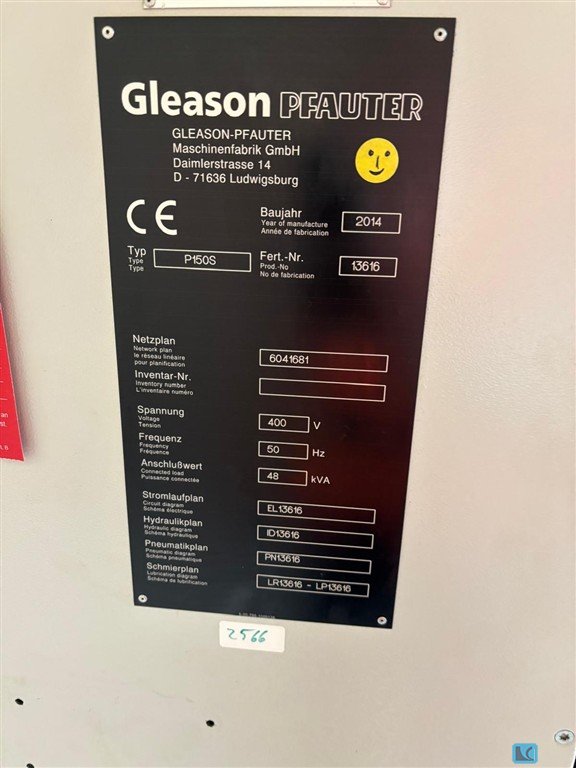

max. wheel diameter:150 mmgear width:350 mmmax. module:4 total power requirement:48 kWweight of the machine ca.:13 tdimensions of the machine ca.:4,88 x 4,40 x 3,56 mspindle turning speed range:100-1000 U/minInfeed and outfeed chain conveyor, with tool holders, chip conveyor, hydraulic unit and air conditioning.

max. wheel diameter:600 mmmax. module:6 weight of the machine ca.:0,9 tdimensions of the machine ca.:1,52 x 0,91 x 1,45 m

weight of the machine ca.:8,5 t

max. wheel diameter:300 mmmax. module:7 weight of the machine ca.:15 ttable turning speeds:100 U/mintable diameter:180 mmhob turning speeds:750 U/minmax. hob diameter:300 cutter length max.:230 mmLiebherr LC300 with loading automation Machine including counter holderThe machine used to work with emulsion

max. wheel diameter:300 mmmax. module:7 weight of the machine ca.:15 ttable turning speeds:100 U/mintable diameter:180 mmhob turning speeds:750 U/minmax. hob diameter:300 cutter length max.:230 mmLiebherr LC300 with loading automation Machine without counter holderUsed to work with oil

max. module:7 weight of the machine ca.:5 tworm grinding diameter:280-350 mmwidth of grinding worm:84-104 mmmin. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mmmax. workpiece weight:60 kgwith Turbo Separator, loading unit, latest-generation balancing and dressing unit and various accessories

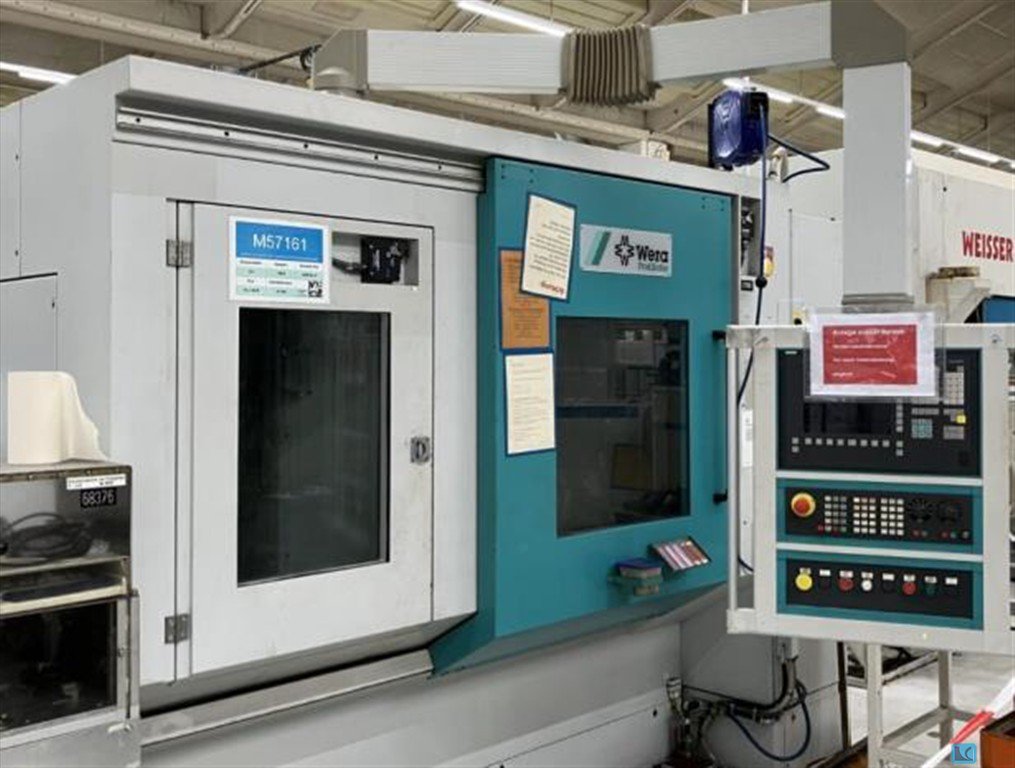

max. wheel diameter:300 mmmax. number of teeth:999 max. module:5 total power requirement:10 kWweight of the machine ca.:1.800 Kos.dimensions of the machine ca.:1300 x 1450 x 2250 mmThe Gear Tooth Deburring machine ? ZEM 300for deburring of splines gear wheels and shaftsThe advantages at a glance- Vertical workpiece spindle- Chamferring, debburing and smoothing - Simultaneous Processing of 2 Gears- Dry Processing- Repeat accuracy when adjusting the tools- Simple integrated Pick up swing arm or linear loader- Crane hook machineWorkspace Swing Diameter: 300 mmProcess Diameter: 300 mmWorkpiece Length: 450 mmMain Spindle Spindle Flange: Zylindrisch D=120 mmFront bearing spindle: 100 mmRPM max: 1500 U/minAC-Synchronmotor: 50 NmClamping cylinder : pneumaticClamping force (5 bar): 10 kNWorking axis swing arm for chamferring tool Feed force: 3 kNBall screw drive: 25x5Position meas ...

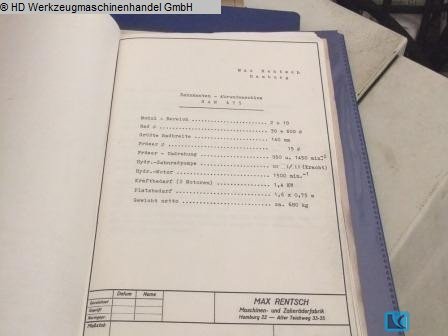

max. wheel diameter:600 mmmax. module:10 min. module:2 total power requirement:1,4 kWweight of the machine ca.:0,68 tdimensions of the machine ca.:1,6x0,75 mdiameter of hob:15 mmgear width:140 mm

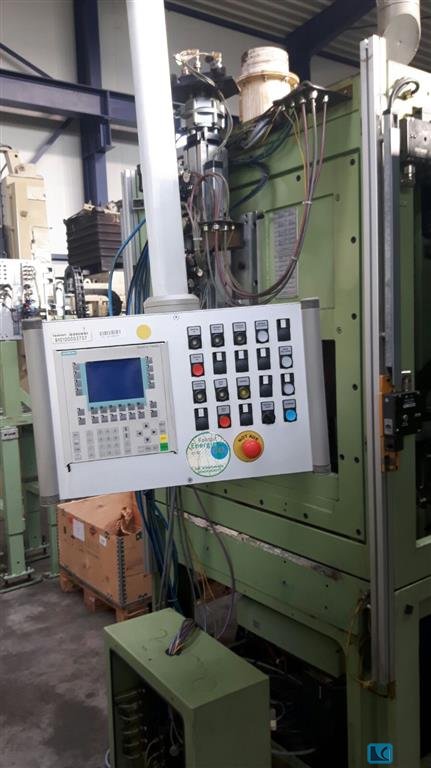

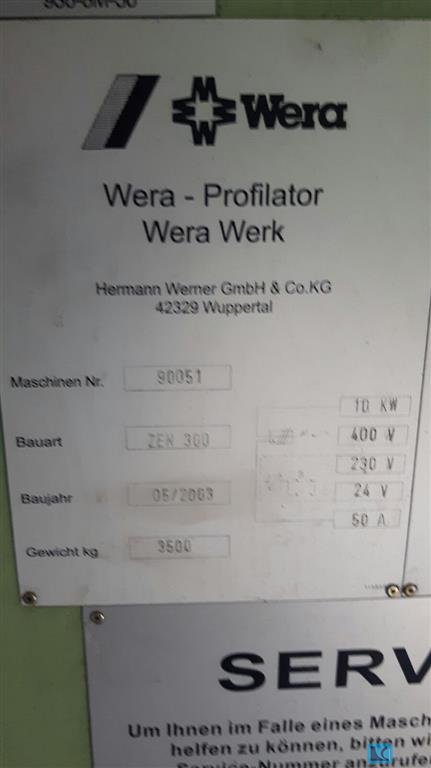

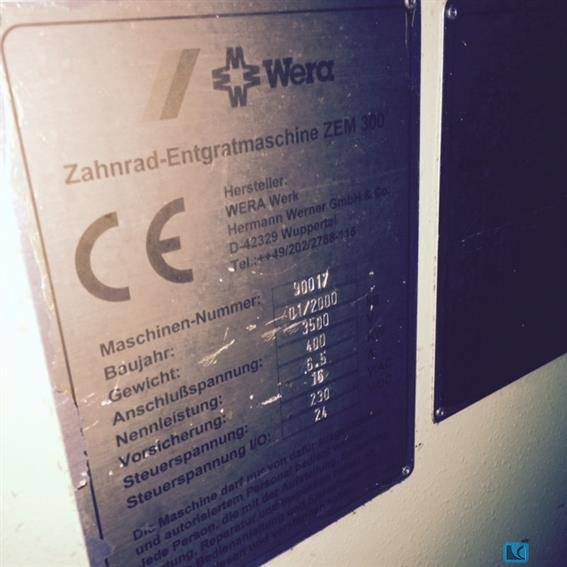

max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht.Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt.Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt.Copyright © 2005-2026, Josef Weber. All rights reserved.

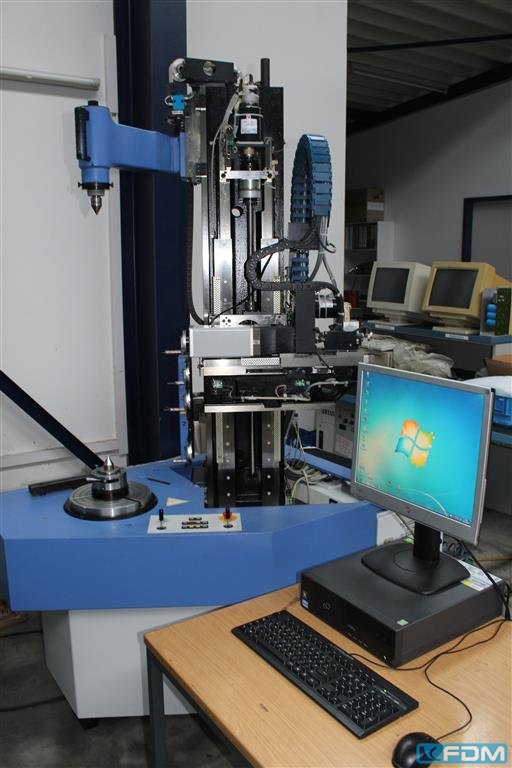

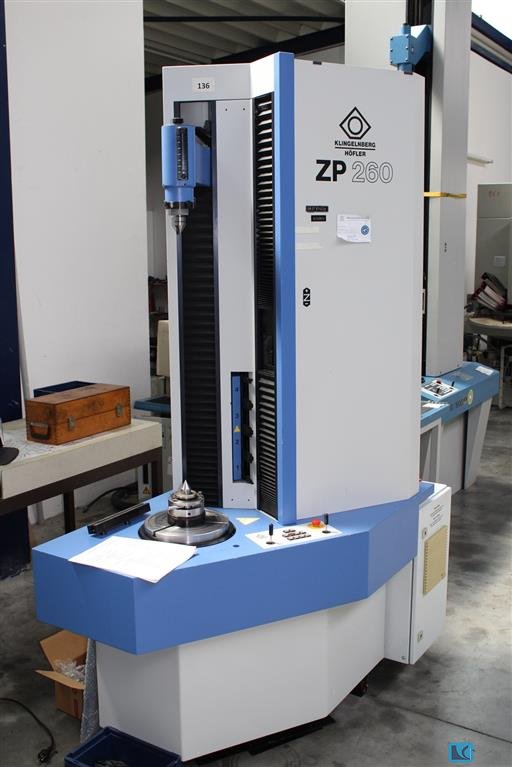

max. wheel diameter:5 - 260 mmgear width:400 mmmax. module:15 min. module:0,5 gear hobbing diameter - internal:30 mmmax. helix angle:> 85 ° Aussenverz.max. helix angle:> 45° Innenverz.Testing Range vertical:400 mmdist. between centers:5 - 600 mmtable diameter:260 mmmax. table load:100 kgspeeds:30 1/mintotal power requirement:1,6 kVAweight of the machine ca.:900 kgdimensions of the machine ca.:200 x 1300 x 2150 mmCNC Gear Tester in good condition, out of OEM Test Lab.For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.)

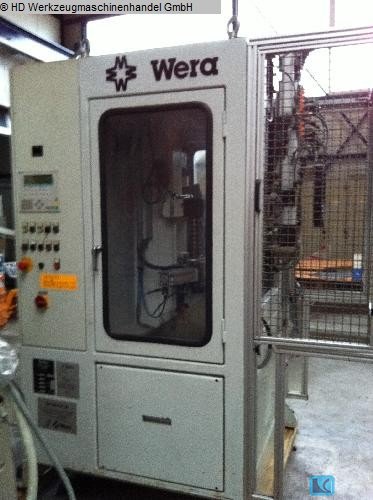

max. wheel diameter:300 mmgear width:100 mmmax. module:5 workpiece turning speeds:0 - 1000 1/minwork piece - max.:1100 mmworkpiece clamping:auto. tension device number of spindle speeds:1000 1/min.spindle bearing diameter:100 mmdiameter of spindle flange:120 mmtailstock travel:80 mmweight of the machine ca.:3500 KGdimensions:1200 x 1450 x 2250 mmtotal power requirement:10 kVAThe Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.

max. wheel diameter:130 mmmax. module:3 total power requirement:15 kWweight of the machine ca.:6 tdimensions of the machine ca.:2,3 x 2,5 x 2,17 mA well-preserved CNC hobbing machine Vertical for shafts and wheelsWith tailstockAlso suitable for hard milling (good for steering pinion)Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mmAccessories :Hydraulical workpiece clampingAutomatic ...

max. wheel diameter:180 mmmax. module:5 min. module:1 weight of the machine ca.:14 tdimensions of the machine ca.:4,5 x 2,84 x 2,8 mmin. number of teeth:7 toolpiece turning speed range:4000-10000 U/mintool length:210 mmWith tail stockNo dressing deviceOnly CBN

max. wheel diameter:180 mmgear width: mmmax. module:4 total power requirement:14 kWweight of the machine ca.:8 tslide travel axial ( Z-axis ):300 mmwork piece - max.:490-640 mm

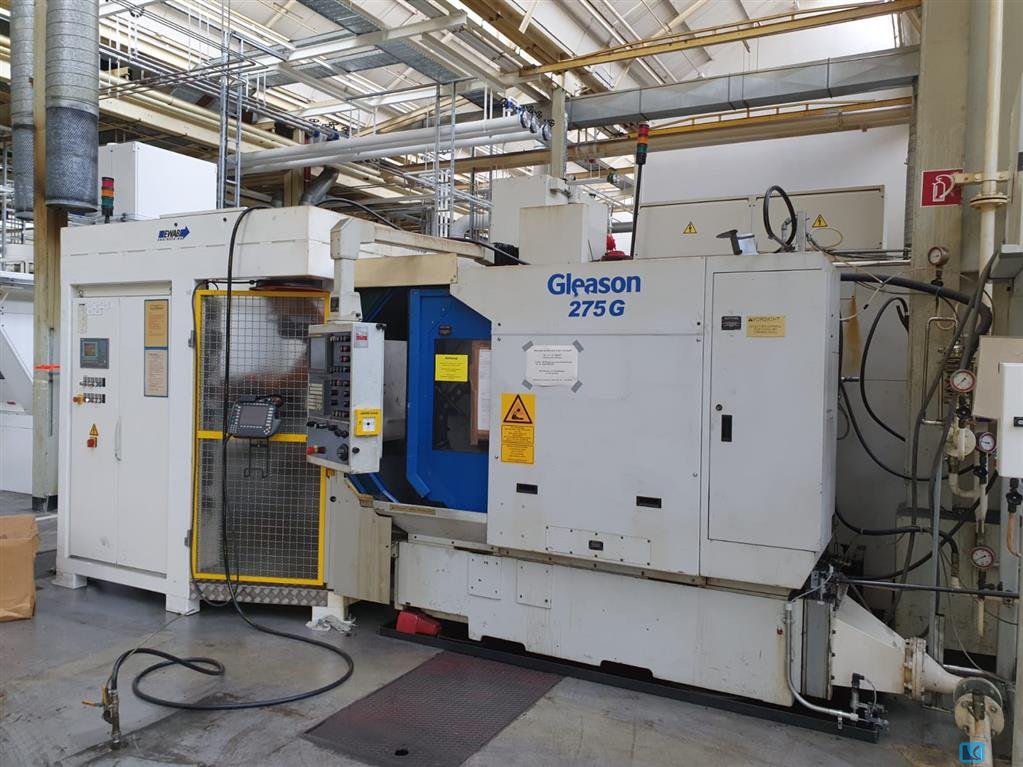

max. wheel diameter:275 mmgear width:58 mmmax. module:8 min. module:0,5 weight of the machine ca.:10 tmax. number of teeth:200 min. number of teeth:5

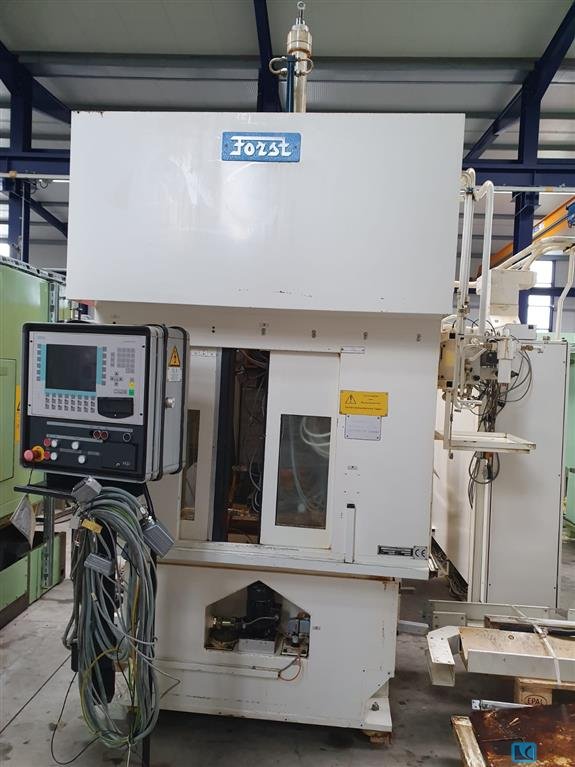

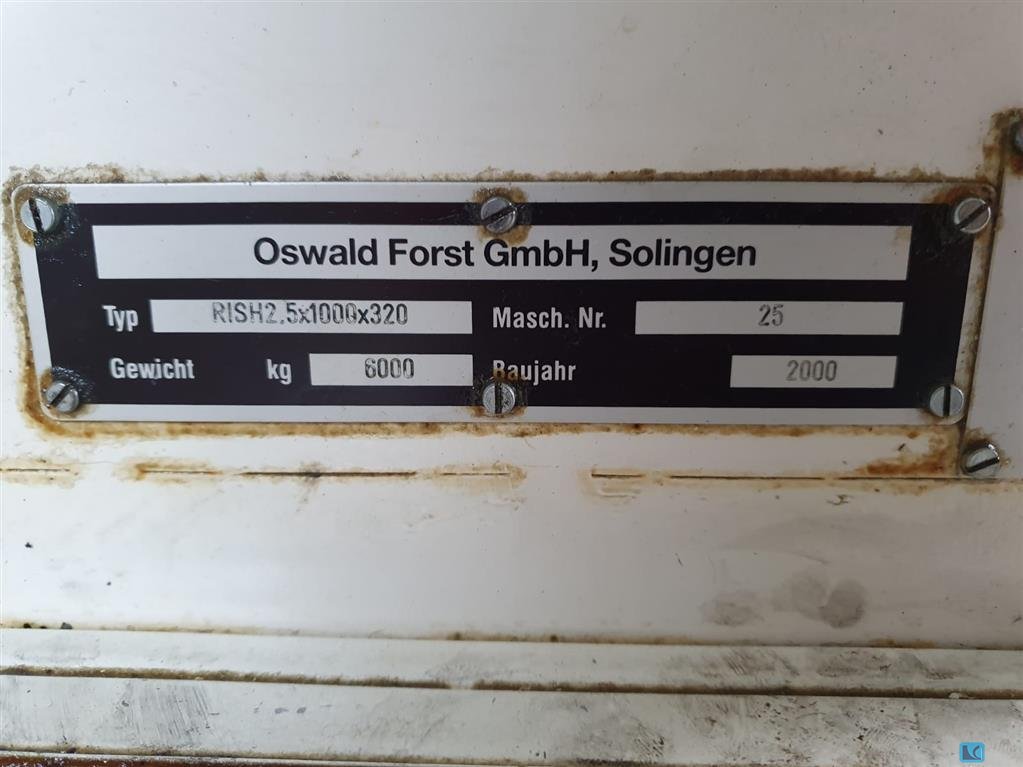

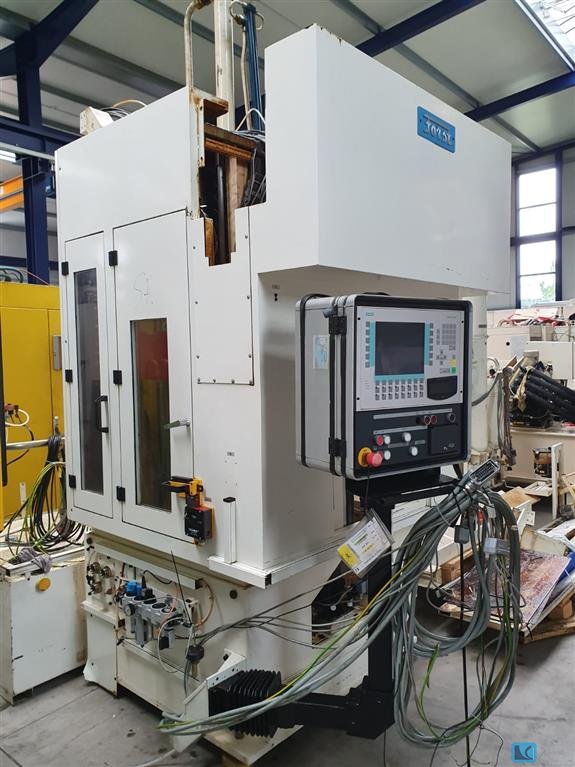

pulling force - max.:2,5 tmax. ram stroke:1000 mmmax. workpiece diameter:40 mmBroaching speed:60 m/min.return speed:20 m/min.total power requirement:24 kWweight of the machine ca.:6 tdimensions of the machine ca.:1,7 x 2,4 x 4,77 mclamping plate:320 mmIt is a hydraulic machine.

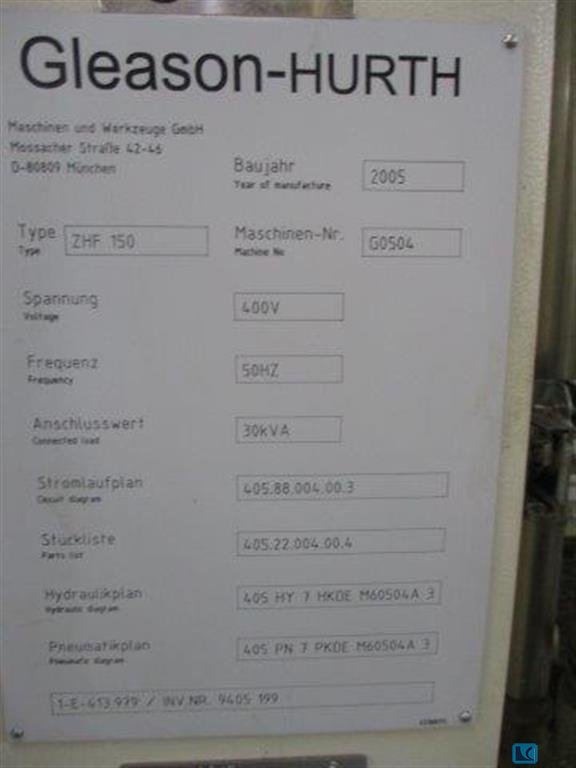

workpiece diameter:63,5 mmcentre distance:350 mmhoning length max.: mmtotal power requirement: kWweight of the machine ca.:6 tdimensions of the machine ca.:2,70x2,30x2,60 mTechnical data G0504working spaceLength of the clamping surface mm 1550Number of T-slots mm 2Width of the T-slots mm 18Distance between T-slots mm 180Center height (tailstocks) mm 350Swivel range of the fine wheel head (U-axis) degrees + 30 / -30Center distance - tailstock / fine wheel min./max. mm 120/225Input resolution (all NC axes) mm / degrees 0.001Delivery slideMovement range (= Z-axis travel) mm 105Input resolution mm 0.001toolOutside diameter min./max. mm 225/275Hole diameter mm 160Width mm 60workpieceOutside diameter min./max. mm 40-150Module min./max. mm 1.25-4.0Tooth width max. Mm 45weightWeight of the machine approx. Kg 5500Operating fluid requirements Cooling lubricant recommendation, see chap. 8thHydraul ...

MAX DIAM 410

MAX DIAM 400

Tall: 1300 mm, Weight: 200 kg, Width: 760 mm, Long: 1200 mm, Voltage: 220/380V, Total power: 1 CV, Diameter of the tooth: 150 mm, Serial number: 93095, Sharpening length: 600 mm, Ø max. of the workpiece: min/max = 2/26, Wheel speed: 3000 rpm, Specification: drill bits

max. wheel diameter: 0-200 mmmax. module: 25 min. module: 0,5 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

workpiece dia.: 40 mmmax. module: 2 min. module: 0,1 workpiece length - max.: 665 mmweight: 4,5 tspindle bore diameter: 82,5 mmControl: Siemens total power requirement: 5,5 kWTechnical datamax. module 2Pitch 0.5 - 25 mmNumber of speeds multi-speed / multiplemax. workpiece diameter40 mmmax. workpiece length180 mmMilling cutter diameter max.80 mmmax. milling cutter width12 mmZ-axis (milling length with counter point)90 mmZ-axis (milling length without counter point)113 mmMilling head swivelling angle30° / 30°DescriptionGear hobbing and thread cutting machine. LAMBERT - 124 CNCThe machine is in a well-maintained condition.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Liebherr WSC 1200____________Description:In General:Year of manufacture:2009Control system:Siemens 840 DExternal gear diameter:1,200 mmInternal gear diameter:1,200 mmMaximum gear width:260 mmMaximum workpiece diameter:1,500 mmMachine base:Travel:600 mmLateral adjustment:+/- 60 mmCutting head:Spindle diameter:125 mmTool holder:SK 45Distance between spindle and table:0–820 mmStroke length:270 mmMax. module:16 mmMax. tool diameter:300 mmMax. spindle speed:25 rpmTable:Table diameter:900 mmTable bore:320 mmBore depth:520 mmMax. speed:12 rpmMax. table load:95 kNEquipment:Chip removal:2 magnetic belt conveyorsCoolant supply:Cutting oil system with filter and temperature controlSet-up operation:Electronic handwheel

Key data: 800 mm, 16

Spiral bevel gear dia. 800 mm

max. wheel diameter: 360 mmgear width: 175 mmmax. module: 7 min. module: 0,5 Control: Reishauer CNC number of teeth: 6 - 600 root circle diameter: 10 mmclamping length: 515 mmworkpiece weight: 60 kggrinding worm dia.: 280 - 350 mmwidth of grinding worm: 84 / 104 mmtotal power requirement: - kWweight of the machine ca.: 5 tdimensions of the machine ca.: - mThe RZ 362 A is a high-precision machine for spur gears and pinion shafts. sheguarantees maximum process reliability with minimal downtime perground workpiece. The profiling of the grinding worm takes place automatically. An integrated Balancing unit allows the grinding worm to be continuously finely balanced To maintain state.The RZ 362 A is designed for automatic operation and can, depending onDegree of automation, in single, small or large series productionbe used. It is equipped with: hood door automatic, grinding spindlefor precisi ...

Straight guide, 3-jaw plate, change wheels, High: 1100 mm, Long: 1800 mm, Width: 2300 mm, Module: 5, Weight: 5.000 Kg, Voltage: 220 / 380V, Ø table: 310 mm, Ø spindle: 78 mm, Total power: 3 Kw, Maxi. stroke: 75 mm, Ø max. gear: 500 mm, Cutting speed: 18, Ø hole table: 125 mm, Ø max. inside: 450 mm, Ø max. external carving: 500 mm, Number of strokes / min cutter: 45/424

MAX DIAMETER 550 , MAX MODULE 6
