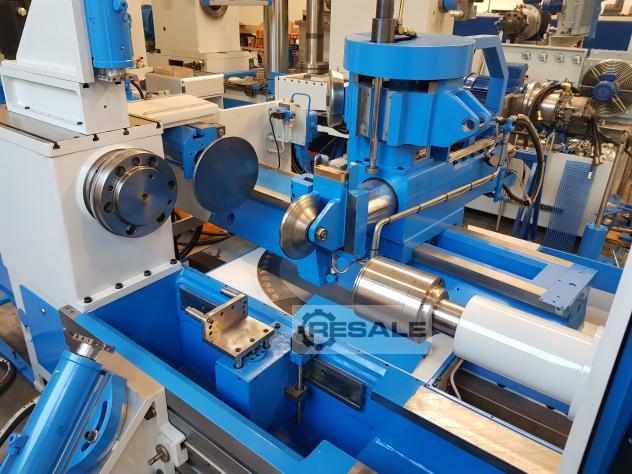

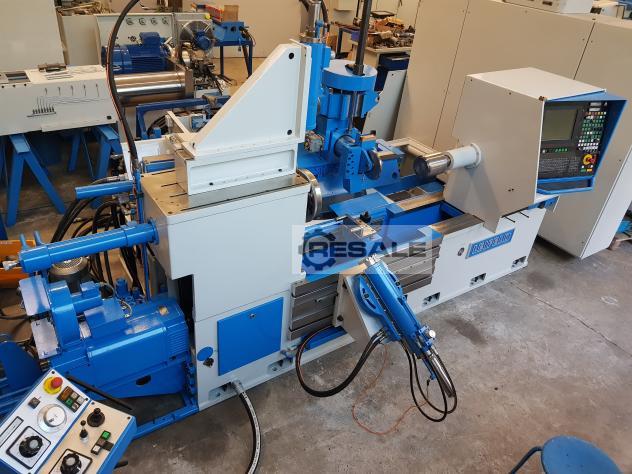

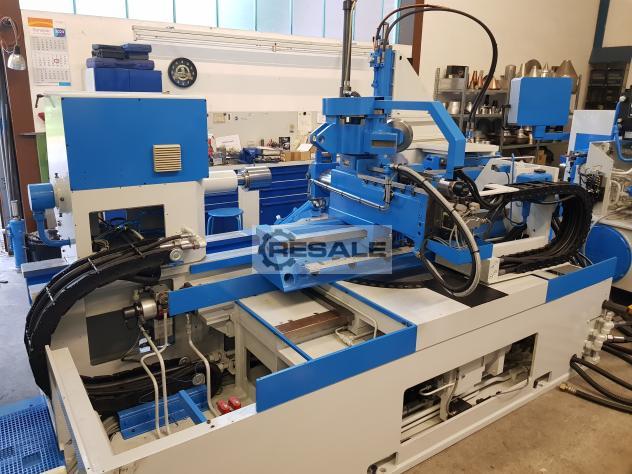

Metal spinning machines LEIFELD PNC 90 - 3A

However, equipping the PNC 90-3A with three additional PNC/CNC-controlled auxiliary axes now enables a working area of approx. 900x1,100mm and thus an extremely economical production of large printed parts.

- Hydraulic roundabout centering device
- Blank counter holder
- Machining unit BAE 1 (on the spindle box)
- Processing unit KA (in front of the machine)
- 4-fold tool changer

Specifications:

Blank diameter (max.): 900 mm
Tip width : 1,100 mm

Tool holder DIN 55027: Gr. 11

Axis force (transverse) (max.): 45 kN
Axis force (longitudinal) (max.): 45 kN

Stroke (transverse): 305 mm
Stroke (longitudinal): 650 mm

Cross speed: (max.) 7.0 M51264527 m/min
Longitudinal speed: (max.) M51264527 7.0 m/min

Stroke ejector: 300 mm

Tailstock stroke: 450 mm

Speeds (infinitely variable): 100-2,300 min-1

Main drive: 28 kW
Hydraulic drive: 15 kW

Operating voltage: 400 V
Frequency: 50 Hz
Connected load: approx. 50 kVA

Weight: approx. 7,500 kg

seller offer No. resale 168339732
