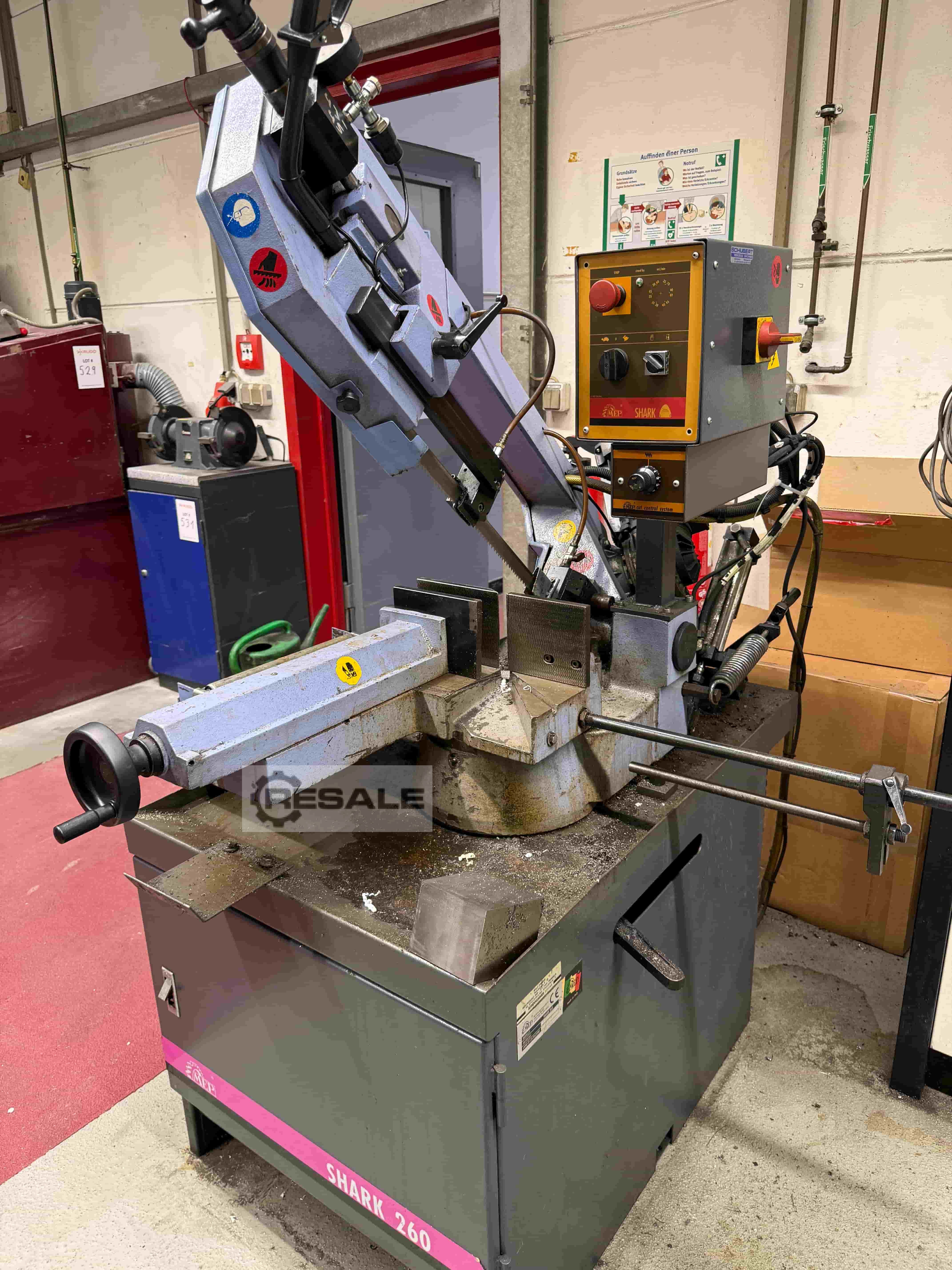

Semi-Automatic Bandsaws MEP Shark 260

Lot 528: MEP Semi-Automatic Horizontal Band Saw



Technical Details
‍

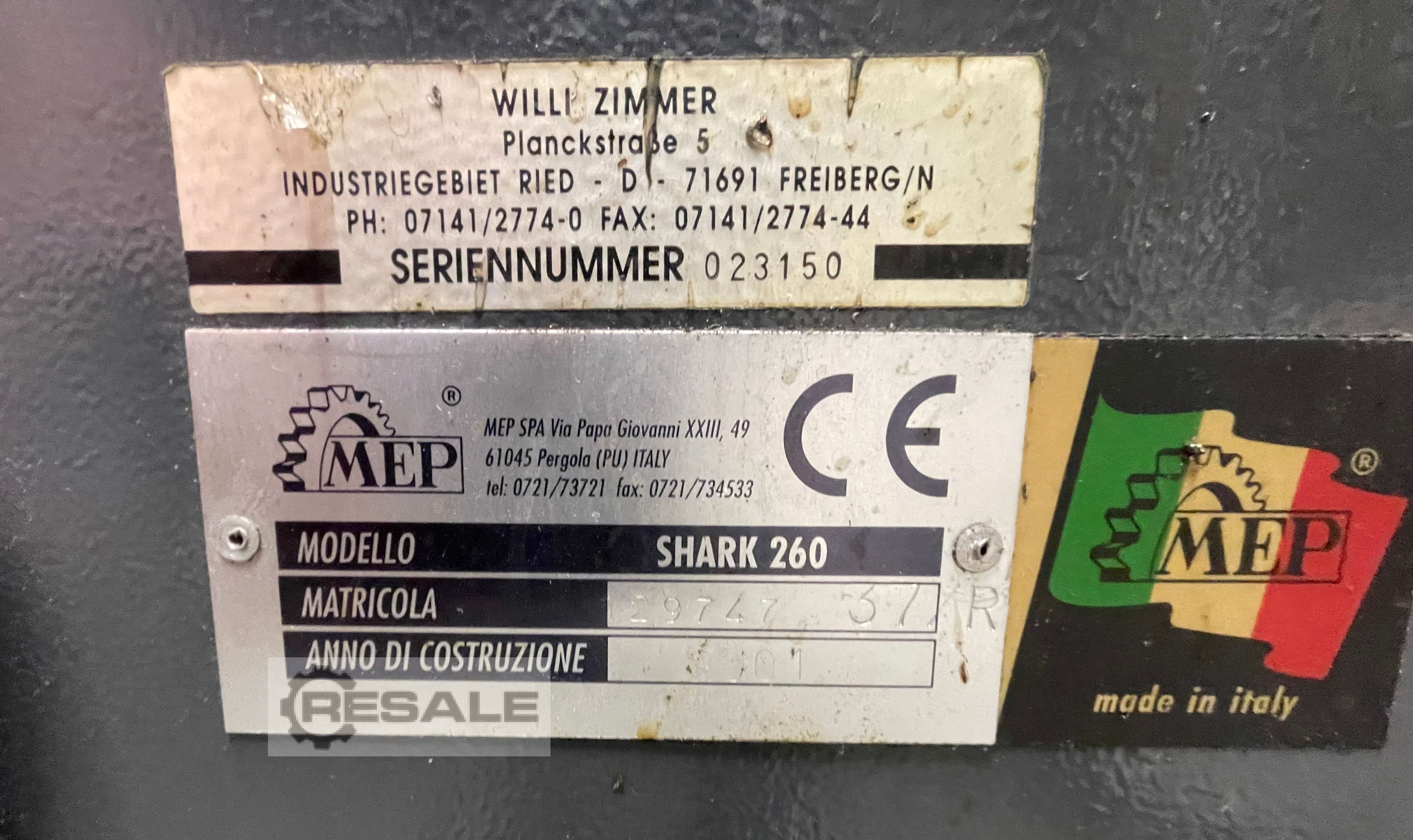

1. Machine identification data

Name: Semi-Automatic Horizontal Bandsaw
Manufacturer: MEP
Model: Shark 260
Year of manufacture: 2001
Machine number: 29747 37.R

2. Operational parameters

Saw blade size: 2750 x 27 x 0.9 mm
Cutting speeds: 2 speeds (36 & 72 RPM)
Motor power (P max): 1.9 kW
Operation mode: Semi-automatic with CCS (Cut Control System)
Clamping: Pneumatic quick clamping
Mitering capability: Yes
Features: Assistant saw lowering, adjustable lowering feed rate, coolant pump in machine base

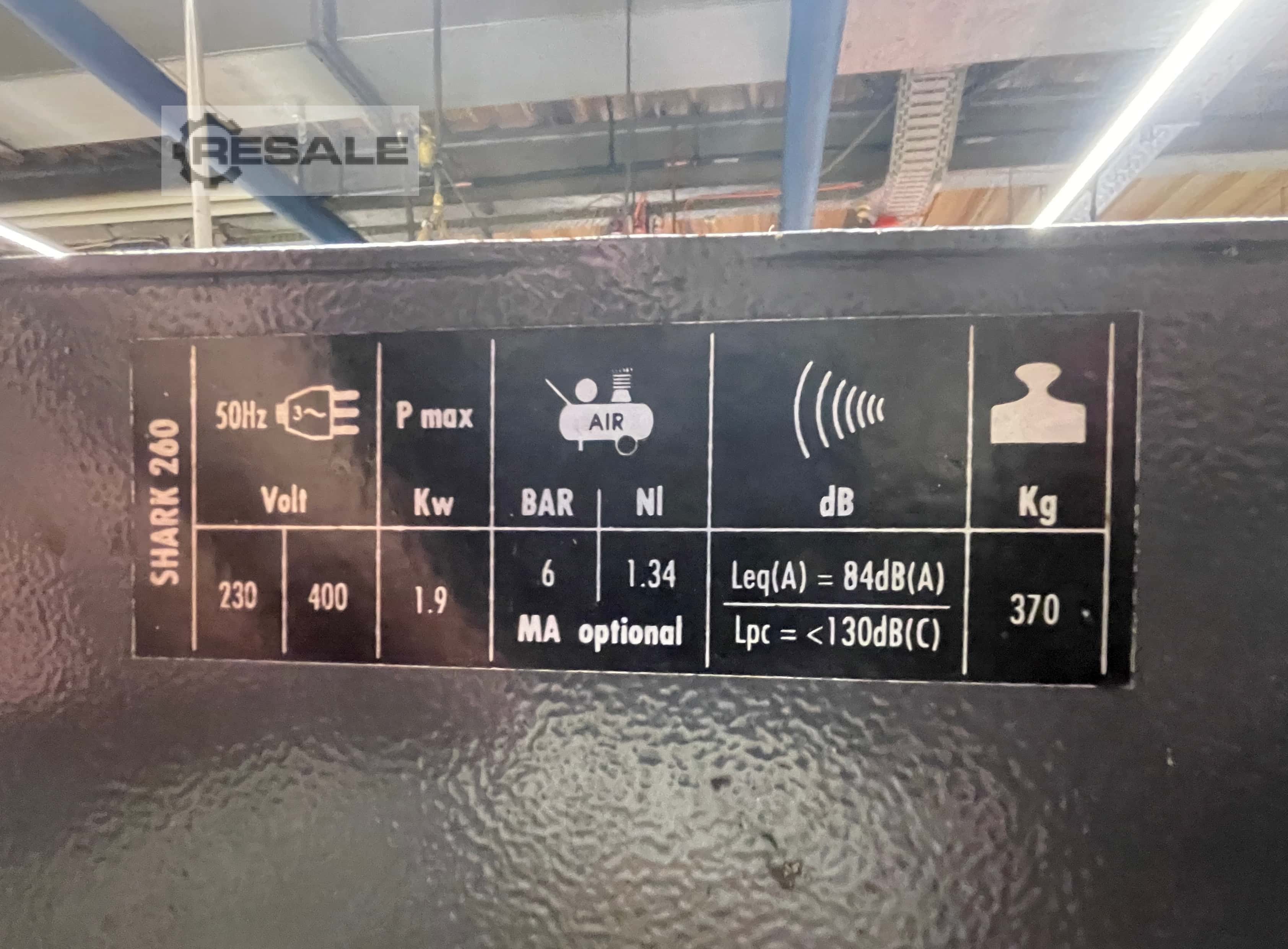

Electrical connection: 400 V (3 Phase) / 50 Hz (optional 230 V)
Air requirement: 6 bar

3. Weights

Machine weight: 370 kg

4. Dimensions

Overall machine size (Width x Length x Height): 80 x 158 x 190 cm
‍

‍

Disclaimer: The technical specifications provided are for general reference only and have been sourced from publicly available information for the same or similar model.
seller offer No. resale 528
