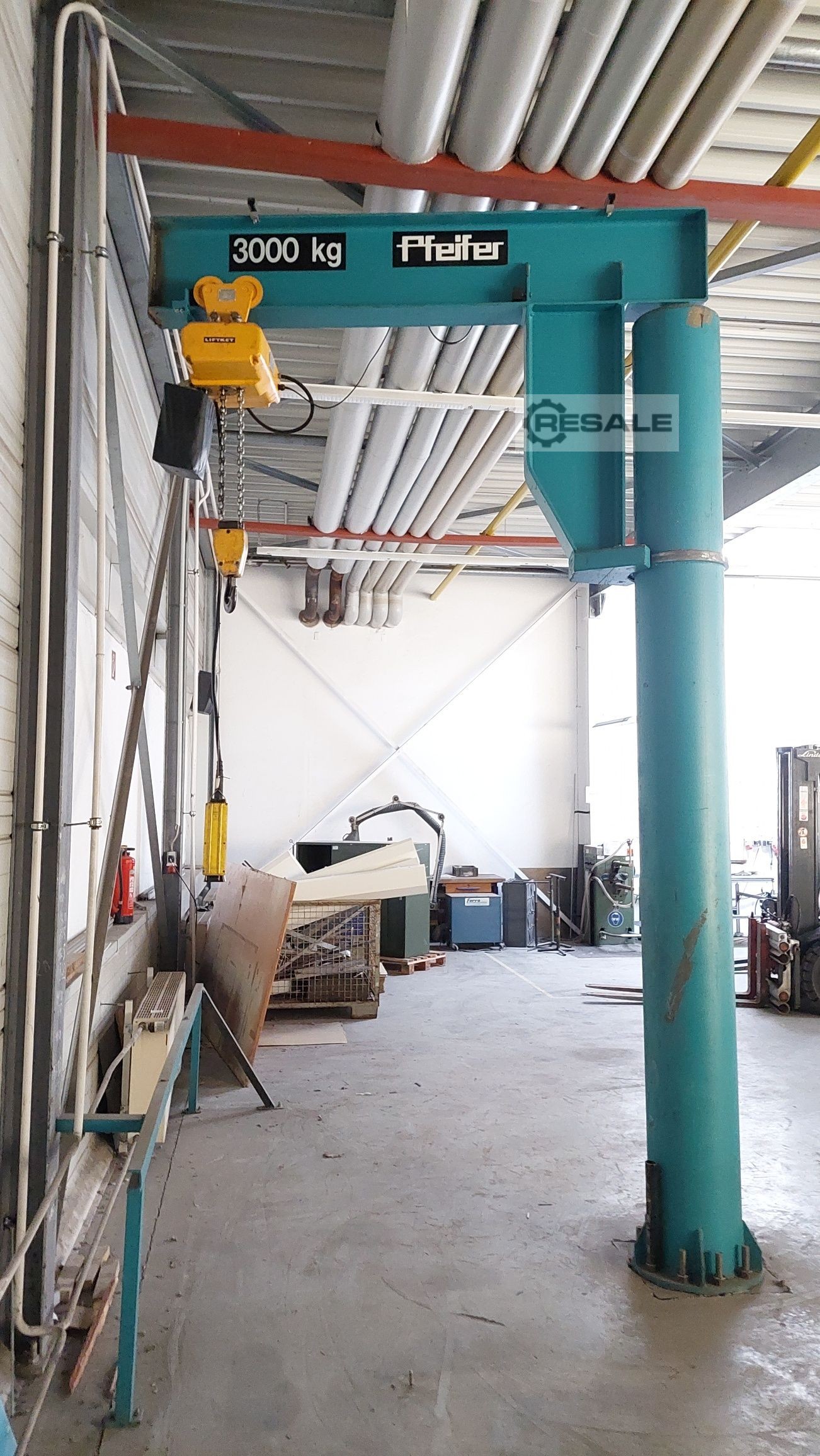

Pillar slewing crane PFEIFER PSE 360 x 2250
machines for mechanical handling, storage equipment / cranes
Manufacturer: PFEIFER
Model:PSE 360 x 2250
Type of machine: Pillar slewing crane
item-No.: 168568354
Quantity: 1
Date: 13.01.2026
Year of manufacture: 1993
Location:
Germany
63322 Rödermark
Price:
Seller-item-No.:Lg.-Nr. 25516
Offer 25516
Technical data:
- Load capacity 3000 kg
- Projection 1800 mm
- Heel height approx. 3200 mm
- Swivel radius approx. 360 °

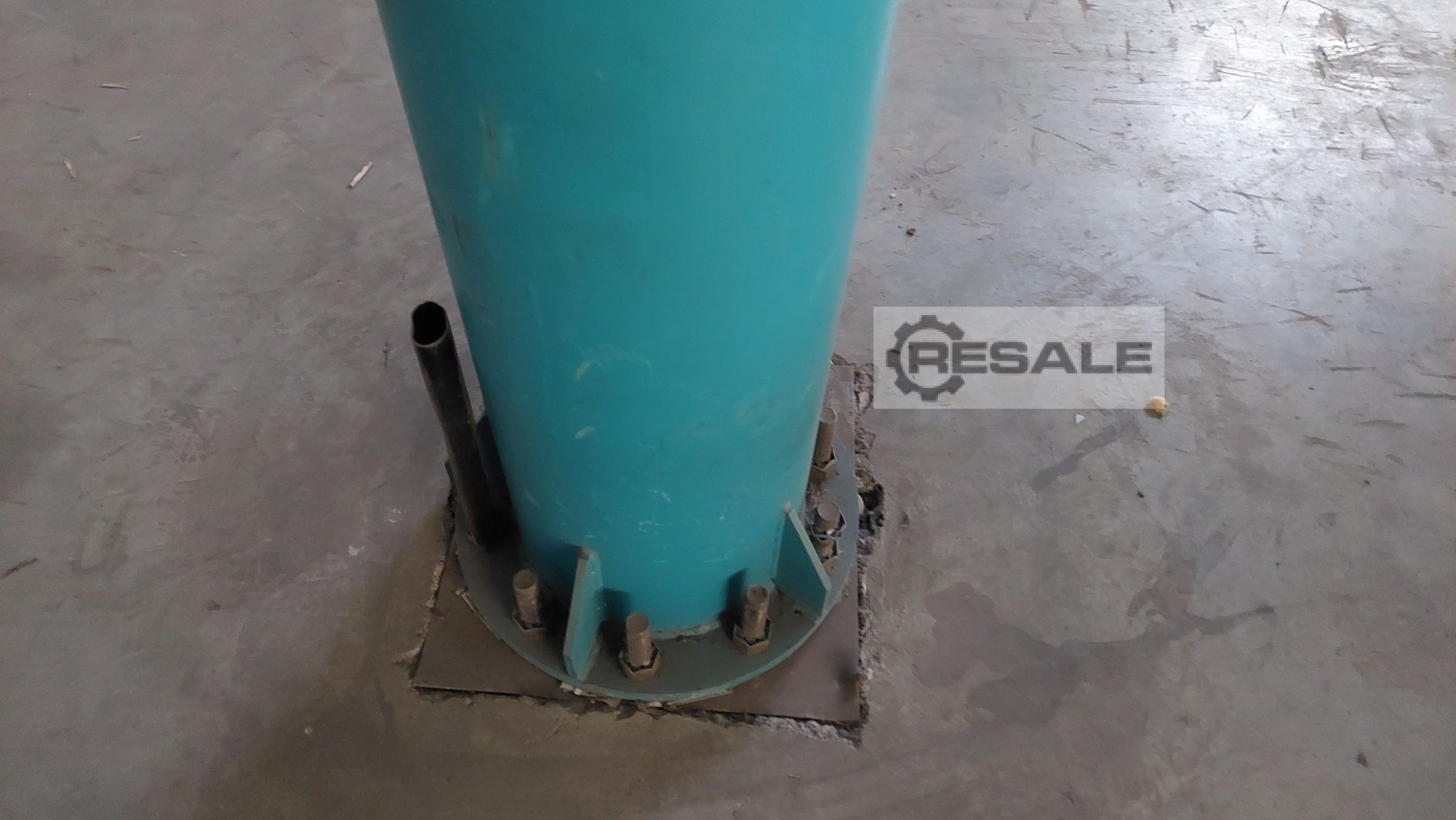

- Column diameter approx. 380 mm
- Column height / lower edge of the boom approx. 3700 mm
- Height of the boom approx. 400 mm
- Total height approx. 4250 mm

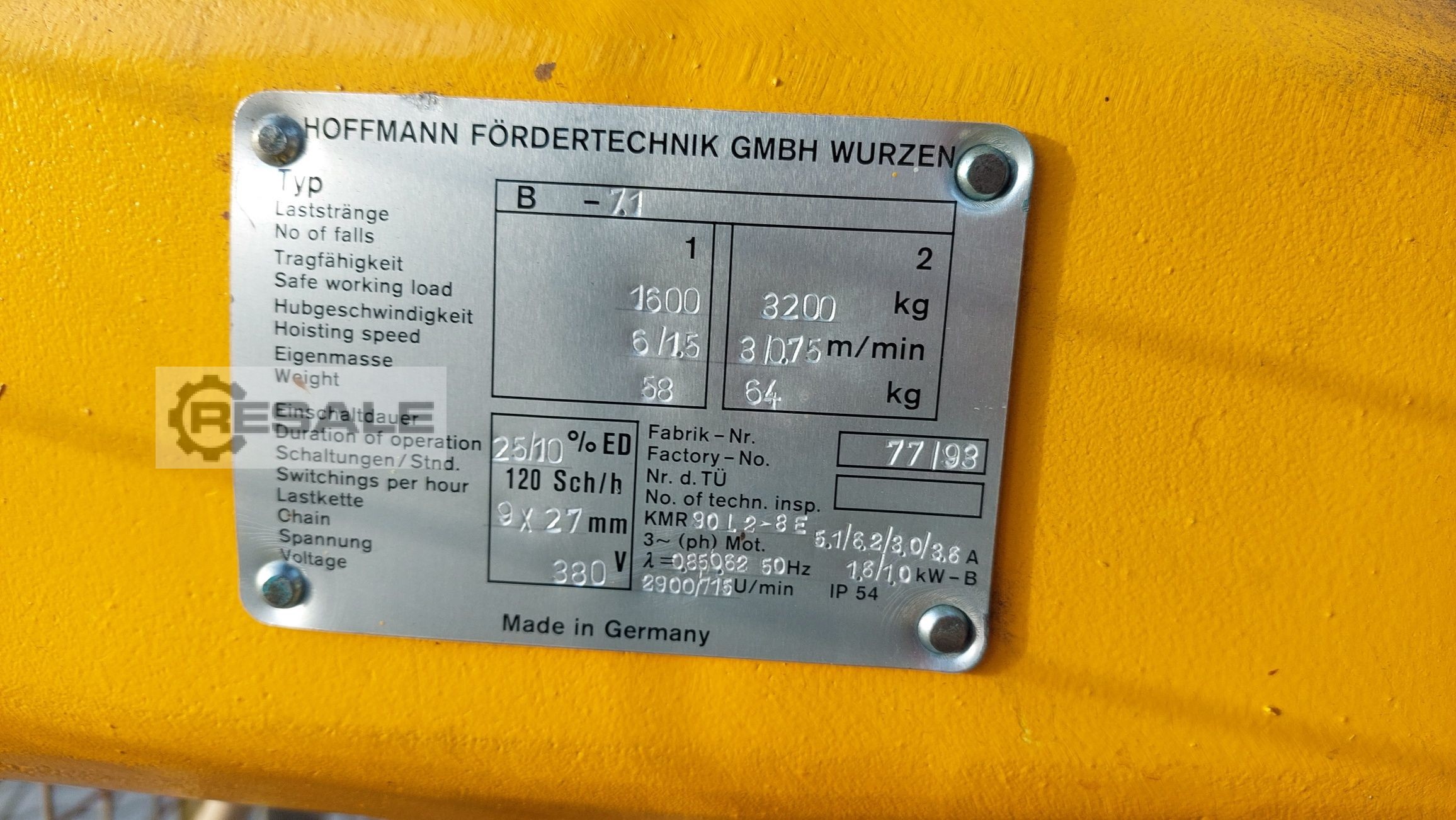

Hoist
- Load capacity 3000 kg
- Drive 400 V / 1.0 / 1.8 kW.
- Lifting speed approx. 0.75 / / 3.0 m/min

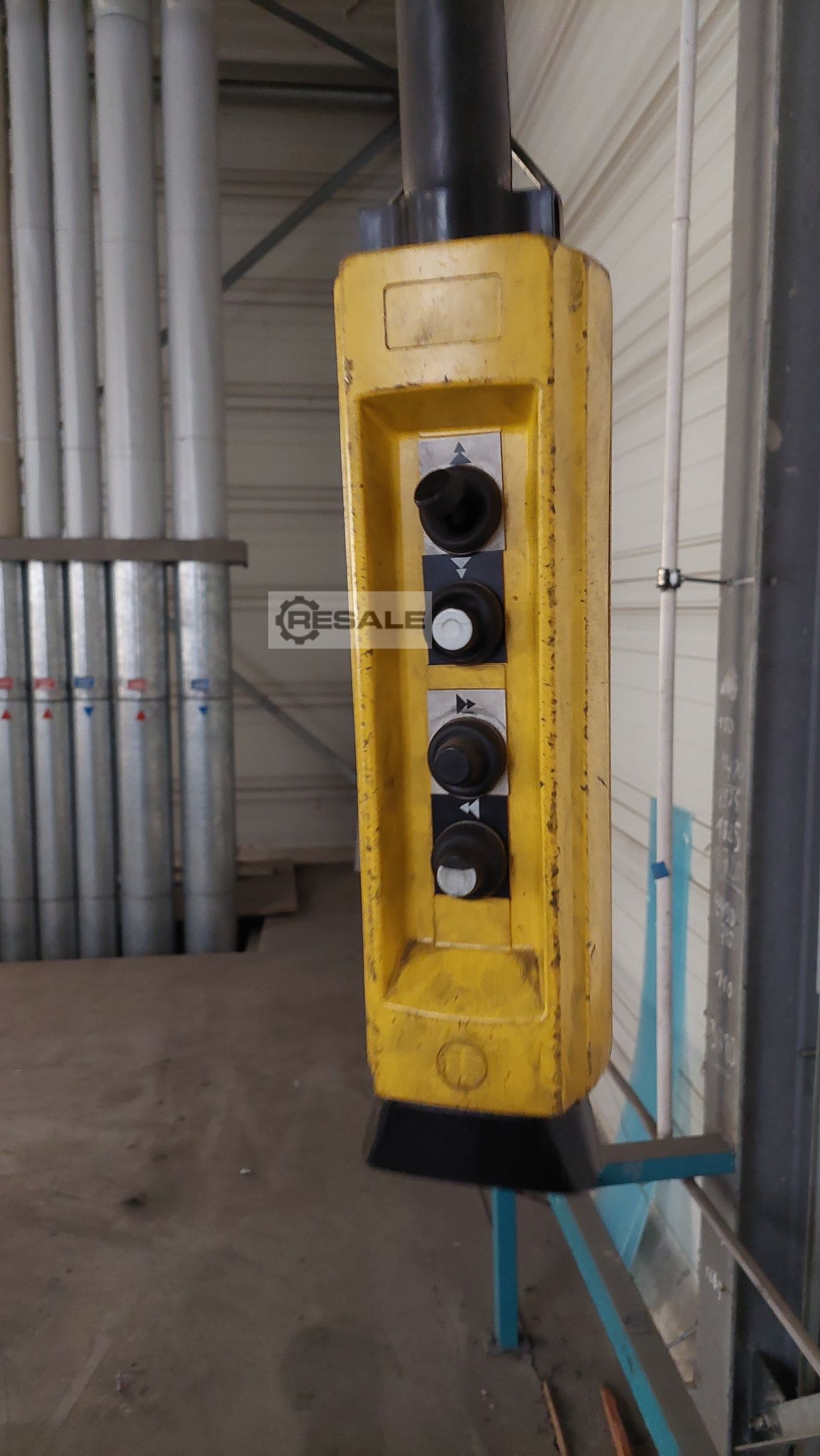

- Operation of the M6337496 chain hoist via handheld remote control
- Movement of the electric chain hoist motorized via hand-held remote switch
- Swivelling of the boom by hand
- Total weight column-boom chain hoist approx. 800 kg
Technical data:
- Load capacity 3000 kg
- Projection 1800 mm
- Heel height approx. 3200 mm
- Swivel radius approx. 360 °
- Column diameter approx. 380 mm
- Column height / lower edge of the boom approx. 3700 mm
- Height of the boom approx. 400 mm
- Total height approx. 4250 mm
Hoist
- Load capacity 3000 kg
- Drive 400 V / 1.0 / 1.8 kW.
- Lifting speed approx. 0.75 / / 3.0 m/min
- Operation of the M6337496 chain hoist via handheld remote control
- Movement of the electric chain hoist motorized via hand-held remote switch
- Swivelling of the boom by hand
- Total weight column-boom chain hoist approx. 800 kg
