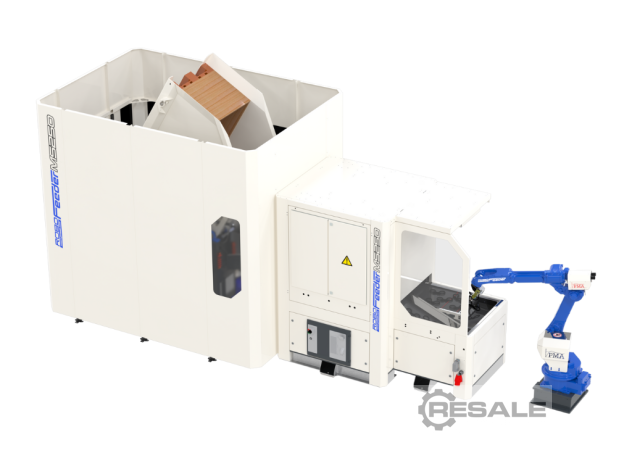

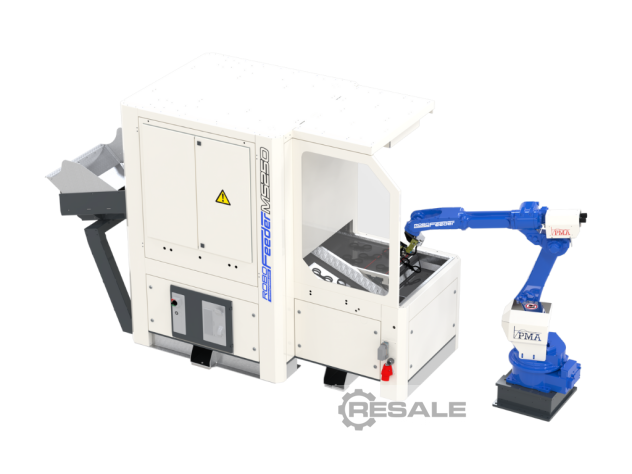

Robot cell ROBOFEEDER MultiSorter

MultiSorter is a standardized solution for the fully automatic feeding of unsorted components. The components are fed into the system, where they are separated and then forwarded to the robot. The robot picks the parts using the vision system that is fully integrated into the control system.
System. The vision system guides the robot and ensures that components with incorrect placement are automatically returned. It can also monitor the quality of the components.

The system ensures that the components do not overlap to the robot via the feeding mechanism. MultiSorter also has a built-in emptying function, which allows for quick and easy product changeover.

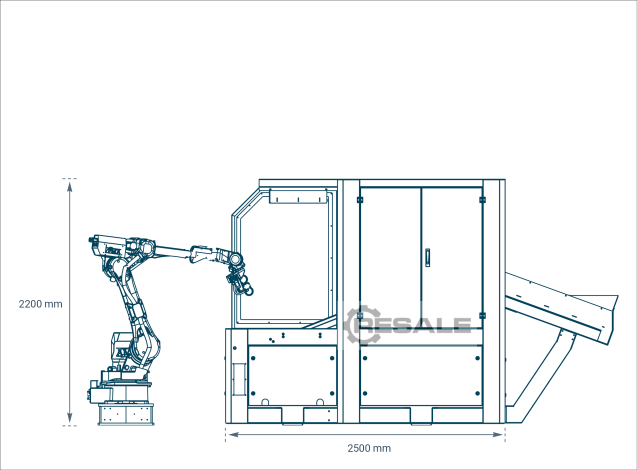

The entire system is built on a transportable, stable steel frame in which everything is integrated and assembled. This enables fast and efficient installation and commissioning at the customer's site.

The system can be combined with various options, such as conveyor belts, measuring boxes, washing systems, handling stations, marking systems, etc.

At a glance:

- Large series
- Component weight up to 3 kg
- Easy to use
- Handles various objects
-Turn
-Mill
- Gripping pressure
- Multiple CNC machines
- Gripping pressure
-Remote maintenance

The advantages:

- Standard equipment = short delivery times, available in right or left design
- Fully tested module = Quick installation
- Robot size according to requirements and requirements
- High-speed variant with delta robot, pick-and-place in up to 1 second
- Up to 3 different products at the same time
- Pallet tipper for EU pallets weighing up to 1300 kg and a sequence dispenser function for components
- Components up to 3 kg/piece and up to 250 mm in length
- Flexible separation of different components at the same time
- Visual guidance with 2D or 3D systems for fixtureless handling of components
- Various options such as measuring boxes, re-gripping stations, blow cleaning, washing, coarse and fine grinding, screening, etc.
- Layout adapted to each project
- Various grippers: 2- or 3-jaws, vacuum, magnetic or electric grippers
- Individually adjustable gripping pressure as standard
- Complete monitoring of the parts in the grippers – in case of material loss or jammed grippers
- Automatic tool change
- Very easy to set up new parts in about 10 minutes
- RoboFeeder software for easy setup of new parts
- Suitable for all machine types and brands
- CE marking as machine group 2A
seller offer No. resale MultiSorter
