Sheet Metal Bending Machines SCHRÖDER-FASTI 102-10-1,5
metal working machines / sheet metal working / Sheet Metal Bending Machines
Manufacturer: SCHRÖDER-FASTI
Model:102-10-1,5
Type of machine: Sheet Metal Bending Machines
item-No.: 168403278
Quantity: 1
Date: 12.12.2025
Year of manufacture: 2009
Location:
Germany
63322 Rödermark
Price:
Seller-item-No.:Lg.Nr. 25420

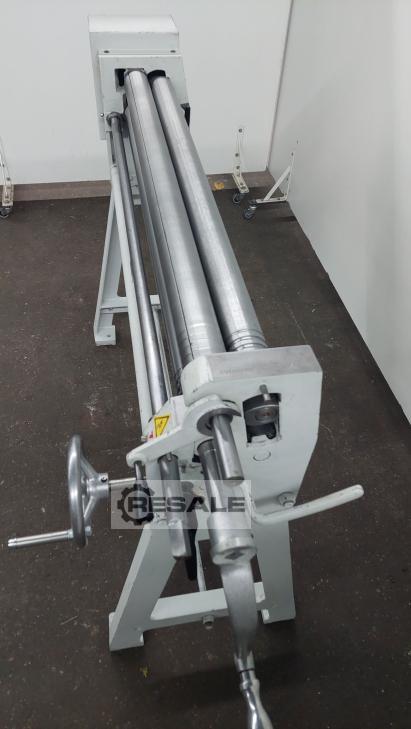

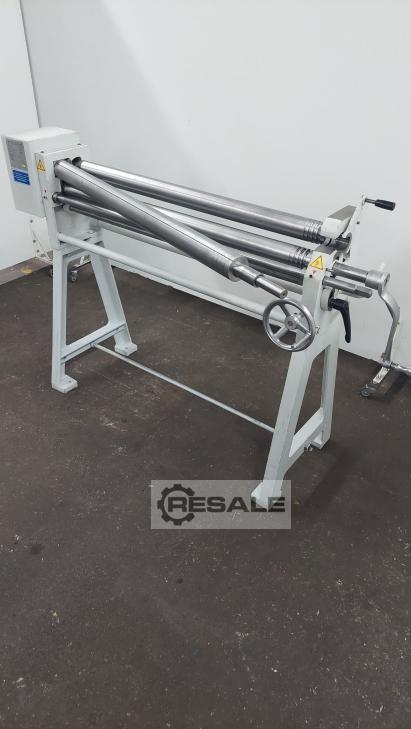

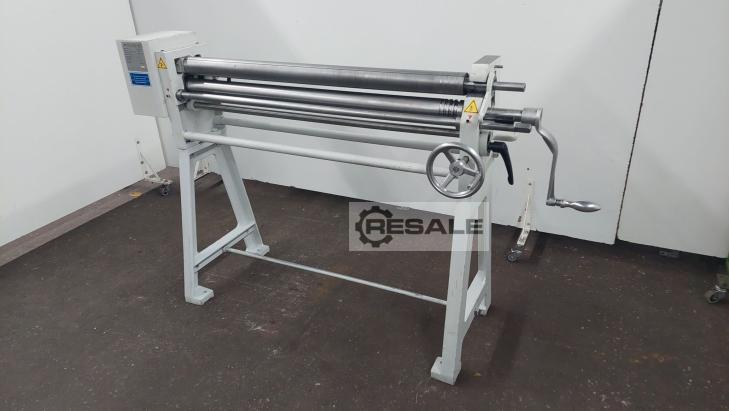

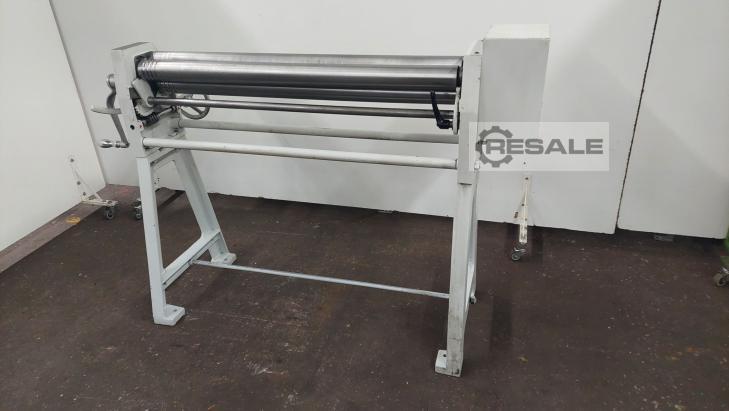

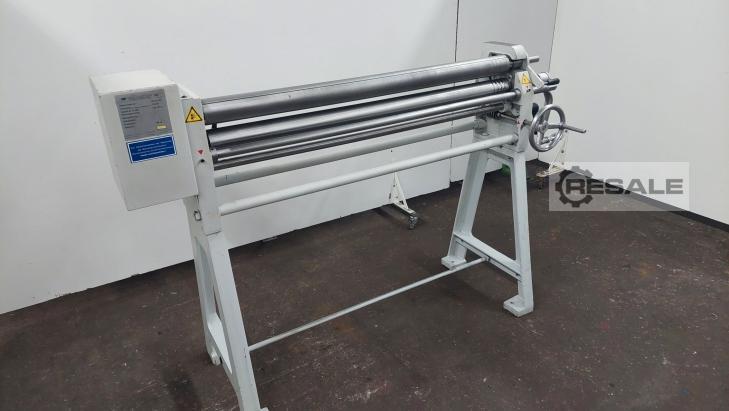

Hand-operated 3-roll sheet metal round bending machine with
asymmetrical roller order
Specifications:
- Working width max. 1020 mm
- Material thickness max. 1.5 mm
- Roller diameter 64 mm
- Upper roller turned into a crown, can be swung forward
- Rear shaft with handwheel diagonally adjustable for conical rounding
- Lower roller adjustment M51237496 with control lever and eccentric
- Front shaft parallel
- Space requirement approx. W 1250 x H 950 x D 750 mm
- Weight approx. 200 kg
Specifications:
- Working width max. 1020 mm
- Material thickness max. 1.5 mm
- Roller diameter 64 mm
- Upper roller turned into a crown, can be swung forward
- Rear shaft with handwheel diagonally adjustable for conical rounding
- Lower roller adjustment M51237496 with control lever and eccentric
- Front shaft parallel
- Space requirement approx. W 1250 x H 950 x D 750 mm
- Weight approx. 200 kg
