Single screw-type extruding machine used for sale (17)

Key data: 35 mm, 25 , 103 U/min

Used extruder 35mm - 25 l/d with 5.6 kW drive 3-zone auger 3 heating/cooling zones on the cylinder + 1 tool zone Mass pressure sensor 500 bar All machine cables designed to be plugged in Control cabinet with main switch, motor controller, mass pressure indicator and 4 pieces of temperature controller Function-tested

screw ø:: 120 mmscrew length:: -- screw speedl:: -- U/mindrive power:: 36 kWCondition: used -Specification: Single screw TPE extruder type 120 - second-hand- Screw diameter: 120 mm- Dimensions length approx.: 3.000 mm Width approx.: 1,700 mm Height approx.: 1,900 mm- Output approx.: 215 kg/h- Motor power: 36 kW- Weight approx.: 2,300 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Screw ø 75-36D; approx. 600 kg/h A.C. Engine 182.0 kW

Main extruder : KME 1-90-36R, main drive 255 kW Co Extruder Inner Layer : KME 45-30 Co Extruder Outer Layer: KME 45-36BR, New Screw Condition : good, straight from production. Compact design, 1 common control cabinet Note : 3-layer pipe head up to 315 mm available

Main extruder : KME 1-90-36R, main drive 255 kW Co Extruder Inner Layer : KME 45-30 Co Extruder Outer Layer: KME 45-36BR, New Screw Condition : good, straight from production. Compact design, 1 common control cabinet Note : 3-layer pipe head up to 315 mm available

Key data: 20 mm, 150 , 2150 U/min

with PE screw, Capacity approx. 350 kg/h complete with motor, gearbox and Heating tapes Good condition, immediately available

Key data: 75 mm, 30

Single Screw Extruder Cincinnati TALOS 75-30G Output capacity: max. 450 kg/h (depending on material and processing conditions) Screw diameter: 75 mm, L/D = 30 Screw geometry for processing HDPE/PP 11 x Tool Zones incl. TC Type J ITIB 3-pin Thermal Probe incl. mass temperature and pressure sensor Interface for succession via CAN Open Bus Machine control Cincinnati EXcXP-touch Drive power main motor: 125 kW Total connected load: 178 kW Machine weight: 2,200 kg Remark: incl. spare engine (used) without material hopper Condition: used, function tested

Key data: 20 mm, 25

single-screw laboratory extruder Collin E 20 M Output capacity: max. 5 kg/h (depending on material and processing conditions) Screw diameter: 20 mm, L/D = 25 Screw suitable for processing PE/PP (condition: excellent) Heating capacity cylinder: up to 300 C incl. mass pressure and temperature sensor Incl. motorized lifting device for the height adjustment of the processing unit incl. material funnel incl. clamping flange for nozzle attachment Total connected load: 17 kW Dimensions (L x W x H): 1,450 x 800 x 1,900 mm Weight: 300 kg Note: including complete documentation Condition: used, function-tested

CINCINNATI PROTON 45-30G Attention: Machine in left-hand version Screw diameter: 45 mm, L/D = 30 Grooved catchment zone Motor (DC drive): 65 kW Screw speed: max. 320 rpm Tool zones: 4+1 for adapters Melt pressure & temperature sensor included EXcPRO-NT control incl. CAN bus for data communication Air conditioner for control cabinet Cylinder in bimetal design – condition: very good Screw with few operating hours – condition: very good Without material funnel & without adapter

Key data: 45 mm, 1350 , 298 U/min

Single Screw Extruder Cincinnati Talos 45-30 G Year of construction 2009 + Corrugator Maintools MTC 60/90 Year of construction 2006 Both machines are in good condition, and immediately available

Key data: 35 mm, 25 , 107 U/min

used REIFHÄUSER single screw extruder with screw size: diameter 35mm / 25 ld The extruder is in very good condition Type RT 78-1-35-25 New control cabinet with new motor AC -7,5kW Year of construction 1994 Quickly available

Key data: 50 mm, 30

Used extruder in good condition with screw size: diameter 50 mm x 30v grooved intake and degassing zone Type RH 241-1-50-30v with DC drive 30.2 kW Built in 1993 Immediately available without control cabinet With control cabinet 4-6 weeks delivery time

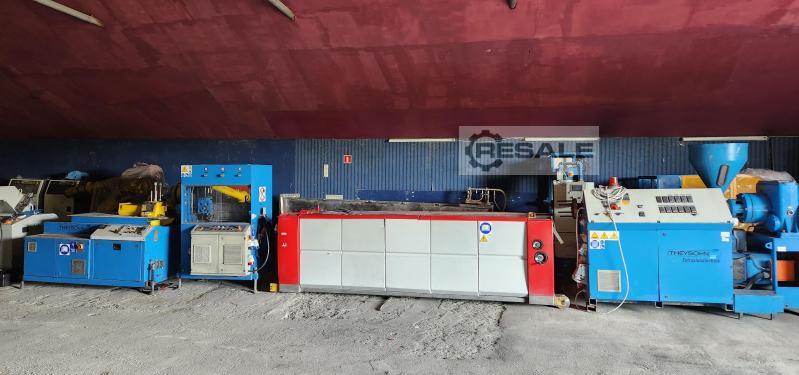

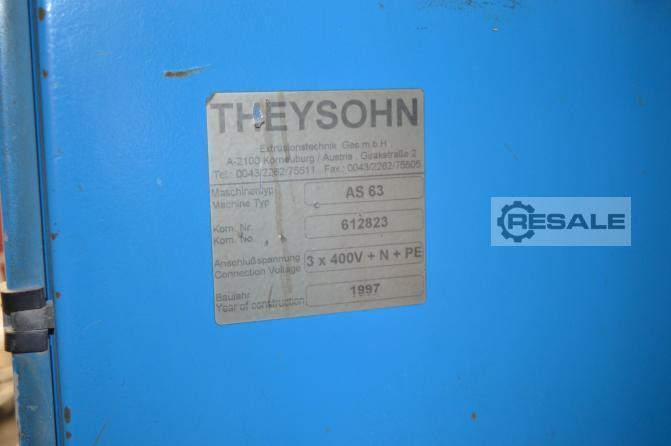

Single screw Extruder Theysohn 63mm

in very good working condition

see PDF attached

Material: PE, PP, PS, ABS, // Details: DC motor: 93 kW, degassing, screw diameter 115 mm, L/D 26
