Travelling column milling machines SORALUCE FL-10.000

x-travel: 10.000 mm
y-travel: 2.200 mm
z-travel: 1.300 mm
control: HEIDENHAIN TNC 640
clamping table: -
surface area: 11.000 x 2.000 mm
max. workpiece weight: 10.000 kg/m²
Universal Milling Head: _
Swiveling area front/back level: automatsich
Indexing: 2,5 x 2,5 ° Hirtverzahnung
Constant Power at 100 % ED: 43 kW
Speed range, stepless: 15 - 5.000 min-1
max. torque: 900 Nm
tool taper: SK 50 – DIN 69871-AD
internal coolant system feed: durch das Spindelzentrum
automatic tool changer ATC: -
Tool places: 60 Plätze
diameter of tools max.: 125/250 mm
workpiece length: 400 mm
weight of tools max.: 20 kg
internal coolant system feed: durch das Spindelzentrum
changing positions: vertikal /horizontal
feeds: -
X-, Y- and Z-axis, stepless: 2 - 10.000 mm/min
max. feed force X-Y-Z-axis: 16.000 N
weight of the machine ca.: 40 t
dimensions of the machine ca.: 18,2 x 6,0 x 4,9 m
• Universal milling head, 2.5° indexable, positioning via Hirth coupling
• SK50 BIG Plus spindle, 37 kW, spindle speed max. 5,000 rpm

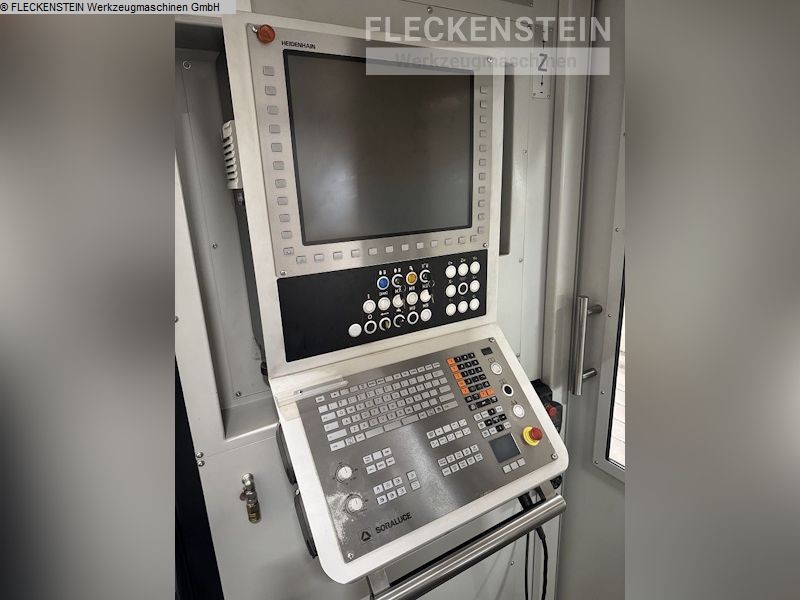

• HEIDENHAIN TNC 640 HSCI CNC control with HEROS 5 and HEIDENHAIN digital drives
• Manufacturer software SSV - Spindle Speed Variation: Automatic regulation
of spindle speed during the machining process for extended tool life
• Manufacturer software Adaptive Control: Automatic feed control during the
machining process for extended tool life and fewer tool breakages
Manufacturer
softwareAccura Heads”
• Manufacturer software „DAS – „Dynamics Active Stabilizer: A sensor-actuator
combination eliminates disruptive vibration frequencies in real time during the
millingprocess
• HEIDENHAIN HR520 electronic handwheel with display
• Integrated Brankamp CMS XL Pro collision monitoring with 2 measurement
channels
• Automatic tool changer with 60 magazine slots

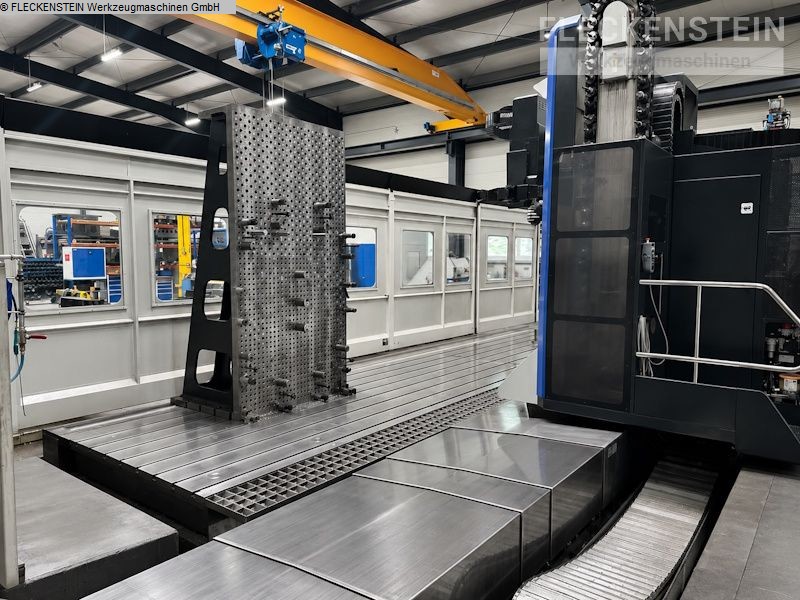

• Sturdy and spacious clamping area of 11,000 x 2,000 mm in front of the
machine, consisting of two separate plate sections with 8 nuts on the table
surface
• Coolant system with belt filter, 1,000 l tank volume and two coolant
circuits, internal coolant supply with 40 bar
• 1 chip conveyor, between traveling column and the panel section, loading
length approx. 11 m, discharge on the right, approx. 1,000 mm above the floor
• Hexagon 3D touch probe (m&h20.41)
• Light barrier monitoring
• High enclosure on the front with optimal accessibility thanks to
wide-opening, motor driven operator doors
• Operator platform traveling along the X-axis
• Work area cladding closed on the sides
• Lighting of the operator area
• Lighting of the work area
• Preparation for the fourth axis (rotary table)

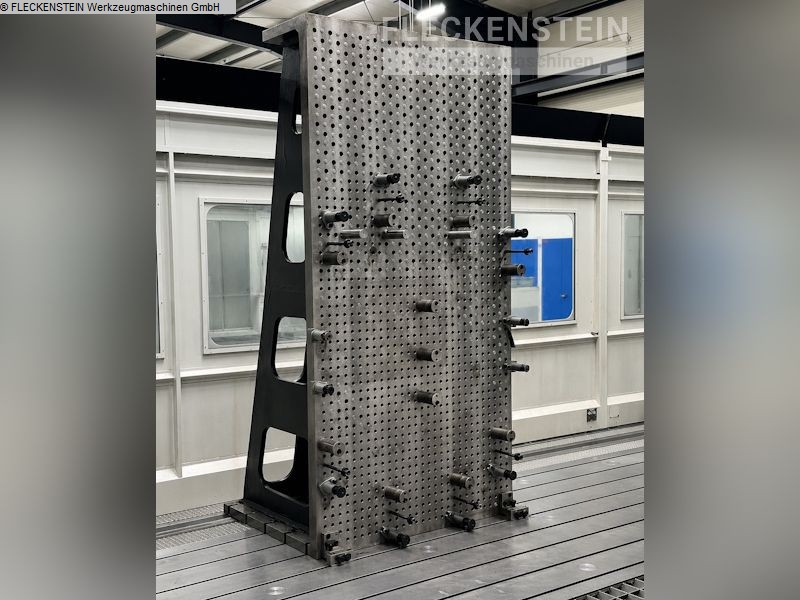

• 2 clamping angles with mounting holes + threads, each 3,000 x 1,500 mm
(height x width), hole pattern 100 x 100 mm
• Operating hours: Machine ON approx. 18,100 h | Program run approx. 5,800 h
